3-26 Features and controls
3
Warning activation
N00503500160
With the F.A.S.T.-key, warnings are given through buzzers and
displays on the information screen in the multi-information
display in order to prevent mistaken operations or vehicle theft.
When a warning operates, be sure to check the vehicle and the
F.A.S.T.-key. A warning is also displayed if there is a problem
in the F.A.S.T.-key.
If the following warning displays, contact an authorized
Mitsubishi Motors dealer.
CAUTION
!
If the engine is stopped while driving, the power
brake booster will stop functioning and greater
effort for braking will be required. Also, the power
steering system will not function and it will require
greater effort to manually steer the vehicle.
Do not leave the ignition switch in the “ON” position
for a long time when the engine is not running.
Doing so could lead to a dead battery.
Do not turn the ignition switch to the “START”
position when the engine is running. It will damage
the starter motor.
Ty p e 1
Ty p e 2There is a problem in the F.A.S.T.-key
BK0150800US.book 26 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-27
3

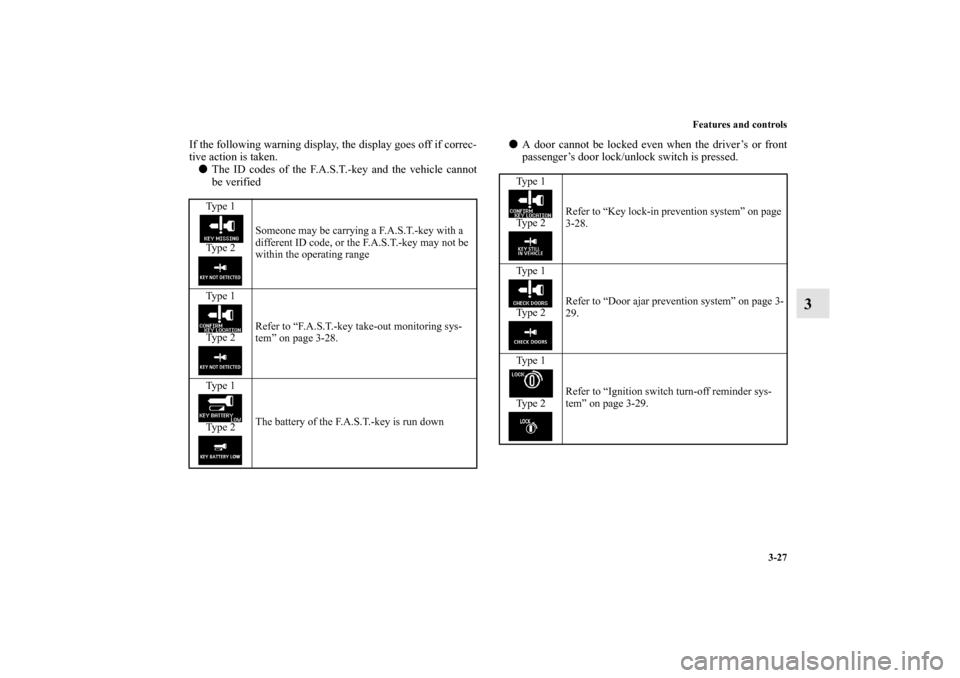

If the following warning display, the display goes off if correc-
tive action is taken.

The ID codes of the F.A.S.T.-key and the vehicle cannot
be verified
A door cannot be locked even when the driver’s or front
passenger’s door lock/unlock switch is pressed.
Ty p e 1

Ty p e 2Someone may be carrying a F.A.S.T.-key with a
different ID code, or the F.A.S.T.-key may not be
within the operating range
Ty p e 1
Ty p e 2Refer to “F.A.S.T.-key take-out monitoring sys-
tem” on page 3-28.
Ty p e 1
Ty p e 2The battery of the F.A.S.T.-key is run down
Ty p e 1
Ty p e 2Refer to “Key lock-in prevention system” on page
3-28.
Ty p e 1
Ty p e 2Refer to “Door ajar prevention system” on page 3-
29.
Ty p e 1
Ty p e 2Refer to “Ignition switch turn-off reminder sys-
tem” on page 3-29.
BK0150800US.book 27 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-28 Features and controls
3

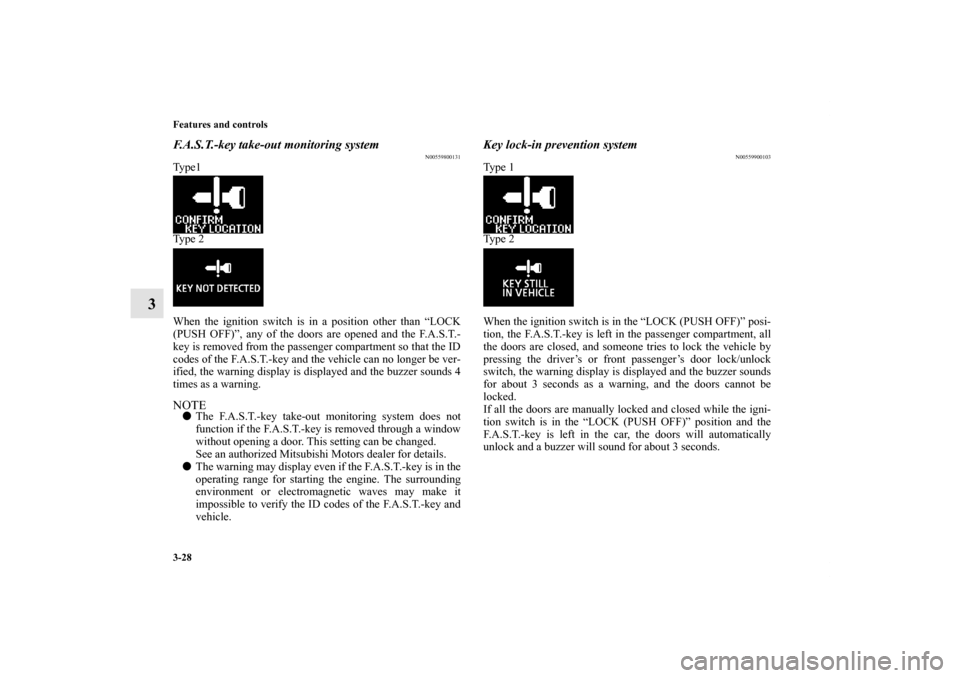

F.A.S.T.-key take-out monitoring system
N00559800131
Ty p e 1
Ty p e 2
When the ignition switch is in a position other than “LOCK
(PUSH OFF)”, any of the doors are opened and the F.A.S.T.-
key is removed from the passenger compartment so that the ID
codes of the F.A.S.T.-key and the vehicle can no longer be ver-
ified, the warning display is displayed and the buzzer sounds 4
times as a warning.NOTE
The F.A.S.T.-key take-out monitoring system does not
function if the F.A.S.T.-key is removed through a window
without opening a door. This setting can be changed.
See an authorized Mitsubishi Motors dealer for details.

The warning may display even if the F.A.S.T.-key is in the
operating range for starting the engine. The surrounding
environment or electromagnetic waves may make it
impossible to verify the ID codes of the F.A.S.T.-key and
vehicle.
Key lock-in prevention system
N00559900103
Ty p e 1
Ty p e 2
When the ignition switch is in the “LOCK (PUSH OFF)” posi-
tion, the F.A.S.T.-key is left in the passenger compartment, all
the doors are closed, and someone tries to lock the vehicle by
pressing the driver’s or front passenger’s door lock/unlock
switch, the warning display is displayed and the buzzer sounds
for about 3 seconds as a warning, and the doors cannot be
locked.
If all the doors are manually locked and closed while the igni-
tion switch is in the “LOCK (PUSH OFF)” position and the
F.A.S.T.-key is left in the car, the doors will automatically
unlock and a buzzer will sound for about 3 seconds.
BK0150800US.book 28 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-29
3

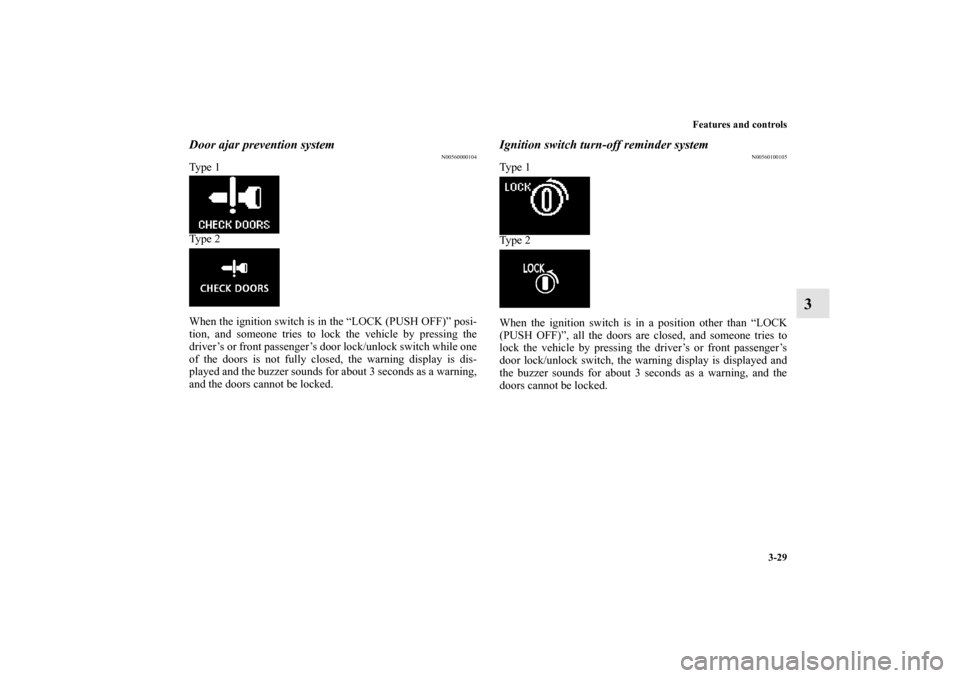

Door ajar prevention system
N00560000104
Ty p e 1
Ty p e 2
When the ignition switch is in the “LOCK (PUSH OFF)” posi-
tion, and someone tries to lock the vehicle by pressing the
driver’s or front passenger’s door lock/unlock switch while one
of the doors is not fully closed, the warning display is dis-
played and the buzzer sounds for about 3 seconds as a warning,
and the doors cannot be locked.
Ignition switch turn-off reminder system
N00560100105
Ty p e 1
Ty p e 2
When the ignition switch is in a position other than “LOCK
(PUSH OFF)”, all the doors are closed, and someone tries to
lock the vehicle by pressing the driver’s or front passenger’s
door lock/unlock switch, the warning display is displayed and
the buzzer sounds for about 3 seconds as a warning, and the
doors cannot be locked.
BK0150800US.book 29 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-30 Features and controls
3
Steering wheel lock
N00514300025
To l o c kTurn the ignition switch to the “LOCK” position.
Turn the steering wheel until it is locked.To unlockTurn the ignition switch to the “ACC” position while moving
the steering wheel slightly.
NOTE
If the front wheels are turned, the anti-theft lock may
sometimes make it difficult to turn the ignition switch
from “LOCK” to “ACC” position. Firmly turn the steer-
ing wheel to the left or to the right as you turn the ignition
switch.Starting
N00514600259
Tips for starting
Do not operate the starter motor for longer than 15 sec-
onds as this could run the battery down or damage the
starter motor. If the engine does not start, turn the ignition
switch back to the “LOCK” position, wait a few seconds,
and then try again. Trying repeatedly with the engine or
starter motor still turning will damage the starter mecha-
nism.

If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” on page 6-
2 for instructions.

A longer warm up period will only consume extra fuel.
The engine is warmed up enough for driving when the bar
graph of the engine coolant temperature display starts to
move. Refer to “Interrupt display screen (With ignition
switch in the “ON” position)” on page 3-195.

On vehicles equipped with the Twin Clutch SST, the fol-
lowing may occur after the engine is started, but they do
not indicate an abnormality.
• You may hear operational sounds of the Twin Clutch
SST and you may feel vibration in the vehicle body.
CAUTION
!
Carry the key with you when leaving the vehicle.
If your vehicle needs to be towed, turn the ignition
switch to the “ACC” position to unlock the steering
wheel.
BK0150800US.book 30 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-31
3

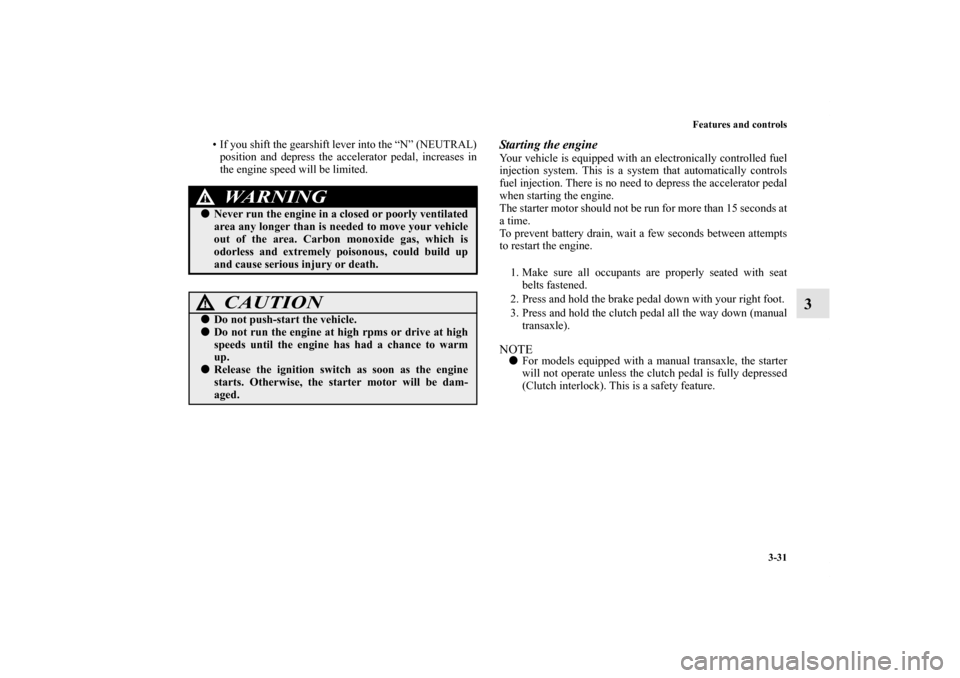

• If you shift the gearshift lever into the “N” (NEUTRAL)
position and depress the accelerator pedal, increases in
the engine speed will be limited.
Starting the engineYour vehicle is equipped with an electronically controlled fuel
injection system. This is a system that automatically controls
fuel injection. There is no need to depress the accelerator pedal
when starting the engine.
The starter motor should not be run for more than 15 seconds at
a time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.
1. Make sure all occupants are properly seated with seat
belts fastened.
2. Press and hold the brake pedal down with your right foot.
3. Press and hold the clutch pedal all the way down (manual
transaxle).NOTE
For models equipped with a manual transaxle, the starter
will not operate unless the clutch pedal is fully depressed
(Clutch interlock). This is a safety feature.
WA R N I N G
!
Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.
CAUTION
!
Do not push-start the vehicle.
Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.
Release the ignition switch as soon as the engine
starts. Otherwise, the starter motor will be dam-
aged.
BK0150800US.book 31 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-32 Features and controls
3

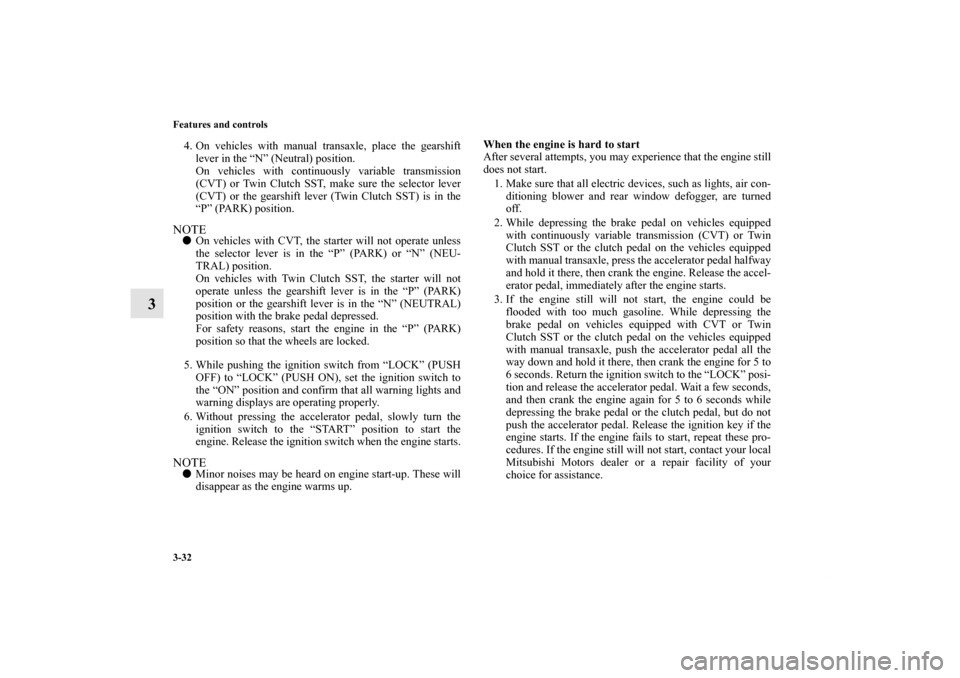

4. On vehicles with manual transaxle, place the gearshift
lever in the “N” (Neutral) position.
On vehicles with continuously variable transmission
(CVT) or Twin Clutch SST, make sure the selector lever
(CVT) or the gearshift lever (Twin Clutch SST) is in the
“P” (PARK) position.NOTE
On vehicles with CVT, the starter will not operate unless
the selector lever is in the “P” (PARK) or “N” (NEU-
TRAL) position.
On vehicles with Twin Clutch SST, the starter will not
operate unless the gearshift lever is in the “P” (PARK)
position or the gearshift lever is in the “N” (NEUTRAL)
position with the brake pedal depressed.
For safety reasons, start the engine in the “P” (PARK)
position so that the wheels are locked.
5. While pushing the ignition switch from “LOCK” (PUSH
OFF) to “LOCK” (PUSH ON), set the ignition switch to
the “ON” position and confirm that all warning lights and
warning displays are operating properly.
6. Without pressing the accelerator pedal, slowly turn the
ignition switch to the “START” position to start the
engine. Release the ignition switch when the engine starts.NOTE
Minor noises may be heard on engine start-up. These will
disappear as the engine warms up. When the engine is hard to start
After several attempts, you may experience that the engine still
does not start.
1. Make sure that all electric devices, such as lights, air con-
ditioning blower and rear window defogger, are turned
off.
2. While depressing the brake pedal on vehicles equipped
with continuously variable transmission (CVT) or Twin
Clutch SST or the clutch pedal on the vehicles equipped
with manual transaxle, press the accelerator pedal halfway
and hold it there, then crank the engine. Release the accel-
erator pedal, immediately after the engine starts.
3. If the engine still will not start, the engine could be
flooded with too much gasoline. While depressing the
brake pedal on vehicles equipped with CVT or Twin
Clutch SST or the clutch pedal on the vehicles equipped
with manual transaxle, push the accelerator pedal all the
way down and hold it there, then crank the engine for 5 to
6 seconds. Return the ignition switch to the “LOCK” posi-
tion and release the accelerator pedal. Wait a few seconds,
and then crank the engine again for 5 to 6 seconds while
depressing the brake pedal or the clutch pedal, but do not
push the accelerator pedal. Release the ignition key if the
engine starts. If the engine fails to start, repeat these pro-
cedures. If the engine still will not start, contact your local
Mitsubishi Motors dealer or a repair facility of your
choice for assistance.
BK0150800US.book 32 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-33
3

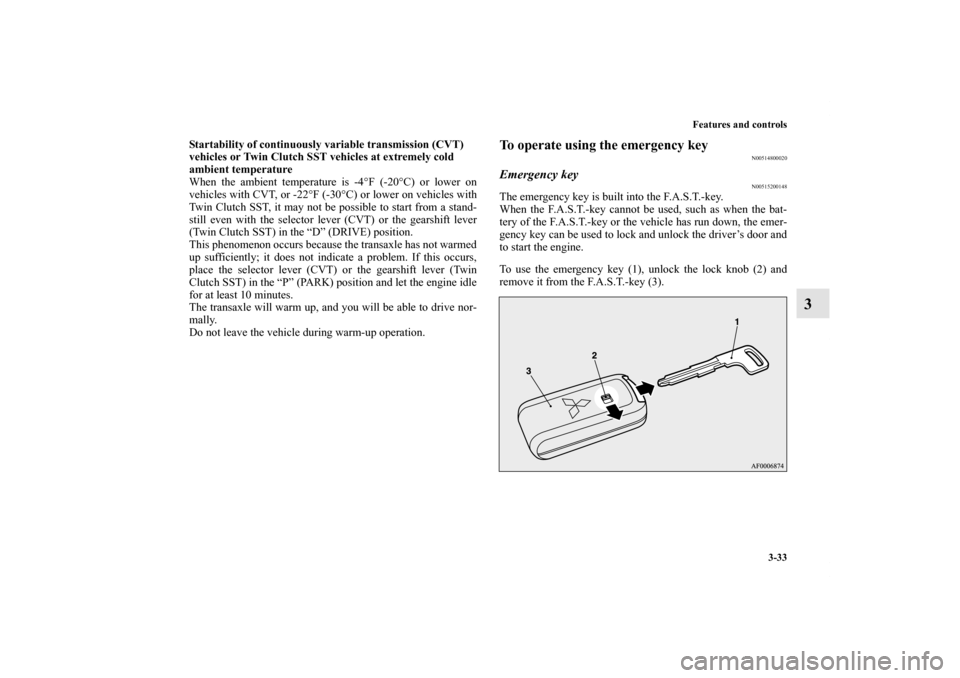

Startability of continuously variable transmission (CVT)
vehicles or Twin Clutch SST vehicles at extremely cold
ambient temperature
When the ambient temperature is -4°F (-20°C) or lower on
vehicles with CVT, or -22°F (-30°C) or lower on vehicles with
Twin Clutch SST, it may not be possible to start from a stand-
still even with the selector lever (CVT) or the gearshift lever
(Twin Clutch SST) in the “D” (DRIVE) position.
This phenomenon occurs because the transaxle has not warmed
up sufficiently; it does not indicate a problem. If this occurs,
place the selector lever (CVT) or the gearshift lever (Twin
Clutch SST) in the “P” (PARK) position and let the engine idle
for at least 10 minutes.
The transaxle will warm up, and you will be able to drive nor-
mally.
Do not leave the vehicle during warm-up operation.
To operate using the emergency key
N00514800020
Emergency key
N00515200148
The emergency key is built into the F.A.S.T.-key.
When the F.A.S.T.-key cannot be used, such as when the bat-
tery of the F.A.S.T.-key or the vehicle has run down, the emer-
gency key can be used to lock and unlock the driver’s door and
to start the engine.
To use the emergency key (1), unlock the lock knob (2) and
remove it from the F.A.S.T.-key (3).
BK0150800US.book 33 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-34 Features and controls
3
NOTE
Only use the emergency key in an emergency. When the
battery of the F.A.S.T.-key has run down, replace the bat-
tery as soon as possible and use it as a F.A.S.T.-key again.

After using the emergency key, be sure to reinsert it into
the F.A.S.T.-key.
To lock or unlock the driver’s door with the emergency key
Turn the emergency key toward the front of the vehicle to lock
the door. After checking that the door is locked, turn the emer-
gency key back to the center and remove it.
Ignition switch
N00529300209
To prevent vehicle theft, only the emergency key with the pre-
registered F.A.S.T.-key inserted can start the engine. (Elec-
tronic immobilizer function)
LOCK
The engine is off and the steering wheel is locked. The emer-
gency key can be inserted and removed only when the ignition
switch is in this position.
ACC
The electrical accessories can be used with the engine off.
ON
The engine will start only by using the emergency key with the
F.A.S.T.-key inserted. It is possible to use all electrical accesso-
ries with only the emergency key.
1- Insert or remove the emergency key
2- Lock
3- Unlock
BK0150800US.book 34 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-35
3

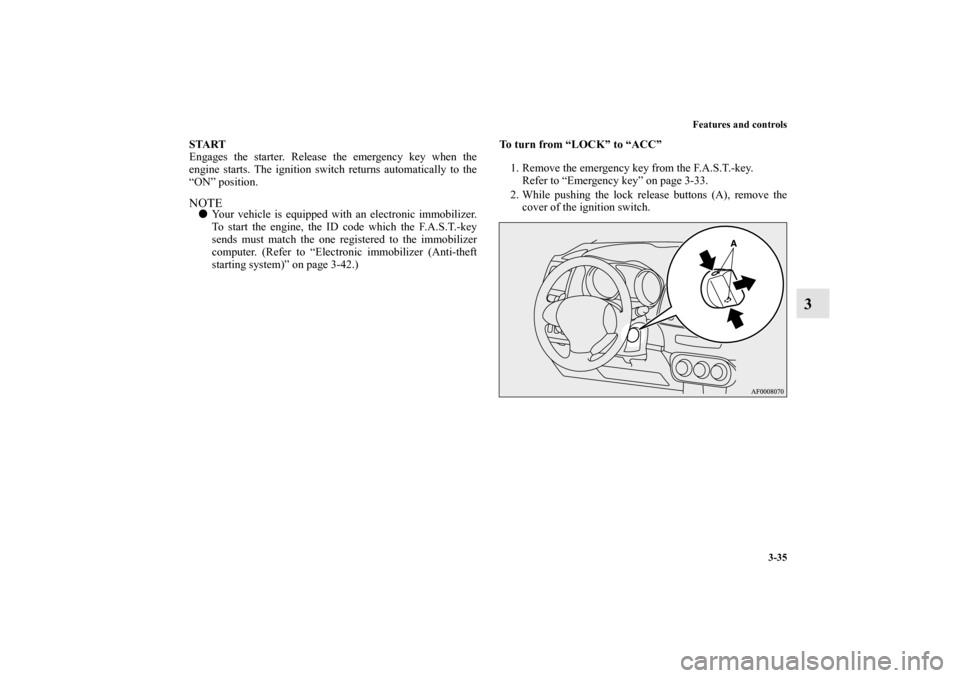

START
Engages the starter. Release the emergency key when the
engine starts. The ignition switch returns automatically to the
“ON” position.NOTE
Your vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the F.A.S.T.-key
sends must match the one registered to the immobilizer
computer. (Refer to “Electronic immobilizer (Anti-theft
starting system)” on page 3-42.)To turn from “LOCK” to “ACC”
1. Remove the emergency key from the F.A.S.T.-key.
Refer to “Emergency key” on page 3-33.
2. While pushing the lock release buttons (A), remove the
cover of the ignition switch.
BK0150800US.book 35 ページ ２０１２年３月２９日　木曜日　午後２時３８分
