Page 301 of 722

3-206 Features and controls
3

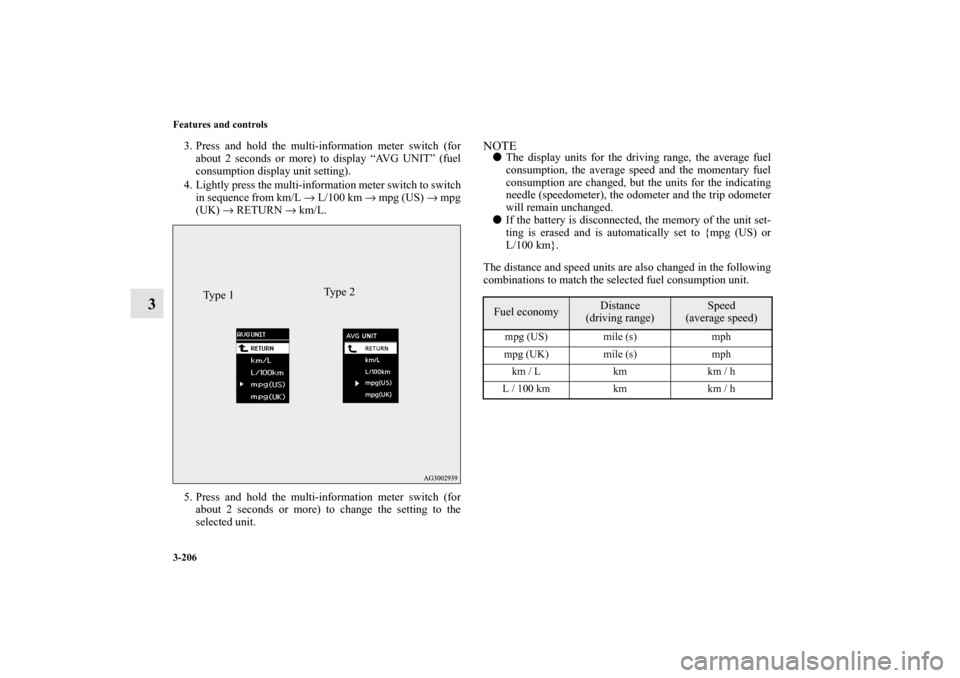

3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “AVG UNIT” (fuel
consumption display unit setting).
4. Lightly press the multi-information meter switch to switch
in sequence from km/L → L/100 km → mpg (US) → mpg
(UK) → RETURN → km/L.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected unit.
NOTEThe display units for the driving range, the average fuel
consumption, the average speed and the momentary fuel
consumption are changed, but the units for the indicating
needle (speedometer), the odometer and the trip odometer
will remain unchanged.
If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to {mpg (US) or
L/100 km}.
The distance and speed units are also changed in the following
combinations to match the selected fuel consumption unit.
Type 1Ty p e 2
Fuel economy
Distance
(driving range)
Speed
(average speed)
mpg (US) mile (s) mph
mpg (UK) mile (s) mph
km / L km km / h
L / 100 km km km / h
BK0150800US.book 206 ページ 2012年3月29日 木曜日 午後2時38分
Page 302 of 722

Features and controls
3-207
3

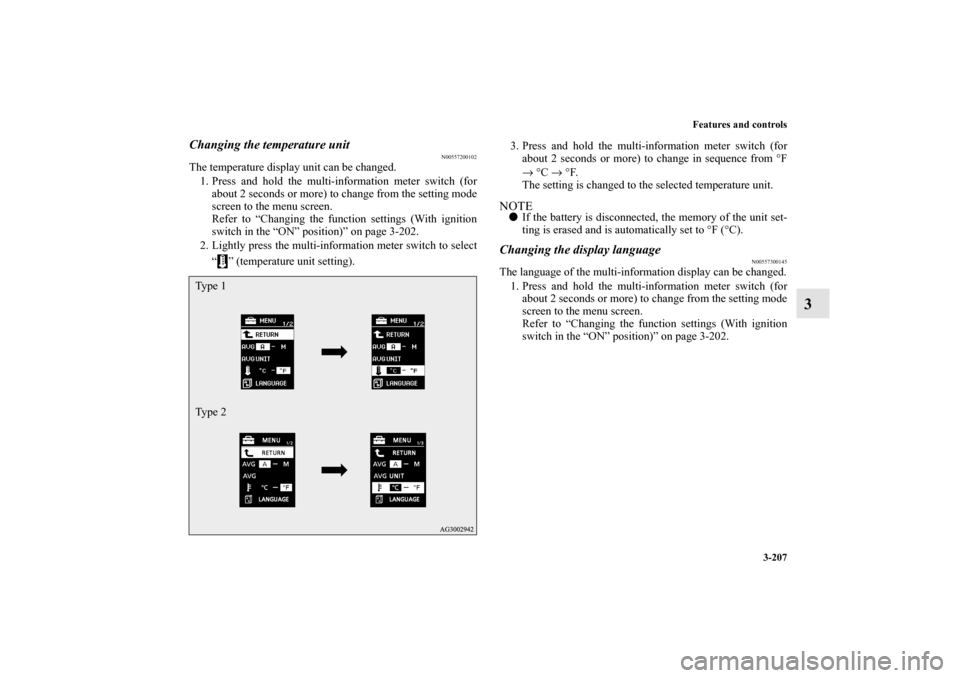

Changing the temperature unit
N00557200102
The temperature display unit can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-202.
2. Lightly press the multi-information meter switch to select
“ ” (temperature unit setting).3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change in sequence from °F
→ °C → °F.
The setting is changed to the selected temperature unit.
NOTEIf the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to °F (°C).Changing the display language
N00557300145
The language of the multi-information display can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-202.
Ty p e 1
Ty p e 2
BK0150800US.book 207 ページ 2012年3月29日 木曜日 午後2時38分

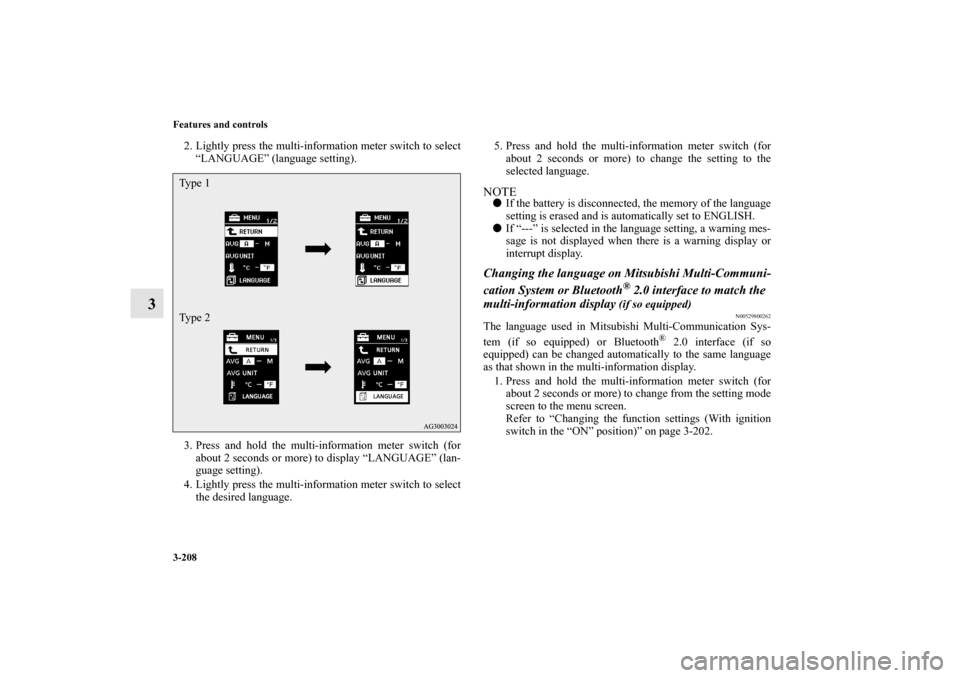

Page 303 of 722

3-208 Features and controls
3
2. Lightly press the multi-information meter switch to select
“LANGUAGE” (language setting).
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “LANGUAGE” (lan-
guage setting).
4. Lightly press the multi-information meter switch to select
the desired language.5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected language.
NOTEIf the battery is disconnected, the memory of the language
setting is erased and is automatically set to ENGLISH.
If “---” is selected in the language setting, a warning mes-
sage is not displayed when there is a warning display or
interrupt display.Changing the language on Mitsubishi Multi-Communi-
cation System or Bluetooth
® 2.0 interface to match the
multi-information display
(if so equipped)
N00529800262
The language used in Mitsubishi Multi-Communication Sys-
tem (if so equipped) or Bluetooth
® 2.0 interface (if so
equipped) can be changed automatically to the same language
as that shown in the multi-information display.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-202.
Ty p e 1
Ty p e 2BK0150800US.book 208 ページ 2012年3月29日 木曜日 午後2時38分

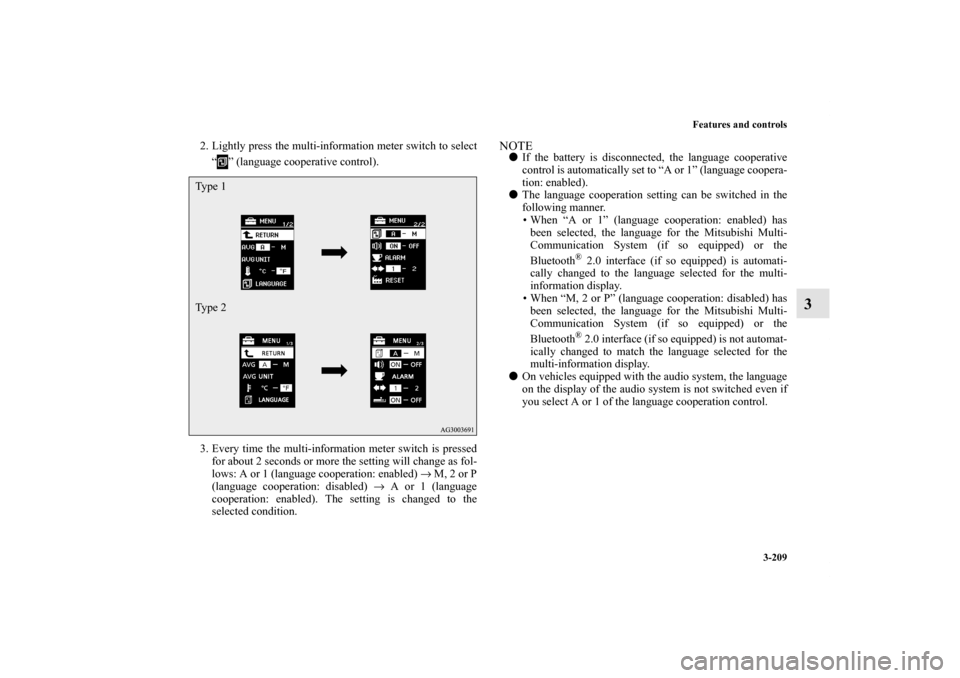

Page 304 of 722

Features and controls
3-209
3
2. Lightly press the multi-information meter switch to select
“ ” (language cooperative control).
3. Every time the multi-information meter switch is pressed
for about 2 seconds or more the setting will change as fol-
lows: A or 1 (language cooperation: enabled) → M, 2 or P
(language cooperation: disabled) → A or 1 (language
cooperation: enabled). The setting is changed to the
selected condition.
NOTEIf the battery is disconnected, the language cooperative
control is automatically set to “A or 1” (language coopera-
tion: enabled).
The language cooperation setting can be switched in the
following manner.
• When “A or 1” (language cooperation: enabled) has
been selected, the language for the Mitsubishi Multi-
Communication System (if so equipped) or the
Bluetooth
® 2.0 interface (if so equipped) is automati-
cally changed to the language selected for the multi-
information display.
• When “M, 2 or P” (language cooperation: disabled) has
been selected, the language for the Mitsubishi Multi-
Communication System (if so equipped) or the
Bluetooth® 2.0 interface (if so equipped) is not automat-
ically changed to match the language selected for the
multi-information display.
On vehicles equipped with the audio system, the language
on the display of the audio system is not switched even if
you select A or 1 of the language cooperation control.
Ty p e 1
Ty p e 2
BK0150800US.book 209 ページ 2012年3月29日 木曜日 午後2時38分

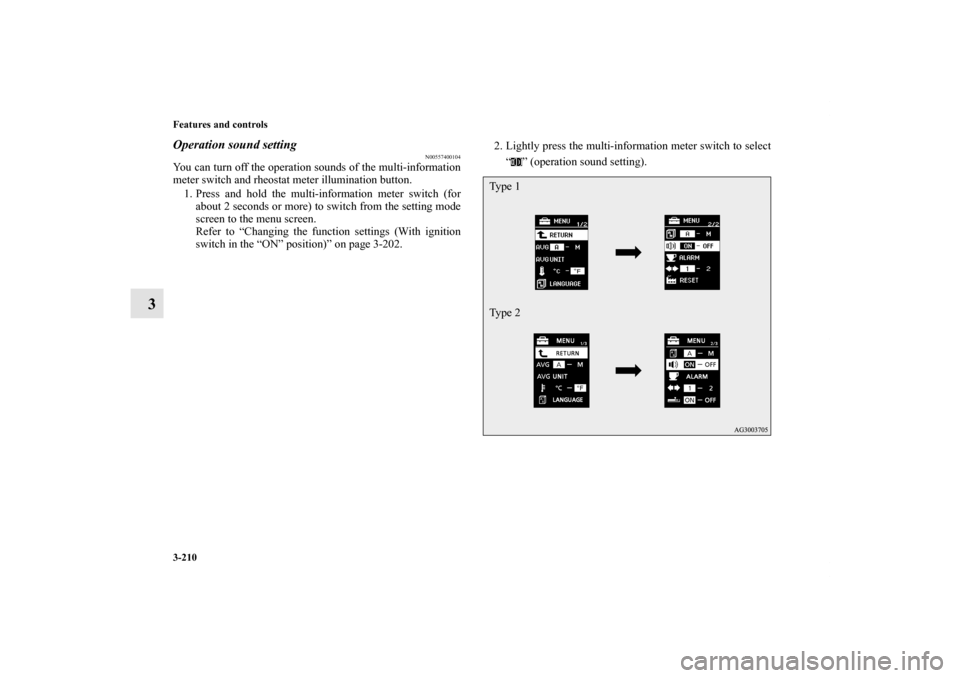

Page 305 of 722

3-210 Features and controls
3
Operation sound setting
N00557400104
You can turn off the operation sounds of the multi-information
meter switch and rheostat meter illumination button.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-202.2. Lightly press the multi-information meter switch to select
“ ” (operation sound setting).
Ty p e 1
Ty p e 2
BK0150800US.book 210 ページ 2012年3月29日 木曜日 午後2時38分

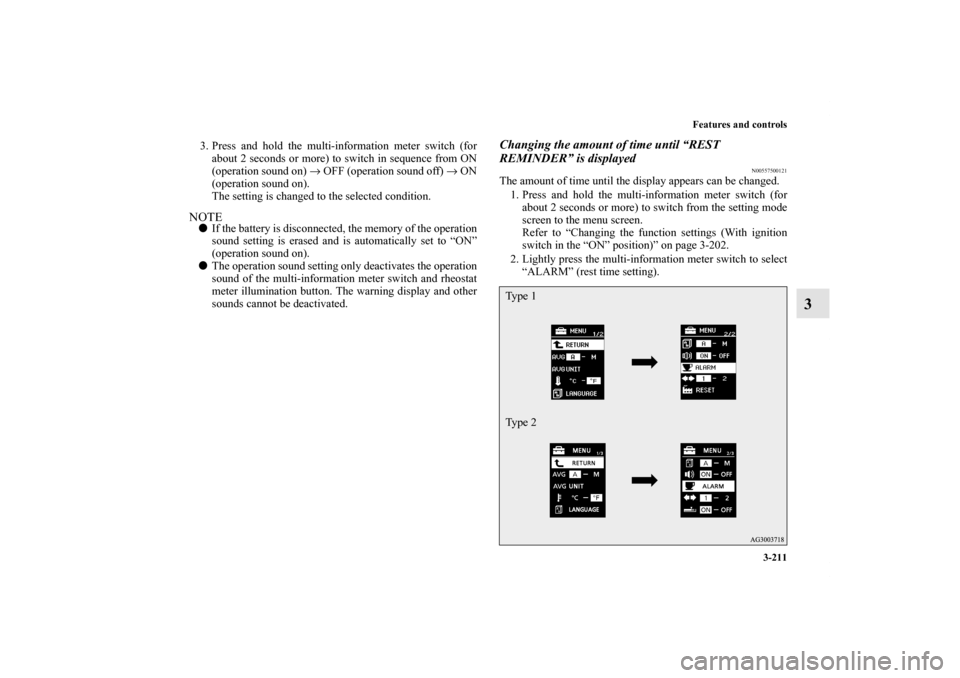

Page 306 of 722

Features and controls
3-211
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from ON
(operation sound on) → OFF (operation sound off) → ON
(operation sound on).
The setting is changed to the selected condition.NOTEIf the battery is disconnected, the memory of the operation
sound setting is erased and is automatically set to “ON”
(operation sound on).
The operation sound setting only deactivates the operation
sound of the multi-information meter switch and rheostat
meter illumination button. The warning display and other
sounds cannot be deactivated.
Changing the amount of time until “REST
REMINDER” is displayed
N00557500121
The amount of time until the display appears can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-202.
2. Lightly press the multi-information meter switch to select
“ALARM” (rest time setting).Ty p e 1
Ty p e 2
BK0150800US.book 211 ページ 2012年3月29日 木曜日 午後2時38分

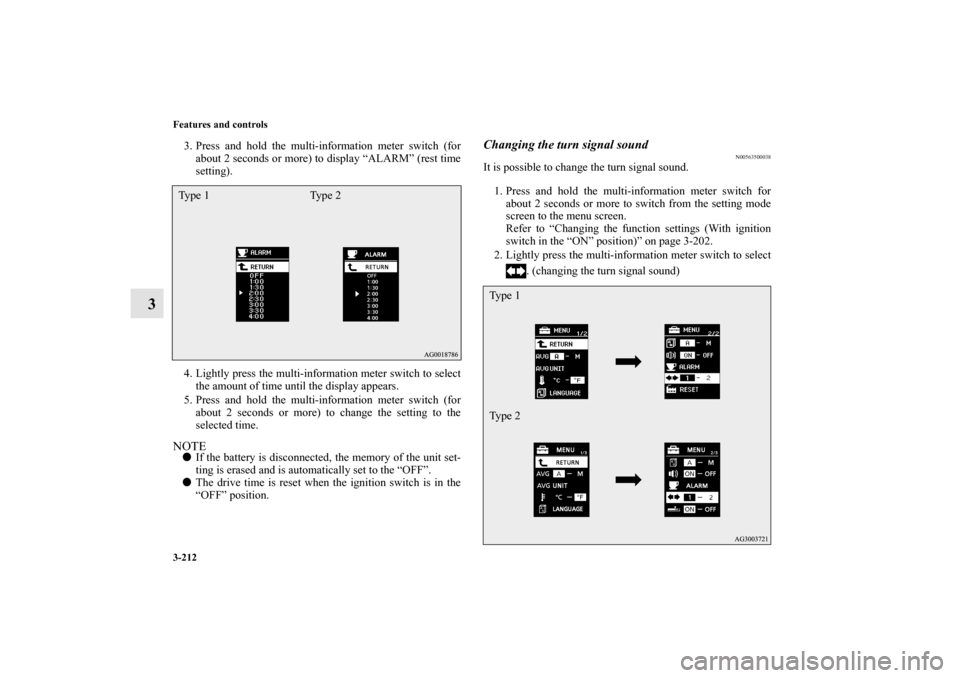

Page 307 of 722

3-212 Features and controls
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “ALARM” (rest time
setting).
4. Lightly press the multi-information meter switch to select
the amount of time until the display appears.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected time.NOTEIf the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to the “OFF”.
The drive time is reset when the ignition switch is in the
“OFF” position.
Changing the turn signal sound
N00563500038
It is possible to change the turn signal sound.
1. Press and hold the multi-information meter switch for
about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-202.
2. Lightly press the multi-information meter switch to select
. (changing the turn signal sound)
Type 1 Type 2
Ty p e 1
Ty p e 2
BK0150800US.book 212 ページ 2012年3月29日 木曜日 午後2時38分

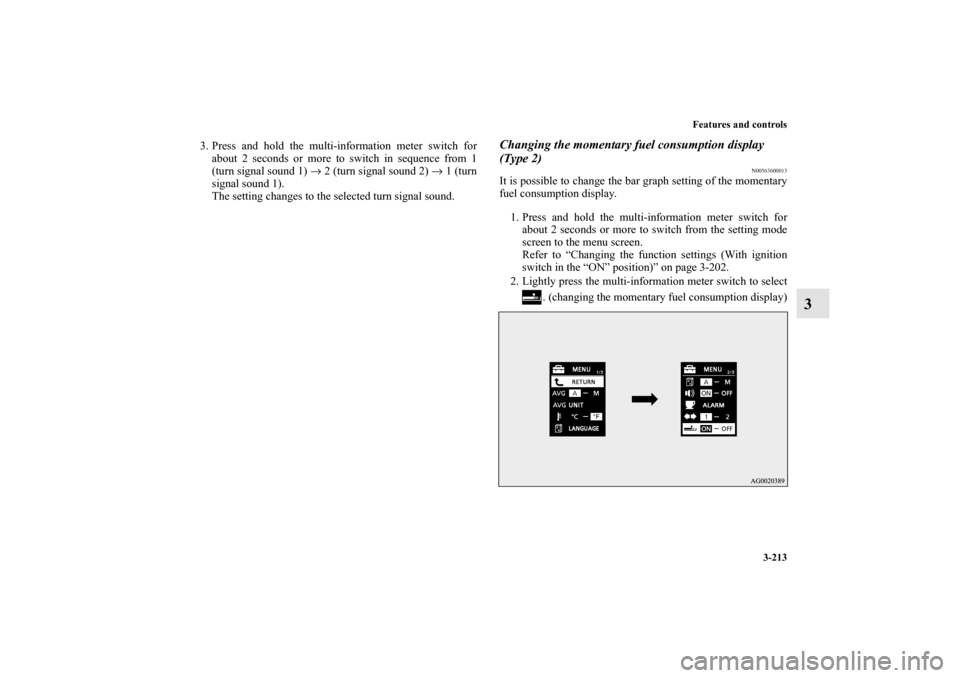

Page 308 of 722

Features and controls
3-213
3
3. Press and hold the multi-information meter switch for
about 2 seconds or more to switch in sequence from 1
(turn signal sound 1) → 2 (turn signal sound 2) → 1 (turn
signal sound 1).
The setting changes to the selected turn signal sound.
Changing the momentary fuel consumption display
(Type 2)
N00563600013
It is possible to change the bar graph setting of the momentary
fuel consumption display.
1. Press and hold the multi-information meter switch for
about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-202.
2. Lightly press the multi-information meter switch to select
. (changing the momentary fuel consumption display)
BK0150800US.book 213 ページ 2012年3月29日 木曜日 午後2時38分

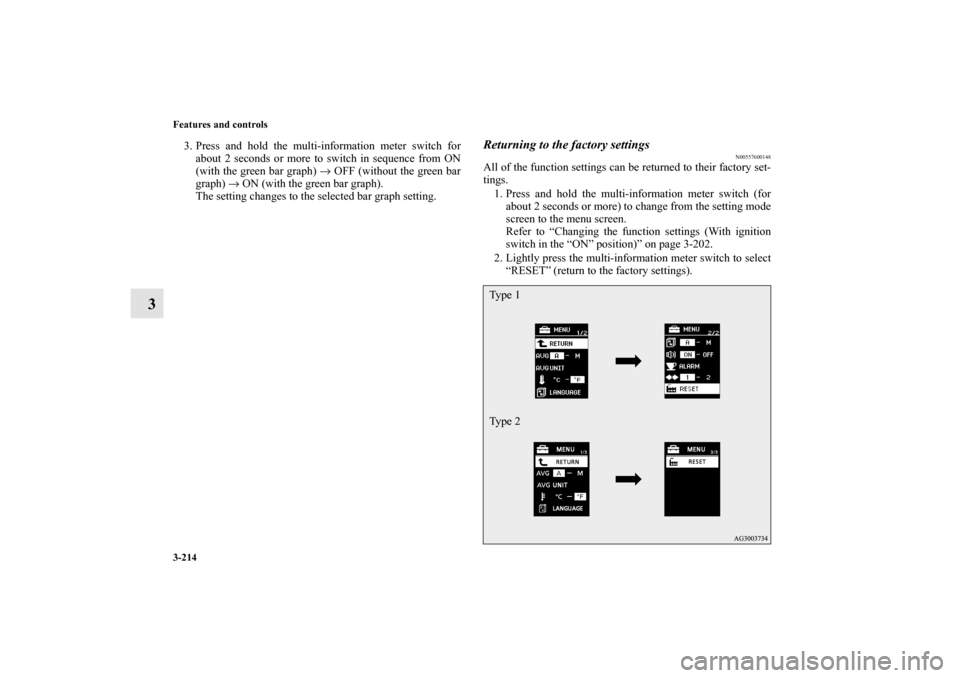

Page 309 of 722

3-214 Features and controls
3
3. Press and hold the multi-information meter switch for
about 2 seconds or more to switch in sequence from ON
(with the green bar graph) → OFF (without the green bar
graph) → ON (with the green bar graph).
The setting changes to the selected bar graph setting.
Returning to the factory settings
N00557600148
All of the function settings can be returned to their factory set-
tings.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-202.
2. Lightly press the multi-information meter switch to select
“RESET” (return to the factory settings). Ty p e 1
Ty p e 2
BK0150800US.book 214 ページ 2012年3月29日 木曜日 午後2時38分

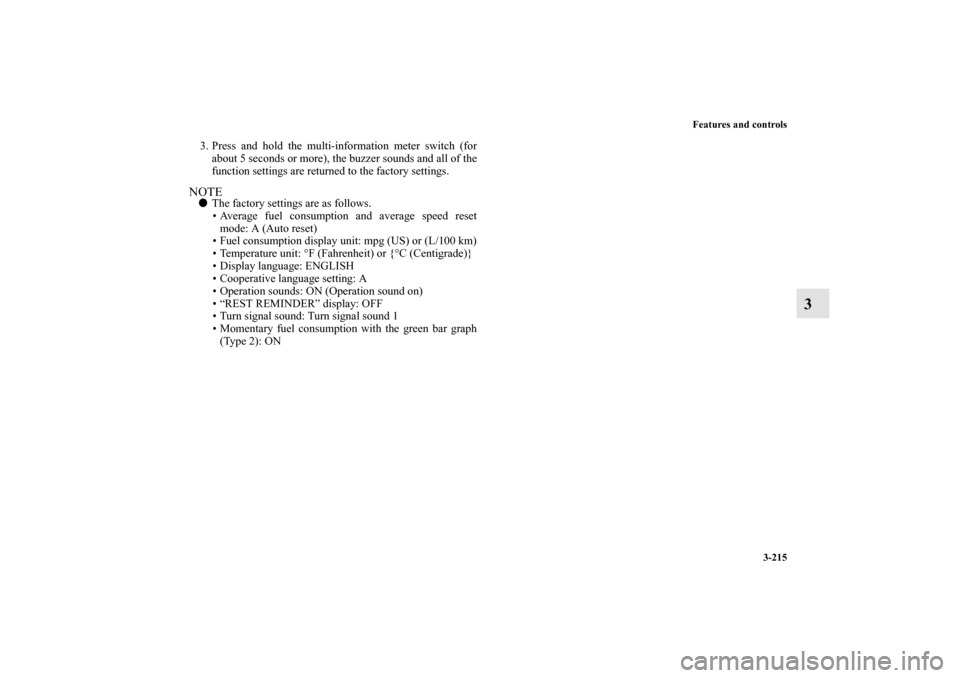

Page 310 of 722

Features and controls
3-215
3
3. Press and hold the multi-information meter switch (for
about 5 seconds or more), the buzzer sounds and all of the
function settings are returned to the factory settings.NOTEThe factory settings are as follows.
• Average fuel consumption and average speed reset
mode: A (Auto reset)
• Fuel consumption display unit: mpg (US) or (L/100 km)
• Temperature unit: °F (Fahrenheit) or {°C (Centigrade)}
• Display language: ENGLISH
• Cooperative language setting: A
• Operation sounds: ON (Operation sound on)
• “REST REMINDER” display: OFF
• Turn signal sound: Turn signal sound 1
• Momentary fuel consumption with the green bar graph
(Type 2): ON
