Instrument cluster 5-108 Features and controls
5
N00519000333 N00519100190
The speedometer shows the vehicle speed in miles per hour (mph) or kilometers per hour (km/h).
N00519200276
The tachometer shows engine revolutions perminute. This allows the driver to determinethe most efficient shift position (manual transaxle), selector position {continuously variable transmission (CVT)} or shift posi-
NOTE
Monitor brightness is adjusted automatically by sensors. On vehicles equipped with Mitsubishi Multi- Communication System, it is possible to change the display language of the screen.For details, please refer to the separate owner’s manual. Under certain circumstances, it may become difficult to see an image on the screen, even when the system is functioning correctly. • In a dark area, such as at night. • When water drops or condensation are on the lens. • When sun light or headlights shine directly into the lens.
Instrument cluster 1- Tachometer
P.5-108
2- Multi-information display
P.5-110
Information screen display list P.5-132
3- Speedometer
P.5-108
4- Rheostat meter illumination button
P.5-109
Speedometer
Tachometer Type 1Type 2
BK0210300US.book
108 ページ 2014年4月8日 火曜日 午前10時46分
Page 179 of 434
Multi-information display 5-110 Features and controls
5
N00555001305
The multi-information display displays warn
ings, the odometer, trip odometer, service re
minder, engine coolant temperature, fue
l remaining, out-
side temperature, Twin Clutch SST control mode, ACD control
mode, gearshift lever position, selector lever position, all-wheel
drive operation
status, average and momentary fuel consumption, driving range, average speed, instrument brightness, etc. It is also possible to change elements such as th
e language and units used on the multi-information display.
Multi-information display
W i t h i g n i t i o n s w i t c h i s “ O N ” p o s i t i o n { C o nt i n u o us l y
v a r i a b l e t r a n s m i s s i o n ( C V T ) , Tw
i n C l u t c h S ST }
With ignition switch is “OFF” position
With ignition switch is “ON” position (Manual transaxle)

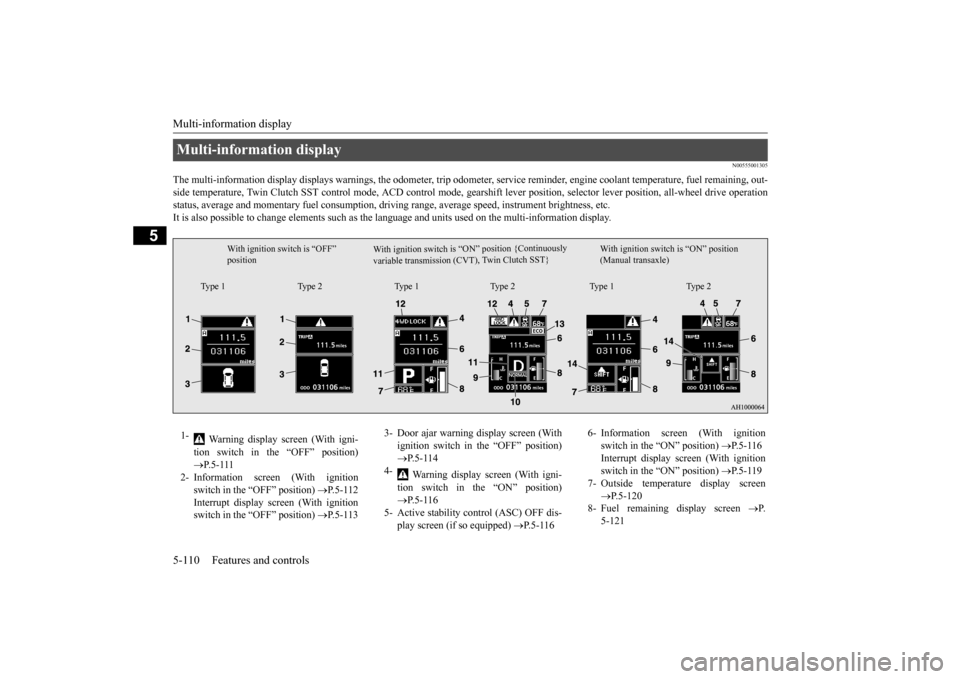

Type 1 Type 2 Type 1 Type 2 Type 1 Type 2
1-
Warning display screen (With igni- tion switch in the “OFF” position) P.5-111
2- Information screen (With ignition
switch in the “OFF” position)
P.5-112
Interrupt display screen (With ignition switch in the “OFF” position)
P.5-113
3- Door ajar warning display screen (With
ignition switch in the “OFF” position) P.5-114
4-
Warning display screen (With igni- tion switch in the “ON” position) P.5-116
5- Active stability control (ASC) OFF dis-
play screen (if so equipped)
P.5-116
6- Information screen (With ignition
switch in the “ON” position)
P.5-116
Interrupt display screen (With ignition switch in the “ON” position)
P.5-119
7- Outside temperature display screen
P.5-120
8- Fuel remaining display screen
P.
5-121
BK0210300US.book
110 ページ 2014年4月8日 火曜日 午前10時46分
Page 180 of 434
Multi-information display
Features and controls 5-111
5
N00555100136

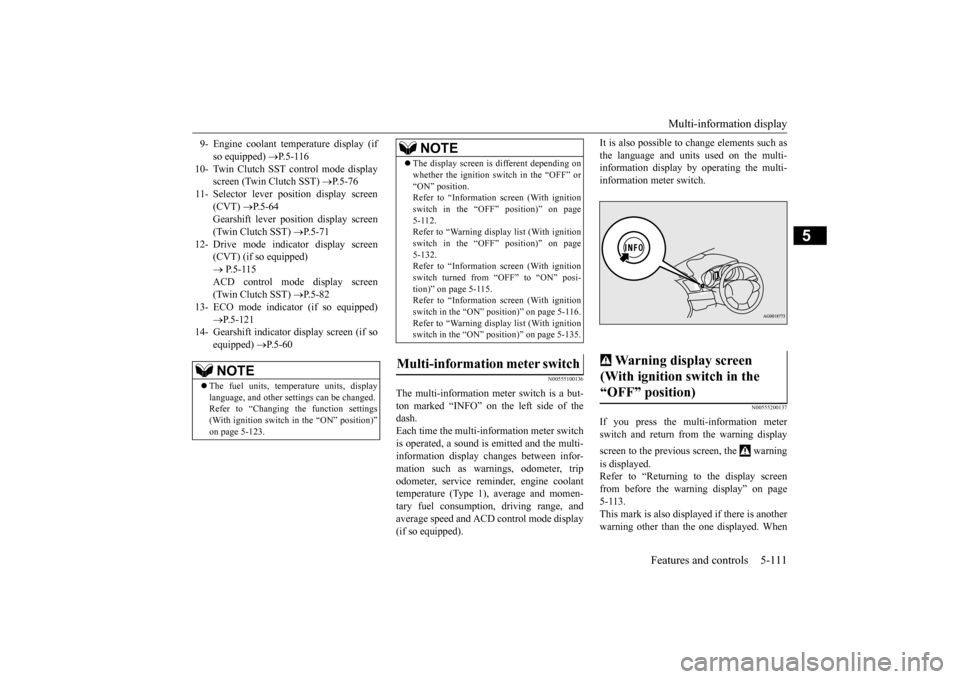

The multi-information meter switch is a but- ton marked “INFO” on the left side of the dash. Each time the multi-information meter switchis operated, a sound is emitted and the multi- information display changes between infor- mation such as warnings, odometer, tripodometer, service reminder, engine coolant temperature (Type 1), average and momen- tary fuel consumption, driving range, andaverage speed and ACD control mode display (if so equipped).
It is also possible to change elements such as the language and units used on the multi- information display by operating the multi- information meter switch.
N00555200137
If you press the multi-information meterswitch and return from the warning display screen to the previous screen, the warning is displayed. Refer to “Returning to the display screen from before the warning display” on page 5-113.This mark is also displayed if there is anotherwarning other than the one displayed. When
9- Engine coolant temperature display (if
so equipped)
P.5-116
10- Twin Clutch SST control mode display
screen (Twin Clutch SST)
P.5-76
11- Selector lever position display screen
(CVT)
P.5-64
Gearshift lever position display screen (Twin Clutch SST)
P.5-71
12- Drive mode indicator display screen
(CVT) (if so equipped) P.5-115 ACD control mode display screen(Twin Clutch SST)
P.5-82
13- ECO mode indicator (if so equipped)
P.5-121
14- Gearshift indicator display screen (if so
equipped)
P.5-60
NOTE
The fuel units, temperature units, display language, and other settings can be changed.Refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 5-123.
The display screen is different depending on whether the ignition switch in the “OFF” or “ON” position. Refer to “Information screen (With ignition switch in the “OFF” position)” on page5-112. Refer to “Warning displa
y list (With ignition
switch in the “OFF” position)” on page5-132. Refer to “Information screen (With ignition switch turned from “OFF” to “ON” posi-tion)” on page 5-115. Refer to “Information screen (With ignition switch in the “ON” position)” on page 5-116.Refer to “Warning displa
y list (With ignition
switch in the “ON” position)” on page 5-135.
Multi-information meter switch
NOTE
Warning display screen (With ignition switch in the “OFF” position)
BK0210300US.book
111 ページ 2014年4月8日 火曜日 午前10時46分
Page 188 of 434
Multi-information display
Features and controls 5-119
5
While driving, the momentary fuel consump- tion is shown with a bar graph.
When the momentary fuel consumption sur- passes the average fuel consumption, the momentary fuel consumption is displayed with a green bar graph. (Type 2)Be conscious of maintaining the momentary fuel consumption above the average fuel con- sumption, it can help you drive with the betterfuel consumption. The “Display language”, “Temperature unit”, “Fuel consumption unit”, and “Average fuel consumption and speed reset method” set-tings can be modified as desired. For further details, refer to “Changing the function settings (With ignition switch in the“ON” position)” on page 5-123.
N00556300135
When there is information to be announced, such as a system fault, a tone sounds and the information screen is switched to the warningdisplay screen.Refer to the warning list and take the neces- sary measures. Refer to “Warning display list (With ignition switch in the “ON” position)”on page 5-135. When the cause of the warning display is eliminated, the warning display goes outautomatically. Even if the cause of the warning display is not eliminated, you can return to the screenthat was displayed before the warning dis- play. If you press the multi-information meter switch, the display screen switches to thescreen display from before the warning and the warning (A) is displayed.
NOTE
The average speed display and the average fuel consumption display can be reset sepa- rately in both auto reset mode and manual reset mode. “---” is displayed when the average fuel con- sumption cannot be measured. The initial (default) setting is “Auto reset mode”. Average fuel consumption may vary depend on the driving conditions (road conditions, how you drive, etc.) The actual fuel con-sumption may differ from the fuel consump- tion displayed, so treat the fuel consumption displayed as just a rough guideline. The average fuel consumption display mem- ories for auto reset mode and manual resetmode are erased if the battery is discon- nected. The display setting can be changed to the preferred units {mpg (US), mpg (UK), L/100 km or km/L}.Refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 5-123.
Momentary fuel consumption dis- play
NOTE
When the momentary fuel consumption can- not be measured, a ba
r graph is not shown.
The display setting can be changed to the preferred units {mpg (US), mpg (UK), L/100 km or km/L}.Refer to “Changing the function settings (With ignition switch in the “ON” position)” on page 5-123. It is possible to cancel the green bar graph. Refer to “Changing the function settings(With ignition switch in the “ON” position)” on page 5-123.
Function setting screen
Interrupt display screen (With ignition switch in the “ON” position) Warning display Returning to the display screen from before the warning display
BK0210300US.book
119 ページ 2014年4月8日 火曜日 午前10時46分
Page 193 of 434
Multi-information display 5-124 Features and controls
5
Fully apply the parking brake and move the shift lever into the “N” position (man- ual transaxle), the selector lever {continu- ously variable transmission (CVT)} or thegearshift lever (Twin Clutch SST) into the “P” position. 2. When you lightly press the multi-informa-tion meter switch, the information screen changes to the function setting screen. Refer to “Information screen (With igni-tion switch in the “ON” position)” onpage 5-116.
3. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch from the setting mode screen to the menu screen.
4. Select the item to change on the menu screen and change to the desired setting. For further details on the operation meth- ods, refer to the following sections. Refer to “Changing the reset mode for average fuel consumption and averagespeed” on page 5-125. Refer to “Changing the fuel consumption display unit” on page 5-125.Refer to “Changing the temperature unit”on page 5-126. Refer to “Changing the display language” on page 5-127.Refer to “Operation sound setting” on page 5-127. Refer to “Changing the amount of timeuntil “REST REMINDER” is displayed” on page 5-128. Refer to “Changing the turn signal sound”on page 5-129. Refer to “Changing the momentary fuel consumption display (Type 2)” on page5-129. Refer to “Returning to the factory set- tings” on page 5-129.

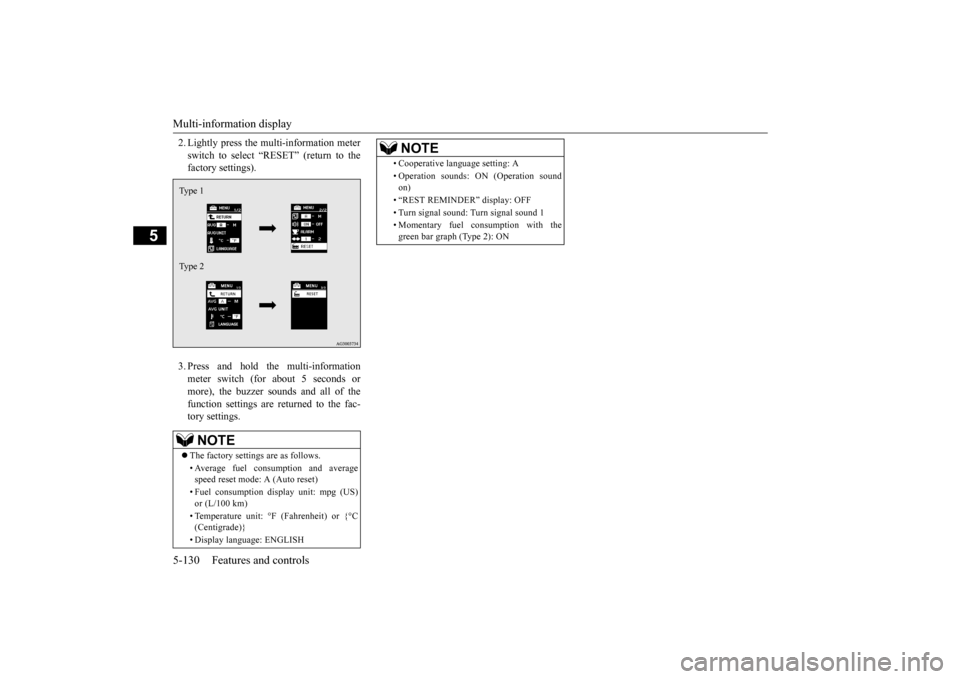

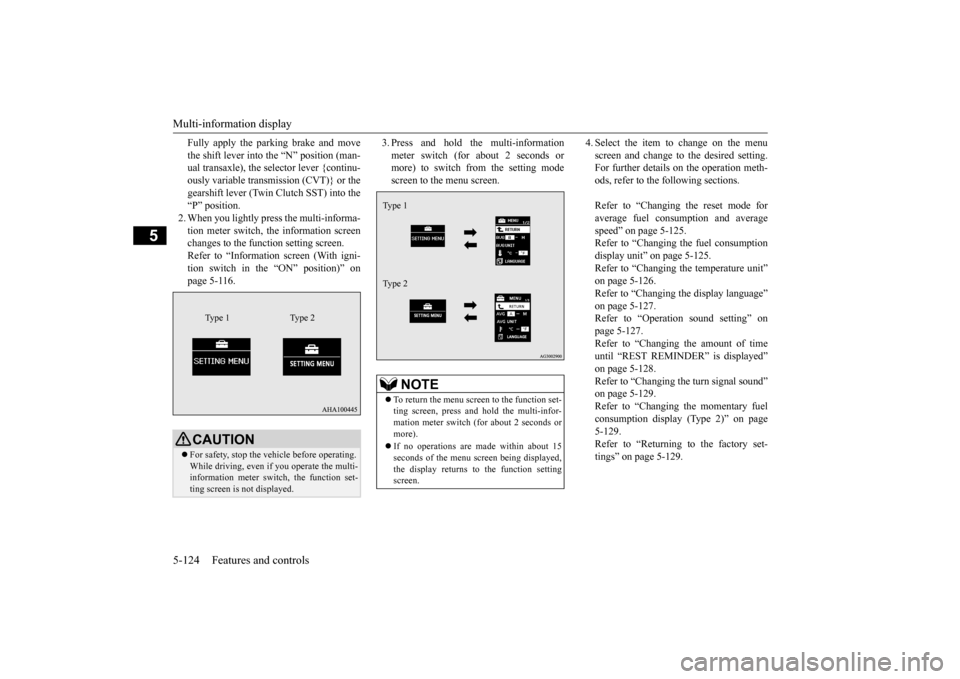

CAUTION For safety, stop the vehicle before operating. While driving, even if you operate the multi- information meter switch, the function set-ting screen is not displayed.
Type 1 Type 2
NOTE
To return the menu screen to the function set- ting screen, press and hold the multi-infor- mation meter switch (for about 2 seconds or more). If no operations are made within about 15 seconds of the menu screen being displayed,the display returns to the function setting screen.Type 1 Type 2
BK0210300US.book
124 ページ 2014年4月8日 火曜日 午前10時46分
Page 196 of 434
Multi-information display
Features and controls 5-127
5

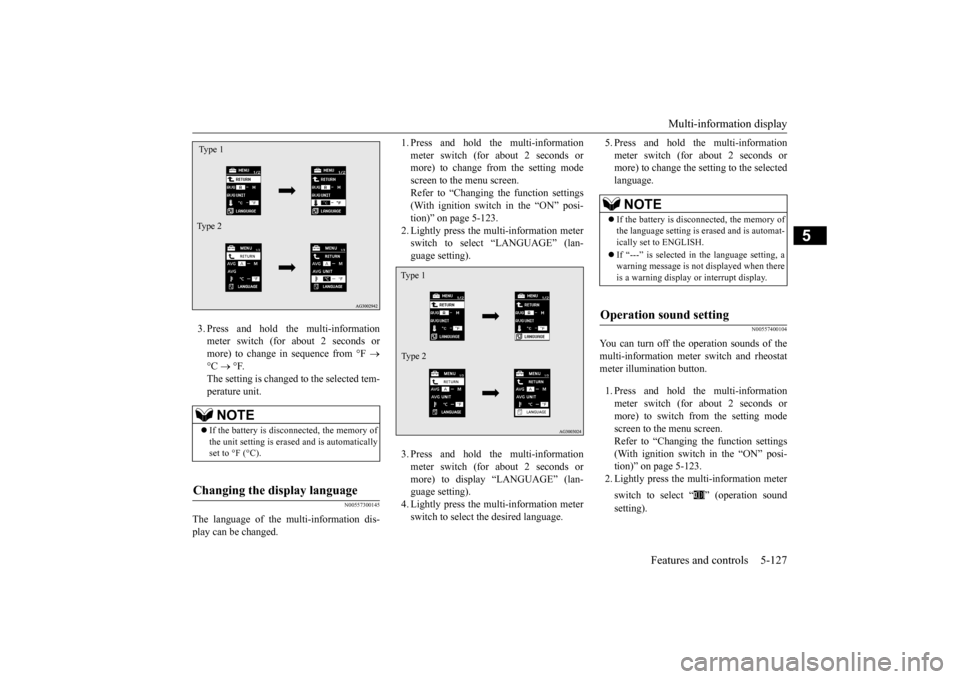

3. Press and hold the multi-information meter switch (for about 2 seconds or more) to change in sequence from °F
