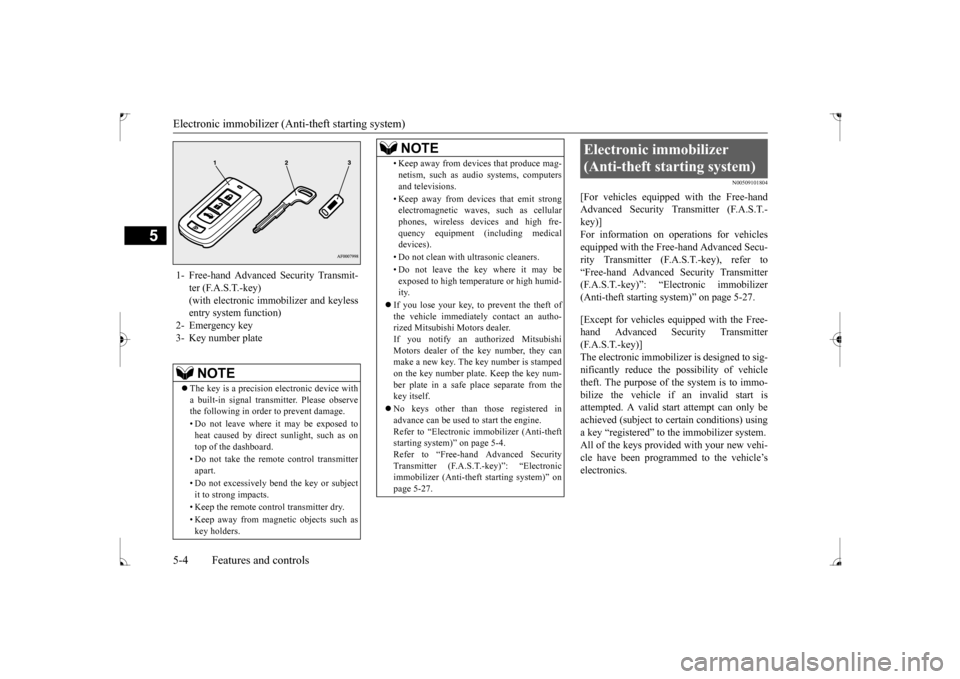

Electronic immobilizer (Anti-theft starting system) 5-4 Features and controls
5
N00509101804
[For vehicles equipped with the Free-hand Advanced Security Transmitter (F.A.S.T.-key)] For information on operations for vehicles equipped with the Free-hand Advanced Secu-rity Transmitter (F.A.S.T.-key), refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-key)”: “Electronic immobilizer(Anti-theft starting system)” on page 5-27. [Except for vehicles equipped with the Free- hand Advanced Security Transmitter (F.A.S.T.-key)] The electronic immobilizer is designed to sig-nificantly reduce the possibility of vehicle theft. The purpose of the system is to immo- bilize the vehicle if an invalid start isattempted. A valid start attempt can only be achieved (subject to certain conditions) using a key “registered” to the immobilizer system.All of the keys provided with your new vehi- cle have been programmed to the vehicle’s electronics.
1- Free-hand Advanced Security Transmit-
ter (F.A.S.T.-key) (with electronic immo
bilizer and keyless
entry system function)
2- Emergency key 3- Key number plate
NOTE
 The key is a precision electronic device with a built-in signal transmitter. Please observethe following in order to prevent damage. • Do not leave where it may be exposed to heat caused by direct sunlight, such as on top of the dashboard. • Do not take the remote control transmitter apart. • Do not excessively bend the key or subject it to strong impacts. • Keep the remote control transmitter dry. • Keep away from magnetic objects such as key holders.
• Keep away from devices that produce mag- netism, such as audio systems, computers and televisions. • Keep away from devices that emit strong electromagnetic waves, such as cellular phones, wireless devices and high fre- quency equipment (including medicaldevices). • Do not clean with ultrasonic cleaners.• Do not leave the key where it may be exposed to high temperature or high humid-ity.
 If you lose your key, to prevent the theft of the vehicle immediately contact an autho- rized Mitsubishi Motors dealer. If you notify an authorized MitsubishiMotors dealer of the key number, they can make a new key. The key number is stamped on the key number plate. Keep the key num-ber plate in a safe place separate from the key itself.  No keys other than those registered in advance can be used to start the engine. Refer to “Electronic immobilizer (Anti-theftstarting system)” on page 5-4. Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-key)”: “Electronic immobilizer (Anti-theft starting system)” on page 5-27.NOTE
Electronic immobilizer (Anti-theft starting system)
BK0237700US.bo
ok 4 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

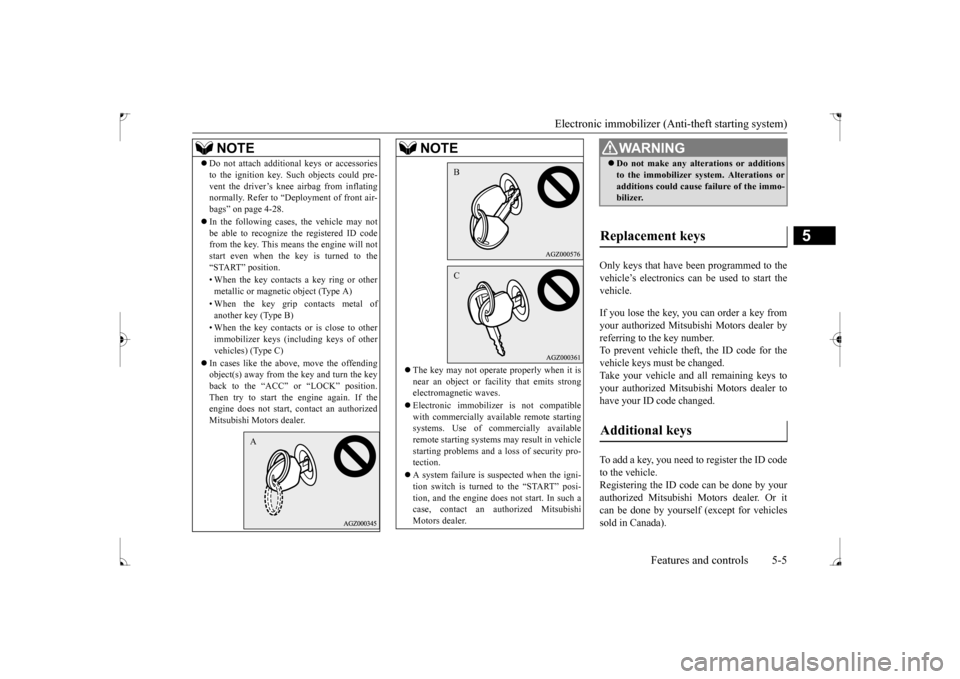

Electronic immobilizer (Ant
i-theft starting system)
Features and controls 5-5
5
Only keys that have been programmed to the vehicle’s electronics can be used to start the vehicle. If you lose the key, you can order a key from your authorized Mitsubishi Motors dealer by referring to the key number. To prevent vehicle theft, the ID code for thevehicle keys must be changed. Take your vehicle and all remaining keys to your authorized Mitsubishi Motors dealer tohave your ID code changed. To add a key, you need to register the ID code to the vehicle. Registering the ID code can be done by your authorized Mitsubishi Motors dealer. Or itcan be done by yourself (except for vehicles sold in Canada).
NOTE
 Do not attach additional keys or accessories to the ignition key. Such objects could pre- vent the driver’s knee airbag from inflating normally. Refer to “Deployment of front air- bags” on page 4-28.  In the following cases, the vehicle may not be able to recognize the registered ID codefrom the key. This means the engine will not start even when the key is turned to the “START” position. • When the key contacts a key ring or other metallic or magnetic object (Type A) • When the key grip contacts metal of another key (Type B) • When the key contacts or is close to other immobilizer keys (including keys of othervehicles) (Type C)
 In cases like the above, move the offending object(s) away from the key and turn the key back to the “ACC” or “LOCK” position. Then try to start the
engine again. If the
engine does not start, contact an authorized Mitsubishi Motors dealer.
A
 The key may not operate properly when it is near an object or facility that emits strong electromagnetic waves.  Electronic immobilizer is not compatible with commercially available remote startingsystems. Use of commercially available remote starting systems may result in vehicle starting problems and a lo
ss of security pro-
tection.  A system failure is suspected when the igni- tion switch is turned to the “START” posi- tion, and the engine does not start. In such a case, contact an authorized MitsubishiMotors dealer.NOTE
BC
WA R N I N G Do not make any alterations or additions to the immobilizer system. Alterations or additions could cause failure of the immo- bilizer.
Replacement keys Additional keys
BK0237700US.bo
ok 5 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

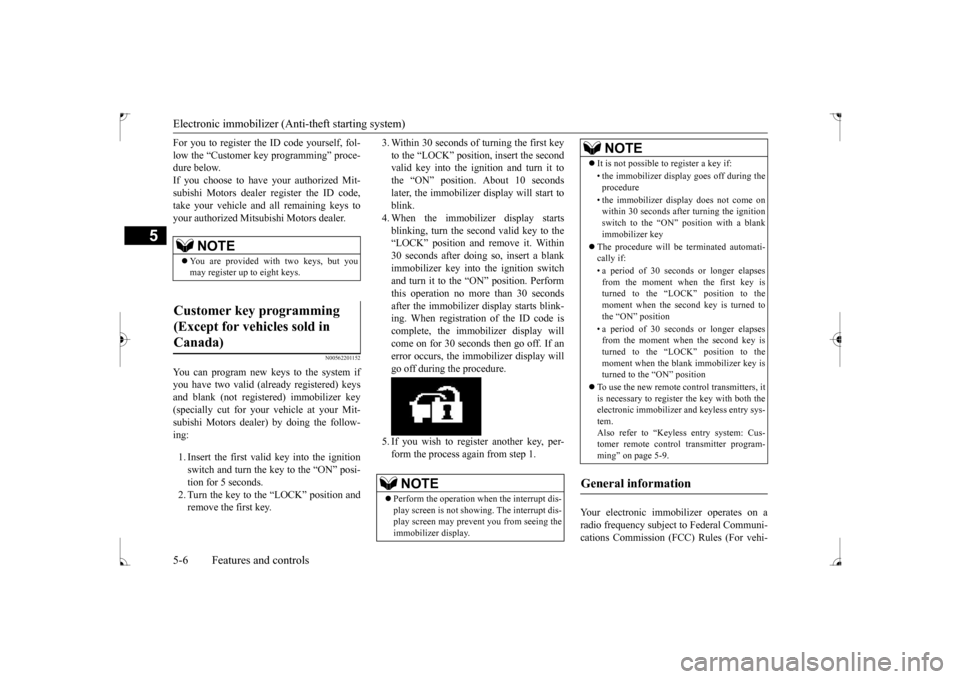

Electronic immobilizer (Anti-theft starting system) 5-6 Features and controls
5
For you to register the ID code yourself, fol- low the “Customer key programming” proce- dure below. If you choose to have your authorized Mit-subishi Motors dealer
register the ID code,
take your vehicle and all remaining keys to your authorized Mitsubishi Motors dealer.
N00562201152
You can program new keys to the system ifyou have two valid (already registered) keysand blank (not registered) immobilizer key (specially cut for your vehicle at your Mit- subishi Motors dealer) by doing the follow-ing: 1. Insert the first valid key into the ignition switch and turn the key to the “ON” posi- tion for 5 seconds.2. Turn the key to the “LOCK” position and remove the first key.
3. Within 30 seconds of turning the first key to the “LOCK” position, insert the second valid key into the ignition and turn it to the “ON” position. About 10 secondslater, the immobilizer display will start to blink. 4. When the immobilizer display startsblinking, turn the second valid key to the “LOCK” position and remove it. Within 30 seconds after doing so, insert a blankimmobilizer key into the ignition switchand turn it to the “ON” position. Perform this operation no more than 30 seconds after the immobilizer display starts blink-ing. When registration of the ID code is complete, the immobilizer display will come on for 30 seconds then go off. If anerror occurs, the immobilizer display will go off during the procedure. 5. If you wish to register another key, per- form the process again from step 1.
Your electronic immobilizer operates on a radio frequency subject to Federal Communi-cations Commission (FCC) Rules (For vehi-
NOTE
 You are provided with two keys, but you may register up to eight keys.
Customer key programming (Except for vehicles sold in Canada)
NOTE
 Perform the operation when the interrupt dis- play screen is not showing. The interrupt dis- play screen may prevent you from seeing the immobilizer display.
 It is not possible to register a key if: • the immobilizer display goes off during the procedure • the immobilizer display does not come on within 30 seconds after turning the ignition switch to the “ON” position with a blankimmobilizer key
 The procedure will be terminated automati- cally if: • a period of 30 seconds or longer elapses from the moment when the first key is turned to the “LOCK” position to the moment when the second key is turned tothe “ON” position • a period of 30 seconds or longer elapses from the moment when the second key is turned to the “LOCK” position to the moment when the blank immobilizer key isturned to the “ON” position
 To use the new remote control transmitters, it is necessary to register the key with both the electronic immobilizer and keyless entry sys- tem.Also refer to “Keyless entry system: Cus- tomer remote control transmitter program- ming” on page 5-9.
General information
NOTE
BK0237700US.bo
ok 6 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

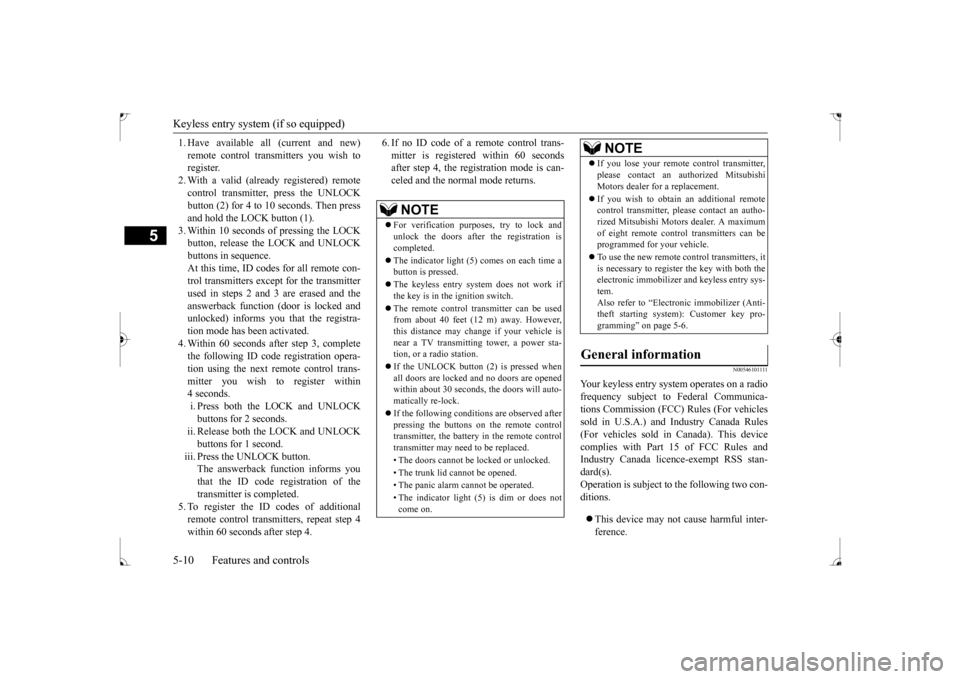

Keyless entry system (if so equipped) 5-10 Features and controls
5
1. Have available all (current and new) remote control transmitters you wish to register. 2. With a valid (already registered) remotecontrol transmitter, press the UNLOCK button (2) for 4 to 10 seconds. Then press and hold the LOCK button (1).3. Within 10 seconds of pressing the LOCK button, release the LOCK and UNLOCK buttons in sequence.At this time, ID codes for all remote con-trol transmitters except for the transmitter used in steps 2 and 3 are erased and the answerback function (door is locked andunlocked) informs you that the registra- tion mode has been activated. 4. Within 60 seconds after step 3, completethe following ID code registration opera- tion using the next remote control trans- mitter you wish to register within4 seconds. i. Press both the LOCK and UNLOCK buttons for 2 seconds.ii. Release both the LOCK and UNLOCK buttons for 1 second.
iii. Press the UNLOCK button.
The answerback function informs you that the ID code registration of the transmitter is completed.
5. To register the ID codes of additional remote control transmitters, repeat step 4 within 60 seconds after step 4.
6. If no ID code of a remote control trans- mitter is registered within 60 seconds after step 4, the registration mode is can- celed and the normal mode returns.
N0054610
1111
Your keyless entry system operates on a radio frequency subject to Federal Communica-tions Commission (FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This devicecomplies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS stan- dard(s).Operation is subject to the following two con- ditions.  This device may not cause harmful inter- ference.
NOTE
 For verification purposes, try to lock and unlock the doors after the registration iscompleted.  The indicator light (5) comes on each time a button is pressed.  The keyless entry system does not work if the key is in the ignition switch.  The remote control transmitter can be used from about 40 feet (12 m) away. However, this distance may change if your vehicle is near a TV transmitting tower, a power sta-tion, or a radio station.  If the UNLOCK button (2) is pressed when all doors are locked and no doors are opened within about 30 seconds, the doors will auto- matically re-lock.  If the following conditions are observed after pressing the buttons on the remote controltransmitter, the battery in the remote control transmitter may need to be replaced. • The doors cannot be locked or unlocked. • The trunk lid cannot be opened.• The panic alarm cannot be operated.• The indicator light (5) is dim or does not come on.
 If you lose your remote control transmitter, please contact an authorized Mitsubishi Motors dealer for a replacement.  If you wish to obtain an additional remote control transmitter, please contact an autho- rized Mitsubishi Motors dealer. A maximum of eight remote control transmitters can beprogrammed for your vehicle.  To use the new remote control transmitters, it is necessary to register the key with both the electronic immobilizer and keyless entry sys- tem.Also refer to “Electr
onic immobilizer (Anti-
theft starting system): Customer key pro- gramming” on page 5-6.
General information

NOTE
BK0237700US.bo
ok 10 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-12 Features and controls
5
8. Check the keyless entry system to see that it works.
N00503100052
The Free-hand Advanced Security Transmit-ter (F.A.S.T.-key) enables the doors to belocked and unlocked, the trunk lid to be opened, and the engine to be started simply by carrying it.The F.A.S.T.-key can also be used as the remote control transmitter of the keyless entry system.Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-key)”: “Keyless entry
system” on page 5-30.
NOTE
 You may purchase a replacement battery at an electric appliance store.  Your authorized Mitsubishi Motors dealer can replace the battery for you if you prefer.CAUTION When the remote control transmitter case is opened, be careful to keep water, dust, etc.out. Also, do not touch the internal compo- nents.
Free-hand Advanced Secu- rity Transmitter (F.A.S.T.-key)
(if so equipped)
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-key is required for vehicle operations such as locking and unlocking the doors, opening the trunk lid, and starting the engine. When leaving the vehicle, make sure you are carrying the F.A.S.T.-key and then lock the vehi- cle.
WA R N I N G Individuals who use implantable pace- makers or implantable cardioverter-defi-brillators should keep away from the external and internal
transmitters. The
electromagnetic waves used in theF.A.S.T.-key may affect the operation of implantable pacemakers and implantable cardioverter-defibrillators.
A- External transmitter B- Internal transmitterWA R N I N G Individuals using other electrical medical apparatuses besides implantable pace-makers and implantable cardioverter- defibrillators should check with the manu- facturer of the apparatus to confirm the effect of the electromagnetic waves used by the F.A.S.T.-key. The electromagneticwaves may affect the operations of the electro-medical apparatus.
BK0237700US.bo
ok 12 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-29
5
4. Insert the first valid F.A.S.T.-key into the emergency key. 5. Turn the emergency key with the F.A.S.T.-key to the “ON” position for 5seconds.
6. Turn the emergency key with the F.A.S.T.-key to the “LOCK” position. Within 30 seconds after doing so, remove the F.A.S.T.-key from the emergency key,insert the second valid F.A.S.T.-key into the emergency key and turn it to the “ON” position. About 10 seconds later, theimmobilizer display will start to blink. 7. When the immobilizer display starts blinking, turn the second valid F.A.S.T.-key to the “LOCK” position and removeit. Within 30 seconds after doing so, insert a blank F.A.S.T.-key into the emergency key and turn it to the “ON” position. Per-form this operation no more than 30 sec- onds after the immobilizer display starts blinking. When registration of the IDcode is complete, the immobilizer display will come on for 3 seconds then go off. If an error occurs, the immobilizer displaywill go off during the procedure. 8. If you wish to register another F.A.S.T.- key, repeat the process from step 1.
NOTE
 Perform the operation when the interrupt dis- play screen is not showing. The interrupt dis- play screen may prevent you from seeing the immobilizer display.  It is not possible to register a F.A.S.T.-key if: • the immobilizer display goes off during the procedure • the immobilizer display does not come on within 30 seconds after turning the ignition switch to the “ON” position with a blank F. A . S . T. - k e y
 The procedure will be terminated automati- cally if: • a period of 30 seconds or longer elapses from the moment when the first F.A.S.T.-key is turned to the “LOCK” position to the moment when the second F.A.S.T.-key is turned to the “ON” position • a period of 30 seconds or longer elapses from the moment when the secondF.A.S.T.-key is turned to the “LOCK” posi- tion to the moment when the blank F.A.S.T.-key is turned to the “ON” position
 To use the new remote control transmitters, it is necessary to register the key with both theelectronic immobilizer and keyless entry sys- tem. Also refer to “Keyless entry system: Cus- tomer F.A.S.T.-key programming” on page 5-32.
BK0237700US.bo
ok 29 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

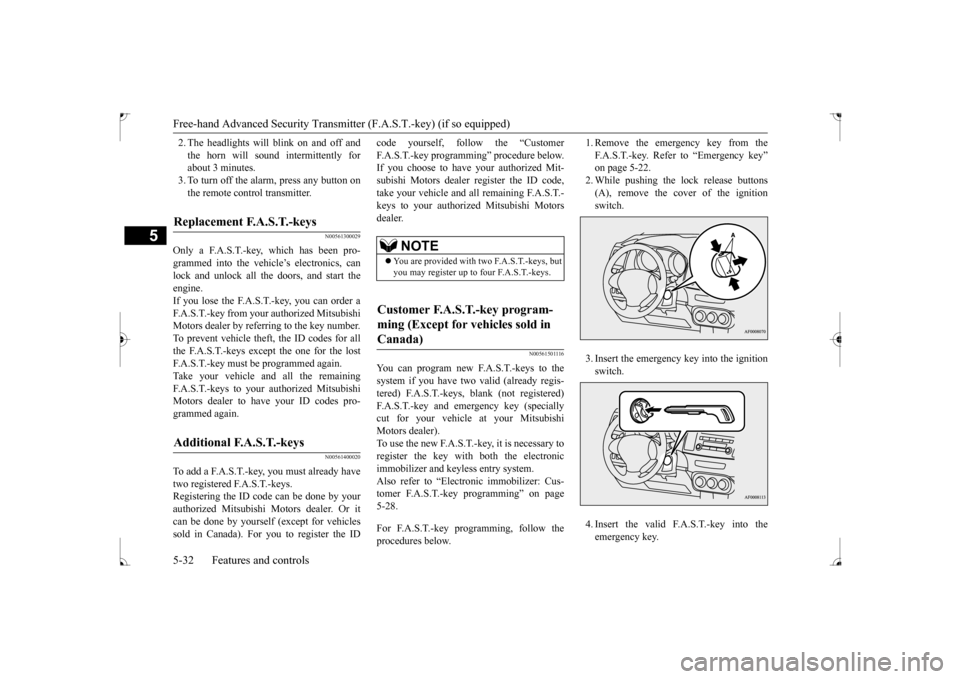

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-32 Features and controls
5
2. The headlights will blink on and off and the horn will sound intermittently for about 3 minutes. 3. To turn off the alarm, press any button onthe remote control transmitter.
N00561300029
Only a F.A.S.T.-key, which has been pro-grammed into the vehicle’s electronics, canlock and unlock all the doors, and start the engine. If you lose the F.A.S.T.-key, you can order aF.A.S.T.-key from your authorized Mitsubishi Motors dealer by referring to the key number. To prevent vehicle theft, the ID codes for allthe F.A.S.T.-keys except the one for the lost F.A.S.T.-key must be programmed again. Take your vehicle and all the remainingF.A.S.T.-keys to your authorized Mitsubishi Motors dealer to have your ID codes pro- grammed again.
N00561400020
To add a F.A.S.T.-key, you must already havetwo registered F.A.S.T.-keys.Registering the ID code can be done by your authorized Mitsubishi Motors dealer. Or it can be done by yourself (except for vehiclessold in Canada). For you to register the ID
code yourself, follow the “Customer F.A.S.T.-key programming” procedure below. If you choose to have your authorized Mit- subishi Motors dealer
register the ID code,
take your vehicle and all remaining F.A.S.T.- keys to your authorized Mitsubishi Motors dealer.
N00561501116
You can program new F.A.S.T.-keys to the system if you have two valid (already regis- tered) F.A.S.T.-keys, blank (not registered)F.A.S.T.-key and emergency key (specially cut for your vehicle at your Mitsubishi Motors dealer).To use the new F.A.S.T.-key, it is necessary to register the key with both the electronic immobilizer and keyless entry system.Also refer to “Electronic immobilizer: Cus- tomer F.A.S.T.-key programming” on page 5-28. For F.A.S.T.-key programming, follow the procedures below.
1. Remove the emergency key from the F.A.S.T.-key. Refer to “Emergency key” on page 5-22. 2. While pushing the lock release buttons(A), remove the cover of the ignition switch. 3. Insert the emergency key into the ignition switch. 4. Insert the valid F.A.S.T.-key into the emergency key.
Replacement F.A.S.T.-keys

Additional F.A.S.T.-keys

NOTE
 You are provided with two F.A.S.T.-keys, but you may register up to four F.A.S.T.-keys.
Customer F.A.S.T.-key program- ming (Except for vehicles sold in Canada)

BK0237700US.bo
ok 32 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)

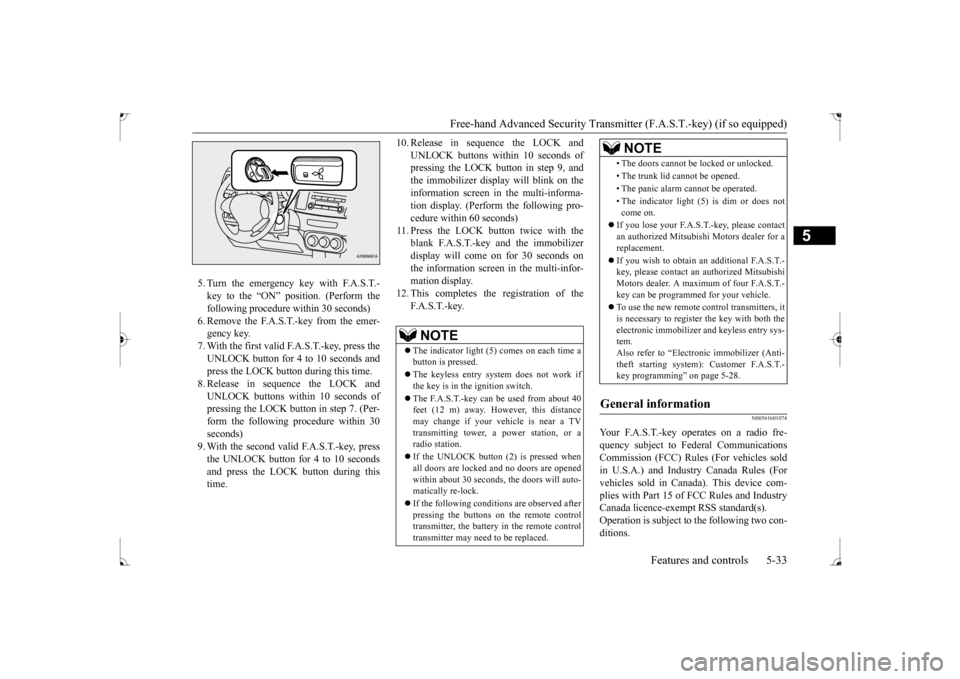

Features and controls 5-33
5
5. Turn the emergency key with F.A.S.T.- key to the “ON” position. (Perform thefollowing procedure within 30 seconds) 6. Remove the F.A.S.T.-key from the emer- gency key.7. With the first valid F.A.S.T.-key, press the UNLOCK button for 4 to 10 seconds and press the LOCK button during this time.8. Release in sequence the LOCK andUNLOCK buttons within 10 seconds of pressing the LOCK button in step 7. (Per- form the following procedure within 30seconds) 9. With the second valid F.A.S.T.-key, press the UNLOCK button for 4 to 10 secondsand press the LOCK button during this time.
10. Release in sequence the LOCK and
UNLOCK buttons within 10 seconds of pressing the LOCK butt
on in step 9, and
the immobilizer display will blink on theinformation screen in the multi-informa- tion display. (Perform the following pro- cedure within 60 seconds)
11. Press the LOCK button twice with the
blank F.A.S.T.-key and the immobilizer display will come on for 30 seconds onthe information screen in the multi-infor-mation display.
12. This completes the registration of the
F. A . S . T. - k e y.
N00561601074
Your F.A.S.T.-key operates on a radio fre-quency subject to Federal Communications Commission (FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada Rules (Forvehicles sold in Canada). This device com- plies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s).Operation is subject to
the following two con-
ditions.
NOTE
 The indicator light (5) comes on each time a button is pressed.  The keyless entry system does not work if the key is in the ignition switch.  The F.A.S.T.-key can be used from about 40 feet (12 m) away. However, this distance may change if your vehicle is near a TVtransmitting tower, a power station, or a radio station.  If the UNLOCK button (2) is pressed when all doors are locked and no doors are openedwithin about 30 seconds, the doors will auto- matically re-lock.  If the following conditions are observed after pressing the buttons on the remote control transmitter, the battery in the remote controltransmitter may need to be replaced.
• The doors cannot be locked or unlocked. • The trunk lid cannot be opened.• The panic alarm cannot be operated.• The indicator light (5) is dim or does not come on.
 If you lose your F.A.S.T.-key, please contact an authorized Mitsubishi Motors dealer for areplacement.  If you wish to obtain
an additional F.A.S.T.-
key, please contact an authorized Mitsubishi Motors dealer. A maximum of four F.A.S.T.- key can be programmed for your vehicle.  To use the new remote control transmitters, it is necessary to register the key with both theelectronic immobilizer and keyless entry sys- tem. Also refer to “Electronic immobilizer (Anti-theft starting system): Customer F.A.S.T.- key programming” on page 5-28.
General information

NOTE
BK0237700US.bo
ok 33 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

Theft-alarm system (if so equipped)
Features and controls 5-41
5
To open the trunk from the inside, move the lever (A) in the direction of the arrow on the lever. Push up on the trunk lid to open the trunk and climb out.
N00510201300
The theft-alarm system is designed to provide protection from unauthorized entry into the vehicle. This system is operated in threestages: the first is the “armed” stage, the sec- ond is the “alarm” stage,
and third is the “dis-
armed” stage. If triggered, the systemprovides both audible and visual alarm sig- nals.
N00510301183
Park the vehicle and stop the engine. Arm the system as described below.
1. Turn the ignition switch to the “LOCK” position. Also, if a key was used to start the engine, remove the key from the ignition switch.2. Make sure that the trunk lid and engine hood are closed. 3. Lock all doors by either the remote con-trol transmitter or the F.A.S.T.-key. At this time, the theft-alarm indicator (A) on the audio panel flashes for confirma-tion.
WA R N I N G Children should never be left unsuper- vised in or around vehicles. Unsupervised children could lock them- selves in an open vehicle or trunk. People trapped inside a vehicle or trunk, even if only for a short period of time, canquickly die from suffocation or heat stroke, especially on hot days. Interior temperatures in vehicles can rise in min-utes. Keep your vehicle doors locked and the trunk lid closed when not in use. Keep your vehicle keys away from children.
CAUTION When loading the trunk, place your things so that they will not touch the emergency trunk lid release lever when you close the trunk. Otherwise you could damage the lever and make it unusable.
Theft-alarm system
(if so
equipped)
CAUTION Do not modify or add parts to the theft-alarm system. Doing so could cause the theft-alarm to malfunction.
Armed stage

Arm the system and leave
BK0237700US.bo
ok 41 ページ ２０１６年４月１５日　金曜日　午前１１時２８分

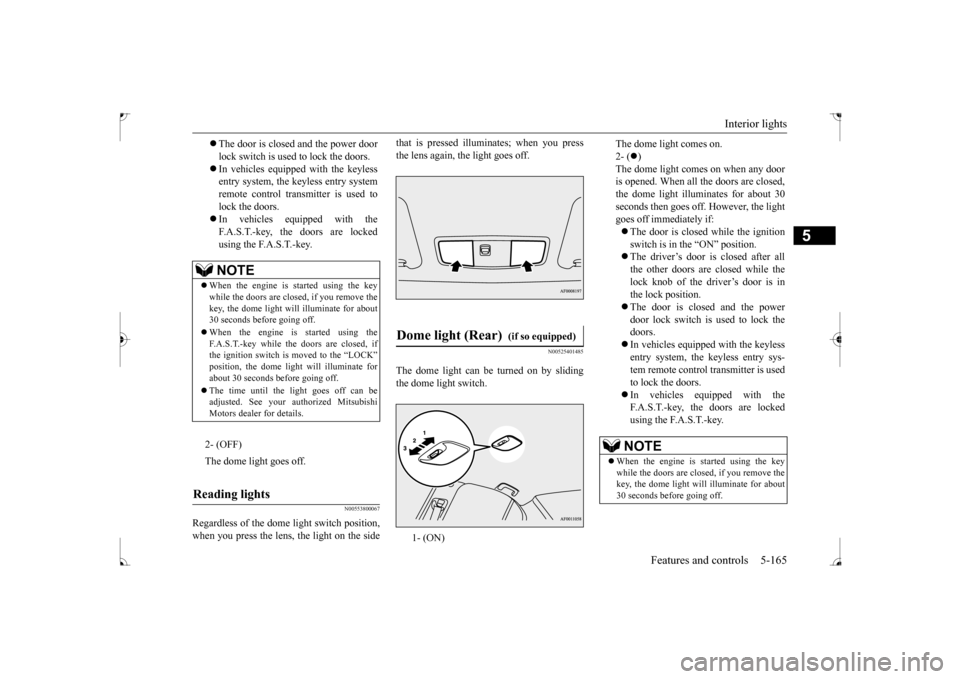

Interior lights
Features and controls 5-165
5
N00553800067
Regardless of the dome light switch position, when you press the lens, the light on the side
that is pressed illuminates; when you press the lens again, the light goes off.
N00525401485
The dome light can be turned on by sliding the dome light switch.
 The door is closed and the power door lock switch is used to lock the doors. In vehicles equipped with the keyless entry system, the keyless entry system remote control transmitter is used tolock the doors.  In vehicles equipped with the F.A.S.T.-key, the doors are lockedusing the F.A.S.T.-key.NOTE
 When the engine is started using the key while the doors are closed, if you remove the key, the dome light will illuminate for about30 seconds before going off.  When the engine is started using the F.A.S.T.-key while the doors are closed, if the ignition switch is moved to the “LOCK” position, the dome light will illuminate forabout 30 seconds before going off.  The time until the light goes off can be adjusted. See your authorized Mitsubishi Motors dealer for details.2- (OFF) The dome light goes off.
Reading lights
Dome light (Rear)
(if so equipped)
1- (ON)
The dome light comes on. 2- (
)
The dome light comes on when any door is opened. When all the doors are closed, the dome light illuminates for about 30seconds then goes off. However, the light goes off immediately if:  The door is closed while the ignition switch is in the “ON” position.  The driver’s door is closed after all the other doors are closed while thelock knob of the driver’s door is inthe lock position.  The door is closed and the power door lock switch is used to lock thedoors.  In vehicles equipped with the keyless entry system, the keyless entry sys-tem remote control transmitter is used to lock the doors.  In vehicles equipped with the F.A.S.T.-key, the doors are locked using the F.A.S.T.-key.NOTE
 When the engine is started using the key while the doors are closed, if you remove the key, the dome light will illuminate for about 30 seconds before going off.
