display MITSUBISHI LANCER EVOLUTION 2010 10.G MMCS Manual

Listening to Music CDs 6-19
Audio
Listening to Music CDs
If a music CD is inserted into the device, the tracks will
be played automatically, and the track can be recorded
to the system's hard drive device (HDD) if set initially to
do so.
Simultaneously, Gracenote Music Recognition Service
on the HDD is accessed, and the title information
obtained.NOTE If the information was obtained from the built-in
the database or with CD-TEXT, the disk title, track
title currently being played, and the artist name is
displayed on the source plate. The track title list is
displayed in the audio screen.
 With music CDs, the title information cannot always
be obtained.
>>>”Obtaining Title Information” (page
6-25)
 If playing a CD in which there are no blanks (i.e.,
soundless parts) between the tracks, a brief silence
between the tracks is still stored to the music server,
but this is not a malfunction.
Display Contents
eng_a314
1) Album Name
The name of the album for the track currently being
played is displayed.
2) Track Number and Track Name
The number and name of the track currently being
played is displayed.
3) [
]
Touch this button to move the cursor to the track
currently being played.
4) [ ]
Touch this button to display the Sub Menu.
5) Track Number and Track Name
6) [ Track] and [Track
]
Touch these buttons to move down and up the
tracks. Touch and hold to rewind or fast-forward a
track.
7) Cursor
Displays the item currently selected.
8) Cursor Position
Cursor position and total number of album tracks9) Playback Mode

The currently selected playback mode is displayed.10) Playback Time
The playback time for the track currently being
played is displayed.
11) Artist Name
The name of the artist whose album (track)
currently being played is displayed. 1)
3)4) 2)5)
6)7)8)9)10)11 )








Recording to the Music Server 6-22Recording to the Music ServerTracks on music CDs can be recorded to the
HDD built into this device at approximately x4
speed.
NOTE The use of recorded tracks for purposes other than
personal enjoyment is prohibited by copyright law.
 Recorded sounds may suffer from noise occurring
or the sound quality may be different from original
sound.
 Tracks that have been recorded to the music server
cannot be reproduced in another medium (CD-R/
RW, HDD, etc.)
 Previously recorded tracks cannot be recorded again
from the same CD.
 Turning OFF the engine or removing the music CD
during recording will result in defective recording.
 During recording, the navigation system may be slow
to operate.
 Recording may be slower than the x4 speed due to
the processing load on the device or the status of
the music CD.
 If sound skipping or other errors occur, return to the
start of that track and restart the recording.
 Even if there are no blanks between tracks on the
CD, a brief silence is stored in the HDD between
tracks.
Displaying during Recording
eng_a320
1) REC symbol
During recording, this symbol is displayed in red,
and when all recordings have nished, the display is
turned OFF. The numbers describe the percentage
of the number of tracks that have finished being
recorded out of the total number of CD tracks, so if
recording a single track, “00%” is displayed.
2) Recording Status Symbol
Tracks being recorded are displayed in red, and
those that are not being recorded are displayed in
blue. No symbol is displayed for tracks that have
nished being recorded.
Recording
With auto recording, all tracks are
recorded automatically when a music CD
is inserted, and with manual recording only
the selected tracks can be recorded.
NOTE If the available HDD space is insuf cient, recording is
not possible.Recording SettingsSet the music CD recording method. 1 During music CD playback
(page
6-19)
, touch [
]
eng_a314
2 Touch [REC. setting]
eng_a316
1)2)









Obtaining Title Information 6-25
Audio
Obtaining Title InformationThe playlist title information can be obtained from the
Gracenote Database on the HDD. Searching for tracks
on the music server, etc., can be performed smoothly
by obtaining the title information.
Gracenote Service
Company OutlineMusic identification technology and related data
information is supplied by Gracenote Service and the
Gracenote music identification service. Gracenote
is the industry standard for music identification
technology and related data information distribution.
For details, refer to www.gracenote.com.
The Gracenote Database built into this device cannot
assure 100% the contents of the data.Patents and TrademarksFor patents and trademarks, refer to “Gracenote
®
Music Recognition Service
SM” (page 1-12)
.
Updating Gracenote CDDBThe information on the HDD can be updated using the
Gracenote CDDB version upgrade CD (disk).NOTE Do not remove the disk or turn OFF the engine while
the update is in progress.
 Unless the disk is inserted, [CDDB Updating] is not
displayed.
 The update takes approximately ve minutes. 1 Insert a disk
>>> “Inserting and Removing Disks” (page 6-4) 2 Press the [MODE] key
3 Touch [CDDB Updating]
eng_a324

eng_a325
NOTE If the ACC is turned OFF, the update is incomplete.
The obtained update data is deleted. If the ACC is
turned OFF and the update is canceled, perform
update again from the start.
Obtaining Title Information
When a music CD is inserted into
the device, the title information can
be obtained from the built-in HDD
automatically at any time. If the title
information cannot be obtained, obtain it
using the CD text information.
The information that can be obtained is
the album title, album artist, track title,
track artist, and genre.
NOTE If there is no CD text information, the title is displayed
as “No Title”, and the artist is displayed as “No
Name”.
 Title information from music CDs sold after the
period during which this device went on sale cannot
be obtained from the HDD. Further, it may not be
possible to obtain information from earlier music
CDs, either.
 Title information can be obtained for original playlist
only.
 After recording a music CD, to obtain the title
information, it is necessary to use the music server.





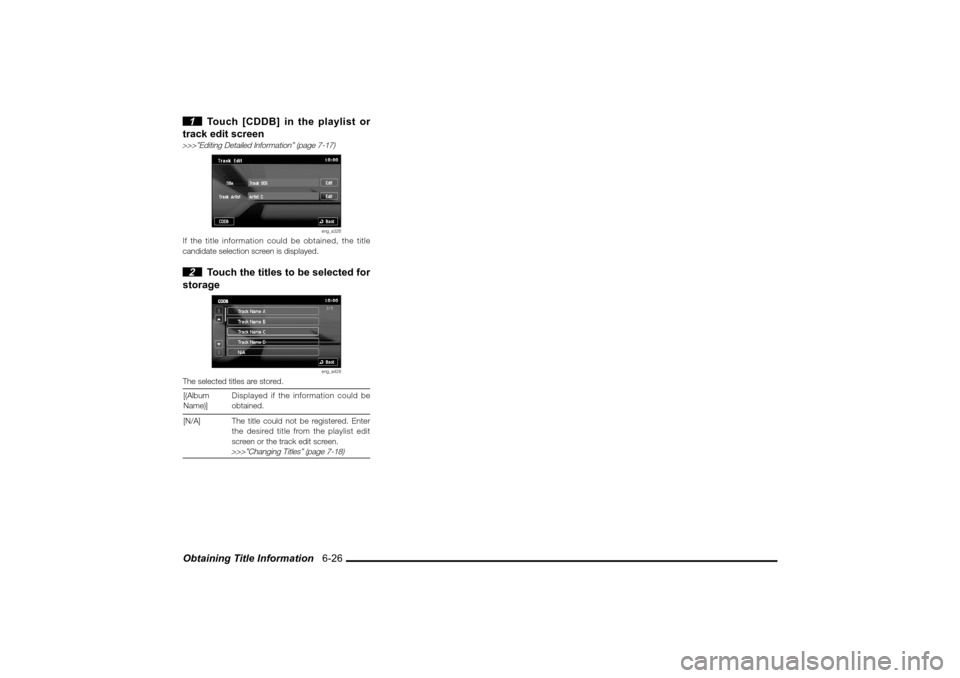

Obtaining Title Information 6-26 1 Touch [CDDB] in the playlist or
track edit screen
>>>”Editing Detailed Information” (page 7-17)
eng_a326
If the title information could be obtained, the title
candidate selection screen is displayed. 2 Touch the titles to be selected for
storage
eng_a428
The selected titles are stored.
[(Album
Name)]Displayed if the information could be
obtained.
[N/A]The title could not be registered. Enter
the desired title from the playlist edit
screen or the track edit screen.
>>>”Changing Titles” (page 7-18)









Listening to MP3/WMA Disks 6-27
Audio
Listening to MP3/WMA DisksIf an MP3/WMA disk is inserted into the device,
the display is switched automatically to the CD
screen, and track playback is started.
NOTE This manual mainly explains MP3 playback. WMA
playback, however, is a similar operation.
 Tracks on MP3/WMA disks cannot be saved to the
music server.
 To display title information such as artist name and
album title, etc., the ID3 Tag or WMA Tag information
must be included in the MP3/WMA le on the disk. >>> “MP3/WMA Files” (page 6-7)
Display Contents
eng_a327
1) Album Name (Folder Name)
The name of the album (name of the folder) for the
track currently being played is displayed.
2) MP3/WMA symbol
Describes the type of media currently being played.
3) Track Number and Track Name
The number and name of the track currently being
played is displayed.
4) [HOME]
Touch this button to move the cursor to the track
currently being played.
5) [ ]
Touch this button to display the Sub Menu.
6) Folder Number/Folder Name
With track lists, the track number and le name
(excluding the extension) is displayed.
7) [
Folder] and [ Folder
]
Touch these buttons to move down and up the
folders.
8) [
Track] and [Track
]
Touch these buttons to move down and up the
tracks. Touch and hold to rewind or fast-forward a
track.
9) Cursor
Displays the item currently selected.
10) Folder Layer Button
Touch this button to display the list of upper layer
folders.
11) Cursor Position
Shows cursor position and total number of folders
or tracks at current level.
12) Playback Mode
The currently selected playback mode is displayed.13) Playback Time
The playback time for the track currently being
played is displayed.
14) Artist Name
The name of the artist whose track (folder) is
currently being played is displayed.
Basic Operations
Playback
1 Insert an MP3/WMA disk into the
device
>>> “Inserting and Removing Disks” (page 6-4)
>>> “Switching to Audio Screen” (page 6-3)Playback is started automatically.
eng_a328
1)4)5) 3)6)
8)9)12)13)14)
2)7)
10)11 )









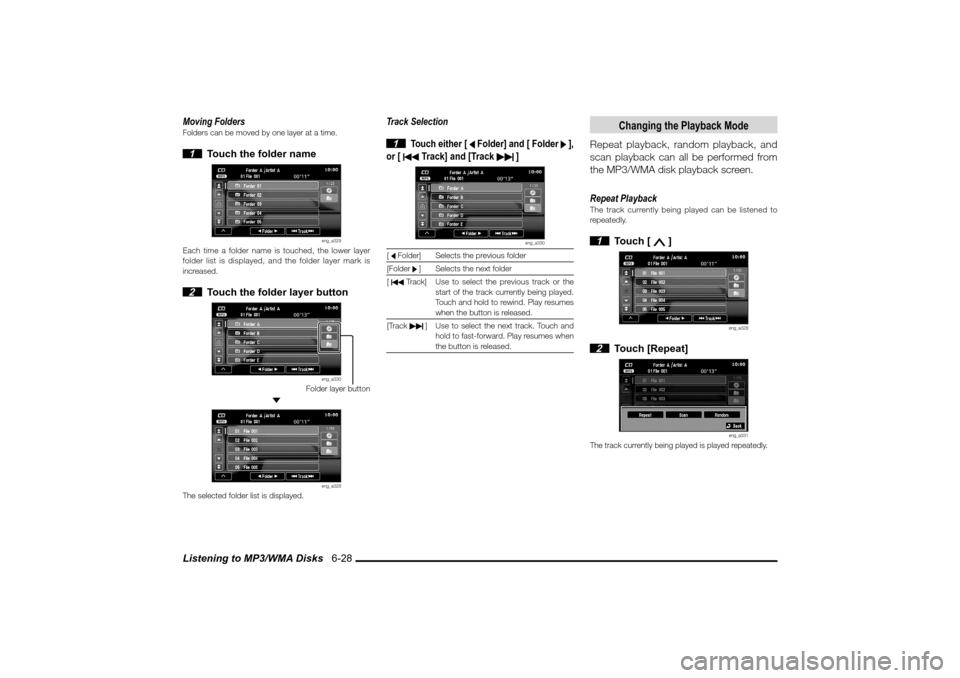

Listening to MP3/WMA Disks 6-28Moving FoldersFolders can be moved by one layer at a time. 1 Touch the folder name
eng_a329
Each time a folder name is touched, the lower layer
folder list is displayed, and the folder layer mark is
increased. 2 Touch the folder layer button
eng_a330
Folder layer button

eng_a328
The selected folder list is displayed.
Track Selection
1
Touch either [
Folder] and [ Folder ],
or [
Track] and [Track
]
eng_a330
[ Folder] Selects the previous folder
[Folder ] Selects the next folder
[
Track] Use to select the previous track or the
start of the track currently being played.
Touch and hold to rewind. Play resumes
when the button is released.
[Track
] Use to select the next track. Touch and
hold to fast-forward. Play resumes when
the button is released.
Changing the Playback Mode
Repeat playback, random playback, and
scan playback can all be performed from
the MP3/WMA disk playback screen.
Repeat PlaybackThe track currently being played can be listened to
repeatedly. 1 Touch [
]
eng_a328
2 Touch [Repeat]
eng_a331
The track currently being played is played repeatedly.









Music Server 7-1
Music Server
Music Server
Music Server
The music server can play and record CD
tracks. It is part of the MMCS hard drive device
(HDD).
NOTE The tracks on the HDD cannot be transferred to
another vehicle's navigation/audio system, and the
HDD itself cannot be replaced.
 Tracks that have been recorded to the HDD cannot
be reproduced in another medium (CD-R, MD, etc.)
Display Contents
eng_338
1) Playlist Number/Playlist Name
The number and name of the playlist currently
being played is displayed.
2) Track Number and Track Name
The number and name of the track currently being
played is displayed.
3) Cursor
Displays the item currently selected.
4) [
]
Touch this button to move the cursor to the track
currently being played.
5) [ ]
Touch this button to display the Sub Menu.
6) [ Playlist], [Playlist ]
Touch these buttons to move down and up the
playlists.
7) [ Track], [Track
]
Touch these buttons to move down and up the
tracks. Touch and hold to rewind or fast-forward a
track.8) Number/Title
Group lists: Group number and group name
Playlists: Playlist number and playlist name
Track lists: Track number and track name
9) List Button
Touch this button to display the group list, playlist,
and track list.
10) Cursor Position
Group lists: Cursor position and total number of
groups
Playlists: Cursor position and total number of
playlists
Track lists: Cursor position and total number of
tracks
11) Playback Mode
The currently selected playback mode is displayed.
12) Playback Time
The playback time for the track currently being
played is displayed.
13) Artist Name
The name of the artist whose track (playlist) is
currently being played is displayed.
4) 2)1)3)
6) 7)8) 9) 10) 11 ) 13)
12)5)









Listening to the Music Server 7-3
Music Server
Listening to the Music Server
Basic Operations
Playback
1 Press the [MODE] key, and touch
[Music Server]
eng_a310

eng_a339
The music server screen is displayed, and playback
starts automatically.NOTE All playlists play repeatedly.
 The Music Server can play even while a music CD
is being recorded. The Music Server cannot play
tracks being recorded until the recording has been
completed.
Track Selection
1
Touch [
Playlist] and [Playlist ]
or [
Track] and [Track
] to select
the trackeng_a339
[ Playlist] To select the previous playlist.
[Playlist ] To select the next playlist.
[
Track] To select the previous track or the start
of the track currently being played.
Touch and hold to rewind. Play resumes
when the button is released.
[Track
] To select the next track. Touch and hold
to fast-forward. Play resumes when the
button is released.
Switching ListsYou can toggle between the group lists, playlists, and
track lists. 1 Touch [Group]

eng_a340
The group list is displayed. 2 Touch [Playlist]

eng_a341
The list of playlists is displayed.









Listening to the Music Server 7-4 3 Touch [Track]

eng_a339
The list of tracks is displayed.NOTE It is not possible to toggle directly from group list to
track list.
Changing the Playback Mode
Repeat playback, random playback, and
scan playback can all be performed from
the Music Server playback screen.
NOTE Repeat playback, random playback, and scan
playback cannot be performed by group.Repeat PlaybackThe track currently being played can be listened to
repeatedly. 1 Touch [
]
eng_a339
2 Touch [Repeat]
eng_a342
The track currently being played plays repeatedly.
3 Touch [Repeat] again
REPEAT
eng_a343

PLAYLIST-REPEAT
eng_a344
Each time [Repeat] is touched, the playback mode
changes.
REPEAT The track currently being played plays
repeatedly.
PLAYLIST-
REPEATAll tracks in the playlist currently being
played play repeatedly.
(OFF) Cancels the repeat playback.








Searching for Desired Tracks 7-7
Music Server
Searching for Desired TracksSelecting Tracks from the List ScreenGroups, playlists, and tracks to which
the desired track has been saved can be
selected and played.
NOTE When searching for a track, touch [

] to display
the track list of the track currently being played.
1 Touch [Group]
eng_a340
The group list is displayed. 2 Touch one of the groups
eng_a349
3 Touch [Playlist]
eng_a341
The list of playlists is displayed.NOTE The list of playlists is also displayed if a group name
in the list is touched. 4 Touch one of the playlists
eng_a350
5 Touch [Track]
eng_a339
The list screen of tracks is displayed.
NOTE Touch the name of a playlist in the list. The rst track
is played.
 Touch [My Frequency] in the “My Best” group.
The track lists are automatically updated using the
conditions speci ed in
“Setting the “My Frequency”
Conditions” (page 7-15).
6 Touch one of the track names
eng_a351

The track is played.
