Outline of the System 1-5
Introduction
Outline of the System
System Male or female voice guidance is available in 3
languages.
(English, French, Spanish)
Trip information such as average speed, average fuel
economy, and instant fuel economy can be viewed. (page 9-5) Detailed settings can be made for vehicle equipment. (page 10-7) The vehicle maintenance timing can be managed
with the maintenance function.
(page 9-9)
Environmental information such as the outside
air temperature, altitude, and air pressure can be
viewed.
(page 9-8)
A special day or anniversary can be managed with
the calendar function.
(page 9-1)
DVDs can be played.
(page 8-1)
Music CDs can be recorded and played using the
Music Server.
(page 7-1)
Easy Operation Setting The touch panel enables easy operation.Destination Setting Addresses and nearby POIs can be easily searched
for and set as the destination.
(page 3-2)
A route can be set for returning home.
(page 3-7)
A new destination can be set from the 20
destinations that have been previously set. (page 3-7)
Display Guidance POI icons can be displayed on the map. There are
43 POI icon types.
(page 10-10)
The menu and map colors can be changed. (page 10-6),(page 10-11) Markings can be displayed on the road on which the
vehicle is being driven.
(page 10-11)
Routing Detour routes can be set with speci ed distances or
streets to avoid.
(page 4-3)
A route can be selected from 3 routes that have
different calculation conditions.
(page 4-4)
Areas to avoid can be set.
(page 10-16)
Voice Guidance Guidance is given for the required information at the
optimum time.
(page 2-12)
A male or female voice can be selected.
(page 10-5)
Vehicle information display (page 9-5) You can check or set driving information.
You can check distance to empty, distance driven
after refueling, and driving time.
Page 9 of 161
![MITSUBISHI LANCER EVOLUTION 2010 10.G MMCS Manual Parts Name and Functions 1-6
Parts Name and Functions
Roles of the Panel Operations Keys
1) [MODE] Key
Displays the A/V mode selection
screen.
2) [AUDIO] Key Switches between the A/V screen and
MITSUBISHI LANCER EVOLUTION 2010 10.G MMCS Manual Parts Name and Functions 1-6
Parts Name and Functions
Roles of the Panel Operations Keys
1) [MODE] Key
Displays the A/V mode selection
screen.
2) [AUDIO] Key Switches between the A/V screen and](/img/19/7465/w960_7465-8.png)
Parts Name and Functions 1-6
Parts Name and Functions
Roles of the Panel Operations Keys
1) [MODE] Key
Displays the A/V mode selection
screen.
2) [AUDIO] Key Switches between the A/V screen and
the NAVI screen.3) [VOL] Key
Adjusts the A/V volume.
4) [PWR] Key
Turns ON and OFF the audio
functions.
5) [SET] Key
Displays the Settings screen.
6) [OPEN] Key
Opens and closes the monitor panel.
7) [ENT] Key
Implements the selected item.
Role of the Steering Switch
8) Joystick
Scrolls the maps and implements
item selection.
9) [MENU] Key
Displays the Navi menu screen.
10) [ SCALE
] Key
Changes the map scale.
11) [NAVI] Key
Displays the current location screen.
12) [INFO] Key
Displays the Info screen.1) Volume up / down
( [ + ] and [ - ] Keys )
Adjust the volume during audio
function playback.
2) CH up / down
([ ] and [ ]Keys)
Moves up and down radio stations,
moves to the next or previous track
during CD playback, and moves to
the next or previous chapter during
DVD playback.
3) [MODE] Key
Toggles the A/V mode each time this
key is pressed. 1)
2)
3)
4)
5)
6)
8)9)
7)10)11 )12)1)
2)
3)
Page 18 of 161

Starting the MMCS 2-1
Basic Operation
Basic Operation
Starting the MMCS
WARNING
Do not operate the Mitsubishi Multi Communication
System (MMCS) while driving. Always concentrate on your driving rst. Keep your
eyes and mind on the road. If distracted while
driving, you could cause an accident.
When operating the MMCS, do not park with the
engine running in a closed or poorly ventilated
area. Carbon monoxide gas, which is odorless and
extremely poisonous, can build up and cause serious
injury or death.
1 Turn “ON” the ignition switch
eng_244
eng_a002
The opening screen is displayed.
If any function other than AUDIO was used last time,
go to Step 2.NOTE If special days and anniversaries
(page 9-1)
have
been set, when the date matches the settings, the
set icon is displayed on screen.
If maintenance information
(page 9-9)
has been set,
when the maintenance distance has been exceeded
or the maintenance timing has been exceeded, a
telop will be displayed in the opening screen.
2 Touch the desired language
eng_a001-1
NOTE When the meter is set to Auto, the language of both
sides can be changed by performing operations on
either the MMCS side or the meter side.
When the meter is set to Manual, the language
of the meter side and the MMCS side can be set
separately. 3 Touch [OK]
After a moment, the display is changed to the
navigation screen.NOTE If the battery voltage is low in cold regions, etc., the
navigation screen is displayed rather than the screen
last used.
Page 20 of 161
![MITSUBISHI LANCER EVOLUTION 2010 10.G MMCS Manual Menu Screens (Three Menus) 2-3
Basic Operation
Menu Screens (Three Menus)
Scroll Menu
After scrolling the map, press the [ENT]
key to display.
eng_a003-2
1) [Set as Dest.]
Sets the cursor positi MITSUBISHI LANCER EVOLUTION 2010 10.G MMCS Manual Menu Screens (Three Menus) 2-3
Basic Operation
Menu Screens (Three Menus)
Scroll Menu
After scrolling the map, press the [ENT]
key to display.
eng_a003-2
1) [Set as Dest.]
Sets the cursor positi](/img/19/7465/w960_7465-19.png)
Menu Screens (Three Menus) 2-3
Basic Operation
Menu Screens (Three Menus)
Scroll Menu
After scrolling the map, press the [ENT]
key to display.
eng_a003-2
1) [Set as Dest.]
Sets the cursor position as the destination.>>> “Destination Setting for Scrolled Position” (page 2-8)2) [Address Book]
The cursor position can be stored in the address
book.
>>> “Storing a New Location” (page 5-1)3) [Nearby POI ]
POI can be searched for in the vicinity of the cursor
position.
>>> “Nearby POI
” (page 3-8)
4) [Location check]
The positional relationship between the cursor
position and the current location can be viewed.>>> “Viewing the car location” (page 2-8)5) Cursor
Navi Menu
Press the [MENU] key to display.
eng_a004-2
1) [Address/Intersection] The location can be searched for using the address
or street name of the destination. >>> “From Address/Intersection” (page 3-2)2) [Point of Interest]
The location can be searched for using a POI
name.
>>> “Points of Interest (POI) Name” (page 3-5)3) [Advanced Search]
An advanced search is possible based on the POI
search.
>>> “Advanced Search” (page 3-8)4) [Previous 20] A new destination can be set from the 20 destinations
that have been previously set. >>> “Previous 20” (page 3-7)5) [Address Book] A previously stored location can be called up and
set as the destination.
>>> “Address Book” (page 5-1)6) [Go Home]
A route can be set for returning home.
>>> “Go Home” (page 3-7)
7) [Navigation Settings]
Various functions related to the navigation can be
set.
>>> “Settings” (page 10-1)
8) [Navigation Tools]
The Demo of the set route and basic information
related to the navigation can be viewed.
>>> “Start Demo” (page 4-8)9) [Route]
The [Route] button is displayed when a destination
has been set.
>>> “Route Menu” (page 2-4)
1)2)3)4)
5)
Page 27 of 161

Intersection Guidance 2-10
Intersection Guidance
An enlarged intersection map is displayed
when an intersection is approached.
The guidance mode can be changed with the
settings.
NOTE Refer to
“Guidance Mode” (page 10-14)
for details on
how to change the guidance mode.
Guidance Map
The screen changes from the normal map
screen to the intersection guidance map.
eng_a025
NOTE The ferry mark is displayed when
there is a ferry terminal.
eng_a030
eng_a026
Turn List
The screen changes from the turn list to
the intersection guidance map.
eng_a027
NOTE The toll booth mark is displayed
when there is a toll booth.
eng_a207
The ferry mark is displayed when
there is a ferry terminal.
eng_a029
eng_a026
Page 29 of 161

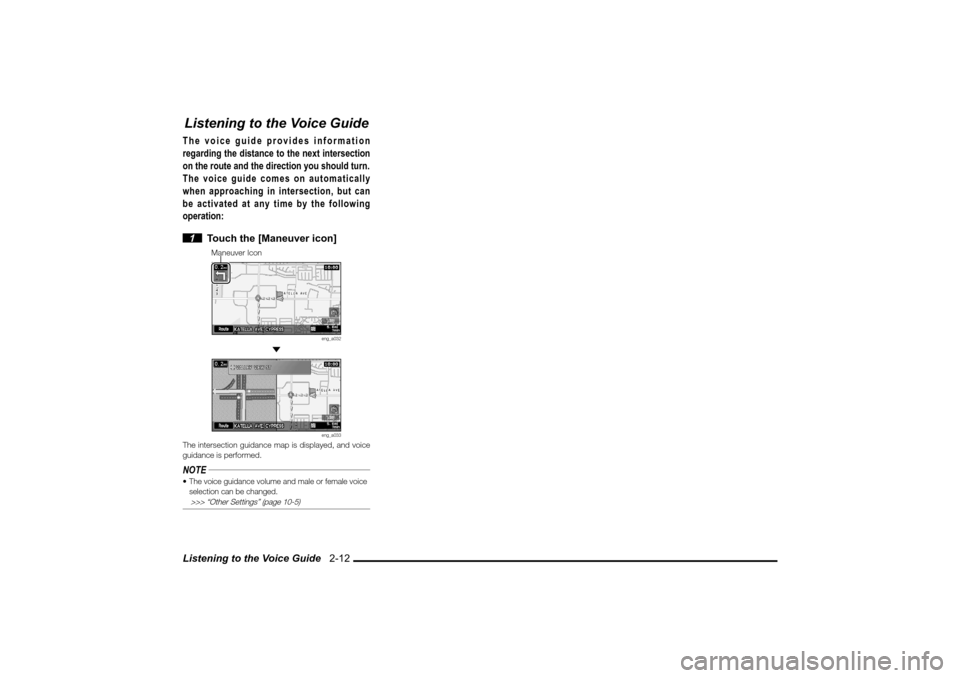

Listening to the Voice Guide 2-12Listening to the Voice GuideThe voice guide provides information
regarding the distance to the next intersection
on the route and the direction you should turn.
The voice guide comes on automatically
when approaching in intersection, but can
be activated at any time by the following
operation:
1 Touch the [Maneuver icon]
Maneuver Icon
eng_a032
eng_a033
The intersection guidance map is displayed, and voice
guidance is performed.NOTE The voice guidance volume and male or female voice
selection can be changed.
>>> “Other Settings” (page 10-5)
Page 30 of 161

How to Enter Text 2-13
Basic Operation
How to Enter Text
The text input keyboard is displayed when
searching for a location or for the name of a
stored location.
Capital letters, small letters, and symbols can
be input depending on the function.
NOTE The examples in this section all show the screen
for editing stored locations, but operations for other
input keyboards are performed in the same way.
The keyboard layout can be changed between
[Alphabet] and [PC] using “Keyboard Layout” in
“Other Settings”
(page 10-6)
eng_a036
Entering a letter
1 Touch the letters
eng_a036
The touched letters are input.
Entering a Symbol
1 Touch [More]
2 Touch the symbols
eng_a038
eng_a039
The touched symbols are input.
Deleting Text
1 Touch [
]
eng_a039
eng_a036
The letters are deleted one by one.
Page 37 of 161
![MITSUBISHI LANCER EVOLUTION 2010 10.G MMCS Manual Basic Method 3-6 8 Touch [Set]
eng_a067
NOTE When a facility marked
with is selected
from the POI Name
List, [Sub POI] will be
displayed in the lower
part of the screen.
eng_a068
Touch [S MITSUBISHI LANCER EVOLUTION 2010 10.G MMCS Manual Basic Method 3-6 8 Touch [Set]
eng_a067
NOTE When a facility marked
with is selected
from the POI Name
List, [Sub POI] will be
displayed in the lower
part of the screen.
eng_a068
Touch [S](/img/19/7465/w960_7465-36.png)
Basic Method 3-6 8 Touch [Set]
eng_a067
NOTE When a facility marked
with is selected
from the POI Name
List, [Sub POI] will be
displayed in the lower
part of the screen.
eng_a068
Touch [Sub POI]
to display the
list and select
a detailed POI.
eng_a069
>>> Continued at “Destination Setting” (page 3-12)
Editing My CategoriesFrequently used POI categories can be stored in “My
Categories”.
A maximum of six category items can be stored in “My
Categories”. 1
Display the “POI Category” screen
>>> “Points of Interest (POI) Name” (page 3-5) 2 Touch [My Categories]
eng_a064
3 Touch [Edit My Categories]
A list is displayed of all categories. 4 Touch the category to store
eng_a070
NOTE The stored categories are displayed with a highlight.
Touch a stored category to clear the stored item.
Touch [Clear All] to clear all the stored category
items.
Touch [Default] to return to the factory settings ( ve
items are stored before shipment).
5 Touch [Back]
eng_a071
The categories currently displayed are stored, and the
display returns to the original “POI Category” screen.
Page 44 of 161
![MITSUBISHI LANCER EVOLUTION 2010 10.G MMCS Manual Destination Setting 3-13
Destination
NOTE Touch [Info] to
display a map of
the vicinity and
corresponding
information.
eng_a097
Touch [Show Route] to display the entire route, view 3
diffe MITSUBISHI LANCER EVOLUTION 2010 10.G MMCS Manual Destination Setting 3-13
Destination
NOTE Touch [Info] to
display a map of
the vicinity and
corresponding
information.
eng_a097
Touch [Show Route] to display the entire route, view 3
diffe](/img/19/7465/w960_7465-43.png)
Destination Setting 3-13
Destination
NOTE Touch [Info] to
display a map of
the vicinity and
corresponding
information.
eng_a097
Touch [Show Route] to display the entire route, view 3
different routes and change the calculation conditions in
the same way as
“Showing the Route” (page 4-4)
.
Touch [Re-order] to change the sequence for visiting each
location in the same way as
“Re-ordering” (page 4-5)
.
Touch [Add] to add a way point in the same way as “Adding a Way Point” (page 4-6)
.
Touch [Delete] to delete a destination or way point in
the same way as
“Deleting” (page 4-6)
.
Touch [Option] to perform settings related to the route in
the same way as
“Route Options” (page 10-12)
Storing the Location
Storing the displayed location and adding
it to the address book.
1 Touch [Address Book]
The information screen for the location to be stored is
displayed. 2 Touch [Set to Address Book]
eng_a098
The displayed location is stored in the address book.NOTE Stored information other than “State” can be edited.
When editing an icon or name, perform in the same
way as
“Editing a Location” (page 5-4)
.
