ngine Start Function MITSUBISHI LANCER EVOLUTION 2010 10.G MMCS Manual

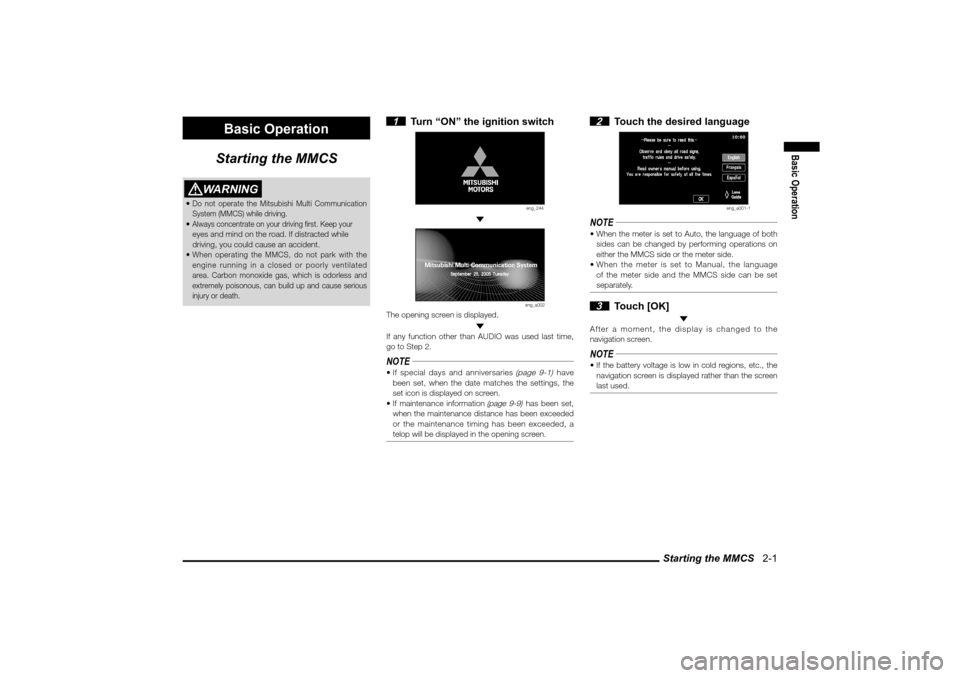

Starting the MMCS 2-1
Basic Operation
Basic Operation
Starting the MMCS
WARNING
 Do not operate the Mitsubishi Multi Communication
System (MMCS) while driving. Always concentrate on your driving rst. Keep your

eyes and mind on the road. If distracted while
driving, you could cause an accident.
 When operating the MMCS, do not park with the
engine running in a closed or poorly ventilated
area. Carbon monoxide gas, which is odorless and
extremely poisonous, can build up and cause serious
injury or death.
1 Turn “ON” the ignition switch
eng_244

eng_a002
The opening screen is displayed.

If any function other than AUDIO was used last time,
go to Step 2.NOTE If special days and anniversaries
(page 9-1)
have
been set, when the date matches the settings, the
set icon is displayed on screen.
 If maintenance information
(page 9-9)
has been set,
when the maintenance distance has been exceeded
or the maintenance timing has been exceeded, a
telop will be displayed in the opening screen.
2 Touch the desired language
eng_a001-1
NOTE When the meter is set to Auto, the language of both
sides can be changed by performing operations on
either the MMCS side or the meter side.
 When the meter is set to Manual, the language
of the meter side and the MMCS side can be set
separately. 3 Touch [OK]
After a moment, the display is changed to the
navigation screen.NOTE If the battery voltage is low in cold regions, etc., the
navigation screen is displayed rather than the screen
last used.









Equipment 10-7
Settings
Equipment
Set the vehicle equipment.
1 Press the [SET] key, touch
[Equipment]
eng_a018
The equipment screen is displayed. 2 Touch the name of the equipment
group
eng_a237
3 Touch the item name
eng_a239
4 Touch the condition
eng_a240
5 Touch [Back]
The equipment settings are completed.
Equipment Items that Can Be Set
Refer to the section titled “Features and
Controls” in the vehicle owner’s manual for
details on setting these items.
Keyless Entry System Turn Signal Lights Answerback
 Horn Answerback Sounds at Keyless Entry Lock
 Duration of Horn Answerback SoundsF.A.S.T.*-key (Keyless Operation System)*:Free-hand Advanced Security Transmitter
 Turn Signal Lights Answerback
 Horn Answerback Sounds at keyless Entry Lock
 Duration of Horn Answerback Sounds
 Door Entry and Engine Start Function
 Keyless Operation Answerback Beep Sounds
 Time for Remote Unlock Inactivated after LockingNOTE Either “Keyless Entry System” or “Keyless Operation
System” will be displayed, depending on the equipment.
Wipers Windshield Wipers Intermittent Operation
 Wipers Linked to Washer
 Rear Wiper Intermittent Interval
 Rear Wiper Continuous OperationExterior Lights/Interior Lights Headlight Auto-cutout Function
 Interior Light Auto-cutout Time
 Duration Dome Light Remains On after Door is
ClosedTheft Alarm Panic AlarmTurn Signal Operation in Key Position
 Lane-change Signals (Flash Three Times with 1
Touch)Power Door Locks Automatic Relocking after Unlocked by Remote
 Unlock Operation
 Automatic Unlock when Transmission Shifted to ParkOthers Auto Cut of ACC Power
