sat nav MITSUBISHI LANCER EVOLUTION 2010 10.G MMCS Manual

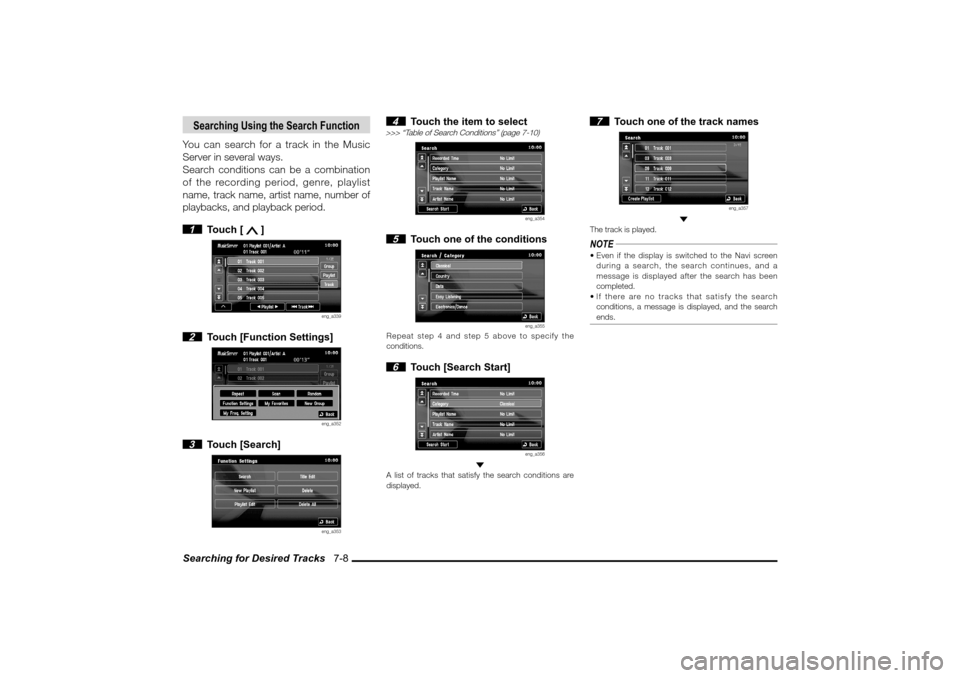

Searching for Desired Tracks 7-8Searching Using the Search FunctionYou can search for a track in the Music
Server in several ways.
Search conditions can be a combination
of the recording period, genre, playlist
name, track name, artist name, number of
playbacks, and playback period.
1 Touch [
]
eng_a339
2 Touch [Function Settings]
eng_a352
3 Touch [Search]
eng_a353
4 Touch the item to select
>>> “Table of Search Conditions” (page 7-10)
eng_a354
5 Touch one of the conditions
eng_a355
Repeat step 4 and step 5 above to specify the
conditions. 6 Touch [Search Start]
eng_a356

A list of tracks that satisfy the search conditions are
displayed.
7 Touch one of the track names
eng_a357

The track is played.NOTE Even if the display is switched to the Navi screen
during a search, the search continues, and a
message is displayed after the search has been
completed.
 If there are no tracks that satisfy the search
conditions, a message is displayed, and the search
ends.









Other Info 9-13
Information
Other Info
System information and information about the
current location can be viewed.
Support Info
System information for this navigation
system can be viewed.
1 Press the [INFO] key, and touch
[Support Info]
eng_a140

eng_a159
The support info screen is displayed.
SW Version The software version of the system
is displayed.
MAP Version
The map data version is displayed.
CDDB VersionThe database version of the title
information is displayed.
About version updates To update the map data version, insert the DVD
containing the new map data. A screen for selecting
whether or not data should be automatically updated
will appear.
 Insert the version update key, and follow the
procedures on the screen.
 For the operating procedure, please refer to the
instruction manual included with the MAP Update
DVD (sold separately). (Contact an authorized
Mitsubishi Motors dealer for assistance.)
Vehicle Position
The name of the current location, latitude
and longitude, and the number of GPS
satellites being received can be viewed.
1 Press the [INFO] key, and touch
[Vehicle Position]
eng_a140

eng_a160
The vehicle screen is displayed.NOTE Touch [North-Up] to switch to displaying north at the
top of the map.
 Touch [Heading-Up] to switch to displaying the
vehicle direction at the top of the map.
 Touch [ ], [ ], [ ] and [ ] to view the sky maps
by rotating or changing the angle.





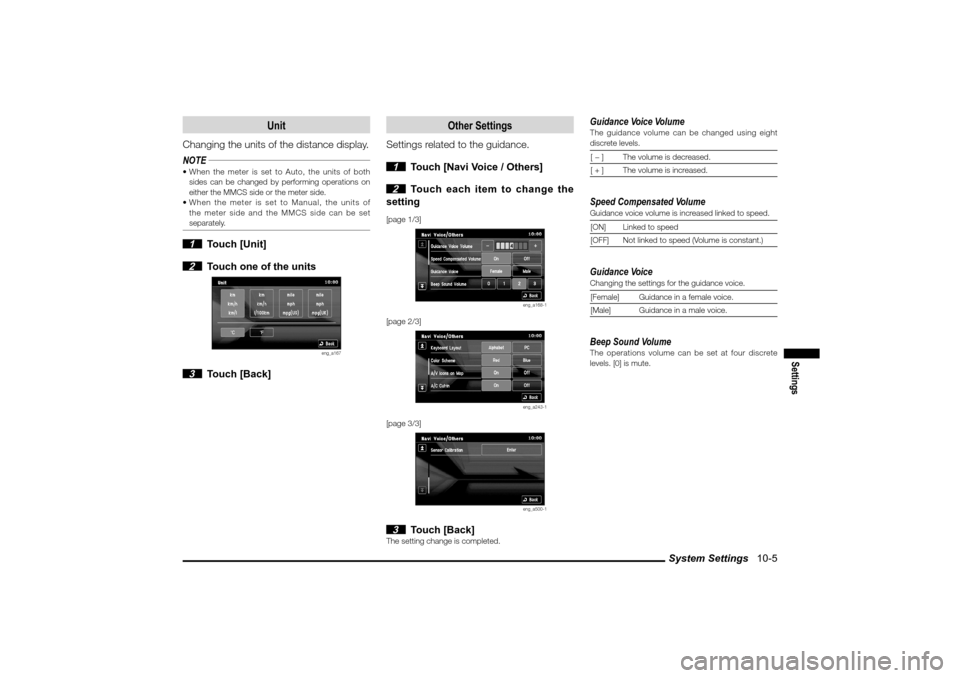

System Settings 10-5
Settings
Unit
Changing the units of the distance display.
NOTE When the meter is set to Auto, the units of both
sides can be changed by performing operations on
either the MMCS side or the meter side.
 When the meter is set to Manual, the units of
the meter side and the MMCS side can be set
separately. 1 Touch [Unit]
2 Touch one of the units
eng_a167
3 Touch [Back]
Other Settings
Settings related to the guidance.
1 Touch [Navi Voice / Others]
2 Touch each item to change the
setting
[page 1/3]
eng_a168-1
[page 2/3]
eng_a243-1
[page 3/3]
eng_a500-1
3 Touch [Back]
The setting change is completed.
Guidance Voice VolumeThe guidance volume can be changed using eight
discrete levels.[ ] The volume is decreased.
[ + ] The volume is increased.Speed Compensated VolumeGuidance voice volume is increased linked to speed.
[ON] Linked to speed
[OFF] Not linked to speed (Volume is constant.)Guidance VoiceChanging the settings for the guidance voice.
[Female] Guidance in a female voice.
[Male] Guidance in a male voice.Beep Sound VolumeThe operations volume can be set at four discrete
levels. [0] is mute.
