Page 214 of 594
Features and controls
3-129
3
NOTE
When moving out of mud, sand or fresh snow, pressing
the accelerator pedal may not allow the engine speed to
increase. In such situations, temporarily turning off the
ASC with the “ASC OFF” switch will make it easier to
move out your vehicle.
By pressing the ASC OFF switch, both the skid control
function and the traction control function are turned OFF.
By pressing down the “ASC OFF” switch for 3 seconds or
longer, you can deactivate the ASC and the braking con-
trol of the AYC.
At this time, the display will appear for a few sec-
onds on the information screen in the multi-information
display.
Then, the previous screen will return and the “!” mark will
come on.
Press the ASC OFF switch again to turn ON the ASC.
If the ASC OFF switch is continuously pressed after the
ASC has been turned OFF or the ASC and the braking
control of AYC have been turned off, an erroneous opera-
tion prevention function operates and the ASC is automat-
ically turned ON.
ASC operation display, ASC OFF display or ASC
indicator
N00546500062
Indicator
Display
- ASC operation display
When the ASC is operating, the information screen in the
multi-information display will change and the ASC opera-
tion display will blink.
-ASC OFF display
The display is displayed when the ASC has been deac-
tivated with the “ASC OFF” switch.
- ASC indicator
Indicator blinks when the ASC is operating.
CAUTION
!
When display blinks, ASC is operating, which
means that the road is slippery or that your vehicle’s
wheels are beginning to slip. If this happens, drive
slower.
BK0105501US.book 129 ページ ２００９年８月１０日 月曜日 午前１０時３２分

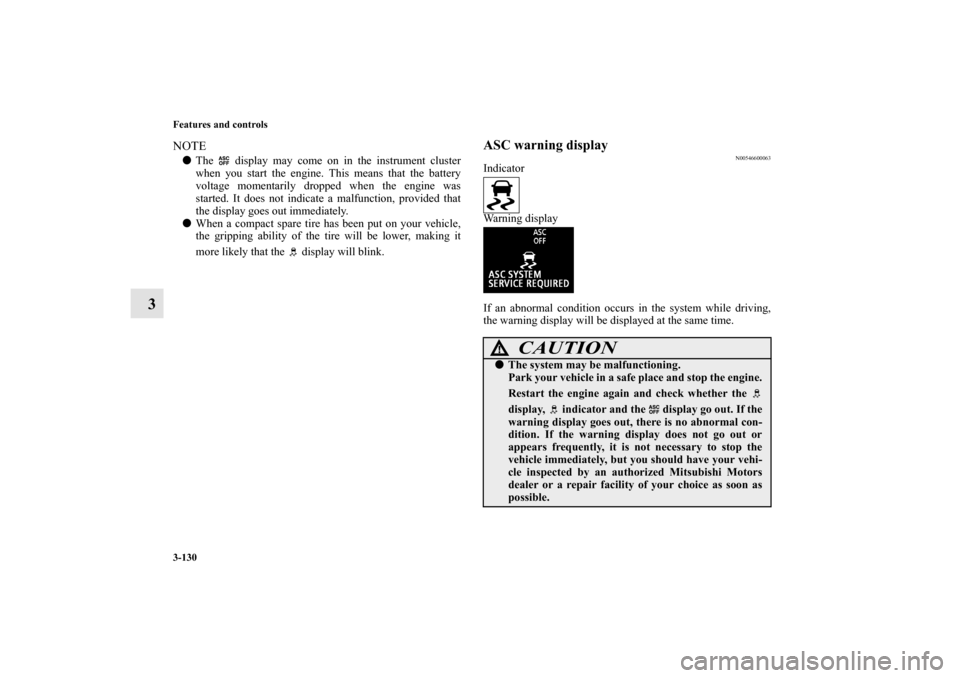

Page 215 of 594
3-130 Features and controls
3
NOTE
The display may come on in the instrument cluster
when you start the engine. This means that the battery
voltage momentarily dropped when the engine was
started. It does not indicate a malfunction, provided that
the display goes out immediately.
When a compact spare tire has been put on your vehicle,
the gripping ability of the tire will be lower, making it
more likely that the display will blink.
ASC warning display
N00546600063
Indicator
Warning display
If an abnormal condition occurs in the system while driving,
the warning display will be displayed at the same time.
CAUTION
!
The system may be malfunctioning.
Park your vehicle in a safe place and stop the engine.
Restart the engine again and check whether the
display, indicator and the display go out. If the
warning display goes out, there is no abnormal con-
dition. If the warning display does not go out or
appears frequently, it is not necessary to stop the
vehicle immediately, but you should have your vehi-
cle inspected by an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as
possible.
BK0105501US.book 130 ページ ２００９年８月１０日 月曜日 午前１０時３２分

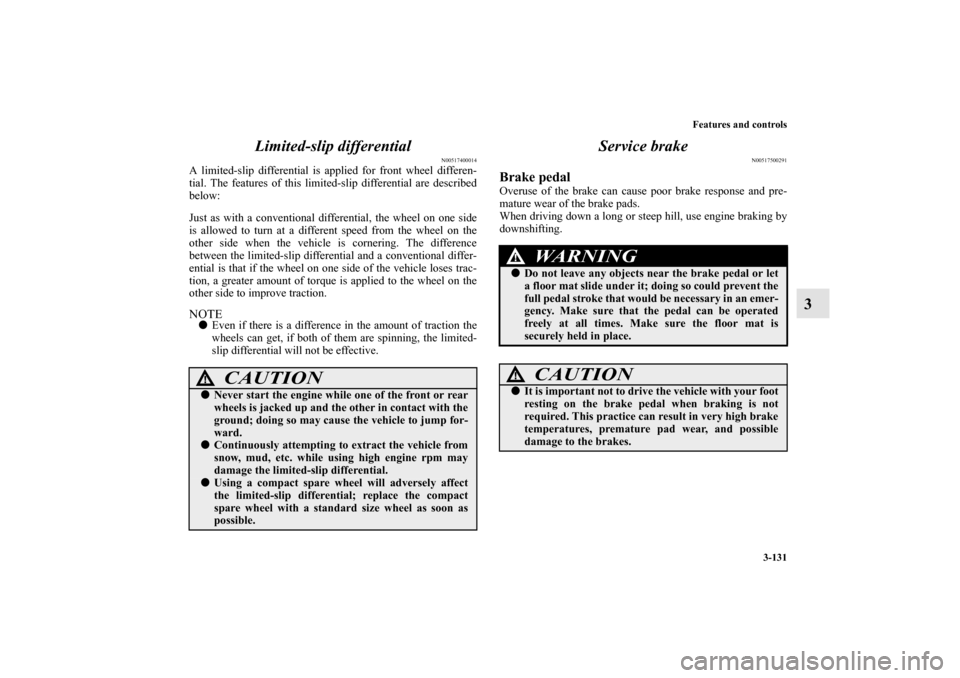

Page 216 of 594
Features and controls
3-131
3 Limited-slip differential
N00517400014
A limited-slip differential is applied for front wheel differen-
tial. The features of this limited-slip differential are described
below:
Just as with a conventional differential, the wheel on one side
is allowed to turn at a different speed from the wheel on the
other side when the vehicle is cornering. The difference
between the limited-slip differential and a conventional differ-
ential is that if the wheel on one side of the vehicle loses trac-
tion, a greater amount of torque is applied to the wheel on the
other side to improve traction.NOTE
Even if there is a difference in the amount of traction the
wheels can get, if both of them are spinning, the limited-
slip differential will not be effective.
Service brake
N00517500291
Brake pedalOveruse of the brake can cause poor brake response and pre-
mature wear of the brake pads.
When driving down a long or steep hill, use engine braking by
downshifting.
CAUTION
!
Never start the engine while one of the front or rear
wheels is jacked up and the other in contact with the
ground; doing so may cause the vehicle to jump for-
ward.
Continuously attempting to extract the vehicle from
snow, mud, etc. while using high engine rpm may
damage the limited-slip differential.
Using a compact spare wheel will adversely affect
the limited-slip differential; replace the compact
spare wheel with a standard size wheel as soon as
possible.
WA R N I N G
!
Do not leave any objects near the brake pedal or let
a floor mat slide under it; doing so could prevent the
full pedal stroke that would be necessary in an emer-
gency. Make sure that the pedal can be operated
freely at all times. Make sure the floor mat is
securely held in place.CAUTION
!
It is important not to drive the vehicle with your foot
resting on the brake pedal when braking is not
required. This practice can result in very high brake
temperatures, premature pad wear, and possible
damage to the brakes.
BK0105501US.book 131 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 217 of 594
3-132 Features and controls
3
Power brakes
N00517600380
Your vehicle is equipped with power brakes for more braking
force with minimal brake pedal effort.
Your brakes are designed to operate at full capacity, even if the
power assist is lost.
If the power assist is lost, the effort needed to press the brake
pedal is greater.
If you lose the power assist for some reason, the brakes will
still work.
If the power brake unit or either of the two brake hydraulic sys-
tems stops working properly, the rest of the brake system will
still work, but the vehicle will not slow down as quickly.
You will know this has happened if you find you need to
depress the brake pedal down further, or harder when slowing
down or stopping, or if the brake warning light and the warning
display in the multi-information display come on.
Brake pad wear alarm
N00532500117
The disc brakes have an alarm that makes a metallic squeal
when the brake pads have worn down enough to need service.
If you hear this sound continuously, have the brake pads
inspected at an authorized Mitsubishi Motors dealer or a repair
facility of your choice.NOTE
When the brakes are applied, a faint noise may be heard,
but this is a characteristic of high-performance brakes; it
does not indicate a problem.
WA R N I N G
!
Never coast downhill with the engine OFF. Keep the
engine running whenever your vehicle is in motion.
If you turn off the engine while driving, the power
brake booster will stop working and your brakes
will not work as well.
If the power assist is lost or if either brake hydraulic
system stops working properly, take your vehicle to
an authorized Mitsubishi Motors dealer or a repair
facility of your choice immediately.
WA R N I N G
!
Driving with worn brake pads will make it harder to
stop, and can cause an accident.
BK0105501US.book 132 ページ ２００９年８月１０日 月曜日 午前１０時３２分

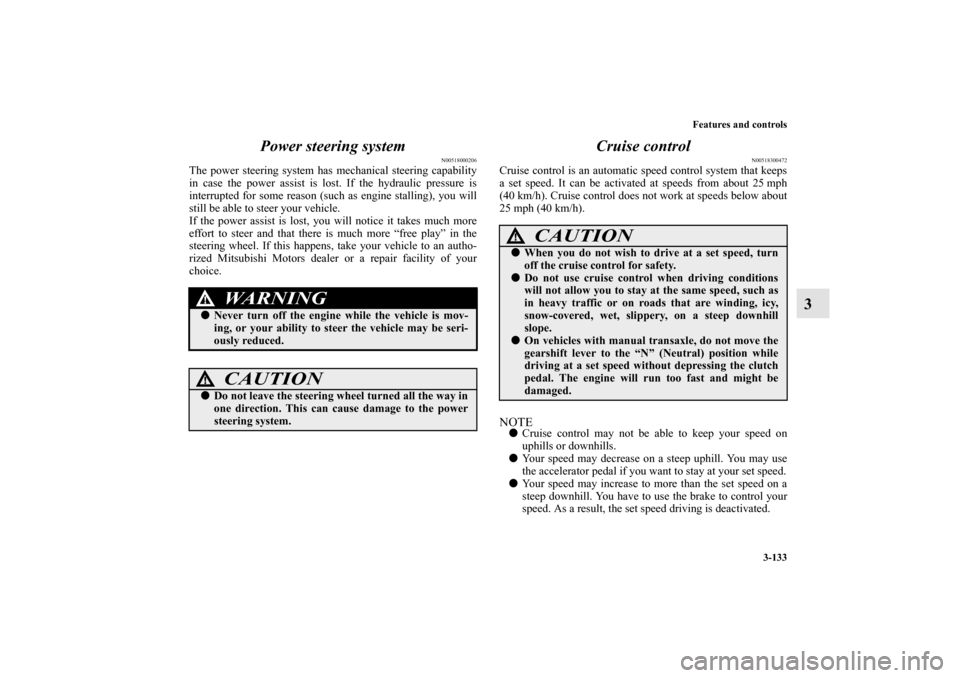

Page 218 of 594
Features and controls
3-133
3 Power steering system
N00518000206
The power steering system has mechanical steering capability
in case the power assist is lost. If the hydraulic pressure is
interrupted for some reason (such as engine stalling), you will
still be able to steer your vehicle.
If the power assist is lost, you will notice it takes much more
effort to steer and that there is much more “free play” in the
steering wheel. If this happens, take your vehicle to an autho-
rized Mitsubishi Motors dealer or a repair facility of your
choice.
Cruise control
N00518300472
Cruise control is an automatic speed control system that keeps
a set speed. It can be activated at speeds from about 25 mph
(40 km/h). Cruise control does not work at speeds below about
25 mph (40 km/h).NOTE
Cruise control may not be able to keep your speed on
uphills or downhills.
Your speed may decrease on a steep uphill. You may use
the accelerator pedal if you want to stay at your set speed.
Your speed may increase to more than the set speed on a
steep downhill. You have to use the brake to control your
speed. As a result, the set speed driving is deactivated.
WA R N I N G
!
Never turn off the engine while the vehicle is mov-
ing, or your ability to steer the vehicle may be seri-
ously reduced.CAUTION
!
Do not leave the steering wheel turned all the way in
one direction. This can cause damage to the power
steering system.
CAUTION
!
When you do not wish to drive at a set speed, turn
off the cruise control for safety.
Do not use cruise control when driving conditions
will not allow you to stay at the same speed, such as
in heavy traffic or on roads that are winding, icy,
snow-covered, wet, slippery, on a steep downhill
slope.
On vehicles with manual transaxle, do not move the
gearshift lever to the “N” (Neutral) position while
driving at a set speed without depressing the clutch
pedal. The engine will run too fast and might be
damaged.
BK0105501US.book 133 ページ ２００９年８月１０日 月曜日 午前１０時３２分

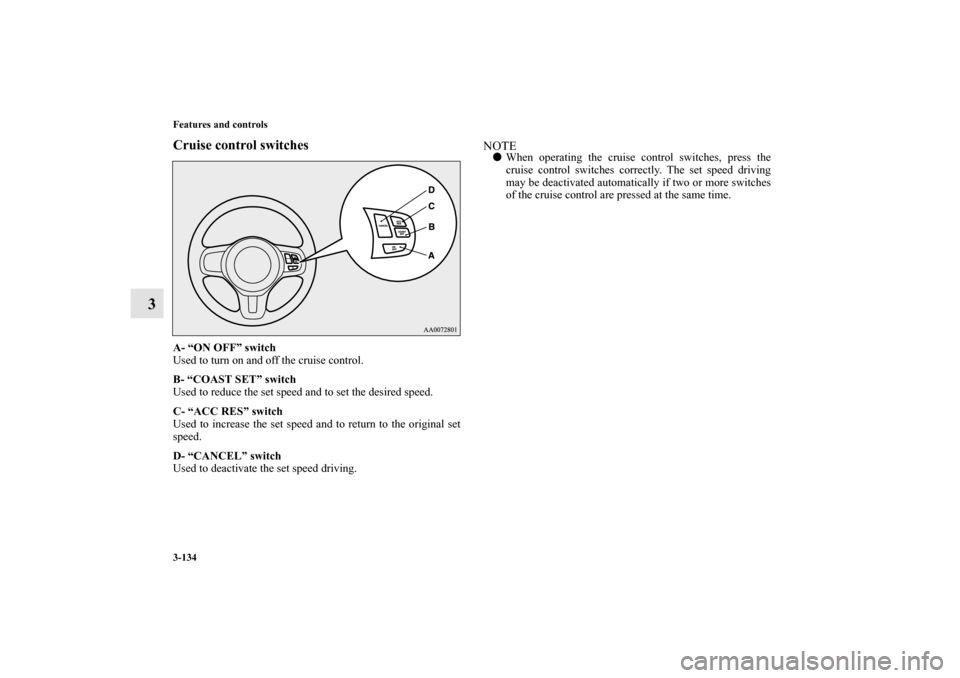

Page 219 of 594
3-134 Features and controls
3
Cruise control switchesA- “ON OFF” switch
Used to turn on and off the cruise control.
B- “COAST SET” switch
Used to reduce the set speed and to set the desired speed.
C- “ACC RES” switch
Used to increase the set speed and to return to the original set
speed.
D- “CANCEL” switch
Used to deactivate the set speed driving.
NOTE
When operating the cruise control switches, press the
cruise control switches correctly. The set speed driving
may be deactivated automatically if two or more switches
of the cruise control are pressed at the same time.
BK0105501US.book 134 ページ ２００９年８月１０日 月曜日 午前１０時３２分

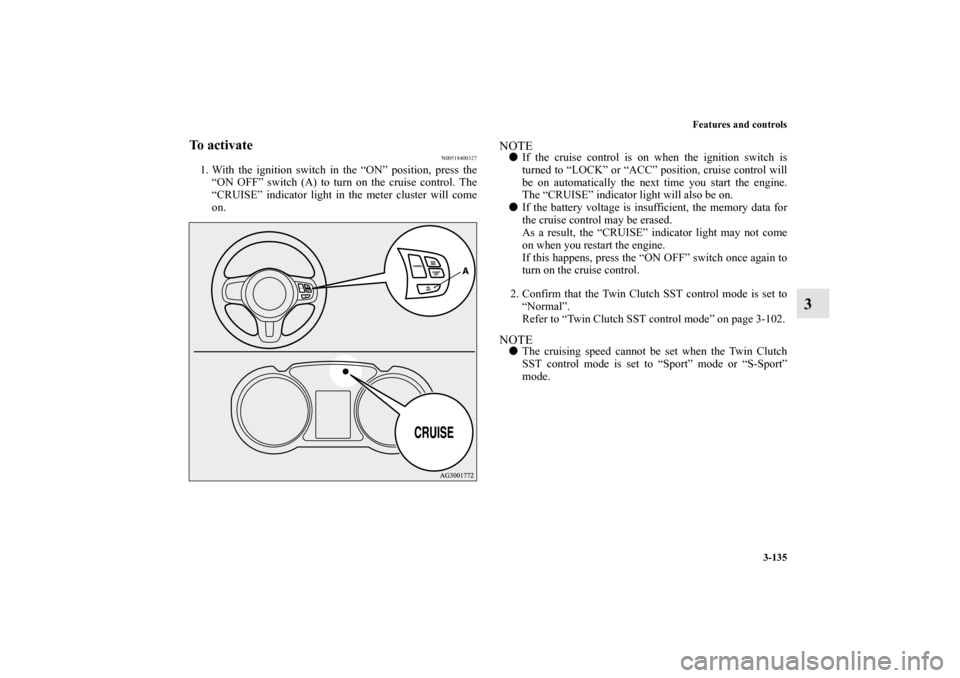

Page 220 of 594
Features and controls
3-135
3
To activate
N00518400327
1. With the ignition switch in the “ON” position, press the
“ON OFF” switch (A) to turn on the cruise control. The
“CRUISE” indicator light in the meter cluster will come
on.
NOTE
If the cruise control is on when the ignition switch is
turned to “LOCK” or “ACC” position, cruise control will
be on automatically the next time you start the engine.
The “CRUISE” indicator light will also be on.
If the battery voltage is insufficient, the memory data for
the cruise control may be erased.
As a result, the “CRUISE” indicator light may not come
on when you restart the engine.
If this happens, press the “ON OFF” switch once again to
turn on the cruise control.
2. Confirm that the Twin Clutch SST control mode is set to
“Normal”.
Refer to “Twin Clutch SST control mode” on page 3-102.
NOTE
The cruising speed cannot be set when the Twin Clutch
SST control mode is set to “Sport” mode or “S-Sport”
mode.
BK0105501US.book 135 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 221 of 594
3-136 Features and controls
3
3. Accelerate or decelerate to your desired speed, then press
and release the “COAST SET” switch (B) when the
“CRUISE” indicator light is illuminated. The vehicle will
then maintain the desired speed.NOTE
When you release the “COAST SET” switch, the vehicle
speed will be set.
To increase the set speed
N00518500298
There are 2 ways to increase the set speed.“ACC RES” switchPress and hold the “ACC RES” switch (C) while driving at the
set speed, and your speed will then gradually increase.

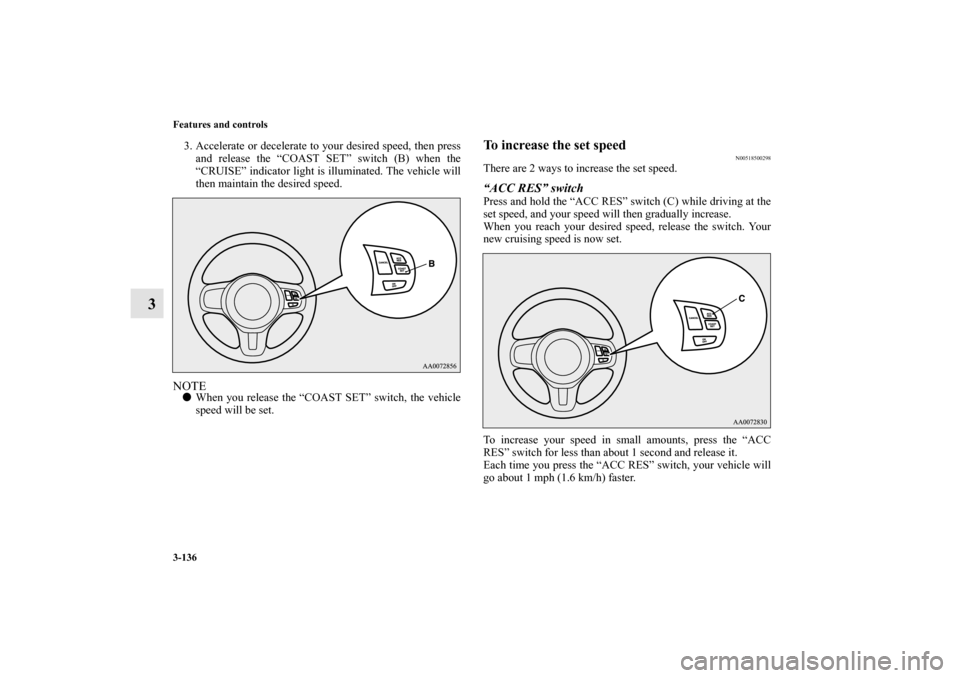

When you reach your desired speed, release the switch. Your
new cruising speed is now set.
To increase your speed in small amounts, press the “ACC
RES” switch for less than about 1 second and release it.
Each time you press the “ACC RES” switch, your vehicle will
go about 1 mph (1.6 km/h) faster.
BK0105501US.book 136 ページ ２００９年８月１０日 月曜日 午前１０時３２分

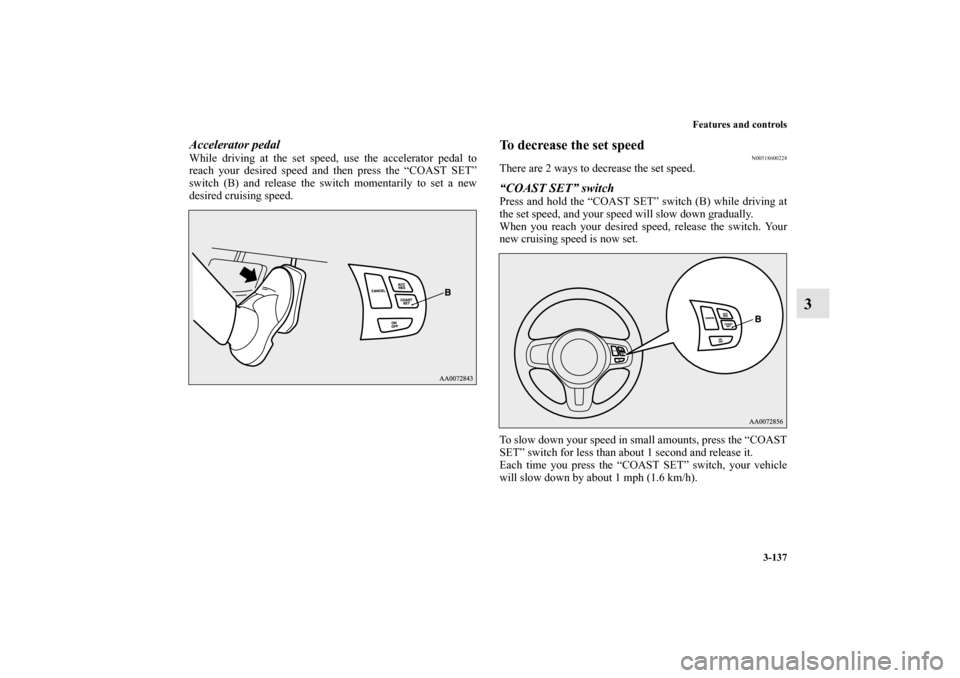

Page 222 of 594
Features and controls
3-137
3
Accelerator pedalWhile driving at the set speed, use the accelerator pedal to
reach your desired speed and then press the “COAST SET”
switch (B) and release the switch momentarily to set a new
desired cruising speed.
To decrease the set speed
N00518600228
There are 2 ways to decrease the set speed.“COAST SET” switchPress and hold the “COAST SET” switch (B) while driving at
the set speed, and your speed will slow down gradually.
When you reach your desired speed, release the switch. Your
new cruising speed is now set.
To slow down your speed in small amounts, press the “COAST
SET” switch for less than about 1 second and release it.
Each time you press the “COAST SET” switch, your vehicle
will slow down by about 1 mph (1.6 km/h).
BK0105501US.book 137 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 223 of 594

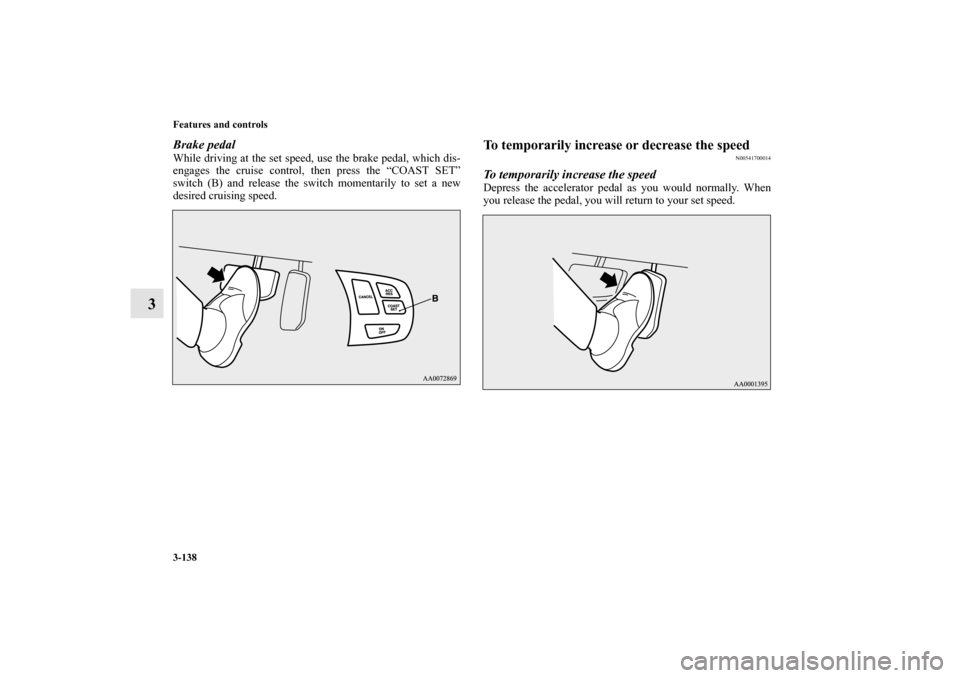

3-138 Features and controls
3
Brake pedalWhile driving at the set speed, use the brake pedal, which dis-
engages the cruise control, then press the “COAST SET”
switch (B) and release the switch momentarily to set a new
desired cruising speed.
To temporarily increase or decrease the speed
N00541700014
To temporarily increase the speedDepress the accelerator pedal as you would normally. When
you release the pedal, you will return to your set speed.
BK0105501US.book 138 ページ ２００９年８月１０日 月曜日 午前１０時３２分
