engine coolant MITSUBISHI LANCER EVOLUTION 2010 10.G Owner's Manual

Specifications
9-9

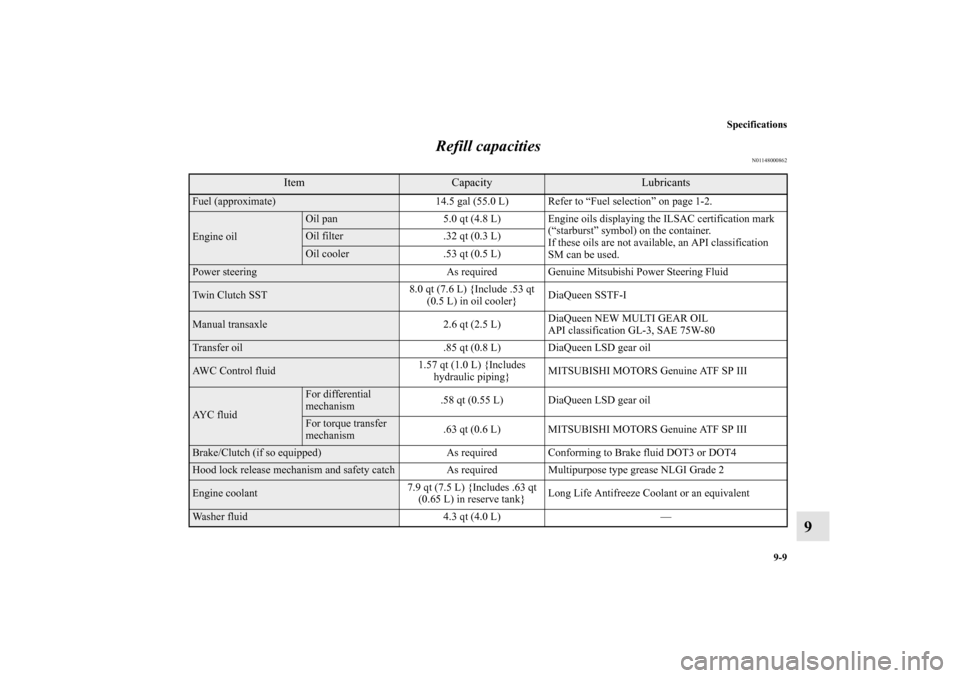

9 Refill capacities
N01148000862
Item
Capacity
Lubricants
Fuel (approximate) 14.5 gal (55.0 L) Refer to “Fuel selection” on page 1-2.Engine oil
Oil pan 5.0 qt (4.8 L) Engine oils displaying the ILSAC certification mark
(“starburst” symbol) on the container.
If these oils are not available, an API classification
SM can be used.Oil filter .32 qt (0.3 L)Oil cooler .53 qt (0.5 L)
Power steering As required Genuine Mitsubishi Power Steering Fluid Twin Clutch SST8.0 qt (7.6 L) {Include .53 qt
(0.5 L) in oil cooler}DiaQueen SSTF-IManual transaxle 2.6 qt (2.5 L)DiaQueen NEW MULTI GEAR OIL
API classification GL-3, SAE 75W-80Transfer oil .85 qt (0.8 L) DiaQueen LSD gear oilAWC Control fluid1.57 qt (1.0 L) {Includes
hydraulic piping}MITSUBISHI MOTORS Genuine ATF SP IIIAY C f l u i d
For differential
mechanism.58 qt (0.55 L) DiaQueen LSD gear oilFor torque transfer
mechanism.63 qt (0.6 L) MITSUBISHI MOTORS Genuine ATF SP III
Brake/Clutch (if so equipped) As required Conforming to Brake fluid DOT3 or DOT4 Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2 Engine coolant7.9 qt (7.5 L) {Includes .63 qt
(0.65 L) in reserve tank}Long Life Antifreeze Coolant or an equivalentWasher fluid 4.3 qt (4.0 L) —
BK0105501US.book 9 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Alphabetical index
2Pedal free play 7-29
Power brakes 3-132
Service brake 3-131
Braking
Warning lights 3-195
Break-in period 3-2
Bulb capacity 7-47
C
California Perchlorate Materials Requirements 1-9
Capacities 9-9
Card holder 3-253
Cargo loads 4-12
Catalytic converter 7-3
Certification label 9-5
Charging system warning light 3-197
Chassis number 9-3
Child restraints 2-21
Child safety locks for rear door 3-58
Cigarette lighter 3-256
Cleaning
Inside of your vehicle 7-72
Outside of your vehicle 7-74
Clutch
Clutch pedal operation 3-90
Fluid 7-16
,9-9
Pedal free play 7-28
Coat hooks 3-269
Combination headlights and dimmer switch 3-200Headlight reminder buzzer 3-204
Light auto-cutout function 3-203
Consumer information 8-2
Coolant (engine) 7-10
,9-9
Cruise control 3-133
Cup holder 3-266
D
Daytime running lights
Bulb capacity 7-47
Replacement 7-55
Defogger (rear window) 3-219
Defrosting or defogging (windshield, door windows) 5-20
,5-
30
Digital clock 5-96
Dimensions 9-5
Dimmer (high/low beam change) 3-204
Disc brake pads 7-34
Dome light (Rear)
Bulb capacity 7-49
Replacement 7-70
Switch 3-260
Dome light/Reading lights
Bulb capacity 7-49
Replacement 7-68
Switch 3-259
Doors
Lock 3-53
Power door locks 3-56
BK0105501US.book 2 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Alphabetical index
3
Drive belt 7-35
Driving during cold weather 4-5
Driving, alcohol and drugs 4-2
E
Electric rear window defogger switch 3-219
Electronic immobilizer (Anti-theft starting system) 3-4
,3-41
Emission-control system maintenance 7-31
Engine
Compartment 7-7
Coolant 7-10
,9-9
Hood 7-4
Oil and oil filter 7-7
,9-9
Overheating 6-6
Serial number 9-3
Specifications 9-7
Engine coolant temperature display 3-161
Engine malfunction indicator 3-196
Exhaust system 7-35
External audio input connector 5-82
F
Filling the fuel tank 1-4
Floor console box 3-265
Fluid
AWC control fluid 7-15
,9-9
AYC fluid 9-9
Brake fluid 7-16
,9-9
Clutch fluid 7-16,9-9Engine coolant 7-10
,9-9
Power steering fluid 7-17
,9-9
Twin Clutch SST 9-9
Twin Clutch SST fluid 7-14,9-9
Washer fluid 7-16
,9-9
Fluid capacities and lubricants 9-9
Fog lights
Bulb capacity 7-47
Free-hand advanced security transmitter (F.A.S.T.-key) 3-16
Front console boxes 3-264
Front fog lights
Bulb capacity 7-47
Indicators 3-195
Replacement 7-61
Switch 3-210
Front seats 2-3
Front side-marker and parking light
Bulb capacity 7-47
Replacement 7-56,7-58
Front turn signal lights
Bulb capacity 7-47
Replacement 7-60
Fuel
Fuel economy 4-2
Fuel hoses 7-32
Modification/alterations to the electrical or fuel systems 1-8
Tank capacity 1-4,9-9
Fuel selection 1-2
Fuses 7-37
