Features and controls
3-151
3 Multi-information display
N00555000151
The multi-information display displays warnings, the odometer/trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, Twin Clutch SST control mode, S-AWC (Super-All Wheel Control) control mode, gearshift lever
position, average and momentary fuel consumption, driving range, average speed, S-AWC (Super-All Wheel Control) operation
display, instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch in the
“OFF” positionWith ignition switch in the “ON”
position (Twin Clutch SST)With ignition switch in the “ON”
position (manual transaxle)
1- “!” Warning display screen (With ignition switch in the
“OFF” position) →P. 3 - 1 5 3
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P.3-154
Interrupt display screen (With ignition switch in the “OFF”
position) → P.3-156
3- Door ajar warning display screen (With ignition switch in
the “OFF” position) → P.3-157
4- S-AWC control mode display screen → P.3-159
5- Outside temperature display screen → P.3-1676- “!” Warning display screen (With ignition switch in the
“ON” position) → P.3-159
7- Information screen (With ignition switch in the “ON” posi-
tion) → P.3-160
Interrupt display screen (With ignition switch in the “ON”
position) → P. 3 - 1 6 5
8- Fuel remaining display screen → P.3-167
9- Twin Clutch SST control mode display screen (if so
equipped) → P. 3 - 1 6 7
BK0105501US.book 151 ページ ２００９年８月１０日　月曜日　午前１０時３２分

3-154 Features and controls
3

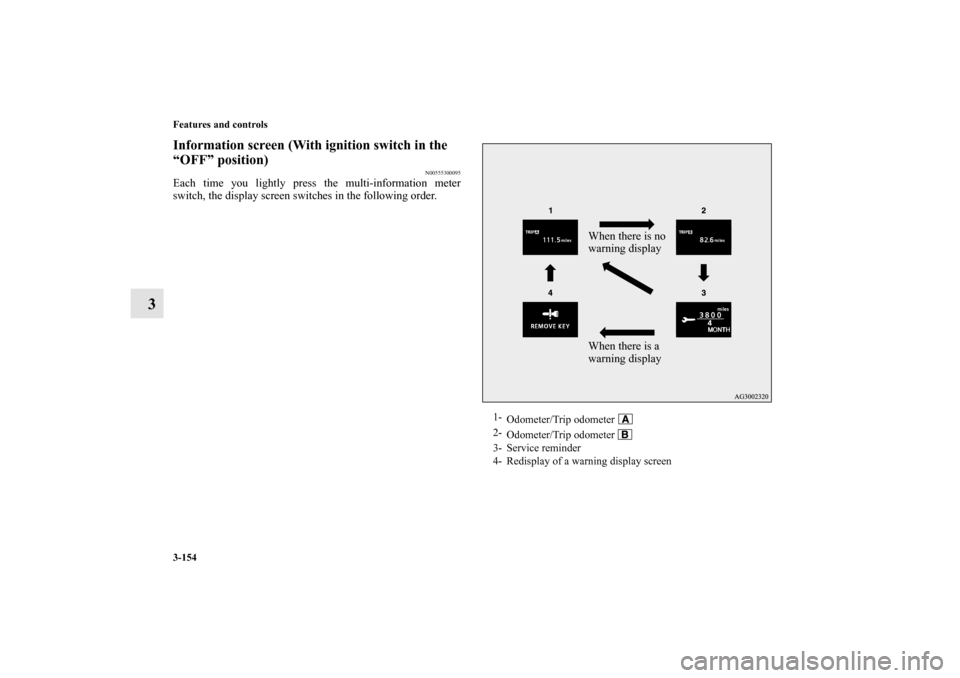

Information screen (With ignition switch in the
“OFF” position)
N00555300095
Each time you lightly press the multi-information meter
switch, the display screen switches in the following order.
1-
Odometer/Trip odometer
2-
Odometer/Trip odometer
3- Service reminder
4- Redisplay of a warning display screen
When there is no
warning display
When there is a
warning display
BK0105501US.book 154 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-155
3

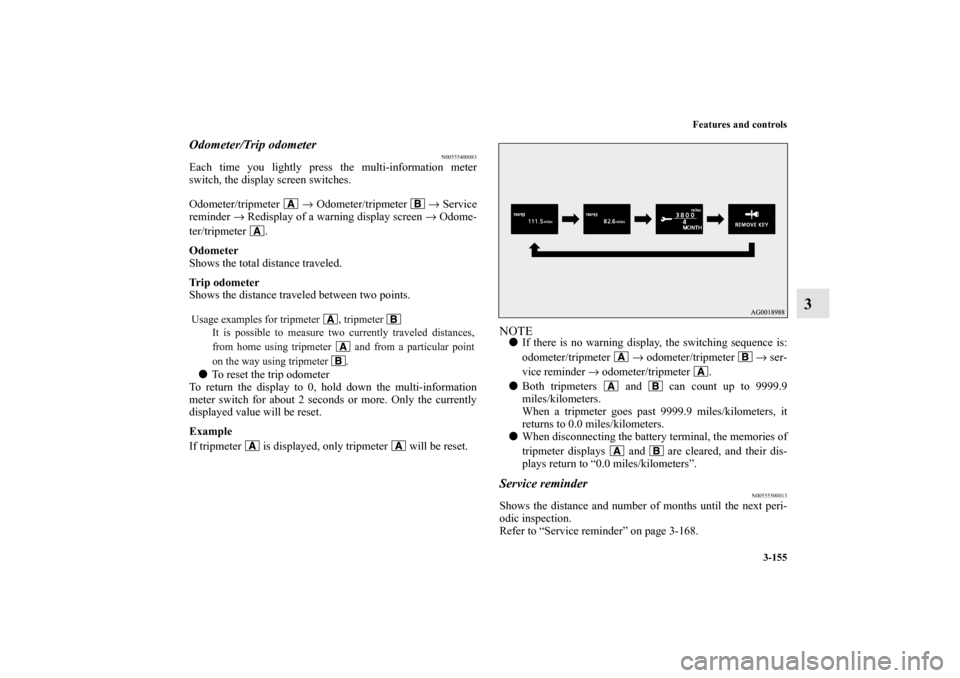

Odometer/Trip odometer
N00555400083
Each time you lightly press the multi-information meter
switch, the display screen switches.
Odometer/tripmeter → Odometer/tripmeter → Service
reminder → Redisplay of a warning display screen → Odome-
ter/tripmeter .
Odometer
Shows the total distance traveled.
Trip odometer
Shows the distance traveled between two points.

To reset the trip odometer
To return the display to 0, hold down the multi-information
meter switch for about 2 seconds or more. Only the currently
displayed value will be reset.
Example
If tripmeter is displayed, only tripmeter will be reset.
NOTE

If there is no warning display, the switching sequence is:
odometer/tripmeter → odometer/tripmeter → ser-
vice reminder → odometer/tripmeter .


Both tripmeters and can count up to 9999.9
miles/kilometers.
When a tripmeter goes past 9999.9 miles/kilometers, it
returns to 0.0 miles/kilometers.


When disconnecting the battery terminal, the memories of
tripmeter displays and are cleared, and their dis-
plays return to “0.0 miles/kilometers”.
Service reminder
N00555500013
Shows the distance and number of months until the next peri-
odic inspection.
Refer to “Service reminder” on page 3-168.
Usage examples for tripmeter , tripmeter
It is possible to measure two currently traveled distances,
from home using tripmeter and from a particular point
on the way using tripmeter .
BK0105501US.book 155 ページ ２００９年８月１０日　月曜日　午前１０時３２分

3-160 Features and controls
3
Information screen (With ignition switch in the
“ON” position)
N00556200147
Each time you lightly press the multi-information meter
switch, the display screen switches in the following order.
NOTE

While driving, the function setting screen is not displayed
even if you operate the multi-information meter switch.
Always park the vehicle in a safe place before operating.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-171.


When there is information to be announced, such as a sys-
tem fault, the tone sounds and the screen display is
switched.
Refer to “Interrupt display screen (With ignition switch in
the “ON” position)” on page 3-165.
When there is no warning display
When there is a
warning display
1-
Odometer/Trip odometer
2-
Odometer/Trip odometer
3- Service reminder
4- Driving range display, momentary fuel consumption display
5- Average fuel consumption display, momentary fuel con-
sumption display
6- Average speed display, momentary fuel consumption display
7- S-AWC operation display
8- Function setting screen
9- Redisplay of a warning display screen
BK0105501US.book 160 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-161
3
Odometer/Trip odometerThe operation method is the same as when the ignition switch
is in the “OFF” position.
For further details, refer to “Odometer/Trip odometer” on page
3-155.Service reminderShows the distance and number of months until the next peri-
odic inspection.
Refer to “Service reminder” on page 3-168.Engine coolant temperature displayShows the engine coolant temperature.
If the coolant becomes hot, “ ” will blink.
Pay careful attention to the engine coolant temperature display
while you are driving.
Driving range displayShows the approximate driving range (how many more miles
or kilometers you can drive). When this driving range falls
below 30 miles (50 km), “---” is displayed.
Refuel as soon as possible.NOTE

The driving range is determined based on the fuel con-
sumption data. This may vary depending on the driving
conditions and habits. Treat the distance displayed as just
a rough guideline.


When you refuel, the driving range display is updated.
However, if you only add a small amount of fuel, the cor-
rect value will not be displayed. Fill to a full tank when-
ever possible.


When your vehicle is stopped on an extremely steep hill,
the driving range value may, change. This is due to the
movement of fuel in the tank and does not indicate any
breakdown.


The display setting can be changed to the preferred units
(miles or km).
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-171.
CAUTION
!

If the engine is overheating, “ ” will blink. In this
case, the bar graph is on the red zone. Immediately
park the vehicle in a safe place and take the required
measures. Refer to “Engine overheating” on page 6-
6.
BK0105501US.book 161 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-175
3
4. Lightly press the multi-information meter switch to switch
in sequence from km/L → L/100 km → mpg (US) → mpg
(UK) → RETURN → km/L.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected unit.
NOTE

The display units for the driving range, the average fuel
consumption, the average speed and the momentary fuel
consumption are changed, but the units for the indicating
needle (speedometer), the odometer and the trip odometer
will remain unchanged.


If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to {mpg (US) or
L/100 km}.
The distance and speed units are also changed in the following
combinations to match the selected fuel consumption unit.Fuel
economy
Distance
(driving range)
Speed
(average speed)
mpg (US) mile (s) mph
mpg (UK) mile (s) mph
km / L km km / h
L / 100 km km km / h
BK0105501US.book 175 ページ ２００９年８月１０日　月曜日　午前１０時３２分

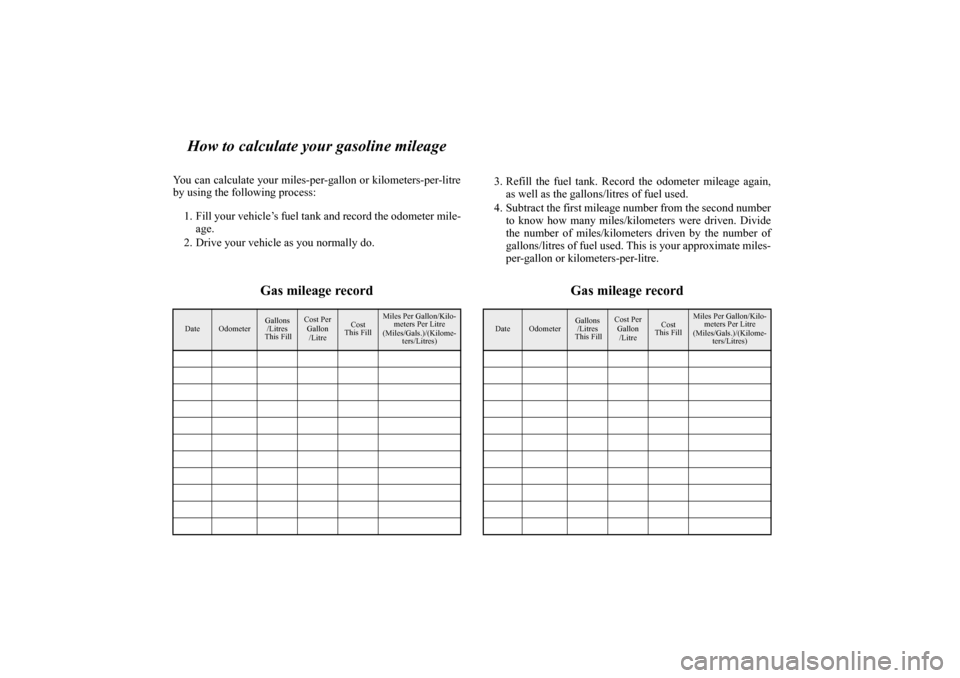

How to calculate your gasoline mileage
You can calculate your miles-per-gallon or kilometers-per-litre
by using the following process:
1. Fill your vehicle’s fuel tank and record the odometer mile-
age.
2. Drive your vehicle as you normally do.3. Refill the fuel tank. Record the odometer mileage again,
as well as the gallons/litres of fuel used.
4. Subtract the first mileage number from the second number
to know how many miles/kilometers were driven. Divide
the number of miles/kilometers driven by the number of
gallons/litres of fuel used. This is your approximate miles-
per-gallon or kilometers-per-litre.
Gas mileage record Gas mileage record
Date
Odometer
Gallons
/Litres
This Fill
Cost Per
Gallon
/Litre
Cost
This Fill
Miles Per Gallon/Kilo-
meters Per Litre
(Miles/Gals.)/(Kilome-
ters/Litres)
Date
Odometer
Gallons
/Litres
This Fill
Cost Per
Gallon
/Litre
Cost
This Fill
Miles Per Gallon/Kilo-
meters Per Litre
(Miles/Gals.)/(Kilome-
ters/Litres)
