Vehicle care and maintenance
7-41
7
*- Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.


The table above shows the main equipment corresponding
to each fuse.
No.
Symbol
Electrical system
Capacity
1 Heater 30 A*
2Stop lights
(Brake lights)15 A
3 Rear fog light 10 A
4 Windshield wiper 30 A
5 Optional 10 A
6 Door locks 20 A
7Radio15 A
8 Control unit relay 7.5 A
9Interior lights
(Dome lights)15 A
10 Hazard warning flasher 15 A
11 Rear window wiper 15 A
12 Gauges 7.5 A
13Cigarette lighter/Accessory
socket15 A
14 Ignition switch 10 A
15 Sunroof 20 A
16 Outside rearview mirrors 10 A
17 All-wheel drive system 10 A
18 Back-up lights 7.5 A
19 Accessory socket 15 A
20 Power window control 30 A*
21 Defogger 30 A*
22Heated
outside rearview mirrors7.5 A
23 115V Power outlet 15 A
24 Power seats 25 (20) A
25 Heated seats 30 ANo.
Symbol
Electrical system
Capacity
BK0105501US.book 41 ページ ２００９年８月１０日　月曜日　午前１０時３２分

7-50 Vehicle care and maintenance
7

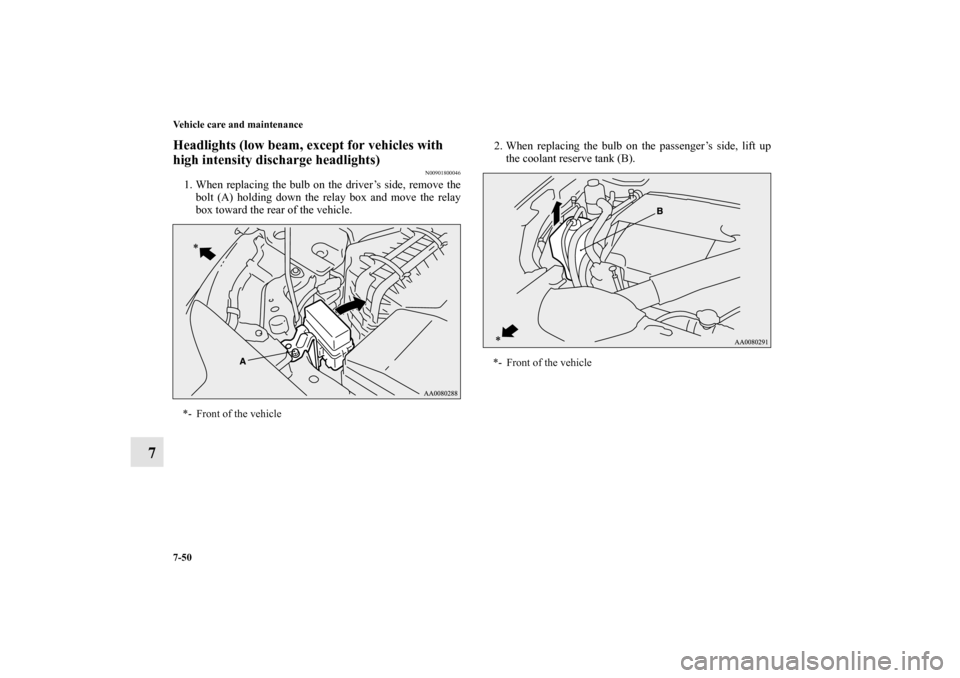

Headlights (low beam, except for vehicles with
high intensity discharge headlights)
N00901800046
1. When replacing the bulb on the driver’s side, remove the
bolt (A) holding down the relay box and move the relay
box toward the rear of the vehicle.2. When replacing the bulb on the passenger’s side, lift up
the coolant reserve tank (B).*- Front of the vehicle
*- Front of the vehicle
BK0105501US.book 50 ページ ２００９年８月１０日　月曜日　午前１０時３２分

7-56 Vehicle care and maintenance
7

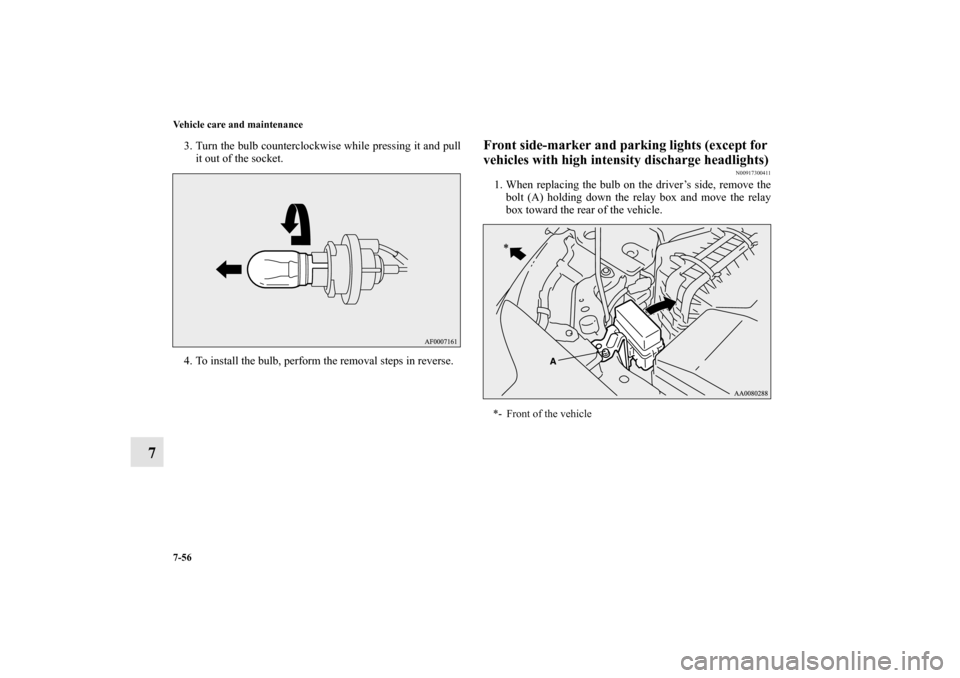

3. Turn the bulb counterclockwise while pressing it and pull
it out of the socket.
4. To install the bulb, perform the removal steps in reverse.
Front side-marker and parking lights (except for
vehicles with high intensity discharge headlights)
N00917300411
1. When replacing the bulb on the driver’s side, remove the
bolt (A) holding down the relay box and move the relay
box toward the rear of the vehicle.*- Front of the vehicle
