Page 3 of 618
Overview
Instruments and controls (Driver’s area)
N00100201332
Combination headlights and
dimmer switch P.3-201
Turn signal lever P.3-210
Front fog light switch P.3-211
Supplemental restraint system
- airbag (for driver’s seat)
P.2-32, 2-43
Horn switch P.3-221 Instrument cluster P.3-149
Cruise control switches
P.3-135 Wiper and washer switch
P.3-212
Fuses P.7-37
Engine hood release lever
P. 7 - 4Sportronic steering wheel paddle
shifter (if so equipped) P.3-108
Ignition switch P.3-24, 3-33,
3-82
Steering wheel tilt lock lever
P. 3 - 7 7
Supplemental restraint system - driver’s
knee airbag P.2-43
Bluetooth
® 2.0 interface (if so equipped) P.3-222
Steering wheel audio
remote control switches
(if so equipped) P.5-105 Multi-information meter switch P.3-154
AWC switch
(if so equipped)
P. 3 - 1 2 0 Headlights leveling switch
(if so equipped) P.3-209Active stability control
OFF switch P.3-130
BK0123500US.book 1 ページ 2010年6月4日 金曜日 午後5時1分
Page 9 of 618
Overview
Outside (Front)
N00100601235
Sunroof (if so equipped) P.3-72
Windshield wiper and washer
P.3-212
Engine hood P.7-4
Engine compartment P.7-7
Headlights, high beam P.3-201, 7-46, 7-52
Front turn signal lights P.3-210, 7-46, 7-59
Headlights, low beam P.3-201, 7-46, 7-49
Daytime running lights (if so equipped) P.3-201, 7-46, 7-54
Front side-marker and parking lights P.3-201, 7-46, 7-56, 7-58Side turn signal lights P.3-210, 7-46 Locking and unlocking P.3-51
Keyless entry system (if so equipped) P.3-9
F.A.S.T.-key (Free-hand Advanced Security
Transmitter) (if so equipped) P.3-17
Front fog lights P.3-211, 7-46, 7-61Fuel tank filler
P. 1 - 4
Outside rearview mirrors
P.3-80
BK0123500US.book 7 ページ 2010年6月4日 金曜日 午後5時1分
Page 10 of 618
Overview
Outside (Rear)
N00100601192
Antenna P.5-119
Tire inflation pressures P.7-23
Changing tires P.6-9
Tire rotation P.7-26
Tire chains P.7-28
Tire pressure monitoring system
P. 3 - 1 4 3
Rear side-marker lights
P.3-201, 7-46, 7-62
Rear turn signal lights P.3-210, 7-46, 7-62
Tail and stop lights P.3-201, 7-46, 7-62
Tail lights P.3-201, 7-46, 7-62 Back-up lights
P.7-46, 7-62 License plate lights
P.3-201, 7-46, 7-66Trunk lid P.3-58High-mounted stop light P.7-46
Trunk lid OPEN switch
(if so equipped)
P. 3 - 2 1
BK0123500US.book 8 ページ 2010年6月4日 金曜日 午後5時1分
Page 86 of 618
3
Features and controls
Break-in period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . . . . .3- 4
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . .3- 9
Free-hand Advanced Security Transmitter
(F.A.S.T.-key) (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 17
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 51
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 55
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 57
Trunk lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 58
Inside emergency trunk lid release . . . . . . . . . . . . . . . . . . . . . . . . . .3- 61
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 62
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 68
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 72
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 75
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 77
Inside day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 78
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 80
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 82
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 85
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 86
Turbocharger operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 90
Clutch pedal operation (if so equipped) . . . . . . . . . . . . . . . . . . . . . .3- 91
Manual transaxle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 92
Twin Clutch SST (Sportronic Shift Transmission)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 94
All-wheel drive system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 116
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . . . . .3- 116
S-AWC (Super-All Wheel Control). . . . . . . . . . . . . . . . . . . . . . . . . .3- 118
Anti-lock braking system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 124
Active stability control (ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 128
Limited-slip differential. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 132
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 132Brake assist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 134
Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 135
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 135
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 143
Instrument cluster. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 149
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 153
Indicator light, warning light, and information
screen display list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 184
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 196
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 196
Information screen display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 199
Combination headlights and dimmer switch . . . . . . . . . . . . . . . . . . 3- 201
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 210
Hazard warning flasher switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211
Front fog light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 212
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . . . . 3- 220
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 221
Link System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 222
Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 222
USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . 3- 248
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 254
Ashtray (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 255
Cigarette lighter (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 257
12 V power outlet (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 259
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 260
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 264
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 268
Bottle holder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 269
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 270
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 270
BK0123500US.book 1 ページ 2010年6月4日 金曜日 午後5時1分
Page 94 of 618
Features and controls
3-9

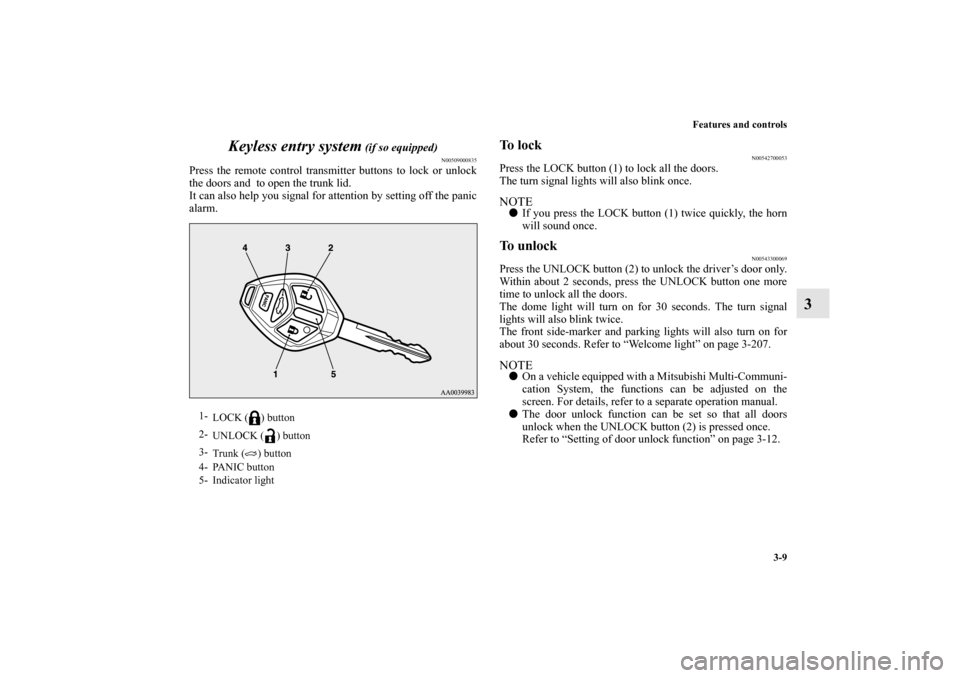

3 Keyless entry system
(if so equipped)
N00509000835
Press the remote control transmitter buttons to lock or unlock
the doors and to open the trunk lid.
It can also help you signal for attention by setting off the panic
alarm.
To l o c k
N00542700053
Press the LOCK button (1) to lock all the doors.
The turn signal lights will also blink once.NOTEIf you press the LOCK button (1) twice quickly, the horn
will sound once.To u n l o c k
N00543300069
Press the UNLOCK button (2) to unlock the driver’s door only.
Within about 2 seconds, press the UNLOCK button one more
time to unlock all the doors.
The dome light will turn on for 30 seconds. The turn signal
lights will also blink twice.
The front side-marker and parking lights will also turn on for
about 30 seconds. Refer to “Welcome light” on page 3-207.NOTEOn a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
The door unlock function can be set so that all doors
unlock when the UNLOCK button (2) is pressed once.
Refer to “Setting of door unlock function” on page 3-12.
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3-
Trunk ( ) button
4- PANIC button
5- Indicator light
BK0123500US.book 9 ページ 2010年6月4日 金曜日 午後5時1分
Page 95 of 618
3-10 Features and controls
3

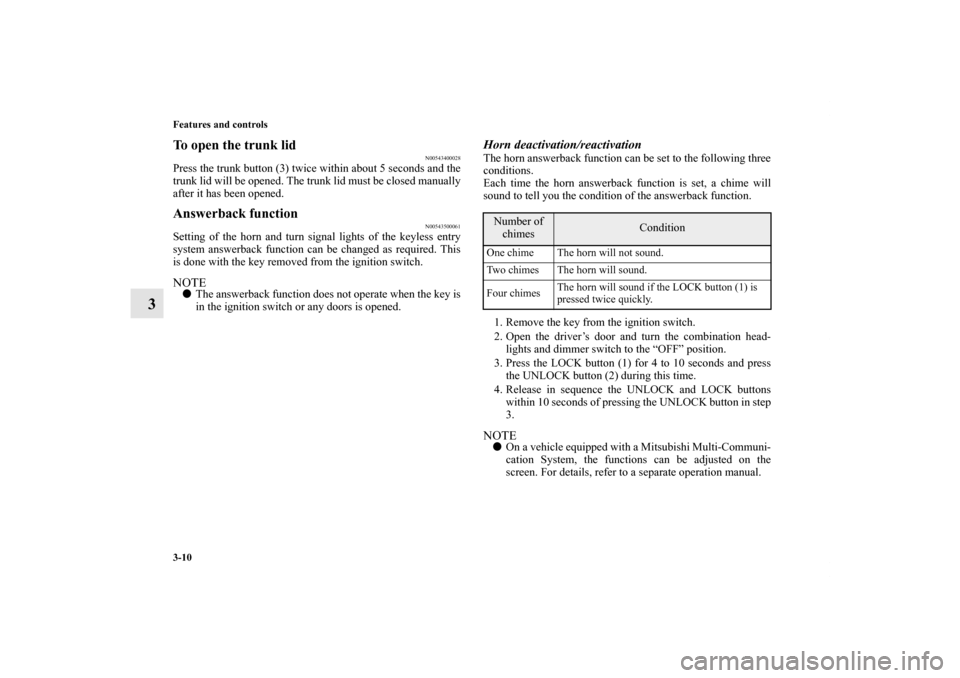

To open the trunk lid
N00543400028
Press the trunk button (3) twice within about 5 seconds and the
trunk lid will be opened. The trunk lid must be closed manually
after it has been opened.Answerback function
N00543500061
Setting of the horn and turn signal lights of the keyless entry
system answerback function can be changed as required. This
is done with the key removed from the ignition switch.NOTEThe answerback function does not operate when the key is
in the ignition switch or any doors is opened.
Horn deactivation/reactivationThe horn answerback function can be set to the following three
conditions.
Each time the horn answerback function is set, a chime will
sound to tell you the condition of the answerback function.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the UNLOCK button in step
3.NOTEOn a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.Number of
chimes
Condition
One chime The horn will not sound.
Two chimes The horn will sound.
Four chimesThe horn will sound if the LOCK button (1) is
pressed twice quickly.
BK0123500US.book 10 ページ 2010年6月4日 金曜日 午後5時1分
Page 96 of 618
Features and controls
3-11
3

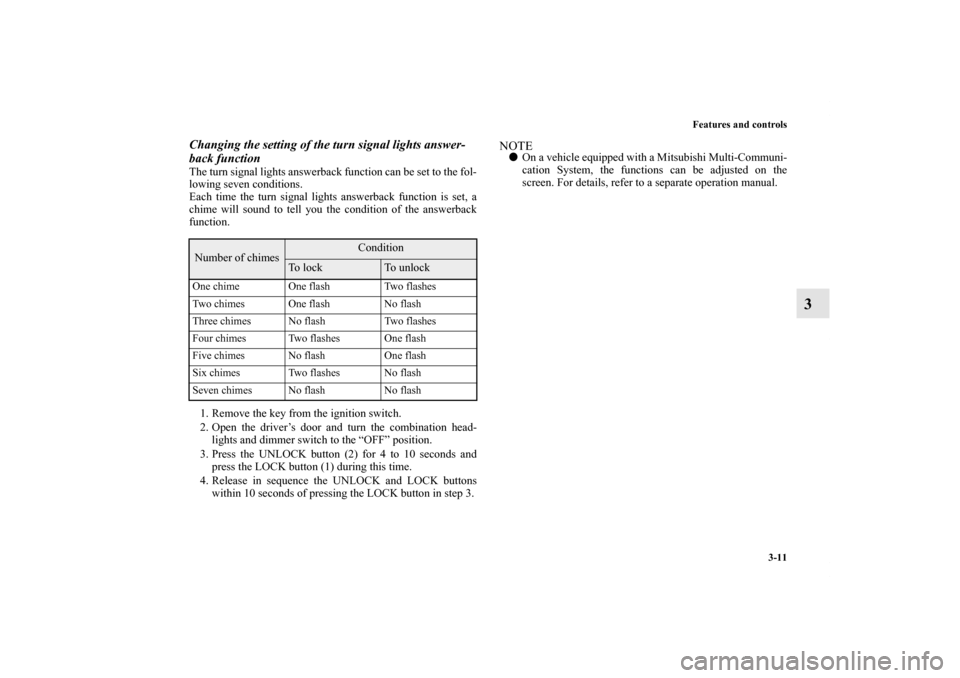

Changing the setting of the turn signal lights answer-
back functionThe turn signal lights answerback function can be set to the fol-
lowing seven conditions.
Each time the turn signal lights answerback function is set, a
chime will sound to tell you the condition of the answerback
function.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the LOCK button in step 3.
NOTEOn a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Number of chimes
Condition
To l o c k
To u n l o c k
One chime One flash Two flashes
Two chimes One flash No flash
Three chimes No flash Two flashes
Four chimes Two flashes One flash
Five chimes No flash One flash
Six chimes Two flashes No flash
Seven chimes No flash No flash
BK0123500US.book 11 ページ 2010年6月4日 金曜日 午後5時1分
Page 106 of 618
Features and controls
3-21
3

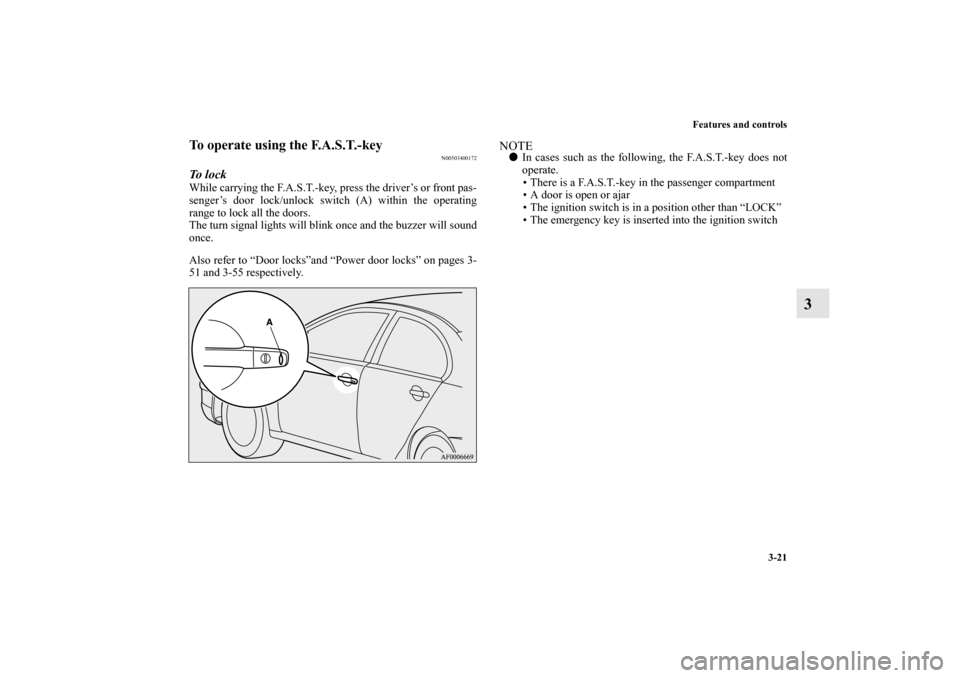

To operate using the F.A.S.T.-key
N00503400172
To l o c kWhile carrying the F.A.S.T.-key, press the driver’s or front pas-
senger’s door lock/unlock switch (A) within the operating
range to lock all the doors.
The turn signal lights will blink once and the buzzer will sound
once.
Also refer to “Door locks”and “Power door locks” on pages 3-
51 and 3-55 respectively.
NOTEIn cases such as the following, the F.A.S.T.-key does not
operate.
• There is a F.A.S.T.-key in the passenger compartment
• A door is open or ajar
• The ignition switch is in a position other than “LOCK”
• The emergency key is inserted into the ignition switch
BK0123500US.book 21 ページ 2010年6月4日 金曜日 午後5時1分

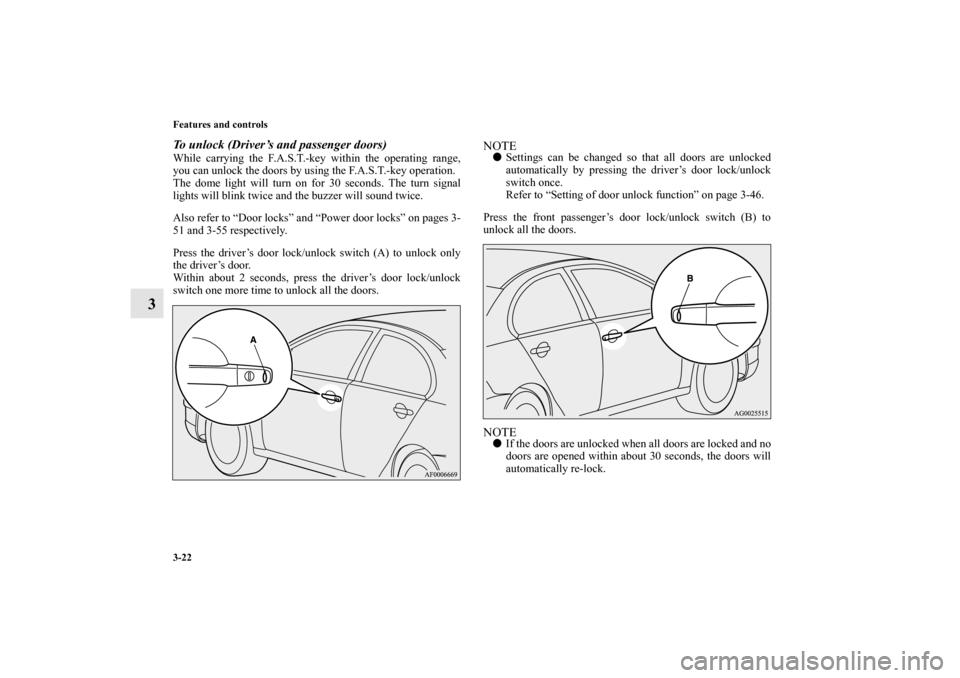

Page 107 of 618
3-22 Features and controls
3
To unlock (Driver’s and passenger doors)While carrying the F.A.S.T.-key within the operating range,
you can unlock the doors by using the F.A.S.T.-key operation.
The dome light will turn on for 30 seconds. The turn signal
lights will blink twice and the buzzer will sound twice.
Also refer to “Door locks” and “Power door locks” on pages 3-
51 and 3-55 respectively.
Press the driver’s door lock/unlock switch (A) to unlock only
the driver’s door.
Within about 2 seconds, press the driver’s door lock/unlock
switch one more time to unlock all the doors.
NOTESettings can be changed so that all doors are unlocked
automatically by pressing the driver’s door lock/unlock
switch once.
Refer to “Setting of door unlock function” on page 3-46.
Press the front passenger’s door lock/unlock switch (B) to
unlock all the doors.NOTEIf the doors are unlocked when all doors are locked and no
doors are opened within about 30 seconds, the doors will
automatically re-lock.
BK0123500US.book 22 ページ 2010年6月4日 金曜日 午後5時1分

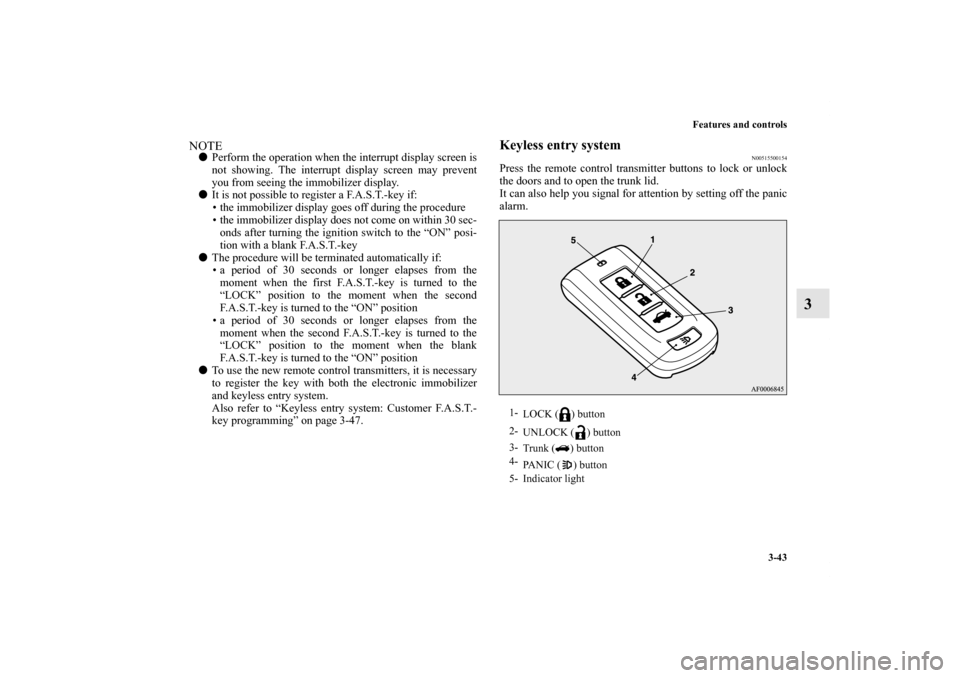

Page 128 of 618
Features and controls
3-43
3
NOTEPerform the operation when the interrupt display screen is
not showing. The interrupt display screen may prevent
you from seeing the immobilizer display.
It is not possible to register a F.A.S.T.-key if:
• the immobilizer display goes off during the procedure
• the immobilizer display does not come on within 30 sec-
onds after turning the ignition switch to the “ON” posi-
tion with a blank F.A.S.T.-key
The procedure will be terminated automatically if:
• a period of 30 seconds or longer elapses from the
moment when the first F.A.S.T.-key is turned to the
“LOCK” position to the moment when the second
F.A.S.T.-key is turned to the “ON” position
• a period of 30 seconds or longer elapses from the
moment when the second F.A.S.T.-key is turned to the
“LOCK” position to the moment when the blank
F.A.S.T.-key is turned to the “ON” position
To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Keyless entry system: Customer F.A.S.T.-
key programming” on page 3-47.
Keyless entry system
N00515500154
Press the remote control transmitter buttons to lock or unlock
the doors and to open the trunk lid.
It can also help you signal for attention by setting off the panic
alarm.1-
LOCK ( ) button
2-
UNLOCK ( ) button
3-
Trunk ( ) button
4-
PANIC ( ) button
5- Indicator light
BK0123500US.book 43 ページ 2010年6月4日 金曜日 午後5時1分
