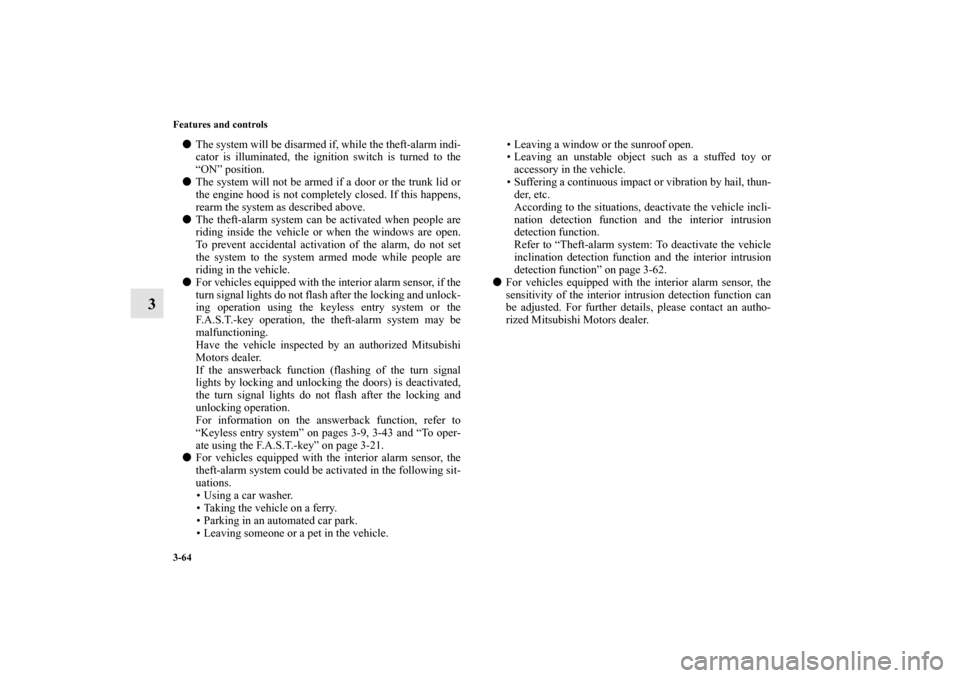

3-64 Features and controls
3

The system will be disarmed if, while the theft-alarm indi-
cator is illuminated, the ignition switch is turned to the
“ON” position.

The system will not be armed if a door or the trunk lid or
the engine hood is not completely closed. If this happens,
rearm the system as described above.

The theft-alarm system can be activated when people are
riding inside the vehicle or when the windows are open.
To prevent accidental activation of the alarm, do not set
the system to the system armed mode while people are
riding in the vehicle.

For vehicles equipped with the interior alarm sensor, if the
turn signal lights do not flash after the locking and unlock-
ing operation using the keyless entry system or the
F.A.S.T.-key operation, the theft-alarm system may be
malfunctioning.
Have the vehicle inspected by an authorized Mitsubishi
Motors dealer.
If the answerback function (flashing of the turn signal
lights by locking and unlocking the doors) is deactivated,
the turn signal lights do not flash after the locking and
unlocking operation.
For information on the answerback function, refer to
“Keyless entry system” on pages 3-9, 3-43 and “To oper-
ate using the F.A.S.T.-key” on page 3-21.

For vehicles equipped with the interior alarm sensor, the
theft-alarm system could be activated in the following sit-
uations.
• Using a car washer.
• Taking the vehicle on a ferry.
• Parking in an automated car park.
• Leaving someone or a pet in the vehicle.• Leaving a window or the sunroof open.
• Leaving an unstable object such as a stuffed toy or
accessory in the vehicle.
• Suffering a continuous impact or vibration by hail, thun-
der, etc.
According to the situations, deactivate the vehicle incli-
nation detection function and the interior intrusion
detection function.
Refer to “Theft-alarm system: To deactivate the vehicle
inclination detection function and the interior intrusion
detection function” on page 3-62.

For vehicles equipped with the interior alarm sensor, the
sensitivity of the interior intrusion detection function can
be adjusted. For further details, please contact an autho-
rized Mitsubishi Motors dealer.
BK0142300US.book 64 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls

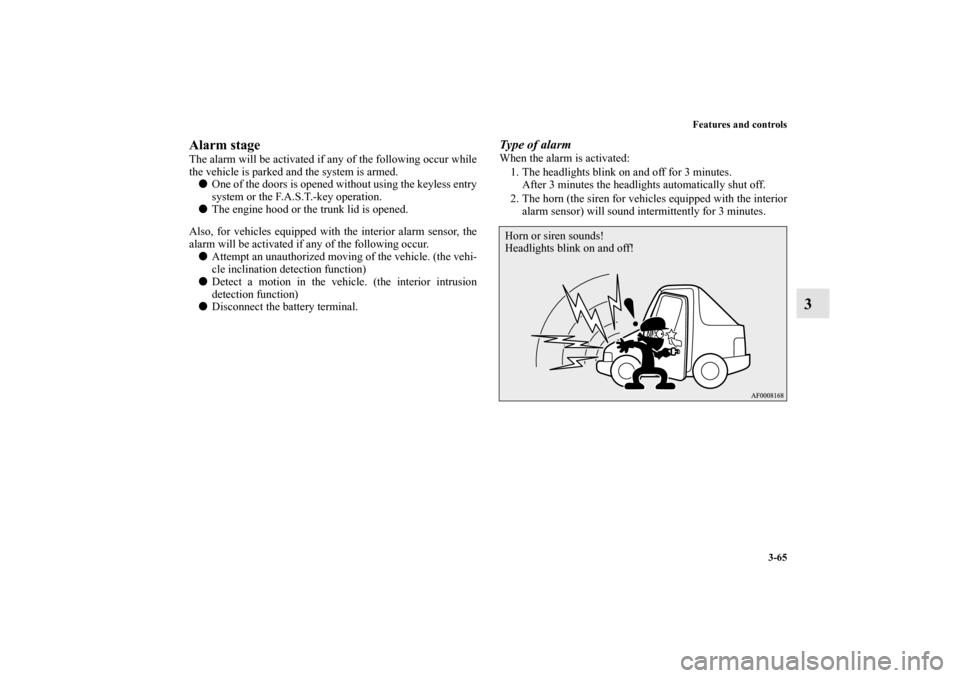

3-65
3
Alarm stageThe alarm will be activated if any of the following occur while
the vehicle is parked and the system is armed.

One of the doors is opened without using the keyless entry
system or the F.A.S.T.-key operation.

The engine hood or the trunk lid is opened.
Also, for vehicles equipped with the interior alarm sensor, the
alarm will be activated if any of the following occur.

Attempt an unauthorized moving of the vehicle. (the vehi-
cle inclination detection function)

Detect a motion in the vehicle. (the interior intrusion
detection function)

Disconnect the battery terminal.
Type of alarmWhen the alarm is activated:
1. The headlights blink on and off for 3 minutes.
After 3 minutes the headlights automatically shut off.
2. The horn (the siren for vehicles equipped with the interior
alarm sensor) will sound intermittently for 3 minutes.Horn or siren sounds!
Headlights blink on and off!
BK0142300US.book 65 ページ ２０１１年８月７日　日曜日　午前１０時４４分

3-66 Features and controls
3
NOTE
The alarm will continue to operate for 3 minutes. At the
end of that period, the alarm will automatically shut off to
save battery power. The system will then be rearmed until
the proper disarming step is taken.

The alarm will resume if unauthorized actions are taken
again, even if the alarm has stopped.

While the alarm is operating, a warning is displayed on
the information screen in the multi-information display.Alarm deactivationThe alarm can be deactivated in the following ways.

By using the keyless entry system or the F.A.S.T.-key
operation to lock or unlock the door.

Turn the ignition switch to the “ON” position.
To deactivate the vehicle inclination detection function
and the interior intrusion detection function (vehicles
equipped with the interior alarm sensor)The vehicle inclination detection function and the interior
intrusion detection function can be deactivated when parking in
automated car parks or leaving pets in the vehicle.
1. Turn the ignition switch to the “LOCK” position.
Also, if a key was used to start the engine, remove the key
from the ignition switch.
2. Raise and hold the wiper and washer switch to the
“MIST” position for about 3 seconds. The buzzer will
sound once and the function will be deactivated.
To activate the function again, raise and hold the wiper and
washer switch to the “MIST” position for about 3 seconds.
The buzzer will sound twice and the function will be activated.
BK0142300US.book 66 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls

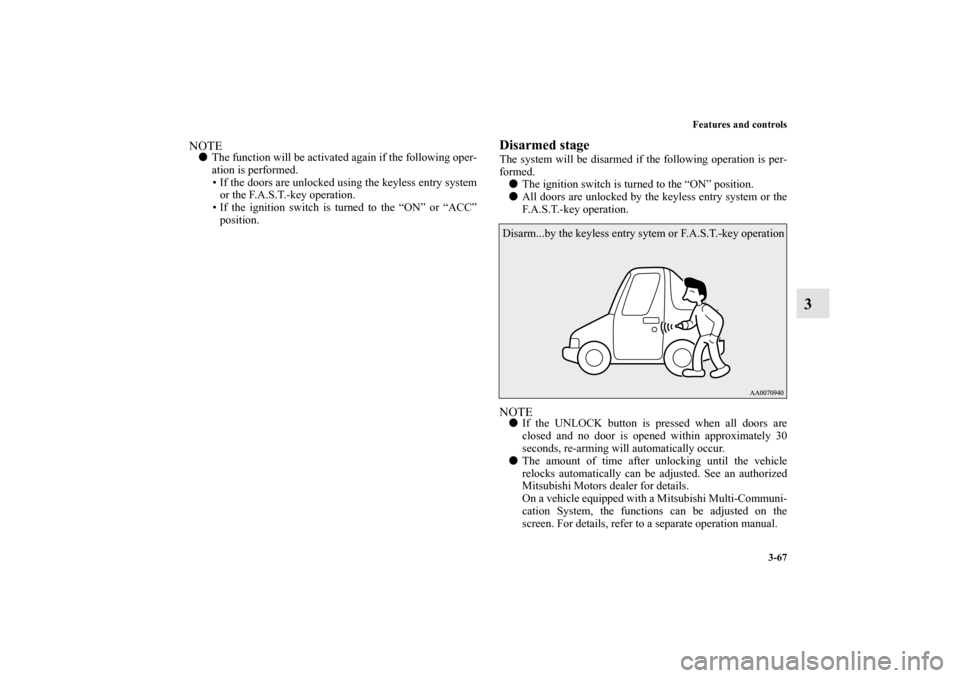

3-67
3
NOTE
The function will be activated again if the following oper-
ation is performed.
• If the doors are unlocked using the keyless entry system
or the F.A.S.T.-key operation.
• If the ignition switch is turned to the “ON” or “ACC”
position.
Disarmed stageThe system will be disarmed if the following operation is per-
formed.

The ignition switch is turned to the “ON” position.

All doors are unlocked by the keyless entry system or the
F.A.S.T.-key operation.NOTE
If the UNLOCK button is pressed when all doors are
closed and no door is opened within approximately 30
seconds, re-arming will automatically occur.

The amount of time after unlocking until the vehicle
relocks automatically can be adjusted. See an authorized
Mitsubishi Motors dealer for details.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.Disarm...by the keyless entry sytem or F.A.S.T.-key operation
BK0142300US.book 67 ページ ２０１１年８月７日　日曜日　午前１０時４４分

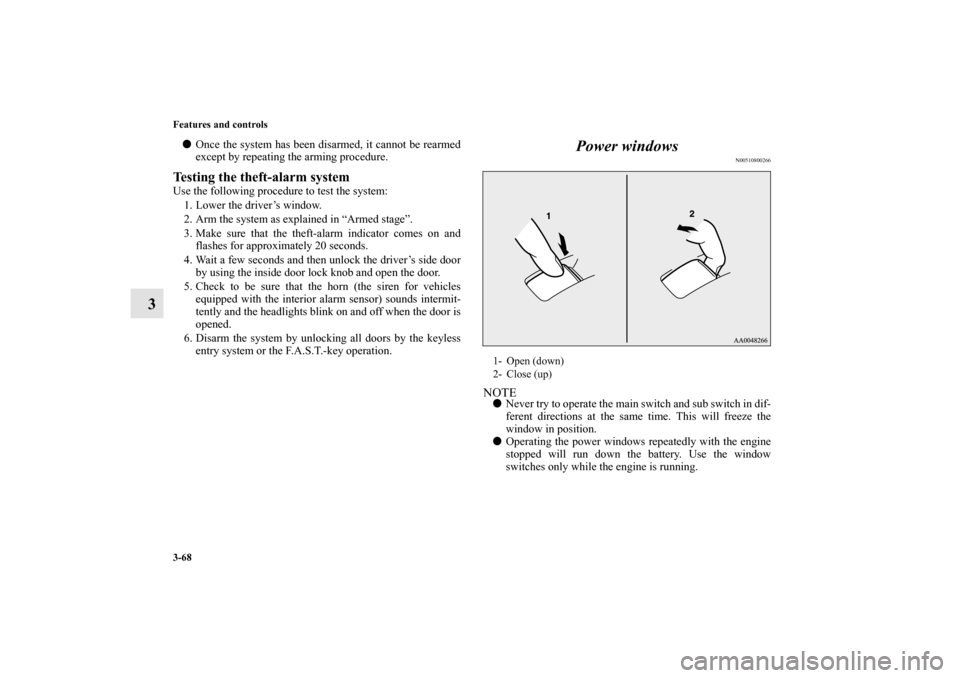

3-68 Features and controls
3

Once the system has been disarmed, it cannot be rearmed
except by repeating the arming procedure.Testing the theft-alarm systemUse the following procedure to test the system:
1. Lower the driver’s window.
2. Arm the system as explained in “Armed stage”.
3. Make sure that the theft-alarm indicator comes on and
flashes for approximately 20 seconds.
4. Wait a few seconds and then unlock the driver’s side door
by using the inside door lock knob and open the door.
5. Check to be sure that the horn (the siren for vehicles
equipped with the interior alarm sensor) sounds intermit-
tently and the headlights blink on and off when the door is
opened.
6. Disarm the system by unlocking all doors by the keyless
entry system or the F.A.S.T.-key operation.
Power windows
N00510800266
NOTE
Never try to operate the main switch and sub switch in dif-
ferent directions at the same time. This will freeze the
window in position.

Operating the power windows repeatedly with the engine
stopped will run down the battery. Use the window
switches only while the engine is running. 1- Open (down)
2- Close (up)
BK0142300US.book 68 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls

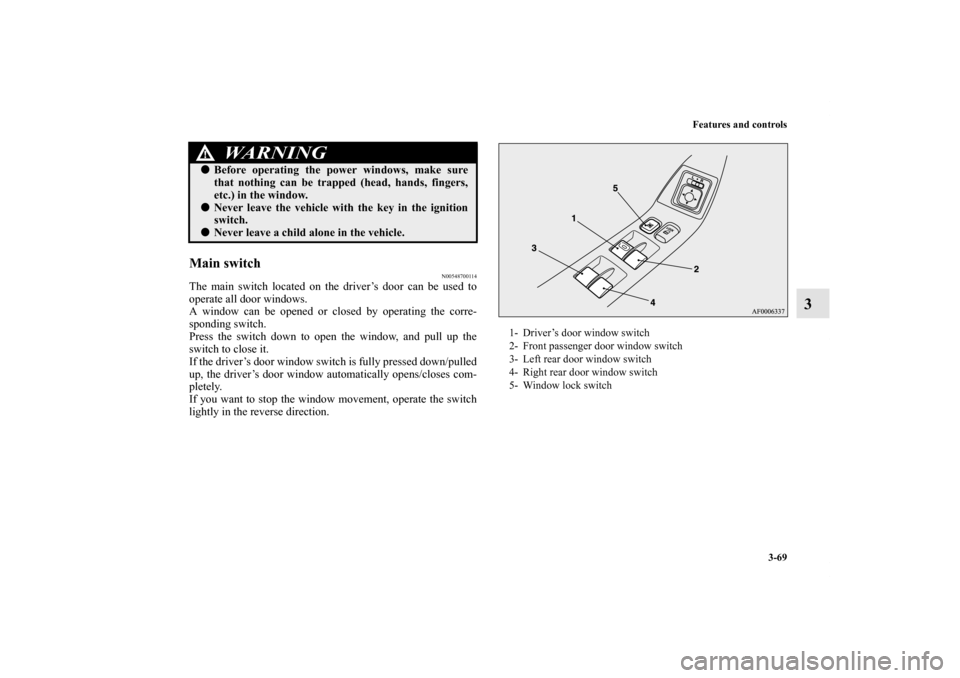

3-69
3
Main switch
N00548700114
The main switch located on the driver’s door can be used to
operate all door windows.
A window can be opened or closed by operating the corre-
sponding switch.
Press the switch down to open the window, and pull up the
switch to close it.
If the driver’s door window switch is fully pressed down/pulled
up, the driver’s door window automatically opens/closes com-
pletely.
If you want to stop the window movement, operate the switch
lightly in the reverse direction.
WA R N I N G
!
Before operating the power windows, make sure
that nothing can be trapped (head, hands, fingers,
etc.) in the window.
Never leave the vehicle with the key in the ignition
switch.
Never leave a child alone in the vehicle.
1- Driver’s door window switch
2- Front passenger door window switch
3- Left rear door window switch
4- Right rear door window switch
5- Window lock switch
BK0142300US.book 69 ページ ２０１１年８月７日　日曜日　午前１０時４４分

3-70 Features and controls

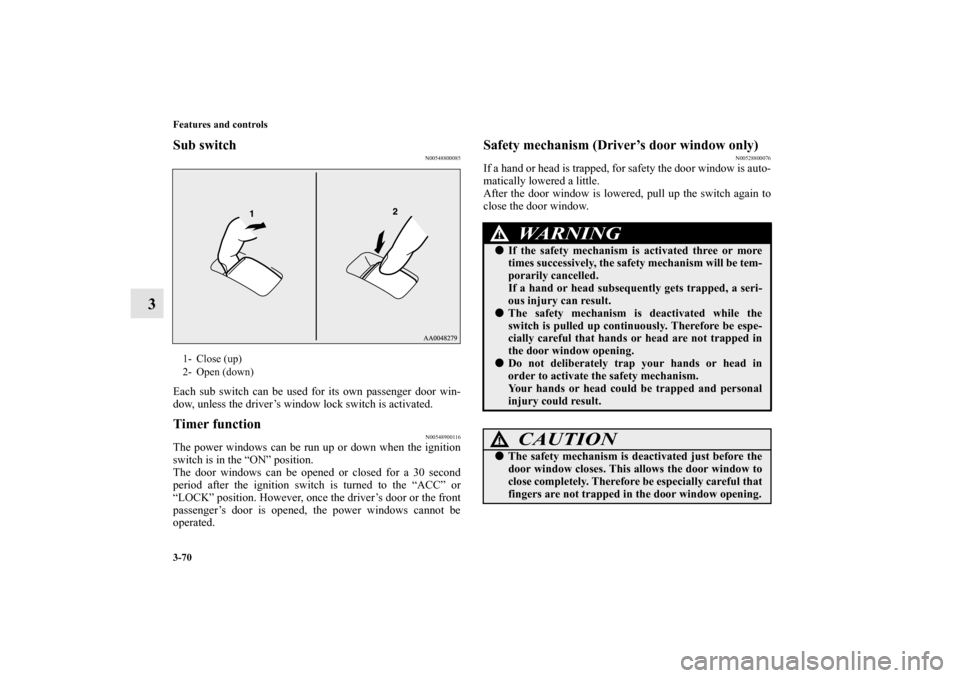

3
Sub switch
N00548800085
Each sub switch can be used for its own passenger door win-
dow, unless the driver’s window lock switch is activated. Timer function
N00548900116
The power windows can be run up or down when the ignition
switch is in the “ON” position.
The door windows can be opened or closed for a 30 second
period after the ignition switch is turned to the “ACC” or
“LOCK” position. However, once the driver’s door or the front
passenger’s door is opened, the power windows cannot be
operated.
Safety mechanism (Driver’s door window only)
N00528800076
If a hand or head is trapped, for safety the door window is auto-
matically lowered a little.
After the door window is lowered, pull up the switch again to
close the door window.
1- Close (up)
2- Open (down)
WA R N I N G
!
If the safety mechanism is activated three or more
times successively, the safety mechanism will be tem-
porarily cancelled.
If a hand or head subsequently gets trapped, a seri-
ous injury can result.
The safety mechanism is deactivated while the
switch is pulled up continuously. Therefore be espe-
cially careful that hands or head are not trapped in
the door window opening.
Do not deliberately trap your hands or head in
order to activate the safety mechanism.
Your hands or head could be trapped and personal
injury could result.
CAUTION
!
The safety mechanism is deactivated just before the
door window closes. This allows the door window to
close completely. Therefore be especially careful that
fingers are not trapped in the door window opening.
BK0142300US.book 70 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls

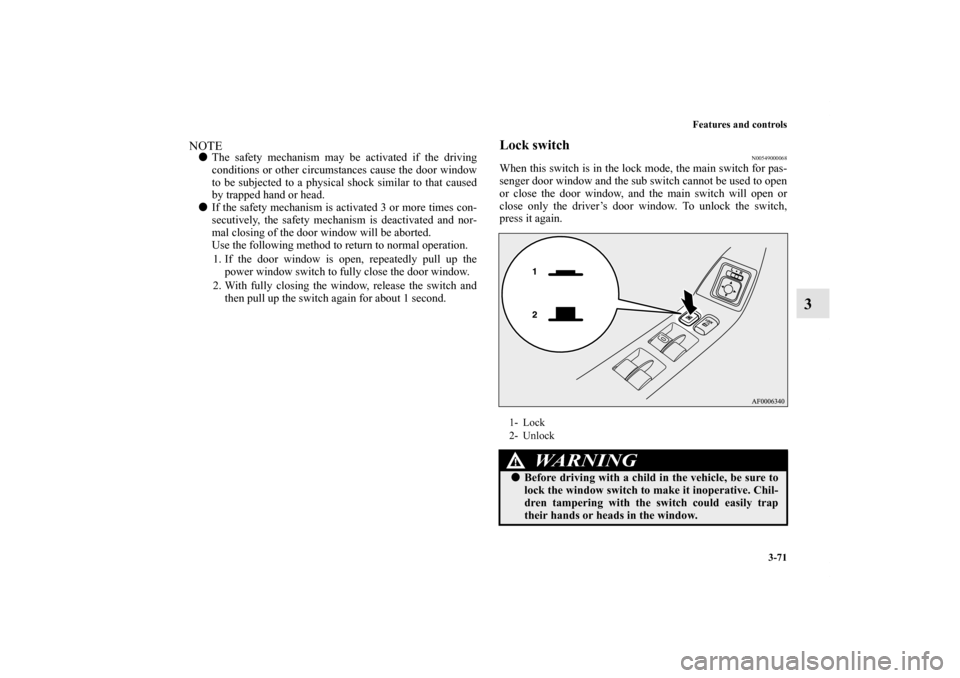

3-71
3
NOTE
The safety mechanism may be activated if the driving
conditions or other circumstances cause the door window
to be subjected to a physical shock similar to that caused
by trapped hand or head.

If the safety mechanism is activated 3 or more times con-
secutively, the safety mechanism is deactivated and nor-
mal closing of the door window will be aborted.
Use the following method to return to normal operation.
1. If the door window is open, repeatedly pull up the
power window switch to fully close the door window.
2. With fully closing the window, release the switch and
then pull up the switch again for about 1 second.
Lock switch
N00549000068
When this switch is in the lock mode, the main switch for pas-
senger door window and the sub switch cannot be used to open
or close the door window, and the main switch will open or
close only the driver’s door window. To unlock the switch,
press it again.1- Lock
2- Unlock
WA R N I N G
!
Before driving with a child in the vehicle, be sure to
lock the window switch to make it inoperative. Chil-
dren tampering with the switch could easily trap
their hands or heads in the window.
BK0142300US.book 71 ページ ２０１１年８月７日　日曜日　午前１０時４４分

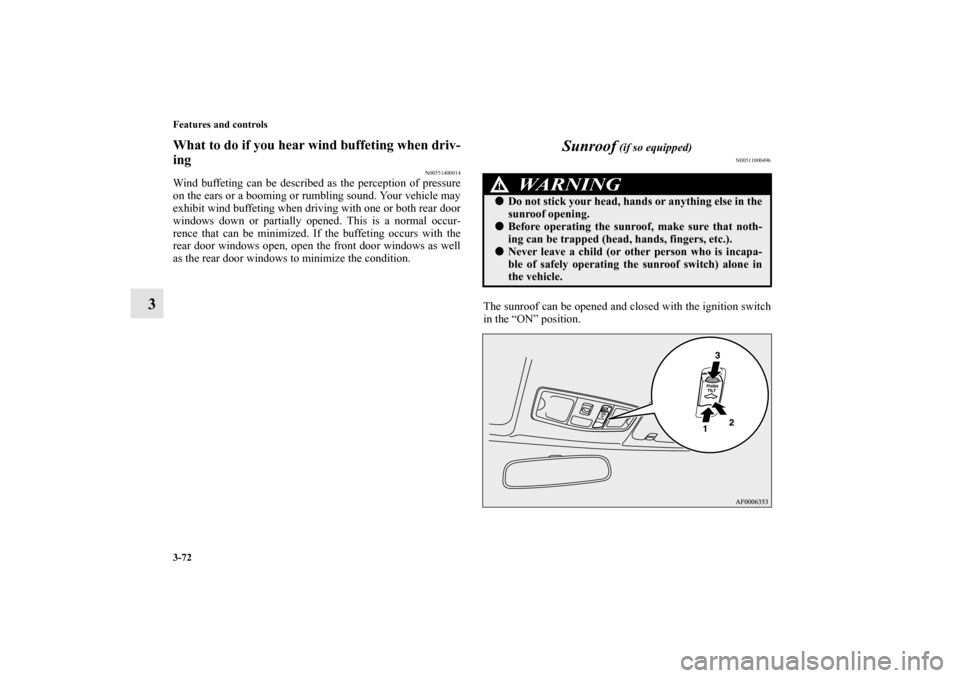

3-72 Features and controls
3
What to do if you hear wind buffeting when driv-
ing
N00551400014
Wind buffeting can be described as the perception of pressure
on the ears or a booming or rumbling sound. Your vehicle may
exhibit wind buffeting when driving with one or both rear door
windows down or partially opened. This is a normal occur-
rence that can be minimized. If the buffeting occurs with the
rear door windows open, open the front door windows as well
as the rear door windows to minimize the condition.
Sunroof
(if so equipped)
N00511000496
The sunroof can be opened and closed with the ignition switch
in the “ON” position.
WA R N I N G
!
Do not stick your head, hands or anything else in the
sunroof opening.
Before operating the sunroof, make sure that noth-
ing can be trapped (head, hands, fingers, etc.).
Never leave a child (or other person who is incapa-
ble of safely operating the sunroof switch) alone in
the vehicle.
BK0142300US.book 72 ページ ２０１１年８月７日　日曜日　午前１０時４４分

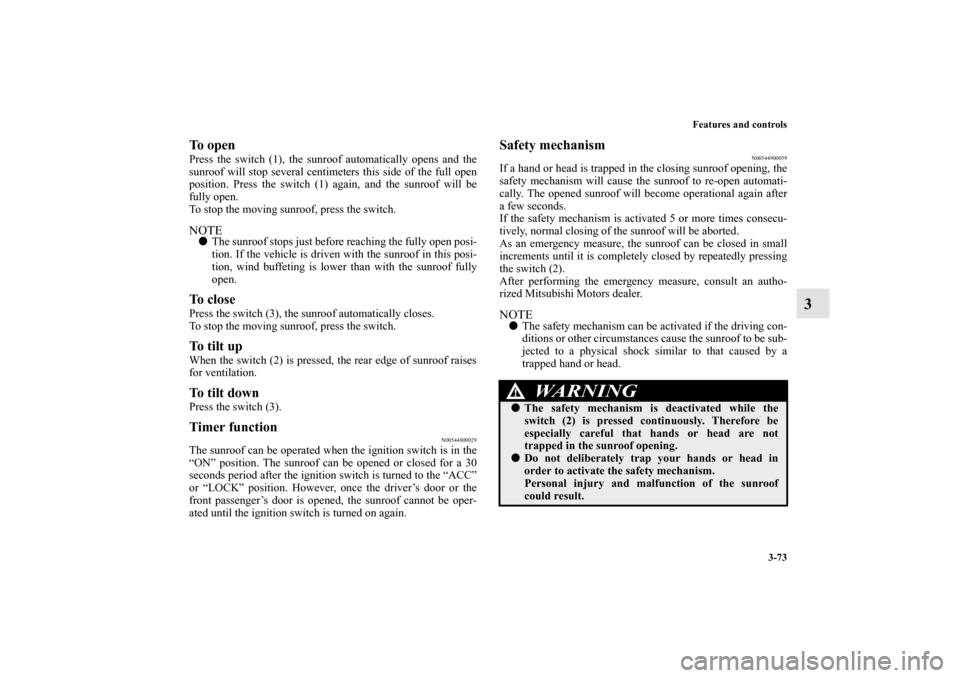

Features and controls
3-73
3
To open Press the switch (1), the sunroof automatically opens and the
sunroof will stop several centimeters this side of the full open
position. Press the switch (1) again, and the sunroof will be
fully open.
To stop the moving sunroof, press the switch. NOTE
The sunroof stops just before reaching the fully open posi-
tion. If the vehicle is driven with the sunroof in this posi-
tion, wind buffeting is lower than with the sunroof fully
open.To closePress the switch (3), the sunroof automatically closes.
To stop the moving sunroof, press the switch.To tilt up When the switch (2) is pressed, the rear edge of sunroof raises
for ventilation. To tilt down Press the switch (3). Timer function
N00544800029
The sunroof can be operated when the ignition switch is in the
“ON” position. The sunroof can be opened or closed for a 30
seconds period after the ignition switch is turned to the “ACC”
or “LOCK” position. However, once the driver’s door or the
front passenger’s door is opened, the sunroof cannot be oper-
ated until the ignition switch is turned on again.
Safety mechanism
N00544900059
If a hand or head is trapped in the closing sunroof opening, the
safety mechanism will cause the sunroof to re-open automati-
cally. The opened sunroof will become operational again after
a few seconds.
If the safety mechanism is activated 5 or more times consecu-
tively, normal closing of the sunroof will be aborted.
As an emergency measure, the sunroof can be closed in small
increments until it is completely closed by repeatedly pressing
the switch (2).
After performing the emergency measure, consult an autho-
rized Mitsubishi Motors dealer.NOTE
The safety mechanism can be activated if the driving con-
ditions or other circumstances cause the sunroof to be sub-
jected to a physical shock similar to that caused by a
trapped hand or head.
WA R N I N G
!
The safety mechanism is deactivated while the
switch (2) is pressed continuously. Therefore be
especially careful that hands or head are not
trapped in the sunroof opening.
Do not deliberately trap your hands or head in
order to activate the safety mechanism.
Personal injury and malfunction of the sunroof
could result.
BK0142300US.book 73 ページ ２０１１年８月７日　日曜日　午前１０時４４分
