MITSUBISHI LANCER EVOLUTION 2012 10.G Owners Manual

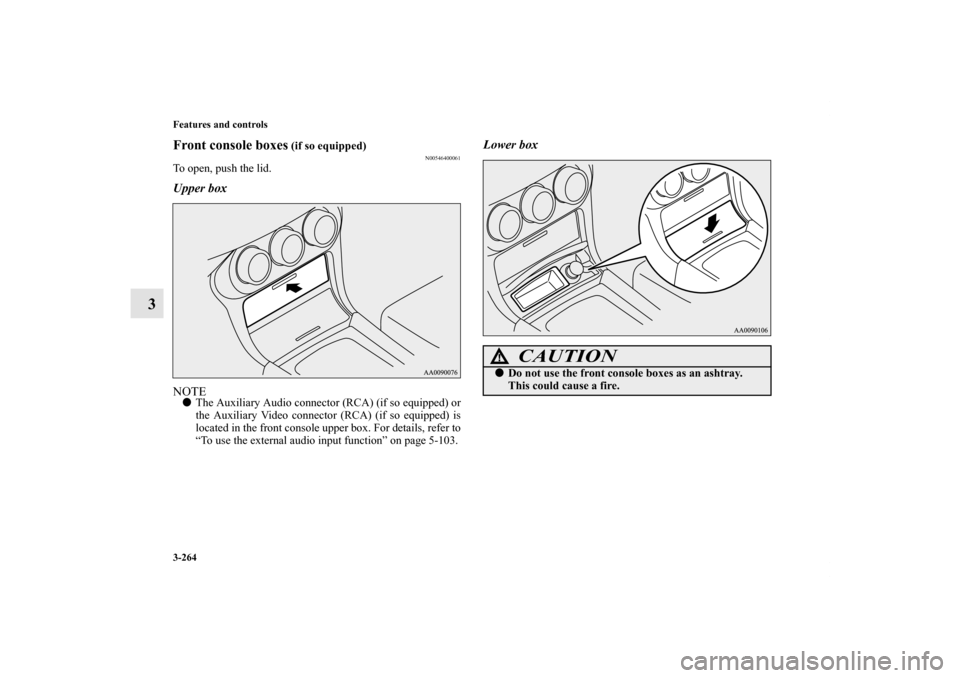

3-264 Features and controls
3
Front console boxes
(if so equipped)
N00546400061
To open, push the lid.Upper boxNOTE
The Auxiliary Audio connector (RCA) (if so equipped) or
the Auxiliary Video connector (RCA) (if so equipped) is
located in the front console upper box. For details, refer to
“To use the external audio input function” on page 5-103.
Lower box
CAUTION
!
Do not use the front console boxes as an ashtray.
This could cause a fire.
BK0142300US.book 264 ページ ２０１１年８月７日　日曜日　午前１０時４４分

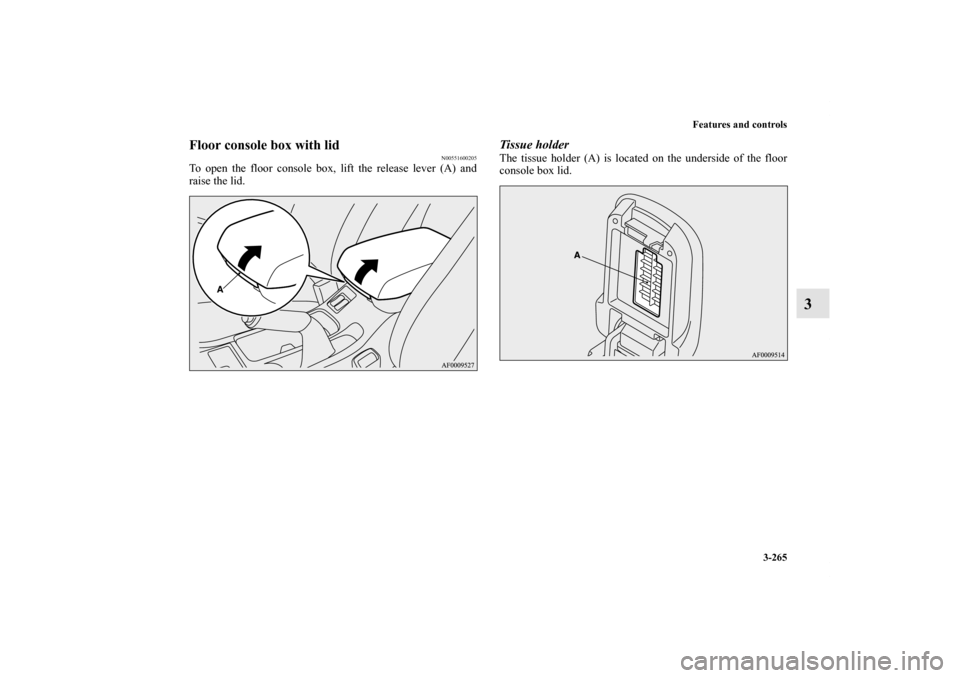

Features and controls
3-265
3
Floor console box with lid
N00551600205
To open the floor console box, lift the release lever (A) and
raise the lid.
Tissue holderThe tissue holder (A) is located on the underside of the floor
console box lid.
BK0142300US.book 265 ページ ２０１１年８月７日　日曜日　午前１０時４４分

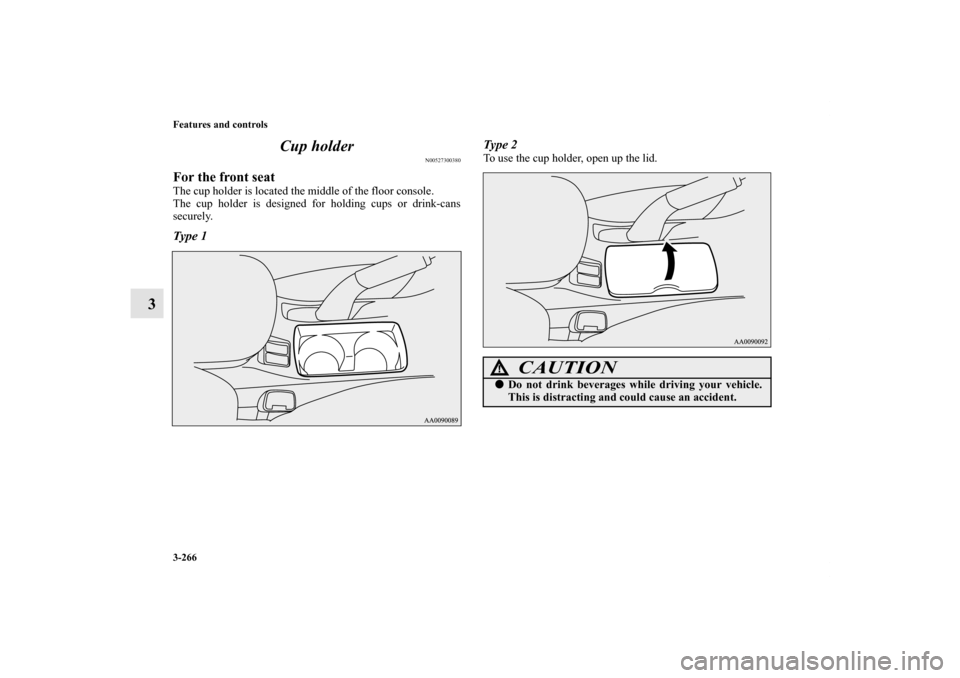

3-266 Features and controls
3Cup holder
N00527300380
For the front seatThe cup holder is located the middle of the floor console.
The cup holder is designed for holding cups or drink-cans
securely.Type 1Type 2
To use the cup holder, open up the lid.
CAUTION
!
Do not drink beverages while driving your vehicle.
This is distracting and could cause an accident.
BK0142300US.book 266 ページ ２０１１年８月７日　日曜日　午前１０時４４分

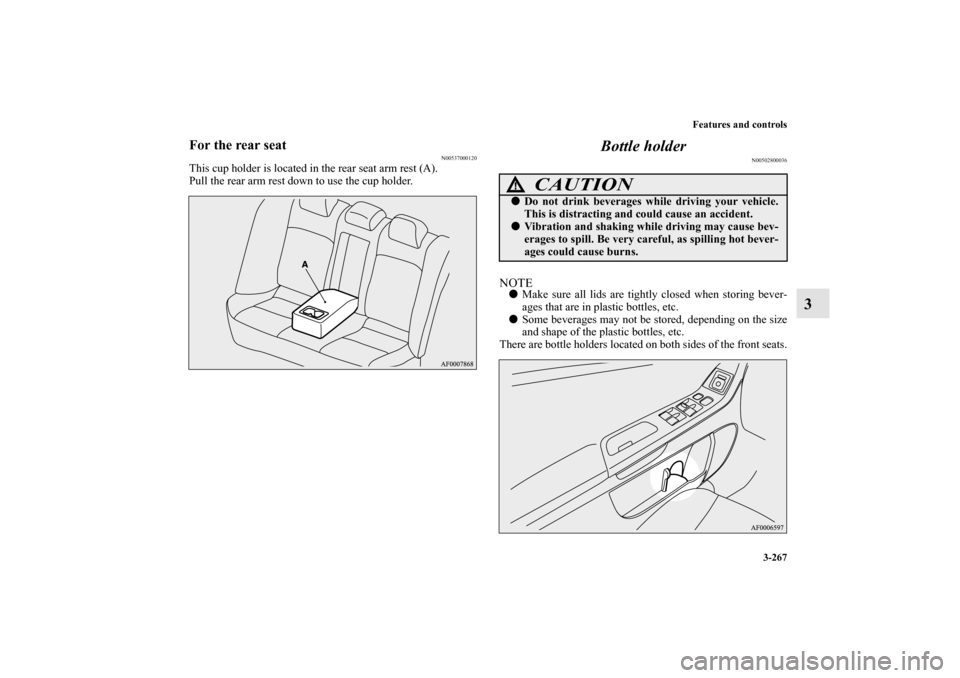

Features and controls
3-267
3
For the rear seat
N00537000120
This cup holder is located in the rear seat arm rest (A).
Pull the rear arm rest down to use the cup holder.
Bottle holder
N00502800036
NOTE
Make sure all lids are tightly closed when storing bever-
ages that are in plastic bottles, etc.

Some beverages may not be stored, depending on the size
and shape of the plastic bottles, etc.
There are bottle holders located on both sides of the front seats.
CAUTION
!
Do not drink beverages while driving your vehicle.
This is distracting and could cause an accident.
Vibration and shaking while driving may cause bev-
erages to spill. Be very careful, as spilling hot bever-
ages could cause burns.
BK0142300US.book 267 ページ ２０１１年８月７日　日曜日　午前１０時４４分

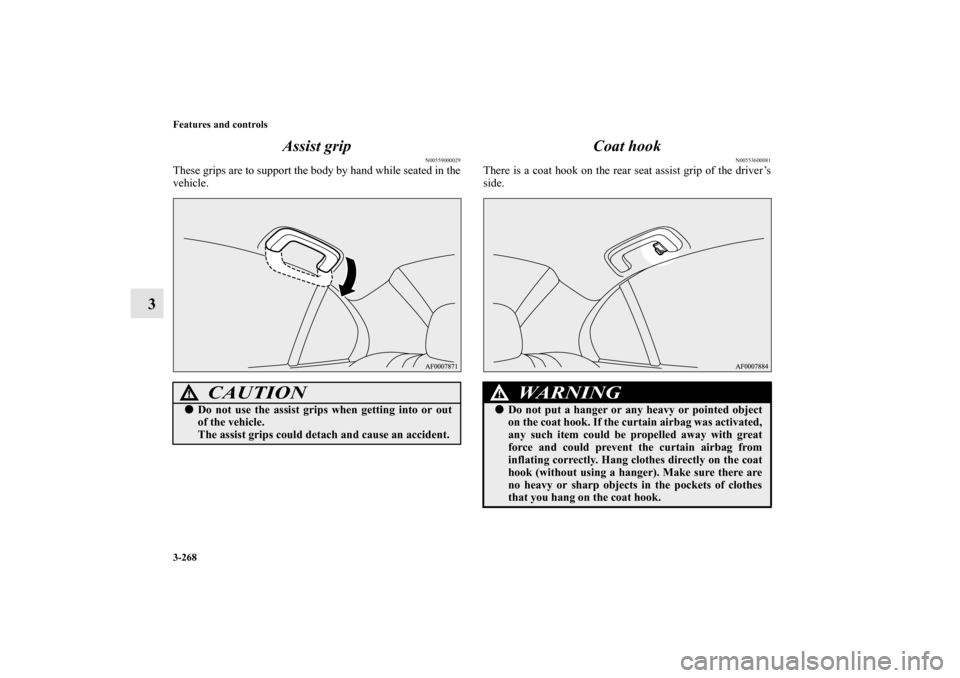

3-268 Features and controls
3Assist grip
N00559000029
These grips are to support the body by hand while seated in the
vehicle.
Coat hook
N00553600081
There is a coat hook on the rear seat assist grip of the driver’s
side.
CAUTION
!
Do not use the assist grips when getting into or out
of the vehicle.
The assist grips could detach and cause an accident.
WA R N I N G
!
Do not put a hanger or any heavy or pointed object
on the coat hook. If the curtain airbag was activated,
any such item could be propelled away with great
force and could prevent the curtain airbag from
inflating correctly. Hang clothes directly on the coat
hook (without using a hanger). Make sure there are
no heavy or sharp objects in the pockets of clothes
that you hang on the coat hook.
BK0142300US.book 268 ページ ２０１１年８月７日　日曜日　午前１０時４４分

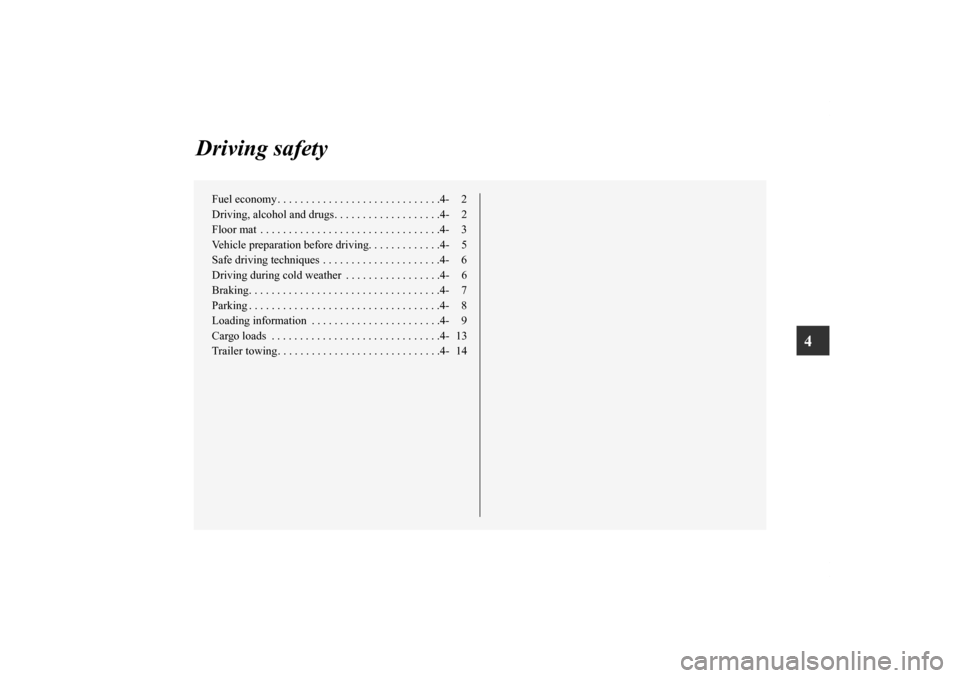

4
Driving safety
Fuel economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 2
Driving, alcohol and drugs. . . . . . . . . . . . . . . . . . .4- 2
Floor mat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 3
Vehicle preparation before driving. . . . . . . . . . . . .4- 5
Safe driving techniques . . . . . . . . . . . . . . . . . . . . .4- 6
Driving during cold weather . . . . . . . . . . . . . . . . .4- 6
Braking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 7
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 8
Loading information . . . . . . . . . . . . . . . . . . . . . . .4- 9
Cargo loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 13
Trailer towing. . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 14
BK0142300US.book 1 ページ ２０１１年８月７日　日曜日　午前１０時４４分

4-2 Driving safety
4Fuel economy
N00628800107
Fuel economy is dependent on many factors. Your personal
driving habits can have a significant effect on your fuel use.
Several recommendations for achieving the greatest fuel econ-
omy are listed below.

Whenever accelerating from a stop, always accelerate
slowly and smoothly.

When parked for even a short period, do not idle the
engine. Shut it off.

Plan your trips to avoid unnecessary stops.

Keep your tires inflated to the recommended pressures.

For freeway driving, maintain a speed of approximately
50 mph (80 km/h) when traffic, roadway and weather con-
ditions safely permit.

Keep your air filter clean and your vehicle lubricated
according to the recommendations in this manual.

Always keep your vehicle well maintained. A poorly
maintained engine wastes fuel and costs money.

Do not overload your vehicle.
Driving, alcohol and drugs
N00628900010
Drunk driving is one of the most frequent causes of accidents.
Your driving ability can be seriously impaired even with blood
alcohol levels far below the legal minimum. If you have been
drinking, don’t drive. Ride with a designated non-drinking
driver, call a cab or a friend, or use public transportation.
Drinking coffee or taking a cold shower will not make you
sober.
Similarly, prescription and nonprescription drugs affect your
alertness, perception and reaction time. Consult with your doc-
tor or pharmacist before driving while under the influence of
any of these medications.
WA R N I N G
!
NEVER DRINK AND DRIVE.
Your perceptions are less accurate, your reflexes are
slower and your judgment is impaired.
BK0142300US.book 2 ページ ２０１１年８月７日　日曜日　午前１０時４４分

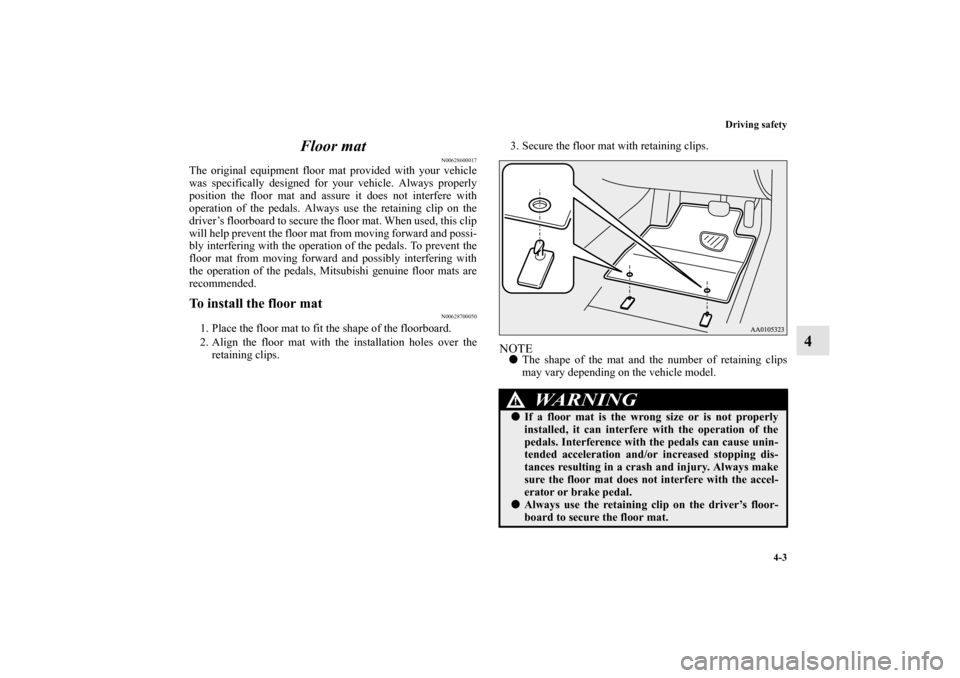

Driving safety
4-3
4 Floor mat
N00628600017
The original equipment floor mat provided with your vehicle
was specifically designed for your vehicle. Always properly
position the floor mat and assure it does not interfere with
operation of the pedals. Always use the retaining clip on the
driver’s floorboard to secure the floor mat. When used, this clip
will help prevent the floor mat from moving forward and possi-
bly interfering with the operation of the pedals. To prevent the
floor mat from moving forward and possibly interfering with
the operation of the pedals, Mitsubishi genuine floor mats are
recommended.To install the floor mat
N00628700050
1. Place the floor mat to fit the shape of the floorboard.
2. Align the floor mat with the installation holes over the
retaining clips.3. Secure the floor mat with retaining clips.
NOTE
The shape of the mat and the number of retaining clips
may vary depending on the vehicle model.
WA R N I N G
!
If a floor mat is the wrong size or is not properly
installed, it can interfere with the operation of the
pedals. Interference with the pedals can cause unin-
tended acceleration and/or increased stopping dis-
tances resulting in a crash and injury. Always make
sure the floor mat does not interfere with the accel-
erator or brake pedal.
Always use the retaining clip on the driver’s floor-
board to secure the floor mat.
BK0142300US.book 3 ページ ２０１１年８月７日　日曜日　午前１０時４４分

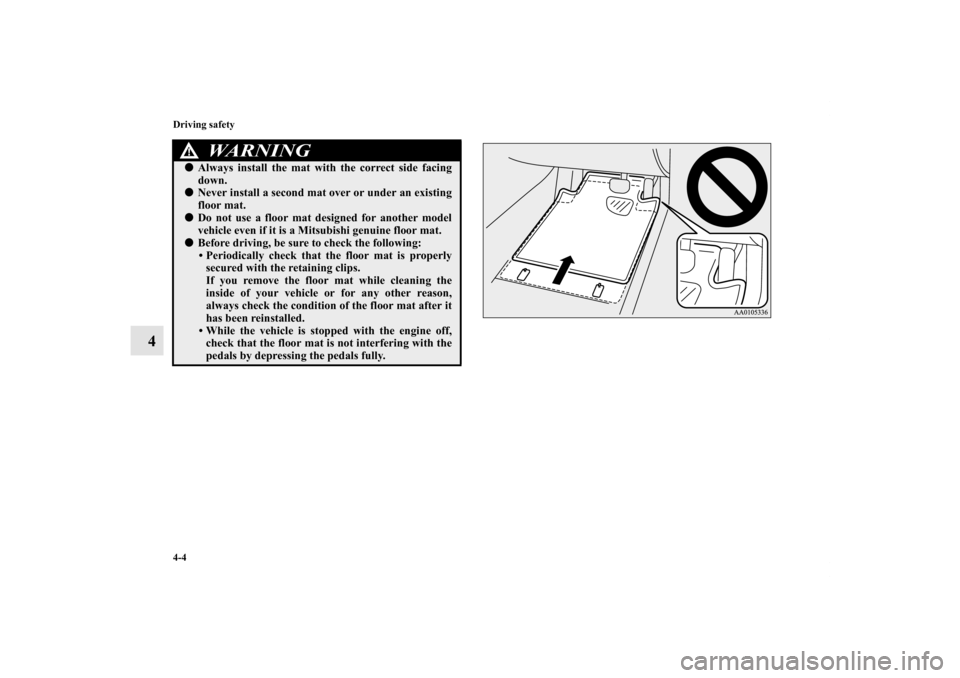

4-4 Driving safety
4

Always install the mat with the correct side facing
down.
Never install a second mat over or under an existing
floor mat.
Do not use a floor mat designed for another model
vehicle even if it is a Mitsubishi genuine floor mat.
Before driving, be sure to check the following:
• Periodically check that the floor mat is properly
secured with the retaining clips.
If you remove the floor mat while cleaning the
inside of your vehicle or for any other reason,
always check the condition of the floor mat after it
has been reinstalled.
• While the vehicle is stopped with the engine off,
check that the floor mat is not interfering with the
pedals by depressing the pedals fully.WA R N I N G
!
BK0142300US.book 4 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Driving safety
4-5
4 Vehicle preparation before driving
N00629000672
For a safer and more enjoyable trip, always observe the follow-
ing: Seat belts and seats
Before starting the vehicle, make certain that you and all
passengers are seated and wearing their seat belts properly
(with children in the rear seat, in appropriate restraints),
and that all the doors are locked.

Move the driver’s seat as far backward as possible, while
still keeping good visibility, and good control of the steer-
ing wheel, brakes, accelerator, and controls. Check the
instrument panel indicators and multi-information display
for any possible problem.

Move the front passenger seat as far back as possible.

Make sure that infants and small children are properly
restrained in accordance with all laws and regulations.Defrosters Check these by selecting the defroster mode, and set the blower
switch on high. You should be able to feel the air blowing
against the windshield.
{Refer to “Defrosting or defogging (windshield, door win-
dow)” on page 5-10, 5-20, 5-30.}
Tires Check all the tires for heavy tread wear or uneven wear pat-
terns. Look for stones, nails, glass, or other objects stuck in the
tread. Look for any tread cuts or sidewall cracks. Check the
wheel nuts for tightness, and the tires (including spare tire) for
proper pressures. Replace your tires before they are heavily
worn out.
As your vehicle is equipped with a tire pressure monitoring
system, there is a risk of damage to the tire inflation pressure
sensors when the tire is replaced on the rim. Tire replacement
should, therefore, be performed only by an authorized
Mitsubishi Motors dealer.Lights Have someone watch while you turn all the exterior lights on
and off. Also check the turn signal indicators and high-beam
indicators on the instrument panel. Fluid leaks Check the ground under the vehicle after parking overnight, for
fuel, water, oil, or other leaks. Make sure all the fluid levels are
correct. Also, if you can smell fuel, you need to find out why
immediately and have it fixed.
BK0142300US.book 5 ページ ２０１１年８月７日　日曜日　午前１０時４４分
