Overview

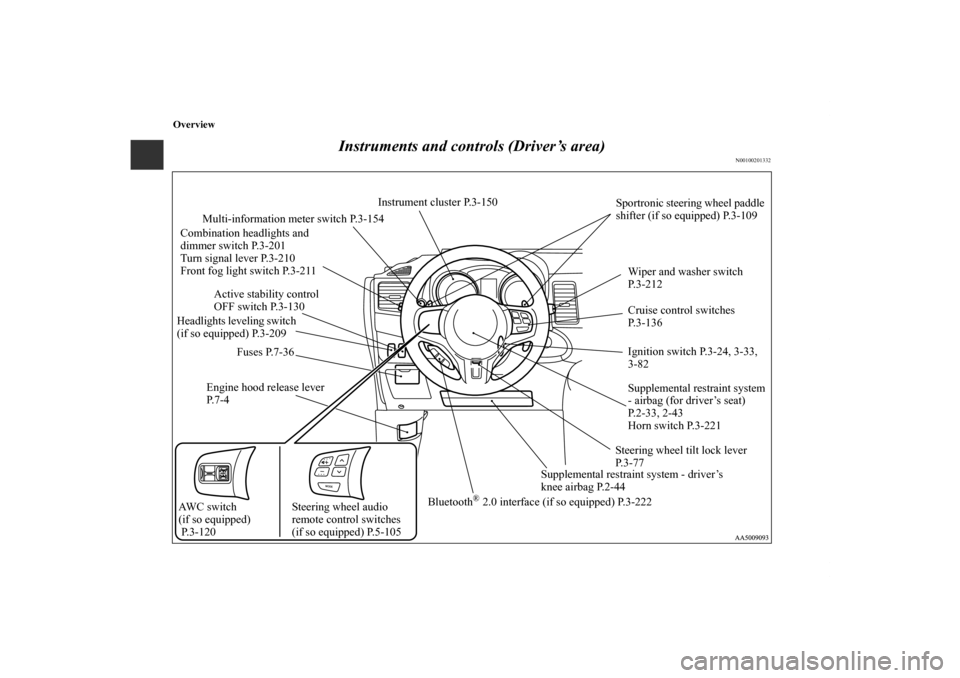

Instruments and controls (Driver’s area)
N00100201332
Combination headlights and
dimmer switch P.3-201
Turn signal lever P.3-210
Front fog light switch P.3-211
Supplemental restraint system
- airbag (for driver’s seat)
P.2-33, 2-43
Horn switch P.3-221 Instrument cluster P.3-150
Cruise control switches
P.3-136 Wiper and washer switch
P.3-212
Fuses P.7-36
Engine hood release lever
P. 7 - 4Sportronic steering wheel paddle
shifter (if so equipped) P.3-109
Ignition switch P.3-24, 3-33,
3-82
Steering wheel tilt lock lever
P. 3 - 7 7
Supplemental restraint system - driver’s
knee airbag P.2-44
Bluetooth
® 2.0 interface (if so equipped) P.3-222
Steering wheel audio
remote control switches
(if so equipped) P.5-105 Multi-information meter switch P.3-154
AWC switch
(if so equipped)
P. 3 - 1 2 0 Headlights leveling switch
(if so equipped) P.3-209Active stability control
OFF switch P.3-130
BK0142300US.book 1 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Overview

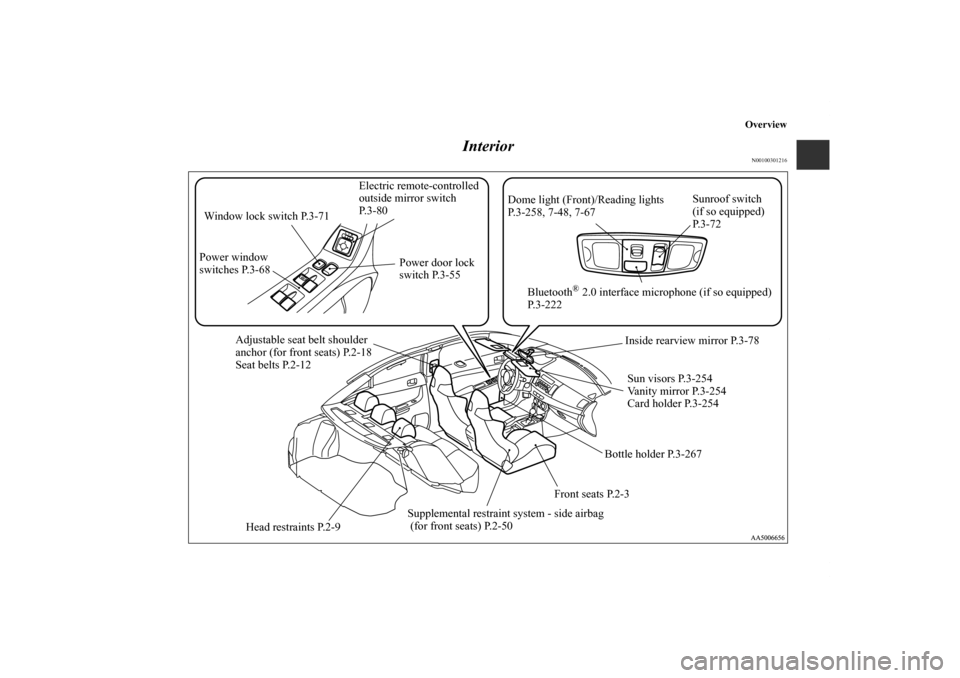

Interior
N00100301216
Adjustable seat belt shoulder
anchor (for front seats) P.2-18
Seat belts P.2-12
Supplemental restraint system - side airbag
(for front seats) P.2-50Front seats P.2-3Sun visors P.3-254
Vanity mirror P.3-254
Card holder P.3-254 Inside rearview mirror P.3-78
Head restraints P.2-9 Window lock switch P.3-71
Power window
switches P.3-68Power door lock
switch P.3-55 Electric remote-controlled
outside mirror switch
P. 3 - 8 0Dome light (Front)/Reading lights
P.3-258, 7-48, 7-67Sunroof switch
(if so equipped)
P. 3 - 7 2
Bluetooth
® 2.0 interface microphone (if so equipped)
P.3-222
Bottle holder P.3-267
BK0142300US.book 4 ページ ２０１１年８月７日　日曜日　午前１０時４４分

3
Features and controls
Break-in period . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . 3- 4
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 9
Free-hand Advanced Security Transmitter
(F.A.S.T.-key) (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 17
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 51
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 55
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . 3- 57
Trunk lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 58
Inside emergency trunk lid release . . . . . . . . . . . . . . . . . . . . . . 3- 61
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 62
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 68
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 72
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 75
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 77
Inside day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 3- 78
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 80
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 82
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 85
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . 3- 86
Turbocharger operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 90
Clutch pedal operation (if so equipped). . . . . . . . . . . . . . . . . . . 3- 91
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 92
Twin Clutch SST (Sportronic Shift Transmission)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 95
All-wheel drive system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 116
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . 3- 117
S-AWC (Super-All Wheel Control). . . . . . . . . . . . . . . . . . . . . . 3- 119
Anti-lock braking system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 125
Active stability control (ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 129
Limited-slip differential . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 132Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 133
Brake assist system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 134
Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 135
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 136
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . 3- 144
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 150
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 153
Indicator light, warning light, and information
screen display list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 184
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 196
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 196
Information screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 199
Combination headlights and dimmer switch . . . . . . . . . . . . . . . 3- 201
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 210
Hazard warning flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211
Front fog light switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 212
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . 3- 220
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 221
Link System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 222
Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . 3- 222
USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . 3- 248
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 254
Ashtray (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 255
12 V power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 256
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 257
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 261
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 266
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 267
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 268
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 268
BK0142300US.book 1 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls
3-173
3

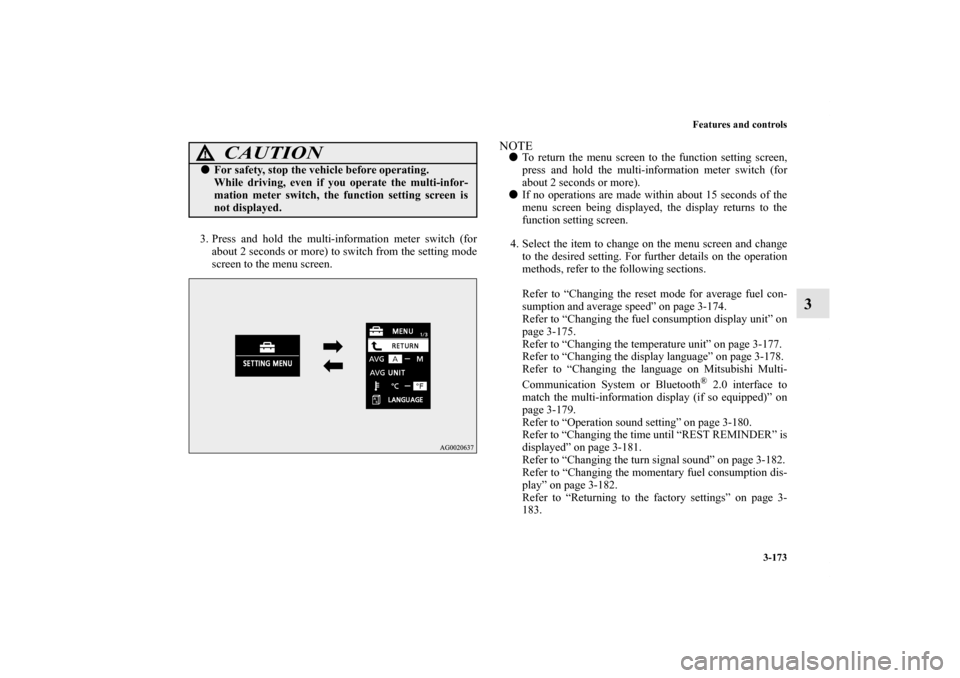

3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
NOTE
To return the menu screen to the function setting screen,
press and hold the multi-information meter switch (for
about 2 seconds or more).

If no operations are made within about 15 seconds of the
menu screen being displayed, the display returns to the
function setting screen.
4. Select the item to change on the menu screen and change
to the desired setting. For further details on the operation
methods, refer to the following sections.
Refer to “Changing the reset mode for average fuel con-
sumption and average speed” on page 3-174.
Refer to “Changing the fuel consumption display unit” on
page 3-175.
Refer to “Changing the temperature unit” on page 3-177.
Refer to “Changing the display language” on page 3-178.
Refer to “Changing the language on Mitsubishi Multi-
Communication System or Bluetooth
® 2.0 interface to
match the multi-information display (if so equipped)” on
page 3-179.
Refer to “Operation sound setting” on page 3-180.
Refer to “Changing the time until “REST REMINDER” is
displayed” on page 3-181.
Refer to “Changing the turn signal sound” on page 3-182.
Refer to “Changing the momentary fuel consumption dis-
play” on page 3-182.
Refer to “Returning to the factory settings” on page 3-
183.
CAUTION
!
For safety, stop the vehicle before operating.
While driving, even if you operate the multi-infor-
mation meter switch, the function setting screen is
not displayed.
BK0142300US.book 173 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls
3-179
3

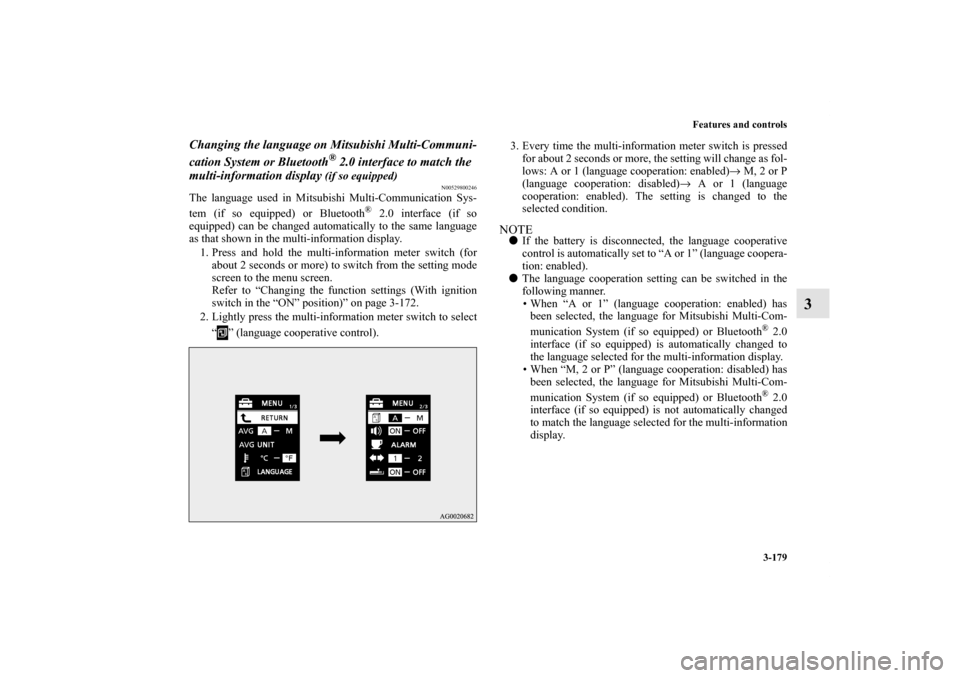

Changing the language on Mitsubishi Multi-Communi-
cation System or Bluetooth
® 2.0 interface to match the
multi-information display
(if so equipped)
N00529800246
The language used in Mitsubishi Multi-Communication Sys-
tem (if so equipped) or Bluetooth
® 2.0 interface (if so
equipped) can be changed automatically to the same language
as that shown in the multi-information display.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-172.
2. Lightly press the multi-information meter switch to select
“ ” (language cooperative control).3. Every time the multi-information meter switch is pressed
for about 2 seconds or more, the setting will change as fol-
lows: A or 1 (language cooperation: enabled)→ M, 2 or P
(language cooperation: disabled)→ A or 1 (language
cooperation: enabled). The setting is changed to the
selected condition.
NOTE
If the battery is disconnected, the language cooperative
control is automatically set to “A or 1” (language coopera-
tion: enabled).

The language cooperation setting can be switched in the
following manner.
• When “A or 1” (language cooperation: enabled) has
been selected, the language for Mitsubishi Multi-Com-
munication System (if so equipped) or Bluetooth
® 2.0
interface (if so equipped) is automatically changed to
the language selected for the multi-information display.
• When “M, 2 or P” (language cooperation: disabled) has
been selected, the language for Mitsubishi Multi-Com-
munication System (if so equipped) or Bluetooth® 2.0
interface (if so equipped) is not automatically changed
to match the language selected for the multi-information
display.
BK0142300US.book 179 ページ ２０１１年８月７日　日曜日　午前１０時４４分

3-222 Features and controls

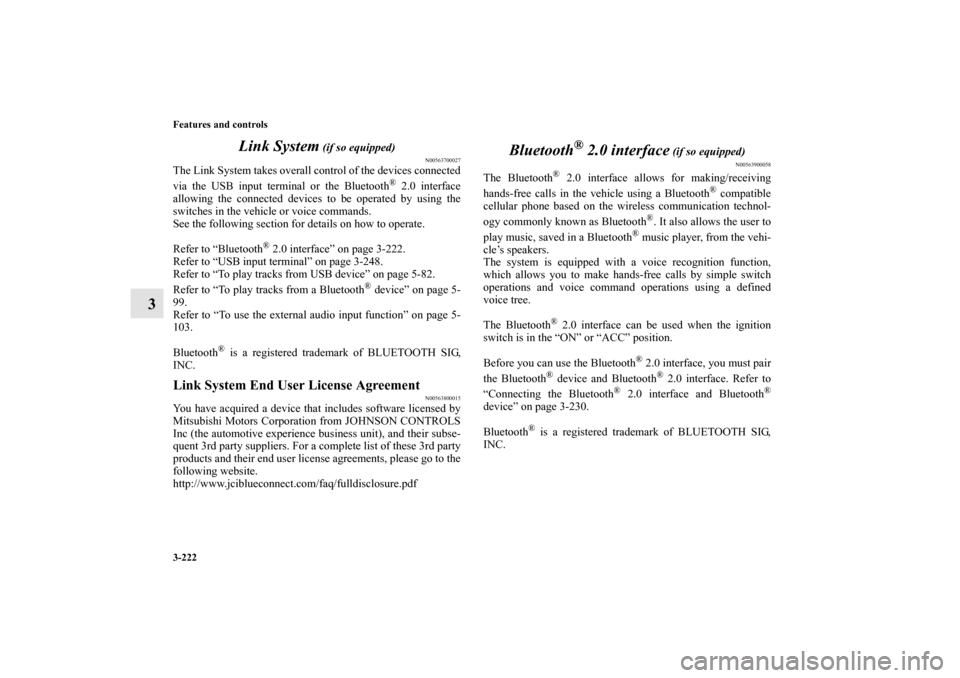

3Link System
(if so equipped)
N00563700027
The Link System takes overall control of the devices connected
via the USB input terminal or the Bluetooth
® 2.0 interface
allowing the connected devices to be operated by using the
switches in the vehicle or voice commands.
See the following section for details on how to operate.
Refer to “Bluetooth
® 2.0 interface” on page 3-222.
Refer to “USB input terminal” on page 3-248.
Refer to “To play tracks from USB device” on page 5-82.
Refer to “To play tracks from a Bluetooth
® device” on page 5-
99.
Refer to “To use the external audio input function” on page 5-
103.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
Link System End User License Agreement
N00563800015
You have acquired a device that includes software licensed by
Mitsubishi Motors Corporation from JOHNSON CONTROLS
Inc (the automotive experience business unit), and their subse-
quent 3rd party suppliers. For a complete list of these 3rd party
products and their end user license agreements, please go to the
following website.
http://www.jciblueconnect.com/faq/fulldisclosure.pdf
Bluetooth
® 2.0 interface
(if so equipped)
N00563900058
The Bluetooth
® 2.0 interface allows for making/receiving
hands-free calls in the vehicle using a Bluetooth
® compatible
cellular phone based on the wireless communication technol-
ogy commonly known as Bluetooth
®. It also allows the user to
play music, saved in a Bluetooth
® music player, from the vehi-
cle’s speakers.
The system is equipped with a voice recognition function,
which allows you to make hands-free calls by simple switch
operations and voice command operations using a defined
voice tree.
The Bluetooth
® 2.0 interface can be used when the ignition
switch is in the “ON” or “ACC” position.
Before you can use the Bluetooth
® 2.0 interface, you must pair
the Bluetooth
® device and Bluetooth
® 2.0 interface. Refer to
“Connecting the Bluetooth
® 2.0 interface and Bluetooth
®
device” on page 3-230.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
BK0142300US.book 222 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Features and controls
3-223
3
NOTE
If the ignition switch is left in the “ACC” position, the
accessory power will automatically turn off after a certain
period of time and you will no longer be able to use the
Bluetooth
® 2.0 interface. The accessory power comes on
again if the ignition switch is turned from the “ACC”
position. Refer to “ACC power auto-cutout function” on
page 3-83.

The Bluetooth
® 2.0 interface cannot be used if the
Bluetooth
® device has a dead battery or the device power
is turned off.

Hands-free calls will not be possible if your phone does
not have service available.

Some Bluetooth
® devices are not compatible with the
Bluetooth
® 2.0 interface.Steering control switch → P.3-224
Voice recognition function → P. 3 - 2 2 5
Useful voice commands → P. 3 - 2 2 6
Speaker enrollment function → P.3-228
Connecting the Bluetooth
® 2.0 interface and the Bluetooth
®
device→ P.3-230
Operating a music player connected via Bluetooth
®
→ P. 3 - 2 3 5
How to make or receive hands-free calls → P. 3 - 2 3 5
Phonebook function → P.3-239
WA R N I N G
!
Although the Bluetooth
® 2.0 interface allows you to
make hands-free calls, if you choose to use the cellu-
lar phone while driving, you must not allow yourself
to be distracted from the safe operation of your vehi-
cle. Anything, including cellular phone usage, that
distracts you from the safe operation of your vehicle
increases your risk of an accident.

Refer to and comply with all state and local laws in
your area regarding cellular phone usage while driv-
ing.
BK0142300US.book 223 ページ ２０１１年８月７日　日曜日　午前１０時４４分

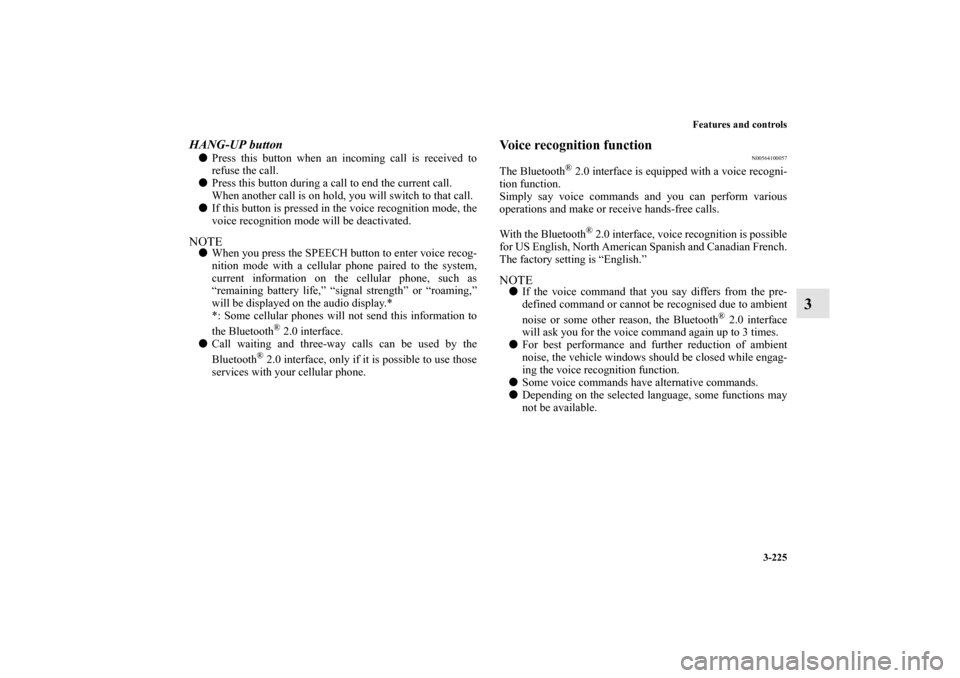

Features and controls
3-225
3
HANG-UP button
Press this button when an incoming call is received to
refuse the call.

Press this button during a call to end the current call.
When another call is on hold, you will switch to that call.

If this button is pressed in the voice recognition mode, the
voice recognition mode will be deactivated.NOTE
When you press the SPEECH button to enter voice recog-
nition mode with a cellular phone paired to the system,
current information on the cellular phone, such as
“remaining battery life,” “signal strength” or “roaming,”
will be displayed on the audio display.*
*: Some cellular phones will not send this information to
the Bluetooth
® 2.0 interface.

Call waiting and three-way calls can be used by the
Bluetooth
® 2.0 interface, only if it is possible to use those
services with your cellular phone.
Voice recognition function
N00564100057
The Bluetooth
® 2.0 interface is equipped with a voice recogni-
tion function.
Simply say voice commands and you can perform various
operations and make or receive hands-free calls.
With the Bluetooth
® 2.0 interface, voice recognition is possible
for US English, North American Spanish and Canadian French.
The factory setting is “English.”
NOTE
If the voice command that you say differs from the pre-
defined command or cannot be recognised due to ambient
noise or some other reason, the Bluetooth
® 2.0 interface
will ask you for the voice command again up to 3 times.

For best performance and further reduction of ambient
noise, the vehicle windows should be closed while engag-
ing the voice recognition function.

Some voice commands have alternative commands.

Depending on the selected language, some functions may
not be available.
BK0142300US.book 225 ページ ２０１１年８月７日　日曜日　午前１０時４４分

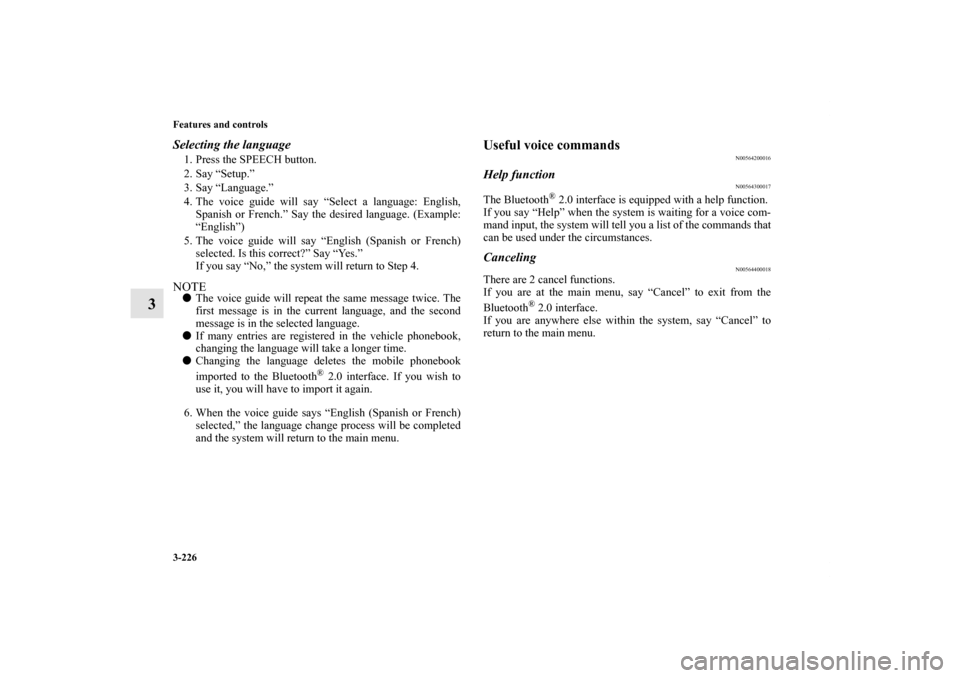

3-226 Features and controls
3
Selecting the language1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Language.”
4. The voice guide will say “Select a language: English,
Spanish or French.” Say the desired language. (Example:
“English”)
5. The voice guide will say “English (Spanish or French)
selected. Is this correct?” Say “Yes.”
If you say “No,” the system will return to Step 4.NOTE
The voice guide will repeat the same message twice. The
first message is in the current language, and the second
message is in the selected language.

If many entries are registered in the vehicle phonebook,
changing the language will take a longer time.

Changing the language deletes the mobile phonebook
imported to the Bluetooth
® 2.0 interface. If you wish to
use it, you will have to import it again.
6. When the voice guide says “English (Spanish or French)
selected,” the language change process will be completed
and the system will return to the main menu.
Useful voice commands
N00564200016
Help function
N00564300017
The Bluetooth
® 2.0 interface is equipped with a help function.
If you say “Help” when the system is waiting for a voice com-
mand input, the system will tell you a list of the commands that
can be used under the circumstances.
Canceling
N00564400018
There are 2 cancel functions.
If you are at the main menu, say “Cancel” to exit from the
Bluetooth
® 2.0 interface.
If you are anywhere else within the system, say “Cancel” to
return to the main menu.
BK0142300US.book 226 ページ ２０１１年８月７日　日曜日　午前１０時４４分

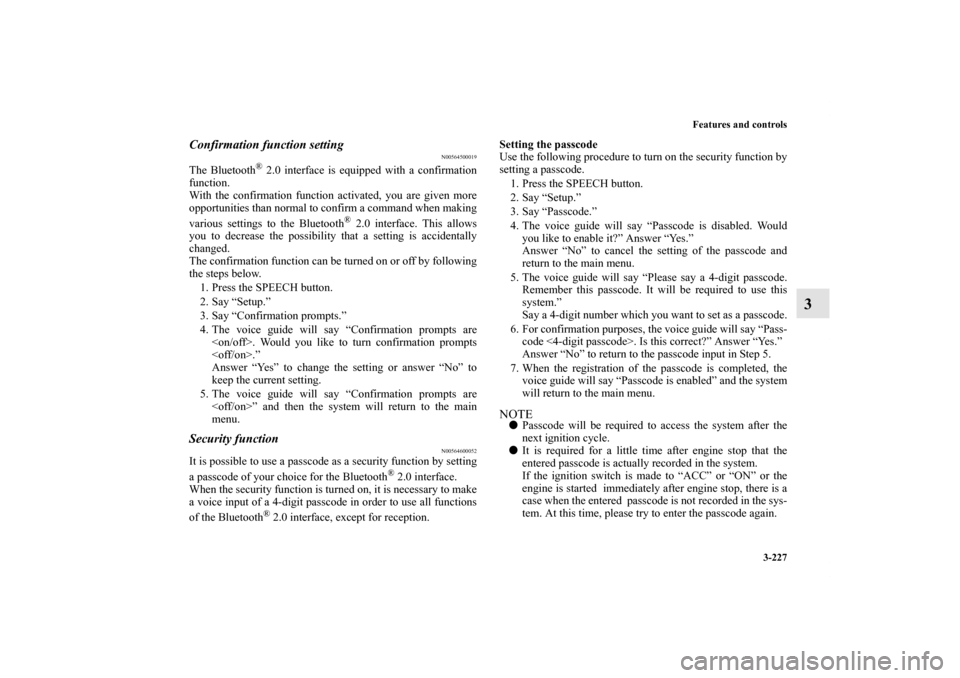

Features and controls
3-227
3
Confirmation function setting
N00564500019
The Bluetooth
® 2.0 interface is equipped with a confirmation
function.
With the confirmation function activated, you are given more
opportunities than normal to confirm a command when making
various settings to the Bluetooth
® 2.0 interface. This allows
you to decrease the possibility that a setting is accidentally
changed.
The confirmation function can be turned on or off by following
the steps below.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Confirmation prompts.”
4. The voice guide will say “Confirmation prompts are
. Would you like to turn confirmation prompts
.”
Answer “Yes” to change the setting or answer “No” to
keep the current setting.
5. The voice guide will say “Confirmation prompts are
” and then the system will return to the main
menu.
Security function
N00564600052
It is possible to use a passcode as a security function by setting
a passcode of your choice for the Bluetooth
® 2.0 interface.
When the security function is turned on, it is necessary to make
a voice input of a 4-digit passcode in order to use all functions
of the Bluetooth
® 2.0 interface, except for reception. Setting the passcode
Use the following procedure to turn on the security function by
setting a passcode.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Passcode.”
4. The voice guide will say “Passcode is disabled. Would
you like to enable it?” Answer “Yes.”
Answer “No” to cancel the setting of the passcode and
return to the main menu.
5. The voice guide will say “Please say a 4-digit passcode.
Remember this passcode. It will be required to use this
system.”
Say a 4-digit number which you want to set as a passcode.
6. For confirmation purposes, the voice guide will say “Pass-
code <4-digit passcode>. Is this correct?” Answer “Yes.”
Answer “No” to return to the passcode input in Step 5.
7. When the registration of the passcode is completed, the
voice guide will say “Passcode is enabled” and the system
will return to the main menu.
NOTE
Passcode will be required to access the system after the
next ignition cycle.

It is required for a little time after engine stop that the
entered passcode is actually recorded in the system.
If the ignition switch is made to “ACC” or “ON” or the
engine is started immediately after engine stop, there is a
case when the entered passcode is not recorded in the sys-
tem. At this time, please try to enter the passcode again.
BK0142300US.book 227 ページ ２０１１年８月７日　日曜日　午前１０時４４分
