3-134CIRCUIT DIAGRAMS - EQUIPMENT
ACD (vehicle without AYC) (cont’d)
Fusible
link
Electric
pumpHydraulic
unit ASSYElectric pump
relay
Pressure
sensor
Hydraulic unit ASSYProportional
valve (for
ACD)
Page 322 of 364
3-135CIRCUIT DIAGRAMS - EQUIPMENT
(Front : LH)
(Front : RH)(Rear : LH) (Rear : RH)
ABS sensors
Page 323 of 364
3-136CIRCUIT DIAGRAMS - EQUIPMENT
ACD (vehicle without AYC) (cont’d)
• Intercooler water spray
• Heater
• Full auto A/C
• Manual A/C
Steer sensor
Front sideIgnition switch (IG2)
Page 326 of 364
3-139CIRCUIT DIAGRAMS - EQUIPMENT
Ignition switch (IG2)
Front / rear
G sensorLateral G
sensor
Page 328 of 364
3-141CIRCUIT DIAGRAMS - EQUIPMENT
Throttle position
sensorEngine ECU
Page 330 of 364
3-143CIRCUIT DIAGRAMS - EQUIPMENT
(Front : LH)(Front : RH)(Rear : LH)
(Rear : RH)
ABS sensors
Page 331 of 364
3-144CIRCUIT DIAGRAMS - EQUIPMENT
ACD, AYC (cont’d)
Fusible
link
Electric
pumpHydraulic
unit ASSYElectric pump
relay
Hydraulic unit ASSYPressure
sensor
Page 333 of 364
3-146CIRCUIT DIAGRAMS - EQUIPMENT

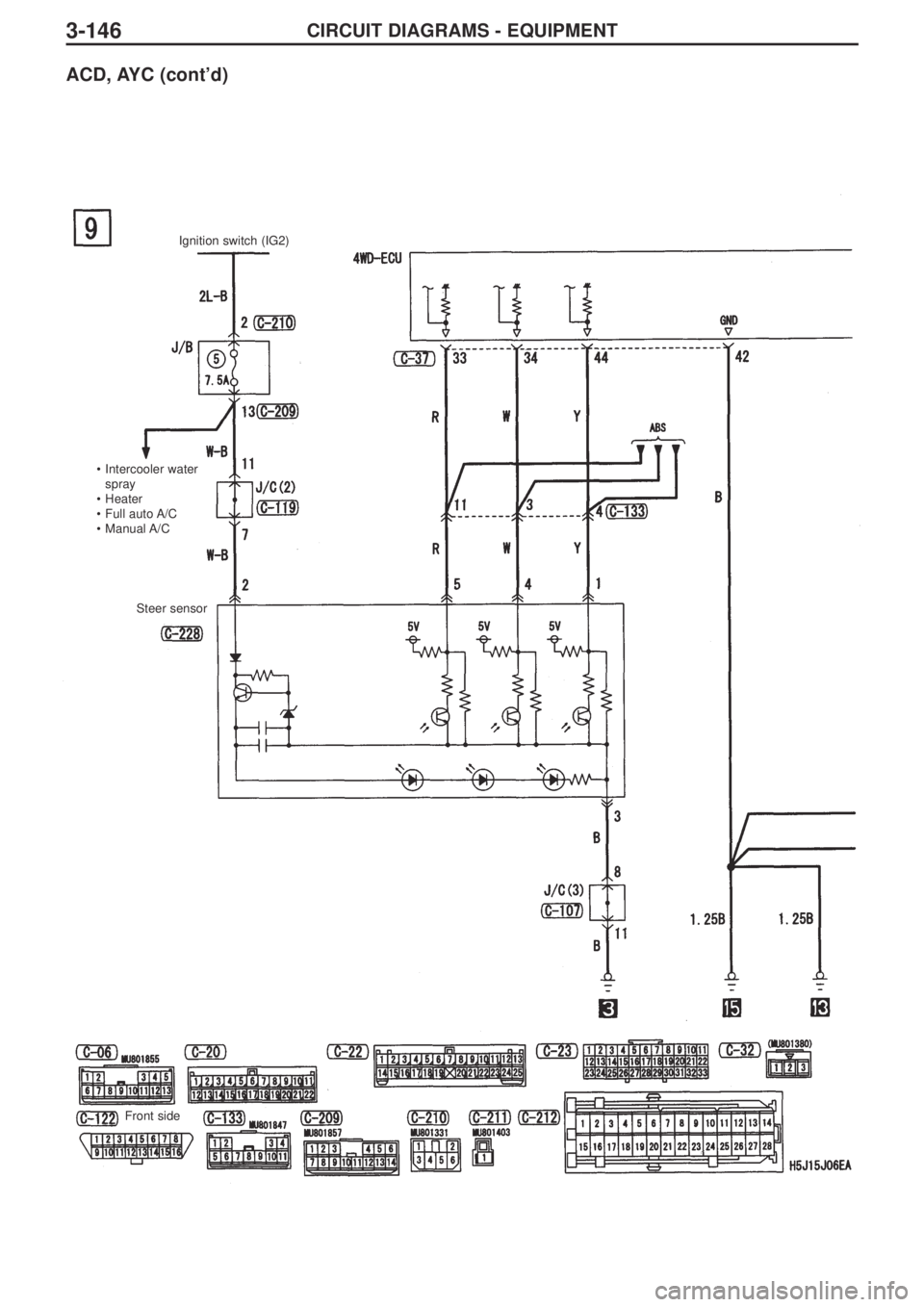

ACD, AYC (cont’d)
•Intercooler water
spray
•Heater
•Full auto A/C
•Manual A/CIgnition switch (IG2)
Steer sensor
Front side
Page 335 of 364
3-148CIRCUIT DIAGRAMS - EQUIPMENT

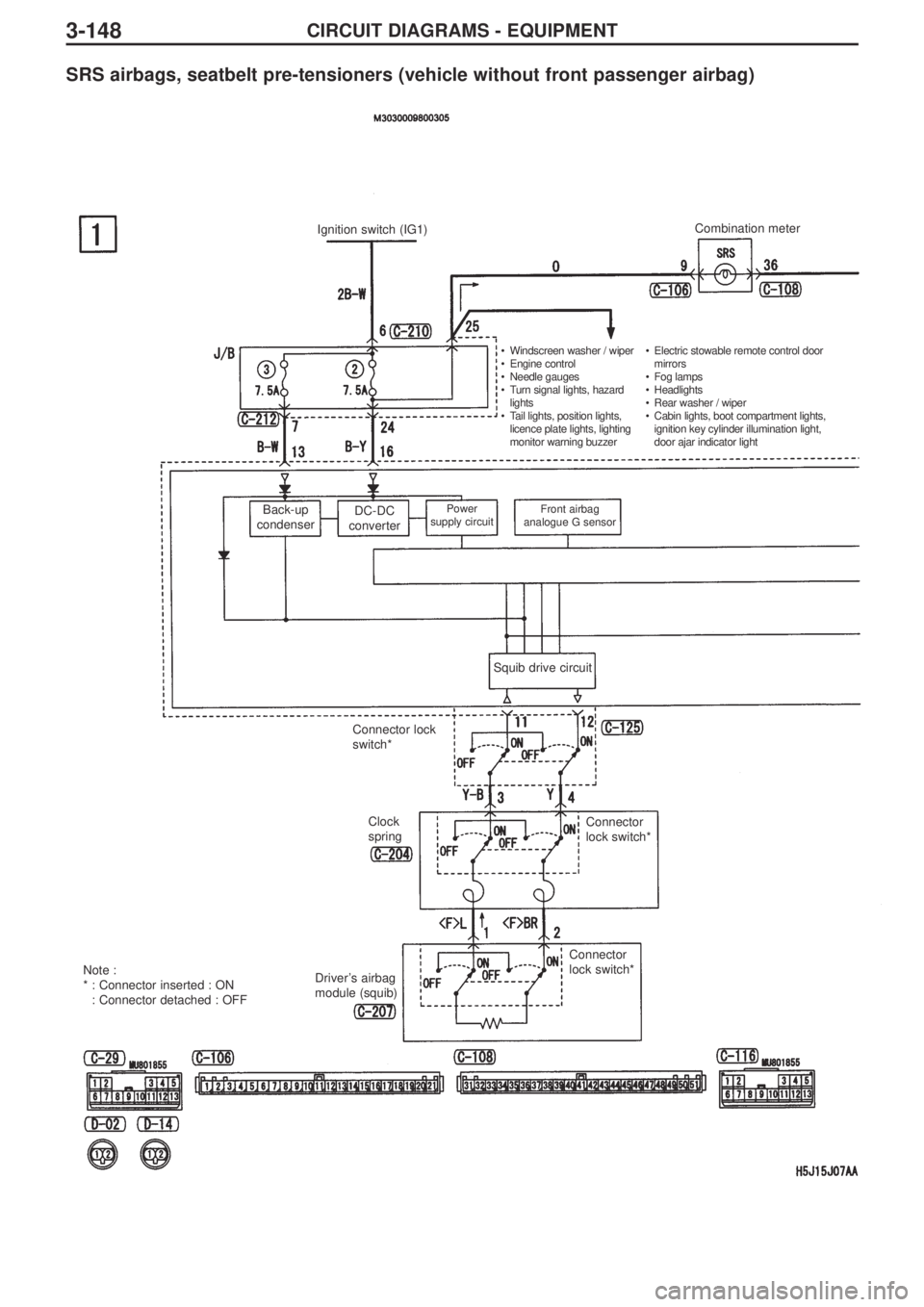

SRS airbags, seatbelt pre-tensioners (vehicle without front passenger airbag)
Note :
* : Connector inserted : ON
: Connector detached : OFFBack-up
condenserIgnition switch (IG1)
DC-DC
converter
Power
supply circuitFront airbag
analogue G sensor
Squib drive circuit
Connector lock
switch*
Clock
spring
Driver’s airbag
module (squib)Connector
lock switch*
Connector
lock switch*Combination meter
•Windscreen washer / wiper
•Engine control
•Needle gauges
•Turn signal lights, hazard
lights
•Tail lights, position lights,
licence plate lights, lighting
monitor warning buzzer •Electric stowable remote control door
mirrors
•Fog lamps
•Headlights
•Rear washer / wiper
•Cabin lights, boot compartment lights,
ignition key cylinder illumination light,
door ajar indicator light
Page 337 of 364
3-150CIRCUIT DIAGRAMS - EQUIPMENT
SRS airbags, seatbelt pre-tensioners (vehicle without front passenger’s airbag) (cont’d)
Microcomputer
Interface circuitMUT interface
circuit
Front impact sensor (LH) Front impact sensor (RH)
Front sideDiagnosis connectorFusible
link
