Page 112 of 364

54G6 – TIGHTENING TORQUES
Tightening Torques
Par tTightening Torque Nm
Alternator, ignition system
Oil level gauge guide bolt13 ± 1
Water pump pulley bolt8.8 ± 1.0
Auto tension bolt (washer)44 ± 10
Auto tension bolt (flange)24 ± 4
Alternator bracket bolt (flange)24 ± 4
Alternator bracket bolt (washer M8 x 22)22 ± 4
Alternator bracket bolt (washer M8 x 32)20 ± 2
Alternator nut44 ± 10
Crankshaft pulley bolt25 ± 4
Centre cover holt3.0 ± 0.5
Ignition coil bolt10 ± 2
Spark plug25 ± 5
Timing belt
Timing belt cover bolt (flange)11 ± 1
Timing belt cover bolt (washer)9.0 ± 1.0
Power steering pump bracket bolt49 ± 9
Connector bracket bolt11 ± 1
Locker cover bolt3.5 ± 0.5
Plug cap32 ± 2
Tensioner pulley bolt48 ± 5
Tensioner arm bolt21 ± 4
Auto tensioner bolt23 ± 3
Idler pulley bolt35 ± 6
Crank angle sensor bolt8.8 ± 1.0
Oil pump sprocket nut54 ± 5
Crankshaft holt167
Tensioner B bolt19 ± 3
Counterbalance shaft sprocket bolt45 ± 3
Engine support bracket bolt49 ± 5
V.V.T. sprocket bolt65 ± 5
Camshaft sprocket bolt88 ± 10
Fuel system
Throttle body bolt19 ± 3
Cover bolt12 ± 1
Fuel pressure regulator bolt8.8 ± 2.0
Delivery pipe and injector bolt11 ± 1
Vacuum hose and pipe bolt11 ± 1
Solenoid valve assembly bolt9.0 ± 1.0
Vacuum tank bracket bolt9.0 ± 1.0
Secondary air system / Intake manifold
Exhaust manifold heat protector bolt20 ± 3
Air pipe assembly

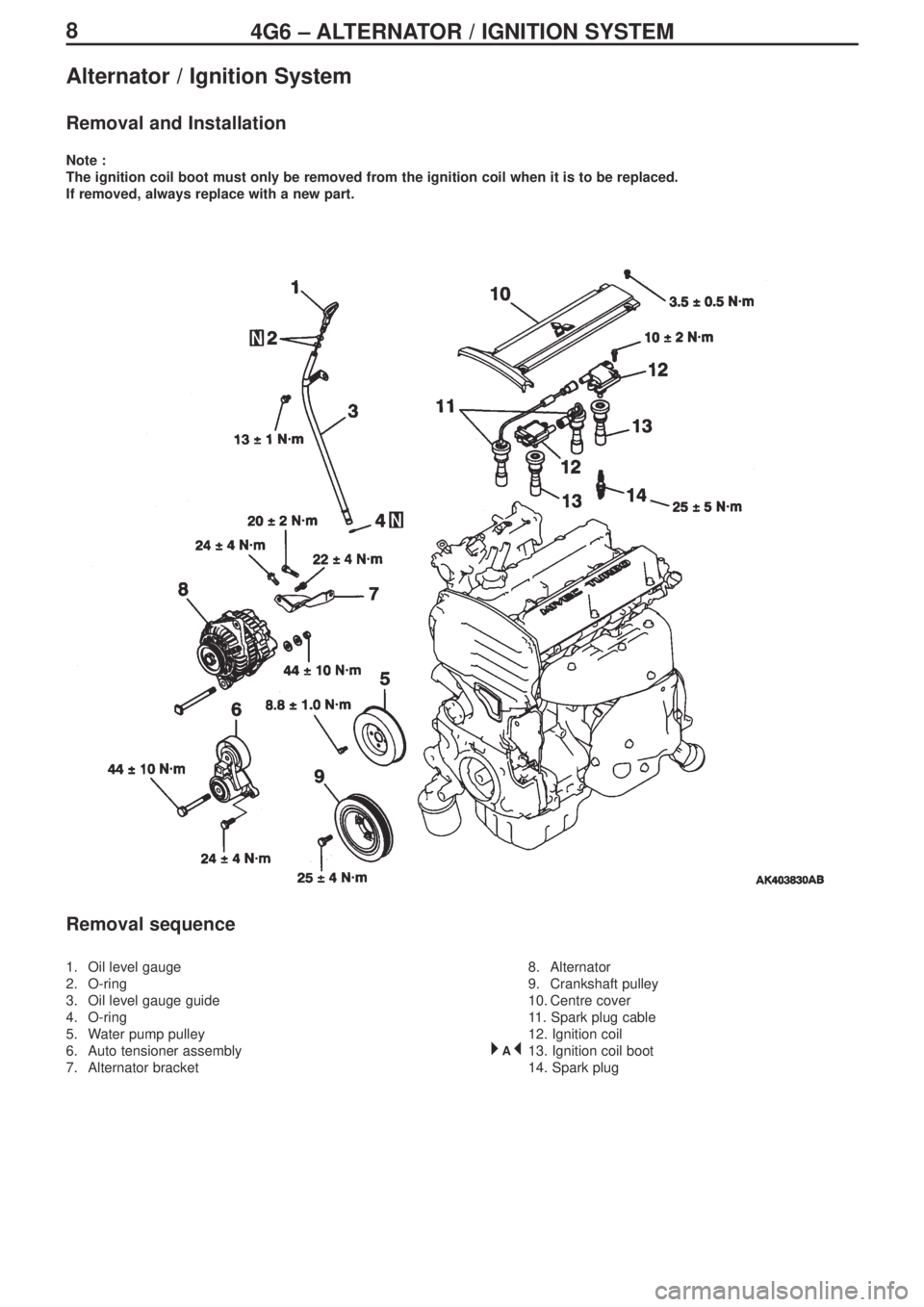

Page 115 of 364

84G6 – ALTERNATOR / IGNITION SYSTEM
Alternator / Ignition System
Removal and Installation
Note :
The ignition coil boot must only be removed from the ignition coil when it is to be replaced.
If removed, always replace with a new part.
Removal sequence
1. Oil level gauge
2. O-ring
3. Oil level gauge guide
4. O-ring
5. Water pump pulley
6. Auto tensioner assembly
7. Alternator bracket8. Alternator
9. Crankshaft pulley
10. Centre cover
11. Spark plug cable
12. Ignition coil
13. Ignition coil boot
14. Spark plug
A*
Page 116 of 364

94G6 – ALTERNATOR, IGNITION SYSTEM
Removal Service Point
Removal of ignition coil boot
Note :
• If the ignition coil boot is not installed according to the
specifications, then this can lead to various problems, such
as malfunction of the ignition coil, damage to the ignition coil,
leaking of high voltage to external parts, infiltration of water
into the hole, etc.
• The spark plug coupling section of the ignition coil boot is
coated with a white powder. This coating helps to prevent the
boot from welding to the spark plug, and must not be touched
or wiped away.
1. Please check that a spring is fitted inside the new ignition coil
boot.
2. Press the new ignition coil boot firmly onto the ignition coil,
and turn the coupling section 2 or 3 times to seat it correctly
in position, ensuring that there are no gaps.
3. After installation, turn the boot until the air blow hole is
positioned as shown in the diagram.
Coupling
section
Air blow hole
White powder coating on
interior part. Do not touchAir blow hole
Upper faceA *
Page 156 of 364

LAYOUT DIAGRAMS - ENGINE / TRANSMISSION1-6
B-01 (1-black) Engine oil pressure switch
B-02 Alternator
B-03 (4-grey) Alternator
B-04 Starter
B-05 (1-black) Starter
B-06 (4-black) Throttle position sensorB-07 (2-black) Purge control solenoid valve
B-08 (7-black) Airflow sensor
B-12 (5-grey) Windscreen wiper motor
B-13X Engine speed detection connector
B-14X Starter relay
B-17X Ignition coil relay
ENGINE / TRANSMISSION
Connector Symbol
Control harnessGround cable
Battery
harness
Page 181 of 364

PART INSTALLATION POSITIONS - SOLENOID VALVES2-11
Alternator
Secondary air
control solenoid valve
Hydraulic unit
(with in-built solenoid valve)
Waste gate solenoid
valve 1
Waste gate solenoid
valve 2 Battery Hydraulic unit ASSY
Proportional
valve
(for ACD)
Proportional
valve (for AYC)Directional valve
(left, right)
Page 213 of 364

CIRCUIT DIAGRAMS - CHARGING3-26
CHARGING
Fusible
link
Engine ECUBattery
Dedicated
fuse
Combination
meter Ignition switch (IG1)
Brake
warning light •Windscreen washer /
wiper
•Engine control
•Needle meters
•Turn signal lights, hazard
lights
•Tail lights, position lights,
licence plate lights, lighting
monitor warning buzzer
•Electric stowable remote
control door mirrors
•Generic spare connector
•Fog lights
•Headlights
•Rear washer / wiper
•Cabin lights, boot
compartment lights,
ignition key cylinder
illumination light, door ajar
indicator light Note:
*
Alternator
Field coil
Starter
coil
IC voltage regulator
