compression ratio MITSUBISHI LANCER EVOLUTION VI 1999 Workshop Manual

ENGINE – General Information11-2
GENERAL INFORMATION
DescriptionsSpecifications
TypeIn-line OHV, SOHC
Number of cylinders4
Combustion chamberPentroof + curved top piston type
Total displacement dm31,997
Cylinder bore mm85.0
Piston stroke mm88.0
Compression ratio8.8
Valve timingIntake valveOpens (BTDC)21°
Closes (ABDC)59°
Exhaust valveOpens (BBDC)58°
Closes (ATDC)18°
Lubrication systemPressure feed, full-flow filtration
Oil pump typeInvolute gear type

ENGINE – Rocker Arms and Camshaft11-39
DCAMSHAFT OIL SEAL INSTALLATION
(1) Apply engine oil to lib area of the oil seal and the front
end outside diameter of the camshaft.
(2) Using special tool install the camshaft oil seals.
ECAMSHAFT POSITION SENSOR SUPPORT
INSTALLATION
Apply 3 mm diameter of form-in-place gasket (FIPG) to the
location shown in the illustration.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or equivalent
FCAMSHAFT POSITION SENSING CYLINDER
INSTALLATION
(1) Set the No. 1 cylinder to the compression top dead center
position (so that dowel pin of the exhaust camshaft is
at the top).
(2) Install the camshaft position sensing cylinder so that the
white paint mark is facing in the direction shown in the
illustration.
INSPECTION
CAMSHAFT
Measure the cam height.
ItemStandard value mmLimit mm
Intake35.7935.29
Exhaust35.4934.99
ROCKER ARM
(1) Check the roller surface. If any dents, damage or seizure
is evident, replace the rocker arm.
(2) Check rotation of the roller. If it does not rotate smoothly
or if looseness is evident, replace the rocker arm.
(3) Check the inside diameter. If damage or seizure is evident,
replace the rocker arm.
MD998713
Camshaft
position
sensorPaint mark
Roller
Tip

MPI – Troubleshooting13-23

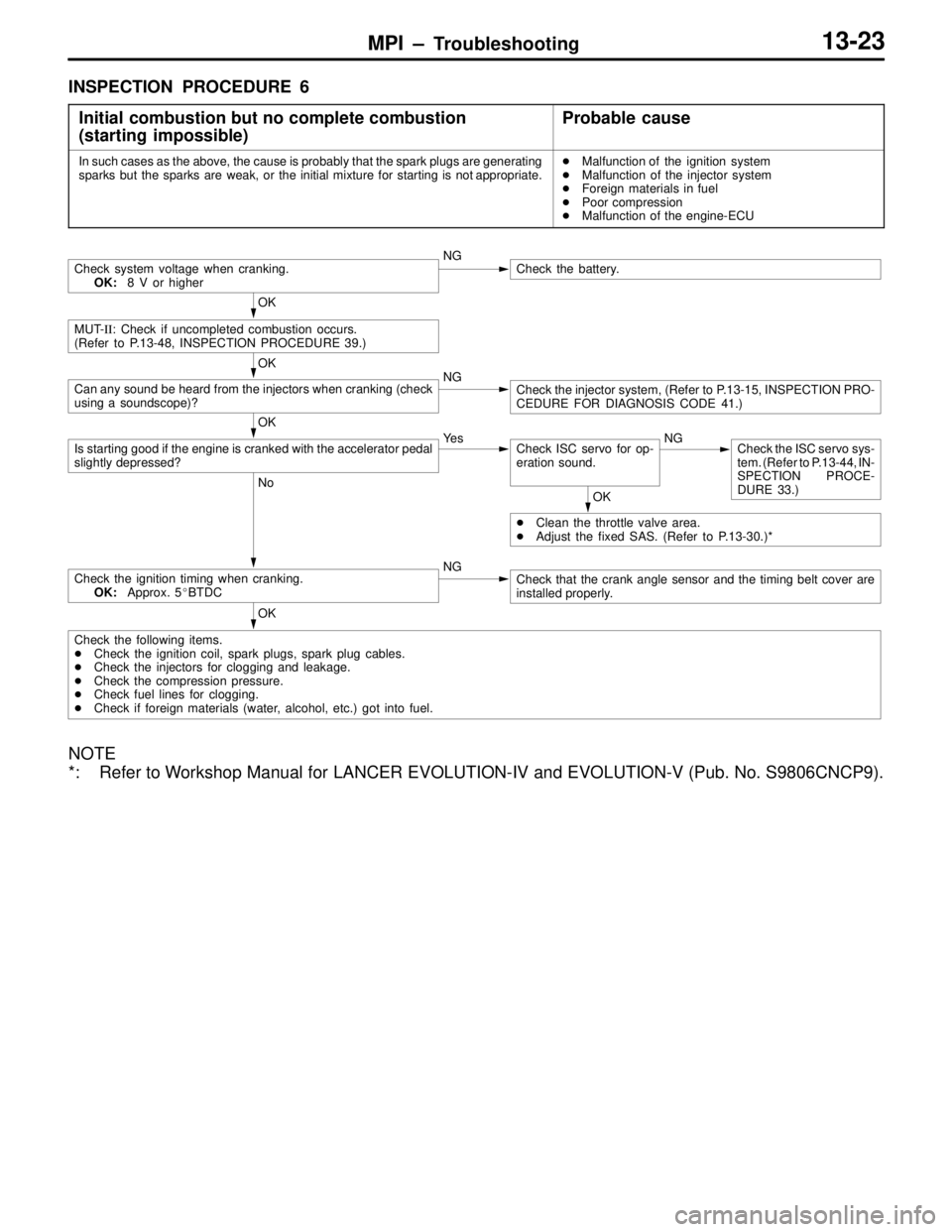

INSPECTION PROCEDURE 6
Initial combustion but no complete combustion
(starting impossible)
Probable cause
In such cases as the above, the cause is probably that the spark plugs are generating
sparks but the sparks are weak, or the initial mixture for starting is not appropriate.
Malfunction of the ignition system

Malfunction of the injector system

Foreign materials in fuel

Poor compression

Malfunction of the engine-ECU
Check system voltage when cranking.
OK:8 V or higherNGCheck the battery.
OK
MUT-II: Check if uncompleted combustion occurs.
(Refer to P.13-48, INSPECTION PROCEDURE 39.)
OK
Can any sound be heard from the injectors when cranking (check
using a soundscope)?NGCheck the injector system, (Refer to P.13-15, INSPECTION PRO-
CEDURE FOR DIAGNOSIS CODE 41.)
OK
Is starting good if the engine is cranked with the accelerator pedal
slightly depressed?Ye sCheck ISC servo for op-
eration sound. NGCheck the ISC servo sys-
tem. (Refer to P.13-44, IN-
SPECTION PROCE-
DURE 33.)
OK

Clean the throttle valve area.

Adjust the fixed SAS. (Refer to P.13-30.)*
No
Check the ignition timing when cranking.
OK:Approx. 5BTDCNGCheck that the crank angle sensor and the timing belt cover are
installed properly.
OK
Check the following items.

Check the ignition coil, spark plugs, spark plug cables.

Check the injectors for clogging and leakage.

Check the compression pressure.

Check fuel lines for clogging.

Check if foreign materials (water, alcohol, etc.) got into fuel.
NOTE
*: Refer to Workshop Manual for LANCER EVOLUTION-IV and EVOLUTION-V (Pub. No. S9806CNCP9).

MPI – Troubleshooting13-25

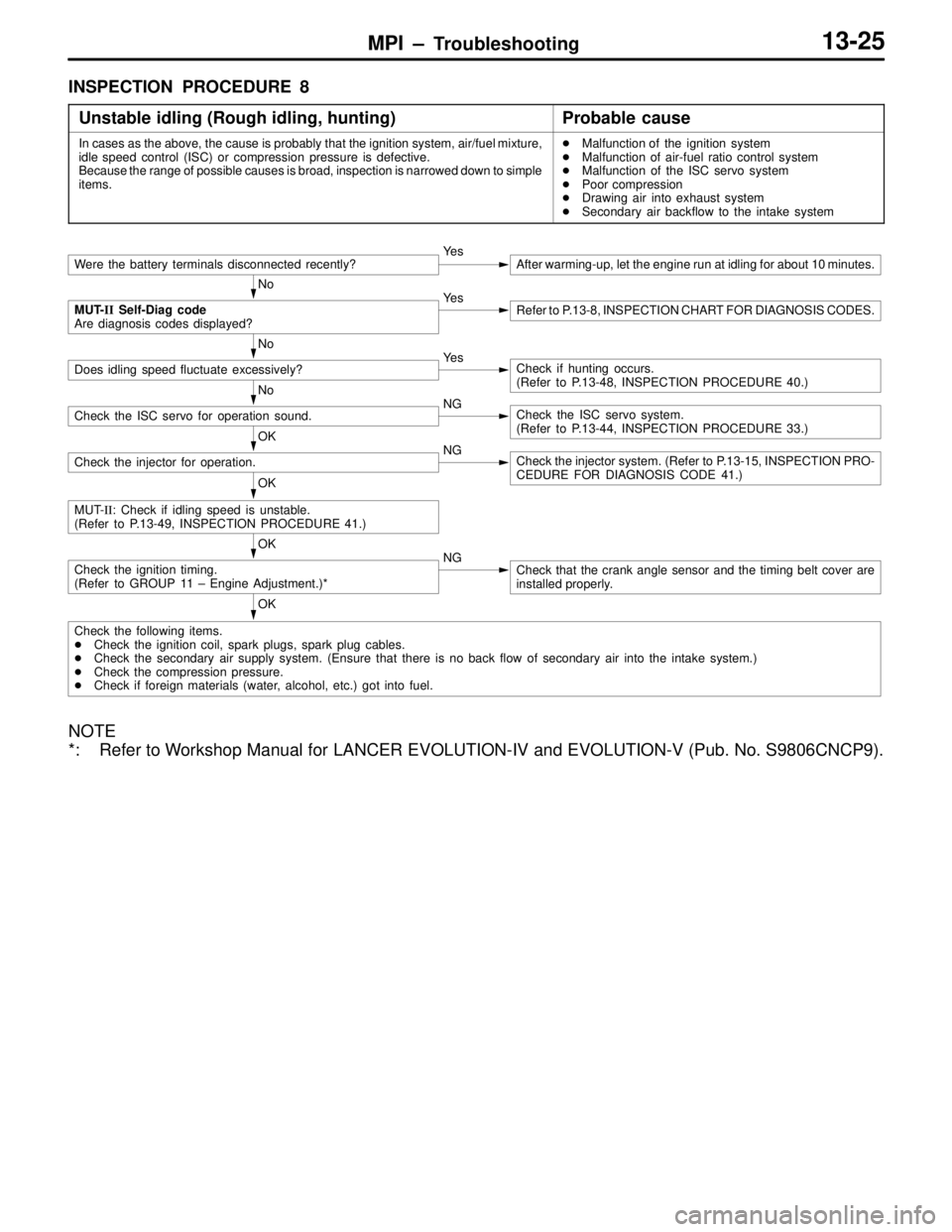

INSPECTION PROCEDURE 8
Unstable idling (Rough idling, hunting)
Probable cause
In cases as the above, the cause is probably that the ignition system, air/fuel mixture,
idle speed control (ISC) or compression pressure is defective.
Because the range of possible causes is broad, inspection is narrowed down to simple
items.
Malfunction of the ignition system

Malfunction of air-fuel ratio control system

Malfunction of the ISC servo system

Poor compression

Drawing air into exhaust system

Secondary air backflow to the intake system
Were the battery terminals disconnected recently?Ye sAfter warming-up, let the engine run at idling for about 10 minutes.
No
MUT-II Self-Diag code
Are diagnosis codes displayed?Ye sRefer to P.13-8, INSPECTION CHART FOR DIAGNOSIS CODES.
No
Does idling speed fluctuate excessively?Ye sCheck if hunting occurs.
(Refer to P.13-48, INSPECTION PROCEDURE 40.)
No
Check the ISC servo for operation sound.NGCheck the ISC servo system.
(Refer to P.13-44, INSPECTION PROCEDURE 33.)
OK
Check the injector for operation.NGCheck the injector system. (Refer to P.13-15, INSPECTION PRO-
CEDURE FOR DIAGNOSIS CODE 41.)
OK
MUT-II: Check if idling speed is unstable.
(Refer to P.13-49, INSPECTION PROCEDURE 41.)
OK
Check the ignition timing.
(Refer to GROUP 11 – Engine Adjustment.)*NGCheck that the crank angle sensor and the timing belt cover are
installed properly.
OK
Check the following items.

Check the ignition coil, spark plugs, spark plug cables.

Check the secondary air supply system. (Ensure that there is no back flow of secondary air into the intake system.)

Check the compression pressure.

Check if foreign materials (water, alcohol, etc.) got into fuel.
NOTE
*: Refer to Workshop Manual for LANCER EVOLUTION-IV and EVOLUTION-V (Pub. No. S9806CNCP9).

MPI – Troubleshooting13-28

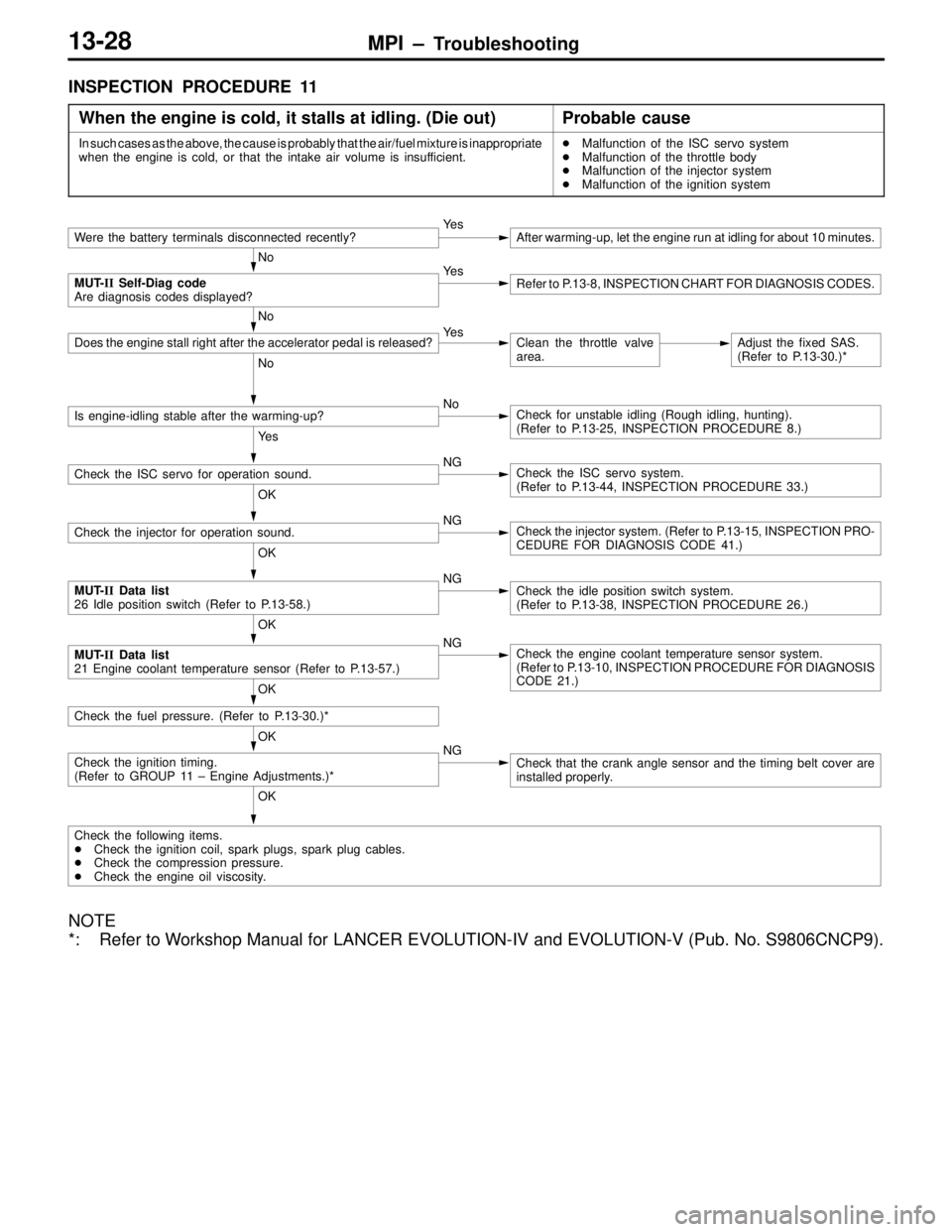

INSPECTION PROCEDURE 11
When the engine is cold, it stalls at idling. (Die out)
Probable cause
In such cases as the above, the cause is probably that the air/fuel mixture is inappropriate
when the engine is cold, or that the intake air volume is insufficient.
Malfunction of the ISC servo system

Malfunction of the throttle body

Malfunction of the injector system

Malfunction of the ignition system
Were the battery terminals disconnected recently?Ye sAfter warming-up, let the engine run at idling for about 10 minutes.
No
MUT-II Self-Diag code
Are diagnosis codes displayed?Ye sRefer to P.13-8, INSPECTION CHART FOR DIAGNOSIS CODES.
OK
Check the fuel pressure. (Refer to P.13-30.)*
OK
Check the ignition timing.
(Refer to GROUP 11 – Engine Adjustments.)*NGCheck that the crank angle sensor and the timing belt cover are
installed properly.
OK
Check the following items.

Check the ignition coil, spark plugs, spark plug cables.

Check the compression pressure.

Check the engine oil viscosity.
OK
MUT-II Data list
26 Idle position switch (Refer to P.13-58.)NGCheck the idle position switch system.
(Refer to P.13-38, INSPECTION PROCEDURE 26.)
OK
Check the injector for operation sound.NGCheck the injector system. (Refer to P.13-15, INSPECTION PRO-
CEDURE FOR DIAGNOSIS CODE 41.)
Ye s
Check the ISC servo for operation sound.NGCheck the ISC servo system.
(Refer to P.13-44, INSPECTION PROCEDURE 33.)
No
Is engine-idling stable after the warming-up?NoCheck for unstable idling (Rough idling, hunting).
(Refer to P.13-25, INSPECTION PROCEDURE 8.)
No
Does the engine stall right after the accelerator pedal is released?Ye sClean the throttle valve
area.Adjust the fixed SAS.
(Refer to P.13-30.)*
OK
MUT-II Data list
21 Engine coolant temperature sensor (Refer to P.13-57.)NGCheck the engine coolant temperature sensor system.
(Refer to P.13-10, INSPECTION PROCEDURE FOR DIAGNOSIS
CODE 21.)
NOTE
*: Refer to Workshop Manual for LANCER EVOLUTION-IV and EVOLUTION-V (Pub. No. S9806CNCP9).

MPI – Troubleshooting13-29

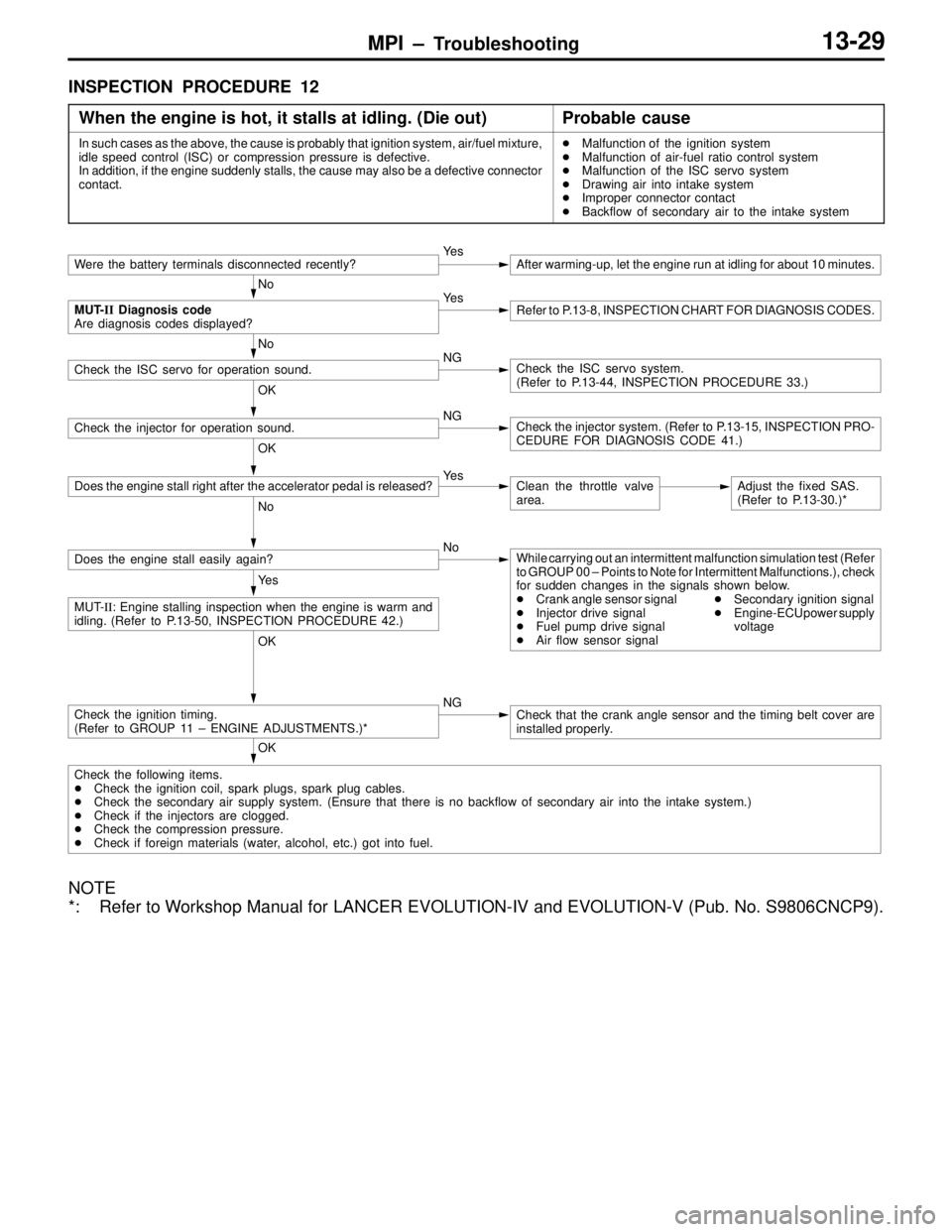

INSPECTION PROCEDURE 12
When the engine is hot, it stalls at idling. (Die out)
Probable cause
In such cases as the above, the cause is probably that ignition system, air/fuel mixture,
idle speed control (ISC) or compression pressure is defective.
In addition, if the engine suddenly stalls, the cause may also be a defective connector
contact.
Malfunction of the ignition system

Malfunction of air-fuel ratio control system

Malfunction of the ISC servo system

Drawing air into intake system

Improper connector contact

Backflow of secondary air to the intake system
Were the battery terminals disconnected recently?Ye sAfter warming-up, let the engine run at idling for about 10 minutes.
No
MUT-II Diagnosis code
Are diagnosis codes displayed?Ye sRefer to P.13-8, INSPECTION CHART FOR DIAGNOSIS CODES.
No
Check the ISC servo for operation sound.NGCheck the ISC servo system.
(Refer to P.13-44, INSPECTION PROCEDURE 33.)
OK
Check the injector for operation sound.NGCheck the injector system. (Refer to P.13-15, INSPECTION PRO-
CEDURE FOR DIAGNOSIS CODE 41.)
OK
Does the engine stall right after the accelerator pedal is released?Ye sClean the throttle valve
area.Adjust the fixed SAS.
(Refer to P.13-30.)*
No
Does the engine stall easily again?NoWhile carrying out an intermittent malfunction simulation test (Refer
to GROUP 00 – Points to Note for Intermittent Malfunctions.), check
for sudden changes in the signals shown below.

Crank angle sensor signal

Injector drive signal

Fuel pump drive signal

Air flow sensor signal
Secondary ignition signal

Engine-ECU power supply
voltage
Ye s
MUT-II: Engine stalling inspection when the engine is warm and
idling. (Refer to P.13-50, INSPECTION PROCEDURE 42.)
OK
Check the ignition timing.
(Refer to GROUP 11 – ENGINE ADJUSTMENTS.)*NGCheck that the crank angle sensor and the timing belt cover are
installed properly.
OK
Check the following items.

Check the ignition coil, spark plugs, spark plug cables.

Check the secondary air supply system. (Ensure that there is no backflow of secondary air into the intake system.)

Check if the injectors are clogged.

Check the compression pressure.

Check if foreign materials (water, alcohol, etc.) got into fuel.
NOTE
*: Refer to Workshop Manual for LANCER EVOLUTION-IV and EVOLUTION-V (Pub. No. S9806CNCP9).

MPI – Troubleshooting13-31

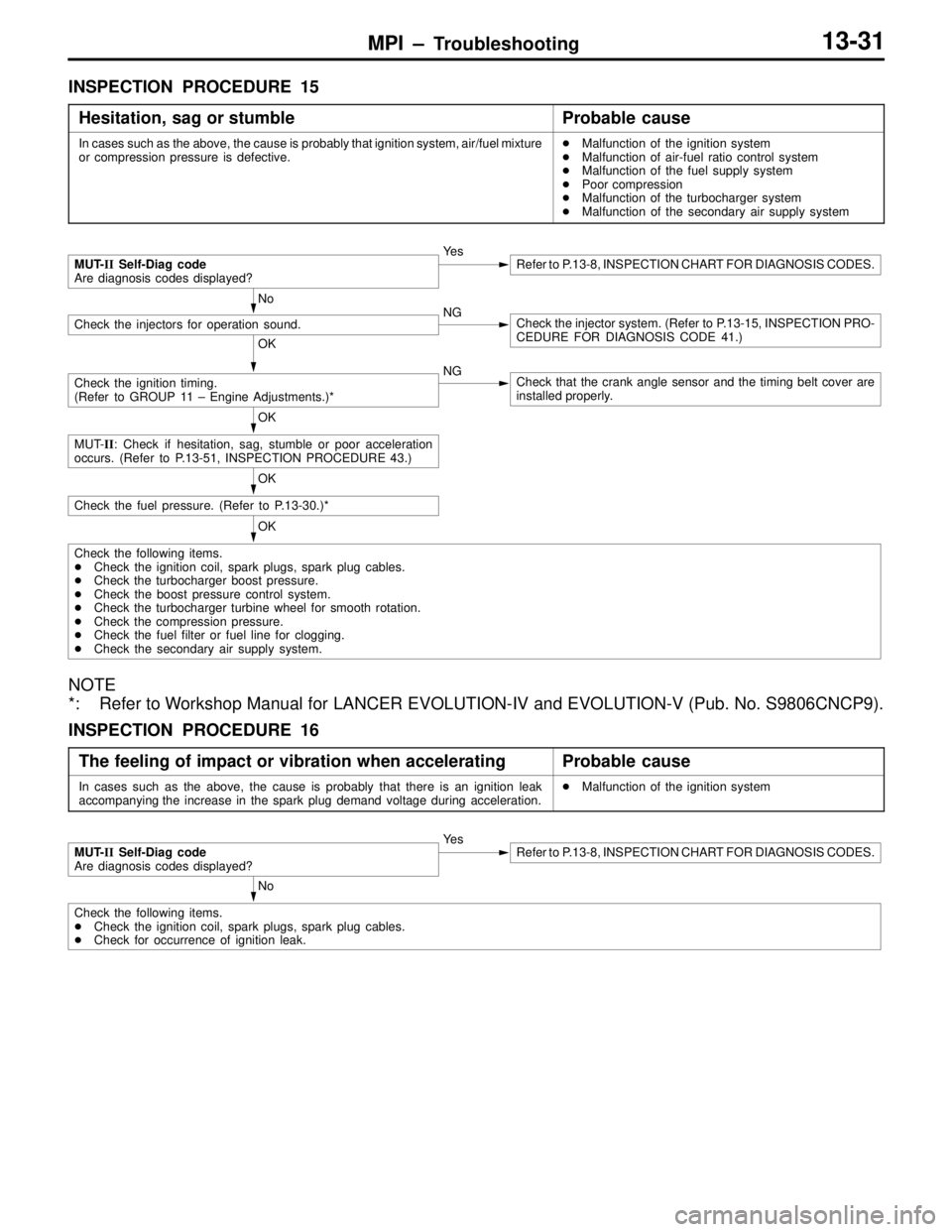

INSPECTION PROCEDURE 15
Hesitation, sag or stumble
Probable cause
In cases such as the above, the cause is probably that ignition system, air/fuel mixture
or compression pressure is defective.
Malfunction of the ignition system

Malfunction of air-fuel ratio control system

Malfunction of the fuel supply system

Poor compression

Malfunction of the turbocharger system

Malfunction of the secondary air supply system
MUT-II Self-Diag code
Are diagnosis codes displayed?Ye sRefer to P.13-8, INSPECTION CHART FOR DIAGNOSIS CODES.
No
Check the injectors for operation sound.NGCheck the injector system. (Refer to P.13-15, INSPECTION PRO-
CEDURE FOR DIAGNOSIS CODE 41.)
OK
Check the ignition timing.
(Refer to GROUP 11 – Engine Adjustments.)*NGCheck that the crank angle sensor and the timing belt cover are
installed properly.
OK
MUT-II: Check if hesitation, sag, stumble or poor acceleration
occurs. (Refer to P.13-51, INSPECTION PROCEDURE 43.)
OK
Check the fuel pressure. (Refer to P.13-30.)*
OK
Check the following items.

Check the ignition coil, spark plugs, spark plug cables.

Check the turbocharger boost pressure.

Check the boost pressure control system.

Check the turbocharger turbine wheel for smooth rotation.

Check the compression pressure.

Check the fuel filter or fuel line for clogging.

Check the secondary air supply system.
NOTE
*: Refer to Workshop Manual for LANCER EVOLUTION-IV and EVOLUTION-V (Pub. No. S9806CNCP9).
INSPECTION PROCEDURE 16
The feeling of impact or vibration when accelerating
Probable cause
In cases such as the above, the cause is probably that there is an ignition leak
accompanying the increase in the spark plug demand voltage during acceleration.
Malfunction of the ignition system
MUT-II Self-Diag code
Are diagnosis codes displayed?Ye sRefer to P.13-8, INSPECTION CHART FOR DIAGNOSIS CODES.
No
Check the following items.

Check the ignition coil, spark plugs, spark plug cables.

Check for occurrence of ignition leak.

MPI – Troubleshooting13-32

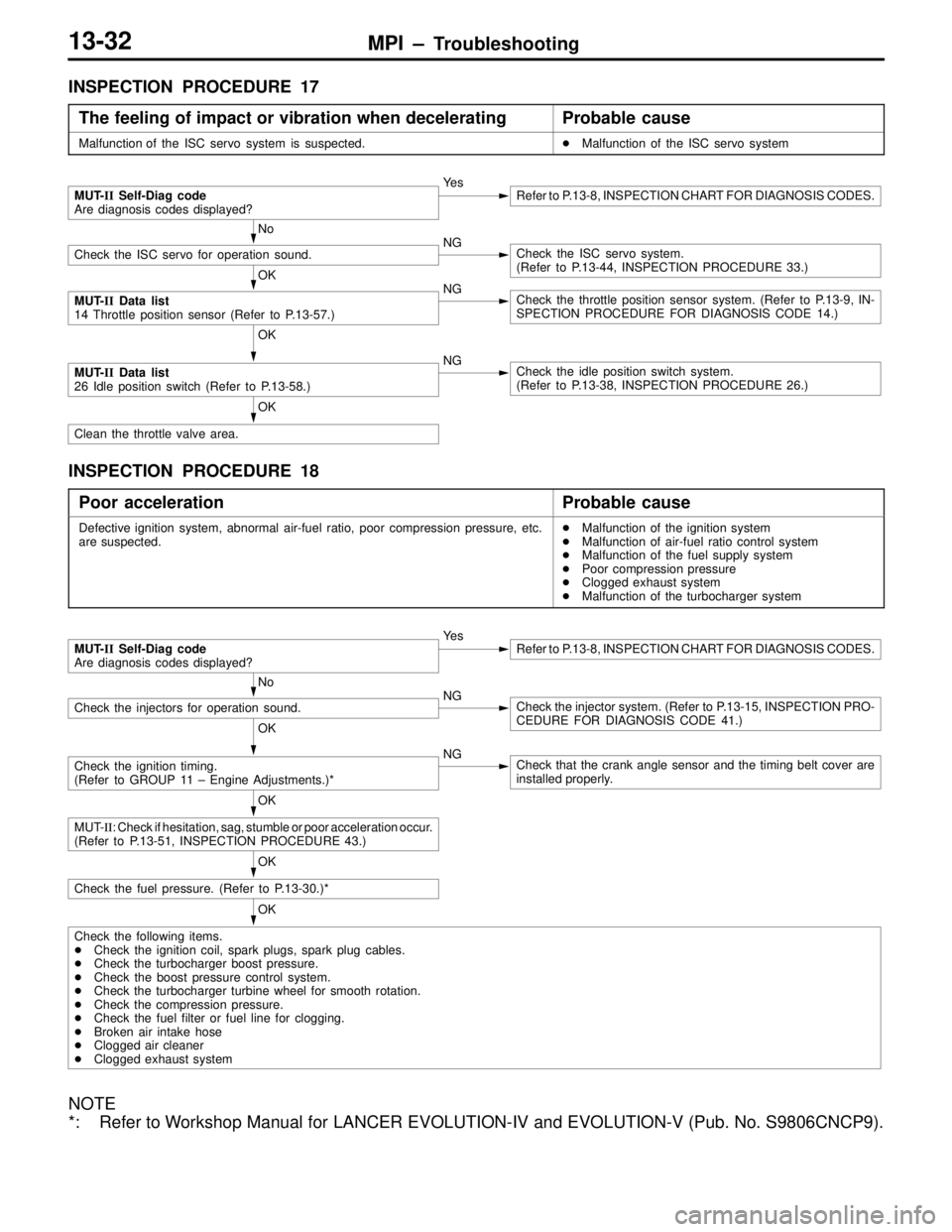

INSPECTION PROCEDURE 17
The feeling of impact or vibration when decelerating
Probable cause
Malfunction of the ISC servo system is suspected.
Malfunction of the ISC servo system
MUT-II Self-Diag code
Are diagnosis codes displayed?Ye sRefer to P.13-8, INSPECTION CHART FOR DIAGNOSIS CODES.
No
Check the ISC servo for operation sound.NGCheck the ISC servo system.
(Refer to P.13-44, INSPECTION PROCEDURE 33.)
OK
MUT-II Data list
14 Throttle position sensor (Refer to P.13-57.)NGCheck the throttle position sensor system. (Refer to P.13-9, IN-
SPECTION PROCEDURE FOR DIAGNOSIS CODE 14.)
OK
MUT-II Data list
26 Idle position switch (Refer to P.13-58.)NGCheck the idle position switch system.
(Refer to P.13-38, INSPECTION PROCEDURE 26.)
OK
Clean the throttle valve area.
INSPECTION PROCEDURE 18
Poor acceleration
Probable cause
Defective ignition system, abnormal air-fuel ratio, poor compression pressure, etc.
are suspected.
Malfunction of the ignition system

Malfunction of air-fuel ratio control system

Malfunction of the fuel supply system

Poor compression pressure

Clogged exhaust system

Malfunction of the turbocharger system
MUT-II Self-Diag code
Are diagnosis codes displayed?Ye sRefer to P.13-8, INSPECTION CHART FOR DIAGNOSIS CODES.
No
Check the injectors for operation sound.NGCheck the injector system. (Refer to P.13-15, INSPECTION PRO-
CEDURE FOR DIAGNOSIS CODE 41.)
OK
Check the ignition timing.
(Refer to GROUP 11 – Engine Adjustments.)*NGCheck that the crank angle sensor and the timing belt cover are
installed properly.
OK
MUT-II: Check if hesitation, sag, stumble or poor acceleration occur.
(Refer to P.13-51, INSPECTION PROCEDURE 43.)
OK
Check the fuel pressure. (Refer to P.13-30.)*
OK
Check the following items.

Check the ignition coil, spark plugs, spark plug cables.

Check the turbocharger boost pressure.

Check the boost pressure control system.

Check the turbocharger turbine wheel for smooth rotation.

Check the compression pressure.

Check the fuel filter or fuel line for clogging.

Broken air intake hose

Clogged air cleaner

Clogged exhaust system
NOTE
*: Refer to Workshop Manual for LANCER EVOLUTION-IV and EVOLUTION-V (Pub. No. S9806CNCP9).

MPI – Troubleshooting13-34

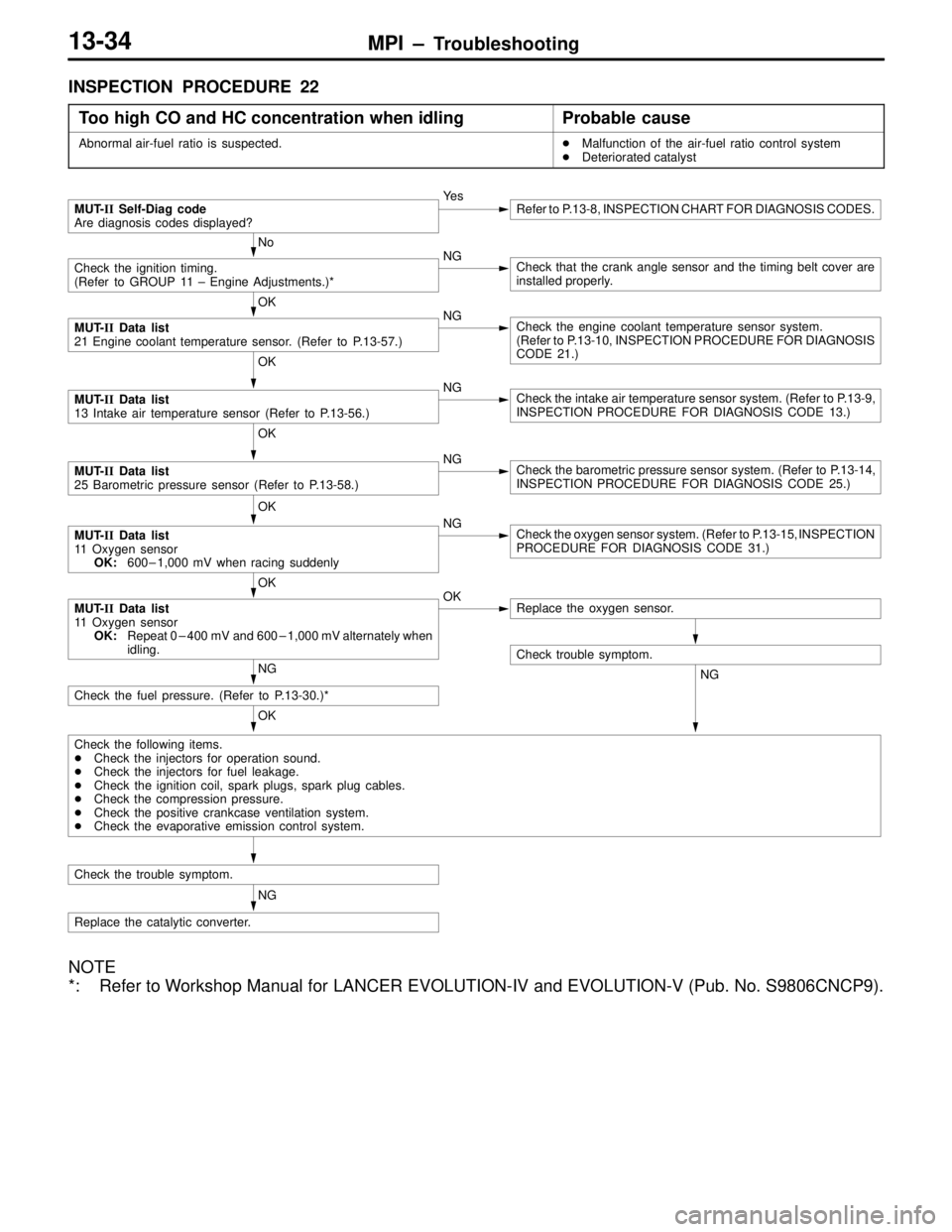

INSPECTION PROCEDURE 22
Too high CO and HC concentration when idling
Probable cause
Abnormal air-fuel ratio is suspected.
Malfunction of the air-fuel ratio control system

Deteriorated catalyst
Check trouble symptom.
No
Check the ignition timing.
(Refer to GROUP 11 – Engine Adjustments.)*NGCheck that the crank angle sensor and the timing belt cover are
installed properly.
OK
MUT-II Data list
21 Engine coolant temperature sensor. (Refer to P.13-57.)NGCheck the engine coolant temperature sensor system.
(Refer to P.13-10, INSPECTION PROCEDURE FOR DIAGNOSIS
CODE 21.)
OK
MUT-II Data list
13 Intake air temperature sensor (Refer to P.13-56.)NGCheck the intake air temperature sensor system. (Refer to P.13-9,
INSPECTION PROCEDURE FOR DIAGNOSIS CODE 13.)
OK
MUT-II Data list
25 Barometric pressure sensor (Refer to P.13-58.)NGCheck the barometric pressure sensor system. (Refer to P.13-14,
INSPECTION PROCEDURE FOR DIAGNOSIS CODE 25.)
OK
MUT-II Data list
11 Oxygen sensor
OK:600–1,000 mV when racing suddenlyNGCheck the oxygen sensor system. (Refer to P.13-15, INSPECTION
PROCEDURE FOR DIAGNOSIS CODE 31.)
OK
MUT-II Data list
11 Oxygen sensor
OK:Repeat 0–400 mV and 600–1,000 mV alternately when
idling.OK
NG
Check the fuel pressure. (Refer to P.13-30.)*
OK
NG
Check the following items.

Check the injectors for operation sound.

Check the injectors for fuel leakage.

Check the ignition coil, spark plugs, spark plug cables.

Check the compression pressure.

Check the positive crankcase ventilation system.

Check the evaporative emission control system.
Check the trouble symptom.
NG
Replace the catalytic converter.
Replace the oxygen sensor.
MUT-II Self-Diag code
Are diagnosis codes displayed?Ye sRefer to P.13-8, INSPECTION CHART FOR DIAGNOSIS CODES.
NOTE
*: Refer to Workshop Manual for LANCER EVOLUTION-IV and EVOLUTION-V (Pub. No. S9806CNCP9).
