MITSUBISHI LANCER IX 2006 Service Manual
Page 606 of 800
ROOM LAMP AND LUGGAGE COMPARTMENT LAMP
CIRCUIT DIAGRAMS90-142
ROOM LAMP AND LUGGAGE
COMPARTMENT LAMP
M1901017800329
IGNITION
SWITCH (ACC)IGNITION
SWITCH (IG1)
COMBINATION
METERRELAY
BOX
ETACS-ECU
INTERIOR LAMP CUT BACK-UP CIRCUIT
REAR
ROOM
LAMPFRONT
ROOM
LAMP
POWER
SOURCE
Page 607 of 800
ROOM LAMP AND LUGGAGE COMPARTMENT LAMP
CIRCUIT DIAGRAMS90-143
RELAY
BOX BATTERY
1FUSIBLE
LINK
·FRONT FOG LAMP
·HEADLAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·TURN-SIGNAL LAMP
AND HAZARD
WARNING LAMP
·WINDSHIELD
WIPER AND WASHER
WITHOUT
KEYLESS ENTRYWITH
KEYLESS ENTRY
LOAD
DETERMINATION
CIRCUIT KEEP RELAY
TRUNK LID
LATCH
SWITCH LUGGAGE
COMPARTMENT
LAMP
DIAGNOSIS
CONNECTOR
J/B SIDE FRONT
SIDE
Page 608 of 800

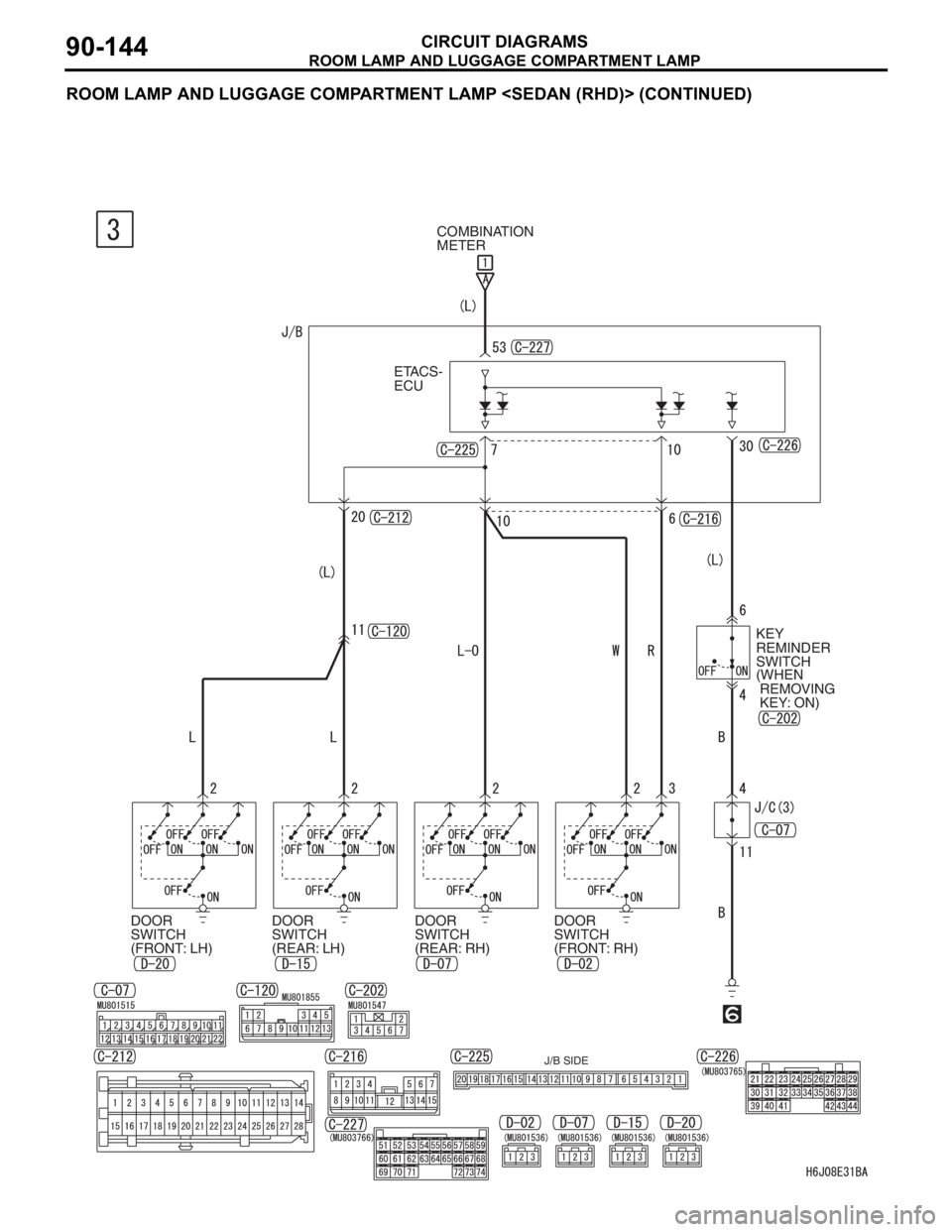

ROOM LAMP AND LUGGAGE COMPARTMENT LAMP
CIRCUIT DIAGRAMS90-144
ROOM LAMP AND LUGGAGE COMPARTMENT LAMP (CONTINUED)
COMBINATION
METER
KEY
REMINDER
SWITCH
(WHEN
REMOVING
KEY: ON) ETACS-
ECU
J/B SIDE
DOOR
SWITCH
(FRONT: LH)DOOR
SWITCH
(REAR: LH)DOOR
SWITCHDOOR
SWITCH
(FRONT: RH) (REAR: RH)
Page 609 of 800
ROOM LAMP AND LUGGAGE COMPARTMENT LAMP
CIRCUIT DIAGRAMS90-145
NOTES
Page 610 of 800
ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP
CIRCUIT DIAGRAMS90-146
ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM
LAMP
ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP M1901017900155
IGNITION
SWITCH (ACC)IGNITION
SWITCH (IG1)
RELAY
BOX
ETACS-ECU
INTERIOR LAMP CUT BACK-UP CIRCUIT
J/B SIDE
WITH
CURTAIN
AIR BAG>
WITHOUT
CURTAIN
AIR BAG>
WITH
CURTAIN
AIR BAG>
WITHOUT
CURTAIN
AIR BAG>
LUGGAGE
ROOM
LAMP
Page 611 of 800
ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP
CIRCUIT DIAGRAMS90-147
BATTERY1FUSIBLE
LINK
POWER
SOURCEWITHOUT
KEYLESS ENTRYWITH
KEYLESS ENTRY
LOAD
DETERMINATION
CIRCUIT KEEP RELAY·FRONT FOG LAMP
·HEADLAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·TURN-SIGNAL LAMP
AND HAZARD
WARNING LAMP
·WINDSHIELD
WIPER AND WASHER ·HEADLAMP WASHER ·HEADLAMP LEVELLING
SYSTEM
·REAR FOG LAMP
COMBINATION
METER
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White
Y : Yellow SB : Sky blue BR : Brown O : Orange
GR : Grey R : Red P : Pink V : Violet PU : Purple
Page 612 of 800

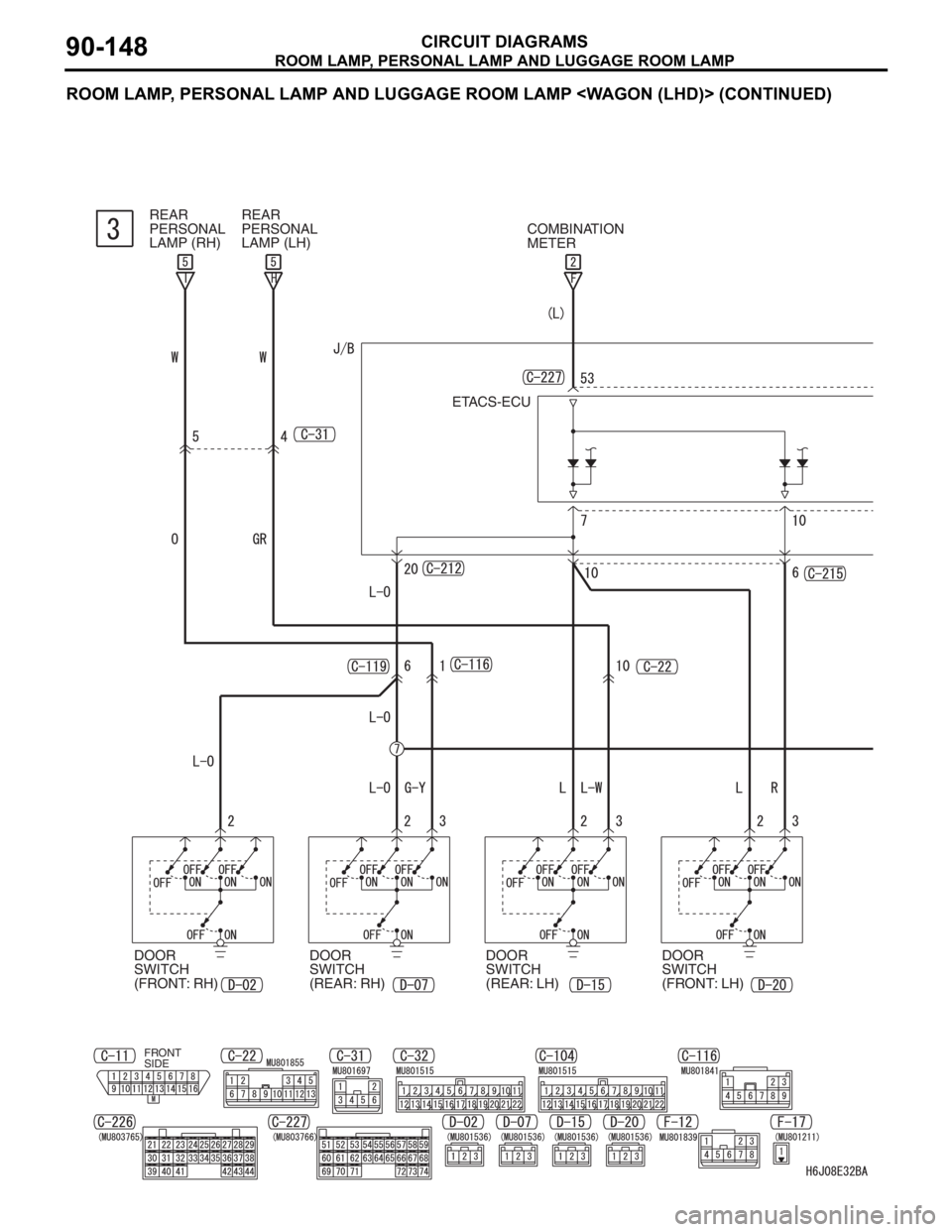

ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP
CIRCUIT DIAGRAMS90-148
ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP (CONTINUED)
FRONT
SIDE
COMBINATION
METER
ETACS-ECU
DOOR
SWITCH
(FRONT: RH)DOOR
SWITCH
(REAR: RH)DOOR
SWITCH
(REAR: LH)DOOR
SWITCH
(FRONT: LH) REAR
PERSONAL
LAMP (LH) REAR
PERSONAL
LAMP (RH)
Page 613 of 800
ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP
CIRCUIT DIAGRAMS90-149
(FUSE )15
KEY
REMINDER
SWITCH
(WHEN
REMOVING
KEY: ON)
TAILGATE
SWITCH
J/B SIDE
LUGGAGE
ROOM LAMP
DIAGNOSIS
CONNECTOR DIODE
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple
Page 614 of 800

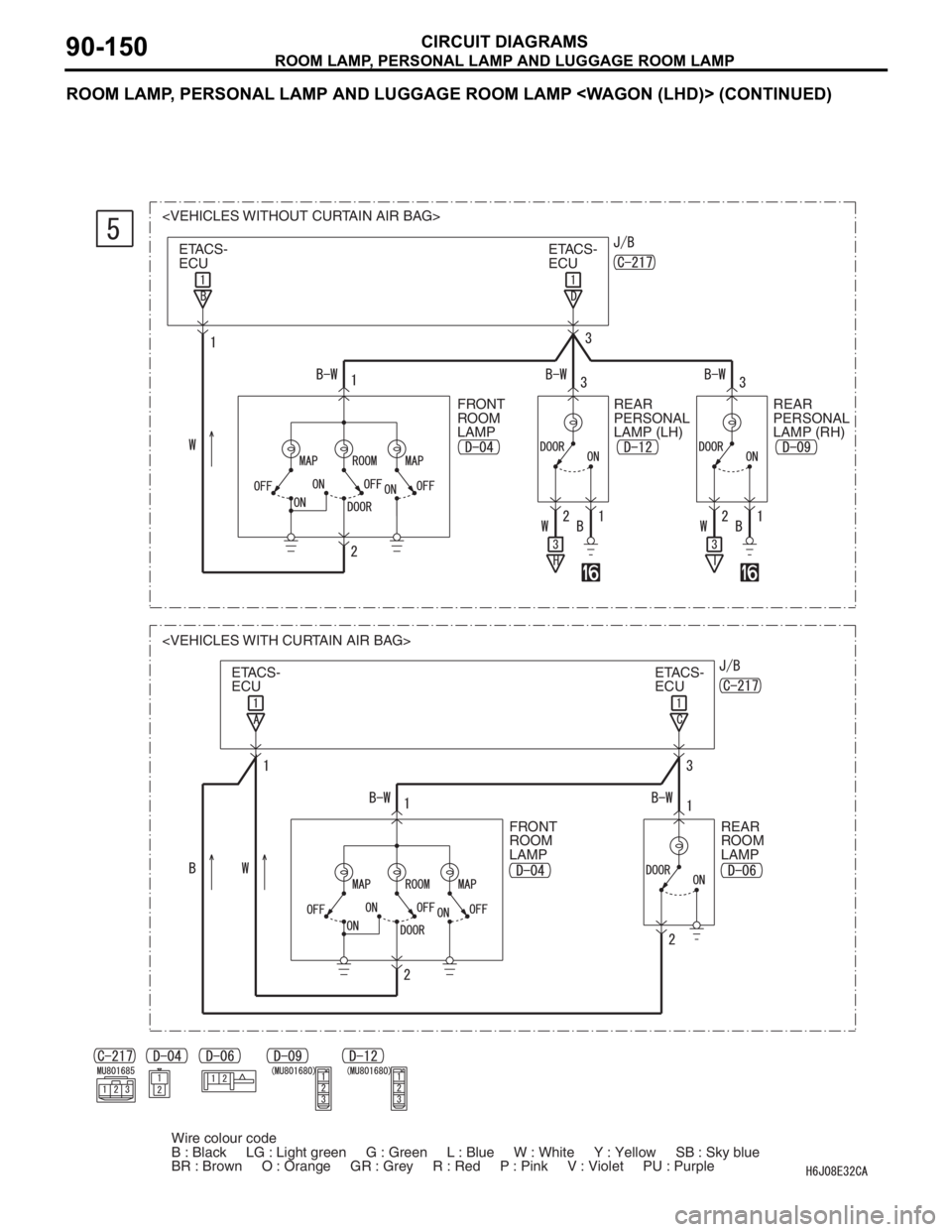

ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP
CIRCUIT DIAGRAMS90-150
ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP (CONTINUED)
REAR
PERSONAL
LAMP (LH)REAR
PERSONAL
LAMP (RH) FRONT
ROOM
LAMP
FRONT
ROOM
LAMPREAR
ROOM
LAMP ETACS-
ECU
ETACS-
ECUETACS-
ECU ETACS-
ECU
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple
Page 615 of 800
ROOM LAMP, PERSONAL LAMP AND LUGGAGE ROOM LAMP
CIRCUIT DIAGRAMS90-151
NOTES
