3-26 Features and controls
3

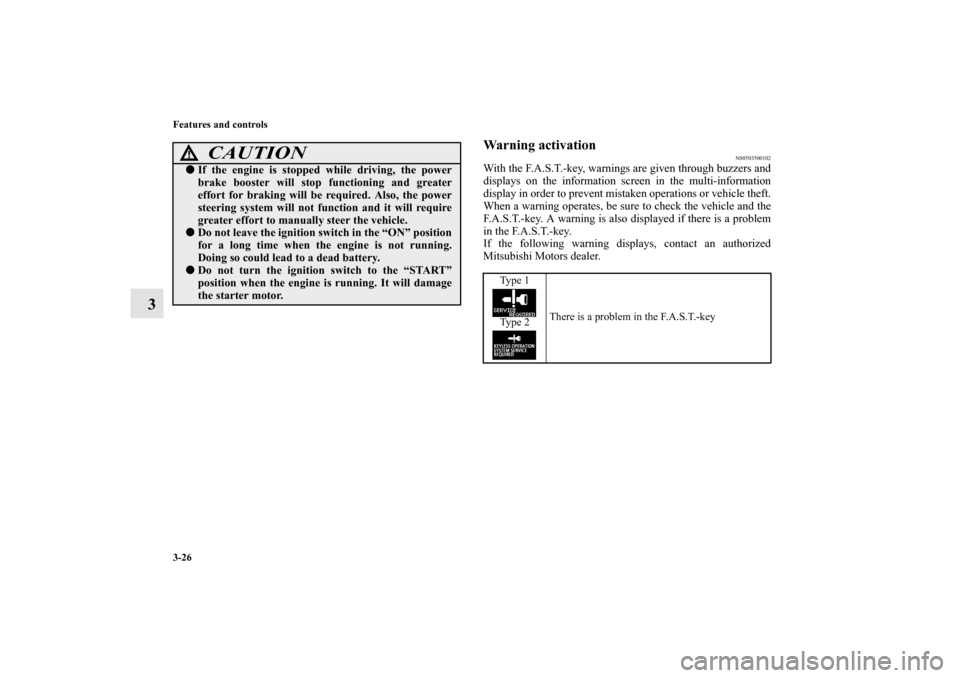

Warning activation
N00503500102
With the F.A.S.T.-key, warnings are given through buzzers and
displays on the information screen in the multi-information
display in order to prevent mistaken operations or vehicle theft.
When a warning operates, be sure to check the vehicle and the
F.A.S.T.-key. A warning is also displayed if there is a problem
in the F.A.S.T.-key.
If the following warning displays, contact an authorized
Mitsubishi Motors dealer.
CAUTION
!If the engine is stopped while driving, the power
brake booster will stop functioning and greater
effort for braking will be required. Also, the power
steering system will not function and it will require
greater effort to manually steer the vehicle.Do not leave the ignition switch in the “ON” position
for a long time when the engine is not running.
Doing so could lead to a dead battery.Do not turn the ignition switch to the “START”
position when the engine is running. It will damage
the starter motor.
Type 1
Type 2There is a problem in the F.A.S.T.-key
BK0102103US.book 26 ページ ２００９年１０月２６日 月曜日 午後１時３８分
Page 118 of 670
Features and controls
3-27
3

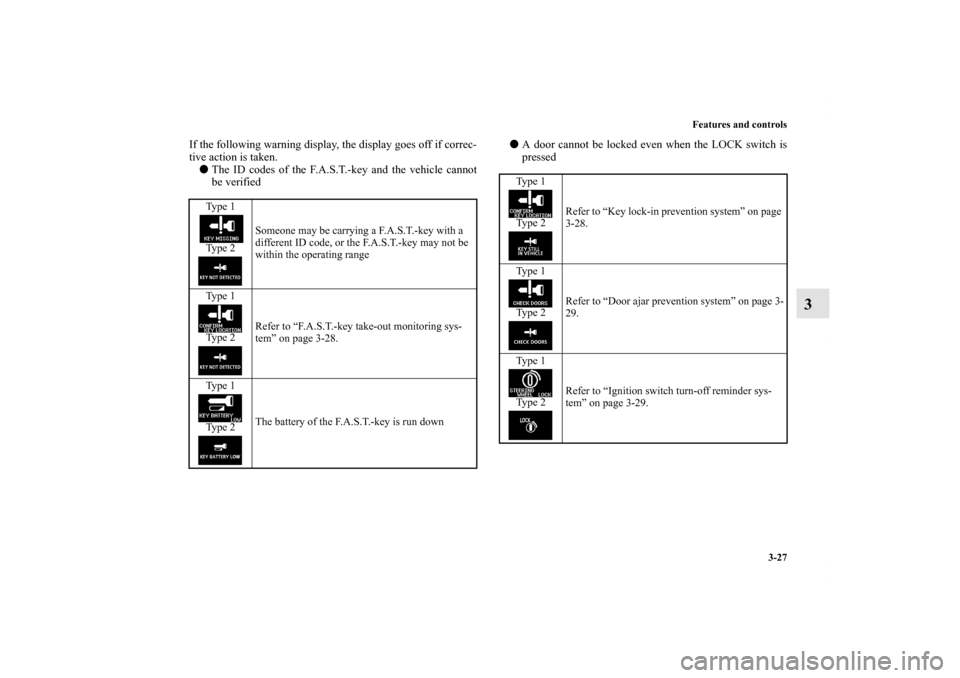

If the following warning display, the display goes off if correc-
tive action is taken.
The ID codes of the F.A.S.T.-key and the vehicle cannot
be verifiedA door cannot be locked even when the LOCK switch is
pressed
Type 1
Type 2Someone may be carrying a F.A.S.T.-key with a
different ID code, or the F.A.S.T.-key may not be
within the operating range
Type 1
Type 2Refer to “F.A.S.T.-key take-out monitoring sys-
tem” on page 3-28.
Type 1
Type 2The battery of the F.A.S.T.-key is run down
Type 1
Type 2Refer to “Key lock-in prevention system” on page
3-28.
Type 1
Type 2Refer to “Door ajar prevention system” on page 3-
29.
Type 1
Type 2Refer to “Ignition switch turn-off reminder sys-
tem” on page 3-29.
BK0102103US.book 27 ページ ２００９年１０月２６日 月曜日 午後１時３８分
Page 119 of 670
3-28 Features and controls
3

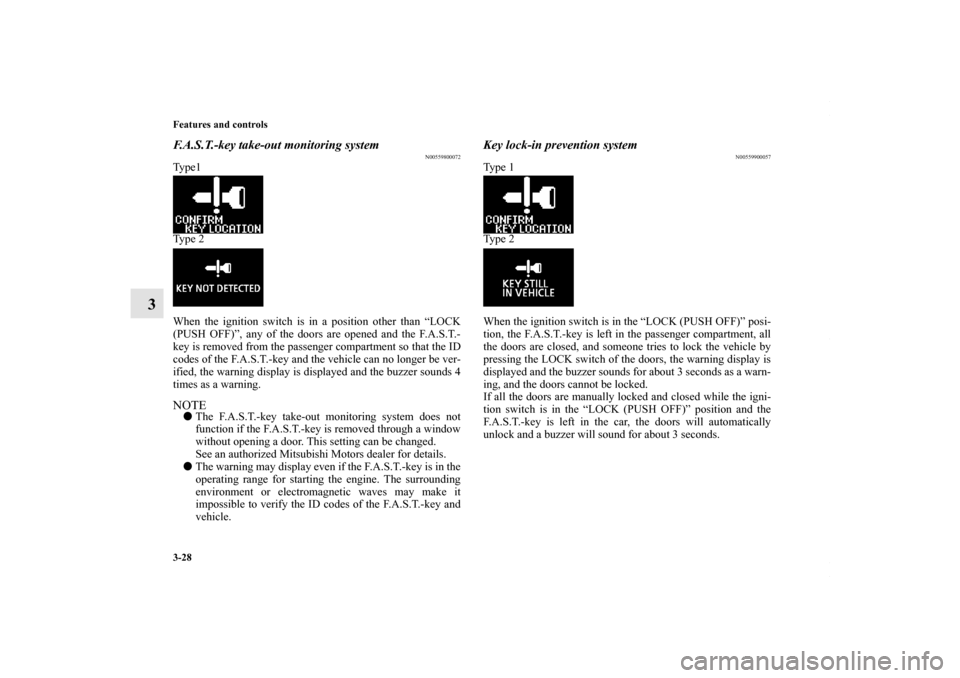

F.A.S.T.-key take-out monitoring system
N00559800072
Type1
Type 2
When the ignition switch is in a position other than “LOCK
(PUSH OFF)”, any of the doors are opened and the F.A.S.T.-
key is removed from the passenger compartment so that the ID
codes of the F.A.S.T.-key and the vehicle can no longer be ver-
ified, the warning display is displayed and the buzzer sounds 4
times as a warning.NOTEThe F.A.S.T.-key take-out monitoring system does not
function if the F.A.S.T.-key is removed through a window
without opening a door. This setting can be changed.
See an authorized Mitsubishi Motors dealer for details.
The warning may display even if the F.A.S.T.-key is in the
operating range for starting the engine. The surrounding
environment or electromagnetic waves may make it
impossible to verify the ID codes of the F.A.S.T.-key and
vehicle.
Key lock-in prevention system
N00559900057
Ty p e 1
Ty p e 2
When the ignition switch is in the “LOCK (PUSH OFF)” posi-
tion, the F.A.S.T.-key is left in the passenger compartment, all
the doors are closed, and someone tries to lock the vehicle by
pressing the LOCK switch of the doors, the warning display is
displayed and the buzzer sounds for about 3 seconds as a warn-
ing, and the doors cannot be locked.
If all the doors are manually locked and closed while the igni-
tion switch is in the “LOCK (PUSH OFF)” position and the
F.A.S.T.-key is left in the car, the doors will automatically
unlock and a buzzer will sound for about 3 seconds.
BK0102103US.book 28 ページ ２００９年１０月２６日 月曜日 午後１時３８分
Page 120 of 670
Features and controls
3-29
3

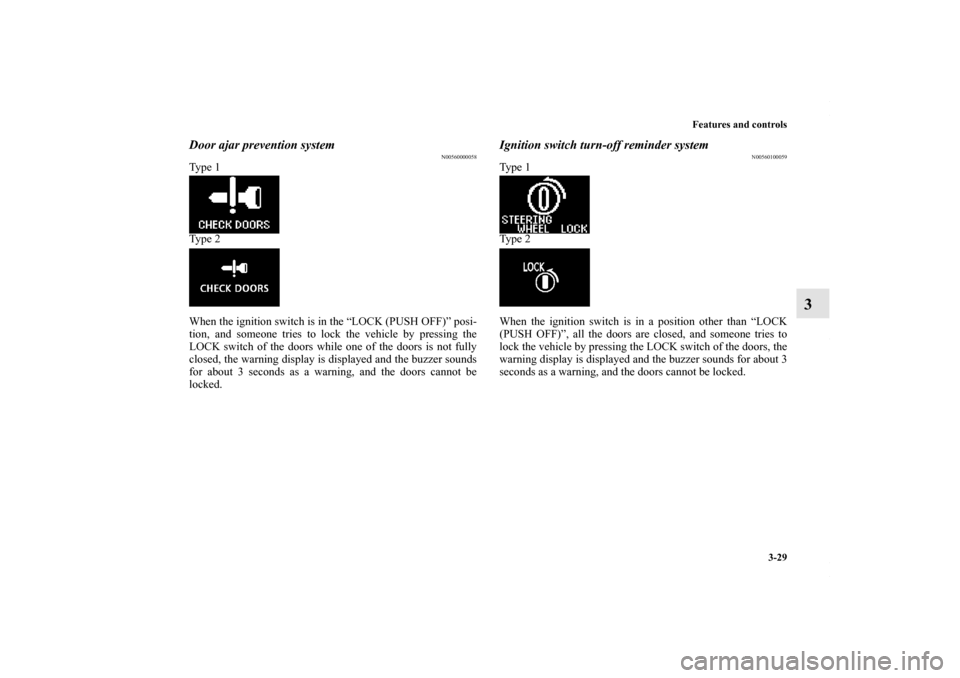

Door ajar prevention system
N00560000058
Type 1
Type 2
When the ignition switch is in the “LOCK (PUSH OFF)” posi-
tion, and someone tries to lock the vehicle by pressing the
LOCK switch of the doors while one of the doors is not fully
closed, the warning display is displayed and the buzzer sounds
for about 3 seconds as a warning, and the doors cannot be
locked.
Ignition switch turn-off reminder system
N00560100059
Ty p e 1
Ty p e 2
When the ignition switch is in a position other than “LOCK
(PUSH OFF)”, all the doors are closed, and someone tries to
lock the vehicle by pressing the LOCK switch of the doors, the
warning display is displayed and the buzzer sounds for about 3
seconds as a warning, and the doors cannot be locked.
BK0102103US.book 29 ページ ２００９年１０月２６日 月曜日 午後１時３８分
Page 121 of 670
3-30 Features and controls
3
Steering wheel lock
N00514300025
To l o c kTurn the ignition switch to the “LOCK” position.
Turn the steering wheel until it is locked.To u n l o c kTurn the ignition switch to the “ACC” position while moving
the steering wheel slightly.
NOTEIf the front wheels are turned, the anti-theft lock may
sometimes make it difficult to turn the ignition switch
from “LOCK” to “ACC” position. Firmly turn the steer-
ing wheel to the left or to the right as you turn the ignition
switch.St a r ti ng
N00514600103
Tips for startingDo not operate the starter motor for longer than 15 sec-
onds as this could run the battery down or damage the
starter motor. If the engine does not start, turn the ignition
switch back to the “LOCK” position, wait a few seconds,
and then try again. Trying repeatedly with the engine or
starter motor still turning will damage the starter mecha-
nism.
If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” on page 6-
2 for instructions.
A longer warm up period will only consume extra fuel.
The engine is warmed up enough for driving when the bar
graph of the engine coolant temperature display starts to
move. Refer to “Interrupt display screen (With ignition
switch in the “ON” position)” on page 3-177.
On vehicles equipped with the Twin Clutch SST, the fol-
lowing may occur after the engine is started, but they do
not indicate an abnormality.
• You may hear operational sounds of the Twin Clutch
SST and you may feel vibration in the vehicle body.
CAUTION
!Carry the key with you when leaving the vehicle.If your vehicle needs to be towed, turn the ignition
switch to the “ACC” position to unlock the steering
wheel.
BK0102103US.book 30 ページ ２００９年１０月２６日 月曜日 午後１時３８分
Page 123 of 670
3-32 Features and controls
3

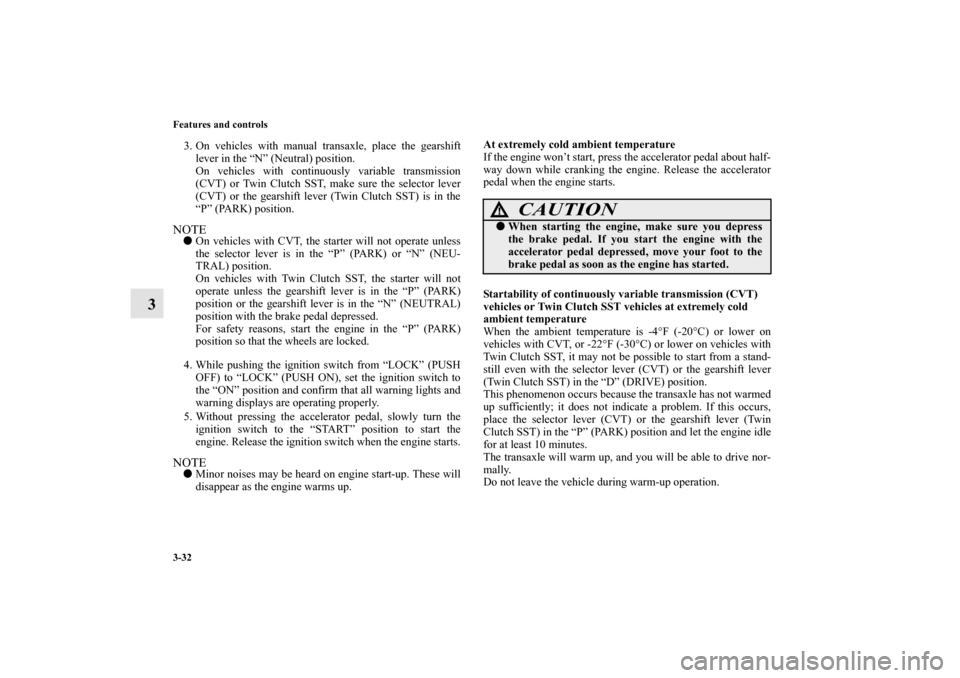

3. On vehicles with manual transaxle, place the gearshift
lever in the “N” (Neutral) position.
On vehicles with continuously variable transmission
(CVT) or Twin Clutch SST, make sure the selector lever
(CVT) or the gearshift lever (Twin Clutch SST) is in the
“P” (PARK) position.NOTEOn vehicles with CVT, the starter will not operate unless
the selector lever is in the “P” (PARK) or “N” (NEU-
TRAL) position.
On vehicles with Twin Clutch SST, the starter will not
operate unless the gearshift lever is in the “P” (PARK)
position or the gearshift lever is in the “N” (NEUTRAL)
position with the brake pedal depressed.
For safety reasons, start the engine in the “P” (PARK)
position so that the wheels are locked.
4. While pushing the ignition switch from “LOCK” (PUSH
OFF) to “LOCK” (PUSH ON), set the ignition switch to
the “ON” position and confirm that all warning lights and
warning displays are operating properly.
5. Without pressing the accelerator pedal, slowly turn the
ignition switch to the “START” position to start the
engine. Release the ignition switch when the engine starts.NOTEMinor noises may be heard on engine start-up. These will
disappear as the engine warms up. At extremely cold ambient temperature
If the engine won’t start, press the accelerator pedal about half-
way down while cranking the engine. Release the accelerator
pedal when the engine starts.
Startability of continuously variable transmission (CVT)
vehicles or Twin Clutch SST vehicles at extremely cold
ambient temperature
When the ambient temperature is -4°F (-20°C) or lower on
vehicles with CVT, or -22°F (-30°C) or lower on vehicles with
Twin Clutch SST, it may not be possible to start from a stand-
still even with the selector lever (CVT) or the gearshift lever
(Twin Clutch SST) in the “D” (DRIVE) position.
This phenomenon occurs because the transaxle has not warmed
up sufficiently; it does not indicate a problem. If this occurs,
place the selector lever (CVT) or the gearshift lever (Twin
Clutch SST) in the “P” (PARK) position and let the engine idle
for at least 10 minutes.
The transaxle will warm up, and you will be able to drive nor-
mally.
Do not leave the vehicle during warm-up operation.
CAUTION
!When starting the engine, make sure you depress
the brake pedal. If you start the engine with the
accelerator pedal depressed, move your foot to the
brake pedal as soon as the engine has started.
BK0102103US.book 32 ページ ２００９年１０月２６日 月曜日 午後１時３８分
Page 129 of 670
3-38 Features and controls
3
NOTEIf the front wheels are turned, the anti-theft lock may
sometimes make it difficult to turn the emergency key
from “LOCK” to “ACC”. Firmly turn the steering wheel
to the left or to the right as you turn the emergency key.
Sta rting
Tips for starting
Do not operate the starter motor continuously for longer
than 15 seconds as this could run the battery down or
damage the starter motor. If the engine does not start, turn
the emergency key back to the “LOCK” position, wait a
few seconds, and then try again. Trying repeatedly with
the engine or starter motor still turning will damage the
starter mechanism.
If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” on page 6-
2 for instructions.
A longer warm up period will only consume extra fuel.
The engine is warmed up enough for driving when the bar
graph of the engine coolant temperature display starts to
move. Refer to “Interrupt display screen (With ignition
switch in the “ON” position)” on page 3-177.
On vehicles equipped with the Twin Clutch SST, the fol-
lowing may occur after the engine is started, but they do
not indicate an abnormality.
• You may hear operational sounds of the Twin Clutch
SST and you may feel vibration in the vehicle body.
• If you shift the gearshift lever into the “N” (NEUTRAL)
position and depress the accelerator pedal, increases in
the engine speed will be limited.Starting the engine
Your vehicle is equipped with an electronically controlled fuel
injection system. This is a system that automatically controls
the fuel injection. There is usually no need to depress the accel-
erator pedal when starting the engine.
The starter motor should not be run for more than 15 seconds at
a time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.
WARNING
!Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.
CAUTION
!Do not push-start the vehicle.Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.Release the emergency key as soon as the engine
starts. It will damage the starter motor.
BK0102103US.book 38 ページ ２００９年１０月２６日 月曜日 午後１時３８分
Page 131 of 670
3-40 Features and controls
3

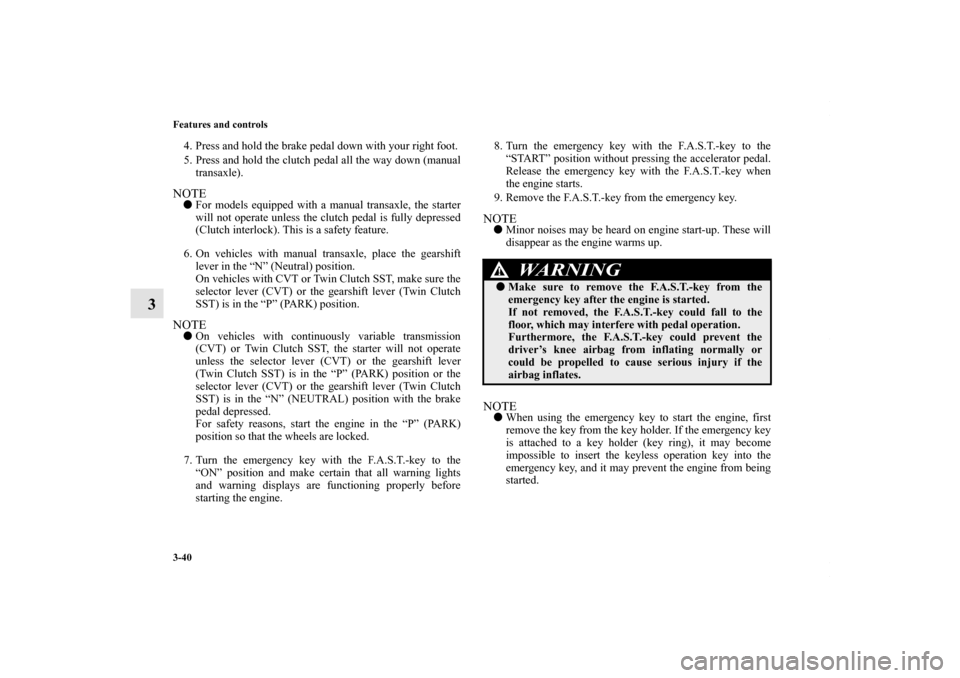

4. Press and hold the brake pedal down with your right foot.
5. Press and hold the clutch pedal all the way down (manual
transaxle).NOTEFor models equipped with a manual transaxle, the starter
will not operate unless the clutch pedal is fully depressed
(Clutch interlock). This is a safety feature.
6. On vehicles with manual transaxle, place the gearshift
lever in the “N” (Neutral) position.
On vehicles with CVT or Twin Clutch SST, make sure the
selector lever (CVT) or the gearshift lever (Twin Clutch
SST) is in the “P” (PARK) position.NOTEOn vehicles with continuously variable transmission
(CVT) or Twin Clutch SST, the starter will not operate
unless the selector lever (CVT) or the gearshift lever
(Twin Clutch SST) is in the “P” (PARK) position or the
selector lever (CVT) or the gearshift lever (Twin Clutch
SST) is in the “N” (NEUTRAL) position with the brake
pedal depressed.
For safety reasons, start the engine in the “P” (PARK)
position so that the wheels are locked.
7. Turn the emergency key with the F.A.S.T.-key to the
“ON” position and make certain that all warning lights
and warning displays are functioning properly before
starting the engine.8. Turn the emergency key with the F.A.S.T.-key to the
“START” position without pressing the accelerator pedal.
Release the emergency key with the F.A.S.T.-key when
the engine starts.
9. Remove the F.A.S.T.-key from the emergency key.
NOTEMinor noises may be heard on engine start-up. These will
disappear as the engine warms up. NOTEWhen using the emergency key to start the engine, first
remove the key from the key holder. If the emergency key
is attached to a key holder (key ring), it may become
impossible to insert the keyless operation key into the
emergency key, and it may prevent the engine from being
started.
WARNING
!Make sure to remove the F.A.S.T.-key from the
emergency key after the engine is started.
If not removed, the F.A.S.T.-key could fall to the
floor, which may interfere with pedal operation.
Furthermore, the F.A.S.T.-key could prevent the
driver’s knee airbag from inflating normally or
could be propelled to cause serious injury if the
airbag inflates.
BK0102103US.book 40 ページ ２００９年１０月２６日 月曜日 午後１時３８分
Page 135 of 670
3-44 Features and controls
3
5. Turn the emergency key with the F.A.S.T.-key to the
“ON” position for 5 seconds.
6. Turn the emergency key with the F.A.S.T.-key to the
“LOCK” position. Within 30 seconds after doing so,
remove the F.A.S.T.-key from the emergency key, insert
the second valid F.A.S.T.-key into the emergency key and
turn it to the “ON” position. About 10 seconds later, the
immobilizer display will start to blink.
7. When the immobilizer display starts blinking, turn the
second valid F.A.S.T.-key to the “LOCK” position and
remove it. Within 30 seconds after doing so, insert a blank
F.A.S.T.-key into the emergency key and turn it to the
“ON” position. Perform this operation no more than 30
seconds after the immobilizer display starts blinking.
When registration of the ID code is complete, the immobi-
lizer display will come on for 3 seconds then go off. If an
error occurs, the immobilizer display will go off during
the procedure.
8. If you wish to register another F.A.S.T.-key, repeat the
process from step 1.
NOTEPerform the operation when the interrupt display screen is
not showing. The interrupt display screen may prevent
you from seeing the immobilizer display.
It is not possible to register a F.A.S.T.-key if:
• the immobilizer display goes off during the procedure
• the immobilizer display does not come on within 30 sec-
onds after turning the ignition switch to the “ON” posi-
tion with a blank F.A.S.T.-key
The procedure will be terminated automatically if:
• a period of 30 seconds or longer elapses from the
moment when the first F.A.S.T.-key is turned to the
“LOCK” position to the moment when the second
F.A.S.T.-key is turned to the “ON” position
• a period of 30 seconds or longer elapses from the
moment when the second F.A.S.T.-key is turned to the
“LOCK” position to the moment when the blank
F.A.S.T.-key is turned to the “ON” position
To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Keyless entry system: Customer F.A.S.T.-
key programming” on page 3-49.
BK0102103US.book 44 ページ ２００９年１０月２６日 月曜日 午後１時３８分
Page 136 of 670
Features and controls
3-45
3

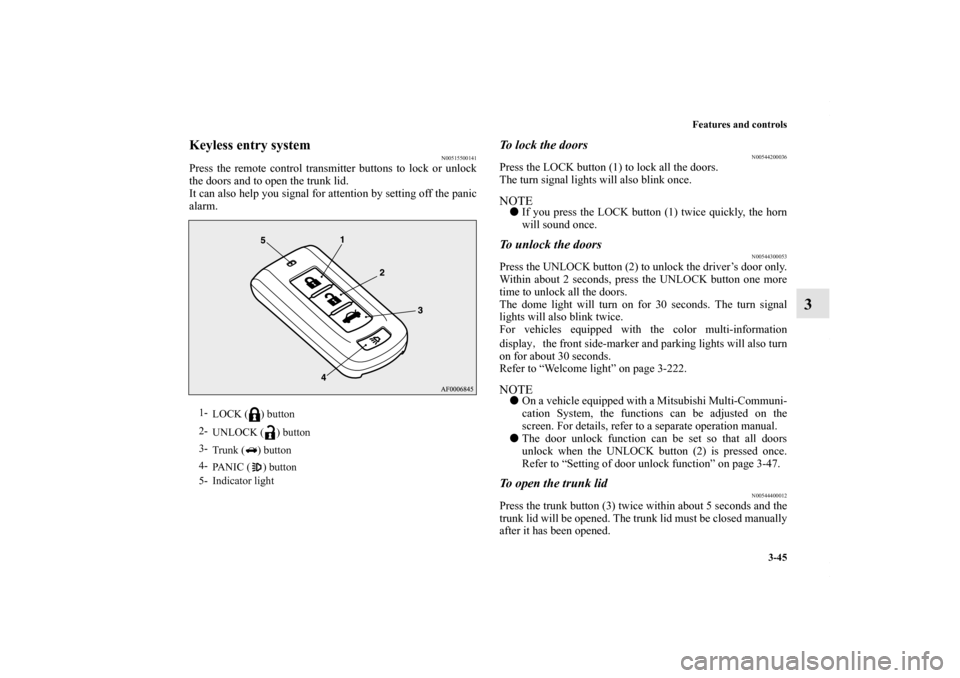

Keyless entry system
N00515500141
Press the remote control transmitter buttons to lock or unlock
the doors and to open the trunk lid.
It can also help you signal for attention by setting off the panic
alarm.
To lock the doors
N00544200036
Press the LOCK button (1) to lock all the doors.
The turn signal lights will also blink once.NOTEIf you press the LOCK button (1) twice quickly, the horn
will sound once.To unlock the doors
N00544300053
Press the UNLOCK button (2) to unlock the driver’s door only.
Within about 2 seconds, press the UNLOCK button one more
time to unlock all the doors.
The dome light will turn on for 30 seconds. The turn signal
lights will also blink twice.
For vehicles equipped with the color multi-information
display，the front side-marker and parking lights will also turn
on for about 30 seconds.
Refer to “Welcome light” on page 3-222.NOTEOn a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
The door unlock function can be set so that all doors
unlock when the UNLOCK button (2) is pressed once.
Refer to “Setting of door unlock function” on page 3-47.To open the trunk lid
N00544400012
Press the trunk button (3) twice within about 5 seconds and the
trunk lid will be opened. The trunk lid must be closed manually
after it has been opened.
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3-
Trunk ( ) button
4-
PANIC ( ) button
5- Indicator light
BK0102103US.book 45 ページ ２００９年１０月２６日 月曜日 午後１時３８分
