remote start MITSUBISHI LANCER RALLIART 2010 8.G User Guide

Features and controls
3-275
3

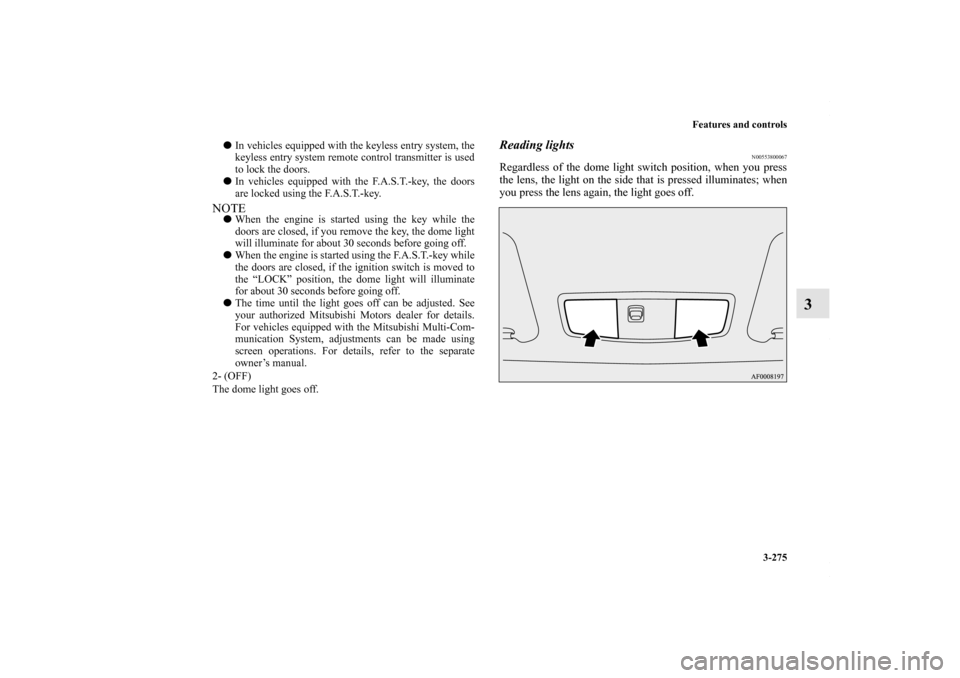

Reading lights
N00553800067
Regardless of the dome light switch position, when you press
the lens, the light on the side that is pressed illuminates; when
you press the lens again, the light goes off.

In vehicles equipped with the keyless entry system, the
keyless entry system remote control transmitter is used
to lock the doors.

In vehicles equipped with the F.A.S.T.-key, the doors
are locked using the F.A.S.T.-key.NOTE
When the engine is started using the key while the
doors are closed, if you remove the key, the dome light
will illuminate for about 30 seconds before going off.

When the engine is started using the F.A.S.T.-key while
the doors are closed, if the ignition switch is moved to
the “LOCK” position, the dome light will illuminate
for about 30 seconds before going off.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
2- (OFF)
The dome light goes off.
BK0102103US.book 275 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-276 Features and controls
3

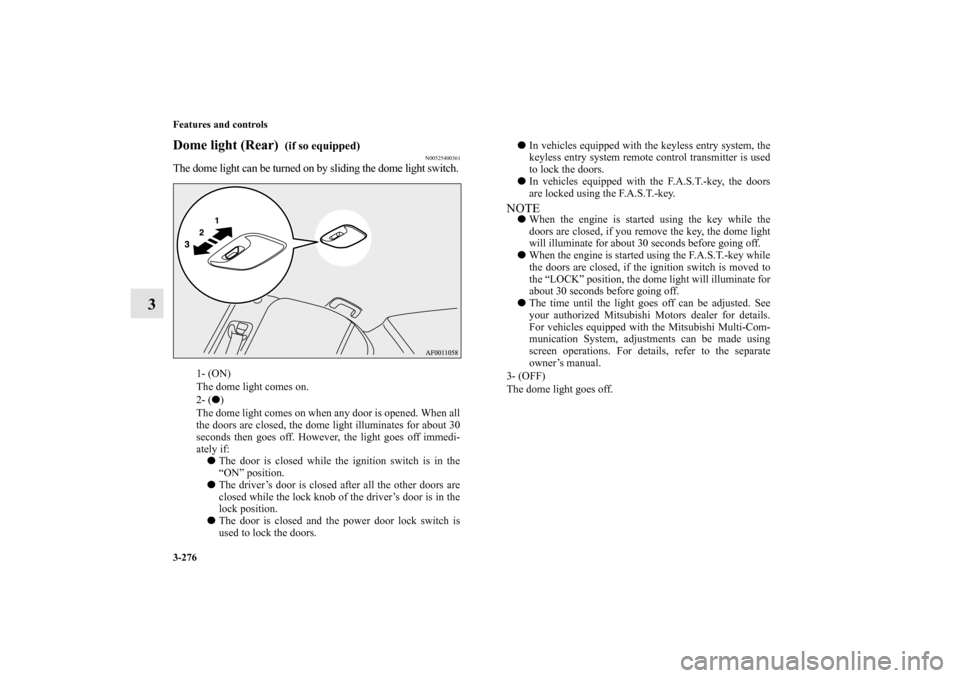

Dome light (Rear)
(if so equipped)
N00525400361
The dome light can be turned on by sliding the dome light switch.
1- (ON)
The dome light comes on.
2- (
)
The dome light comes on when any door is opened. When all
the doors are closed, the dome light illuminates for about 30
seconds then goes off. However, the light goes off immedi-
ately if:

The door is closed while the ignition switch is in the
“ON” position.

The driver’s door is closed after all the other doors are
closed while the lock knob of the driver’s door is in the
lock position.

The door is closed and the power door lock switch is
used to lock the doors.

In vehicles equipped with the keyless entry system, the
keyless entry system remote control transmitter is used
to lock the doors.

In vehicles equipped with the F.A.S.T.-key, the doors
are locked using the F.A.S.T.-key.NOTE
When the engine is started using the key while the
doors are closed, if you remove the key, the dome light
will illuminate for about 30 seconds before going off.

When the engine is started using the F.A.S.T.-key while
the doors are closed, if the ignition switch is moved to
the “LOCK” position, the dome light will illuminate for
about 30 seconds before going off.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
3- (OFF)
The dome light goes off.
BK0102103US.book 276 ページ ２００９年１０月２６日　月曜日　午後１時３８分

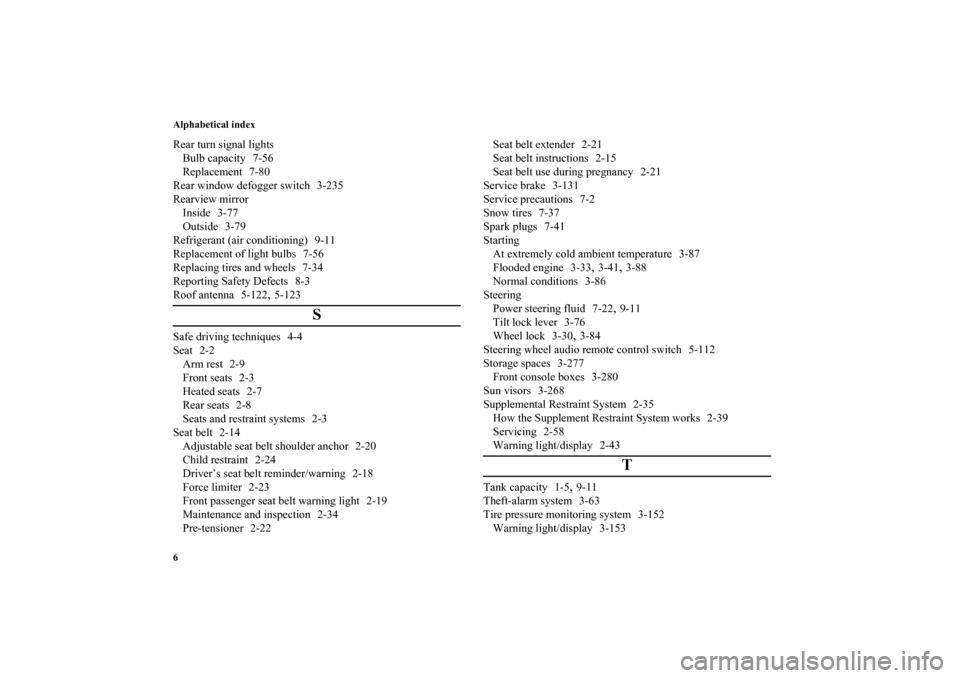

Alphabetical index
6Rear turn signal lights
Bulb capacity 7-56
Replacement 7-80
Rear window defogger switch 3-235
Rearview mirror
Inside 3-77
Outside 3-79
Refrigerant (air conditioning) 9-11
Replacement of light bulbs 7-56
Replacing tires and wheels 7-34
Reporting Safety Defects 8-3
Roof antenna 5-122
,5-123
S
Safe driving techniques 4-4
Seat 2-2
Arm rest 2-9
Front seats 2-3
Heated seats 2-7
Rear seats 2-8
Seats and restraint systems 2-3
Seat belt 2-14
Adjustable seat belt shoulder anchor 2-20
Child restraint 2-24
Driver’s seat belt reminder/warning 2-18
Force limiter 2-23
Front passenger seat belt warning light 2-19
Maintenance and inspection 2-34
Pre-tensioner 2-22Seat belt extender 2-21
Seat belt instructions 2-15
Seat belt use during pregnancy 2-21
Service brake 3-131
Service precautions 7-2
Snow tires 7-37
Spark plugs 7-41
Starting
At extremely cold ambient temperature 3-87
Flooded engine 3-33
,3-41
,3-88
Normal conditions 3-86
Steering
Power steering fluid 7-22
,9-11
Tilt lock lever 3-76
Wheel lock 3-30
,3-84
Steering wheel audio remote control switch 5-112
Storage spaces 3-277
Front console boxes 3-280
Sun visors 3-268
Supplemental Restraint System 2-35
How the Supplement Restraint System works 2-39
Servicing 2-58
Warning light/display 2-43
T
Tank capacity 1-5
,9-11
Theft-alarm system 3-63
Tire pressure monitoring system 3-152
Warning light/display 3-153
BK0102103US.book 6 ページ ２００９年１０月２６日　月曜日　午後１時３８分
