MITSUBISHI LANCER RALLIART 2010 8.G Owners Manual

3-200 Features and controls
3
Warning display list (With ignition switch in the “OFF” position)
N00558000110
Screen type 1
Screen type 2
Cause
Do this (Reference)

You have forgotten to remove the
key from the ignition switch.
Remove the key.
Refer to “Key reminder system” on
page 3-54.

You have forgotten to turn off the
lights.
Refer to “Light auto-cutout function
(headlights and other lights)” on
page 3-220.

The theft-alarm is operating.
Refer to “Theft-alarm system” on
page 3-63.

Immobilizer is registered.
Refer to “Electronic immobilizer
(Anti-theft starting system)” on
page 3-5, 3-42.
BK0102103US.book 200 ページ ２００９年１０月２６日　月曜日　午後１時３８分

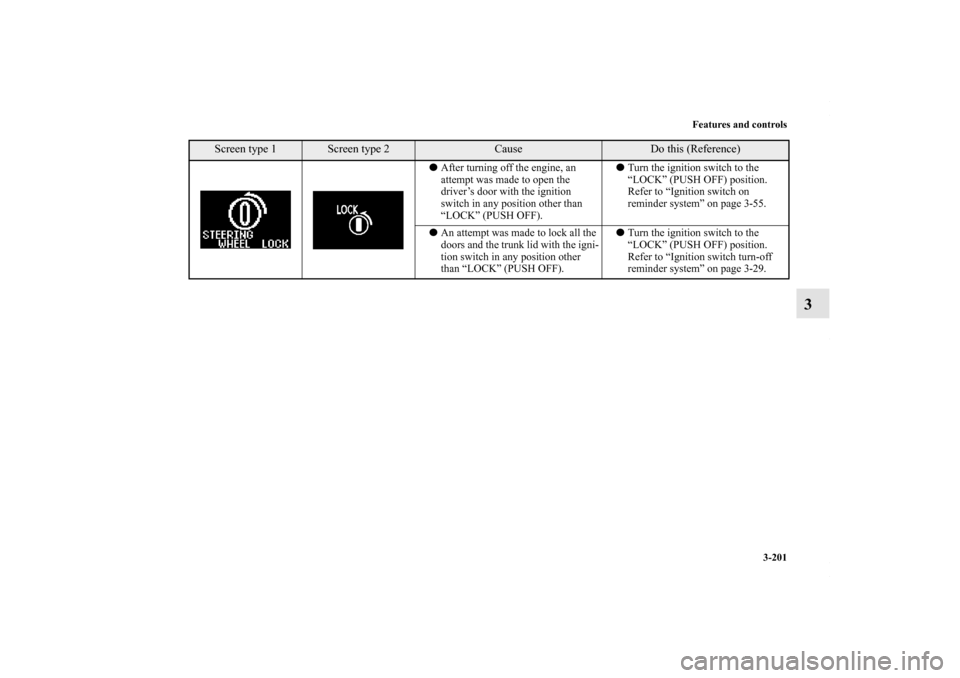

Features and controls
3-201
3

After turning off the engine, an
attempt was made to open the
driver’s door with the ignition
switch in any position other than
“LOCK” (PUSH OFF).
Turn the ignition switch to the
“LOCK” (PUSH OFF) position.
Refer to “Ignition switch on
reminder system” on page 3-55.

An attempt was made to lock all the
doors and the trunk lid with the igni-
tion switch in any position other
than “LOCK” (PUSH OFF).
Turn the ignition switch to the
“LOCK” (PUSH OFF) position.
Refer to “Ignition switch turn-off
reminder system” on page 3-29.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0102103US.book 201 ページ ２００９年１０月２６日　月曜日　午後１時３８分

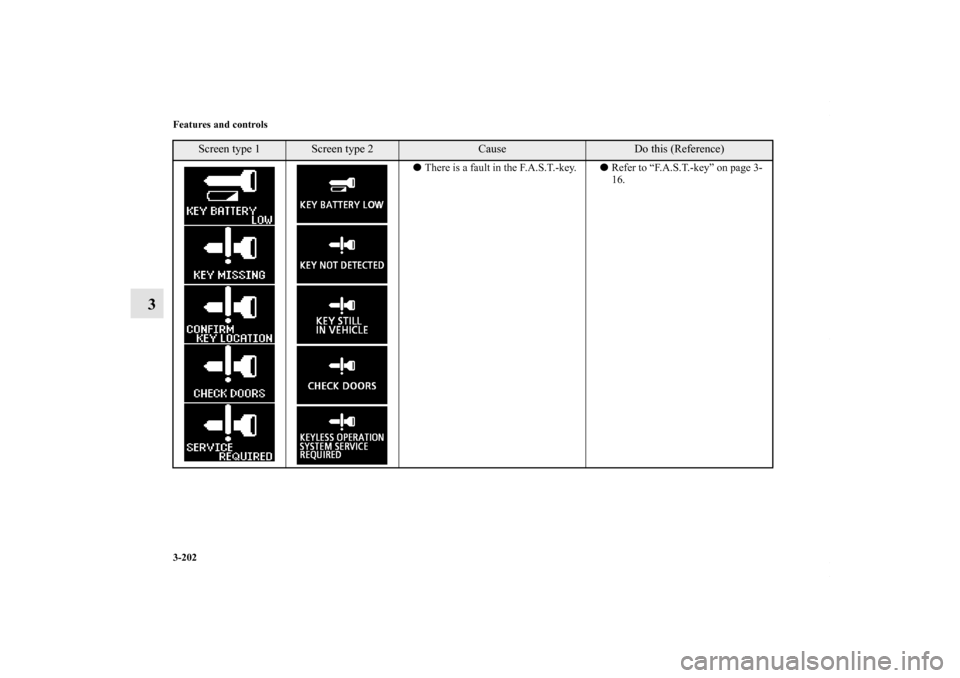

3-202 Features and controls
3

There is a fault in the F.A.S.T.-key.
Refer to “F.A.S.T.-key” on page 3-
16.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0102103US.book 202 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-203
3
Warning display list (With ignition switch in the “ON” position)
N00558100137
Screen type1
Screen type 2
Cause
Do this (Reference)

There is a fault in the F.A.S.T.-key.
Refer to “F.A.S.T.-key” on page 3-
16.
BK0102103US.book 203 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-204 Features and controls
3

Immobilizer is registered.
Refer to “Electronic immobilizer
(Anti-theft starting system)” on
page 3-5, 3-42.

The brake fluid level is low.

There is a fault in the brake system.
Park the vehicle in a safe place and
contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice for assistance.
Refer to “Brake warning display”
on page 3-214.

There is a fault in the Anti-lock
braking system.
Avoid sudden braking and high-
speed driving, park the vehicle in a
safe place, and take corrective mea-
sures. Refer to “Anti-lock braking
system warning light/display” on
page 3-135.

The tire pressure in one of the tires
(except spare tire) is low.
Refer to “Tire Pressure Monitoring
System” on page 3-152.

There is a fault in the Tire Pressure
Monitoring System.
Refer to “Tire Pressure Monitoring
System” on page 3-152.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0102103US.book 204 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-205
3

One of the doors or the trunk lid is
not completely closed.
The open door or open trunk lid is
displayed.
Close the door or trunk lid.
Refer to “Door ajar warning display
(With ignition switch in the “OFF”
position)” on page 3-169.

The engine is overheated.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Engine overheating” on
page 6-5.

The continuously variable transmis-
sion (CVT) fluid or the Twin Clutch
SST fluid temperature is increased.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Continuously variable
transmission (CVT)” on page 3-93.
Refer to “Twin Clutch SST” on
page 3-105.

The seat belt is not fastened when
the ignition switch is in the “ON”
position.
Fasten your seat belt properly. Refer
to “Driver’s seat belt
reminder/warning light and display”
on page 2-18.

There is a fault in the fuel system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0102103US.book 205 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-206 Features and controls
3

The vehicle is being driven with the
parking brake still applied.
Release the parking brake. Refer to
“Brake warning display” on page 3-
214.

There is a fault in the engine oil cir-
culation system.
Park your vehicle in a safe place as
soon as possible and contact an
authorized Mitsubishi Motors dealer
or a repair facility of your choice to
have the system checked.
Refer to “Oil pressure warning dis-
play” on page 3-216.

There is a fault in the charging sys-
tem.
Park your vehicle in a safe place as
soon as possible and contact an
authorized Mitsubishi Motors dealer
or a repair facility of your choice for
assistance.
Refer to “Charging system warning
display” on page 3-215.

There is a fault in the SRS airbag or
the seat belt pre-tensioner system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “SRS warning light/dis-
play” on page 2-43.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0102103US.book 206 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-207
3

There is a fault in the Active Stabil-
ity Control (ASC).
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Active Stability Control
(ASC) ” on page 3-138.

There is a fault in the ACD (Active
Center Differential system).
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “ACD (Active Center Dif-
ferential system)” on page 3-128.

There is a fault in the CVT.

A safety device in the Twin Clutch
SST has been activated due to a
possible malfunction in the Twin
Clutch SST or in the engine elec-
tronic control module.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Continuously variable
transmission (CVT)” on page 3-93.
Refer to “Twin Clutch SST” on
page 3-105.

The fuel is running low.
Refuel as soon as possible. Refer to
“Fuel remaining display screen” on
page 3-179.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0102103US.book 207 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-208 Features and controls
3

The outside temperature is 37°F
(3°C) or less.
Be careful driving on frozen
ground.

The ground may be frozen even
when this warning is not displayed,
so drive carefully.

The timing chain may be worn.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0102103US.book 208 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-209
3
Other interrupt displays (With ignition switch in the “ON” position)
N00558200112
The operation status of each system is displayed on the information screen. For further details, refer to the appropriate page for each
system.
Alerts the driver of the time for periodic inspection.
Screen
System operation status
Reference

When the Active Stability Control
(ASC) is operating.
Refer to “Active Stability Control
(ASC) ” on page 3-138.
Screen type 1
Screen type 2
Do this
Have an inspection made by an authorized Mitsubishi Motors dealer. For further
details, refer to “Service reminder” on page 3-181.
BK0102103US.book 209 ページ ２００９年１０月２６日　月曜日　午後１時３８分
