3-280 Features and controls
3

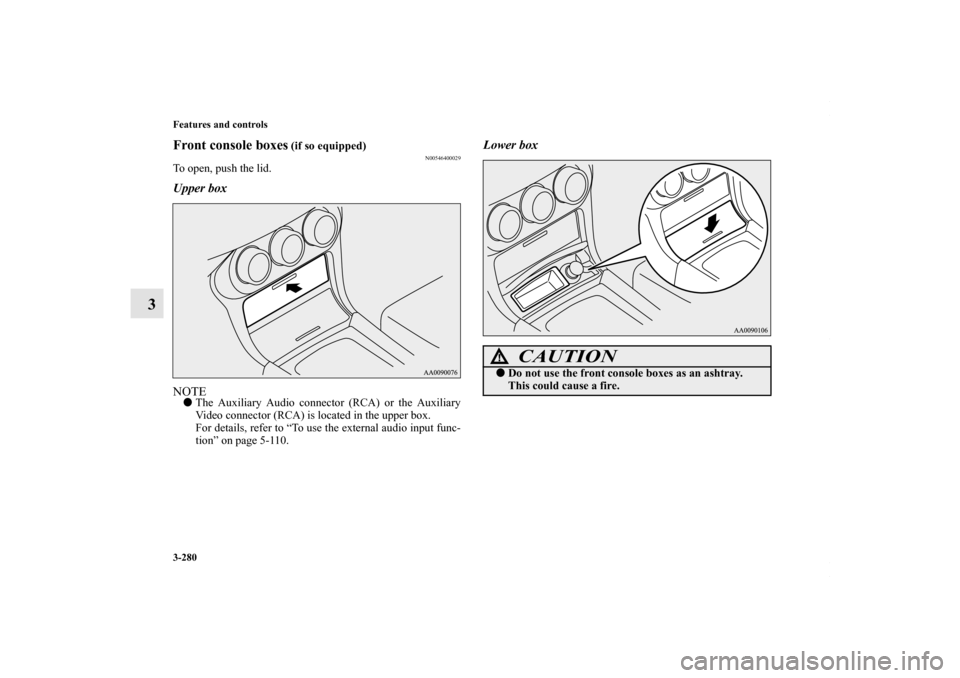

Front console boxes
(if so equipped)
N00546400029
To open, push the lid.Upper boxNOTE
The Auxiliary Audio connector (RCA) or the Auxiliary
Video connector (RCA) is located in the upper box.
For details, refer to “To use the external audio input func-
tion” on page 5-110.
Lower box
CAUTION
!
Do not use the front console boxes as an ashtray.
This could cause a fire.
BK0102103US.book 280 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-281
3

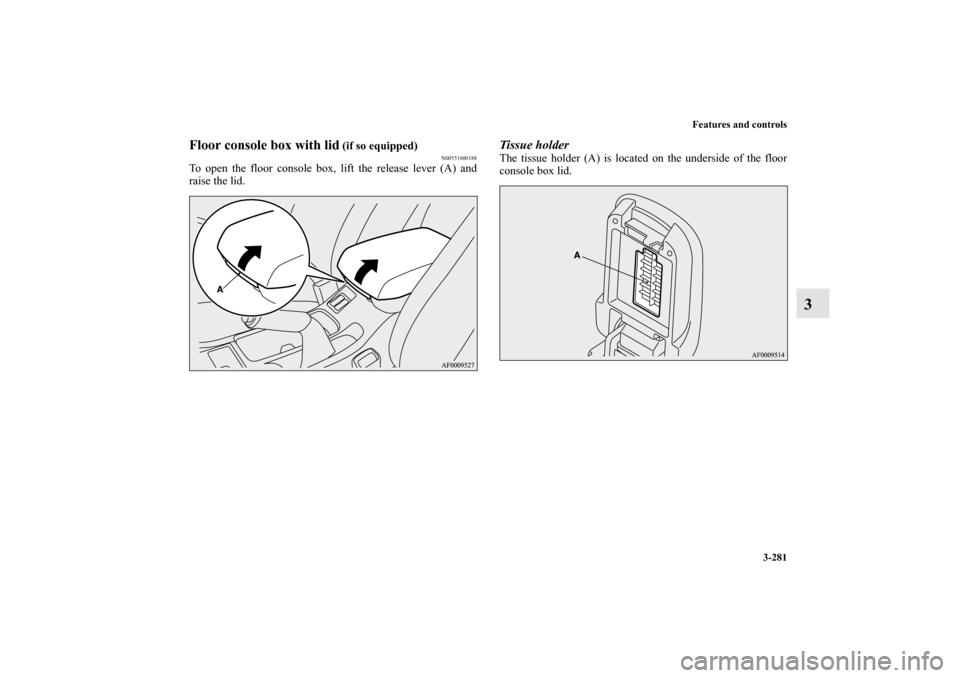

Floor console box with lid
(if so equipped)
N00551600188
To open the floor console box, lift the release lever (A) and
raise the lid.
Tissue holderThe tissue holder (A) is located on the underside of the floor
console box lid.
BK0102103US.book 281 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-282 Features and controls
3

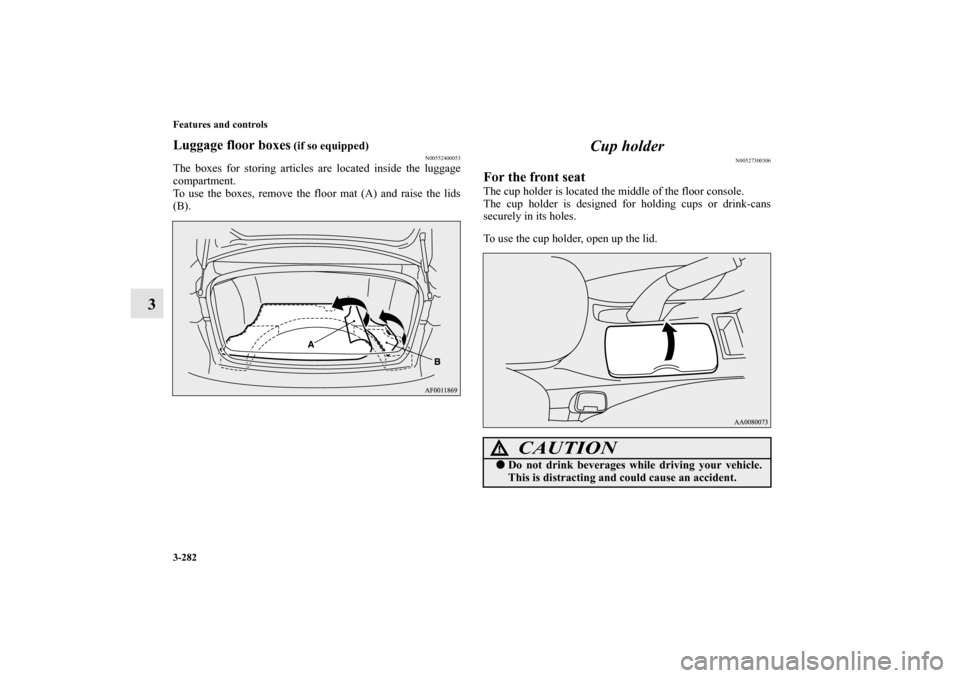

Luggage floor boxes
(if so equipped)
N00552400053
The boxes for storing articles are located inside the luggage
compartment.
To use the boxes, remove the floor mat (A) and raise the lids
(B).
Cup holder
N00527300306
For the front seatThe cup holder is located the middle of the floor console.
The cup holder is designed for holding cups or drink-cans
securely in its holes.
To use the cup holder, open up the lid.
CAUTION
!
Do not drink beverages while driving your vehicle.
This is distracting and could cause an accident.
BK0102103US.book 282 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-283
3

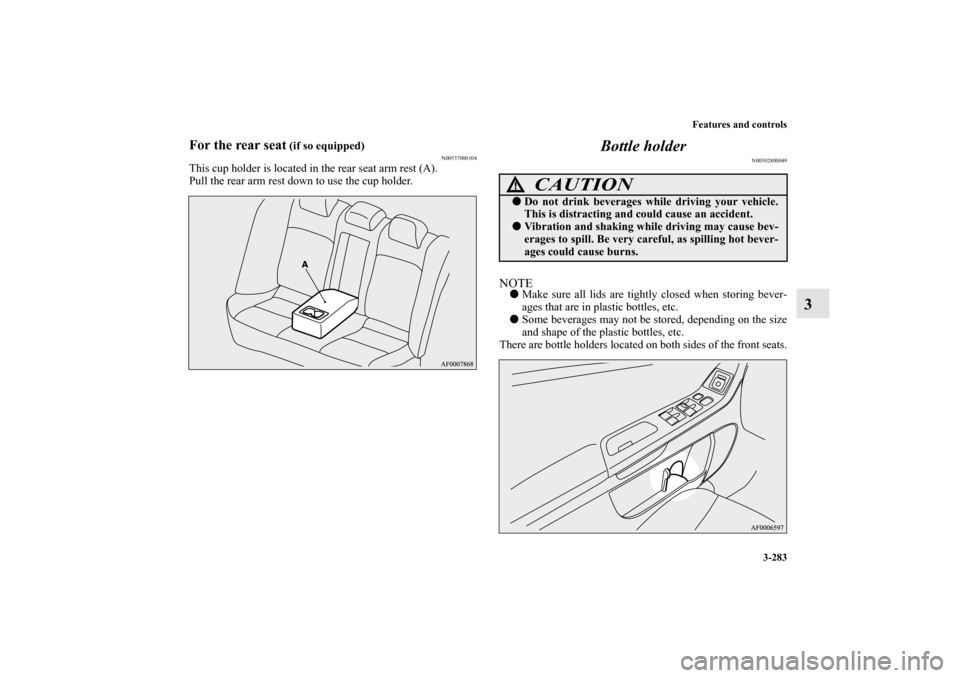

For the rear seat
(if so equipped)
N00537000104
This cup holder is located in the rear seat arm rest (A).
Pull the rear arm rest down to use the cup holder.
Bottle holder
N00502800049
NOTE
Make sure all lids are tightly closed when storing bever-
ages that are in plastic bottles, etc.

Some beverages may not be stored, depending on the size
and shape of the plastic bottles, etc.
There are bottle holders located on both sides of the front seats.
CAUTION
!
Do not drink beverages while driving your vehicle.
This is distracting and could cause an accident.
Vibration and shaking while driving may cause bev-
erages to spill. Be very careful, as spilling hot bever-
ages could cause burns.
BK0102103US.book 283 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-284 Features and controls

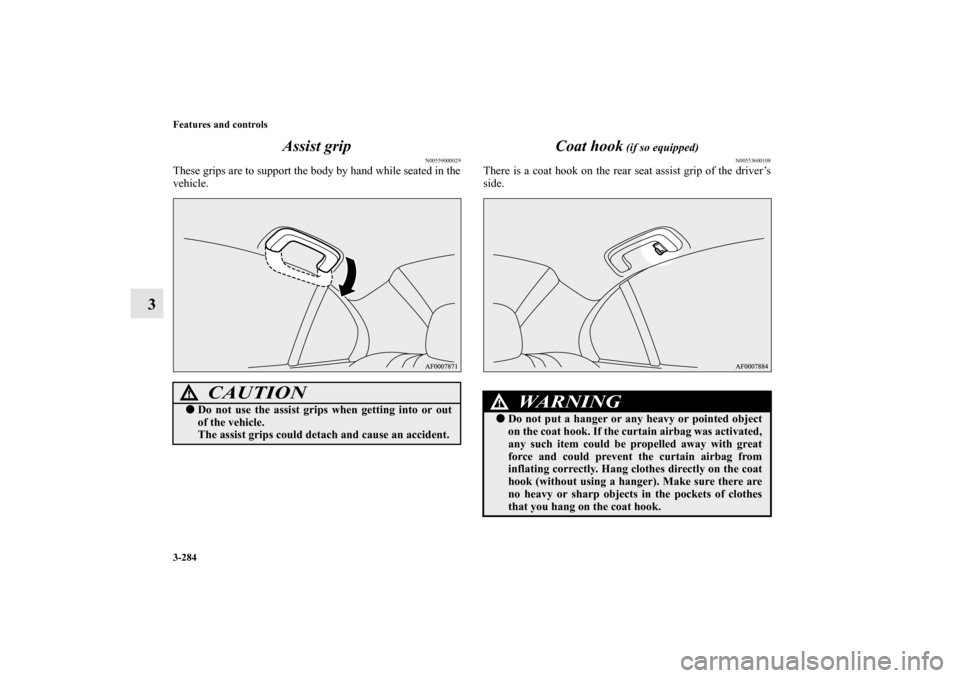

3Assist grip
N00559000029
These grips are to support the body by hand while seated in the
vehicle.
Coat hook
(if so equipped)
N00553600108
There is a coat hook on the rear seat assist grip of the driver’s
side.
CAUTION
!
Do not use the assist grips when getting into or out
of the vehicle.
The assist grips could detach and cause an accident.
WARNING
!
Do not put a hanger or any heavy or pointed object
on the coat hook. If the curtain airbag was activated,
any such item could be propelled away with great
force and could prevent the curtain airbag from
inflating correctly. Hang clothes directly on the coat
hook (without using a hanger). Make sure there are
no heavy or sharp objects in the pockets of clothes
that you hang on the coat hook.
BK0102103US.book 284 ページ ２００９年１０月２６日　月曜日　午後１時３８分

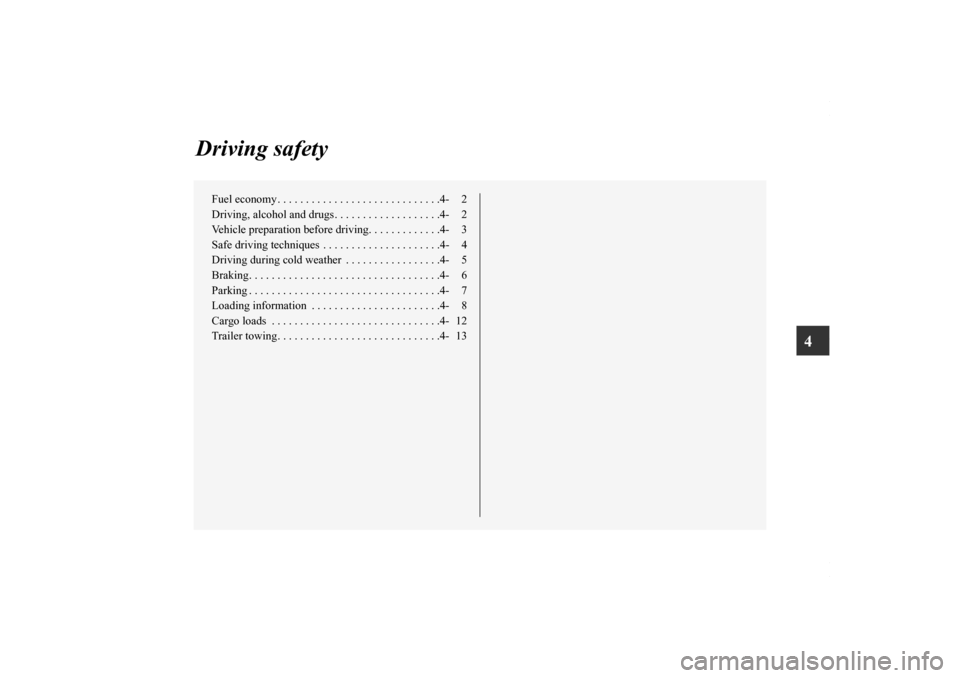

4
Driving safety
Fuel economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 2
Driving, alcohol and drugs. . . . . . . . . . . . . . . . . . .4- 2
Vehicle preparation before driving. . . . . . . . . . . . .4- 3
Safe driving techniques . . . . . . . . . . . . . . . . . . . . .4- 4
Driving during cold weather . . . . . . . . . . . . . . . . .4- 5
Braking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 6
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 7
Loading information . . . . . . . . . . . . . . . . . . . . . . .4- 8
Cargo loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 12
Trailer towing. . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 13
BK0102103US.book 1 ページ ２００９年１０月２６日　月曜日　午後１時３８分

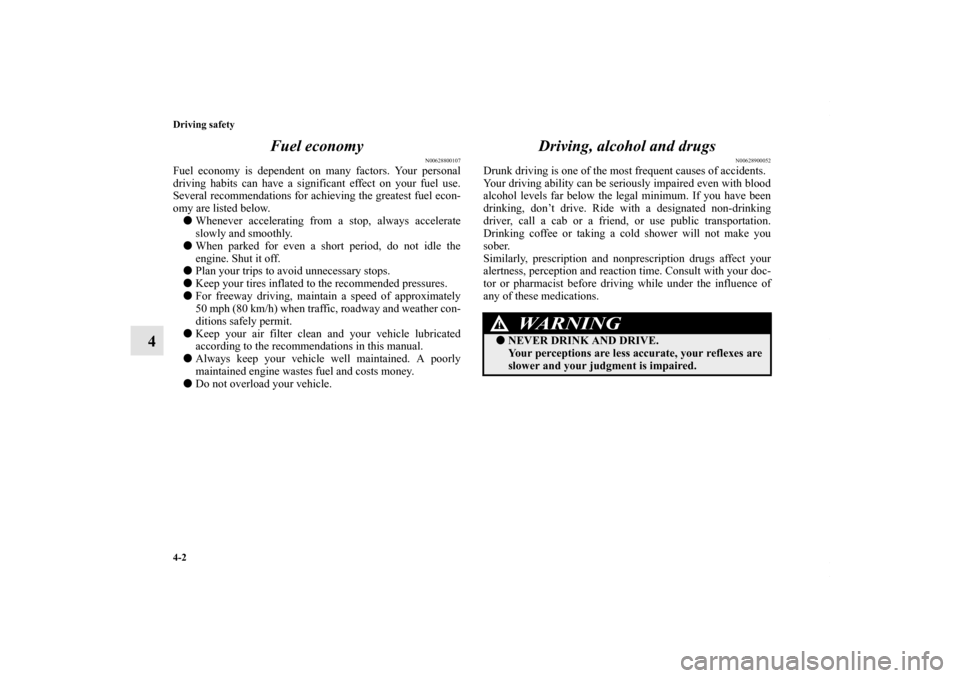

4-2 Driving safety
4Fuel economy
N00628800107
Fuel economy is dependent on many factors. Your personal
driving habits can have a significant effect on your fuel use.
Several recommendations for achieving the greatest fuel econ-
omy are listed below.

Whenever accelerating from a stop, always accelerate
slowly and smoothly.

When parked for even a short period, do not idle the
engine. Shut it off.

Plan your trips to avoid unnecessary stops.

Keep your tires inflated to the recommended pressures.

For freeway driving, maintain a speed of approximately
50 mph (80 km/h) when traffic, roadway and weather con-
ditions safely permit.

Keep your air filter clean and your vehicle lubricated
according to the recommendations in this manual.

Always keep your vehicle well maintained. A poorly
maintained engine wastes fuel and costs money.

Do not overload your vehicle.
Driving, alcohol and drugs
N00628900052
Drunk driving is one of the most frequent causes of accidents.
Your driving ability can be seriously impaired even with blood
alcohol levels far below the legal minimum. If you have been
drinking, don’t drive. Ride with a designated non-drinking
driver, call a cab or a friend, or use public transportation.
Drinking coffee or taking a cold shower will not make you
sober.
Similarly, prescription and nonprescription drugs affect your
alertness, perception and reaction time. Consult with your doc-
tor or pharmacist before driving while under the influence of
any of these medications.
WARNING
!
NEVER DRINK AND DRIVE.
Your perceptions are less accurate, your reflexes are
slower and your judgment is impaired.
BK0102103US.book 2 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Driving safety
4-3
4 Vehicle preparation before driving
N00629000496
For a safer and more enjoyable trip, always observe the follow-
ing: Seat belts and seats
Before starting the vehicle, make certain that you and all
passengers are seated and wearing their seat belts properly
(with children in the rear seat, in appropriate restraints),
and that all the doors are locked.

Move the driver’s seat as far backward as possible, while
still keeping good visibility, and good control of the steer-
ing wheel, brakes, accelerator, and controls. Check the
instrument panel indicators and multi-information display
for any possible problem.

Move the front passenger seat as far back as possible.

Make sure that infants and small children are properly
restrained in accordance with all laws and regulations.
Floor mats
WARNING
!
Keep floor mats clear of the pedals by correctly lay-
ing floor mats that are suitable for the vehicle.
To prevent the floor mats from slipping out of posi-
tion, securely retain them using the hook etc.
Placing a floor mat over a pedal or laying one floor
mat on top of another can obstruct pedal operation
and lead to a serious accident.
BK0102103US.book 3 ページ ２００９年１０月２６日　月曜日　午後１時３８分

4-4 Driving safety
4
Defrosters Check these by selecting the defroster mode, and set the blower
switch on high. You should be able to feel the air blowing
against the windshield.
(Refer to “Defrosting or defogging the windshield and door
windows” on page 5-10, 5-20, 5-29, 5-39, 5-49.)Tires Check all the tires for heavy tread wear or uneven wear pat-
terns. Look for stones, nails, glass, or other objects stuck in the
tread. Look for any tread cuts or sidewall cracks. Check the
wheel nuts for tightness, and the tires (including spare tire) for
proper pressures. Replace your tires before they are heavily
worn out.
As your vehicle is equipped with a tire pressure monitoring
system, there is a risk of damage to the tire inflation pressure
sensors when the tire is replaced on the rim. Tire replacement
should, therefore, be performed only by an authorized
Mitsubishi Motors dealer.Lights Have someone watch while you turn all the exterior lights on
and off. Also check the turn signal indicators and high-beam
indicators on the instrument panel. Fluid leaks Check the ground under the vehicle after parking overnight, for
fuel, water, oil, or other leaks. Make sure all the fluid levels are
correct. Also, if you can smell fuel, you need to find out why
immediately and have it fixed.
Safe driving techniques
N00629200111
Even this vehicle’s safety equipment, and your safest driving,
cannot guarantee that you can avoid an accident or injury.
However, if you give extra attention to the following areas, you
can better protect yourself and your passengers:

Drive defensively. Be aware of traffic, road and weather
conditions. Leave plenty of stopping distance between
your vehicle and the vehicle ahead.

Before changing lanes, check your mirrors and use your
turn signal light.

While driving, watch the behavior of other drivers, bicy-
clists, and pedestrians.

Always obey applicable laws and regulations. Be a polite
and alert driver. Always leave room for unexpected
events, such as sudden braking.

If you plan to drive in another country, obey their vehicle
registration laws and make sure you will be able to get the
right fuel.
BK0102103US.book 4 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Driving safety
4-5
4 Driving during cold weather
N00629400298

Check the battery, including terminals and cables. During
extremely cold weather, the battery will not be as strong.
Also, the battery power level may drop because more
power is used for cold starting and driving.
Before driving the vehicle, check to see if the engine runs
at the proper speed and if the headlights are as bright as
normally. Charge or replace the battery if necessary. Dur-
ing extreme cold weather, it is possible that a very low
battery could freeze.

Warm the engine sufficiently. After starting the engine,
allow a short warm-up time to distribute oil to all cylin-
ders and turbocharger. Then drive your vehicle slowly.

Stay at low speeds at first so that the transaxle, transfer
case and rear axle oil have time to spread to all the lubri-
cation points.

Manual transaxle can be harder to shift in cold weather
conditions. This is normal and shifting will get easier as
the transaxle warms up.
Check the engine antifreeze.
If there is not enough coolant because of a leak or from
engine overheating, add high-quality ethylene glycol anti-
freeze and water. The recommended blend is about 50 %
water and 50 % anti-freeze. Use a higher concentration
(not over 60 %) when the outside temperature is -31 °F
(-35 °C) or lower. When the engine is working very hard
(for example, during mountain driving and/or when the
outside temperature is high), use a 50 % concentration.
This blend will provide adequate protection from corro-
sion and boiling.
[For RALLIART vehicles sold in U.S.A.]

Mitsubishi Motors recommends that the standard equip-
ment tires be replaced with winter tires when the vehicle
is going to be used in winter.
The standard equipment tires provided with this vehicle
are summer tires and use a high-grip compound that pro-
vides superior grip.
The road grip, however, is reduced in winter.
When replacing the standard equipment tires with winter
tires, all four tires must be replaced using radial identical-
size winter tires.
WARNING
!
The battery gives off explosive hydrogen gas. Any
spark or flame can cause the battery to explode,
which could cause serious injury or death.
Always wear protective clothes and a face mask
when working with your battery, or let a skilled
mechanic do it.
WARNING
!
Never open the radiator cap when the radiator is
hot. You could be seriously burned.
BK0102103US.book 5 ページ ２００９年１０月２６日　月曜日　午後１時３８分
