Overview

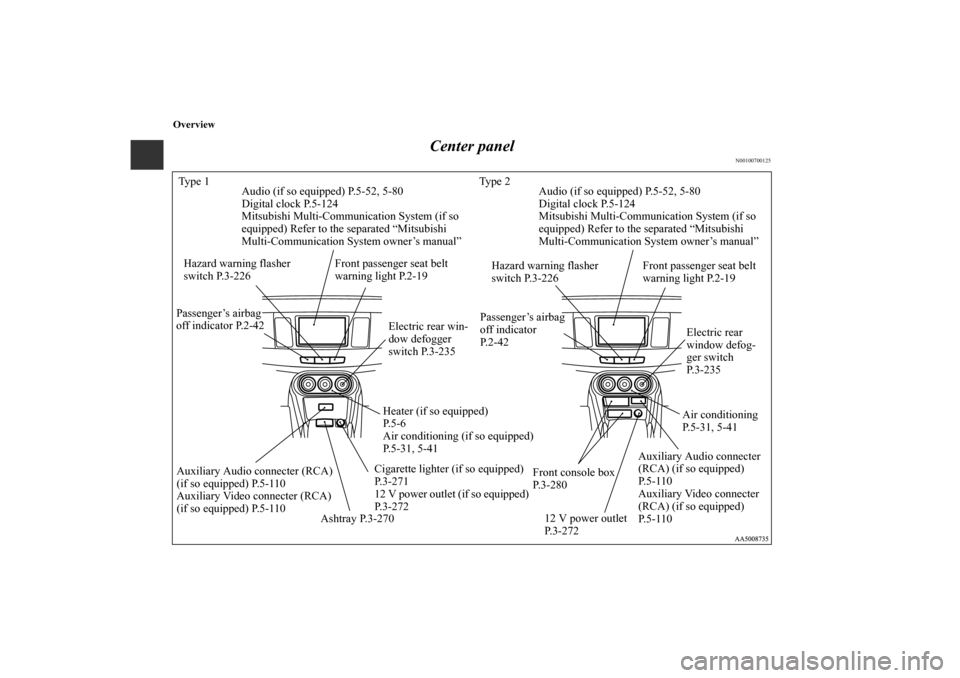

Center panel
N00100700125
Type 1 Type 2
Hazard warning flasher
switch P.3-226
Heater (if so equipped)
P. 5 - 6
Air conditioning (if so equipped)
P.5-31, 5-41
Ashtray P.3-270Front console box
P.3-280 Hazard warning flasher
switch P.3-226
Air conditioning
P.5-31, 5-41
Auxiliary Audio connecter
(RCA) (if so equipped)
P.5-110
Auxiliary Video connecter
(RCA) (if so equipped)
P.5-110 Auxiliary Audio connecter (RCA)
(if so equipped) P.5-110
Auxiliary Video connecter (RCA)
(if so equipped) P.5-110Cigarette lighter (if so equipped)
P.3-271
12 V power outlet (if so equipped)
P.3-272 Audio (if so equipped) P.5-52, 5-80
Digital clock P.5-124
Mitsubishi Multi-Communication System (if so
equipped) Refer to the separated “Mitsubishi
Multi-Communication System owner’s manual”Audio (if so equipped) P.5-52, 5-80
Digital clock P.5-124
Mitsubishi Multi-Communication System (if so
equipped) Refer to the separated “Mitsubishi
Multi-Communication System owner’s manual”
Electric rear win-
dow defogger
switch P.3-235Electric rear
window defog-
ger switch
P.3-235 Front passenger seat belt
warning light P.2-19 Front passenger seat belt
warning light P.2-19
12 V power outlet
P.3-272 Passenger’s airbag
off indicator P.2-42Passenger’s airbag
off indicator
P.2-42BK0102103US.book 5 ページ ２００９年１０月２８日　水曜日　午前１０時４１分

3

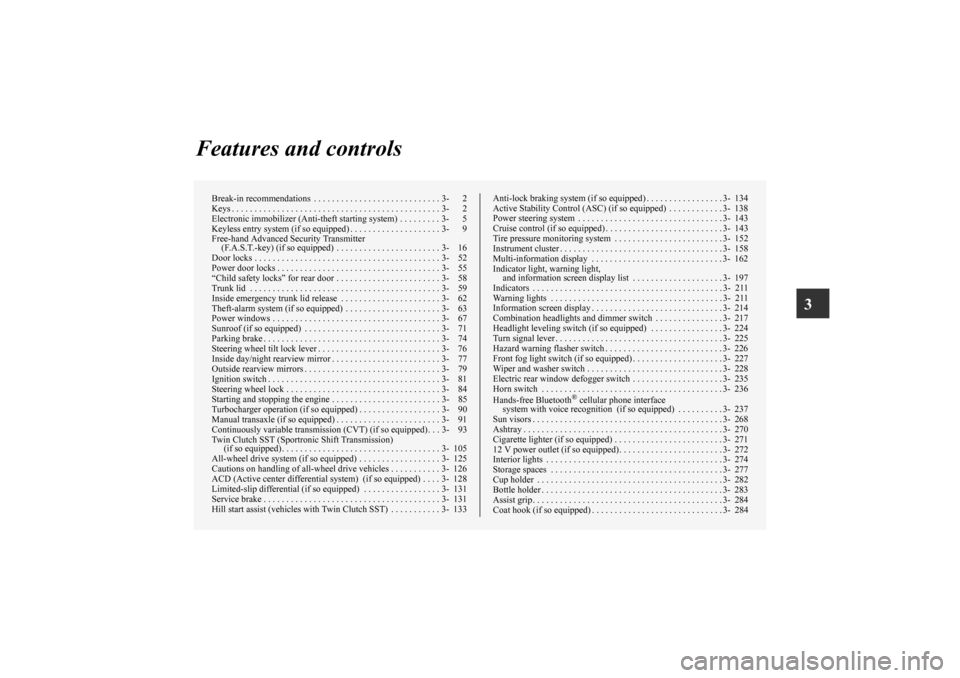

Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . 3- 5
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 9
Free-hand Advanced Security Transmitter
(F.A.S.T.-key) (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 52
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 55
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . 3- 58
Trunk lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 59
Inside emergency trunk lid release . . . . . . . . . . . . . . . . . . . . . . 3- 62
Theft-alarm system (if so equipped) . . . . . . . . . . . . . . . . . . . . . 3- 63
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 67
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 71
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 74
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 76
Inside day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 3- 77
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 79
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 81
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 84
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . 3- 85
Turbocharger operation (if so equipped) . . . . . . . . . . . . . . . . . . 3- 90
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 91
Continuously variable transmission (CVT) (if so equipped). . . 3- 93
Twin Clutch SST (Sportronic Shift Transmission)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 105
All-wheel drive system (if so equipped) . . . . . . . . . . . . . . . . . . 3- 125
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . 3- 126
ACD (Active center differential system) (if so equipped) . . . . 3- 128
Limited-slip differential (if so equipped) . . . . . . . . . . . . . . . . . 3- 131
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 131
Hill start assist (vehicles with Twin Clutch SST) . . . . . . . . . . . 3- 133Anti-lock braking system (if so equipped) . . . . . . . . . . . . . . . . . 3- 134
Active Stability Control (ASC) (if so equipped) . . . . . . . . . . . . 3- 138
Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 143
Cruise control (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 143
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . 3- 152
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 158
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 162
Indicator light, warning light,
and information screen display list . . . . . . . . . . . . . . . . . . . . 3- 197
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211
Information screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 214
Combination headlights and dimmer switch . . . . . . . . . . . . . . . 3- 217
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . 3- 224
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 225
Hazard warning flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 226
Front fog light switch (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 227
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 228
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . 3- 235
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 236
Hands-free Bluetooth
® cellular phone interface
system with voice recognition (if so equipped) . . . . . . . . . . 3- 237
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 268
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 270
Cigarette lighter (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . 3- 271
12 V power outlet (if so equipped). . . . . . . . . . . . . . . . . . . . . . . 3- 272
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 274
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 277
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 282
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 283
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 284
Coat hook (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 284
BK0102103US.book 1 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-271

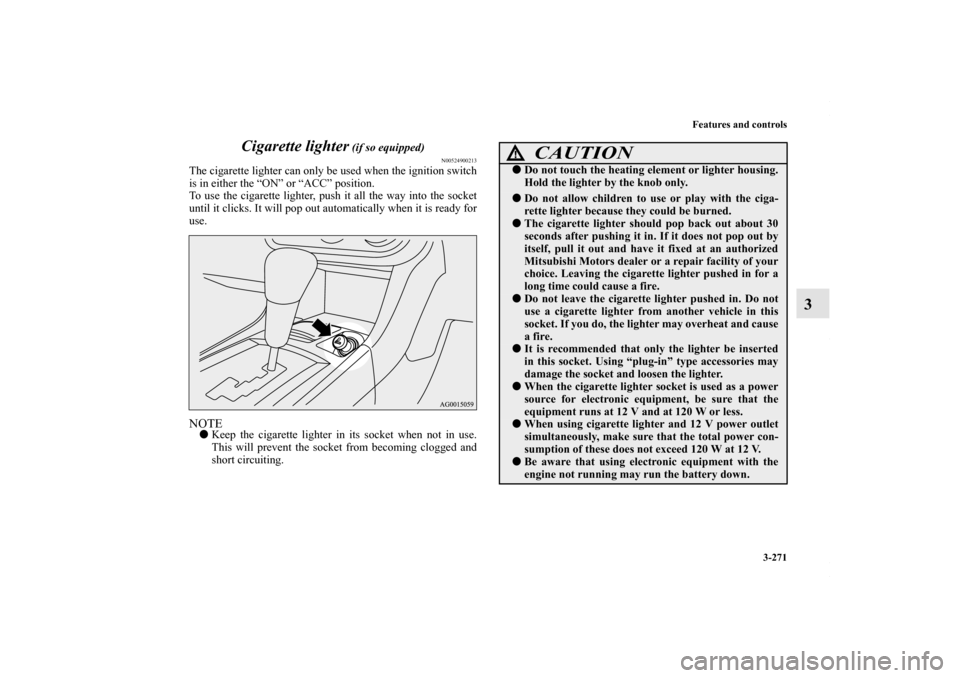

3 Cigarette lighter
(if so equipped)
N00524900213
The cigarette lighter can only be used when the ignition switch
is in either the “ON” or “ACC” position.
To use the cigarette lighter, push it all the way into the socket
until it clicks. It will pop out automatically when it is ready for
use.NOTE
Keep the cigarette lighter in its socket when not in use.
This will prevent the socket from becoming clogged and
short circuiting.
CAUTION
!
Do not touch the heating element or lighter housing.
Hold the lighter by the knob only.
Do not allow children to use or play with the ciga-
rette lighter because they could be burned.
The cigarette lighter should pop back out about 30
seconds after pushing it in. If it does not pop out by
itself, pull it out and have it fixed at an authorized
Mitsubishi Motors dealer or a repair facility of your
choice. Leaving the cigarette lighter pushed in for a
long time could cause a fire.
Do not leave the cigarette lighter pushed in. Do not
use a cigarette lighter from another vehicle in this
socket. If you do, the lighter may overheat and cause
a fire.
It is recommended that only the lighter be inserted
in this socket. Using “plug-in” type accessories may
damage the socket and loosen the lighter.
When the cigarette lighter socket is used as a power
source for electronic equipment, be sure that the
equipment runs at 12 V and at 120 W or less.
When using cigarette lighter and 12 V power outlet
simultaneously, make sure that the total power con-
sumption of these does not exceed 120 W at 12 V.
Be aware that using electronic equipment with the
engine not running may run the battery down.
BK0102103US.book 271 ページ ２００９年１０月２６日　月曜日　午後１時３８分

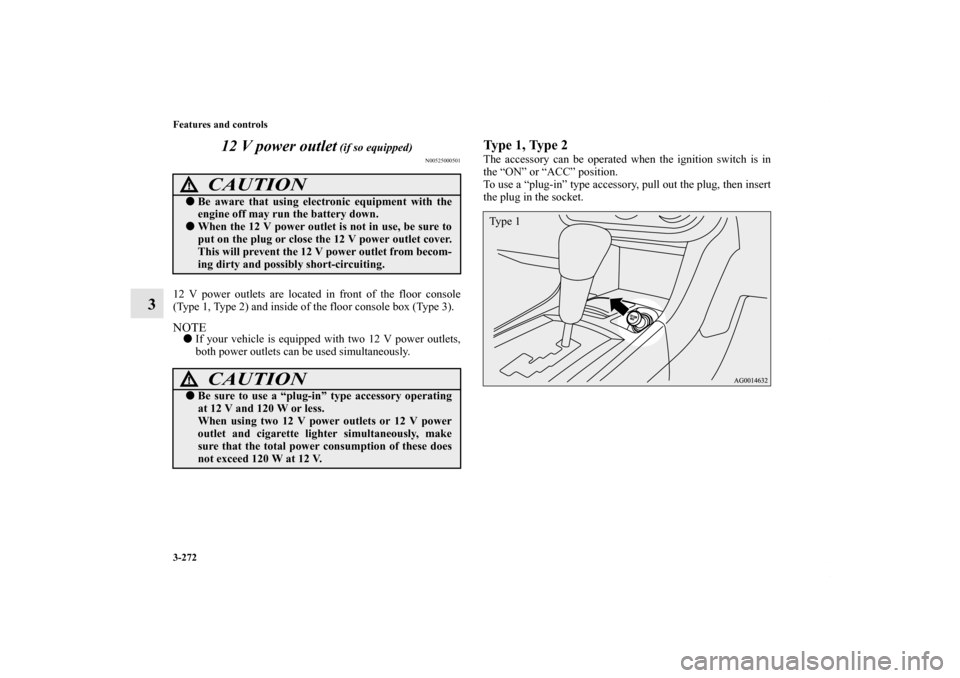

3-272 Features and controls
312 V power outlet
(if so equipped)
N00525000501
12 V power outlets are located in front of the floor console
(Type 1, Type 2) and inside of the floor console box (Type 3).NOTE
If your vehicle is equipped with two 12 V power outlets,
both power outlets can be used simultaneously.
Type 1, Type 2The accessory can be operated when the ignition switch is in
the “ON” or “ACC” position.
To use a “plug-in” type accessory, pull out the plug, then insert
the plug in the socket.
CAUTION
!
Be aware that using electronic equipment with the
engine off may run the battery down.
When the 12 V power outlet is not in use, be sure to
put on the plug or close the 12 V power outlet cover.
This will prevent the 12 V power outlet from becom-
ing dirty and possibly short-circuiting.
CAUTION
!
Be sure to use a “plug-in” type accessory operating
at 12 V and 120 W or less.
When using two 12 V power outlets or 12 V power
outlet and cigarette lighter simultaneously, make
sure that the total power consumption of these does
not exceed 120 W at 12 V.
Type 1
BK0102103US.book 272 ページ ２００９年１０月２６日　月曜日　午後１時３８分

7-50 Vehicle care and maintenance
7

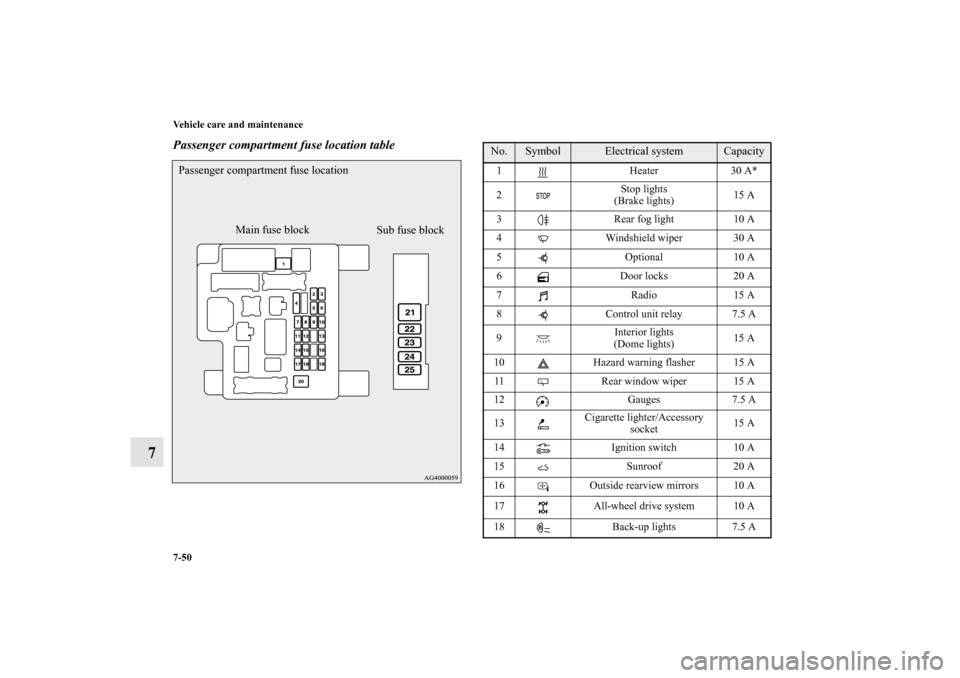

Passenger compartment fuse location tablePassenger compartment fuse location
Sub fuse block Main fuse block
No.
Symbol
Electrical system
Capacity
1 Heater 30 A*
2Stop lights
(Brake lights)15 A
3 Rear fog light 10 A
4 Windshield wiper 30 A
5 Optional 10 A
6 Door locks 20 A
7 Radio 15 A
8 Control unit relay 7.5 A
9Interior lights
(Dome lights)15 A
10 Hazard warning flasher 15 A
11 Rear window wiper 15 A
12 Gauges 7.5 A
13Cigarette lighter/Accessory
socket15 A
14 Ignition switch 10 A
15 Sunroof 20 A
16 Outside rearview mirrors 10 A
17 All-wheel drive system 10 A
18 Back-up lights 7.5 A
BK0102103US.book 50 ページ ２００９年１０月２６日　月曜日　午後１時３８分

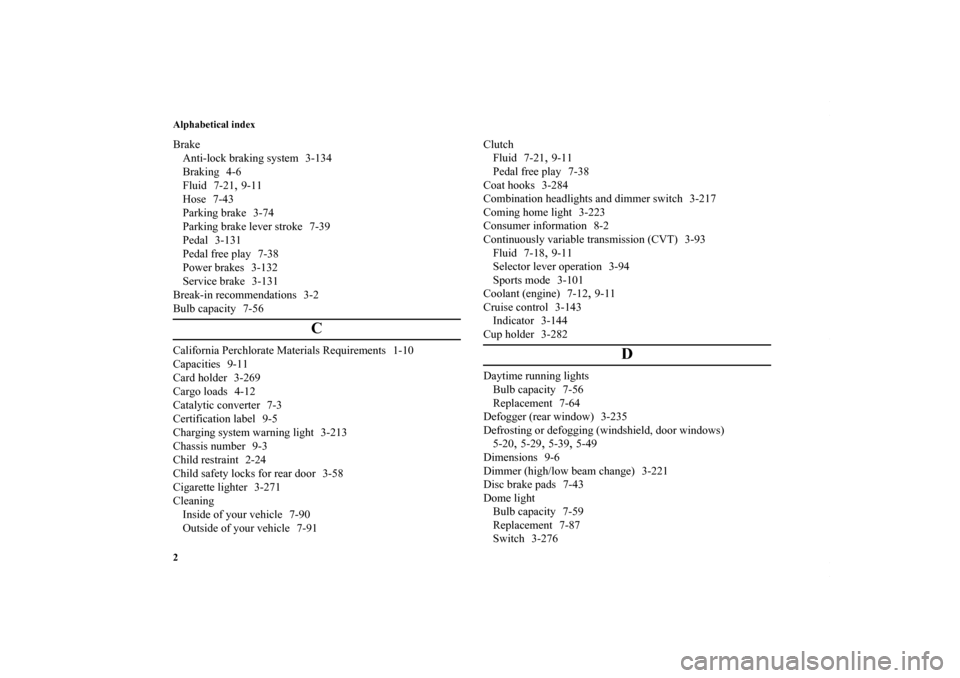

Alphabetical index
2Brake
Anti-lock braking system 3-134
Braking 4-6
Fluid 7-21
,9-11
Hose 7-43
Parking brake 3-74
Parking brake lever stroke 7-39
Pedal 3-131
Pedal free play 7-38
Power brakes 3-132
Service brake 3-131
Break-in recommendations 3-2
Bulb capacity 7-56
C
California Perchlorate Materials Requirements 1-10
Capacities 9-11
Card holder 3-269
Cargo loads 4-12
Catalytic converter 7-3
Certification label 9-5
Charging system warning light 3-213
Chassis number 9-3
Child restraint 2-24
Child safety locks for rear door 3-58
Cigarette lighter 3-271
Cleaning
Inside of your vehicle 7-90
Outside of your vehicle 7-91Clutch
Fluid 7-21
,9-11
Pedal free play 7-38
Coat hooks 3-284
Combination headlights and dimmer switch 3-217
Coming home light 3-223
Consumer information 8-2
Continuously variable transmission (CVT) 3-93
Fluid 7-18,9-11
Selector lever operation 3-94
Sports mode 3-101
Coolant (engine) 7-12
,9-11
Cruise control 3-143
Indicator 3-144
Cup holder 3-282
D
Daytime running lights
Bulb capacity 7-56
Replacement 7-64
Defogger (rear window) 3-235
Defrosting or defogging (windshield, door windows)
5-20
,5-29
,5-39
,5-49
Dimensions 9-6
Dimmer (high/low beam change) 3-221
Disc brake pads 7-43
Dome light
Bulb capacity 7-59
Replacement 7-87
Switch 3-276
