fuses MITSUBISHI LANCER RALLIART 2010 8.G Owners Manual

Overview
Instruments and controls (Driver’s area)
N00100201143
Combination headlights and dimmer
switch P.3-217
Turn signal lever P.3-225
Front fog light switch (if so
equipped) P.3-227
Supplemental restraint sys-
tem - airbag (for driver’s
seat) P.2-35
Horn switch P.3-236 Instrument cluster P.3-158
Cruise control switches (if so
equipped) P.3-143 Wiper and washer switch
P.3-228
Fuses P.7-47
Engine hood release lever
P.7-4Sportronic steering wheel paddle
shifter (if so equipped) P.3-101
Ignition switch P.3-81
Steering wheel tilt lock
lever P.3-76
Supplemental restraint system - driver’s
knee airbag P.2-35
Hands-free Bluetooth
® cellular phone interface
system with voice recognition switches (if so
equipped) P.3-237 Steering wheel audio remote
control switches (if so
equipped) P.5-112Multi-information meter switch
P.3-164 Except for RALLIART
Headlight leveling switch
(if so equipped) P.3-224
Active stability control
(ASC) OFF switch (if so
equipped) P.3-138
BK0102103US.book 1 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Overview
Sportronic steering wheel paddle
shifter P.3-119
Wiper and washer switch
P.3-228
Cruise control switches
P.3-143
Ignition switch P.3-81
Supplemental restraint
system - airbag (for
driver’s seat) P.2-35
Horn switch P.3-236
Steering wheel tilt lock lever
P. 3 - 7 6
Supplemental restraint system - driver’s
knee airbag P.2-35
Hands-free Bluetooth
® cellular phone interface
system with voice recognition switches (if so
equipped) P.3-237 Steering wheel audio remote
control switches P.5-112
Engine hood release lever
P.7-4Fuses P.7-47 Combination headlights and dimmer
switch P.3-217
Turn signal lever P.3-225
Front fog light switch P.3-227Multi-information meter switch
P.3-164Instrument cluster P.3-158 RALLIART
Headlight leveling switch
(if so equipped)
P.3-224
Active stability control
(ASC) OFF switch P.3-138
BK0102103US.book 2 ページ ２００９年１０月２６日　月曜日　午後１時３８分

General information
1-9
1

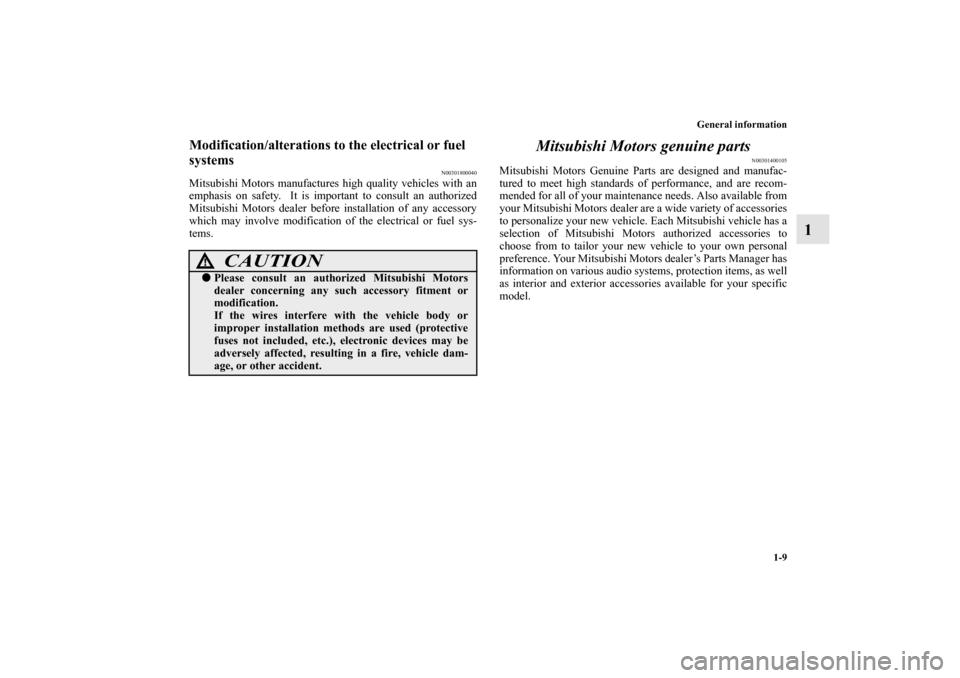

Modification/alterations to the electrical or fuel
systems
N00301800040
Mitsubishi Motors manufactures high quality vehicles with an
emphasis on safety. It is important to consult an authorized
Mitsubishi Motors dealer before installation of any accessory
which may involve modification of the electrical or fuel sys-
tems.
Mitsubishi Motors genuine parts
N00301400105
Mitsubishi Motors Genuine Parts are designed and manufac-
tured to meet high standards of performance, and are recom-
mended for all of your maintenance needs. Also available from
your Mitsubishi Motors dealer are a wide variety of accessories
to personalize your new vehicle. Each Mitsubishi vehicle has a
selection of Mitsubishi Motors authorized accessories to
choose from to tailor your new vehicle to your own personal
preference. Your Mitsubishi Motors dealer’s Parts Manager has
information on various audio systems, protection items, as well
as interior and exterior accessories available for your specific
model.
CAUTION
!
Please consult an authorized Mitsubishi Motors
dealer concerning any such accessory fitment or
modification.
If the wires interfere with the vehicle body or
improper installation methods are used (protective
fuses not included, etc.), electronic devices may be
adversely affected, resulting in a fire, vehicle dam-
age, or other accident.
BK0102103US.book 9 ページ ２００９年１０月２６日　月曜日　午後１時３８分

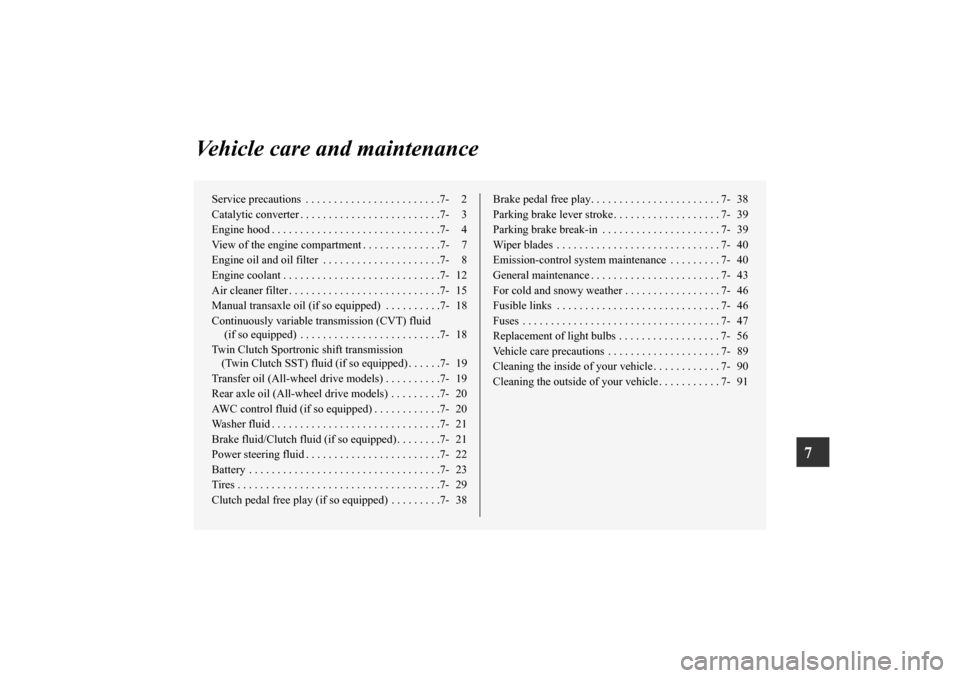

7
Vehicle care and maintenance
Service precautions . . . . . . . . . . . . . . . . . . . . . . . .7- 2
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . .7- 3
Engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 4
View of the engine compartment . . . . . . . . . . . . . .7- 7
Engine oil and oil filter . . . . . . . . . . . . . . . . . . . . .7- 8
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 12
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 15
Manual transaxle oil (if so equipped) . . . . . . . . . .7- 18
Continuously variable transmission (CVT) fluid
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . .7- 18
Twin Clutch Sportronic shift transmission
(Twin Clutch SST) fluid (if so equipped) . . . . . .7- 19
Transfer oil (All-wheel drive models) . . . . . . . . . .7- 19
Rear axle oil (All-wheel drive models) . . . . . . . . .7- 20
AWC control fluid (if so equipped) . . . . . . . . . . . .7- 20
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 21
Brake fluid/Clutch fluid (if so equipped) . . . . . . . .7- 21
Power steering fluid . . . . . . . . . . . . . . . . . . . . . . . .7- 22
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 23
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 29
Clutch pedal free play (if so equipped) . . . . . . . . .7- 38Brake pedal free play. . . . . . . . . . . . . . . . . . . . . . . 7- 38
Parking brake lever stroke . . . . . . . . . . . . . . . . . . . 7- 39
Parking brake break-in . . . . . . . . . . . . . . . . . . . . . 7- 39
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 40
Emission-control system maintenance . . . . . . . . . 7- 40
General maintenance . . . . . . . . . . . . . . . . . . . . . . . 7- 43
For cold and snowy weather . . . . . . . . . . . . . . . . . 7- 46
Fusible links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 46
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 47
Replacement of light bulbs . . . . . . . . . . . . . . . . . . 7- 56
Vehicle care precautions . . . . . . . . . . . . . . . . . . . . 7- 89
Cleaning the inside of your vehicle . . . . . . . . . . . . 7- 90
Cleaning the outside of your vehicle . . . . . . . . . . . 7- 91
BK0102103US.book 1 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Vehicle care and maintenance
7-47

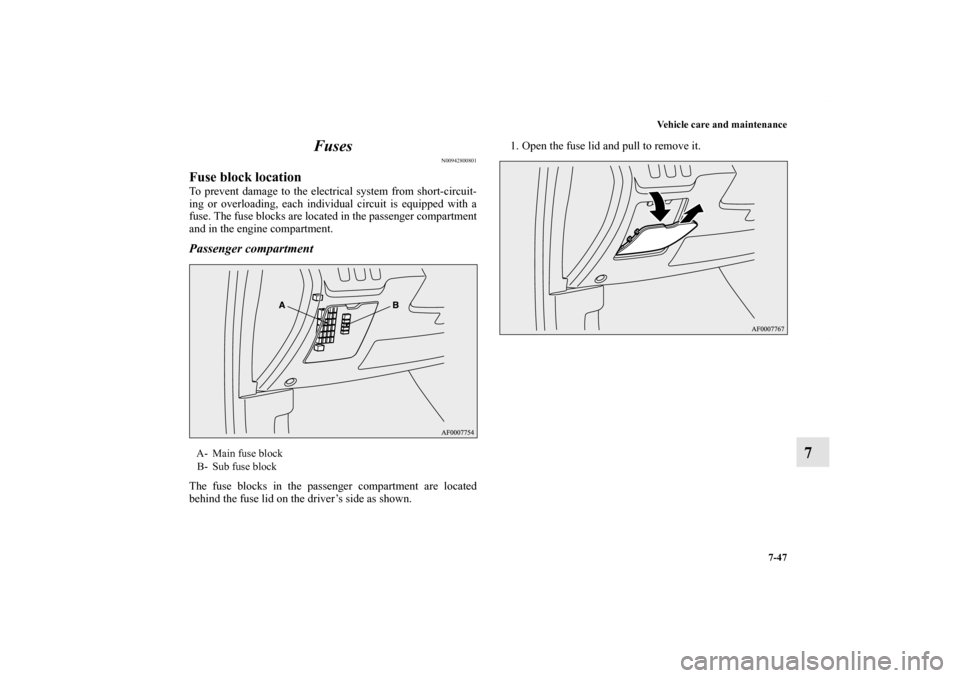

7 Fuses
N00942800801
Fuse block locationTo prevent damage to the electrical system from short-circuit-
ing or overloading, each individual circuit is equipped with a
fuse. The fuse blocks are located in the passenger compartment
and in the engine compartment. Passenger compartmentThe fuse blocks in the passenger compartment are located
behind the fuse lid on the driver’s side as shown.1. Open the fuse lid and pull to remove it.A- Main fuse block
B- Sub fuse block
BK0102103US.book 47 ページ ２００９年１０月２６日　月曜日　午後１時３８分

7-48 Vehicle care and maintenance
7

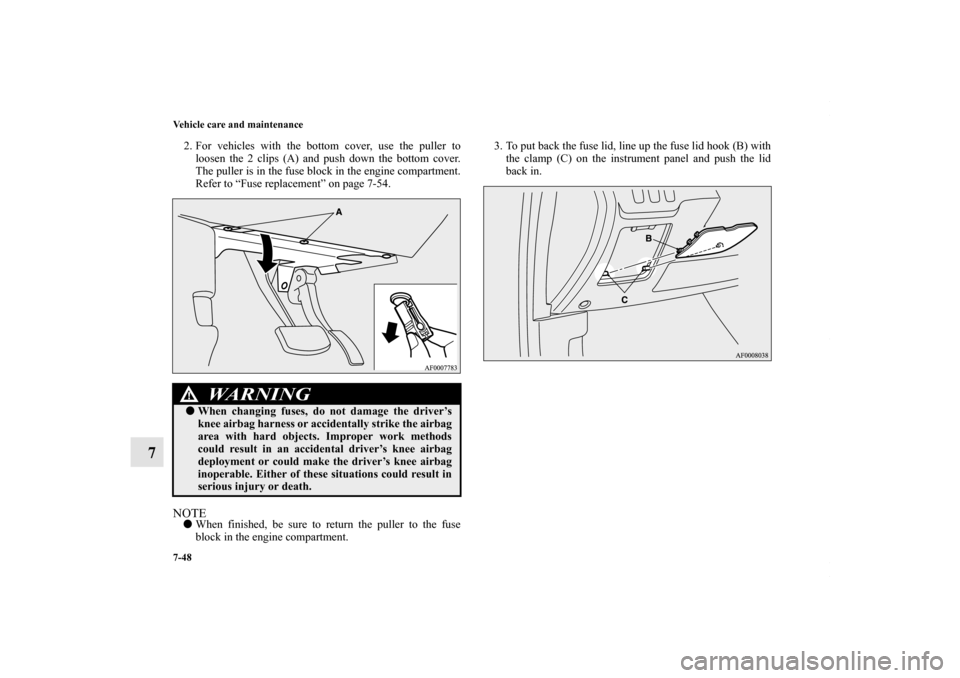

2. For vehicles with the bottom cover, use the puller to
loosen the 2 clips (A) and push down the bottom cover.
The puller is in the fuse block in the engine compartment.
Refer to “Fuse replacement” on page 7-54.NOTE
When finished, be sure to return the puller to the fuse
block in the engine compartment.3. To put back the fuse lid, line up the fuse lid hook (B) with
the clamp (C) on the instrument panel and push the lid
back in.
WARNING
!
When changing fuses, do not damage the driver’s
knee airbag harness or accidentally strike the airbag
area with hard objects. Improper work methods
could result in an accidental driver’s knee airbag
deployment or could make the driver’s knee airbag
inoperable. Either of these situations could result in
serious injury or death.
BK0102103US.book 48 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Vehicle care and maintenance
7-49
7

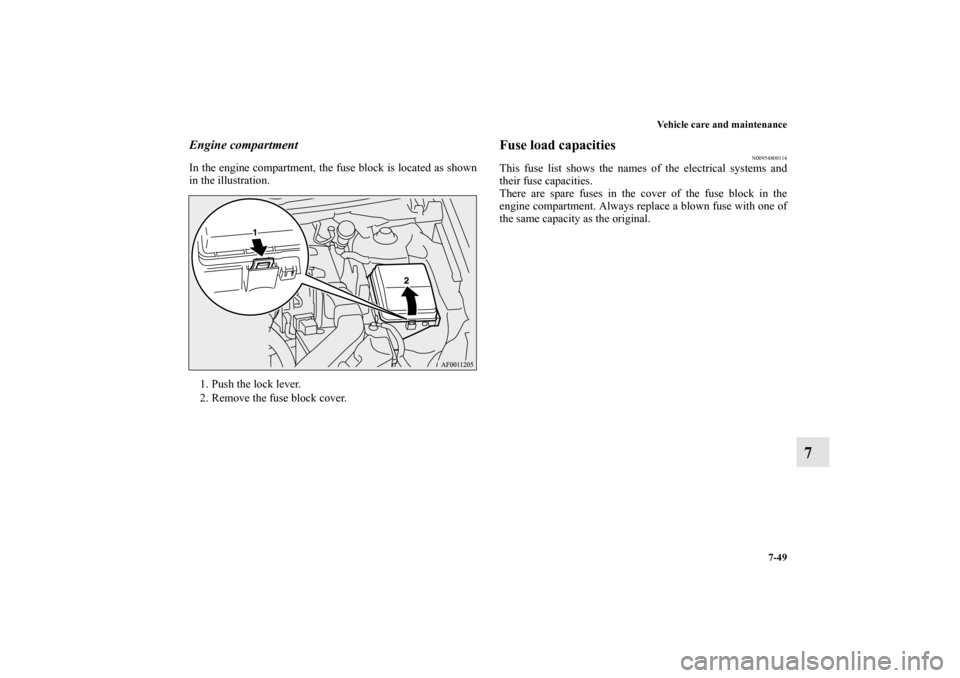

Engine compartmentIn the engine compartment, the fuse block is located as shown
in the illustration.
1. Push the lock lever.
2. Remove the fuse block cover.
Fuse load capacities
N00954800114
This fuse list shows the names of the electrical systems and
their fuse capacities.
There are spare fuses in the cover of the fuse block in the
engine compartment. Always replace a blown fuse with one of
the same capacity as the original.
BK0102103US.book 49 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Vehicle care and maintenance
7-51
7
*- Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.

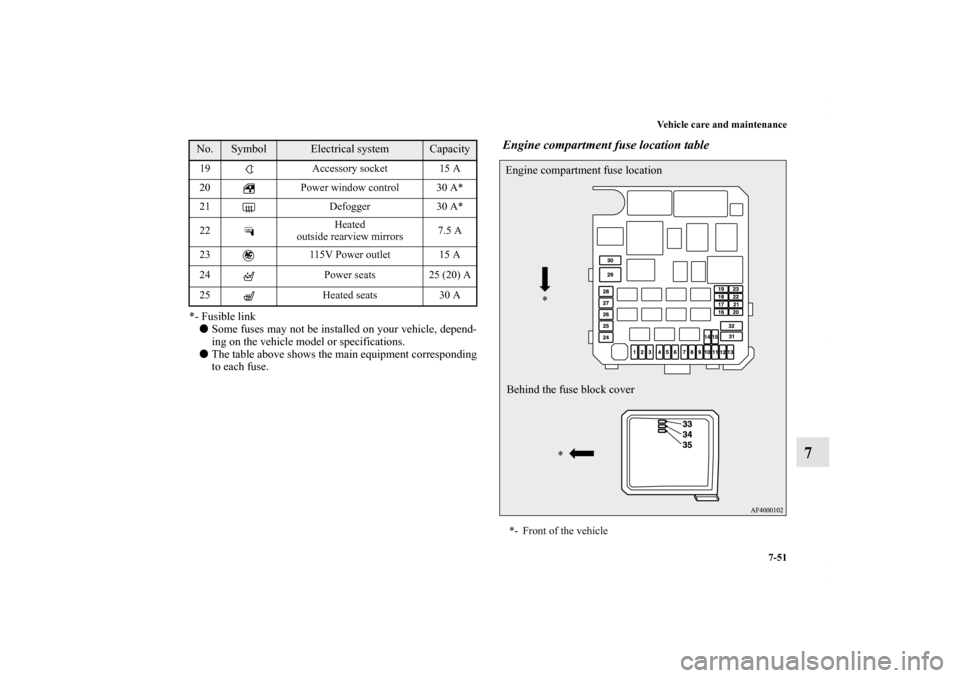

Engine compartment fuse location table
19 Accessory socket 15 A
20 Power window control 30 A*
21 Defogger 30 A*
22Heated
outside rearview mirrors7.5 A
23 115V Power outlet 15 A
24 Power seats 25 (20) A
25 Heated seats 30 ANo.
Symbol
Electrical system
Capacity
*- Front of the vehicleEngine compartment fuse location
Behind the fuse block cover*
*
BK0102103US.book 51 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Vehicle care and maintenance
7-53
7
*- Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding

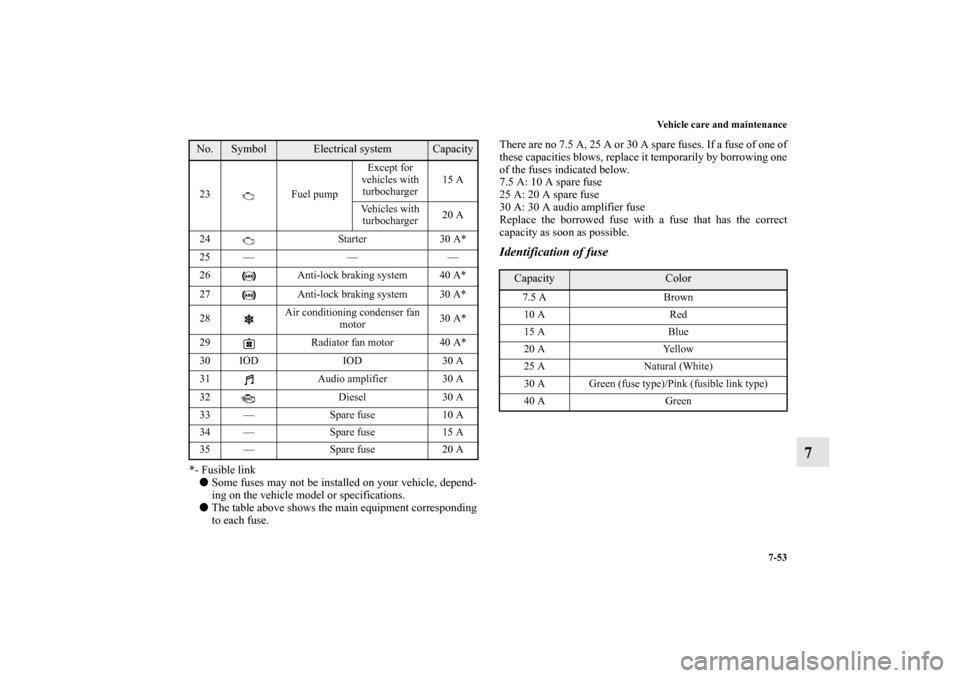

to each fuse.There are no 7.5 A, 25 A or 30 A spare fuses. If a fuse of one of
these capacities blows, replace it temporarily by borrowing one
of the fuses indicated below.
7.5 A: 10 A spare fuse
25 A: 20 A spare fuse
30 A: 30 A audio amplifier fuse
Replace the borrowed fuse with a fuse that has the correct
capacity as soon as possible.
Identification of fuse
23 Fuel pumpExcept for
vehicles with
turbocharger15 A
Vehicles with
turbocharger20 A
24 Starter 30 A*
25 — — —
26 Anti-lock braking system 40 A*
27 Anti-lock braking system 30 A*
28Air conditioning condenser fan
motor30 A*
29 Radiator fan motor 40 A*
30 IOD IOD 30 A
31 Audio amplifier 30 A
32 Diesel 30 A
33 — Spare fuse 10 A
34 — Spare fuse 15 A
35 — Spare fuse 20 ANo.
Symbol
Electrical system
Capacity
Capacity
Color
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
25 A Natural (White)
30 A Green (fuse type)/Pink (fusible link type)
40 A Green
BK0102103US.book 53 ページ ２００９年１０月２６日　月曜日　午後１時３８分

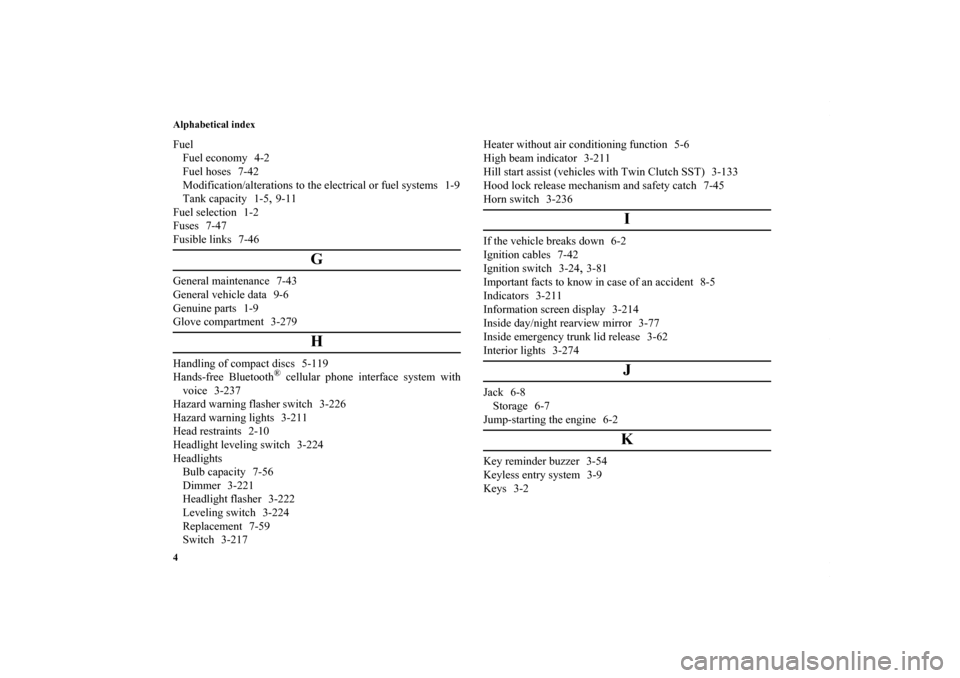

Alphabetical index
4Fuel
Fuel economy 4-2
Fuel hoses 7-42
Modification/alterations to the electrical or fuel systems 1-9
Tank capacity 1-5
,9-11
Fuel selection 1-2
Fuses 7-47
Fusible links 7-46
G
General maintenance 7-43
General vehicle data 9-6
Genuine parts 1-9
Glove compartment 3-279
H
Handling of compact discs 5-119
Hands-free Bluetooth
® cellular phone interface system with
voice 3-237
Hazard warning flasher switch 3-226
Hazard warning lights 3-211
Head restraints 2-10
Headlight leveling switch 3-224
Headlights
Bulb capacity 7-56
Dimmer 3-221
Headlight flasher 3-222
Leveling switch 3-224
Replacement 7-59
Switch 3-217Heater without air conditioning function 5-6
High beam indicator 3-211
Hill start assist (vehicles with Twin Clutch SST) 3-133
Hood lock release mechanism and safety catch 7-45
Horn switch 3-236
I
If the vehicle breaks down 6-2
Ignition cables 7-42
Ignition switch 3-24
,3-81
Important facts to know in case of an accident 8-5
Indicators 3-211
Information screen display 3-214
Inside day/night rearview mirror 3-77
Inside emergency trunk lid release 3-62
Interior lights 3-274
J
Jack 6-8
Storage 6-7
Jump-starting the engine 6-2
K
Key reminder buzzer 3-54
Keyless entry system 3-9
Keys 3-2
BK0102103US.book 4 ページ ２００９年１０月２６日　月曜日　午後１時３８分
