MITSUBISHI LANCER RALLIART 2012 8.G Owners Manual

2-58 Seat and restraint systems
2

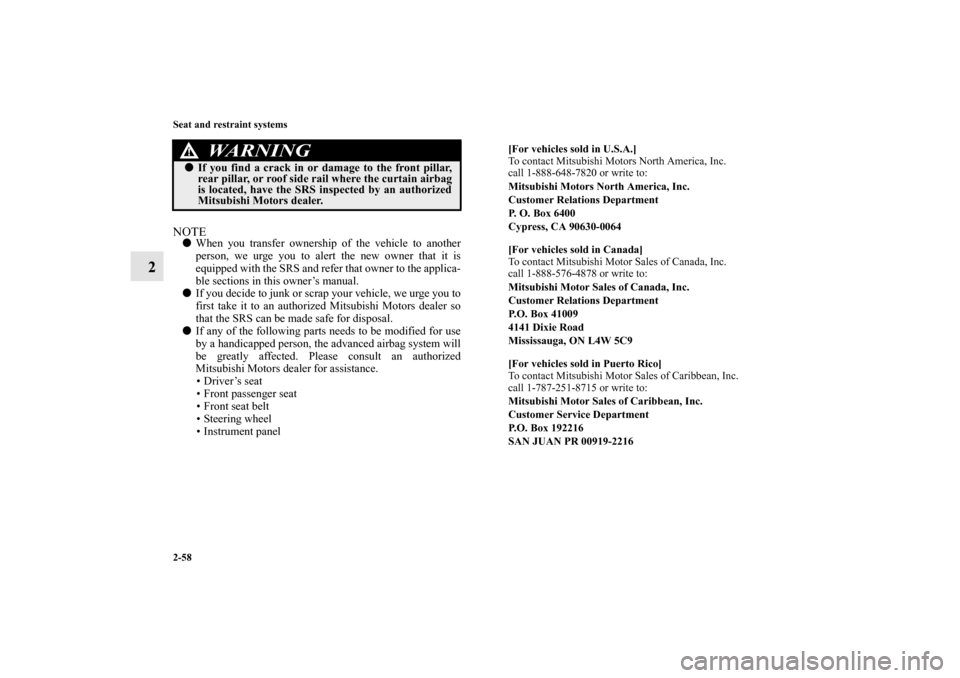

NOTE
When you transfer ownership of the vehicle to another
person, we urge you to alert the new owner that it is
equipped with the SRS and refer that owner to the applica-
ble sections in this owner’s manual.

If you decide to junk or scrap your vehicle, we urge you to
first take it to an authorized Mitsubishi Motors dealer so
that the SRS can be made safe for disposal.

If any of the following parts needs to be modified for use
by a handicapped person, the advanced airbag system will
be greatly affected. Please consult an authorized
Mitsubishi Motors dealer for assistance.
• Driver’s seat
• Front passenger seat
• Front seat belt
• Steering wheel
• Instrument panel
If you find a crack in or damage to the front pillar,
rear pillar, or roof side rail where the curtain airbag
is located, have the SRS inspected by an authorized
Mitsubishi Motors dealer.
WA R N I N G
!
[For vehicles sold in U.S.A.]
To contact Mitsubishi Motors North America, Inc.
call 1-888-648-7820 or write to:
Mitsubishi Motors North America, Inc.
Customer Relations Department
P. O. Box 6400
Cypress, CA 90630-0064
[For vehicles sold in Canada]
To contact Mitsubishi Motor Sales of Canada, Inc.
call 1-888-576-4878 or write to:
Mitsubishi Motor Sales of Canada, Inc.
Customer Relations Department
P.O. Box 41009
4141 Dixie Road
Mississauga, ON L4W 5C9
[For vehicles sold in Puerto Rico]
To contact Mitsubishi Motor Sales of Caribbean, Inc.
call 1-787-251-8715 or write to:
Mitsubishi Motor Sales of Caribbean, Inc.
Customer Service Department
P.O. Box 192216
SAN JUAN PR 00919-2216
BK0138600US.book 58 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Seat and restraint systems
2-59
2

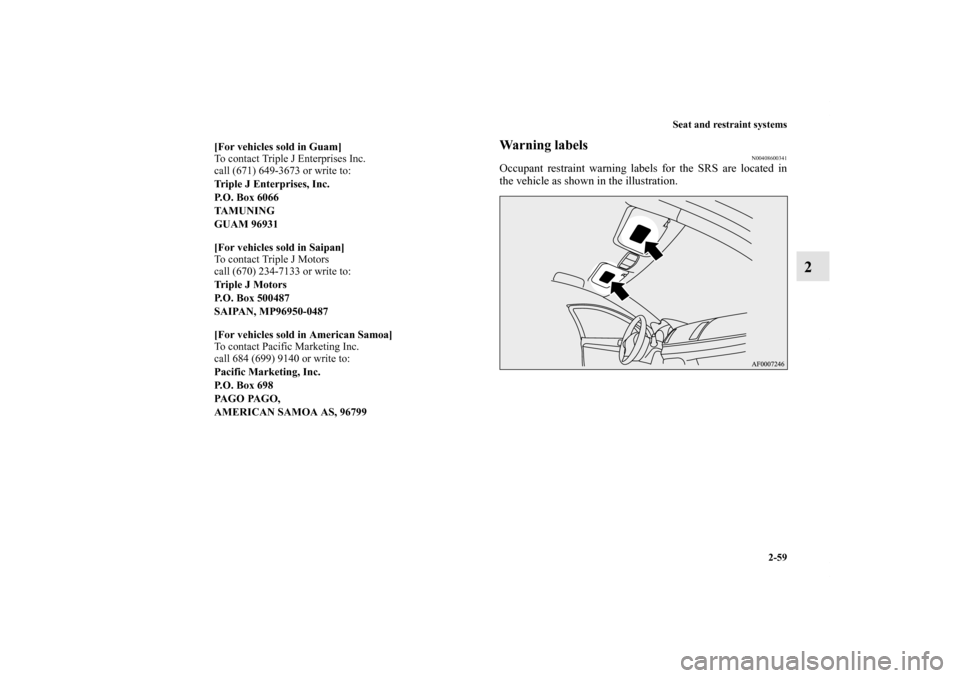

Warning labels
N00408600341
Occupant restraint warning labels for the SRS are located in
the vehicle as shown in the illustration.
[For vehicles sold in Guam]
To contact Triple J Enterprises Inc.
call (671) 649-3673 or write to:
Triple J Enterprises, Inc.
P.O. Box 6066
TAMUNING
GUAM 96931
[For vehicles sold in Saipan]
To contact Triple J Motors
call (670) 234-7133 or write to:
Tr i p l e J M o t o r s
P.O. Box 500487
SAIPAN, MP96950-0487
[For vehicles sold in American Samoa]
To contact Pacific Marketing Inc.
call 684 (699) 9140 or write to:
Pacific Marketing, Inc.
P.O. Box 698
PA G O PA G O ,
AMERICAN SAMOA AS, 96799
BK0138600US.book 59 ページ ２０１１年７月１７日　日曜日　午後２時３２分

2-60 Seat and restraint systems
2

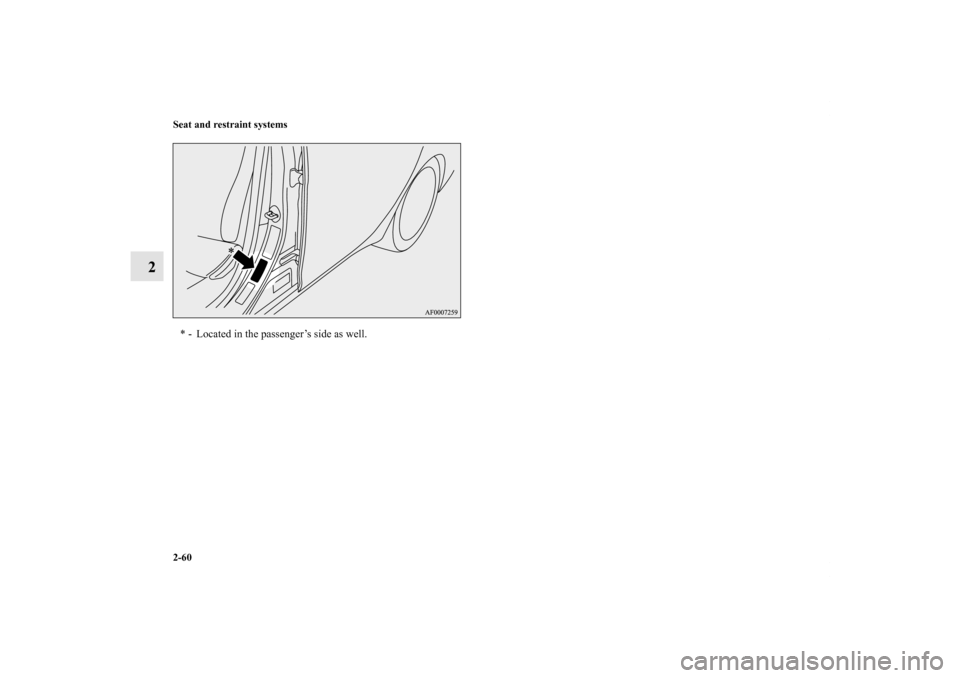

* - Located in the passenger’s side as well.
BK0138600US.book 60 ページ ２０１１年７月１７日　日曜日　午後２時３２分

BK0138600US.book 61 ページ ２０１１年７月１７日　日曜日　午後２時３２分

BK0138600US.book 62 ページ ２０１１年７月１７日　日曜日　午後２時３２分

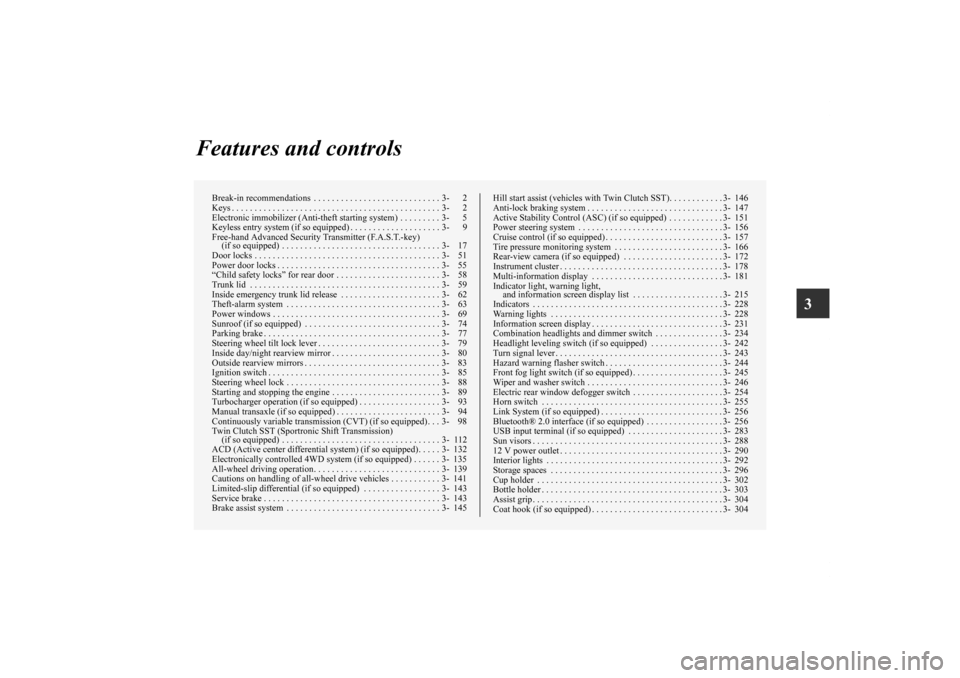

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . 3- 5
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 9
Free-hand Advanced Security Transmitter (F.A.S.T.-key)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 17
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 51
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 55
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . 3- 58
Trunk lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 59
Inside emergency trunk lid release . . . . . . . . . . . . . . . . . . . . . . 3- 62
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 63
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 69
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 74
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 77
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 79
Inside day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 3- 80
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 83
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 85
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 88
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . 3- 89
Turbocharger operation (if so equipped) . . . . . . . . . . . . . . . . . . 3- 93
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 94
Continuously variable transmission (CVT) (if so equipped). . . 3- 98
Twin Clutch SST (Sportronic Shift Transmission)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 112
ACD (Active center differential system) (if so equipped). . . . . 3- 132
Electronically controlled 4WD system (if so equipped) . . . . . . 3- 135
All-wheel driving operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 139
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . 3- 141
Limited-slip differential (if so equipped) . . . . . . . . . . . . . . . . . 3- 143
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 143
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 145Hill start assist (vehicles with Twin Clutch SST). . . . . . . . . . . . 3- 146
Anti-lock braking system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 147
Active Stability Control (ASC) (if so equipped) . . . . . . . . . . . . 3- 151
Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 156
Cruise control (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 157
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . 3- 166
Rear-view camera (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 3- 172
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 178
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 181
Indicator light, warning light,
and information screen display list . . . . . . . . . . . . . . . . . . . . 3- 215
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 228
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 228
Information screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 231
Combination headlights and dimmer switch . . . . . . . . . . . . . . . 3- 234
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . 3- 242
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 243
Hazard warning flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 244
Front fog light switch (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 245
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 246
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . 3- 254
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 255
Link System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 256
Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . 3- 256
USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . 3- 283
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 288
12 V power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 290
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 292
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 296
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 302
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 303
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 304
Coat hook (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 304
BK0138600US.book 1 ページ ２０１１年７月１７日　日曜日　午後２時３２分

3-2 Features and controls
3Break-in recommendations
N00508700297
Advanced automobile manufacturing techniques permit you to
operate your new vehicle without requiring a long break-in
period of low-speed driving.
However, you can add to the future performance and economy
of your vehicle by observing the following precautions during
the first 300 miles (500 km).
Drive your vehicle at moderate speeds during the break-in
period.

Avoid revving the engine. For vehicles with turbocharger,
do not exceed 5,000 rpm for the first 600 miles (1,000
km).

Avoid rough driving such as fast starts, sudden accelera-
tion, prolonged high-speed driving and sudden braking.
These would have a detrimental effect on the engine and
also cause increased fuel and oil consumption, which
could result in malfunction of the engine components. Be
particularly careful to avoid full acceleration while in low
gear.

Do not overload the vehicle. Observe the seating capacity
(See “Cargo load precautions” on page 4-14).

Do not use this vehicle for trailer towing.
Keys
N00508800559
Ty p e 1Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.1- Key for the electronic immobilizer
2- Key number plate
BK0138600US.book 2 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Features and controls
3-3
3

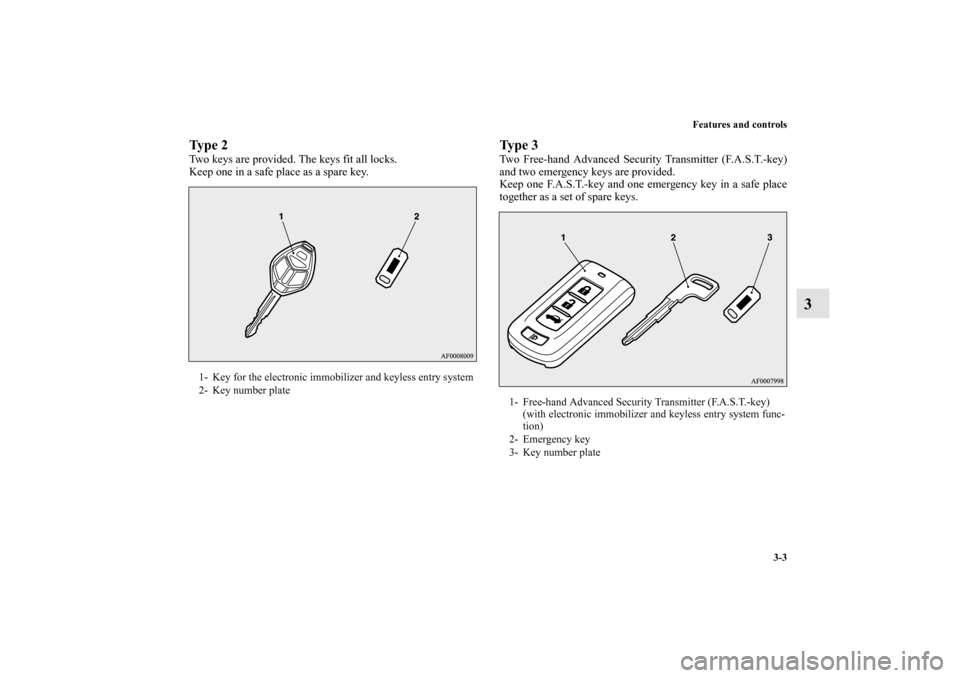

Ty p e 2Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.
Ty p e 3Two Free-hand Advanced Security Transmitter (F.A.S.T.-key)
and two emergency keys are provided.
Keep one F.A.S.T.-key and one emergency key in a safe place
together as a set of spare keys.
1- Key for the electronic immobilizer and keyless entry system
2- Key number plate
1- Free-hand Advanced Security Transmitter (F.A.S.T.-key)
(with electronic immobilizer and keyless entry system func-
tion)
2- Emergency key
3- Key number plate
BK0138600US.book 3 ページ ２０１１年７月１７日　日曜日　午後２時３２分

3-4 Features and controls
3
NOTE
The key is a precision electronic device with a built-in sig-
nal transmitter. Please observe the following in order to
prevent damage.
• Do not leave where it may be exposed to heat caused by
direct sunlight, such as on top of the dashboard.
• Do not take the remote control transmitter apart.
• Do not excessively bend the key or subject it to strong
impacts.
• Keep the remote control transmitter dry.
• Keep away from magnetic objects such as key holders.
• Keep away from devices that produce magnetism, such
as audio systems, computers and televisions.
• Keep away from devices that emit strong electromag-
netic waves, such as cellular phones, wireless devices
and high frequency equipment (including medical
devices).
• Do not clean with ultrasonic cleaners.
• Do not leave the key where it may be exposed to high
temperature or high humidity.

If you lose your key, to prevent the theft of the vehicle
immediately contact an authorized Mitsubishi Motors
dealer.
If you notify an authorized Mitsubishi Motors dealer of
the key number, they can make a new key. The key num-
ber is stamped on the key number plate. Keep the key
number plate in a safe place separate from the key itself.
No keys other than those registered in advance can be
used to start the engine.
Refer to “Electronic immobilizer (Anti-theft starting sys-
tem)” on page 3-5.
Refer to “Free-hand Advanced Security Transmitter
(F.A.S.T.-key)”: “Electronic immobilizer (Anti-theft start-
ing system)” on page 3-41.
BK0138600US.book 4 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Features and controls
3-5

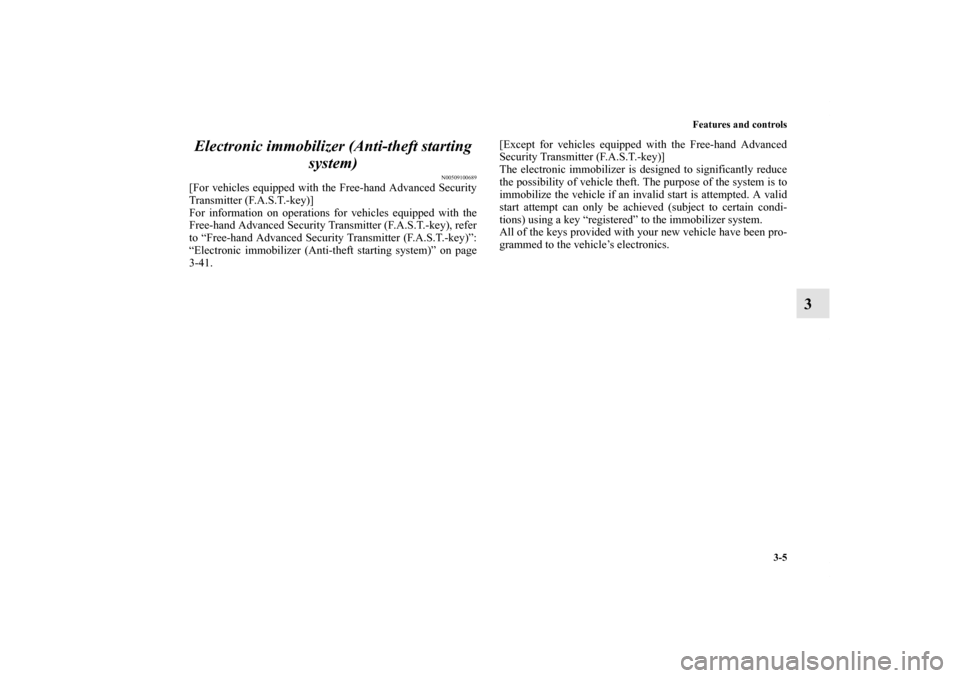

3 Electronic immobilizer (Anti-theft starting
system)
N00509100689
[For vehicles equipped with the Free-hand Advanced Security
Transmitter (F.A.S.T.-key)]
For information on operations for vehicles equipped with the
Free-hand Advanced Security Transmitter (F.A.S.T.-key), refer
to “Free-hand Advanced Security Transmitter (F.A.S.T.-key)”:
“Electronic immobilizer (Anti-theft starting system)” on page
3-41.[Except for vehicles equipped with the Free-hand Advanced
Security Transmitter (F.A.S.T.-key)]
The electronic immobilizer is designed to significantly reduce
the possibility of vehicle theft. The purpose of the system is to
immobilize the vehicle if an invalid start is attempted. A valid
start attempt can only be achieved (subject to certain condi-
tions) using a key “registered” to the immobilizer system.
All of the keys provided with your new vehicle have been pro-
grammed to the vehicle’s electronics.
BK0138600US.book 5 ページ ２０１１年７月１７日　日曜日　午後２時３２分
