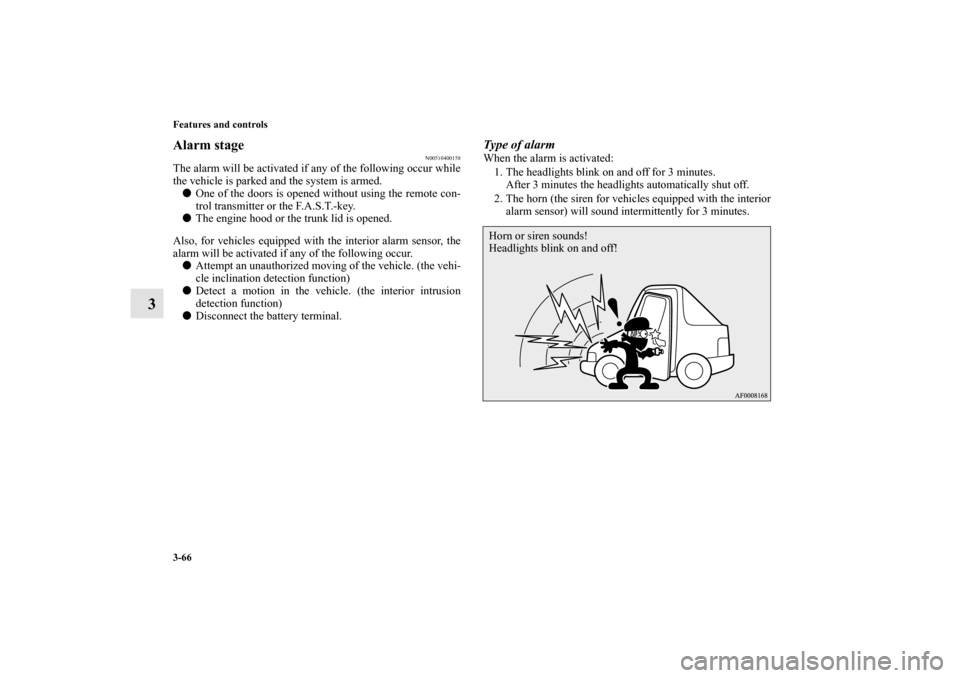

Alarm stage
N00510400158
The alarm will be activated if any of the following occur while
the vehicle is parked and the system is armed.
One of the doors is opened without using the remote con-
trol transmitter or the F.A.S.T.-key.
The engine hood or the trunk lid is opened.
Also, for vehicles equipped with the interior alarm sensor, the
alarm will be activated if any of the following occur.
Attempt an unauthorized moving of the vehicle. (the vehi-
cle inclination detection function)
Detect a motion in the vehicle. (the interior intrusion
detection function)
Disconnect the battery terminal.
Type of alarmWhen the alarm is activated:
1. The headlights blink on and off for 3 minutes.
After 3 minutes the headlights automatically shut off.
2. The horn (the siren for vehicles equipped with the interior
alarm sensor) will sound intermittently for 3 minutes.Horn or siren sounds!
Headlights blink on and off!
BK0138600US.book 66 ページ ２０１１年７月１７日 日曜日 午後２時３２分
Page 162 of 722
Features and controls
3-67
3

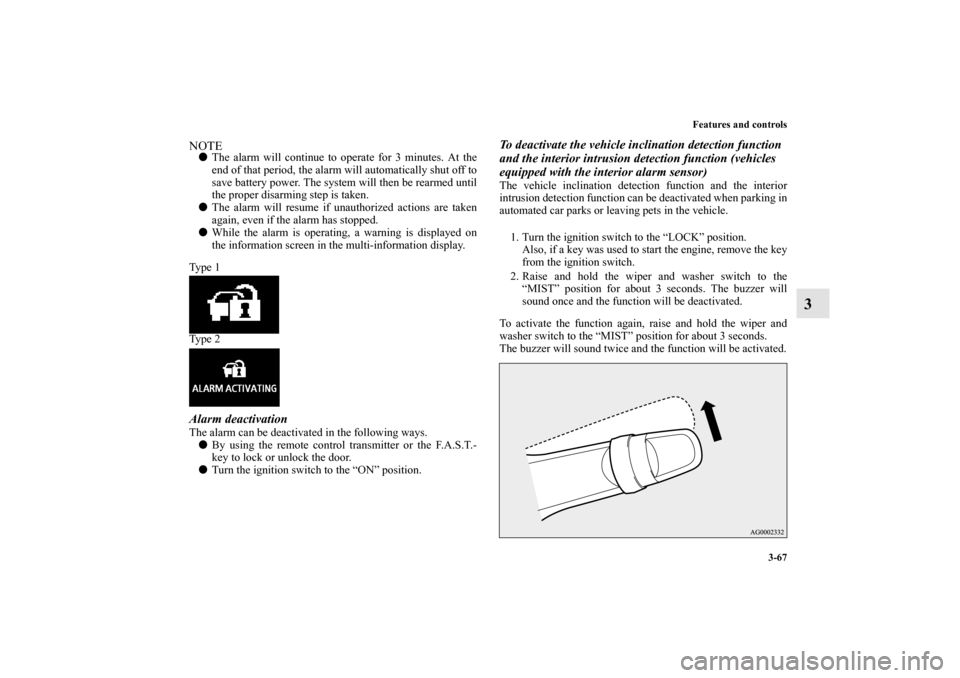

NOTEThe alarm will continue to operate for 3 minutes. At the
end of that period, the alarm will automatically shut off to
save battery power. The system will then be rearmed until
the proper disarming step is taken.
The alarm will resume if unauthorized actions are taken
again, even if the alarm has stopped.
While the alarm is operating, a warning is displayed on
the information screen in the multi-information display.
Ty p e 1
Ty p e 2Alarm deactivationThe alarm can be deactivated in the following ways.
By using the remote control transmitter or the F.A.S.T.-
key to lock or unlock the door.
Turn the ignition switch to the “ON” position.
To deactivate the vehicle inclination detection function
and the interior intrusion detection function (vehicles
equipped with the interior alarm sensor)The vehicle inclination detection function and the interior
intrusion detection function can be deactivated when parking in
automated car parks or leaving pets in the vehicle.
1. Turn the ignition switch to the “LOCK” position.
Also, if a key was used to start the engine, remove the key
from the ignition switch.
2. Raise and hold the wiper and washer switch to the
“MIST” position for about 3 seconds. The buzzer will
sound once and the function will be deactivated.
To activate the function again, raise and hold the wiper and
washer switch to the “MIST” position for about 3 seconds.
The buzzer will sound twice and the function will be activated.
BK0138600US.book 67 ページ ２０１１年７月１７日 日曜日 午後２時３２分
Page 164 of 722
Features and controls
3-69
3

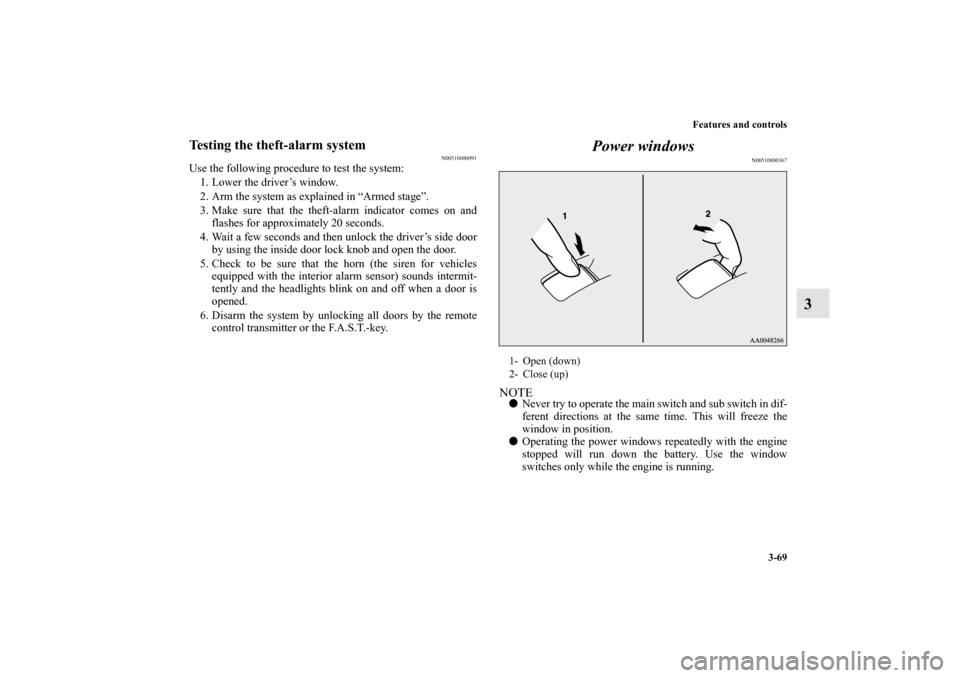

Testing the theft-alarm system
N00510600091
Use the following procedure to test the system:
1. Lower the driver’s window.
2. Arm the system as explained in “Armed stage”.
3. Make sure that the theft-alarm indicator comes on and
flashes for approximately 20 seconds.
4. Wait a few seconds and then unlock the driver’s side door
by using the inside door lock knob and open the door.
5. Check to be sure that the horn (the siren for vehicles
equipped with the interior alarm sensor) sounds intermit-
tently and the headlights blink on and off when a door is
opened.
6. Disarm the system by unlocking all doors by the remote
control transmitter or the F.A.S.T.-key.
Power windows
N00510800367
NOTENever try to operate the main switch and sub switch in dif-
ferent directions at the same time. This will freeze the
window in position.
Operating the power windows repeatedly with the engine
stopped will run down the battery. Use the window
switches only while the engine is running. 1- Open (down)
2- Close (up)
BK0138600US.book 69 ページ ２０１１年７月１７日 日曜日 午後２時３２分
Page 177 of 722
3-82 Features and controls
3
To reduce the glareType 1The day/night knob (A) at the bottom of the mirror can be used
to adjust the mirror to reduce the glare from the headlights of
vehicles behind you during night driving.
Type 2When the headlights of the vehicles behind you are very bright,
the reflection factor of the rearview mirror is automatically
changed to reduce the glare.
Normally, use the automatic mode. When the ignition switch is
turned to the “ON” position, the reflection factor of the mirror
is automatically changed.NOTEDo not hang items on, or spray glass cleaner on the sensor
(1), as reduced sensitivity could result.
1- Daytime position
2- Night position
BK0138600US.book 82 ページ ２０１１年７月１７日 日曜日 午後２時３２分
Page 245 of 722
3-150 Features and controls
3
If the anti-lock braking system warning light / display
and brake warning light / display come on at the same
timeWarning light
Warning display type 1
Warning display type 2
The anti-lock braking system and brake force distribution func-
tion may not work, so hard braking could make the vehicle
unstable.
Avoid hard braking and high-speed driving. Stop the vehicle in
a safe place and contact an authorized Mitsubishi Motors
dealer or repair facility of your choice.NOTEThe anti-lock braking system warning light and brake
warning light illuminate at the same time and the warning
displays appear alternately on the information screen in
the multi-information display.
After driving on icy roads
N00529200022
After driving on snow or icy roads, remove any snow and ice
which may have been left around the wheels. On vehicles that
have an anti-lock braking system, be careful not to damage the
wheel speed sensors (A) or the cables located at each wheel.Front
BK0138600US.book 150 ページ ２０１１年７月１７日 日曜日 午後２時３２分
Page 261 of 722
3-166 Features and controls
3
However, you must repeat the speed setting procedure under
either of the following conditions:
The ignition switch is turned to the “OFF” position.
The cruise control is turned OFF.
“CRUISE” indicator light is turned off.
Tire pressure monitoring system
N00530200400
The tire pressure monitoring system uses tire inflation pressure
sensors (A) on the wheels to monitor the tire inflation pres-
sures. The system only indicates when a tire is significantly
under-inflated.
WA R N I N G
!The spare wheel does not have a tire inflation pres-
sure sensor.
When the spare tire is used, the tire pressure moni-
toring system will not work properly.
See an authorized Mitsubishi Motors dealer as soon
as possible to replace or repair the original tire.
BK0138600US.book 166 ページ ２０１１年７月１７日 日曜日 午後２時３２分
Page 262 of 722
Features and controls
3-167
3
NOTEThe tire pressure monitoring system is not a substitute for
regularly checking tire inflation pressures.
Be sure to check the tire inflation pressures as described in
“Tires” on page 7-29.
Each of the grommets and washers where the tire inflation
pressure sensors are mounted should be replaced with new
ones when the tire is replaced.
For details, contact your authorized Mitsubishi Motors
dealer.
Tire pressure monitoring system warning
light/display
N00532700122
When the ignition switch is turned to the “ON” position, the
tire pressure monitoring system warning light normally illumi-
nates and goes off a few seconds later.
If one or more of the vehicle tires (except for the spare tire) is
significantly under-inflated, the warning light will remain illu-
minated while the ignition switch is in the “ON” position.
Refer to “If the warning light/display illuminates while driv-
ing” on page 3-170 and take the necessary measures.NOTEIn addition, the warning display is displayed on the infor-
mation screen in the multi-information display.
Ty p e 1
Ty p e 2
Wa s h e r
Tire inflation
pressure sensorGrommet
BK0138600US.book 167 ページ ２０１１年７月１７日 日曜日 午後２時３２分
Page 265 of 722
3-170 Features and controls
3
If the warning light/display illuminates while
driving
N00532800439
1. If the tire pressure monitoring system warning light illu-
minates, avoid hard braking, sharp steering maneuvers
and high speeds. You should stop and adjust the tires to
the proper inflation pressure as soon as possible. Adjust
the spare tire at the same time. Refer to “Tires” on page 7-
29.NOTEIn addition, the warning display is displayed on the infor-
mation screen in the multi-information display.
When inspecting or adjusting the tire pressure, do not
apply excessive force to the valve stem to avoid breakage.
After inspecting or adjusting the tire pressure, always
reinstall the valve cap on the valve stem.
Without the valve cap, dirt or moisture could get into the
valve, resulting in damage to the tire inflation pressure
sensor.
Do not use metal valve caps, which may cause a metal
reaction, resulting in corrosion and damage of the tire
inflation pressure sensors.
Once adjustments have been made, the warning light will
go off after a few minutes of driving.
2. If the tire pressure monitoring system warning light
remains illuminated after you have been driving for about
20 minutes after you adjust the tire inflation pressure, one
or more of the tires may have a puncture. Inspect the tire
and if it has a puncture, have it repaired by an authorized
Mitsubishi Motors dealer as soon as possible.
NOTETo avoid the risk of damage to the tire inflation pressure
sensors, have any punctured tire repaired by an authorized
Mitsubishi Motors dealer. If the tire repair is not done by
an authorized Mitsubishi Motors dealer, it is not covered
by your warranty.
Do not use an aerosol puncture-repair product on any tire.
Such a spray could damage the tire inflation pressure sen-
sors. Have any puncture repaired by an authorized
Mitsubishi Motors dealer.
WA R N I N G
!If the warning light/display illuminates while you
are driving, avoid hard braking, sharp steering
maneuvers and high speeds. Driving with an under-
inflated tire adversely affects vehicle performance
and can result in an accident.
CAUTION
!If a tire has a puncture, replace that tire with the
spare tire. Driving on a punctured tire could lead to
an accident.The warning light/display may not illuminate imme-
diately in the event of a tire blowout or rapid leak.
BK0138600US.book 170 ページ ２０１１年７月１７日 日曜日 午後２時３２分
Page 266 of 722
Features and controls
3-171
3
The tire pressure monitoring system may not work normally in
the following circumstances:
A wireless facility or device using the same frequency is
near the vehicle.
Snow or ice is stuck inside the fenders and/or on the
wheels.
The tire inflation pressure sensor’s battery is dead.
Wheels other than Mitsubishi genuine wheels are being
used.
Wheels that are not fitted with tire inflation pressure sen-
sors are being used.
Wheels whose ID codes are not memorized by the vehicle
are used.
Compact spare tire is fitted on a road wheel.
A window tint that affects the radio wave signals is
installed.NOTETire inflation pressures vary with the ambient tempera-
ture. If the vehicle is subjected to large variations in ambi-
ent temperature, the tire inflation pressures may be under-
inflated (causing the warning light/display to come on)
when the ambient temperature is relatively low. If the
warning light/display comes on, adjust the tire inflation
pressure.
Whenever the tires and wheels are replaced with
new ones
N00532900179
If new wheels with new tire inflation pressure sensors are
installed, their ID codes must be programmed into the tire pres-
sure monitoring system. Have tire and wheel replacement per-
formed by an authorized Mitsubishi Motors dealer to avoid the
risk of damaging the tire inflation pressure sensors. If the
wheel replacement is not done by an authorized Mitsubishi
Motors dealer, it is not covered by your warranty.
CAUTION
!The use of non-genuine wheels will prevent the
proper fit of the tire inflation pressure sensors,
resulting in air leakage or damage to the sensors.
BK0138600US.book 171 ページ ２０１１年７月１７日 日曜日 午後２時３２分
Page 270 of 722

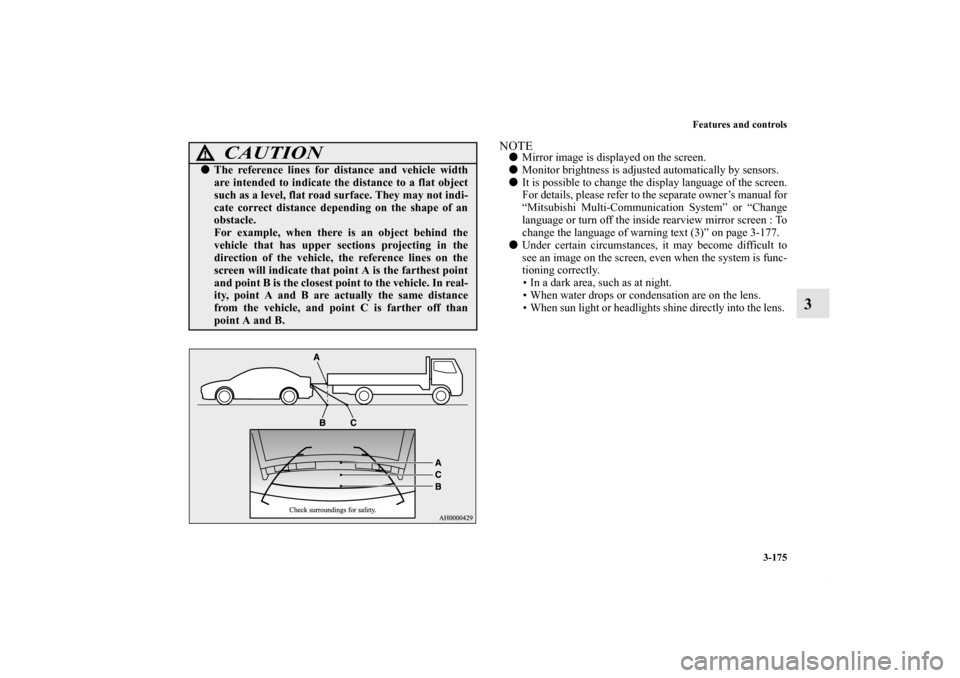

Features and controls
3-175
3
NOTEMirror image is displayed on the screen.
Monitor brightness is adjusted automatically by sensors.
It is possible to change the display language of the screen.
For details, please refer to the separate owner’s manual for
“Mitsubishi Multi-Communication System” or “Change
language or turn off the inside rearview mirror screen : To
change the language of warning text (3)” on page 3-177.
Under certain circumstances, it may become difficult to
see an image on the screen, even when the system is func-
tioning correctly.
• In a dark area, such as at night.
• When water drops or condensation are on the lens.
• When sun light or headlights shine directly into the lens.
CAUTION
!The reference lines for distance and vehicle width
are intended to indicate the distance to a flat object
such as a level, flat road surface. They may not indi-
cate correct distance depending on the shape of an
obstacle.
For example, when there is an object behind the
vehicle that has upper sections projecting in the
direction of the vehicle, the reference lines on the
screen will indicate that point A is the farthest point
and point B is the closest point to the vehicle. In real-
ity, point A and B are actually the same distance
from the vehicle, and point C is farther off than
point A and B.
BK0138600US.book 175 ページ ２０１１年７月１７日 日曜日 午後２時３２分
