MITSUBISHI LANCER RALLIART 2013 8.G MMCS Manual

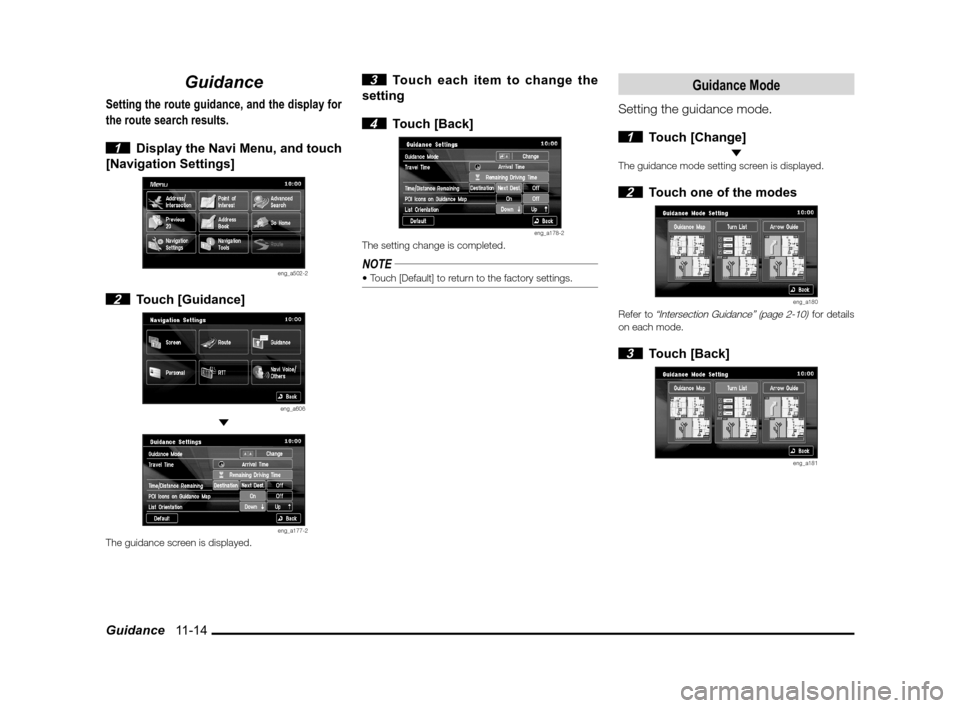

Guidance 11-14
Guidance
Setting the route guidance, and the display for
the route search results.

1 Display the Navi Menu, and touch
[Navigation Settings]
eng_a502-2
2 Touch [Guidance]
eng_a606
eng_a177-2The guidance screen is displayed.
3 Touch each item to change the
setting

4 Touch [Back]
eng_a178-2The setting change is completed.
NOTE
Guidance Mode
Setting the guidance mode.

1 Touch [Change] The guidance mode setting screen is displayed.
2 Touch one of the modes
eng_a180Refer to “Intersection Guidance” (page 2-10) for details
on each mode.
3 Touch [Back]
eng_a181
\b \b
\f \




\b \b \b

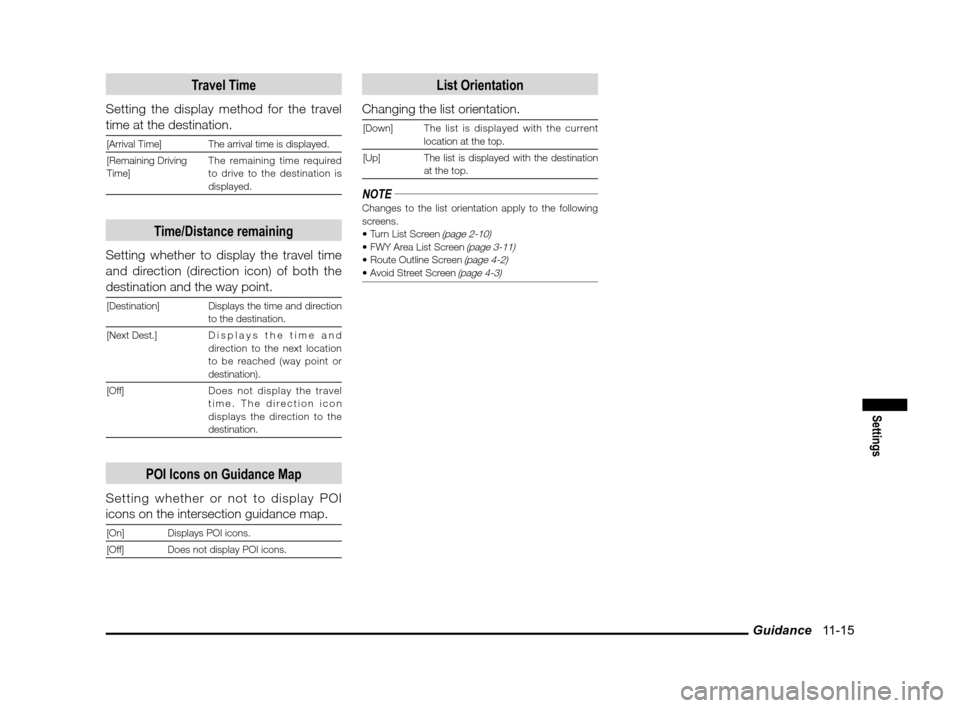

Guidance 11-15
Settings
Travel Time
Setting the display method for the travel
time at the destination.
[Arrival Time] The arrival time is displayed.
[Remaining Driving
Time]The remaining time required
to drive to the destination is
displayed.
Time/Distance remaining
Setting whether to display the travel time
and direction (direction icon) of both the
destination and the way point.
[Destination] Displays the time and direction
to the destination.
[Next Dest.] Displays the time and
direction to the next location
to be reached (way point or
destination).
[Off] Does not display the travel time. The direction icon
displays the direction to the
destination.
POI Icons on Guidance Map
Setting whether or not to display POI
icons on the intersection guidance map.
[On] Displays POI icons.
[Off] Does not display POI icons.
List Orientation
Changing the list orientation.
[Down]The list is displayed with the current
location at the top.
[Up] The list is displayed with the destination at the top.
NOTEChanges to the list orientation apply to the following
screens.

(page 2-10)(page 3-11)(page 4-2)(page 4-3)
\b \b
\f \




 \b \b
\f

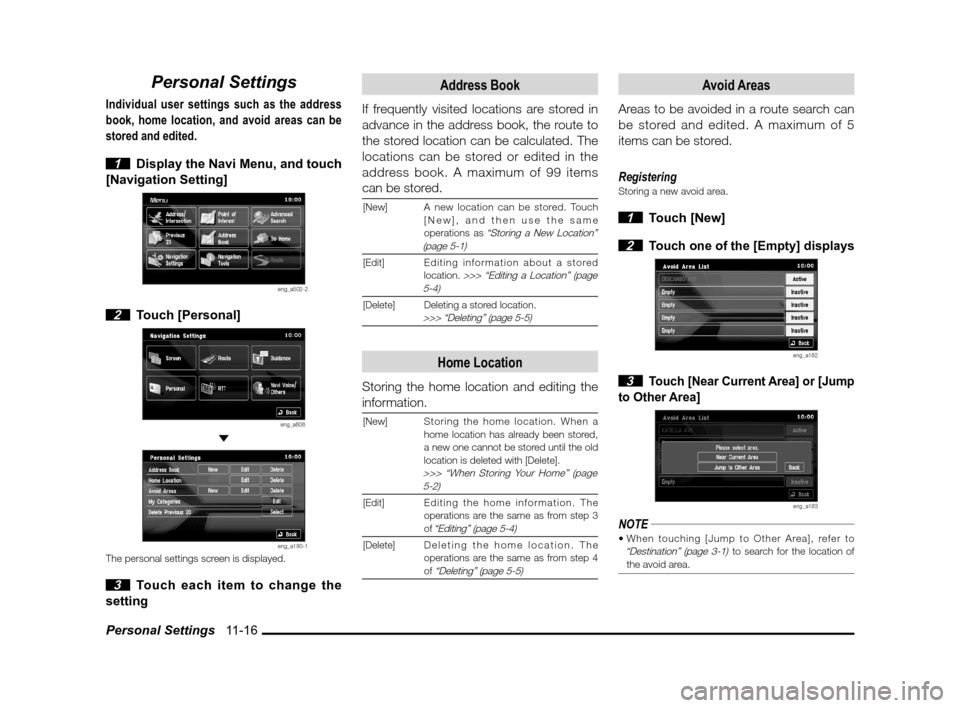

Personal Settings 11-16
Personal Settings
Individual user settings such as the address
book, home location, and avoid areas can be
stored and edited.

1 Display the Navi Menu, and touch
[Navigation Setting]
eng_a502-2
2 Touch [Personal]
eng_a606
eng_a190-1The personal settings screen is displayed.
3 Touch each item to change the
setting
Address Book
If frequently visited locations are stored in
advance in the address book, the route to
the stored location can be calculated. The
locations can be stored or edited in the
address book. A maximum of 99 items
can be stored.
[New] A new location can be stored. Touch
[New], and then use the same
operations as
“Storing a New Location”
(page 5-1)
[Edit] Editing information about a stored
location. >>> “Editing a Location” (page
5-4)
[Delete] Deleting a stored location.>>> “Deleting” (page 5-5)
Home Location
Storing the home location and editing the
information.
[New] Storing the home location. When a
home location has already been stored,
a new one cannot be stored until the old
location is deleted with [Delete].
>>> “When Storing Your Home” (page
5-2)
[Edit] E diting the home information. The
operations are the same as from step 3
of
“Editing” (page 5-4)
[Delete] Deleting the home location. The
operations are the same as from step 4
of
“Deleting” (page 5-5)
Avoid Areas
Areas to be avoided in a route search can
be stored and edited. A maximum of 5
items can be stored.
Registering
Storing a new avoid area.
1 Touch [New]

2 Touch one of the [Empty] displays
eng_a182
3 Touch [Near Current Area] or [Jump
to Other Area]
eng_a183
NOTE“Destination” (page 3-1) to search for the location of
the avoid area.
\b \b
\f \




 \b \b
\f

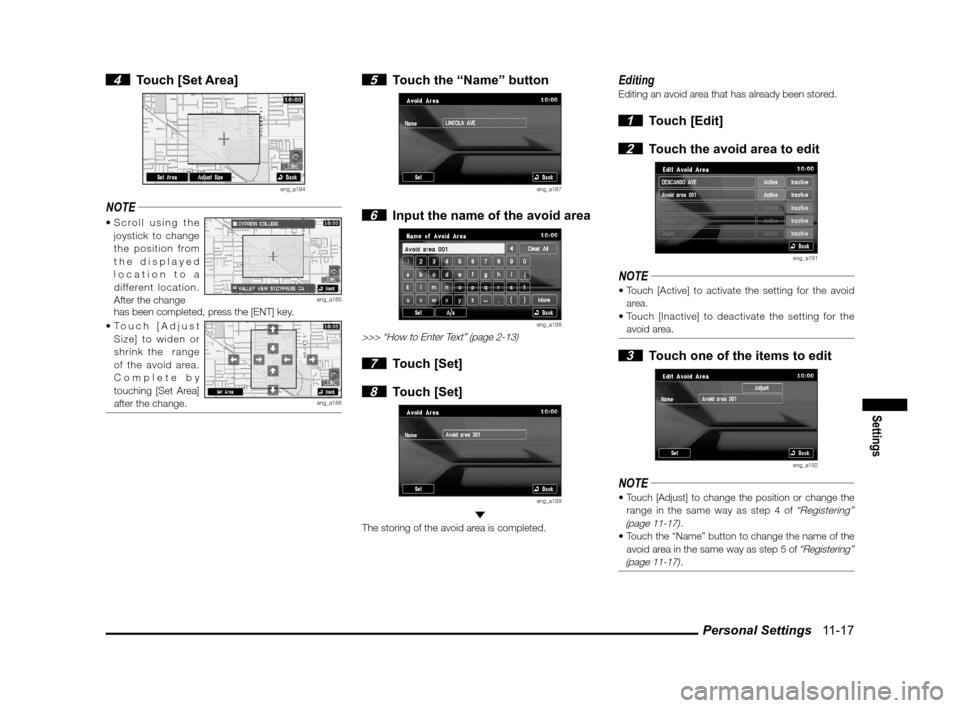

Personal Settings 11-17
Settings
4 Touch [Set Area]
eng_a184
NOTE
joystick to change
the position from
the displayed
location to a
different location.
After the change
eng_a185 has been completed, press the [ENT] key.
[Adjust Size] to widen or
shrink the range
of the avoid area.
Complete by
touching [Set Area]
after the change.
eng_a186
5 Touch the “Name” button
eng_a187
6 Input the name of the avoid area
eng_a188>>> “How to Enter Text” (page 2-13)
7 Touch [Set]

8 Touch [Set]
eng_a189
The storing of the avoid area is completed.
EditingEditing an avoid area that has already been stored.
1 Touch [Edit]

2 Touch the avoid area to edit
eng_a191
NOTE area.
avoid area.
3 Touch one of the items to edit
eng_a192
NOTErange in the same way as step 4 of “Registering”
(page 11-17).
avoid area in the same way as step 5 of
“Registering”
(page 11-17).
\b \b
\f \




 \b \b
\f

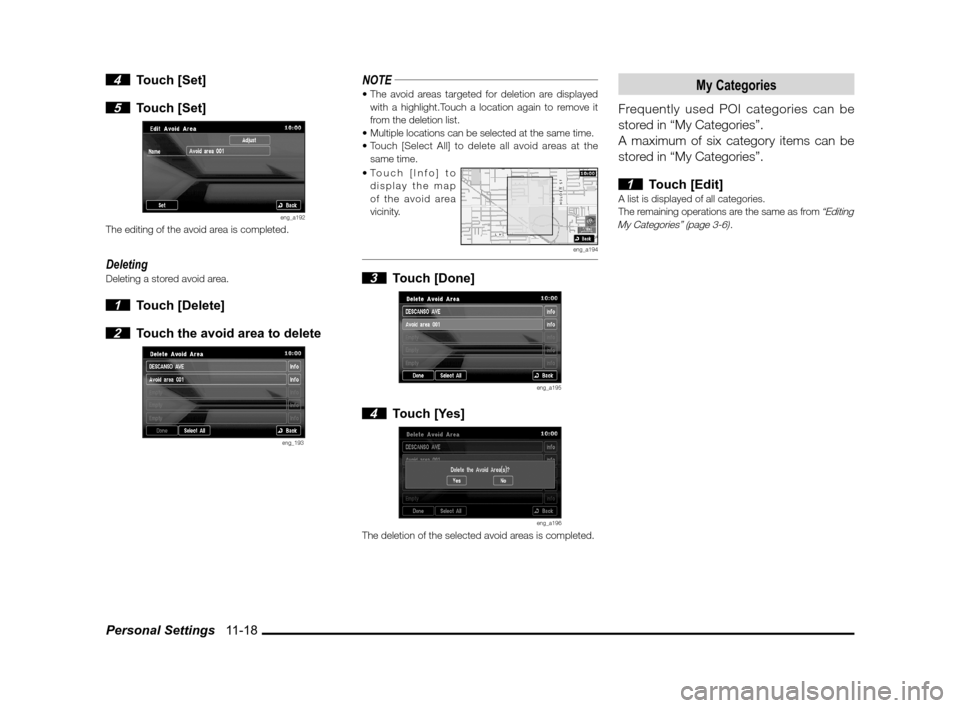

Personal Settings 11-18
4 Touch [Set]

5 Touch [Set]
eng_a192The editing of the avoid area is completed.
DeletingDeleting a stored avoid area.
1 Touch [Delete]

2 Touch the avoid area to delete
eng_193
NOTE with a highlight.Touch a location again to remove it
from the deletion list.

same time.
display the map
of the avoid area
vicinity.
eng_a194
3 Touch [Done]
eng_a195
4 Touch [Yes]
eng_a196The deletion of the selected avoid areas is completed.
My Categories
Frequently used POI categories can be
stored in “My Categories”.
A maximum of six category items can be
stored in “My Categories”.

1 Touch [Edit]A list is displayed of all categories.
The remaining operations are the same as from “Editing
My Categories” (page 3-6).
\b \b
\f \




 \b \b
\f

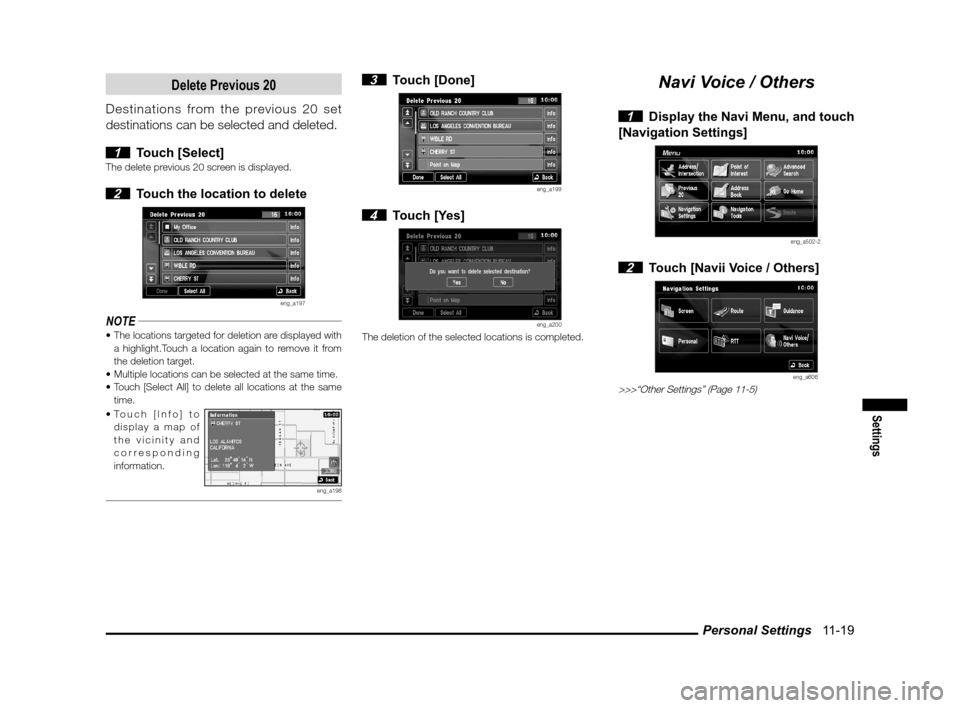

Personal Settings 11-19
Settings
Delete Previous 20
Destinations from the previous 20 set
destinations can be selected and deleted.

1 Touch [Select]The delete previous 20 screen is displayed.
2 Touch the location to delete
eng_a197
NOTEa highlight.Touch a location again to remove it from
the deletion target.

time.
display a map of
the vicinity and
corresponding
information.
eng_a198
3 Touch [Done]
eng_a199
4 Touch [Yes]
eng_a200The deletion of the selected locations is completed.
Navi Voice / Others
1 Display the Navi Menu, and touch
[Navigation Settings]
eng_a502-2
2 Touch [Navii Voice / Others]
eng_a606>>>“Other Settings” (Page 11-5)
\b \b
\f \




 \b \b
\f

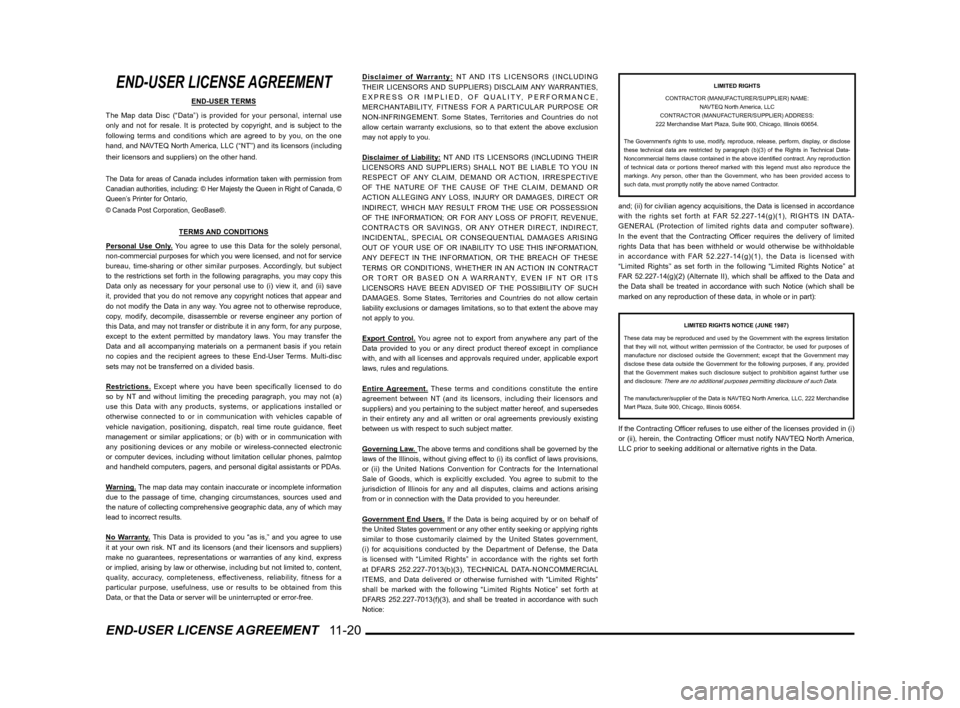

END-USER LICENSE AGREEMENT 11-20
END-USER LICENSE AGREEMENT
END-USER TERMS
The Map data Disc (“Data”) is provided for your personal, intern\
al use
only and not for resale. It is protected by copyright, and is subject to\
the
following terms and conditions which are agreed to by you, on the one
hand, and NAVTEQ North America, LLC (“NT”) and its licensors (including
their licensors and suppliers) on the other hand.
The Data for areas of Canada includes information taken with permission \
from
Canadian authorities, including: © Her Majesty the Queen in Right of \
Canada, ©
Queen’s Printer for Ontario,
© Canada Post Corporation, GeoBase®.
TERMS AND CONDITIONS
Personal Use Only. You agree to use this Data for the solely personal,
non-commercial purposes for which you were licensed, and not for service\

bureau, time-sharing or other similar purposes. Accordingly, but subject
to the restrictions set forth in the following paragraphs, you may copy \
this
Data only as necessary for your personal use to (i) view it, and (ii)\
save
it, provided that you do not remove any copyright notices that appear an\
d
do not modify the Data in any way. You agree not to otherwise reproduce,
copy, modify, decompile, disassemble or reverse engineer any portion of
this Data, and may not transfer or distribute it in any form, for any pu\
rpose,
except to the extent permitted by mandatory laws. You may transfer the
Data and all accompanying materials on a permanent basis if you retain
no copies and the recipient agrees to these End-User Terms. Multi-disc
sets may not be transferred on a divided basis.
Restrictions. Except where you have been specifically licensed to do
so by NT and without limiting the preceding paragraph, you may not (a)
use this Data with any products, systems, or applications installed or
otherwise connected to or in communication with vehicles capable of
vehicle navigation, positioning, dispatch, real time route guidance, fl eet
management or similar applications; or (b) with or in communication wi\
th
any positioning devices or any mobile or wireless-connected electronic
or computer devices, including without limitation cellular phones, palmt\
op
and handheld computers, pagers, and personal digital assistants or PDAs.\
Warning. The map data may contain inaccurate or incomplete information
due to the passage of time, changing circumstances, sources used and
the nature of collecting comprehensive geographic data, any of which may\

lead to incorrect results.
No Warranty. This Data is provided to you “as is,” and you agree to use
it at your own risk. NT and its licensors (and their licensors and suppliers)
make no guarantees, representations or warranties of any kind, express
or implied, arising by law or otherwise, including but not limited to, c\
ontent,
quality, accuracy, completeness, effectiveness, reliability, fitness for a
particular purpose, usefulness, use or results to be obtained from this
Data, or that the Data or server will be uninterrupted or error-free. Disclaimer of Warranty:
NT AND ITS LICENSORS (INCLUDING
THEIR LICENSORS AND SUPPLIERS) DISCLAIM ANY WARRANTIES,
EXPRESS OR IMPLIED, OF QUALITY, PERFORMANCE,
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR
NON-INFRINGEMENT. Some States, Territories and Countries do not
allow certain warranty exclusions, so to that extent the above exclusion\

may not apply to you.
Disclaimer of Liability: NT AND ITS LICENSORS (INCLUDING THEIR
LICENSORS AND SUPPLIERS) SHALL NOT BE LIABLE TO YOU IN
RESPECT OF ANY CLAIM, DEMAND OR ACTION, IRRESPECTIVE
OF THE NATURE OF THE CAUSE OF THE CLAIM, DEMAND OR
ACTION ALLEGING ANY LOSS, INJURY OR DAMAGES, DIRECT OR
INDIRECT, WHICH MAY RESULT FROM THE USE OR POSSESSION
OF THE INFORMATION; OR FOR ANY LOSS OF PROFIT, REVENUE,
CONTRACTS OR SAVINGS, OR ANY OTHER DIRECT, INDIRECT,
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING
OUT OF YOUR USE OF OR INABILITY TO USE THIS INFORMATION,
ANY DEFECT IN THE INFORMATION, OR THE BREACH OF THESE
TERMS OR CONDITIONS, WHETHER IN AN ACTION IN CONTRACT
OR TORT OR BASED ON A WARRANTY, EVEN IF NT OR ITS
LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. Some States, Territories and Countries do not allow certain
liability exclusions or damages limitations, so to that extent the above\
may
not apply to you.
Export Control. You agree not to export from anywhere any part of the
Data provided to you or any direct product thereof except in compliance \
with, and with all licenses and approvals required under, applicable export
laws, rules and regulations.
Entire Agreement. These terms and conditions constitute the entire
agreement between NT (and its licensors, including their licensors and
suppliers) and you pertaining to the subject matter hereof, and superse\
des
in their entirety any and all written or oral agreements previously exis\
ting
between us with respect to such subject matter.
Governing Law. The above terms and conditions shall be governed by the
laws of the Illinois, without giving effect to (i) its con fl ict of laws provisions,
or (ii) the United Nations Convention for Contracts for the Internatio\
nal
Sale of Goods, which is explicitly excluded. You agree to submit to the
jurisdiction of Illinois for any and all disputes, claims and actions ar\
ising
from or in connection with the Data provided to you hereunder.
Government End Users. If the Data is being acquired by or on behalf of
the United States government or any other entity seeking or applying rig\
hts
similar to those customarily claimed by the United States government,
(i) for acquisitions conducted by the Department of Defense, the Data
is licensed with “Limited Rights” in accordance with the rights se\
t forth
at DFARS 252.227-7013(b)(3), TECHNICAL DATA-NONCOMMERCIAL
ITEMS, and Data delivered or otherwise furnished with “Limited Rights\
”
shall be marked with the following “Limited Rights Notice” set for\
th at
DFARS 252.227-7013(f)(3), and shall be treated in accordance with such\

Notice:
LIMITED RIGHTS
CONTRACTOR (MANUFACTURER/SUPPLIER) NAME: NAVTEQ North America, LLC
CONTRACTOR (MANUFACTURER/SUPPLIER) ADDRESS:
222 Merchandise Mart Plaza, Suite 900, Chicago, Illinois 60654.
The Government's rights to use, modify, reproduce, release, perform, display, or disclose
these technical data are restricted by paragraph (b)(3) of the Right\
s in Technical Data-
Noncommercial Items clause contained in the above identi fi ed contract. Any reproduction
of technical data or portions thereof marked with this legend must also \
reproduce the
markings. Any person, other than the Government, who has been provided access to
such data, must promptly notify the above named Contractor.
and; (ii) for civilian agency acquisitions, the Data is licensed in ac\
cordance
with the rights set forth at FAR 52.227-14(g)(1), RIGHTS IN DATA-
GENERAL (Protection of limited rights data and computer software).
In the event that the Contracting Offi cer requires the delivery of limited
rights Data that has been withheld or would otherwise be withholdable
in accordance with FAR 52.227-14(g)(1), the Data is licensed with
“Limited Rights” as set forth in the following “Limited Rights \
Notice” at
FAR 52.227-14(g)(2) (Alternate II), which shall be af fi xed to the Data and
the Data shall be treated in accordance with such Notice (which shall b\
e
marked on any reproduction of these data, in whole or in part):
LIMITED RIGHTS NOTICE (JUNE 1987)
These data may be reproduced and used by the Government with the express\
limitation
that they will not, without written permission of the Contractor, be used for purposes of
manufacture nor disclosed outside the Government; except that the Govern\
ment may
disclose these data outside the Government for the following purposes, i\
f any, provided
that the Government makes such disclosure subject to prohibition against\
further use
and disclosure:
There are no additional purposes permitting disclosure of such Data.
The manufacturer/supplier of the Data is NAVTEQ North America, LLC, 222 Merchandise
Mart Plaza, Suite 900, Chicago, Illinois 60654.
If the Contracting Offi cer refuses to use either of the licenses provided in (i)
or (ii), herein, the Contracting Offi cer must notify NAVTEQ North America,
LLC prior to seeking additional or alternative rights in the Data.
\b \b
\f \



 \b \b
\f
