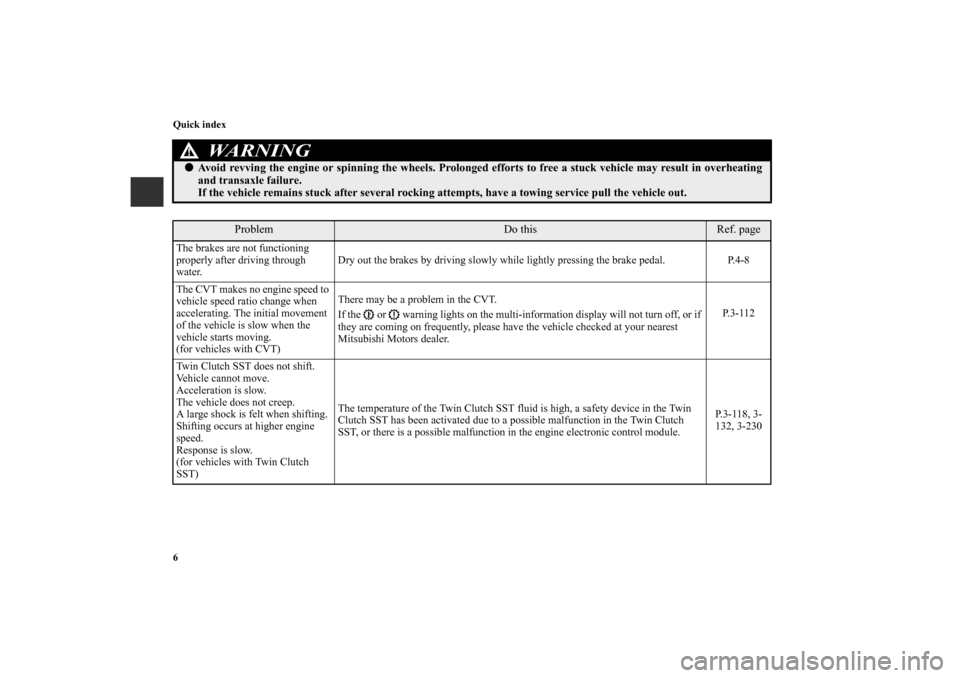

Avoid revving the engine or spinning the wheels. Prolonged efforts to free a stuck vehicle may result in overheating
and transaxle failure.
If the vehicle remains stuck after several rocking attempts, have a towing service pull the vehicle out.
Problem
Do this
Ref. page
The brakes are not functioning
properly after driving through
water. Dry out the brakes by driving slowly while lightly pressing the brake pedal. P.4-8
The CVT makes no engine speed to
vehicle speed ratio change when
accelerating. The initial movement
of the vehicle is slow when the
vehicle starts moving.
(for vehicles with CVT)There may be a problem in the CVT.
If the or warning lights on the multi-information display will not turn off, or if
they are coming on frequently, please have the vehicle checked at your nearest
Mitsubishi Motors dealer. P. 3 - 1 1 2
Twin Clutch SST does not shift.
Vehicle cannot move.
Acceleration is slow.
The vehicle does not creep.
A large shock is felt when shifting.
Shifting occurs at higher engine
speed.
Response is slow.
(for vehicles with Twin Clutch
SST)The temperature of the Twin Clutch SST fluid is high, a safety device in the Twin
Clutch SST has been activated due to a possible malfunction in the Twin Clutch
SST, or there is a possible malfunction in the engine electronic control module.P.3-118, 3-
132, 3-230
WA R N I N G
!
BK0150800US.book 6 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-79
3

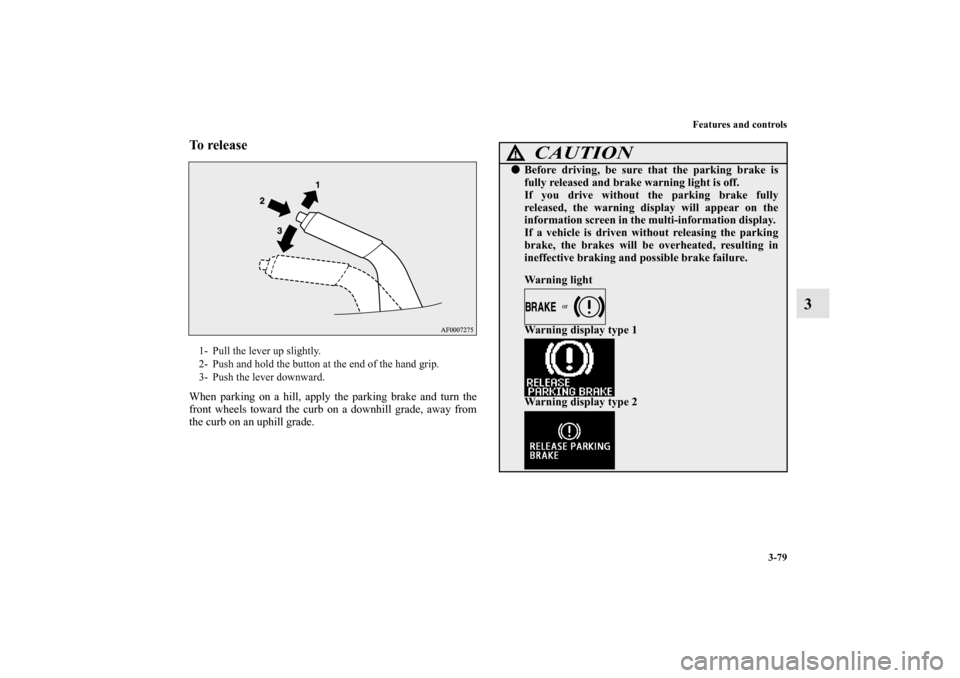

To release When parking on a hill, apply the parking brake and turn the
front wheels toward the curb on a downhill grade, away from
the curb on an uphill grade.1- Pull the lever up slightly.
2- Push and hold the button at the end of the hand grip.
3- Push the lever downward.
CAUTION
!
Before driving, be sure that the parking brake is
fully released and brake warning light is off.
If you drive without the parking brake fully
released, the warning display will appear on the
information screen in the multi-information display.
If a vehicle is driven without releasing the parking
brake, the brakes will be overheated, resulting in
ineffective braking and possible brake failure.
Warning light
Warning display type 1
Warning display type 2
BK0150800US.book 79 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-110 Features and controls
3
Sports mode display
N00538800154
In sports mode, the currently selected shift range is displayed
on the information screen in the multi-information display.NOTE
While driving in sports mode, the sports mode display
may change to show “D” and shifting in sports mode may
no longer be possible.
This indicates that controls to drive in the “D” position are
operating normally in order to lower the temperature of
the continuously variable transmission (CVT) fluid; it
does not indicate a malfunction. Once the temperature of
the continuously variable transmission (CVT) fluid drops,
shifting in the sports mode will be possible again.
Operation of the CVT
N00514500287
CAUTION
!
Before selecting a position with the engine running
and the vehicle stationary, fully depress the brake
pedal to prevent the vehicle from creeping.
Do not release the brakes until you are ready to
drive away. The vehicle will begin to move as soon as
the CVT is engaged, especially when the engine
speed is high (fast idle or air conditioning on).
Depress the brake pedal with the right foot.
Using the left foot could cause driver movement
delay in case of an emergency.
To prevent sudden acceleration, never run the
engine at high rpms when shifting from the “P”
(PARK) or “N” (NEUTRAL) position.
Operating the accelerator pedal while the other foot
is resting on the brake pedal will affect braking effi-
ciency and may cause premature wear of brake
pads.
Use the selector lever in the correct shift position in
accordance with driving conditions.
Never coast downhill backward in the driving shift
position { “D” (DRIVE), “L” (LOW) or sports
mode} or coast forward in the “R” (REVERSE)
position.
Engine stopping and increased brake pedal and
steering effort could lead to an accident.
BK0150800US.book 110 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-121
3

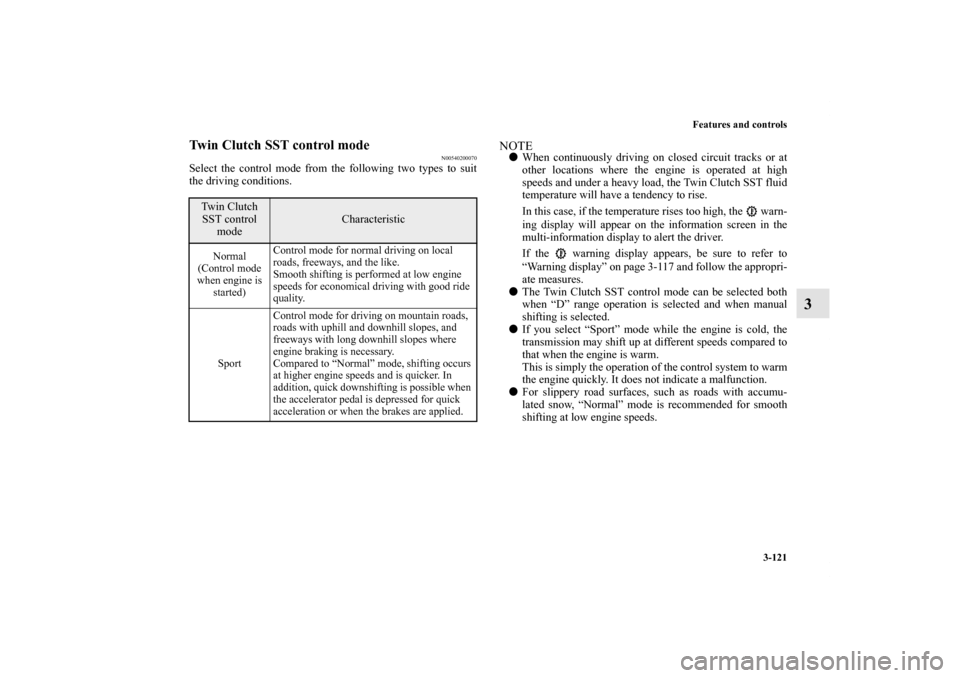

Twin Clutch SST control mode
N00540200070
Select the control mode from the following two types to suit
the driving conditions.
NOTE
When continuously driving on closed circuit tracks or at
other locations where the engine is operated at high
speeds and under a heavy load, the Twin Clutch SST fluid
temperature will have a tendency to rise.
In this case, if the temperature rises too high, the warn-
ing display will appear on the information screen in the
multi-information display to alert the driver.
If the warning display appears, be sure to refer to
“Warning display” on page 3-117 and follow the appropri-
ate measures.

The Twin Clutch SST control mode can be selected both
when “D” range operation is selected and when manual
shifting is selected.

If you select “Sport” mode while the engine is cold, the
transmission may shift up at different speeds compared to
that when the engine is warm.
This is simply the operation of the control system to warm
the engine quickly. It does not indicate a malfunction.

For slippery road surfaces, such as roads with accumu-
lated snow, “Normal” mode is recommended for smooth
shifting at low engine speeds.
Tw i n C l u t c h
SST control
mode
Characteristic
Normal
(Control mode
when engine is
started)Control mode for normal driving on local
roads, freeways, and the like.
Smooth shifting is performed at low engine
speeds for economical driving with good ride
quality.
SportControl mode for driving on mountain roads,
roads with uphill and downhill slopes, and
freeways with long downhill slopes where
engine braking is necessary.
Compared to “Normal” mode, shifting occurs
at higher engine speeds and is quicker. In
addition, quick downshifting is possible when
the accelerator pedal is depressed for quick
acceleration or when the brakes are applied.
BK0150800US.book 121 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-129
3

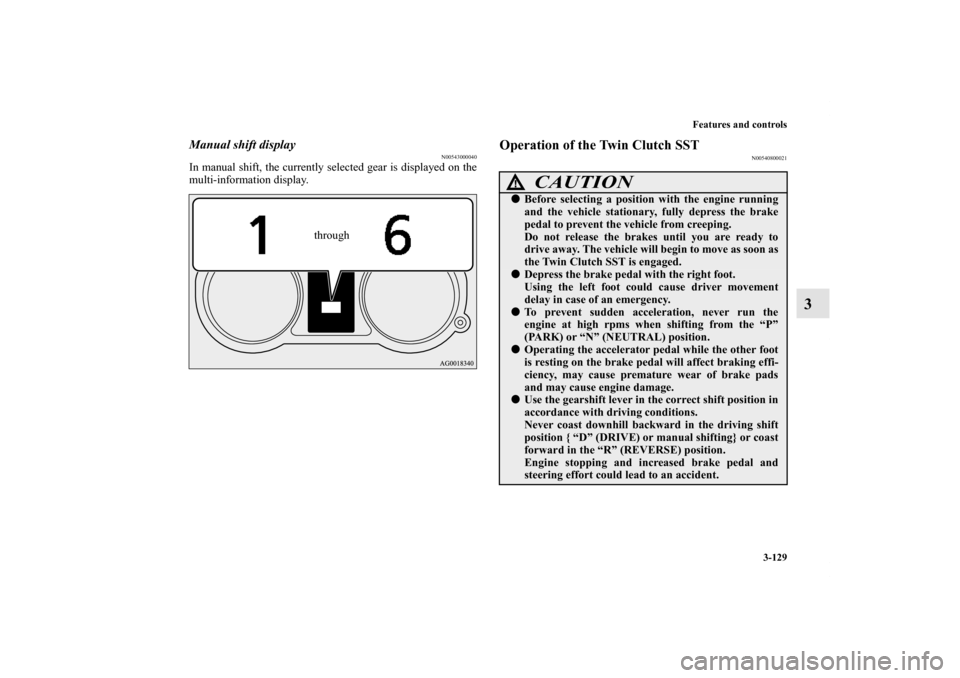

Manual shift display
N00543000040
In manual shift, the currently selected gear is displayed on the
multi-information display.
Operation of the Twin Clutch SST
N00540800021
through
CAUTION
!
Before selecting a position with the engine running
and the vehicle stationary, fully depress the brake
pedal to prevent the vehicle from creeping.
Do not release the brakes until you are ready to
drive away. The vehicle will begin to move as soon as
the Twin Clutch SST is engaged.
Depress the brake pedal with the right foot.
Using the left foot could cause driver movement
delay in case of an emergency.
To prevent sudden acceleration, never run the
engine at high rpms when shifting from the “P”
(PARK) or “N” (NEUTRAL) position.
Operating the accelerator pedal while the other foot
is resting on the brake pedal will affect braking effi-
ciency, may cause premature wear of brake pads
and may cause engine damage.
Use the gearshift lever in the correct shift position in
accordance with driving conditions.
Never coast downhill backward in the driving shift
position { “D” (DRIVE) or manual shifting} or coast
forward in the “R” (REVERSE) position.
Engine stopping and increased brake pedal and
steering effort could lead to an accident.
BK0150800US.book 129 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-131
3

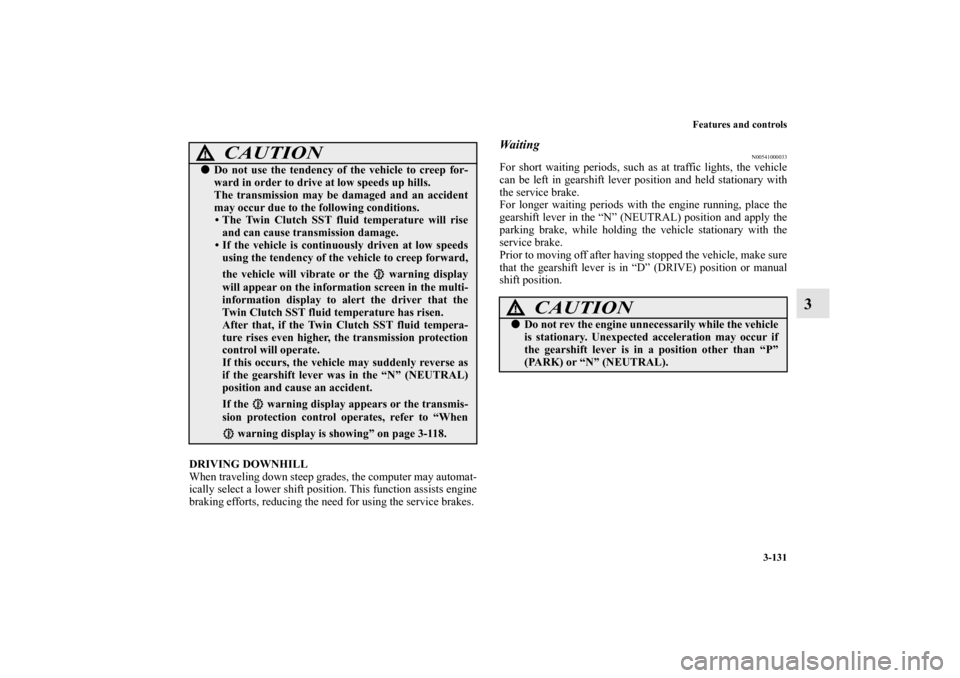

DRIVING DOWNHILL
When traveling down steep grades, the computer may automat-
ically select a lower shift position. This function assists engine
braking efforts, reducing the need for using the service brakes.
Waiting
N00541000033
For short waiting periods, such as at traffic lights, the vehicle
can be left in gearshift lever position and held stationary with
the service brake.
For longer waiting periods with the engine running, place the
gearshift lever in the “N” (NEUTRAL) position and apply the
parking brake, while holding the vehicle stationary with the
service brake.
Prior to moving off after having stopped the vehicle, make sure
that the gearshift lever is in “D” (DRIVE) position or manual
shift position.
CAUTION
!
Do not use the tendency of the vehicle to creep for-
ward in order to drive at low speeds up hills.
The transmission may be damaged and an accident
may occur due to the following conditions.
• The Twin Clutch SST fluid temperature will rise
and can cause transmission damage.
• If the vehicle is continuously driven at low speeds
using the tendency of the vehicle to creep forward,
the vehicle will vibrate or the warning display
will appear on the information screen in the multi-
information display to alert the driver that the
Twin Clutch SST fluid temperature has risen.
After that, if the Twin Clutch SST fluid tempera-
ture rises even higher, the transmission protection
control will operate.
If this occurs, the vehicle may suddenly reverse as
if the gearshift lever was in the “N” (NEUTRAL)
position and cause an accident.
If the warning display appears or the transmis-
sion protection control operates, refer to “When
warning display is showing” on page 3-118.
CAUTION
!
Do not rev the engine unnecessarily while the vehicle
is stationary. Unexpected acceleration may occur if
the gearshift lever is in a position other than “P”
(PARK) or “N” (NEUTRAL).
BK0150800US.book 131 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-140 Features and controls

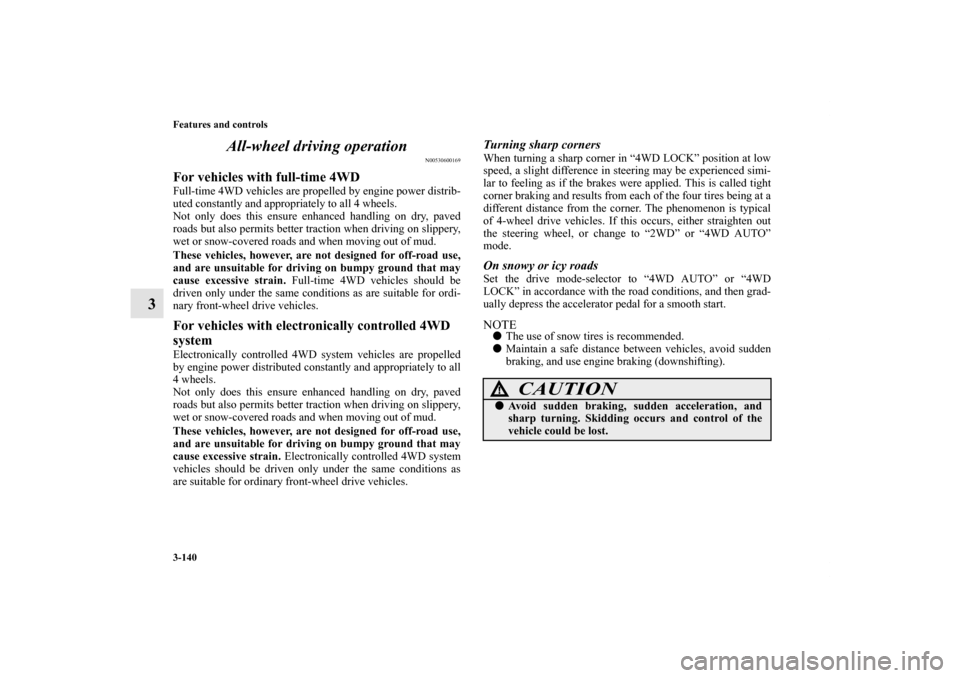

3All-wheel driving operation
N00530600169
For vehicles with full-time 4WDFull-time 4WD vehicles are propelled by engine power distrib-
uted constantly and appropriately to all 4 wheels.
Not only does this ensure enhanced handling on dry, paved
roads but also permits better traction when driving on slippery,
wet or snow-covered roads and when moving out of mud.
These vehicles, however, are not designed for off-road use,
and are unsuitable for driving on bumpy ground that may
cause excessive strain. Full-time 4WD vehicles should be
driven only under the same conditions as are suitable for ordi-
nary front-wheel drive vehicles.For vehicles with electronically controlled 4WD
systemElectronically controlled 4WD system vehicles are propelled
by engine power distributed constantly and appropriately to all
4 wheels.
Not only does this ensure enhanced handling on dry, paved
roads but also permits better traction when driving on slippery,
wet or snow-covered roads and when moving out of mud.
These vehicles, however, are not designed for off-road use,
and are unsuitable for driving on bumpy ground that may
cause excessive strain. Electronically controlled 4WD system
vehicles should be driven only under the same conditions as
are suitable for ordinary front-wheel drive vehicles.
Turning sharp cornersWhen turning a sharp corner in “4WD LOCK” position at low
speed, a slight difference in steering may be experienced simi-
lar to feeling as if the brakes were applied. This is called tight
corner braking and results from each of the four tires being at a
different distance from the corner. The phenomenon is typical
of 4-wheel drive vehicles. If this occurs, either straighten out
the steering wheel, or change to “2WD” or “4WD AUTO”
mode.On snowy or icy roadsSet the drive mode-selector to “4WD AUTO” or “4WD
LOCK” in accordance with the road conditions, and then grad-
ually depress the accelerator pedal for a smooth start.NOTE
The use of snow tires is recommended.

Maintain a safe distance between vehicles, avoid sudden
braking, and use engine braking (downshifting).
CAUTION
!
Avoid sudden braking, sudden acceleration, and
sharp turning. Skidding occurs and control of the
vehicle could be lost.
BK0150800US.book 140 ページ ２０１２年３月２９日　木曜日　午後２時３８分

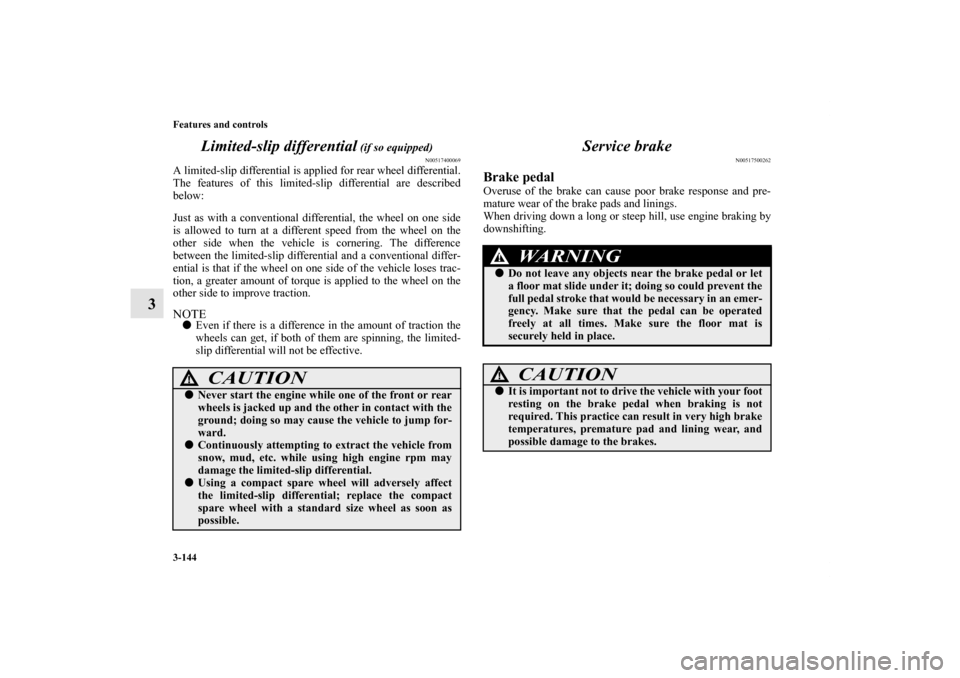

3-144 Features and controls
3Limited-slip differential
(if so equipped)
N00517400069
A limited-slip differential is applied for rear wheel differential.
The features of this limited-slip differential are described
below:
Just as with a conventional differential, the wheel on one side
is allowed to turn at a different speed from the wheel on the
other side when the vehicle is cornering. The difference
between the limited-slip differential and a conventional differ-
ential is that if the wheel on one side of the vehicle loses trac-
tion, a greater amount of torque is applied to the wheel on the
other side to improve traction.NOTE
Even if there is a difference in the amount of traction the
wheels can get, if both of them are spinning, the limited-
slip differential will not be effective.
Service brake
N00517500262
Brake pedalOveruse of the brake can cause poor brake response and pre-
mature wear of the brake pads and linings.
When driving down a long or steep hill, use engine braking by
downshifting.
CAUTION
!
Never start the engine while one of the front or rear
wheels is jacked up and the other in contact with the
ground; doing so may cause the vehicle to jump for-
ward.
Continuously attempting to extract the vehicle from
snow, mud, etc. while using high engine rpm may
damage the limited-slip differential.
Using a compact spare wheel will adversely affect
the limited-slip differential; replace the compact
spare wheel with a standard size wheel as soon as
possible.
WA R N I N G
!
Do not leave any objects near the brake pedal or let
a floor mat slide under it; doing so could prevent the
full pedal stroke that would be necessary in an emer-
gency. Make sure that the pedal can be operated
freely at all times. Make sure the floor mat is
securely held in place.
CAUTION
!
It is important not to drive the vehicle with your foot
resting on the brake pedal when braking is not
required. This practice can result in very high brake
temperatures, premature pad and lining wear, and
possible damage to the brakes.
BK0150800US.book 144 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-145
3

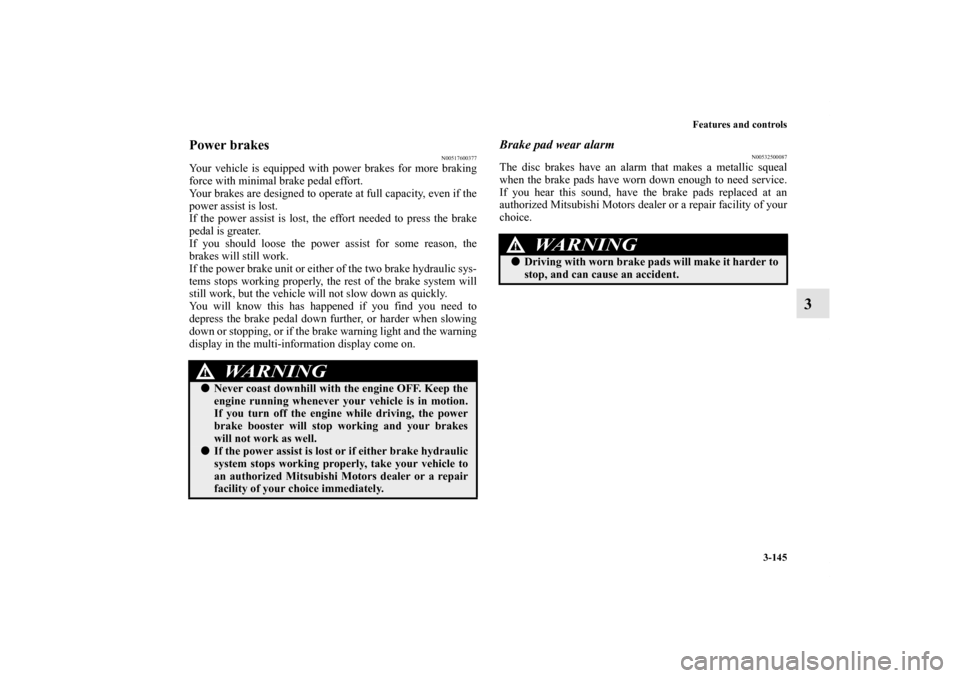

Power brakes
N00517600377
Your vehicle is equipped with power brakes for more braking
force with minimal brake pedal effort.
Your brakes are designed to operate at full capacity, even if the
power assist is lost.
If the power assist is lost, the effort needed to press the brake
pedal is greater.
If you should loose the power assist for some reason, the
brakes will still work.
If the power brake unit or either of the two brake hydraulic sys-
tems stops working properly, the rest of the brake system will
still work, but the vehicle will not slow down as quickly.
You will know this has happened if you find you need to
depress the brake pedal down further, or harder when slowing
down or stopping, or if the brake warning light and the warning
display in the multi-information display come on.
Brake pad wear alarm
N00532500087
The disc brakes have an alarm that makes a metallic squeal
when the brake pads have worn down enough to need service.
If you hear this sound, have the brake pads replaced at an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
WA R N I N G
!
Never coast downhill with the engine OFF. Keep the
engine running whenever your vehicle is in motion.
If you turn off the engine while driving, the power
brake booster will stop working and your brakes
will not work as well.
If the power assist is lost or if either brake hydraulic
system stops working properly, take your vehicle to
an authorized Mitsubishi Motors dealer or a repair
facility of your choice immediately.
WA R N I N G
!
Driving with worn brake pads will make it harder to
stop, and can cause an accident.
BK0150800US.book 145 ページ ２０１２年３月２９日　木曜日　午後２時３８分

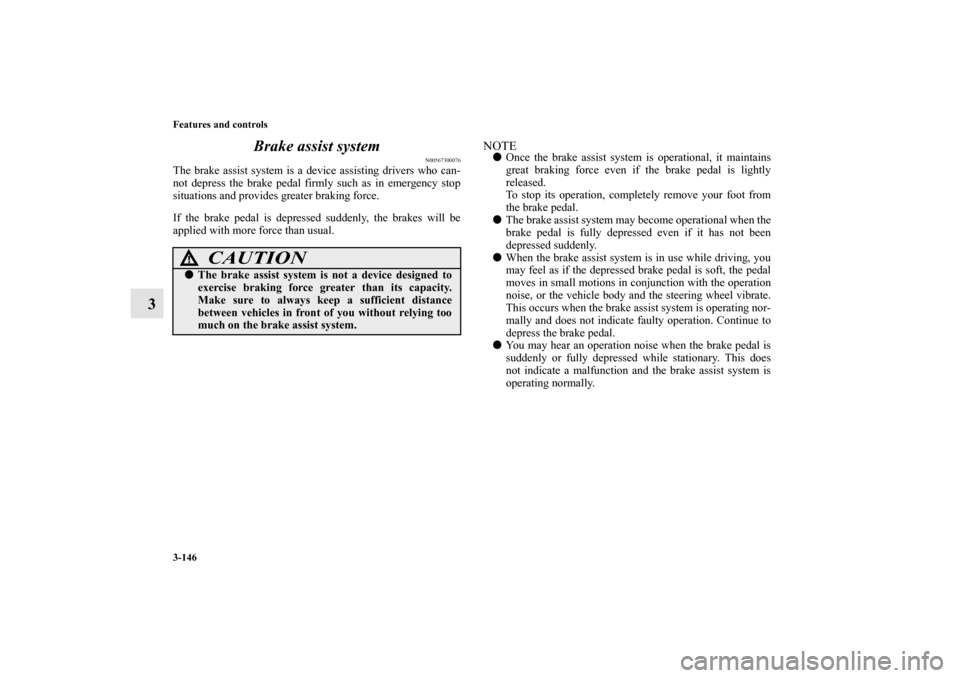

3-146 Features and controls
3Brake assist system
N00567300076
The brake assist system is a device assisting drivers who can-
not depress the brake pedal firmly such as in emergency stop
situations and provides greater braking force.
If the brake pedal is depressed suddenly, the brakes will be
applied with more force than usual.
NOTE
Once the brake assist system is operational, it maintains
great braking force even if the brake pedal is lightly
released.
To stop its operation, completely remove your foot from
the brake pedal.

The brake assist system may become operational when the
brake pedal is fully depressed even if it has not been
depressed suddenly.

When the brake assist system is in use while driving, you
may feel as if the depressed brake pedal is soft, the pedal
moves in small motions in conjunction with the operation
noise, or the vehicle body and the steering wheel vibrate.
This occurs when the brake assist system is operating nor-
mally and does not indicate faulty operation. Continue to
depress the brake pedal.

You may hear an operation noise when the brake pedal is
suddenly or fully depressed while stationary. This does
not indicate a malfunction and the brake assist system is
operating normally.
CAUTION
!
The brake assist system is not a device designed to
exercise braking force greater than its capacity.
Make sure to always keep a sufficient distance
between vehicles in front of you without relying too
much on the brake assist system.
BK0150800US.book 146 ページ ２０１２年３月２９日　木曜日　午後２時３８分
