fuse MITSUBISHI LANCER SE AWC 2012 8.G User Guide

Vehicle care and maintenance
7-45

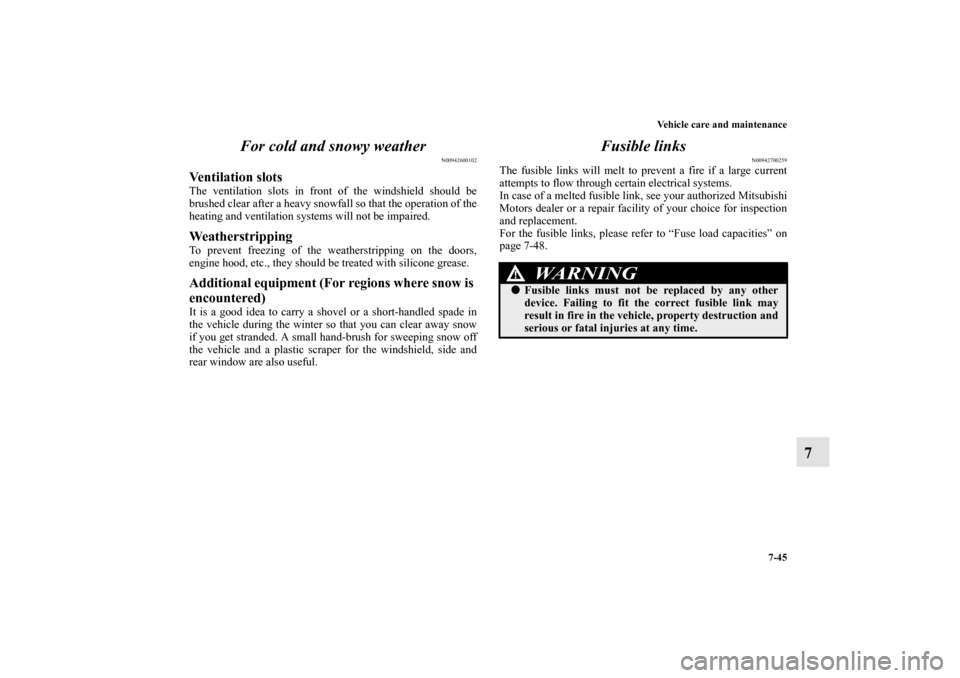

7 For cold and snowy weather
N00942600102
Ventilation slotsThe ventilation slots in front of the windshield should be
brushed clear after a heavy snowfall so that the operation of the
heating and ventilation systems will not be impaired.WeatherstrippingTo prevent freezing of the weatherstripping on the doors,
engine hood, etc., they should be treated with silicone grease.Additional equipment (For regions where snow is
encountered)It is a good idea to carry a shovel or a short-handled spade in
the vehicle during the winter so that you can clear away snow
if you get stranded. A small hand-brush for sweeping snow off
the vehicle and a plastic scraper for the windshield, side and
rear window are also useful.
Fusible links
N00942700259
The fusible links will melt to prevent a fire if a large current
attempts to flow through certain electrical systems.
In case of a melted fusible link, see your authorized Mitsubishi
Motors dealer or a repair facility of your choice for inspection
and replacement.
For the fusible links, please refer to “Fuse load capacities” on
page 7-48.
WA R N I N G
!
Fusible links must not be replaced by any other
device. Failing to fit the correct fusible link may
result in fire in the vehicle, property destruction and
serious or fatal injuries at any time.
BK0138600US.book 45 ページ ２０１１年７月１７日　日曜日　午後２時３２分

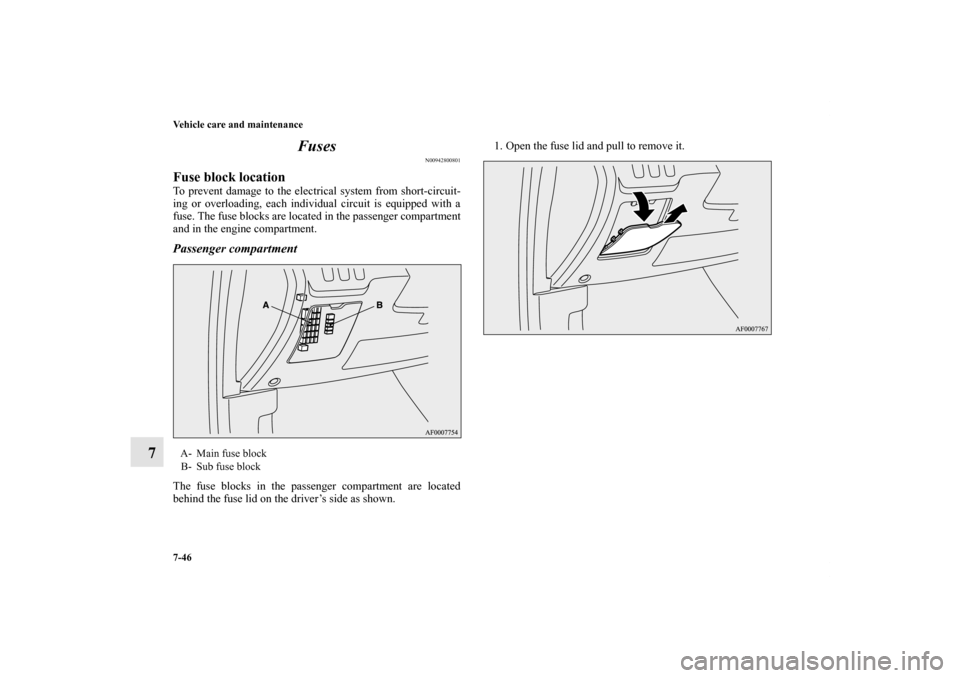

7-46 Vehicle care and maintenance
7Fuses
N00942800801
Fuse block locationTo prevent damage to the electrical system from short-circuit-
ing or overloading, each individual circuit is equipped with a
fuse. The fuse blocks are located in the passenger compartment
and in the engine compartment. Passenger compartmentThe fuse blocks in the passenger compartment are located
behind the fuse lid on the driver’s side as shown.1. Open the fuse lid and pull to remove it.A- Main fuse block
B- Sub fuse block
BK0138600US.book 46 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-47
7

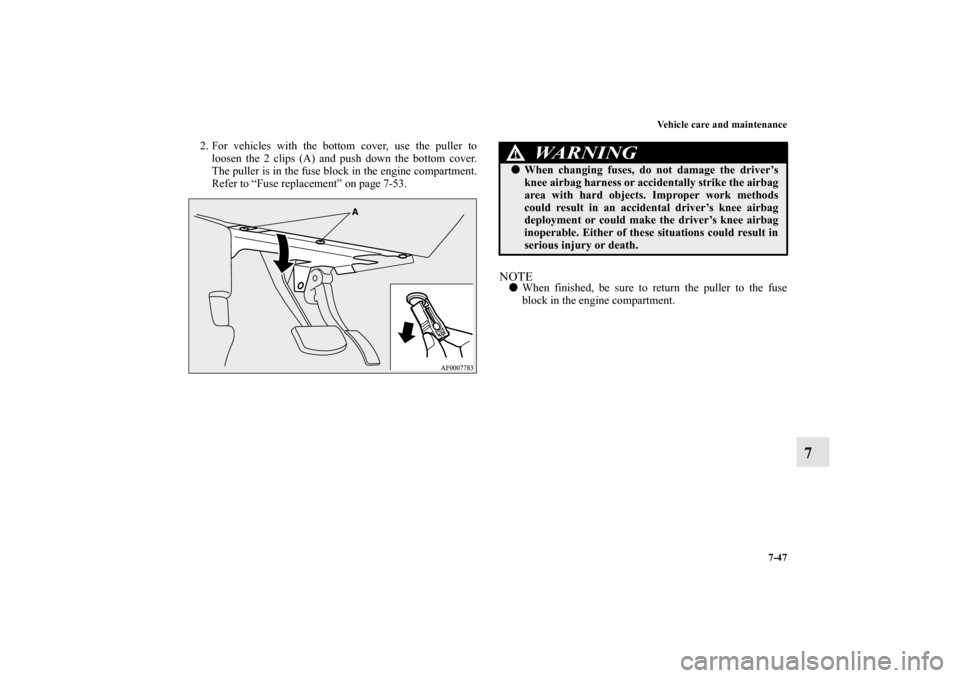

2. For vehicles with the bottom cover, use the puller to
loosen the 2 clips (A) and push down the bottom cover.
The puller is in the fuse block in the engine compartment.
Refer to “Fuse replacement” on page 7-53.
NOTE
When finished, be sure to return the puller to the fuse
block in the engine compartment.
WA R N I N G
!
When changing fuses, do not damage the driver’s
knee airbag harness or accidentally strike the airbag
area with hard objects. Improper work methods
could result in an accidental driver’s knee airbag
deployment or could make the driver’s knee airbag
inoperable. Either of these situations could result in
serious injury or death.
BK0138600US.book 47 ページ ２０１１年７月１７日　日曜日　午後２時３２分

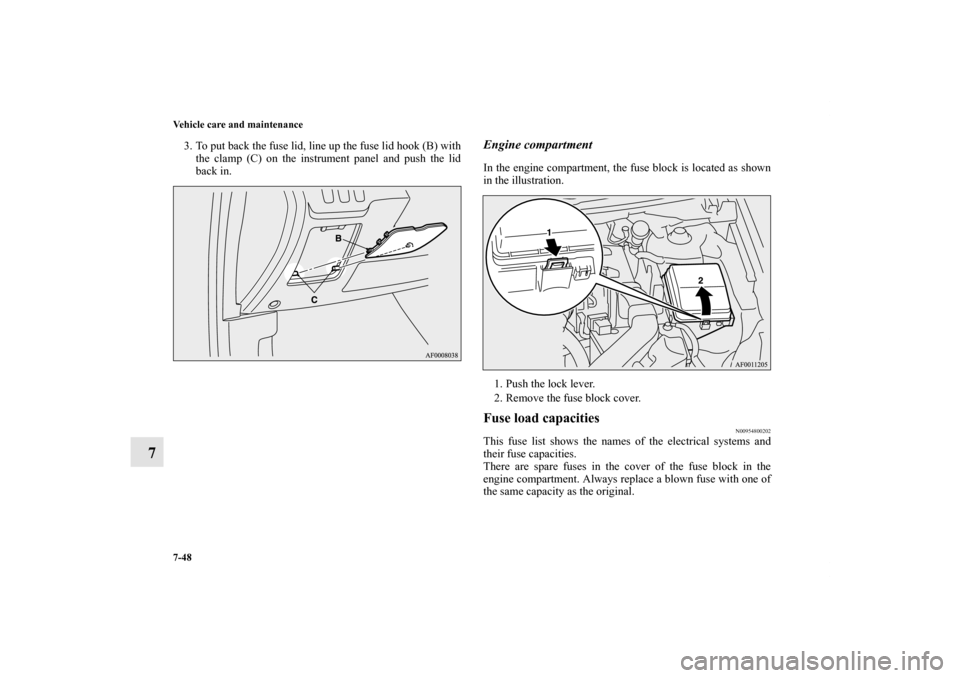

7-48 Vehicle care and maintenance
7
3. To put back the fuse lid, line up the fuse lid hook (B) with
the clamp (C) on the instrument panel and push the lid
back in.
Engine compartmentIn the engine compartment, the fuse block is located as shown
in the illustration.
1. Push the lock lever.
2. Remove the fuse block cover.Fuse load capacities
N00954800202
This fuse list shows the names of the electrical systems and
their fuse capacities.
There are spare fuses in the cover of the fuse block in the
engine compartment. Always replace a blown fuse with one of
the same capacity as the original.
BK0138600US.book 48 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-49
7

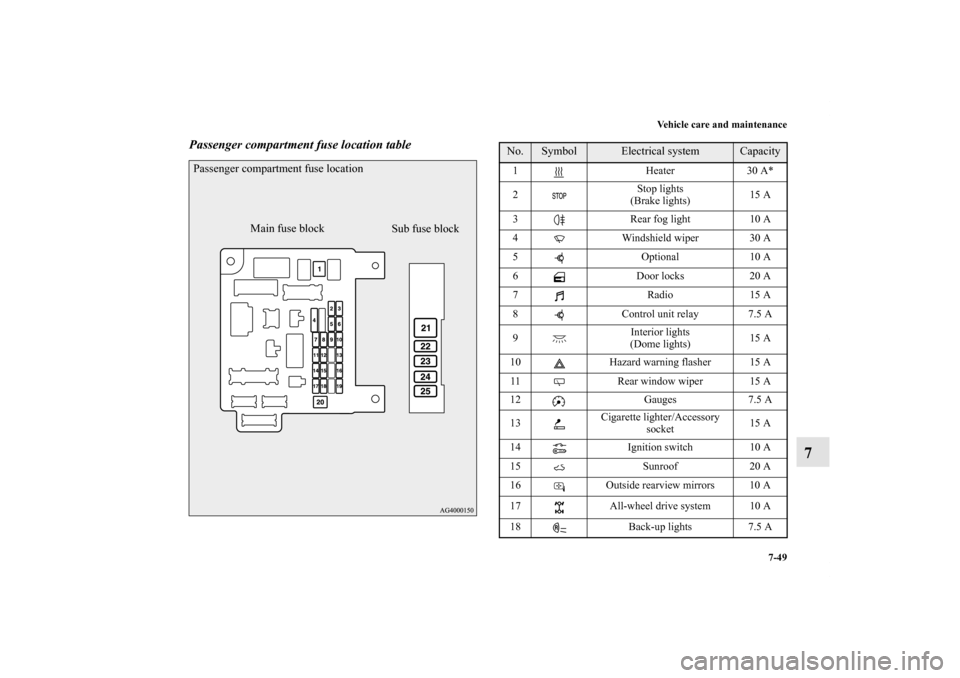

Passenger compartment fuse location tablePassenger compartment fuse location
Sub fuse block Main fuse block
No.
Symbol
Electrical system
Capacity
1 Heater 30 A*
2Stop lights
(Brake lights)15 A
3 Rear fog light 10 A
4 Windshield wiper 30 A
5 Optional 10 A
6Door locks20 A
7Radio15 A
8 Control unit relay 7.5 A
9Interior lights
(Dome lights)15 A
10 Hazard warning flasher 15 A
11 Rear window wiper 15 A
12 Gauges 7.5 A
13Cigarette lighter/Accessory
socket15 A
14 Ignition switch 10 A
15 Sunroof 20 A
16 Outside rearview mirrors 10 A
17 All-wheel drive system 10 A
18 Back-up lights 7.5 A
BK0138600US.book 49 ページ ２０１１年７月１７日　日曜日　午後２時３２分

7-50 Vehicle care and maintenance
7
*- Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.

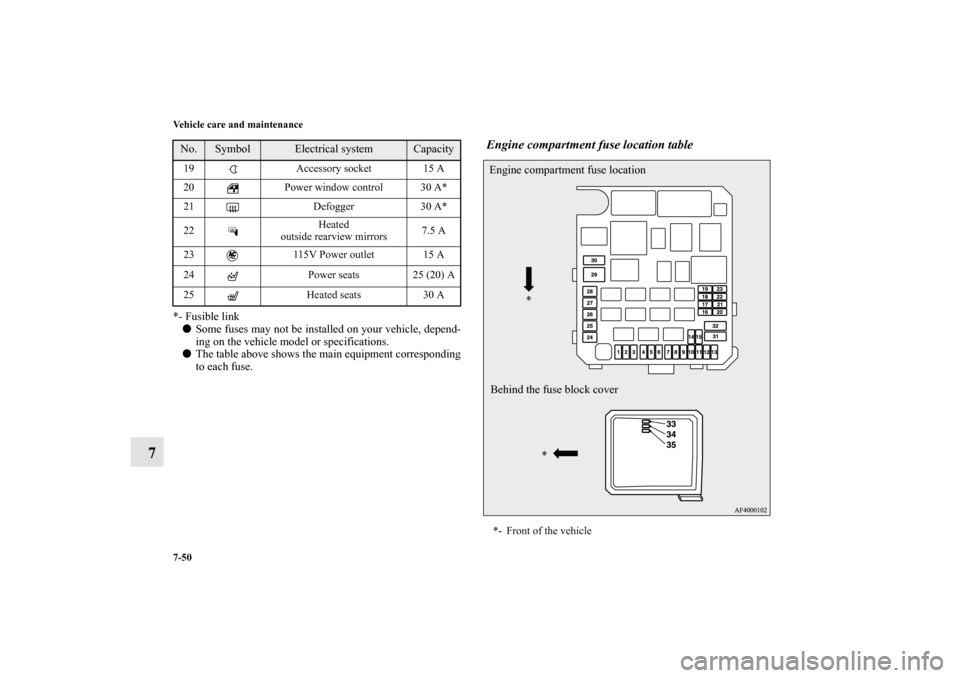

Engine compartment fuse location table
19 Accessory socket 15 A
20 Power window control 30 A*
21 Defogger 30 A*
22Heated
outside rearview mirrors7.5 A
23 115V Power outlet 15 A
24 Power seats 25 (20) A
25 Heated seats 30 ANo.
Symbol
Electrical system
Capacity
*- Front of the vehicleEngine compartment fuse location
Behind the fuse block cover*
*
BK0138600US.book 50 ページ ２０１１年７月１７日　日曜日　午後２時３２分

7-52 Vehicle care and maintenance
7
*- Fusible link
Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.
There are no 7.5 A, 25 A or 30 A spare fuses. If a fuse of one of
these capacities blows, replace it temporarily by borrowing one
of the fuses indicated below.
7.5 A: 10 A spare fuse
25 A: 20 A spare fuse
30 A: 30 A audio amplifier fuse
Replace the borrowed fuse with a fuse that has the correct
capacity as soon as possible.

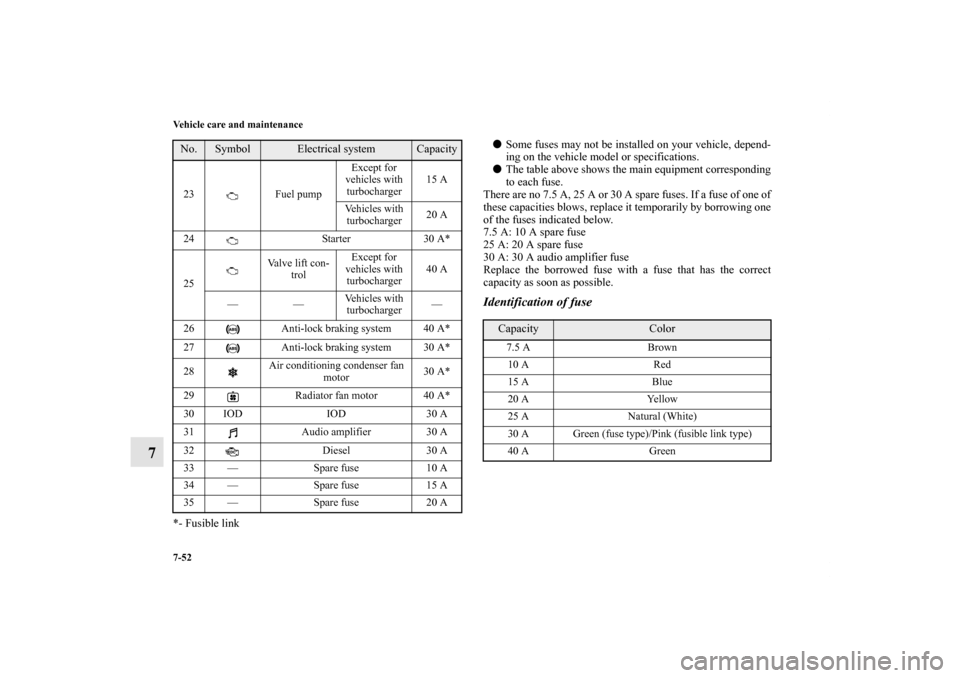

Identification of fuse
23 Fuel pumpExcept for
vehicles with
turbocharger15 A
Vehicles with
turbocharger20 A
24 Starter 30 A*
25Valve lift con-
trolExcept for
vehicles with
turbocharger40 A
——Vehicles with
turbocharger—
26 Anti-lock braking system 40 A*
27 Anti-lock braking system 30 A*
28Air conditioning condenser fan
motor30 A*
29 Radiator fan motor 40 A*
30 IOD IOD 30 A
31 Audio amplifier 30 A
32 Diesel 30 A
33 — Spare fuse 10 A
34 — Spare fuse 15 A
35 — Spare fuse 20 ANo.
Symbol
Electrical system
Capacity
Capacity
Color
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
25 A Natural (White)
30 A Green (fuse type)/Pink (fusible link type)
40 A Green
BK0138600US.book 52 ページ ２０１１年７月１７日　日曜日　午後２時３２分

Vehicle care and maintenance
7-53
7

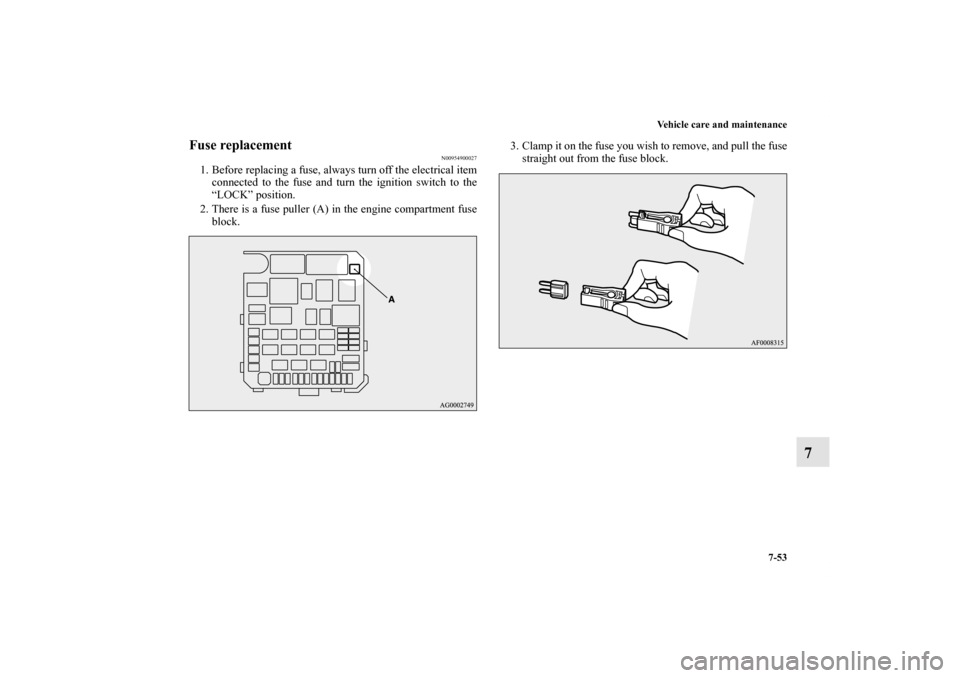

Fuse replacement
N00954900027
1. Before replacing a fuse, always turn off the electrical item
connected to the fuse and turn the ignition switch to the
“LOCK” position.
2. There is a fuse puller (A) in the engine compartment fuse
block.3. Clamp it on the fuse you wish to remove, and pull the fuse
straight out from the fuse block.
BK0138600US.book 53 ページ ２０１１年７月１７日　日曜日　午後２時３２分

7-54 Vehicle care and maintenance
7

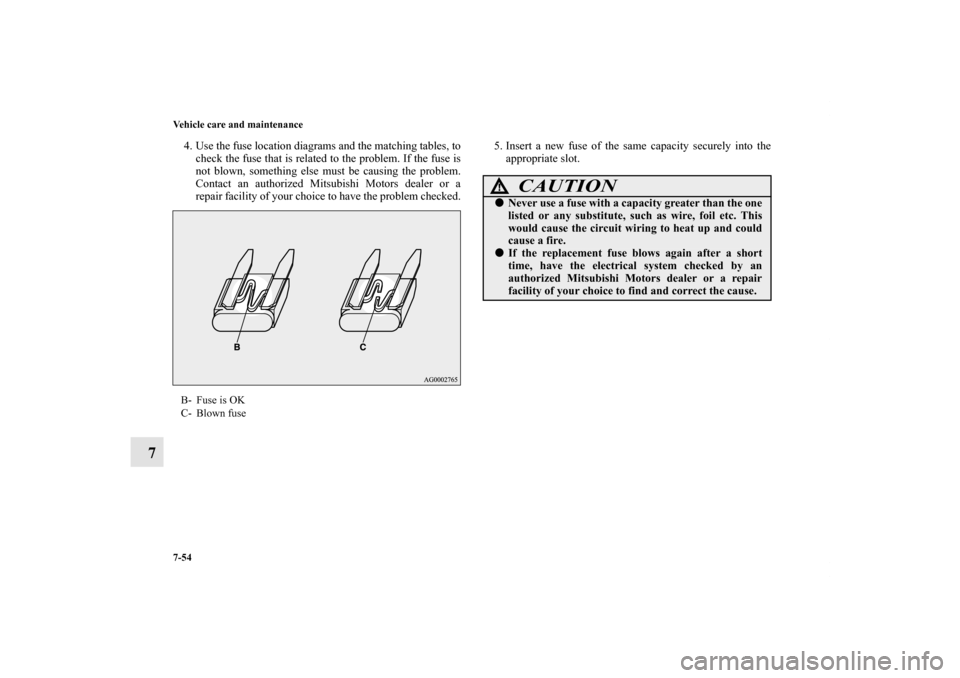

4. Use the fuse location diagrams and the matching tables, to
check the fuse that is related to the problem. If the fuse is
not blown, something else must be causing the problem.
Contact an authorized Mitsubishi Motors dealer or a
repair facility of your choice to have the problem checked.5. Insert a new fuse of the same capacity securely into the
appropriate slot. B- Fuse is OK
C- Blown fuse
CAUTION
!
Never use a fuse with a capacity greater than the one
listed or any substitute, such as wire, foil etc. This
would cause the circuit wiring to heat up and could
cause a fire.
If the replacement fuse blows again after a short
time, have the electrical system checked by an
authorized Mitsubishi Motors dealer or a repair
facility of your choice to find and correct the cause.
BK0138600US.book 54 ページ ２０１１年７月１７日　日曜日　午後２時３２分

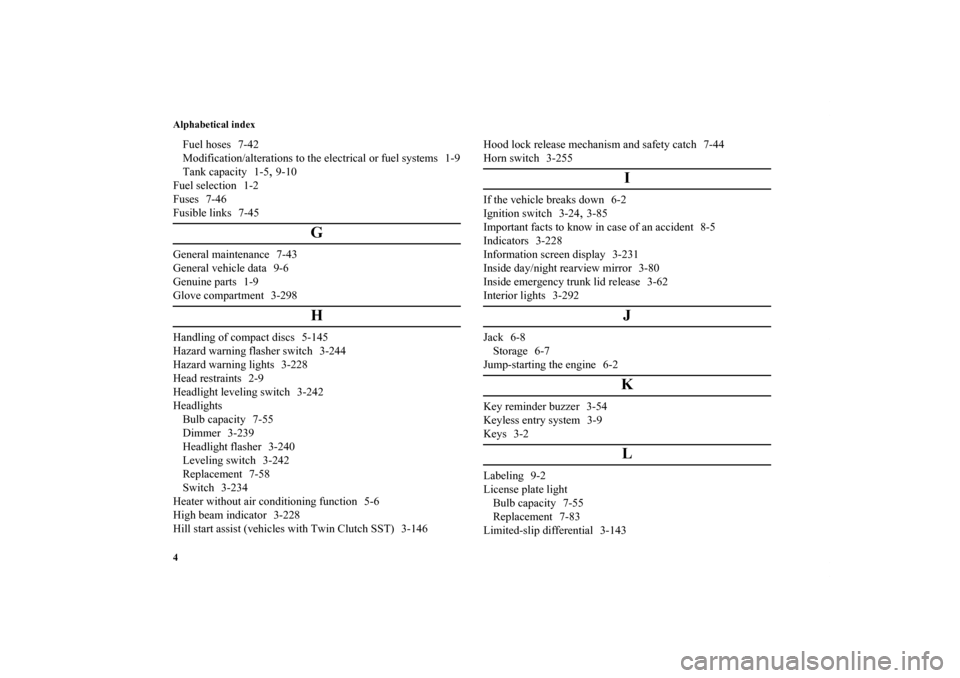

Alphabetical index
