audio MITSUBISHI LANCER SE AWC 2013 8.G MMCS Manual

Listening to Radio 7-9
Audio
Listening to Radio
1 Press the [MODE] key

2 Touch [FM] or [AM]
eng_a310
eng_a431Radio is received.
NOTE the touch panel.
Selecting Stations
1 Receive radio
2 Touch either [ TUNE] or
[TUNE
] to select the frequency
eng_a431
The frequency is changed by one step.
Touch and hold the touch panel button to select
receivable frequencies automatically.
Scanning Broadcasting Stations
It is possible to search for broadcasting
stations that can be received in the current
location.

1 Receive radio

2 Touch [ ]
eng_a431
3 Touch [Scan]
eng_a432
eng_a433The search for broadcasting stations that can be
received starts automatically.
Broadcasting stations that can be received plays for
10 seconds only, and then the search resumes.
4 Press the [ENT] keyThe scan is cancelled, and reception of the current
broadcasting station is continued.
NOTE station can continue to be received.
\b \b
\f \

  \b
\b
 \f

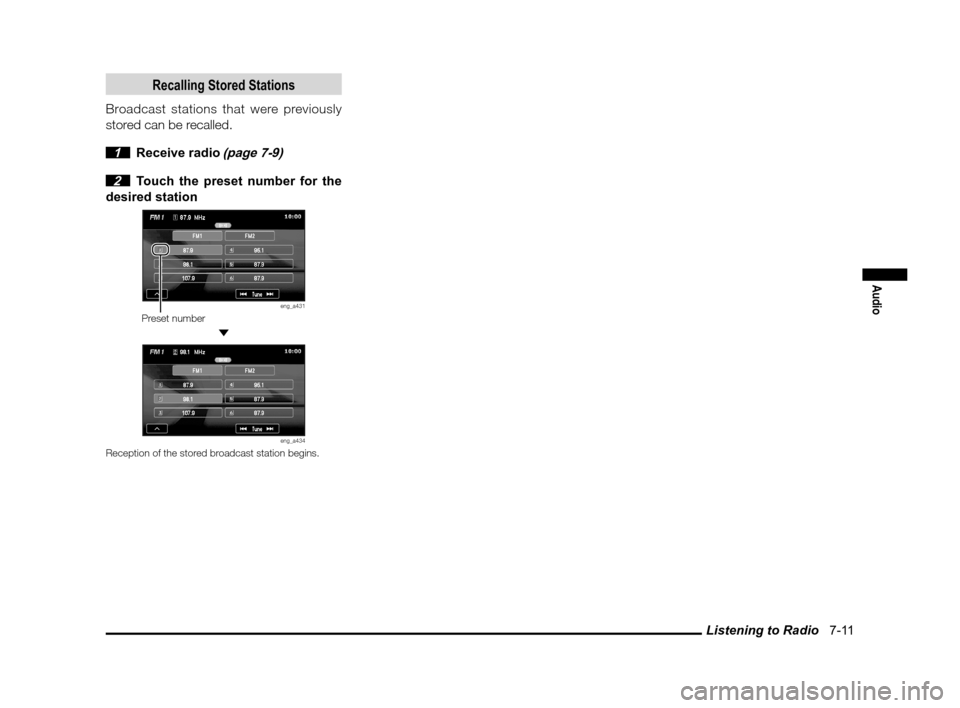

Listening to Radio 7-11
Audio
Recalling Stored Stations
Broadcast stations that were previously
stored can be recalled.

1 Receive radio (page 7-9)
2 Touch the preset number for the
desired station
eng_a431Preset number

eng_a434Reception of the stored broadcast station begins.
\b \b
\f \



 \b
\b
 \f

Listening to SIRIUS 7-13
Audio
Selecting Stations
1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
NOTE
switched.
2 Touch either [ Channel] or
[Channel
] to select the channel to
be received
eng_a440
The channels is changed one channel at a time.
Touch and hold one of these buttons to continuously
change the incoming channel. Release the button to
stop on a channel.
Selecting a Category to Be Received
1 Press the [MODE] key, and touch
[SIRIUS]

2 Touch [Category]
eng_a440The category list is displayed.
3 Touch the category button
eng_a439The list of channels within the selected category is
displayed.
4 Touch the channel button
eng_a441
The relevant channel is started to be received.
Scanning
It is possible to search for channels that
can be received in the current location.
Scanning Channels
Scan all channels.
1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
2 Touch [ ]
eng_a440
\b \b
\f \


 \b
\b
 \f

Listening to SIRIUS 7-15
Audio
3 Enter the channel number, and
touch [Enter]
eng_a444
eng_a445The channel that has been entered starts receiving.
NOTE
digit at a time.
Storing Channels
Up to six channels can be stored in each
band from [SIRIUS1] to [SIRIUS4].

1 Dial the broadcasting station to
be stored

2 Dial the broadcasting station to
be stored
>>> “Selecting Stations” (page 7-13)
eng_a445
3 Touch and hold the preset buttons
to be stored

eng_a446The channel currently being received is stored using
the preset button selected.
Recalling Stored Channels
Channels that were previously registered
can be recalled.

1 Touch the band for the desired
channel displayed on the SIRIUS
screen
eng_a440
2 Touch the preset button for the
desired channel

eng_a447Reception of the stored channel is started.
\b \b
\f \


 \b
\b
 \f

Listening to SIRIUS 7-17
Audio
Parental Lock Channel
Channels set to limit listening are skipped
without being selected when the channel
up/down and scan operations are
performed.

1 Touch [ ]
eng_a440
2 Touch [Lock]
eng_a442The password entry screen for restricted listening is
displayed.
3 Enter the password, and touch
[Enter]
eng_a423The category list is displayed.
NOTE
Change the password as desired for use.

>>> “Changing the Passwords” (page 7-17)
4 Touch the category
eng_a452The list of channels within the selected category is
displayed.
NOTETouch [All Unlock] to cancel all listening restrictions.
5 Touch the channel to be locked
(listening restricted)
eng_a453
NOTE
password has been entered correctly, the listening
restrictions will be canceled and the channel can be
received.
all channels in the selected category.

Touching [Cat-Unlock] will cancel listening restrictions
for all channels in the selected category.
Changing the PasswordThe set password can be changed.
1 Touch [Change Password] in the
password entry screen
>>>“Parental Lock Channel” (page 7-17)
eng_a423
2 Enter the current password, and
touch [Enter]

3 Enter the new password, and
touch [Enter]

4 Enter the new password again
for confi rmation, and touch [Enter]
The password change is completed.
\b \b
\f \


 \b
\b
 \f

Listening to Music CDs 7-19
Audio
Listening to Music CDs
If a music CD is inserted into the device, the tracks will
be played automatically, and the track can be recorded
to the system's hard drive device (HDD) if set initially to
do so.
Simultaneously, Gracenote Music Recognition Service
on the HDD is accessed, and the title information
obtained.
NOTE
the database or with CD-TEXT, the disk title, track
title currently being played, and the artist name is
displayed on the source plate. The track title list is
displayed in the audio screen.
be obtained.
>>>”Obtaining Title Information” (page
7-25)
soundless parts) between the tracks, a brief silence
between the tracks is still stored to the music server,
but this is not a malfunction.
Display Contents
eng_a314
1) Album Name
The name of the album for the track currently being played is displayed.
2) Track Number and Track Name
The number and name of the track currently being played is displayed.
3) [
]
T
ouch this button to move the cursor to the track
currently being played.
4) [
]
Touch this button to display the Sub Menu.
5) Track Number and Track Name
6) [
Track] and [Track ]
T
ouch these buttons to move down and up the
tracks. Touch and hold to rewind or fast-forward a
track.
7) Cursor
Displays the item currently selected.
8) Cursor Position
Cursor position and total number of album tracks 9) Playback Mode

The currently selected playback mode is displayed.
10) Playback Time
The playback time for the track currently being
played is displayed.
11) Artist Name
The name of the artist whose album (track) currently being played is displayed.
1)
3)
4) 2)
5)6)
7)
8)
9)10)11 )
\b \b
\f \


 \b \b


Listening to Music CDs 7-20
Basic Operations
Playback

1 Insert a CD into the device>>> “Inserting and Removing Disks” (page 7-4)
>>> “Switching to Audio Screen” (page 7-3)
Playback or recording is started automatically.
eng_a315
Track Selection

1 Touch either [ Track] or [Track ]
to select the track
eng_a313
[ Track] Use to select the previous track or the
start of the track curr
ently being played.
Touch and hold to rewind. Play resumes
when the button is released.
[Track
] Use to select the next track. Touch and hold to fast-forward. Play resumes when
the button is released.
Changing the Playback Mode
Repeat playback, random playback, and
scan playback can all be performed from
the CD playback screen.
Repeat Playback
The track currently being played can be listened to
repeatedly.
1 Touch [ ]
eng_a313
2 Touch [Repeat]
eng_a316
eng_a317The track currently being played is played repeatedly.
NOTE

Scan PlaybackThe start of each track is played for approximately 10
seconds each. Use to nd a desired track.
1 Touch [ ]
eng_a313
2 Touch [Scan]
eng_a316
eng_a318Scan playback will be performed from the track after
the track currently being played.
The tracks on a CD are scanned for 10 seconds each.
\b \b
\f \

  \b \b

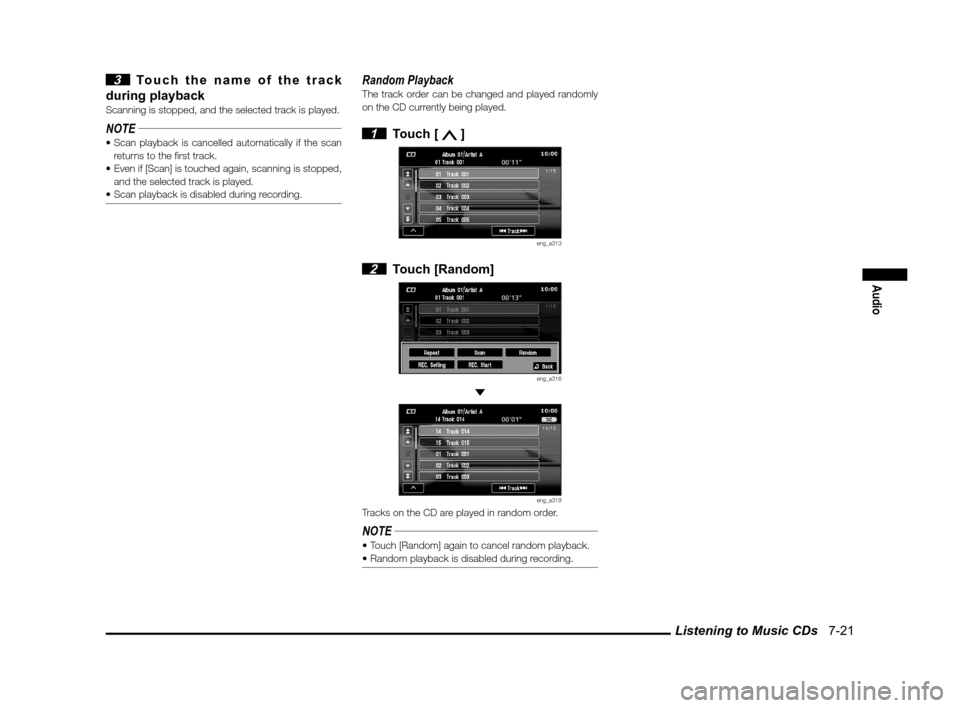

Listening to Music CDs 7-21
Audio
3 Touch the name of the track
during playback
Scanning is stopped, and the selected track is played.
NOTE
returns to the rst track.
and the selected track is played.

Random PlaybackThe track order can be changed and played randomly
on the CD currently being played.
1 Touch [ ]
eng_a313
2 Touch [Random]
eng_a316
eng_a319Tracks on the CD are played in random order.
NOTE

\b \b
\f \


 \b \b


Recording to the Music Server 7-23
Audio
3 Touch one of the settings
eng_a321-2
4 Touch [Back] The recording settings are completed.[Auto REC.] R e c o r ding to the music server is
performed automatically when a music
CD is inserted.
>>> “Auto Recording” (page 7-23)
[Manual
REC.] Tracks can be recorded individually
during playback.
>>> “Manual Recording” (page 7-23)
[Single REC.]
Only one track from the music CD is
recorded.
>>> “Single Recording” (page 7-24)
Auto RecordingRecording to the music server is performed
automatically when a music CD is inserted.
NOTE
advance. >>> “Recording Settings” (page 7-22)
1 Insert a CDAll the tracks on the music CD are recorded
automatically on the HDD and played back as the
recording proceeds without waiting for the recording
to complete.
NOTE
during recording, the recording is continued, and
the selected track is played. If a track that has
not yet been recorded is selected, the recording
underway is stopped and recording of the selected
track is started, then the track is played back as the
recording proceeds without waiting for the recording
to complete.
Manual RecordingTracks can be recorded individually during playback.
NOTEadvance. >>> “Recording Settings” (page 7-22)
1 Play the music CD track to be
recorded

2 Touch [REC. start]
eng_a316
eng_a320Recording is started, and the track is played from the
start.
NOTE
recording is stopped, and the selected track is
played.
\b \b
\f \

  \b \b


Obtaining Title Information 7-25
Audio
Obtaining Title Information
The playlist title information can be obtained from the
Gracenote Database on the HDD. Searching for tracks
on the music server, etc., can be performed smoothly
by obtaining the title information.
Gracenote Service
Company OutlineMusic identification technology and related data
information is supplied by Gracenote Service and the
Gracenote music identification service. Gracenote
is the industry standard for music identification
technology and related data information distribution.
For details, refer to www.gracenote.com.
The Gracenote Database built into this device cannot
assure 100% the contents of the data.
Patents and TrademarksFor patents and trademarks, refer to “Gracenote®
music recognition service” (page 1-13).
Updating Gracenote CDDBThe information on the HDD can be updated using the
Gracenote CDDB version upgrade CD (disk).
NOTE the update is in progress.
displayed.

1 Insert a disk>>> “Inserting and Removing Disks” (page 7-4)
2 Press the [MODE] key

3 Touch [CDDB Updating]
eng_a324
eng_a325
NOTE The obtained update data is deleted. If the ACC is
turned OFF and the update is canceled, perform
update again from the start.
Obtaining Title Information
When a music CD is inserted into
the device, the title information can
be obtained from the built-in HDD
automatically at any time. If the title
information cannot be obtained, obtain it
using the CD text information.
The information that can be obtained is
the album title, album artist, track title,
track artist, and genre.
NOTE
as “No Title”, and the artist is displayed as “No
Name”.
period during which this device went on sale cannot
be obtained from the HDD. Further, it may not be
possible to obtain information from earlier music
CDs, either.
only.
information, it is necessary to use the music server.
\b \b
\f \

   \b \b
