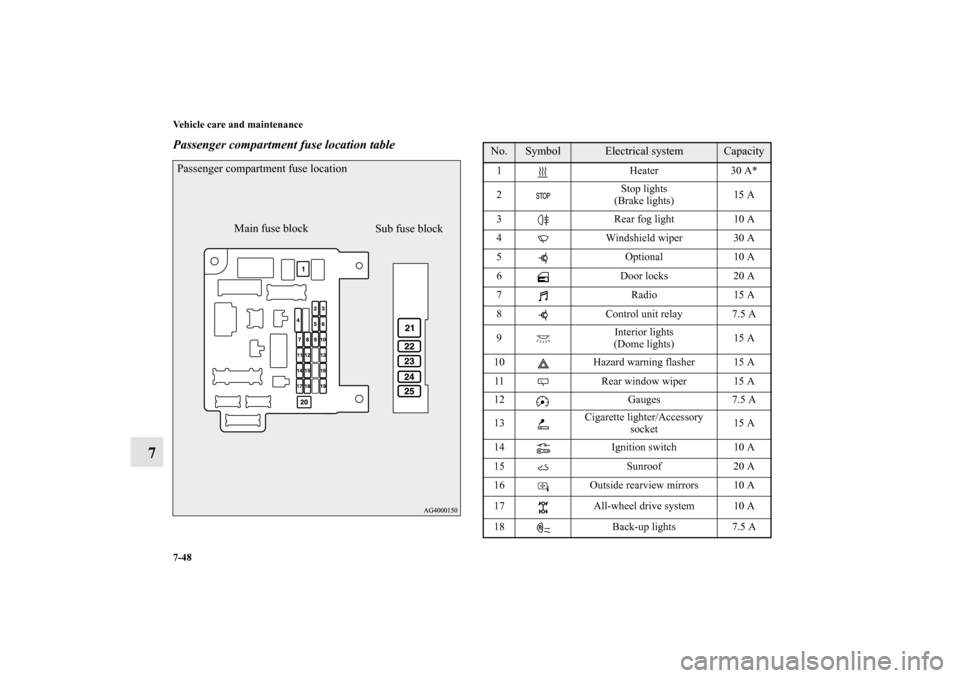

7-48 Vehicle care and maintenance
7
Passenger compartment fuse location tablePassenger compartment fuse location
Sub fuse block Main fuse block
No.
Symbol
Electrical system
Capacity
1 Heater 30 A*
2Stop lights
(Brake lights)15 A
3 Rear fog light 10 A
4 Windshield wiper 30 A
5 Optional 10 A
6 Door locks 20 A
7Radio15 A
8 Control unit relay 7.5 A
9Interior lights
(Dome lights)15 A
10 Hazard warning flasher 15 A
11 Rear window wiper 15 A
12 Gauges 7.5 A
13Cigarette lighter/Accessory
socket15 A
14 Ignition switch 10 A
15 Sunroof 20 A
16 Outside rearview mirrors 10 A
17 All-wheel drive system 10 A
18 Back-up lights 7.5 A
BK0150800US.book 48 ページ ２０１２年３月２９日　木曜日　午後２時３８分

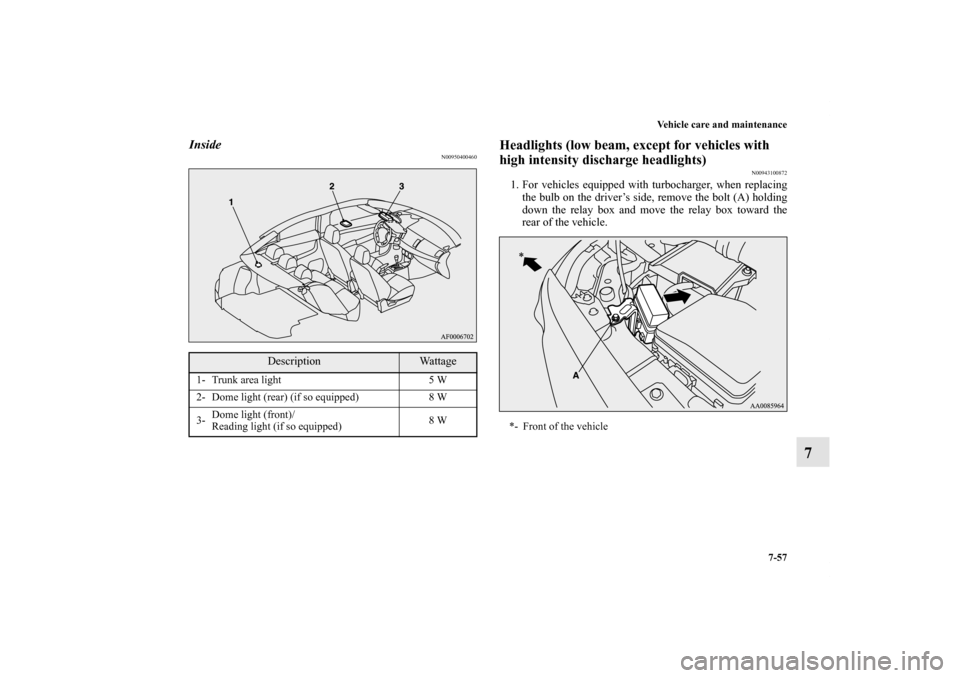

Vehicle care and maintenance
7-57
7
Inside
N00950400460
Headlights (low beam, except for vehicles with
high intensity discharge headlights)
N00943100872
1. For vehicles equipped with turbocharger, when replacing
the bulb on the driver’s side, remove the bolt (A) holding
down the relay box and move the relay box toward the
rear of the vehicle.
Description
Wattage
1- Trunk area light 5 W
2- Dome light (rear) (if so equipped) 8 W
3-Dome light (front)/
Reading light (if so equipped)8 W
*- Front of the vehicle
BK0150800US.book 57 ページ ２０１２年３月２９日　木曜日　午後２時３８分

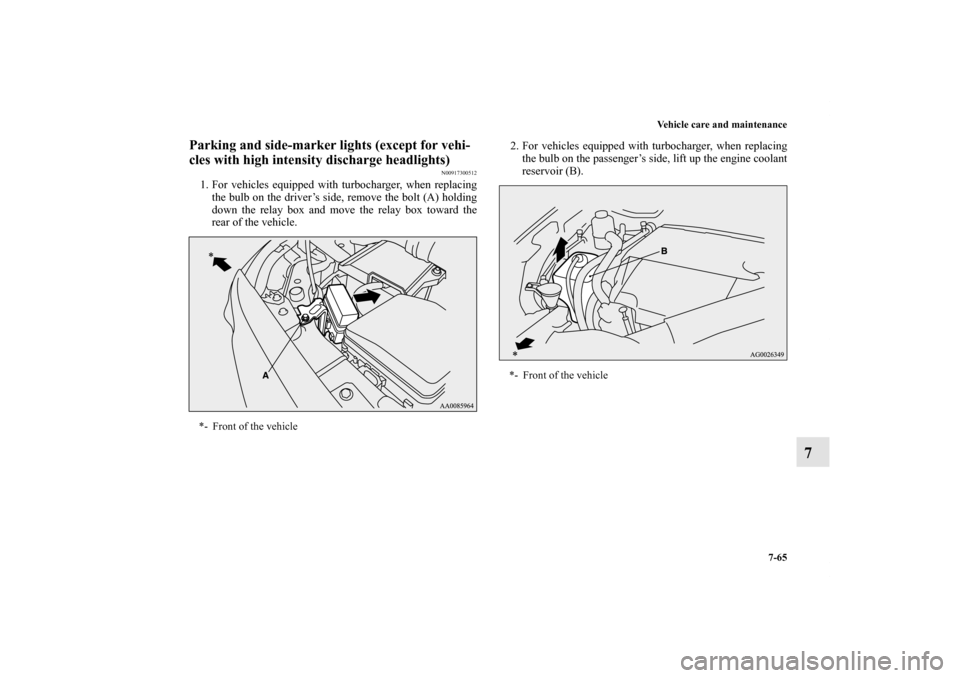

Vehicle care and maintenance
7-65
7
Parking and side-marker lights (except for vehi-
cles with high intensity discharge headlights)
N00917300512
1. For vehicles equipped with turbocharger, when replacing
the bulb on the driver’s side, remove the bolt (A) holding
down the relay box and move the relay box toward the
rear of the vehicle.2. For vehicles equipped with turbocharger, when replacing
the bulb on the passenger’s side, lift up the engine coolant
reservoir (B).*- Front of the vehicle
*- Front of the vehicle
