Outside (Front) 1-9 Overview
1
N00100602421

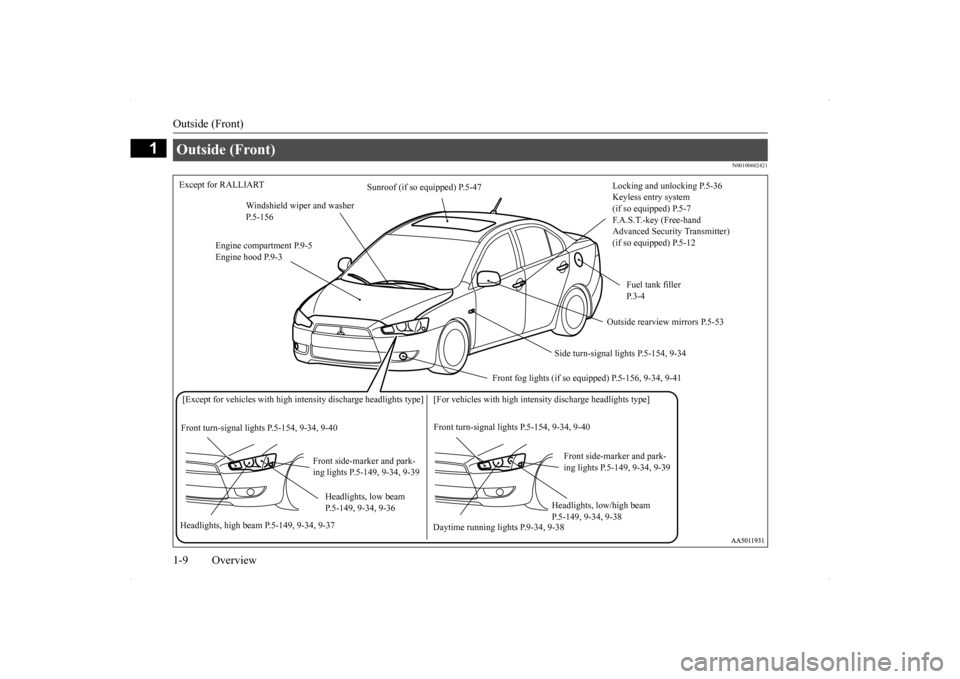

Outside (Front)
Locking and unlocking P.5-36 Keyless entry system (if so equipped) P.5-7 F.A.S.T.-key (Free-hand Advanced Security Transmitter) (if so equipped) P.5-12
Except for RALLIART
Sunroof (if so equipped) P.5-47
Windshield wiper and washer P.5-156
Engine compartment P.9-5 Engine hood P.9-3
Fuel tank filler P.3-4
Outside rearview mirrors P.5-53
Side turn-signal lights P.5-154, 9-34
Front fog lights (if so eq
uipped) P.5-156, 9-34, 9-41
[Except for vehicles with high intensity
discharge headlights type] [For vehicles with
high intensity discharge headlights type]
Front turn-signal light
s P.5-154, 9-34, 9-40
Front turn-signal light
s P.5-154, 9-34, 9-40
Front side-marker and park- ing lights P.5-149, 9-34, 9-39
Front side-marker and park- ing lights P.5-149, 9-34, 9-39
Headlights, low beam P.5-149, 9-34, 9-36
Headlights, low/high beam P.5-149, 9-34, 9-38
Headlights, high beam P.5-149, 9-34, 9-37
Daytime running li
ghts P.9-34, 9-38
Page 12 of 434
Outside (Front)
Overview 1-10
1
Locking and unlocking P.5-36 Keyless entry system(if so equipped) P.5-7 F.A.S.T.-key (Free-hand Advanced Security Transmitter)(if so equipped) P.5-12

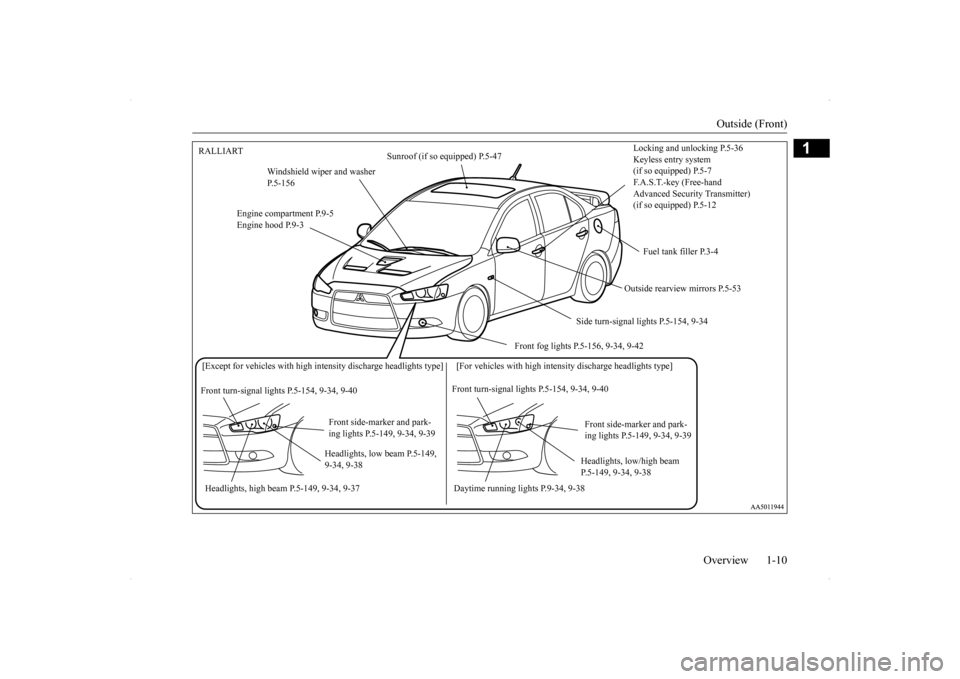

RALLIART
Sunroof (if so equipped) P.5-47
Windshield wiper and washer P.5-156
Engine compartment P.9-5 Engine hood P.9-3
Fuel tank filler P.3-4
Outside rearview mirrors P.5-53
Side turn-signal lights P.5-154, 9-34
Front fog lights P.5-156, 9-34, 9-42
[Except for vehicles with high intensity di
scharge headlights type] [For
vehicles with high intensity discharge headlights type]
Front turn-signal light
s P.5-154, 9-34, 9-40
Front turn-signal light
s P.5-154, 9-34, 9-40
Front side-marker and park- ing lights P.5-149, 9-34, 9-39
Front side-marker and park- ing lights P.5-149, 9-34, 9-39
Headlights, low beam P.5-149, 9-34, 9-38
Headlights, low/high beam P.5-149, 9-34, 9-38
Headlights, high beam P.5-149, 9-34,
9-37 Daytime running lights P.9-34, 9-38
Page 13 of 434
Outside (Rear) 1-11 Overview
1
N00100602362

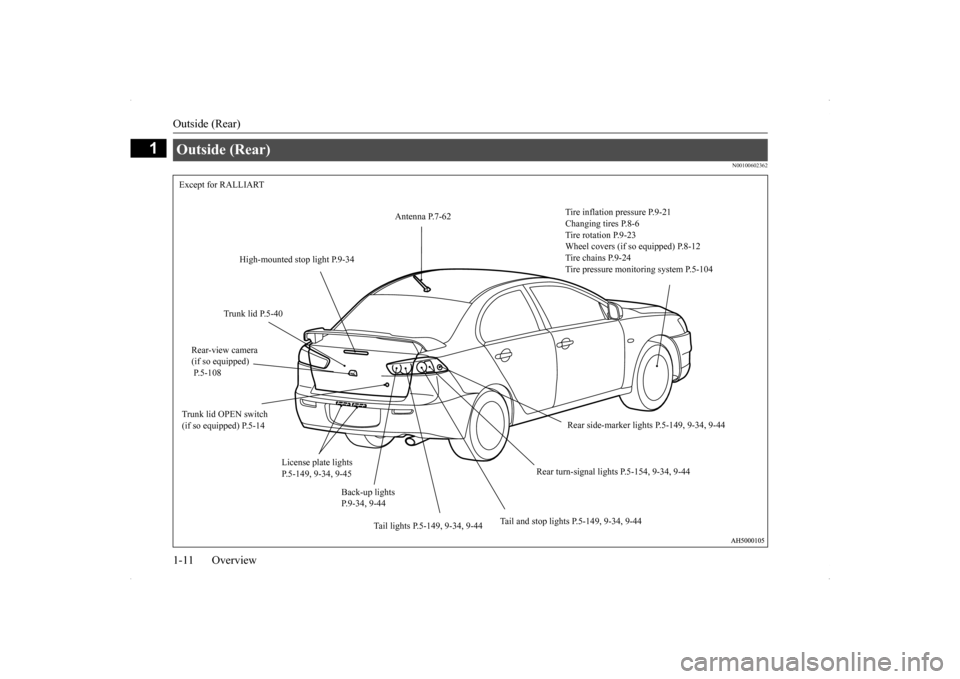

Outside (Rear) Except for RALLIART
Tire inflation pressure P.9-21 Changing tires P.8-6 Tire rotation P.9-23 Wheel covers (if so
equipped) P.8-12
Tire chains P.9-24 Tire pressure monitoring system P.5-104
Antenna P.7-62
High-mounted stop light P.9-34
Trunk lid P.5-40
Rear-view camera (if so equipped) P.5-108 Trunk lid OPEN switch (if so equipped) P.5-14
Rear side-marker lights P.5-149, 9-34, 9-44
License plate lights P.5-149, 9-34, 9-45
Rear turn-signal lights P.5-154, 9-34, 9-44
Back-up lights P.9-34, 9-44
Tail and stop lights P.5-149, 9-34, 9-44
Tail lights P.5-149, 9-34, 9-44
Page 14 of 434
Outside (Rear)
Overview 1-12
1

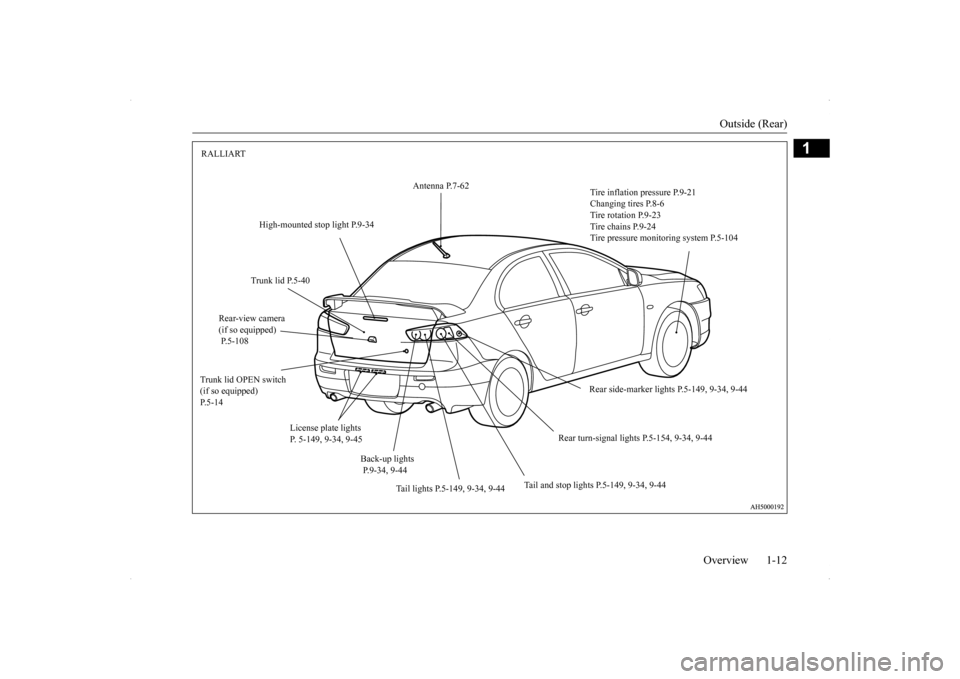

RALLIART
Antenna P.7-62
Tire inflation pressure P.9-21 Changing tires P.8-6 Tire rotation P.9-23Tire chains P.9-24 Tire pressure monitoring system P.5-104
High-mounted stop light P.9-34 Trunk lid P.5-40
Rear-view camera (if so equipped) P.5-108
Trunk lid OPEN switch (if so equipped) P.5-14
Rear side-marker lights P.5-149, 9-34, 9-44
License plate lights P. 5-149, 9-34, 9-45
Rear turn-signal lights P.5-154, 9-34, 9-44
Back-up lights P.9-34, 9-44
Tail and stop lights P.5-149, 9-34, 9-44
Tail lights P.5-149, 9-34, 9-44
Page 15 of 434
Page 16 of 434
2-1
2

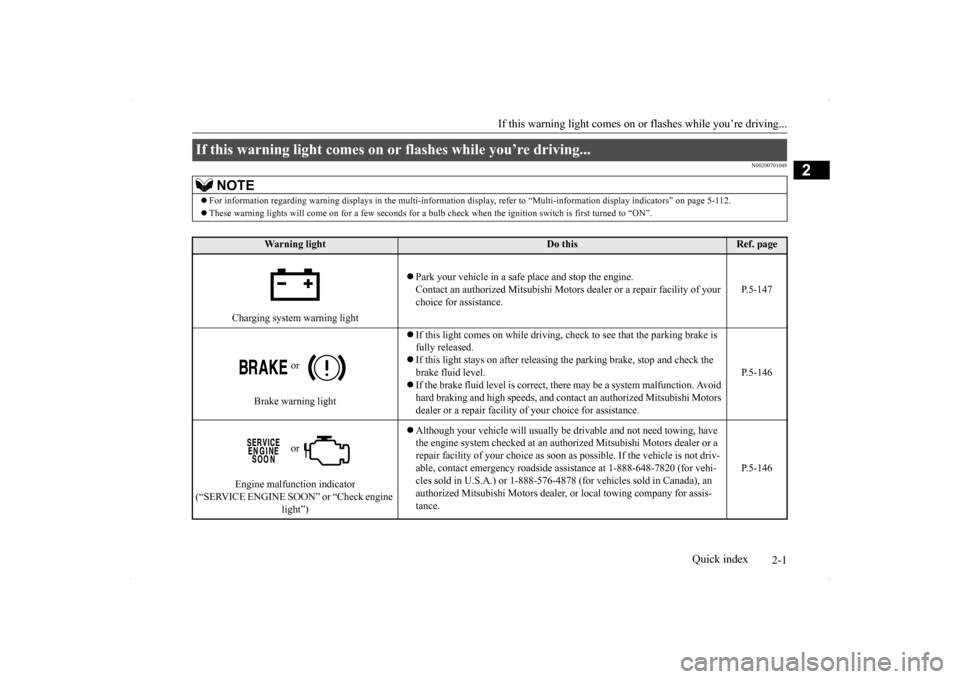

If this warning light comes on or
flashes while you’re driving...
Quick index
N00200701048
If this warning light comes on or flashes while you’re driving...
NOTE
For information regarding warning displays in the multi-informat
ion display, refer to “Multi-information display indicators” on
page 5-112.
These warning lights will come on for a few seconds for a bul
b check when the ignition switc
h is first turned to “ON”.
Warning light
Do this
Ref. page
Charging system warning light
Park your vehicle in a safe
place and stop the engine.
Contact an authorized Mitsubishi Motors
dealer or a repair facility of your
choice for assistance.
P.5-147
or
Brake warning light
If this light comes on while driving, check to see that the parking brake is fully released. If this light stays on after releasing the parking brake, stop and check the brake fluid level. If the brake fluid level is correct, th
ere may be a system malfunction. Avoid
hard braking and high speeds, and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice for assistance.
P.5-146
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or “Check engine
light”)
Although your vehicle will usually be drivable and not need towing, have the engine system checked at an aut
horized Mitsubishi Motors dealer or a
repair facility of your choice as soon
as possible. If the vehicle is not driv-
able, contact emergency roadside assistance at 1-888-648-7820 (for vehi- cles sold in U.S.A.) or 1-888-576-487
8 (for vehicles sold in Canada), an
authorized Mitsubishi Motors dealer
, or local towing company for assis-
tance.
P.5-146
Page 17 of 434
If this warning light comes on or
flashes while you’re driving...
2-2 Quick index
2
Anti-lock braking system warning light
When this light comes on, the anti-lock braking system is not functioning and only the ordinary braking system is functioning. Park your vehicle in a safe
place and stop the engine.
Test the system as described on page 5-94. If the light does not go out after the test
, or if it comes on again, we recom-
mend that you have the system checked at
an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.
P.5-93, 5-94
SRS warning light
It is not necessary to stop the vehicl
e immediately, but we recommend that
you have the airbag and the pre-tensione
r seat belt system checked at an
authorized Mitsubishi Motors dealer as soon as possible.
P.4-14, 4-27
Tire pressure monitoring system warning light
If the warning light comes on, you should
stop and adjust the tires to the
proper inflation pressure as soon as possible. (See “Tire inflation pressures” on page 9-21.)Once adjustments have been made, the
warning light will go off after a few
minutes of driving. If the warning light blinks for approximately 1 minute and then remain continuously illuminated, the system is not operating properly. If the sys- tem returns to normal, the warning light will go off. If the warning light does not go off, have the vehicle inspected at an authorized Mitsubishi Motors dealer.
P.5-105
Warning light
Do this
Ref. page
Page 18 of 434

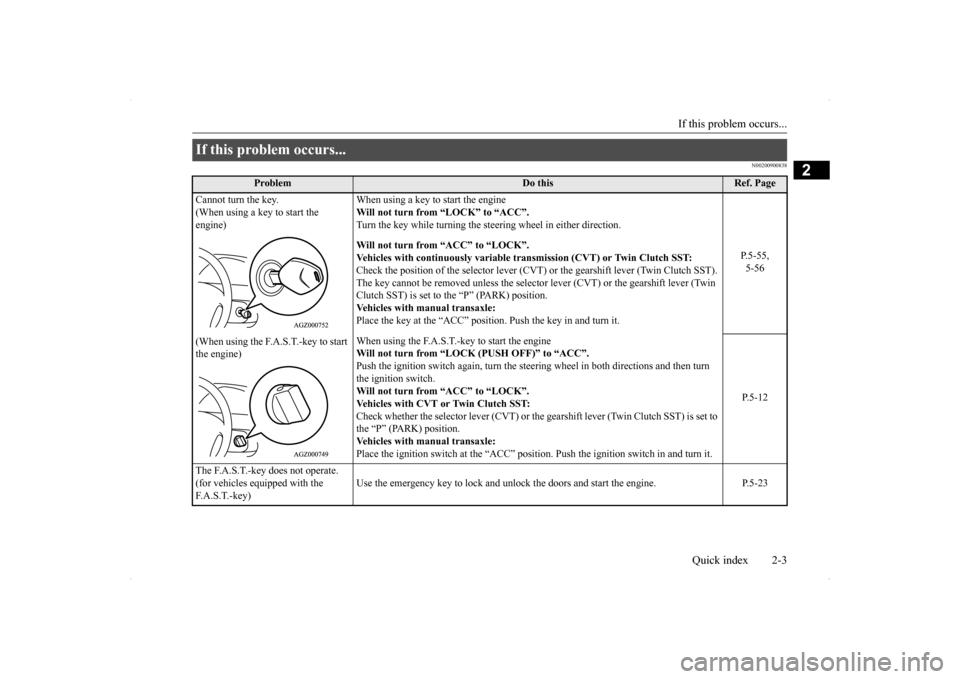

If this problem occurs...
Quick index 2-3
2
N00200900838
If this problem occurs...
Problem
Do this
Ref. Page
Cannot turn the key. (When using a key to start the engine)
When using a key to start the engine Will not turn from “LOCK” to “ACC”. Turn the key while turning the steering wheel in either direction.
P.5-55, 5-56
Will not turn from “ACC” to “LOCK”. Vehicles with continuously variable tr
ansmission (CVT) or Twin Clutch SST:
Check the position of the selector lever (CVT)
or the gearshift lever (Twin Clutch SST).
The key cannot be removed unless the selector lever (CVT) or the gearshift lever (Twin Clutch SST) is set to the “P” (PARK) position.Vehicles with manual transaxle:Place the key at the “ACC” position. Push the key in and turn it.
(When using the F.A.S.T.-key to start the engine)
When using the F.A.S.T.-key to start the engine Will not turn from “LOCK (PUSH OFF)” to “ACC”. Push the ignition switch again, turn the steeri
ng wheel in both directions and then turn
the ignition switch. Will not turn from “ACC” to “LOCK”. Vehicles with CVT or Twin Clutch SST:Check whether the selector lever (CVT) or the gearshift lever (Twin Clutch SST) is set to the “P” (PARK) position. Vehicles with manual transaxle:Place the ignition switch at the “ACC” positi
on. Push the ignition switch in and turn it.
P.5-12
The F.A.S.T.-key does not operate. (for vehicles equipped with the F.A.S.T.-key)
Use the emergency key to lock and unlock the doors and start the engine. P.5-23
Page 19 of 434
If this problem occurs... 2-4 Quick index
2
Cannot shift the selector lever (CVT) or the gearshift lever (Twin Clutch SST) from the “P” (PARK) position. (for vehicles with CVT or Twin Clutch SST)
Shift the selector lever (CVT) or the gearsh
ift lever (Twin Clutch SST) while pressing
the brake pedal.Check that the ignition key or igniti
on switch is in the “ON” position.
P.5-63, 5-71
The windows are fogged up.
1. Set the mode selection dial to the “ ” or “ ” position. 2. Turn on the blower.
P.7-6, 7-12,
7-17, 7-22, 7-27
The engine does not start. The lights do not come on. The lights are dim. The horn does not honk.The horn sound is weak.
Have the battery checked. Recharge or replace as needed.
P.8-2, 9-14
Problem
Do this
Ref. Page
Page 20 of 434
If this problem occurs...
Quick index 2-5
2
Problem
Do this
Ref. page
The engine coolant temperature dis- play “ ” in the multi-information display is flashing. Steam comes out of the engine com- partment. Type 1 Type 2
The engine is overheated. Carefully stop the vehicle in a safe place.
P.8-4
If your vehicle becomes stuck in sand, mud or snow
1. Slowly press down on the accelerator peda
l to get your vehicle moving again. For
vehicle equipped with the Electronically controlled 4WD system, set the drive mode- selector to the “4WD AUTO” or “4WD LO
CK” position and then slowly press down
on the accelerator pedal to get your vehicle moving.2. If there is nothing to stop your tires from
slipping, rock your vehicle back and forth to
free it.
P.8-15
WA R N I N G When attempting to rock your vehicle out of
a stuck position, be sure that no one is
near the vehicle. The rocking motion may c
ause the vehicle to
suddenly lurch forward or backward, possibly injuring bystanders. Avoid revving the engine or spinning the
wheels. Prolonged efforts to free a stuck ve
hicle may result in overheating and transa
xle failure.
If the vehicle remains stuck after several rocking at
tempts, have a towing service pull the vehicle out.
