Page 171 of 706

3-76 Features and controls
3

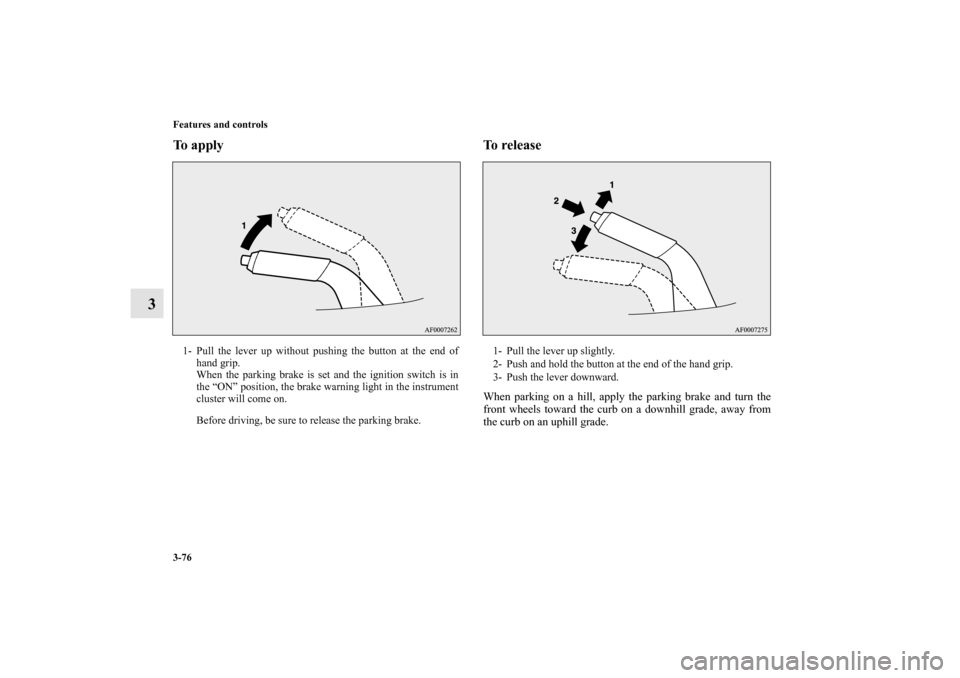

To apply To release
When parking on a hill, apply the parking brake and turn the
front wheels toward the curb on a downhill grade, away from
the curb on an uphill grade.
1- Pull the lever up without pushing the button at the end of
hand grip.
When the parking brake is set and the ignition switch is in
the “ON” position, the brake warning light in the instrument
cluster will come on.
Before driving, be sure to release the parking brake.
1- Pull the lever up slightly.
2- Push and hold the button at the end of the hand grip.
3- Push the lever downward.
BK0125300US.book 76 ページ 2010年5月18日 火曜日 午後1時53分

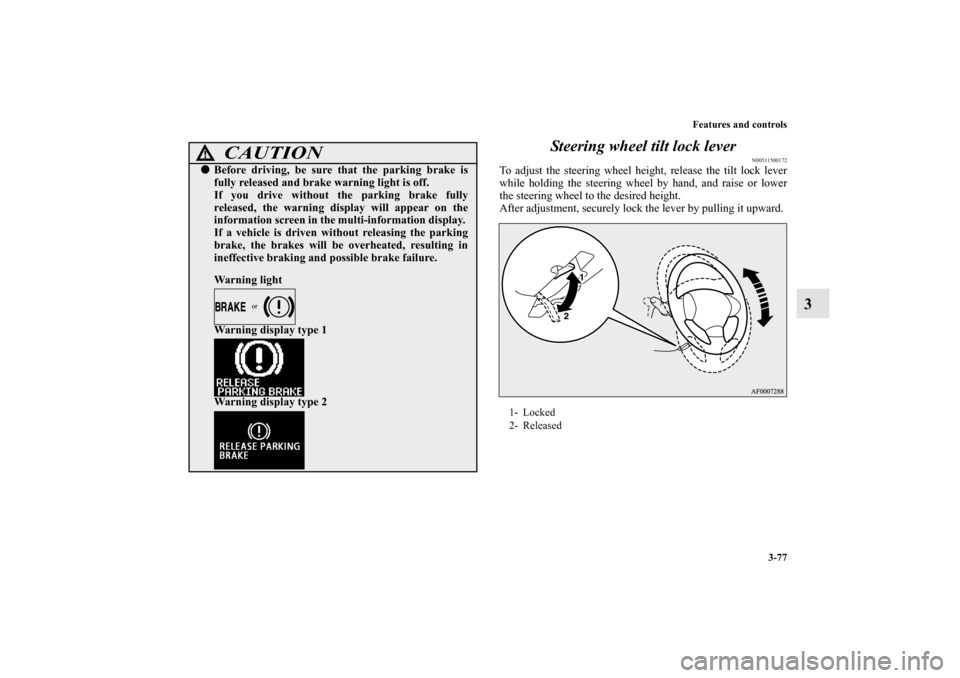

Page 172 of 706

Features and controls
3-77
3 Steering wheel tilt lock lever
N00511500172
To adjust the steering wheel height, release the tilt lock lever
while holding the steering wheel by hand, and raise or lower
the steering wheel to the desired height.
After adjustment, securely lock the lever by pulling it upward.
CAUTION
!Before driving, be sure that the parking brake is
fully released and brake warning light is off.
If you drive without the parking brake fully
released, the warning display will appear on the
information screen in the multi-information display.
If a vehicle is driven without releasing the parking
brake, the brakes will be overheated, resulting in
ineffective braking and possible brake failure.
Warning light
Warning display type 1
Warning display type 2
1- Locked
2- Released
BK0125300US.book 77 ページ 2010年5月18日 火曜日 午後1時53分
Page 173 of 706

3-78 Features and controls

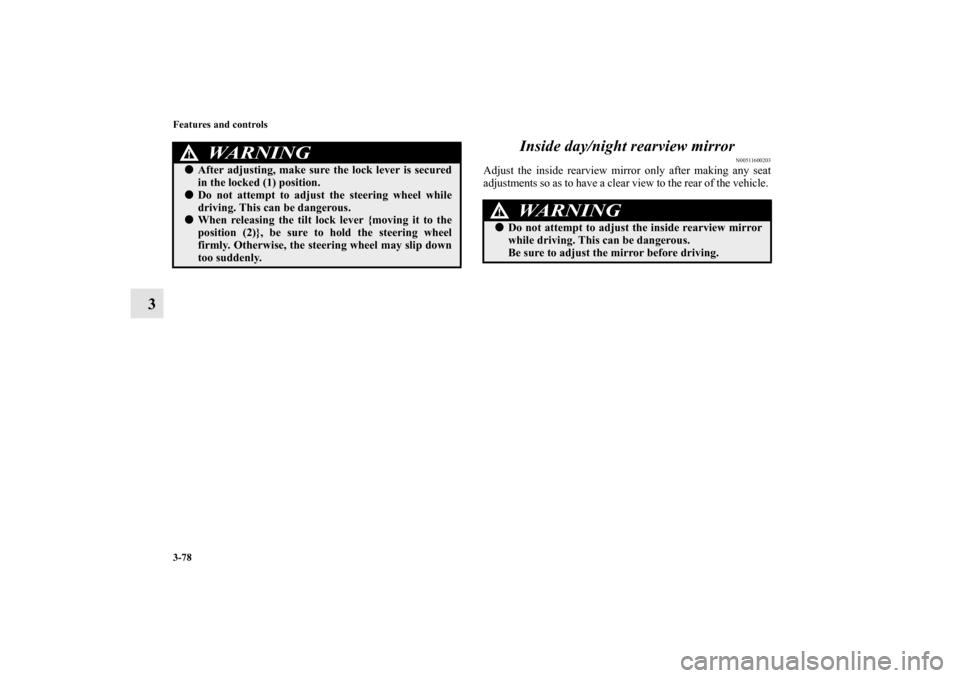

3Inside day/night rearview mirror
N00511600203
Adjust the inside rearview mirror only after making any seat
adjustments so as to have a clear view to the rear of the vehicle.
WA R N I N G
!After adjusting, make sure the lock lever is secured
in the locked (1) position. Do not attempt to adjust the steering wheel while
driving. This can be dangerous.When releasing the tilt lock lever {moving it to the
position (2)}, be sure to hold the steering wheel
firmly. Otherwise, the steering wheel may slip down
too suddenly.
WA R N I N G
!Do not attempt to adjust the inside rearview mirror
while driving. This can be dangerous.
Be sure to adjust the mirror before driving.
BK0125300US.book 78 ページ 2010年5月18日 火曜日 午後1時53分
Page 174 of 706

Features and controls
3-79
3

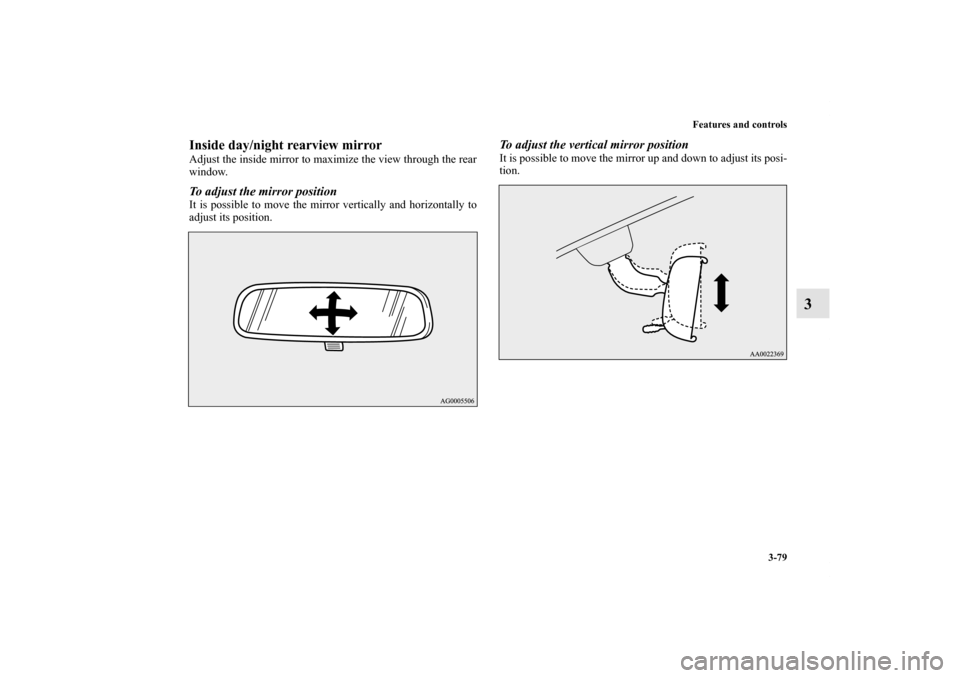

Inside day/night rearview mirrorAdjust the inside mirror to maximize the view through the rear
window.To adjust the mirror positionIt is possible to move the mirror vertically and horizontally to
adjust its position.
To adjust the vertical mirror positionIt is possible to move the mirror up and down to adjust its posi-
tion.
BK0125300US.book 79 ページ 2010年5月18日 火曜日 午後1時53分
Page 175 of 706

3-80 Features and controls
3

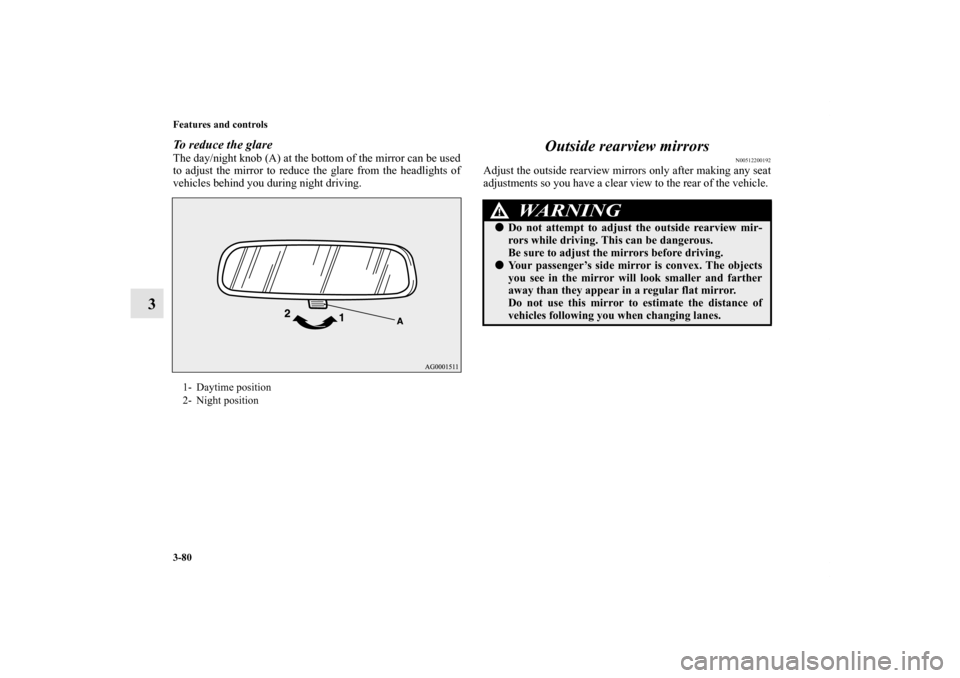

To reduce the glareThe day/night knob (A) at the bottom of the mirror can be used
to adjust the mirror to reduce the glare from the headlights of
vehicles behind you during night driving.
Outside rearview mirrors
N00512200192
Adjust the outside rearview mirrors only after making any seat
adjustments so you have a clear view to the rear of the vehicle.
1- Daytime position
2- Night position
WA R N I N G
!Do not attempt to adjust the outside rearview mir-
rors while driving. This can be dangerous.
Be sure to adjust the mirrors before driving.Your passenger’s side mirror is convex. The objects
you see in the mirror will look smaller and farther
away than they appear in a regular flat mirror.
Do not use this mirror to estimate the distance of
vehicles following you when changing lanes.
BK0125300US.book 80 ページ 2010年5月18日 火曜日 午後1時53分
Page 176 of 706

Features and controls
3-81
3

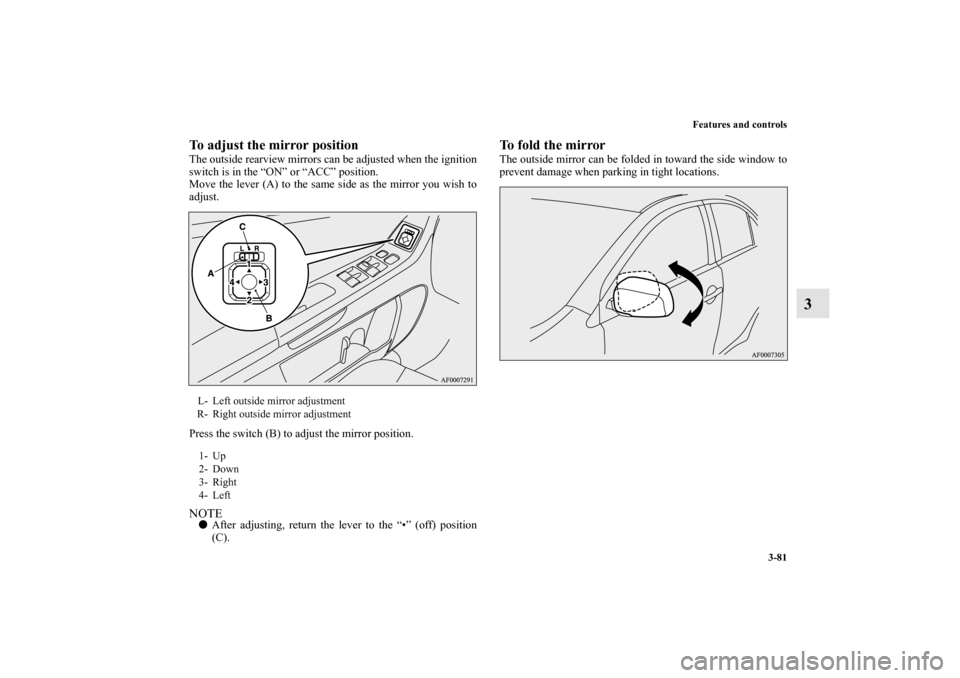

To adjust the mirror positionThe outside rearview mirrors can be adjusted when the ignition
switch is in the “ON” or “ACC” position.
Move the lever (A) to the same side as the mirror you wish to
adjust.
Press the switch (B) to adjust the mirror position. NOTEAfter adjusting, return the lever to the “•” (off) position
(C).
To fold the mirrorThe outside mirror can be folded in toward the side window to
prevent damage when parking in tight locations.
L- Left outside mirror adjustment
R- Right outside mirror adjustment
1- Up
2- Down
3- Right
4- Left
BK0125300US.book 81 ページ 2010年5月18日 火曜日 午後1時53分

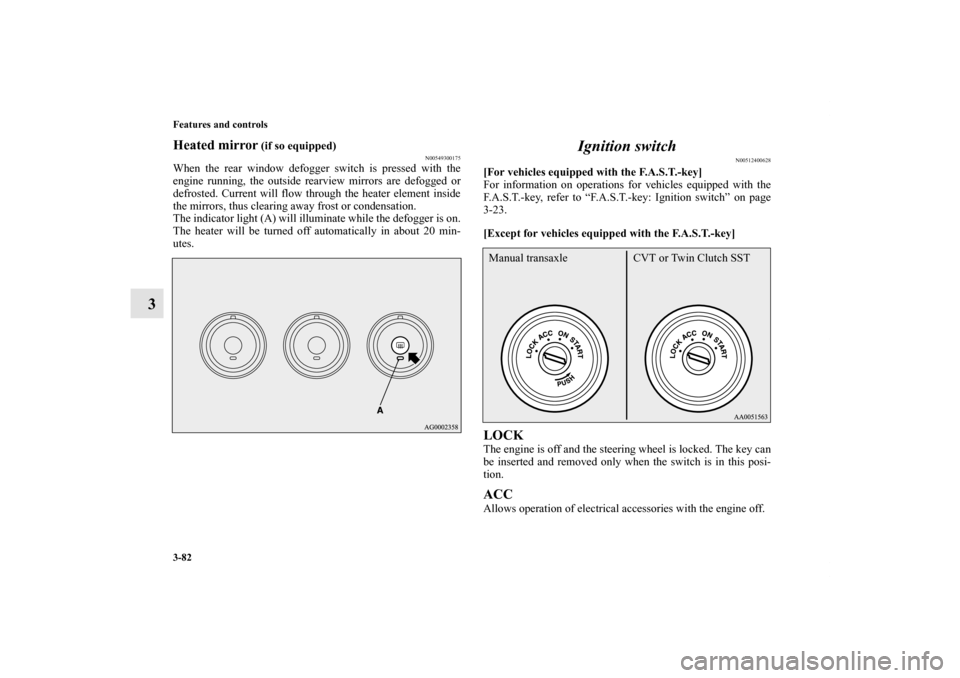

Page 177 of 706

3-82 Features and controls
3
Heated mirror
(if so equipped)
N00549300175
When the rear window defogger switch is pressed with the
engine running, the outside rearview mirrors are defogged or
defrosted. Current will flow through the heater element inside
the mirrors, thus clearing away frost or condensation.
The indicator light (A) will illuminate while the defogger is on.
The heater will be turned off automatically in about 20 min-
utes.
Ignition switch
N00512400628
[For vehicles equipped with the F.A.S.T.-key]
For information on operations for vehicles equipped with the
F.A.S.T.-key, refer to “F.A.S.T.-key: Ignition switch” on page
3-23.
[Except for vehicles equipped with the F.A.S.T.-key]LOCKThe engine is off and the steering wheel is locked. The key can
be inserted and removed only when the switch is in this posi-
tion. ACCAllows operation of electrical accessories with the engine off. Manual transaxle CVT or Twin Clutch SST
BK0125300US.book 82 ページ 2010年5月18日 火曜日 午後1時53分
Page 178 of 706

Features and controls
3-83
3

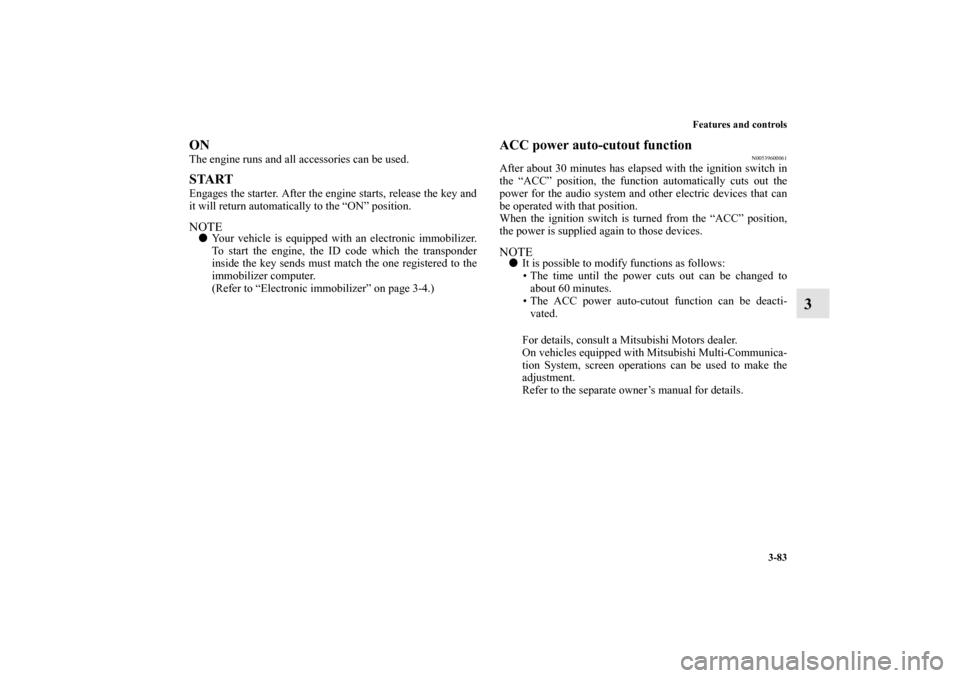

ON The engine runs and all accessories can be used. START Engages the starter. After the engine starts, release the key and
it will return automatically to the “ON” position.NOTEYour vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the transponder
inside the key sends must match the one registered to the
immobilizer computer.
(Refer to “Electronic immobilizer” on page 3-4.)
ACC power auto-cutout function
N00539600061
After about 30 minutes has elapsed with the ignition switch in
the “ACC” position, the function automatically cuts out the
power for the audio system and other electric devices that can
be operated with that position.
When the ignition switch is turned from the “ACC” position,
the power is supplied again to those devices.NOTEIt is possible to modify functions as follows:
• The time until the power cuts out can be changed to
about 60 minutes.
• The ACC power auto-cutout function can be deacti-
vated.
For details, consult a Mitsubishi Motors dealer.
On vehicles equipped with Mitsubishi Multi-Communica-
tion System, screen operations can be used to make the
adjustment.
Refer to the separate owner’s manual for details.
BK0125300US.book 83 ページ 2010年5月18日 火曜日 午後1時53分
Page 179 of 706

3-84 Features and controls
3

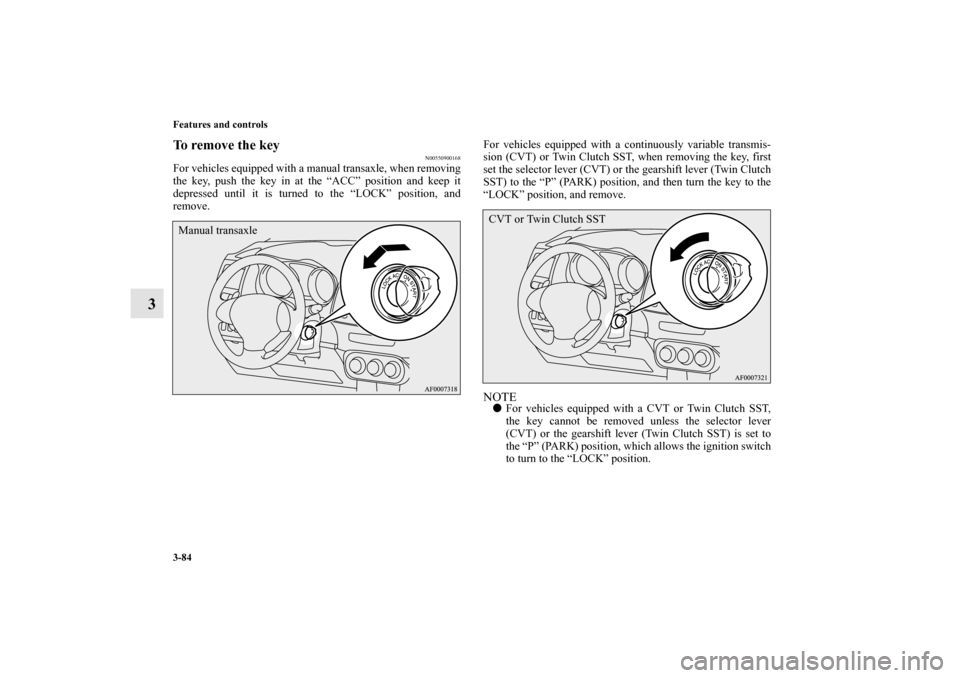

To remove the key
N00550900168
For vehicles equipped with a manual transaxle, when removing
the key, push the key in at the “ACC” position and keep it
depressed until it is turned to the “LOCK” position, and
remove.For vehicles equipped with a continuously variable transmis-
sion (CVT) or Twin Clutch SST, when removing the key, first
set the selector lever (CVT) or the gearshift lever (Twin Clutch
SST) to the “P” (PARK) position, and then turn the key to the
“LOCK” position, and remove.
NOTEFor vehicles equipped with a CVT or Twin Clutch SST,
the key cannot be removed unless the selector lever
(CVT) or the gearshift lever (Twin Clutch SST) is set to
the “P” (PARK) position, which allows the ignition switch
to turn to the “LOCK” position.
Manual transaxle
CVT or Twin Clutch SST
BK0125300US.book 84 ページ 2010年5月18日 火曜日 午後1時53分
Page 180 of 706
![MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual Features and controls
3-85
3 Steering wheel lock
N00512500179
[For vehicles equipped with the F.A.S.T.-key]
For information on operations for vehicles equipped with the
F.A.S.T.-key, refer to “F.A.S MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual Features and controls
3-85
3 Steering wheel lock
N00512500179
[For vehicles equipped with the F.A.S.T.-key]
For information on operations for vehicles equipped with the
F.A.S.T.-key, refer to “F.A.S](/img/19/7501/w960_7501-179.png)
Features and controls
3-85

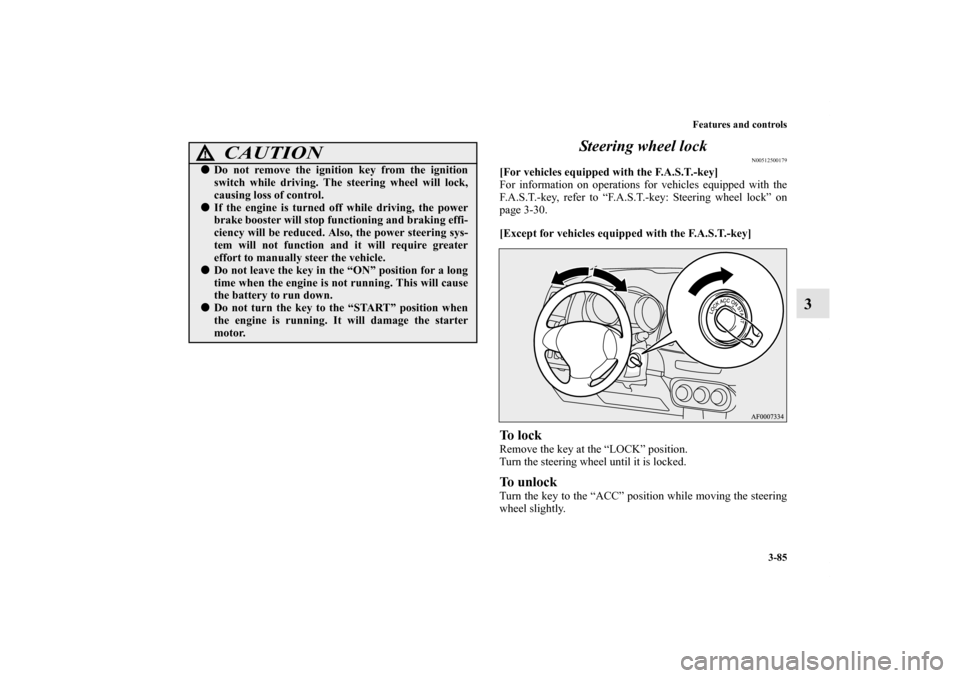

3 Steering wheel lock
N00512500179
[For vehicles equipped with the F.A.S.T.-key]
For information on operations for vehicles equipped with the
F.A.S.T.-key, refer to “F.A.S.T.-key: Steering wheel lock” on
page 3-30.
[Except for vehicles equipped with the F.A.S.T.-key]To l o c kRemove the key at the “LOCK” position.
Turn the steering wheel until it is locked.To u n l o c kTurn the key to the “ACC” position while moving the steering
wheel slightly.
CAUTION
!Do not remove the ignition key from the ignition
switch while driving. The steering wheel will lock,
causing loss of control.If the engine is turned off while driving, the power
brake booster will stop functioning and braking effi-
ciency will be reduced. Also, the power steering sys-
tem will not function and it will require greater
effort to manually steer the vehicle.Do not leave the key in the “ON” position for a long
time when the engine is not running. This will cause
the battery to run down.Do not turn the key to the “START” position when
the engine is running. It will damage the starter
motor.
BK0125300US.book 85 ページ 2010年5月18日 火曜日 午後1時53分
