Break-in recommendations
Features and controls 5-3
5
N00508700314
Advanced automobile manufacturing tech- niques permit you to operate your new vehi-cle without requiring a long break-in period of low-speed driving. However, you can add to the future perfor-mance and economy of your vehicle by observing the following precautions during the first 300 miles (500 km).Drive your vehicle at moderate speeds duringthe break-in period.  Avoid revving the engine. For vehicles equipped with turbocharger, do not exceed 5,000 rpm for the first 600 miles(1,000 km).  Avoid rough driving such as fast starts, sudden acceleration, prolonged high-speed driving and sudden braking. These would have a detrimental effect on the engine and also cause increased fuel andoil consumption, which could result in malfunction of the engine components. Be particularly careful to avoid full accelera-tion while in low gear.  Do not overload the vehicle. Observe the seating capacity (See “Cargo load precau-tions” on page 6-10).  Do not use this vehicle for trailer towing.
N00508800591
Two keys are provided. The keys fit all locks. Keep one in a safe place as a spare key. Two Free-hand Advanced Security Transmit- ter (F.A.S.T.-key) and two emergency keys are provided.
Keep one F.A.S.T.-key and one emergency key in a safe place together as a set of spare keys.
Break-in recommendations

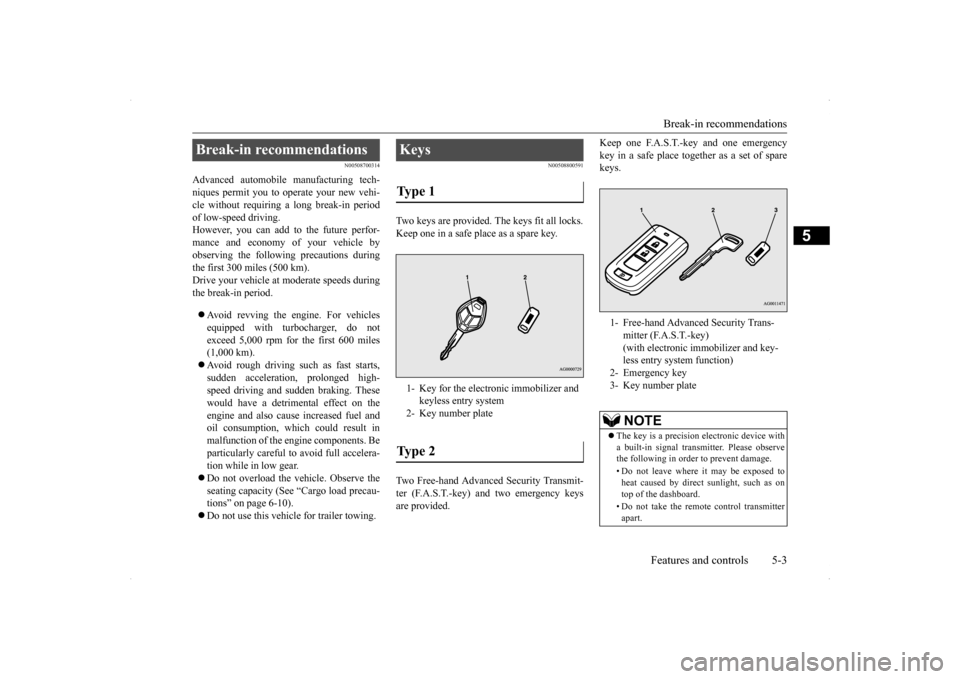

Keys Type 1 1- Key for the electronic immobilizer and
keyless entry system
2- Key number plateType 2
1- Free-hand Advanced Security Trans-
mitter (F.A.S.T.-key) (with electronic immobilizer and key-less entry system function)
2- Emergency key 3- Key number plate
NOTE
 The key is a precision electronic device with a built-in signal transmitter. Please observe the following in order to prevent damage. • Do not leave where it may be exposed to heat caused by direct sunlight, such as ontop of the dashboard. • Do not take the remote control transmitter apart.
BK0200700US.bo
ok 3 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Electronic immobilizer (Anti-theft starting system) 5-4 Features and controls
5
N00509101817
[For vehicles equipped with the Free-hand Advanced Security Transmitter (F.A.S.T.- key)] For information on operations for vehiclesequipped with the Free-hand Advanced Secu- rity Transmitter (F.A.S.T.-key), refer to “Free-hand Advanced Security Transmitter(F.A.S.T.-key): Electronic immobilizer (Anti- theft starting system)” on page 5-28.
[Except for vehicles equipped with the Free- hand Advanced Security Transmitter (F.A.S.T.-key)] The electronic immobilizer is designed to sig-nificantly reduce the possibility of vehicle theft. The purpose of the system is to immo- bilize the vehicle if an invalid start isattempted. A valid start attempt can only be achieved (subject to certain conditions) using a key “registered” to the immobilizer system.All of the keys provided with your new vehi-cle have been programmed to the vehicle’s electronics.

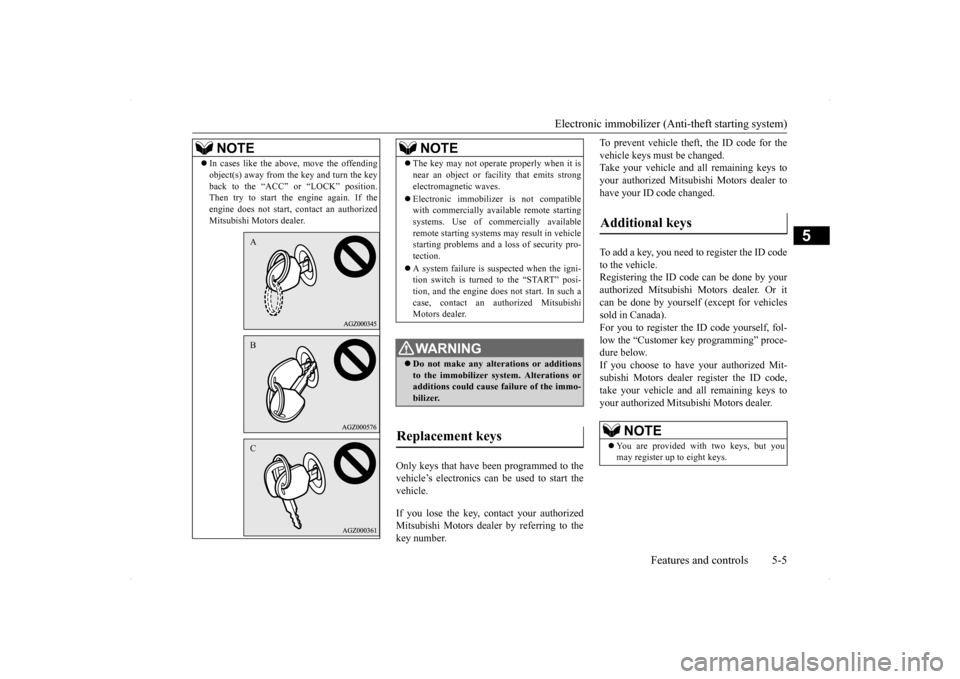

• Do not excessively bend the key or subject it to strong impacts. • Keep the remote control transmitter dry. • Keep away from magnetic objects such as key rings. • Keep away from devices that produce mag- netism, such as audio systems, computers and televisions. • Keep away from devices that emit strong electromagnetic waves, such as cellularphones, wireless devices and high fre- quency equipment (including medical devices.) • Do not clean with ultrasonic cleaners. • Do not leave the key where it may be exposed to high temperature or high humid- ity.
 If you lose your key, to prevent the theft of the vehicle immediately contact an autho-rized Mitsubishi Motors dealer. If you notify an authorized Mitsubishi Motors dealer of the key number, they canmake a new key. The key number is stamped on the key number plate. Keep the key num- ber plate in a safe place separate from thekey itself.NOTE
 No keys other than those registered in advance can be used to start the engine. Refer to “Electronic immobilizer (Anti-theft starting system)” on page 5-4. Refer to “Free-hand Advanced SecurityTransmitter (F.A.S.T.-key): Electronic immobilizer (Anti-theft starting system)” on page 5-28.  When the theft-alarm is in the system opera- tional status, the alarm operates if a door orrear hatch is opened after using the key, the door lock knob or the power door lock to unlock the vehicle.  The system does not enter the preparation status if the keyless entry system or theF.A.S.T.-key was not used to lock the vehi- cle.
Electronic immobilizer (Anti-theft starting system)
NOTE
NOTE
 Do not attach additional keys or accessories to the ignition key. Such objects could pre-vent the driver’s knee airbag from inflating normally. Refer to “Deployment of front air- bags” on page 4-30.  In the following cases, the vehicle may not be able to recognize the registered ID codefrom the key. This means the engine will not start even when the key is turned to the “START” position. • When the key contacts a key ring or other metallic or magnetic object (Type A) • When the key grip contacts metal of another key (Type B) • When the key contacts or is close to other immobilizer keys (including keys of other vehicles) (Type C)
BK0200700US.bo
ok 4 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Electronic immobilizer (Ant
i-theft starting system)
Features and controls 5-5
5
Only keys that have been programmed to the vehicle’s electronics can be used to start the vehicle. If you lose the key, contact your authorized Mitsubishi Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the vehicle keys must be changed. Take your vehicle and all remaining keys to your authorized Mitsubishi Motors dealer tohave your ID code changed. To add a key, you need to register the ID code to the vehicle.Registering the ID code can be done by your authorized Mitsubishi Motors dealer. Or it can be done by yourself (except for vehiclessold in Canada). For you to register the ID code yourself, fol- low the “Customer key programming” proce-dure below. If you choose to have your authorized Mit- subishi Motors dealer
register the ID code,
take your vehicle and all remaining keys to your authorized Mitsubishi Motors dealer.
 In cases like the above, move the offending object(s) away from the key and turn the key back to the “ACC” or “LOCK” position. Then try to start the
engine again. If the
engine does not start, contact an authorizedMitsubishi Motors dealer.NOTE
ABC
 The key may not operate properly when it is near an object or facility that emits strong electromagnetic waves.  Electronic immobilizer is not compatible with commercially available remote starting systems. Use of commercially available remote starting systems may result in vehiclestarting problems and a lo
ss of security pro-
tection.  A system failure is suspected when the igni- tion switch is turned to the “START” posi- tion, and the engine does not start. In such acase, contact an authorized Mitsubishi Motors dealer.WA R N I N G Do not make any alterations or additions to the immobilizer system. Alterations oradditions could cause failure of the immo- bilizer.
Replacement keys
NOTE
Additional keys
NOTE
 You are provided with two keys, but you may register up to eight keys.
BK0200700US.bo
ok 5 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Electronic immobilizer (Anti-theft starting system) 5-6 Features and controls
5
N00562200067
You can program new keys to the system if you have two valid (already registered) keys and blank (not registered) immobilizer key(specially cut for your vehicle at your Mit- subishi Motors dealer) by doing the follow- ing: 1. Insert the first valid key into the ignition switch and turn the key to the “ON” posi-tion for 5 seconds. 2. Turn the key to the “LOCK” position and remove the first key.3. Within 30 seconds of turning the first key to the “LOCK” position, insert the second valid key into the ignition and turn it tothe “ON” position. About 10 seconds later, the immobilizer display will start to blink.
4. When the immobilizer display starts blinking, turn the second valid key to the “LOCK” position and remove it. Within 30 seconds after doing so, insert a blankimmobilizer key into the ignition switch and turn it to the “ON” position. Perform this operation no more than 30 secondsafter the immobilizer display starts blink- ing. When registration of the ID code is complete, the immobilizer display willcome on for 3 seconds then go off. If anerror occurs, the immobilizer display will go off during the procedure. 5. If you wish to register another key, per- form the process again from step 1.
N00562301108
Your electronic immobilizer operates on a radio frequency subject to Federal Communi- cations Commission (FCC) Rules (For vehi- cles sold in U.S.A.) and Industry CanadaRules (For vehicles sold in Canada). This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSSstandard(s).
Customer key programming (Except for vehicles sold in Canada)
NOTE
 Perform the operation when the interrupt dis- play screen is not showing. The interrupt dis- play screen may prevent you from seeing the immobilizer display.  It is not possible to register a key if: • the immobilizer display goes off during the procedure • the immobilizer display does not come on within 30 seconds after turning the ignition switch to the “ON” position with a blankimmobilizer key
 The procedure will be terminated automati- cally if: • a period of 30 seconds or longer elapses from the moment when the first key isturned to the “LOCK” position to the moment when the second key is turned to the “ON” position • a period of 30 seconds or longer elapses from the moment when the second key isturned to the “LOCK” position to the moment when the blank immobilizer key is turned to the “ON” position
 To use the new remote control transmitters, it is necessary to register the key with both theelectronic immobilizer and keyless entry sys- tem. Also refer to “Keyless entry system: Cus-tomer remote control transmitter program- ming” on page 5-9.
General information
NOTE
BK0200700US.bo
ok 6 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Keyless entry system (if so equipped) 5-10 Features and controls
5
ii. Release both the LOCK and UNLOCK buttons for 1 second.
iii. Press the UNLOCK button.
The answerback function informs youthat the ID code registration of the transmitter is completed.
5. To register the ID codes of additionalremote control transmitters, repeat step 4 within 60 seconds after step 4. 6. If no ID code of a remote control trans-mitter is registered within 60 secondsafter step 4, the registration mode is can- celed and the normal mode returns.
N0054610
1111
Your keyless entry system operates on a radio frequency subject to Federal Communica- tions Commission (FCC) Rules (For vehiclessold in U.S.A.) and Industry Canada Rules (For vehicles sold in Canada). This device
complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS stan- dard(s). Operation is subject to the following two con-ditions.  This device may not cause harmful inter- ference.  This device must accept any interference received, including interference that may cause undesired operation.
N00544100077
1. Before replacing the battery, remove static electricity from your body by touching ametal grounded object.
NOTE
 For verification purposes, try to lock and unlock the doors and the rear hatch after theregistration is completed.  The indicator light (4) comes on each time a button is pressed.  The keyless entry system does not work if the key is in the ignition switch.  The remote control transmitter can be used from about 40 feet (12 m) away. However, this distance may change if your vehicle is near a TV transmitting tower, a power sta- tion, or a radio station.  If the UNLOCK button (2) is pressed when all doors and the rear hatch are locked and no doors or the rear hatch are opened withinabout 30 seconds, the doors and the rear hatch will automatically re-lock.
 If the following conditions are observed after pressing the buttons on the remote control transmitter, the battery in the remote control transmitter may need to be replaced. • The doors and the rear hatch cannot be locked or unlocked. • The panic alarm cannot be operated. • The indicator light (4) is dim or does not come on.
 If you lose your remote control transmitter, please contact an authorized Mitsubishi Motors dealer for a replacement.  If you wish to obtain an additional remote control transmitter, please contact an autho- rized Mitsubishi Motors dealer. A maximumof eight remote control transmitters can be programmed for your vehicle.  To use the new remote control transmitters, it is necessary to register the key with both the electronic immobilizer and keyless entry sys-tem. Also refer to “Electr
onic immobilizer (Anti-
theft starting system): Customer key pro-gramming” on page 5-6.
General information

NOTE
CAUTION Changes or modifications not expressly approved by the manufacturer for compli- ance could void the user’s authority to oper- ate the equipment.
Procedure for replacing the remote control transmitter bat- tery

BK0200700US.bo
ok 10 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-16 Features and controls
5
N00513500059
To prevent vehicle theft, no F.A.S.T.-keys other than those registered in advance can be used to start the engine. (Electronic immobi- lizer function)While carrying the F.A.S.T.-key, the ignition switch can be turned to start the engine. The position where the steering wheel is locked.
When the ID code verification inside the vehicle produces a match, the ignition switchcan be turned. Allows operation of electrical accessories with the engine off. The engine runs and all electrical accessories can be used. Engages the starter. Release the ignition switch when the engine starts. The ignitionswitch returns automatically to the “ON” position.
N00513600021

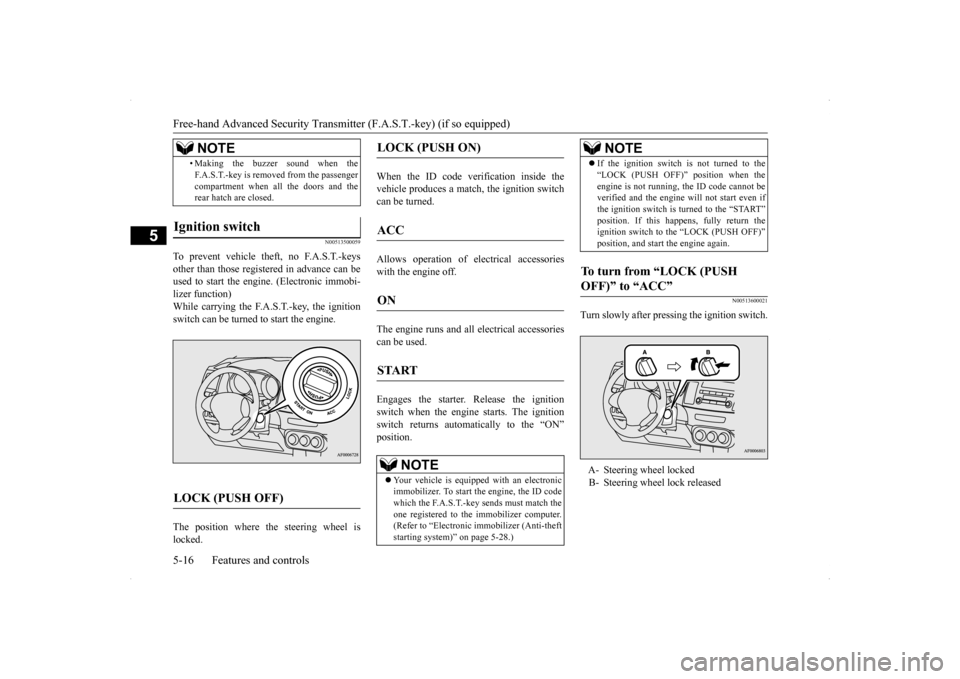

Turn slowly after pressing the ignition switch.
• Making the buzzer sound when the F.A.S.T.-key is removed from the passenger compartment when all the doors and the rear hatch are closed.
Ignition switch

LOCK (PUSH OFF)

NOTE
LOCK (PUSH ON)

ACC

ON

START

NOTE
 Your vehicle is equipped with an electronic immobilizer. To start the engine, the ID code which the F.A.S.T.-key sends must match the one registered to the immobilizer computer.(Refer to “Electronic immobilizer (Anti-theft starting system)” on page 5-28.)
 If the ignition switch is not turned to the “LOCK (PUSH OFF)” position when the engine is not running, the ID code cannot be verified and the engine will not start even if the ignition switch is turned to the “START”position. If this happens, fully return the ignition switch to the “LOCK (PUSH OFF)” position, and start the engine again.

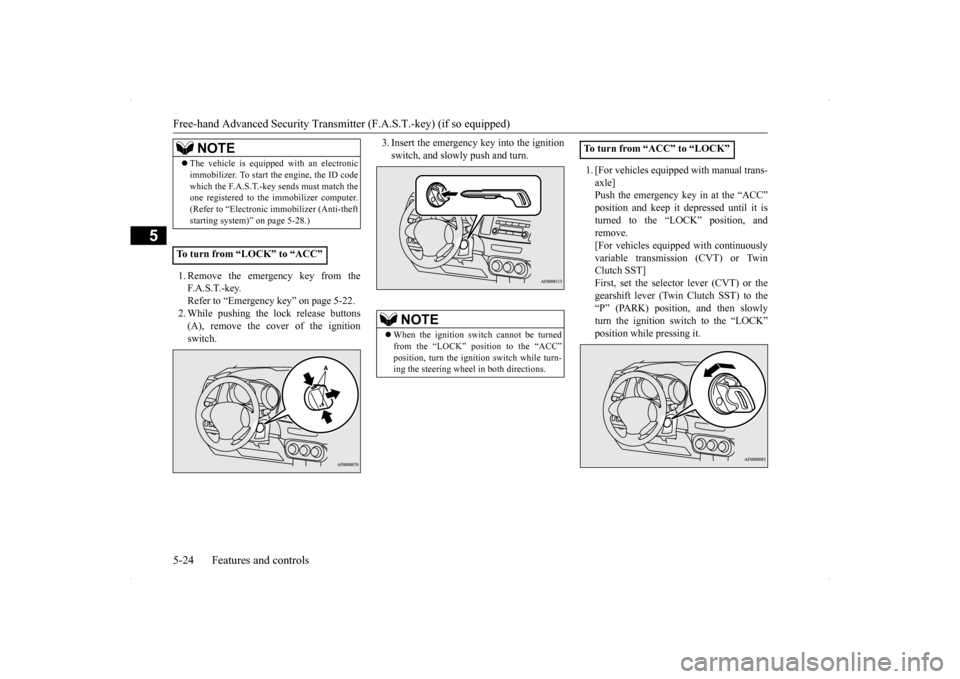

To turn from “LOCK (PUSH OFF)” to “ACC”

A- Steering wheel locked B- Steering wheel lock released
NOTE
BK0200700US.bo
ok 16 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-23
5
Turn the emergency key toward the front of the vehicle to lock the door. After checking that the door is lock
ed, turn the emergency
key back to the center and remove it.
N00529300212
To prevent vehicle theft, only the emergencykey with the pre-registered F.A.S.T.-keyinserted can start the engine. (Electronic immobilizer function)
The engine is off and the steering wheel is locked. The emergency key can be inserted and removed only when the ignition switch is in this position. The electrical accessories can be used with the engine off. The engine will start only by using the emer- gency key with the F.A.S.T.-key inserted. It is possible to use all electrical accessories with only the emergency key. Engages the starter. Release the emergency key when the engine starts. The ignition switch returns automatically to the “ON” position.
NOTE
 Only use the emergency key in an emer- gency. When the battery of the F.A.S.T.-key has run down, replace the battery as soon as possible and use it as a F.A.S.T.-key again.  After using the emergency key, be sure to reinsert it into the F.A.S.T.-key.
To lock or unlock the driver’s door with the emergency key
1- Insert or remove the emergency key 2- Lock 3- UnlockIgnition switch

LOCK ACC ON START
BK0200700US.bo
ok 23 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-24 Features and controls
5
1. Remove the emergency key from the F. A . S . T. - k e y. Refer to “Emergency key” on page 5-22.2. While pushing the lock release buttons (A), remove the cover of the ignition switch.
3. Insert the emergency key into the ignition switch, and slowly push and turn.
1. [For vehicles equipped with manual trans- axle] Push the emergency key in at the “ACC” position and keep it
depressed until it is
turned to the “LOCK” position, and remove. [For vehicles equipped with continuouslyvariable transmission (CVT) or Twin Clutch SST] First, set the selector lever (CVT) or thegearshift lever (Twin Clutch SST) to the“P” (PARK) position, and then slowly turn the ignition switch to the “LOCK” position while pressing it.
NOTE
 The vehicle is equipped with an electronic immobilizer. To start the engine, the ID code which the F.A.S.T.-key sends must match the one registered to the immobilizer computer. (Refer to “Electronic immobilizer (Anti-theftstarting system)” on page 5-28.)
To turn from “LOCK” to “ACC”
NOTE
 When the ignition switch cannot be turned from the “LOCK” position to the “ACC” position, turn the ignition switch while turn- ing the steering wheel in both directions.
To turn from “ACC” to “LOCK”
BK0200700US.bo
ok 24 ページ ２０１３年２月１５日　金曜日　午後１２時１７分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-28 Features and controls
5
After several attempts, you may experience that the engine still does not start. 1. Make sure that all electric devices, such as lights, air conditioning blower and rear window defogger, are turned off.2. While depressing the brake pedal on vehi- cles equipped with continuously variable transmission (CVT) or the clutch pedal onthe vehicles equipped with manual trans-axle, press the accelerator pedal halfway and hold it there, then crank the engine. Release the accelerator pedal, immedi-ately after the engine starts. 3. If the engine still will not start, the engine could be flooded with too much gasoline.While depressing the brake pedal on vehi- cles equipped with CVT or the clutch pedal on the vehicles
equipped with man-
ual transaxle, push the accelerator pedal all the way down and hold it there, then crank the engine for 5 to 6 seconds.Return the ignition switch to the “LOCK” position and release the accelerator pedal.
Wait a few seconds, and then crank the engine again for 5 to 6 seconds while depressing the brake pedal or the clutch pedal, but do not push the acceleratorpedal. Release the ignition key if the engine starts. If the engine fails to start, repeat these procedures. If the engine stillwill not start, contact your local Mitsubi- shi Motors dealer or a repair facility of your choice for assistance.
When the ambient temperature is -4 °F (-20 °C) or lower on vehicles equipped with CVTor -22 °F (-30 °C) or lower on vehicles equipped with Twin Clutch SST or it may not be possible to start fr
om a standstill even with
the selector lever (CVT) or the gearshift lever (Twin Clutch SST) in the “D” (DRIVE) posi- tion.This phenomenon occurs because the trans- axle has not warmed up sufficiently; it does not indicate a problem. If this occurs, placethe selector lever (CVT) or the gearshift lever (Twin Clutch SST) in the “P” (PARK) posi- tion and let the engine idle for at least 10 min-utes.
The transaxle will warm up, and you will be able to drive normally. Do not leave the vehicle during warm-up operation.
N00529600127
The electronic immobilizer is designed to sig-nificantly reduce the possibility of vehicletheft. The purpose of the system is to immo- bilize the vehicle if an invalid start is attempted. A valid start attempt can only beachieved (subject to certain conditions) using a F.A.S.T.-key “registered” to the immobi- lizer system.All of the keys provided with your new vehi- cle have been programmed to the vehicle’s electronics. Only the F.A.S.T.-keys that have been pro- grammed to the vehicle’s electronics can beused to start the vehicle. If you lose the F.A.S.T.-key, you can order a F.A.S.T.-key from your authorized Mitsubishi Motors dealer by referring to the key number.
When the engine is hard to start
Startability of continuously variable transmission (CVT) vehicles or Twin Clutch SST vehicles at extremely cold ambient temperature
Electronic immobilizer (Anti- theft starting system)

Replacement F.A.S.T.-key

BK0200700US.bo
