MITSUBISHI MIRAGE G4 2017 Owner's Manual (in English)

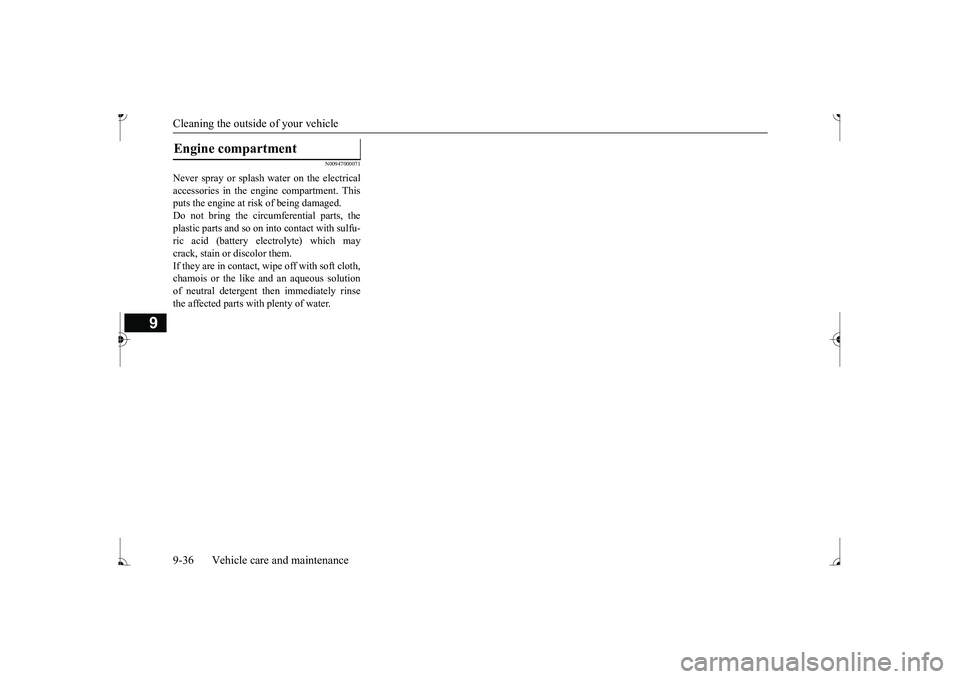

Cleaning the outside of your vehicle 9-36 Vehicle care and maintenance
9
N00947000071
Never spray or splash
water on the electrical
accessories in the engine compartment. This puts the engine at risk of being damaged.Do not bring the circum
ferential parts, the
plastic parts and so on
into contact with sulfu-
ric acid (battery electrolyte) which maycrack, stain or discolor them. If they are in contact, wipe off with soft cloth, chamois or the like and an aqueous solution of neutral detergent th
en immediately rinse
the affected parts with plenty of water.Engine compartment BK0236100US.book 36 ページ ２０１６年２月１日　月曜日　午前１０時１５分

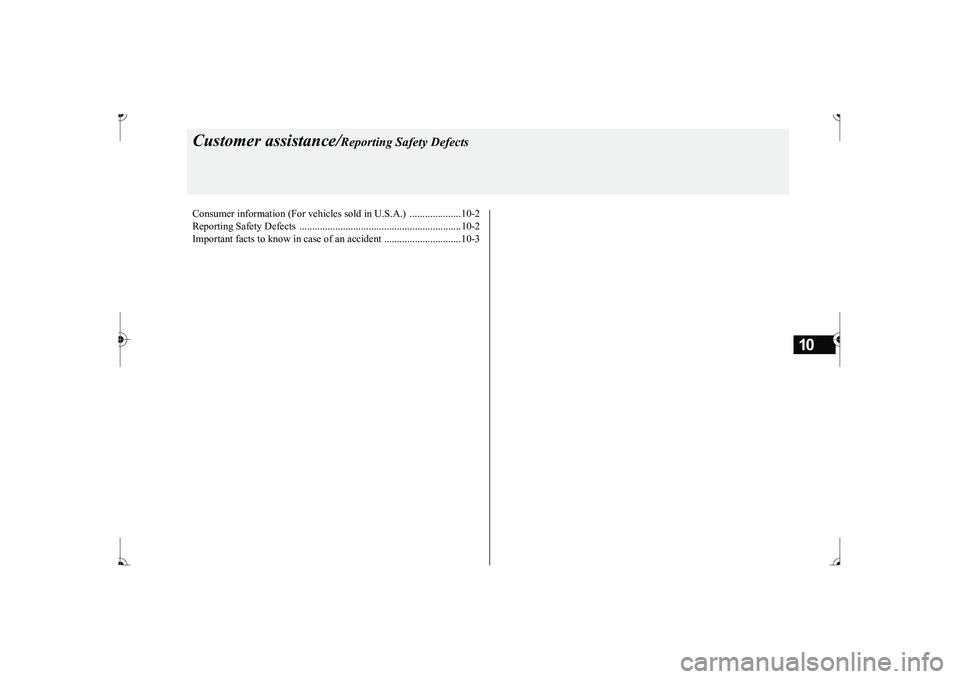

10
Customer assistance/
Reporting Safety Defects
Consumer information (For vehicles sold in U.S.A.) ....................10-2 Reporting Safety Defects ...............................................................10-2 Important facts to know in
case of an accident ....
..............
............10-3
BK0236100US.book 1 ページ ２０１６年２月１日　月曜日　午前１０時１５分

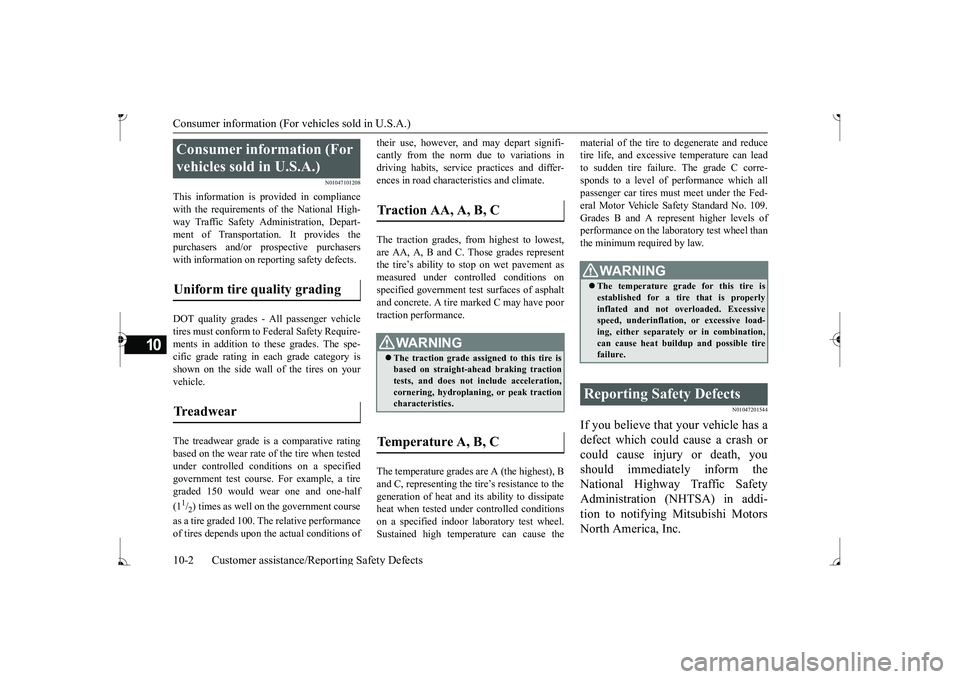

Consumer information (For vehicles sold in U.S.A.) 10-2 Customer assistance/Re
porting Safety Defects
10
N01047101208
This information is provided in compliance with the requirements of the National High- way Traffic Safety Ad
ministration, Depart-
ment of Transportation. It provides the purchasers and/or prospective purchasers with information on repor
ting safety defects.
DOT quality grades - Al
l passenger vehicle
tires must conform to
Federal Safety Require-
ments in addition to these grades. The spe- cific grade rating in each grade category isshown on the side wall of the tires on your vehicle. The treadwear grade is a comparative rating based on the wear rate of
the tire when tested
under controlled conditions on a specifiedgovernment test course
. For example, a tire
graded 150 would wear one and one-half (11/2) times as well on the government course
as a tire graded 100.
The relative performance
of tires depends upon the actual conditions of
their use, however, and may depart signifi- cantly from the norm due to variations indriving habits, service practices and differ- ences in road characteristics and climate. The traction grades, from highest to lowest, are AA, A, B and C. Those grades represent the tire’s ability to
stop on wet pavement as
measured under controlled conditions on specified government te
st surfaces of asphalt
and concrete. A tire marked C may have poor traction performance. The temperature grades are A (the highest), B and C, representing the ti
re’s resistance to the
generation of heat and it
s ability to dissipate
heat when tested un
der controlled conditions
on a specified indoor
laboratory test wheel.
Sustained high temperature can cause the
material of the tire to
degenerate and reduce
tire life, and excessive temperature can leadto sudden tire failure. The grade C corre- sponds to a level of performance which all passenger car tires must meet under the Fed-eral Motor Vehicle Safety Standard No. 109. Grades B and A represent higher levels of performance on the labora
tory test wheel than
the minimum required by law.
N01047201544
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform theNational Highway Traffic Safety Administration (NHTSA) in addi- tion to notifying Mitsubishi MotorsNorth America, Inc.
Consumer information (For vehicles sold in U.S.A.) Uniform tire quality grading Treadwear
Traction AA, A, B, C
WA R N I N G The traction grade assi
gned to this tire is
based on straight-ahead braking tractiontests, and does not include acceleration, cornering, hydroplani
ng, or peak traction
characteristics.
Temperature A, B, C
WA R N I N G The temperature grade for this tire is established for a tire that is properlyinflated and not overloaded. Excessive speed, underinflation
, or excessive load-
ing, either separately
or in combination,
can cause heat buildup and possible tire failure.
Reporting Safety Defects
BK0236100US.book 2 ページ ２０１６年２月１日　月曜日　午前１０時１５分

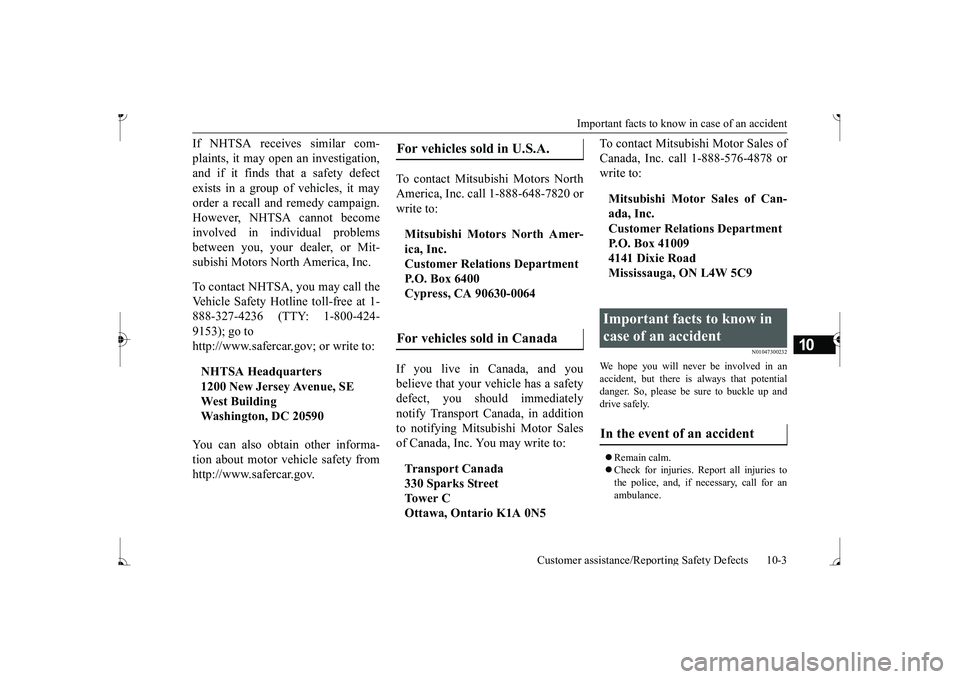

Important facts to know
in case of an accident
Customer assistance/Reporting Safety Defects 10-3
10
If NHTSA receives similar com- plaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it mayorder a recall and remedy campaign. However, NHTSA cannot become involved in individual problemsbetween you, your dealer, or Mit- subishi Motors North America, Inc. To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1- 888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov; or write to: You can also obtain other informa- tion about motor vehicle safety from http://www.safercar.gov.
To contact Mitsubishi Motors North America, Inc. call 1-888-648-7820 or write to: If you live in Canada, and you believe that your vehicle has a safety defect, you should immediatelynotify Transport Canada, in addition to notifying Mitsubishi Motor Sales of Canada, Inc. You may write to:
To contact Mitsubishi Motor Sales of Canada, Inc. call 1-888-576-4878 or write to:
N01047300232
We hope you will never be involved in an accident, but there is
always that potential
danger. So, please be sure to buckle up and drive safely.  Remain calm.  Check for injuries. Report all injuries to the police, and, if
necessary, call for an
ambulance.
NHTSA Headquarters 1200 New Jersey Avenue, SEWest Building Washington, DC 20590
For vehicles sold in U.S.A. Mitsubishi Motors North Amer- ica, Inc. Customer Relations Department P.O. Box 6400Cypress, CA 90630-0064For vehicles sold in Canada Transport Canada330 Sparks StreetTo w e r C Ottawa, Ontario K1A 0N5
Mitsubishi Motor Sales of Can- ada, Inc.Customer Relations Department P.O. Box 41009 4141 Dixie RoadMississauga, ON L4W 5C9Important facts to know in case of an accident In the event of an accident
BK0236100US.book 3 ページ ２０１６年２月１日　月曜日　午前１０時１５分

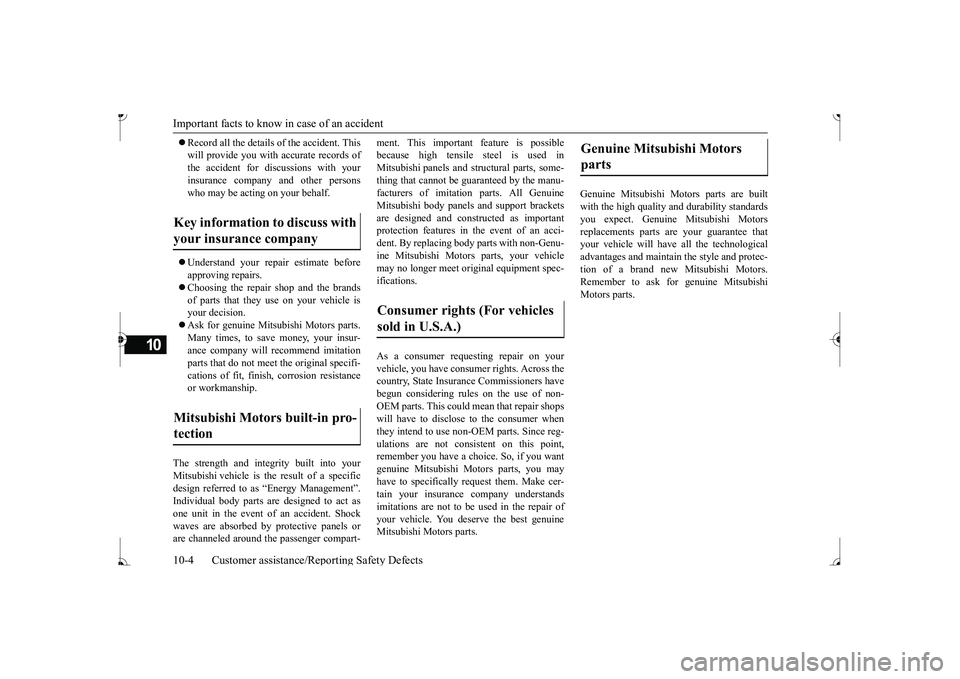

Important facts to know
in case of an accident
10-4 Customer assistance/Re
porting Safety Defects
10
Record all the details of the accident. This will provide you with accurate records ofthe accident for discussions with your insurance company and other persons who may be acting on your behalf.  Understand your repa
ir estimate before
approving repairs.  Choosing the repair shop and the brands of parts that they use on your vehicle isyour decision.  Ask for genuine Mits
ubishi Motors parts.
Many times, to save
money, your insur-
ance company will recommend imitation parts that do not meet the original specifi- cations of fit, finish, corrosion resistanceor workmanship.
The strength and integrity built into your Mitsubishi vehicle is the result of a specific design referred to as
“Energy Management”.
Individual body parts are designed to act as one unit in the event of an accident. Shock waves are absorbed by protective panels orare channeled around the passenger compart-
ment. This important feature is possible because high tensile
steel is used in
Mitsubishi panels and stru
ctural parts, some-
thing that cannot be
guaranteed by the manu-
facturers of imitati
on parts. All Genuine
Mitsubishi body panels and support brackets are designed and cons
tructed as important
protection features in the event of an acci-dent. By replacing body parts with non-Genu- ine Mitsubishi Motors parts, your vehicle may no longer meet orig
inal equipment spec-
ifications. As a consumer reque
sting repair on your
vehicle, you have cons
umer rights. Across the
country, State Insuranc
e Commissioners have
begun considering rules on the use of non- OEM parts. This could
mean that repair shops
will have to disclose to the consumer when they intend to use non-OEM parts. Since reg- ulations are not cons
istent on this point,
remember you have a choice. So, if you want genuine Mitsubishi Mo
tors parts, you may
have to specifically
request them. Make cer-
tain your insurance company understands imitations are not to be used in the repair of your vehicle. You deserve the best genuineMitsubishi Motors parts.
Genuine Mitsubishi Motors parts are built with the high quality a
nd durability standards
you expect. Genuine Mitsubishi Motors replacements parts are your guarantee that your vehicle will have
all the technological
advantages and maintain
the style and protec-
tion of a brand new Mitsubishi Motors. Remember to ask for genuine Mitsubishi Motors parts.
Key information to discuss with your insurance company Mitsubishi Motors built-in pro- tection
Consumer rights (For vehicles sold in U.S.A.)
Genuine Mitsubishi Motors parts
BK0236100US.book 4 ページ ２０１６年２月１日　月曜日　午前１０時１５分

11

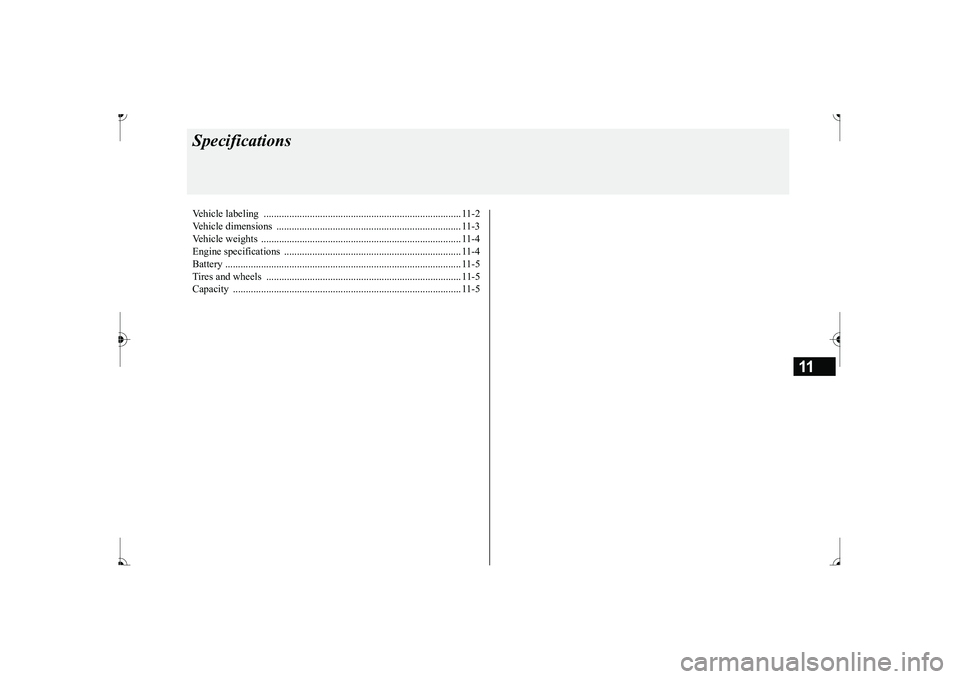

SpecificationsVehicle labeling ............................................................................. 11-2 Vehicle dimensions ........................................................................ 11-3 Vehicle weights .............................................................................. 11-4Engine specifications ..................................................................... 11-4 Battery ............................................................................................ 11-5 Tires and wheels ............................................................................ 11-5Capacity ......................................................................................... 11-5
BK0236100US.book 1 ページ ２０１６年２月１日　月曜日　午前１０時１５分

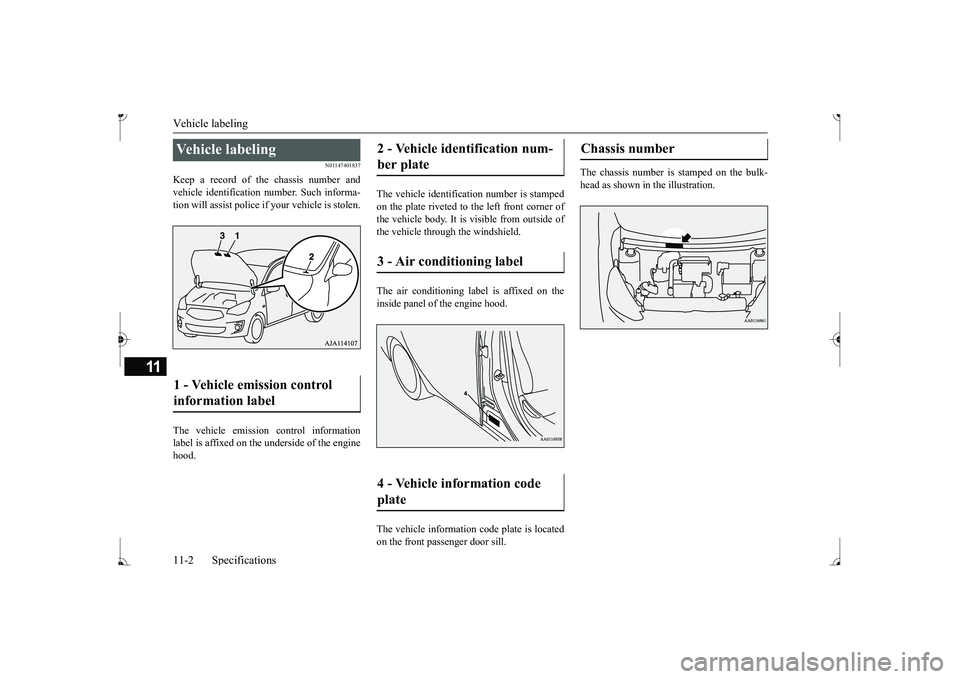

Vehicle labeling 11-2 Specifications
11
N01147401837
Keep a record of the chassis number and vehicle identification
number. Such informa-
tion will assist police if
your vehicle is stolen.
The vehicle emission control information label is affixed on the underside of the enginehood.
The vehicle identificati
on number is stamped
on the plate riveted to the left front corner ofthe vehicle body. It is
visible from outside of
the vehicle through the windshield. The air conditioning label is affixed on the inside panel of the engine hood. The vehicle information code plate is located on the front passenger door sill.
The chassis number is stamped on the bulk- head as shown in the illustration.
Vehicle labeling 1 - Vehicle emission control information label
2 - Vehicle identification num-ber plate 3 - Air conditioning label 4 - Vehicle information code plate
Chassis number
BK0236100US.book 2 ページ ２０１６年２月１日　月曜日　午前１０時１５分

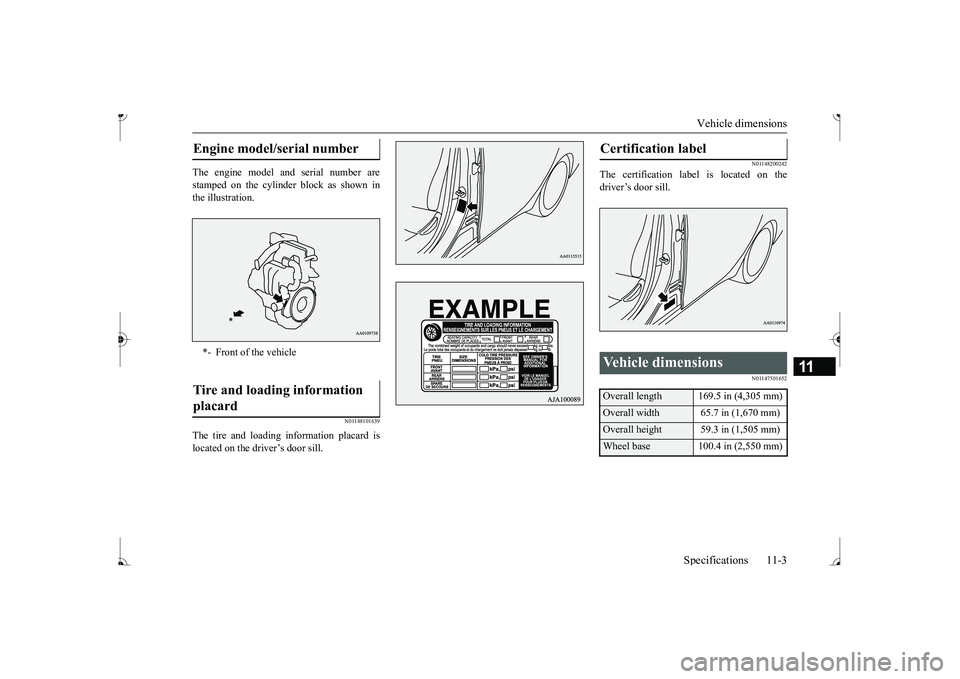

Vehicle dimensions
Specifications 11-3
11
The engine model a
nd serial number are
stamped on the cylinder block as shown in the illustration.
N01148101639
The tire and loading information placard is located on the driver’s door sill.
N01148200242
The certification label is located on the driver’s door sill.
N01147501652
Engine model/serial number *- Front of the vehicleTire and loading information placard
Certification label Vehicle dimensions Overall length 169.5 in (4,305 mm)Overall width 65.7 in (1,670 mm)Overall height 59.3 in (1,505 mm)Wheel base 100.4 in (2,550 mm)
BK0236100US.book 3 ページ ２０１６年２月１日　月曜日　午前１０時１５分

Vehicle weights 11-4 Specifications
11
N01147601985
GVWR: maximum total weight (load) limit specified for the vehicle GAWR: maximum weight (load) limit sp
ecified for the front or rear axle
Seating capacity: the maxi
mum number of occupants
N01147701579
Ve h i c l e w e i g h t s
Item
Manual transaxle
CVT
Gross vehicle weight ra
ting (GVWR) 3,053 lb (1,385 kg) 3,108 lb (1,410 kg)
Gross axle weight rating (GAWR)
Front 1,609 lb (730 kg)
Seating capacity 5 personsMaximum roof load 110 lb (50 kg)
NOTE
 Roof load is important because it affe
cts the vehicle capacity weight. Refer to
“Loading cargo on the roof” on page 6-10.
Engine specifications Engine model
3A92
Engine displacement
72.8 CID (1,193 cm
3)
No. of cylinders and cy
linder arrangement Inline-3
Bore
2.95 in (75.0 mm)
Stroke
3.54 in (90.0 mm)
Compression ratio
10.5:1
BK0236100US.book 4 ページ ２０１６年２月１日　月曜日　午前１０時１５分

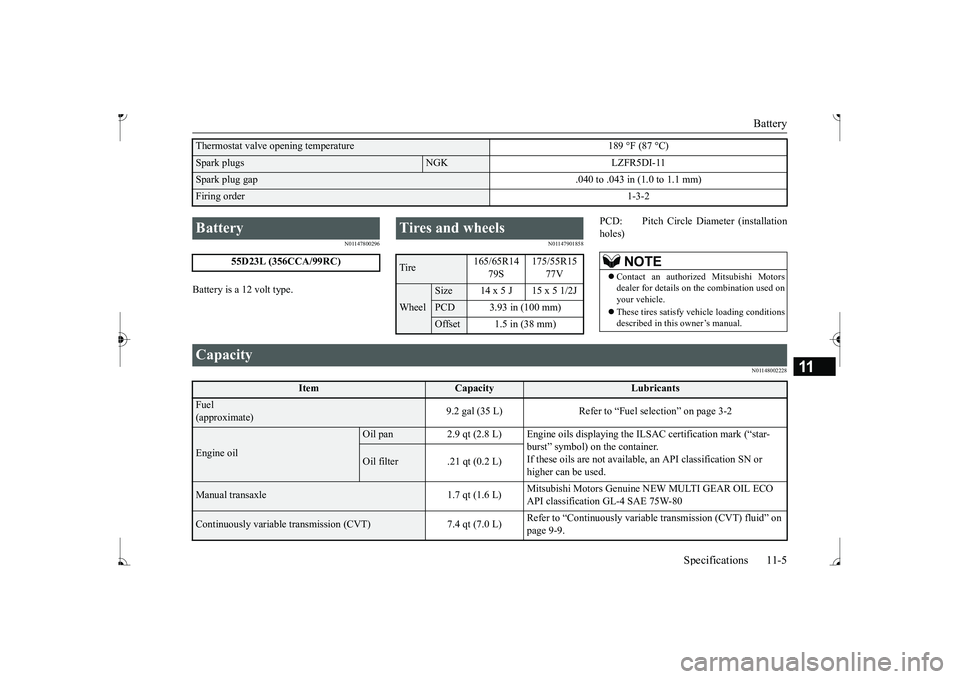

Battery
Specifications 11-5
11
N01147800296
Battery is a 12 volt type.
N01147901858
PCD: Pitch Circle Diameter (installation holes)
N01148002228
Thermostat valve opening temperature 189
