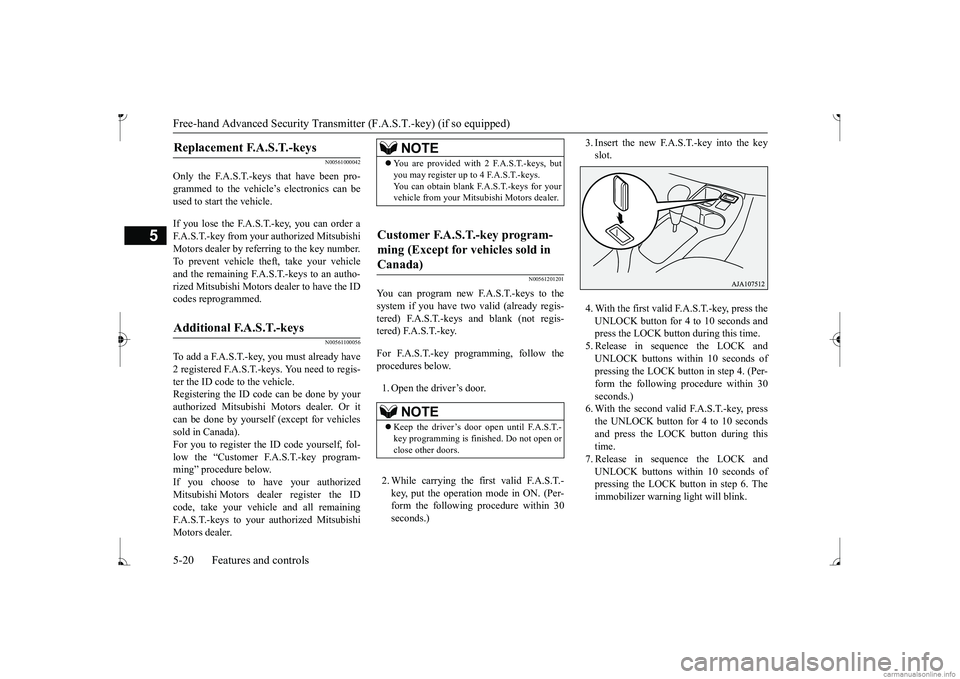

MITSUBISHI MIRAGE G4 2017 (in English) Manual Online

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5
N00561000042
Only the F.A.S.T.-keys that have been pro- grammed to the vehicle’s electronics can be used to start the vehicle. If you lose the F.A.S.T.-key, you can order a F.A.S.T.-key from your authorized Mitsubishi Motors dealer by referring to the key number. To prevent vehicle theft, take your vehicleand the remaining F.A.S.T.-keys to an autho- rized Mitsubishi Motors
dealer to have the ID
codes reprogrammed.
N00561100056
To add a F.A.S.T.-key, you must already have2 registered F.A.S.T.-keys. You need to regis- ter the ID code to the vehicle. Registering the ID code can be done by yourauthorized Mitsubishi Motors dealer. Or it can be done by yourself (except for vehicles sold in Canada).For you to register the ID code yourself, fol- low the “Customer F.A.S.T.-key program- ming” procedure below.If you choose to have your authorized Mitsubishi Motors dealer register the ID code, take your vehicle and all remainingF.A.S.T.-keys to your authorized Mitsubishi Motors dealer.
N00561201201
You can program new F.A.S.T.-keys to thesystem if you have tw
o valid (already regis-
tered) F.A.S.T.-keys
and blank (not regis-
tered) F.A.S.T.-key. For F.A.S.T.-key programming, follow the procedures below. 1. Open the driver’s door. 2. While carrying the fi
rst valid F.A.S.T.-
key, put the operation mode in ON. (Per- form the following procedure within 30seconds.)
3. Insert the new F.A.S.T.-key into the key slot. 4. With the first valid F.A.S.T.-key, press the UNLOCK button for 4 to 10 seconds and press the LOCK button during this time.5. Release in sequence the LOCK and UNLOCK buttons within 10 seconds of pressing the LOCK button in step 4. (Per-form the following procedure within 30 seconds.) 6. With the second valid F.A.S.T.-key, pressthe UNLOCK button for 4 to 10 seconds and press the LOCK button during this time.7. Release in sequence the LOCK and UNLOCK buttons within 10 seconds of pressing the LOCK button in step 6. Theimmobilizer warning light will blink.
Replacement F.A.S.T.-keys

Additional F.A.S.T.-keys

NOTE
 You are provided with 2 F.A.S.T.-keys, but you may register up to 4 F.A.S.T.-keys.You can obtain blank F.A.S.T.-keys for yourvehicle from your Mitsub
ishi Motors dealer.
Customer F.A.S.T.-key program- ming (Except for vehicles sold in Canada)

NOTE
 Keep the driver’s door open until F.A.S.T.- key programming is finished. Do not open orclose other doors.
BK0236100US.book 20 ページ ２０１６年２月１日　月曜日　午前１０時１５分

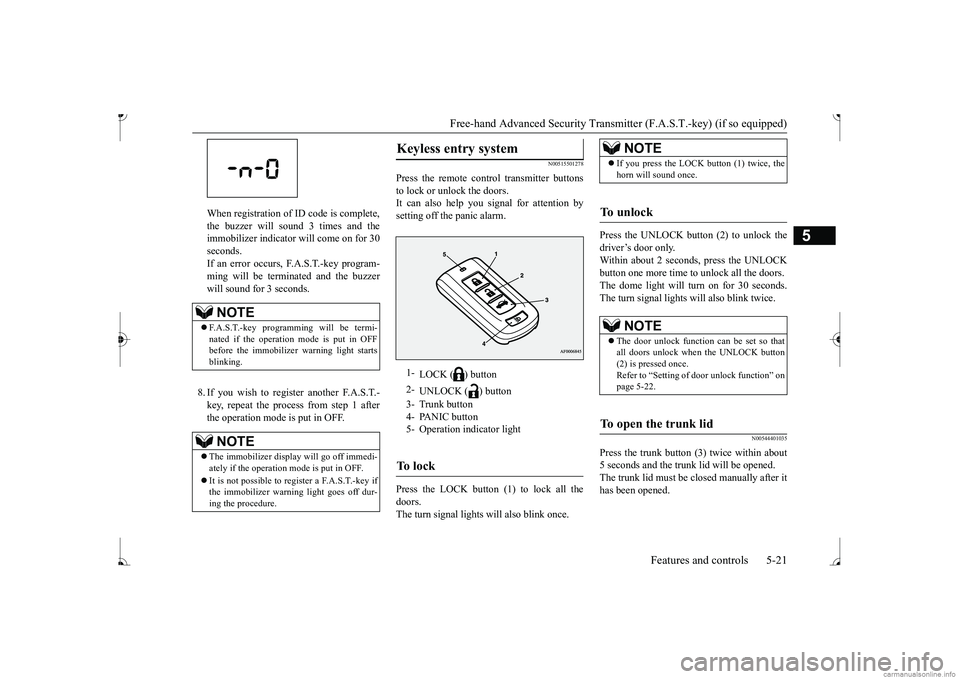

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-21
5
When registration of ID code is complete, the buzzer will s
ound 3 times and the
immobilizer indicator will come on for 30seconds. If an error occurs, F.A.S.T.-key program- ming will be terminated and the buzzerwill sound for 3 seconds. 8. If you wish to register another F.A.S.T.- key, repeat the proc
ess from step 1 after
the operation mode is put in OFF.
N00515501278
Press the remote control transmitter buttons to lock or unlock the doors. It can also help you signal for attention bysetting off the panic alarm. Press the LOCK button (1) to lock all the doors. The turn signal lights will also blink once.
Press the UNLOCK button (2) to unlock the driver’s door only. Within about 2 seconds, press the UNLOCKbutton one more time to
unlock all the doors.
The dome light will turn on for 30 seconds. The turn signal lights will also blink twice.
N00544401035
Press the trunk button (3) twice within about5 seconds and the trunk
lid will be opened.
The trunk lid must be closed manually after it has been opened.
NOTE
 F.A.S.T.-key programming will be termi- nated if the operation mode is put in OFF before the immobilizer warning light startsblinking.NOTE
 The immobilizer displa
y will go off immedi-
ately if the operation mode is put in OFF.  It is not possible to re
gister a F.A.S.T.-key if
the immobilizer warni
ng light goes off dur-
ing the procedure.
Keyless entry system

1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- Trunk button 4- PANIC button5- Operation indicator lightTo l o c k

NOTE
 If you press the LOCK button (1) twice, the horn will sound once.
To u n l o c k

NOTE
 The door unlock function can be set so that all doors unlock when the UNLOCK button (2) is pressed once.Refer to “Setting of
door unlock function” on
page 5-22.
To open the trunk lid

BK0236100US.book 21 ページ ２０１６年２月１日　月曜日　午前１０時１５分

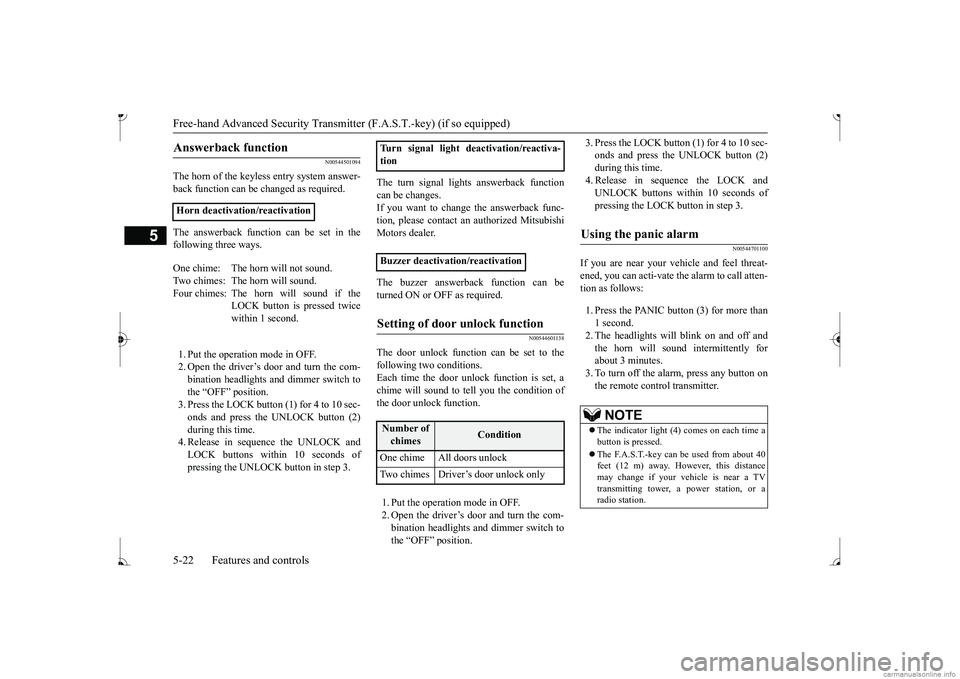

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5
N00544501094
The horn of the keyless entry system answer- back function can be changed as required. The answerback function can be set in the following three ways. 1. Put the operation mode in OFF. 2. Open the driver’s door and turn the com-bination headlights and dimmer switch to the “OFF” position. 3. Press the LOCK button (1) for 4 to 10 sec-onds and press the UNLOCK button (2) during this time. 4. Release in sequence the UNLOCK andLOCK buttons within 10 seconds of pressing the UNLOCK button in step 3.
The turn signal lights answerback function can be changes. If you want to change the answerback func- tion, please contact an
authorized Mitsubishi
Motors dealer. The buzzer answerback function can be turned ON or OFF as required.
N00544601138
The door unlock function can be set to thefollowing two conditions.Each time the door unloc
k function is set, a
chime will sound to tell you the condition of the door unlock function. 1. Put the operation mode in OFF. 2. Open the driver’s door and turn the com- bination headlights and dimmer switch tothe “OFF” position.
3. Press the LOCK button (1) for 4 to 10 sec- onds and press the UNLOCK button (2)during this time. 4. Release in sequence the LOCK and UNLOCK buttons within 10 seconds ofpressing the LOCK button in step 3.
N00544701100
If you are near your vehicle and feel threat- ened, you can acti-vate the alarm to call atten- tion as follows: 1. Press the PANIC button (3) for more than 1 second. 2. The headlights will blink on and off and the horn will sound intermittently forabout 3 minutes. 3. To turn off the alarm, press any button on the remote control transmitter.
Answerback function

Horn deactivation/reactivation One chime: The horn will not sound. Two chimes: The horn will sound. Four chimes: The hor
n will sound if the
LOCK button is pressed twice within 1 second.
Turn signal light deactivation/reactiva- tion Buzzer deactivation/reactivationSetting of door unlock function

Number of chimes
Condition
One chime All doors unlock Two chimes Driver’s door unlock only
Using the panic alarm

NOTE
 The indicator light (4) comes on each time a button is pressed.  The F.A.S.T.-key can be used from about 40 feet (12 m) away. However, this distance may change if your vehicle is near a TVtransmitting tower, a power station, or a radio station.
BK0236100US.book 22 ページ ２０１６年２月１日　月曜日　午前１０時１５分

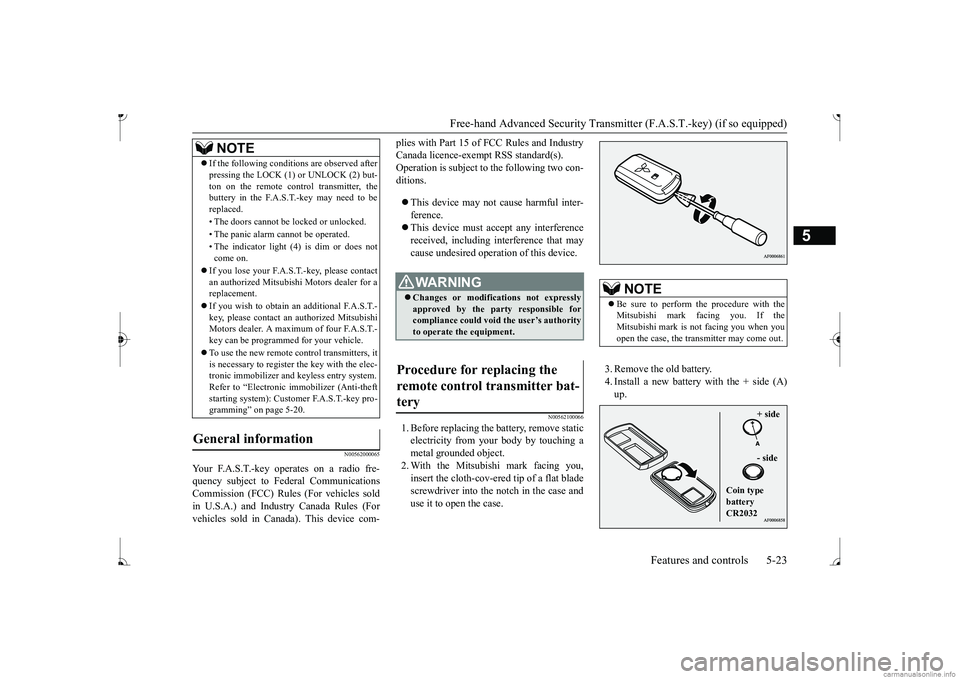

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-23
5
N00562000065
Your F.A.S.T.-key operates on a radio fre- quency subject to
Federal Communications
Commission (FCC) Rules
(For vehicles sold
in U.S.A.) and Industr
y Canada Rules (For
vehicles sold in Cana
da). This device com-
plies with Part 15 of FCC Rules and Industry Canada licence-exem
pt RSS standard(s).
Operation is subject to
the following two con-
ditions.  This device may not
cause harmful inter-
ference. This device must ac
cept any interference
received, including interference that may cause undesired operation of this device.
N00562100066
1. Before replacing the
battery, remove static
electricity from your body by touching a metal grounded object. 2. With the Mitsubishi mark facing you,insert the cloth-cov-ered tip of a flat blade screwdriver into the notch in the case and use it to open the case.
3. Remove the old battery. 4. Install a new battery with the + side (A) up.
 If the following conditions are observed after pressing the LOCK (1) or UNLOCK (2) but-ton on the remote control transmitter, thebuttery in the F.A.S.T.-key may need to be replaced. • The doors cannot be locked or unlocked. • The panic alarm
cannot be operated.
• The indicator light
(4) is dim or does not
come on.
 If you lose your F.A.S.T.-key, please contact an authorized Mitsubishi Motors dealer for areplacement.  If you wish to obtain an additional F.A.S.T.- key, please contact an
authorized Mitsubishi
Motors dealer. A maximum of four F.A.S.T.- key can be programmed for your vehicle.  To use the new remote control transmitters, it is necessary to register the key with the elec-tronic immobilizer and
keyless entry system.
Refer to “Electronic immobilizer (Anti-theft starting system): Customer F.A.S.T.-key pro-gramming” on page 5-20.
General information

NOTE
WA R N I N G Changes or modifica
tions not expressly
approved by the party responsible for compliance could void
the user’s authority
to operate the equipment.
Procedure for replacing the remote control transmitter bat-tery

NOTE
 Be sure to perform the procedure with the Mitsubishi mark facing you. If theMitsubishi mark is not facing you when you open the case, the tran
smitter may come out.
+ side - side
Coin type battery CR2032
BK0236100US.book 23 ページ ２０１６年２月１日　月曜日　午前１０時１５分

Door locks 5-24 Features and controls
5
5. Close the case firmly. 6. Check the keyless entry system to see thatit works.
N00509201573
Turn the key toward the front of the vehicle to lock the door. After checking that the door is locked, turn the key back to the center andremove it.
NOTE
 You may purchase a re
placement battery at
an electric appliance store.  An authorized Mitsubishi Motors dealer can replace the battery for you if you prefer.CAUTION When the remote control transmitter case is opened, be careful to
keep water, dust, etc.
out. Also, do not touch the internal compo- nents.
Door locks
WA R N I N G Make sure all doors are tightly closed and locked while driving.• Locked doors, in co
mbination with the
use of seat belts, can help reduce the riskof ejection in an accident.• Locked doors can help keep passengers,especially small children, from opening doors and falling out
of moving vehicles.
• Locked doors can help prevent outsiders from gaining access
to your vehicle when
you slow or come to a stop.
 Lock your vehicle when
ever you leave it.
Children who get into
unlocked vehicles
may not be able to get out. Childrentrapped inside vehicles can quickly be overcome by heat
and suffer serious
injury or death due to heat stroke. Never leave a ch
ild alone in the vehicle. In
addition to the risk
of heat stroke, chil-
dren can activate switches and controls, resulting in an injury
or fatal accident.
When closing a door,
make sure that the
door is fully closed and the door-ajar warning display goes
out on the informa-
tion screen on the multi-information dis- play. If the door is aj
ar it could open while
driving and cause an accident.
To lock and unlock with the key (driver’s door)
WA R N I N G
1- Lock 2- Unlock
NOTE
 When locking or unlocking with the key, only the driver’s door will be locked orunlocked. To lock or unlock all doors, use the power door lock switches, th
e keyless entry system
or the F.A.S.T-key operation. (if so equipped) Refer to “Power door locks” on page 5-25,“Keyless entry system” on pages 5-6 and 5-21, and “To operate using the F.A.S.T.- key” on page 5-11.  In vehicles equipped wi
th the F.A.S.T.-key,
the passenger’s door can be locked andunlocked using the emergency key. Refer to “Emergency key” on page 5-19.
BK0236100US.book 24 ページ ２０１６年２月１日　月曜日　午前１０時１５分

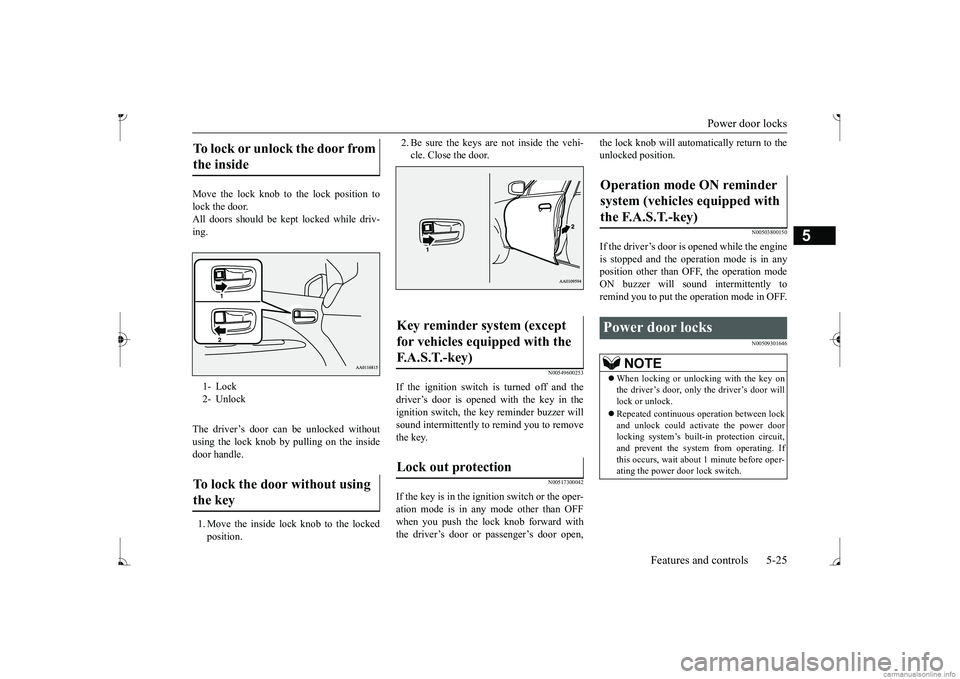

Power door locks
Features and controls 5-25
5
Move the lock knob to the lock position to lock the door.All doors should be kept locked while driv- ing. The driver’s door can be unlocked without using the lock knob by pulling on the inside door handle. 1. Move the inside lock knob to the locked position.
2. Be sure the keys are not inside the vehi- cle. Close the door.
N00549600253
If the ignition switch is turned off and the driver’s door is opened with the key in the ignition switch, the ke
y reminder buzzer will
sound intermittently to
remind you to remove
the key.
N00517300042
If the key is in the ignition switch or the oper-ation mode is in any
mode other than OFF
when you push the lock knob forward withthe driver’s door or passenger’s door open,
the lock knob will automatically return to the unlocked position.
N00503800150
If the driver’s door is opened while the engine is stopped and the operation mode is in any position other than OFF, the operation mode ON buzzer will sound intermittently to remind you to put the operation mode in OFF.
N00509301646
To lock or unlock the door from the inside 1- Lock 2- UnlockTo lock the door without using the key
Key reminder system (except for vehicles equipped with the F.A.S.T.-key) Lock out protection
Operation mode ON reminder system (vehicles equipped with the F.A.S.T.-key) Power door locks
NOTE
 When locking or unlocking with the key on the driver’s door, only the driver’s door willlock or unlock.  Repeated continuous
operation between lock
and unlock could acti
vate the power door
locking system’s built
-in protection circuit,
and prevent the system from operating. Ifthis occurs, wait about
1 minute before oper-
ating the power door lock switch.
BK0236100US.book 25 ページ ２０１６年２月１日　月曜日　午前１０時１５分

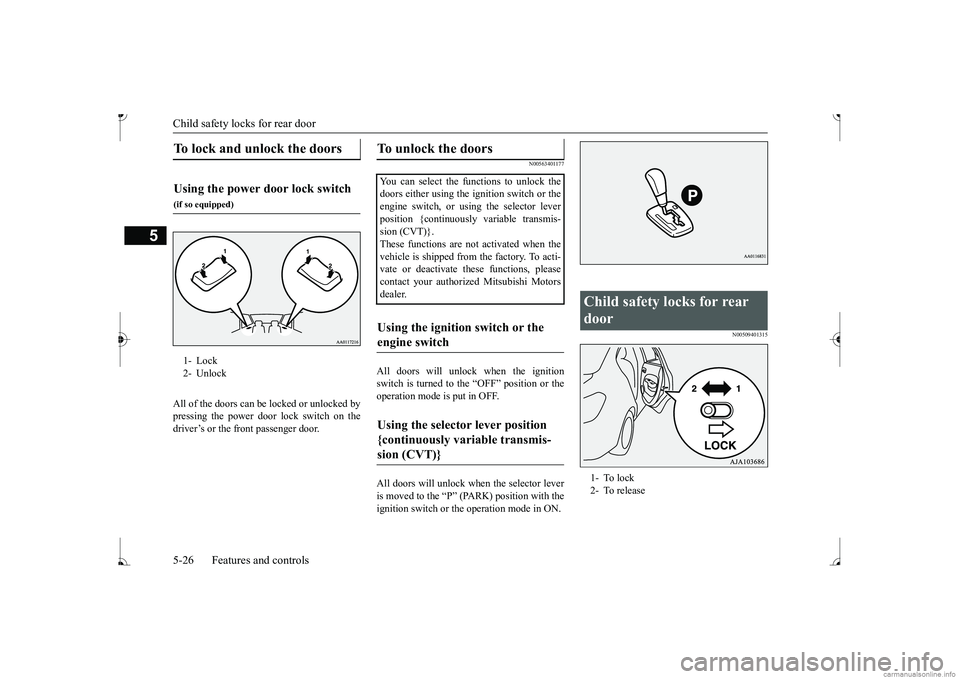

Child safety locks for rear door 5-26 Features and controls
5
All of the doors can be locked or unlocked by pressing the power door lock switch on the driver’s or the front passenger door.
N00563401177
All doors will unlock
when the ignition
switch is turned to the “OFF” position or the operation mode is put in OFF. All doors will unlock wh
en the selector lever
is moved to the “P” (PARK) position with theignition switch or the operation mode in ON.
N00509401315
To lock and unlock the doors Using the power door lock switch

(if so equipped)1- Lock 2- Unlock
To unlock the doors You can select the functions to unlock thedoors either using the ignition switch or theengine switch, or usi
ng the selector lever
position {continuously
variable transmis-
sion (CVT)}.These functions are not activated when the vehicle is shipped from the factory. To acti- vate or deactivate th
ese functions, please
contact your authoriz
ed Mitsubishi Motors
dealer.Using the ignition switch or the engine switch Using the selector lever position {continuously variable transmis-sion (CVT)}
Child safety locks for rear door 1- To lock 2- To release
BK0236100US.book 26 ページ ２０１６年２月１日　月曜日　午前１０時１５分

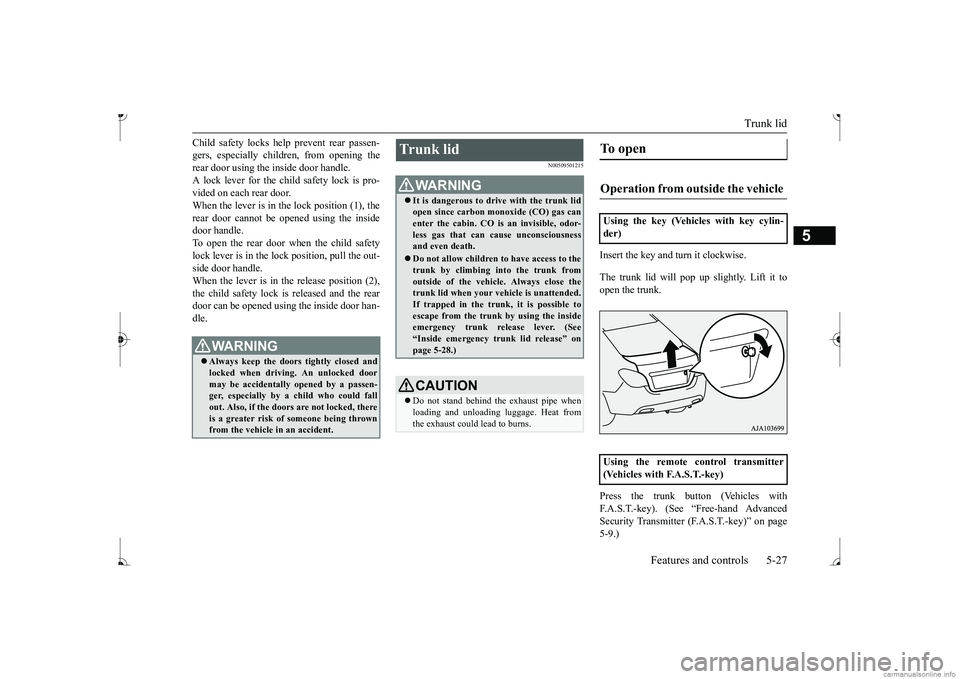

Trunk lid
Features and controls 5-27
5
Child safety locks help prevent rear passen- gers, especially children, from opening therear door using the inside door handle. A lock lever for the child safety lock is pro- vided on each rear door.When the lever is in the lock position (1), the rear door cannot be opened using the inside door handle.To open the rear door when the child safety lock lever is in the lock position, pull the out- side door handle. When the lever is in the release position (2), the child safety lock is released and the reardoor can be opened using the inside door han- dle.
N00509501215
Insert the key and turn it clockwise. The trunk lid will pop up
slightly. Lift it to
open the trunk. Press the trunk button (Vehicles with F.A.S.T.-key). (See “Free-hand Advanced Security Transmitter
(F.A.S.T.-key)” on page
5-9.)
WA R N I N G Always keep the door
s tightly closed and
locked when driving. An unlocked doormay be accidentally
opened by a passen-
ger, especially by
a child who could fall
out. Also, if the doors are not locked, thereis a greater risk of
someone being thrown
from the vehicle
in an accident.
Trunk lid
WA R N I N GIt is dangerous to drive with the trunk lid open since carbon mo
noxide (CO) gas can
enter the cabin. CO is an invisible, odor- less gas that can cause unconsciousness and even death. Do not allow children to have access to the trunk by climbing into the trunk fromoutside of the vehicl
e. Always close the
trunk lid when your vehicle is unattended. If trapped in the trunk, it is possible toescape from the trunk by using the inside emergency trunk re
lease lever. (See
“Inside emergency trunk lid release” onpage 5-28.)CAUTION Do not stand behind the exhaust pipe when loading and unloading
luggage. Heat from
the exhaust could lead to burns.
To open Operation from outside the vehicle Using the key (Vehicles with key cylin- der)
ntrol transmitter
(Vehicles with F.A.S.T.-key)
BK0236100US.book 27 ページ ２０１６年２月１日　月曜日　午前１０時１５分

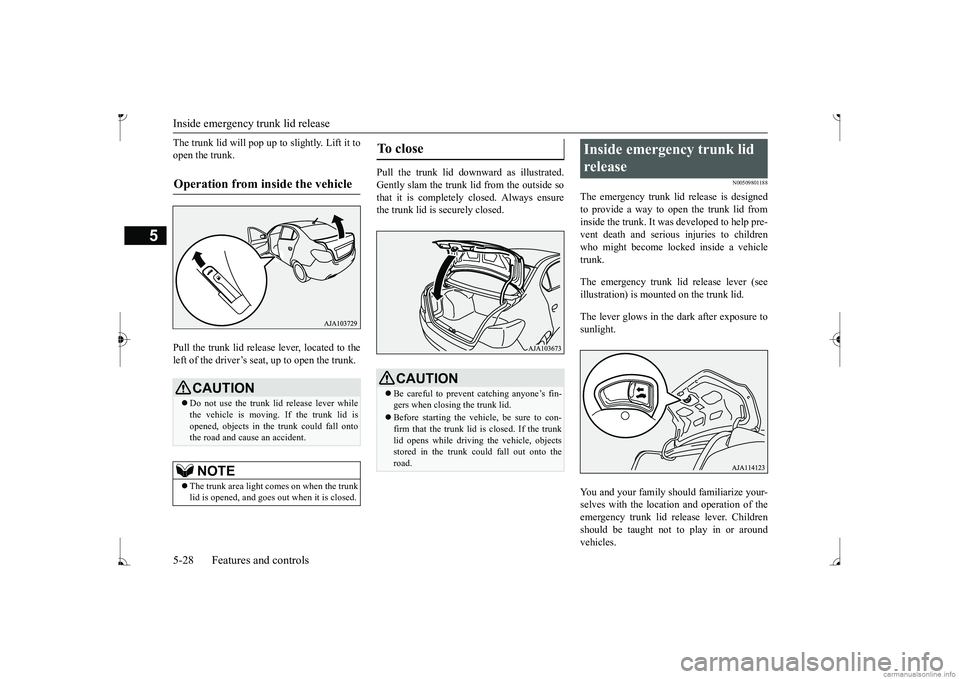

Inside emergency trunk lid release 5-28 Features and controls
5
The trunk lid will pop up to slightly. Lift it to open the trunk. Pull the trunk lid release lever, located to the left of the driver’s seat, up to open the trunk.
Pull the trunk lid downward as illustrated. Gently slam the trunk
lid from the outside so
that it is completely closed. Always ensure the trunk lid is securely closed.
N00509801188
The emergency trunk lid
release is designed
to provide a way to open the trunk lid from inside the trunk. It was developed to help pre-vent death and serious
injuries to children
who might become locked inside a vehicle trunk. The emergency trunk li
d release lever (see
illustration) is mounted on the trunk lid. The lever glows in the dark after exposure to sunlight. You and your family should familiarize your- selves with the locati
on and operation of the
emergency trunk lid re
lease lever. Children
should be taught not to play in or around vehicles.
Operation from inside the vehicle
CAUTION Do not use the trunk lid release lever while the vehicle is moving. If the trunk lid isopened, objects in th
e trunk could fall onto
the road and cause an accident.NOTE
 The trunk area light comes on when the trunk lid is opened, and goes out
when it is closed.
To close
CAUTIONBe careful to prevent catching anyone’s fin- gers when closing the trunk lid. Before starting the vehi
cle, be sure to con-
firm that the trunk lid is closed. If the trunk lid opens while driving the vehicle, objectsstored in the trunk could fall out onto the road.
Inside emergency trunk lid release
BK0236100US.book 28 ページ ２０１６年２月１日　月曜日　午前１０時１５分

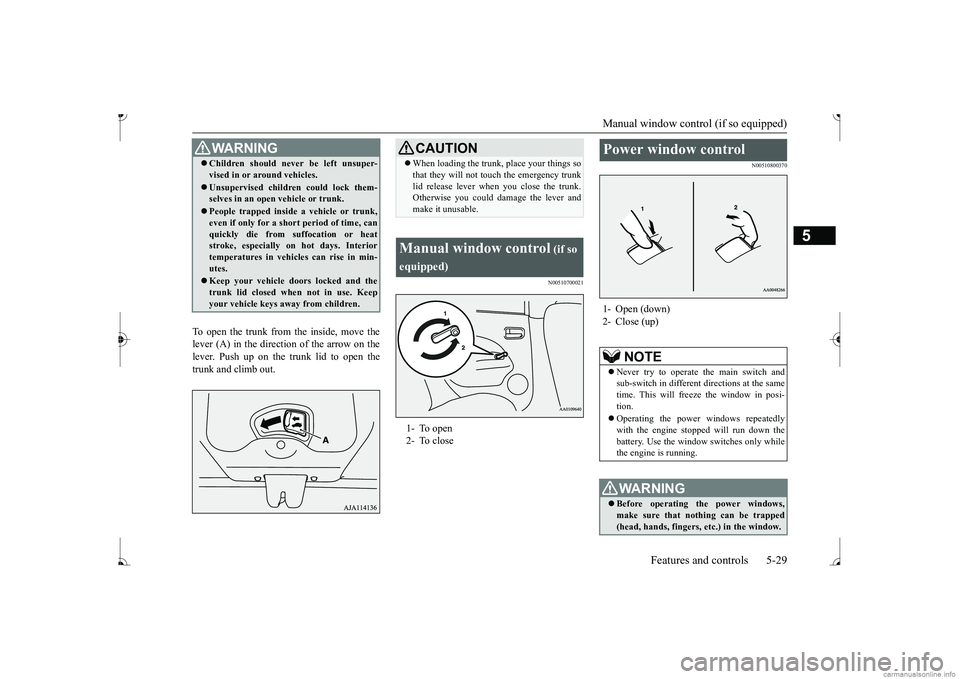

Manual window control (if so equipped)
Features and controls 5-29
5
To open the trunk from the inside, move the lever (A) in the direction of the arrow on thelever. Push up on the trunk lid to open the trunk and climb out.
N00510700021
N00510800370
WA R N I N G Children should never be left unsuper- vised in or ar
ound vehicles.
Unsupervised children could lock them- selves in an open vehicle or trunk. People trapped inside
a vehicle or trunk,
even if only for a shor
t period of time, can
quickly die from su
ffocation or heat
stroke, especially on hot days. Interior temperatures in vehicles can rise in min- utes. Keep your vehicle d
oors locked and the
trunk lid closed when not in use. Keepyour vehicle keys aw
ay from children.
CAUTIONWhen loading the trunk, place your things so that they will not touch the emergency trunklid release lever when you close the trunk.Otherwise you could damage the lever and make it unusable.
Manual window control
(if so
equipped) 2- To close
Power window control 1- Open (down)2- Close (up)
NOTE
 Never try to operate the main switch and sub-switch in different directions at the same time. This will freeze the window in posi- tion.  Operating the power
windows repeatedly
with the engine st
opped will run down the
battery. Use the window
switches only while
the engine is running.WA R N I N G Before operating the power windows, make sure that nothing can be trapped (head, hands, fingers, etc.) in the window.
BK0236100US.book 29 ページ ２０１６年２月１日　月曜日　午前１０時１５分
