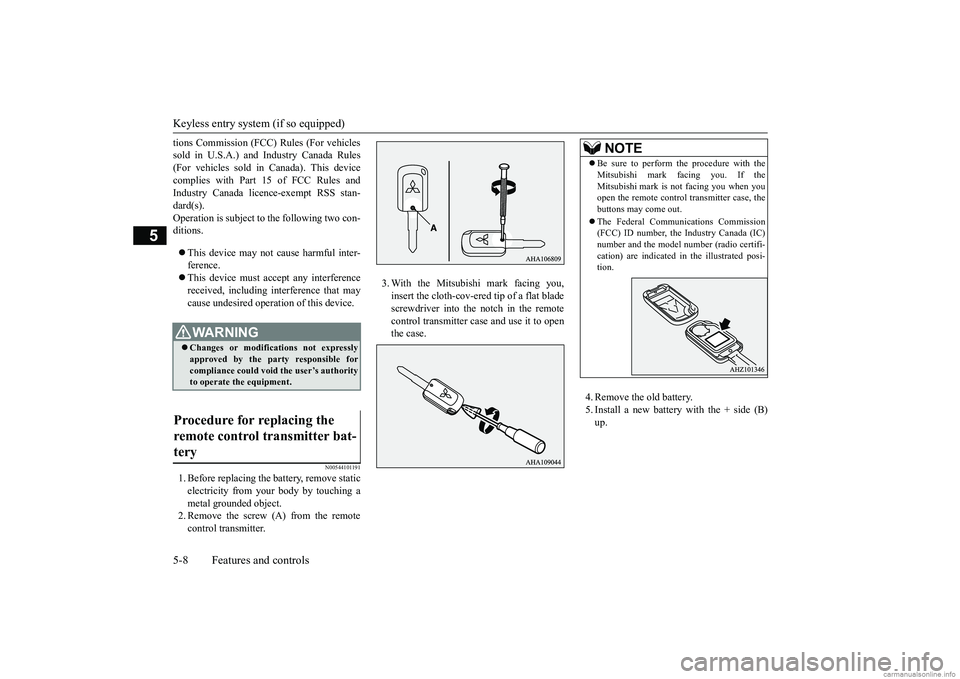

Keyless entry system (if so equipped) 5-8 Features and controls
5
tions Commission (FCC)
Rules (For vehicles
sold in U.S.A.) and Industry Canada Rules(For vehicles sold in
Canada). This device
complies with Part 15 of FCC Rules and Industry Canada licen
ce-exempt RSS stan-
dard(s). Operation is subject to the following two con- ditions.  This device may not
cause harmful inter-
ference.  This device must ac
cept any interference
received, including interference that may cause undesired operation of this device.
N00544101191
1. Before replacing the
battery, remove static
electricity from your body by touching a metal grounded object.2. Remove the screw (A) from the remote control transmitter.
3. With the Mitsubishi mark facing you, insert the cloth-cov-ered tip of a flat bladescrewdriver into the notch in the remote control transmitter case and use it to open the case.
4. Remove the old battery. 5. Install a new battery with the + side (B) up.
WA R N I N G Changes or modifications not expressly approved by the part
y responsible for
compliance could void
the user’s authority
to operate the equipment.
Procedure for replacing the remote control transmitter bat- tery

NOTE
 Be sure to perform the procedure with the Mitsubishi mark fa
cing you. If the
Mitsubishi mark is not facing you when youopen the remote control
transmitter case, the
buttons may come out.  The Federal Communications Commission (FCC) ID number, the Industry Canada (IC) number and the model number (radio certifi-cation) are indicated in the illustrated posi- tion.
BK0249600US.book 8 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-9
5
6. Close the remote control transmitter firmly.7. Attach the screw (A) removed in step 2. 8. Check the keyless entry system to see that it works.
N00503101150
The Free-hand Advanced Security Transmit-ter (F.A.S.T.-key) enables the doors to belocked and unlocked, the trunk lid to be opened, and the engine to be started and the operation mode to be
changed simply by car-
rying it. The F.A.S.T.-key can also be used as theremote control transmitter of the keyless entry system. Refer to “Free-hand Advanced SecurityTransmitter (F.A.S.T.-
key): Keyless entry
system” on page 5-21.
CAUTION When the remote control transmitter case is opened, be careful to keep water, dust, etc. out. Also, do not touch the internal compo-nents.NOTE
 You may purchase a replacement battery at an electric appliance store.  An authorized Mitsubish
i Motors dealer can
replace the battery for you if you prefer.
+ side - side Coin type battery CR1620
Free-hand Advanced Secu- rity Transmitter (F.A.S.T.-key)
(if so equipped)
The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-key is required forvehicle operations su
ch as locking and
unlocking the doors,
starting the engine,
and changing the operation mode. When leaving the vehicle,
make sure you are
carrying the F.A.S.T.-key and then lockthe vehicle.
WA R N I N G Individuals who use
implantable pace-
makers or implanta
ble cardiovascular-
defibrillators
should keep away from the
external and internal
transmitters. The
electromagnetic waves used in the F.A.S.T.-key may affect the operation ofimplantable pacemakers and implantable cardiovascular-defibrillators.A- External transmitter B- Internal transmitter
BK0249600US.book 9 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5-10 Features and controls
5
The operations possible with the F.A.S.T.- key can be modified as stated below. (Keyless entry operations are possible.) For details, contact an authorizedMitsubishi Motors dealer. • Enabling only the locking and unlocking of the doors and the opening of the trunklid • Enabling only the starting of the engine • Deactivating the F.A.S.T.-key
N00503201223
When a person enters the operating range ofthe F.A.S.T.-key while carrying the F.A.S.T.-key and presses the driver’s door lock/unlock switch the trunk lid switc
h, verification of the
ID code is performed.The doors can only be locked and unlocked, the trunk lid can only
be opened, the engine
can only be started and the operation mode can only be changed when the ID codes of the vehicle and F.A.S.T.-key match.
WA R N I N G Individuals using ot
her electro-medical
apparatus besides implantable pacemak-ers and implantable
cardiovascular-defi-
brillators should check with the manufacturer of the apparatus to confirm the effect of the electromagnetic wavesused by the F.A.S.T.-key. The electromag- netic waves may affect
the operations of
the electro-medical apparatus.NOTE
 The F.A.S.T.-key uses weak electromagnetic waves. In cases such as the following, operation may be improper or unstable. • The vehicle is near a facility that emits strong electromagnetic
waves, such as a TV
transmitting tower, a pow
er station, a radio
station or an airport
• The key is carried together with other com- munication devices such
as cellular phones
or radios, or electrical appliances such ascomputers • The F.A.S.T.-key touches or is covered by a metal object • A keyless entry system is being used nearby • The battery of the F.A.S.T.-key is run down• The vehicle is in a location with strong electromagnetic
waves or noise
Use the emergency key in such circum- stances.Refer to “To operate without using the F.A.S.T.-key” on page 5-19.  The F.A.S.T.-key is constantly performing reception operations
in its communication
with the vehicle. This means that the batteryis always running down, regardless of how often the F.A.S.T.-key is used. The battery life is about 1 to 2 years, depending on theusage conditions.  Since the F.A.S.T.-key is constantly perform- ing reception operati
ons, the reception of
strong electromagnetic
waves can accelerate
the running down of the ba
ttery. Do not place
near to electrical appliances such as televi- sions or computers.NOTE
Operating range of the F. A . S . T. - k e y

NOTE
 When the battery of the F.A.S.T.-key has run down or there are st
rong electromagnetic
waves or noise in the area, the operating range could decrease
or operations could
become unstable.
BK0249600US.book 10 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)

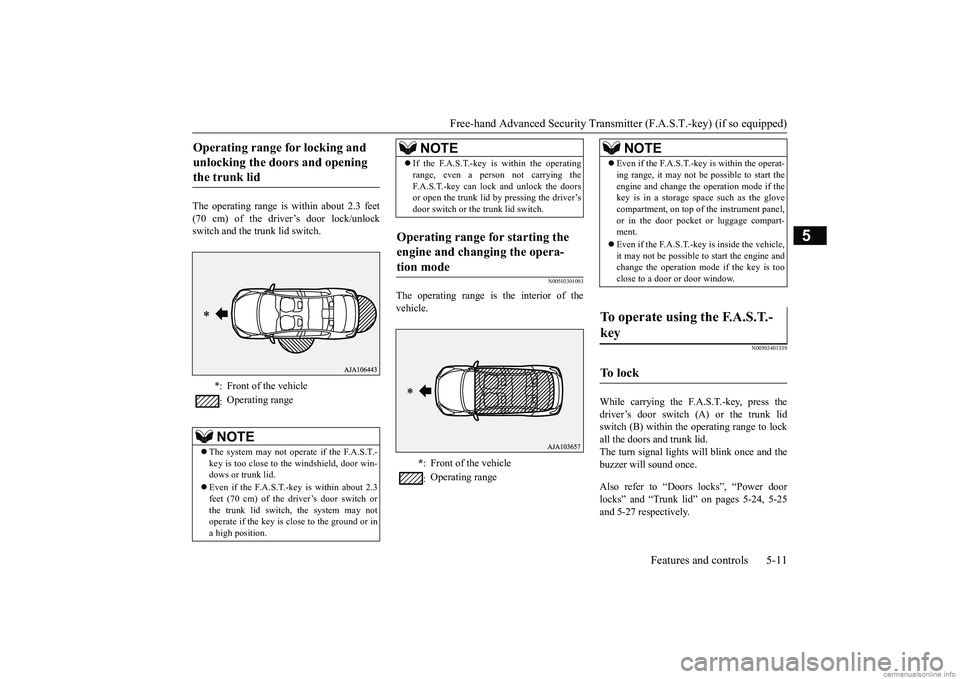

Features and controls 5-11
5
The operating range is
within about 2.3 feet
(70 cm) of the driver’s door lock/unlockswitch and the trunk lid switch.
N00503301093
The operating range is the interior of thevehicle.
N00503401339
While carrying the F.A.S.T.-key, press thedriver’s door switch (A) or the trunk lidswitch (B) within the operating range to lock all the doors and trunk lid. The turn signal lights will blink once and thebuzzer will sound once. Also refer to “Doors locks”, “Power door locks” and “Trunk lid” on pages 5-24, 5-25 and 5-27 respectively.
Operating range for locking and unlocking the doors and opening the trunk lid

*: Front of the vehicle : Operating rangeNOTE
 The system may not operate if the F.A.S.T.- key is too close to th
e windshield, door win-
dows or trunk lid.  Even if the F.A.S.T.-key is within about 2.3 feet (70 cm) of the driver’s door switch orthe trunk lid switch, the system may not operate if the key is close to the ground or in a high position.
 If the F.A.S.T.-key is within the operating range, even a person not carrying theF.A.S.T.-key can lock and unlock the doorsor open the trunk lid by pressing the driver’s door switch or the trunk lid switch.
Operating range for starting the engine and changing the opera-tion mode

* : Front of the vehicle : Operating rangeNOTE
NOTE
 Even if the F.A.S.T.-key is within the operat- ing range, it may not be possible to start theengine and change the
operation mode if the
key is in a storage space such as the glove compartment, on top of the instrument panel, or in the door pocket or luggage compart-ment.  Even if the F.A.S.T.-key is inside the vehicle, it may not be possible to start the engine and change the operation mode if the key is too close to a door or door window.
To operate using the F.A.S.T.- key

To l o c k

BK0249600US.book 11 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)

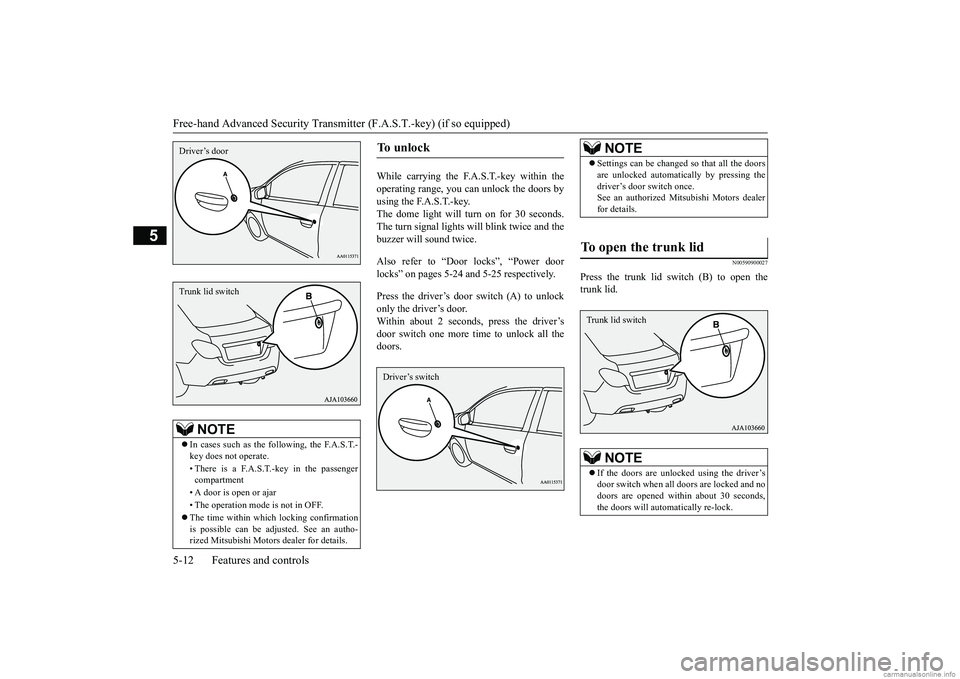

5-12 Features and controls
5
While carrying the F.A.S.T.-key within the operating range, you can unlock the doors by using the F.A.S.T.-key.The dome light will turn on for 30 seconds. The turn signal lights will blink twice and the buzzer will
sound twice.
Also refer to “Door locks”, “Power door locks” on pages 5-24 and 5-25 respectively. Press the driver’s door switch (A) to unlock only the driver’s door.Within about 2 seconds, press the driver’s door switch one more time to unlock all the doors.
N00590900027
Press the trunk lid switch (B) to open thetrunk lid.
NOTE
 In cases such as the following, the F.A.S.T.- key does not operate. • There is a F.A.S.T.-key in the passenger compartment • A door is open or ajar • The operation mode
is not in OFF.
 The time within which locking confirmation is possible can be adjusted. See an autho- rized Mitsubishi Motors
dealer for details.
Driver’s doorTrunk lid switch
To u n l o c k

Driver’s switch
NOTE
Settings can be changed so that all the doors are unlocked automati
cally by pressing the
driver’s door switch once.See an authorized Mi
tsubishi Motors dealer
for details.
To open the trunk lid

NOTE
 If the doors are unlocked using the driver’s door switch when all
doors are locked and no
doors are opened within about 30 seconds,the doors will automatically re-lock.Trunk lid switch
BK0249600US.book 12 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)

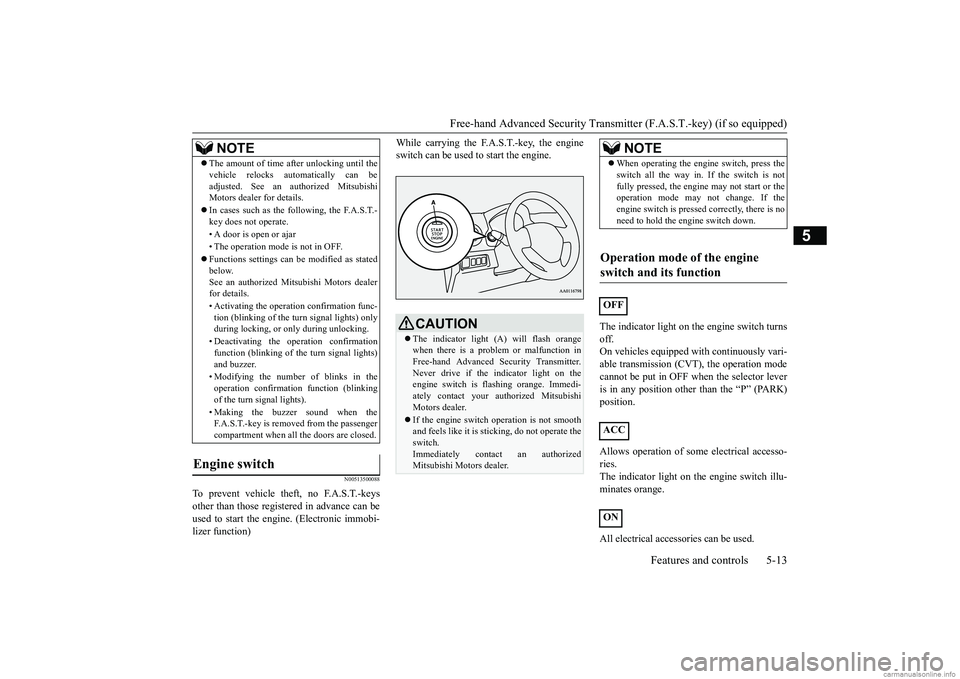

Features and controls 5-13
5
N00513500088
To prevent vehicle theft, no F.A.S.T.-keys other than those regist
ered in advance can be
used to start the engi
ne. (Electronic immobi-
lizer function)
While carrying the F.A.S.T.-key, the engine switch can be used
to start the engine.
The indicator light on the engine switch turns off.On vehicles equipped w
ith continuously vari-
able transmission (CVT), the operation mode cannot be put in OFF when the selector leveris in any position other than the “P” (PARK) position. Allows operation of some
electrical accesso-
ries.The indicator light on th
e engine switch illu-
minates orange. All electrical accessories can be used.
 The amount of time after unlocking until the vehicle relocks automatically can beadjusted. See an authorized MitsubishiMotors dealer for details.  In cases such as the following, the F.A.S.T.- key does not operate. • A door is open or ajar• The operation mode is not in OFF.  Functions settings can
be modified as stated
below. See an authorized Mitsubishi Motors dealerfor details. • Activating the operation confirmation func- tion (blinking of the turn signal lights) only during locking, or only during unlocking. • Deactivating the operation confirmation function (blinking of the turn signal lights) and buzzer. • Modifying the number of blinks in the operation confirmati
on function (blinking
of the turn signal lights). • Making the buzzer sound when the F.A.S.T.-key is removed from the passenger compartment when all
the doors are closed.
Engine switch

NOTE
CAUTIONThe indicator light (A) will flash orange when there is a problem or malfunction in Free-hand Advanced Se
curity Transmitter.
Never drive if the i
ndicator light on the
engine switch is fl
ashing orange. Immedi-
ately contact your authorized MitsubishiMotors dealer. If the engine switch
operation is not smooth
and feels like it is stic
king, do not operate the
switch. Immediately contac
t an authorized
Mitsubishi Motors dealer.
NOTE
 When operating the engi
ne switch, press the
switch all the way in. If the switch is notfully pressed, the engine may not start or theoperation mode may
not change. If the
engine switch is presse
d correctly, there is no
need to hold the e
ngine switch down.
Operation mode of the engine switch and its function

OFF ACC ON
BK0249600US.book 13 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)

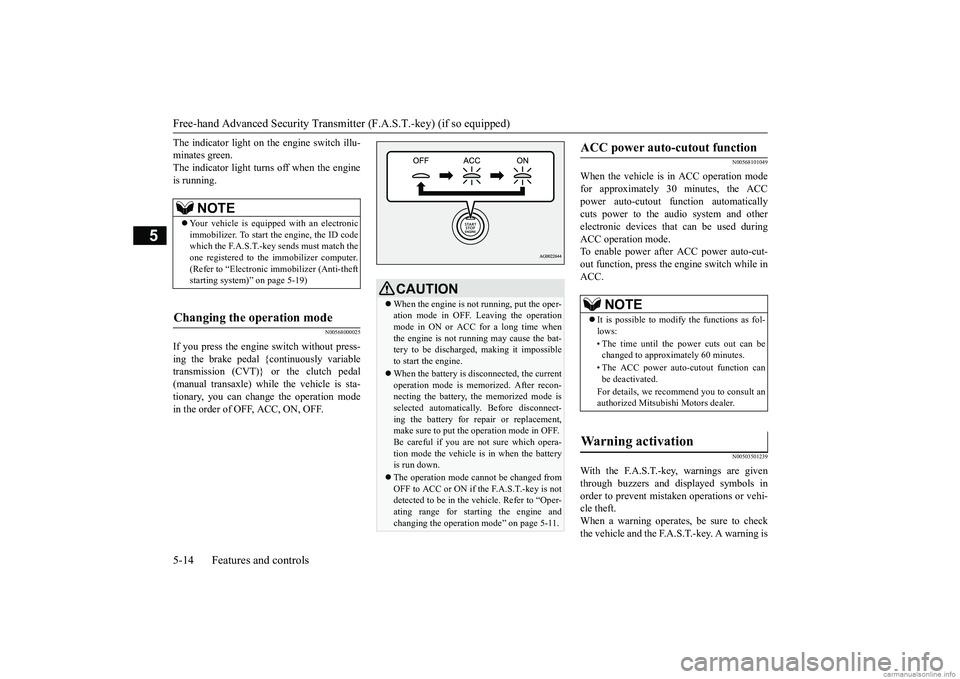

5-14 Features and controls
5
The indicator light on the engine switch illu- minates green.The indicator light turns off when the engine is running.
N00568000025
If you press the engine
switch without press-
ing the brake pedal {continuously variable transmission (CVT)} or the clutch pedal(manual transaxle) while the vehicle is sta- tionary, you can change the operation mode in the order of OFF, ACC, ON, OFF.
N00568101049
When the vehicle is
in ACC operation mode
for approximately 30 minutes, the ACC power auto-cutout fu
nction automatically
cuts power to the audio system and other electronic devices that
can be used during
ACC operation mode.To enable power after ACC power auto-cut- out function, press the
engine switch while in
ACC.
N00503501239
With the F.A.S.T.-key, warnings are giventhrough buzzers and displayed symbols in order to prevent mistake
n operations or vehi-
cle theft.When a warning operates, be sure to check the vehicle and the F.A.S.T.-key. A warning is
NOTE
 Your vehicle is equippe
d with an electronic
immobilizer. To start
the engine, the ID code
which the F.A.S.T.-key sends must match theone registered to the immobilizer computer. (Refer to “Electronic
immobilizer (Anti-theft
starting system)” on page 5-19)
Changing the operation mode

CAUTION When the engine is not running, put the oper- ation mode in OFF. Leaving the operationmode in ON or ACC for a long time when the engine is not running may cause the bat- tery to be discharged, making it impossibleto start the engine.  When the battery is disconnected, the current operation mode is memo
rized. After recon-
necting the battery, the memorized mode is selected automaticall
y. Before disconnect-
ing the battery for re
pair or replacement,
make sure to put the operation mode in OFF. Be careful if you are not sure which opera-tion mode the vehicle is in when the battery is run down. The operation mode cannot be changed from OFF to ACC or ON if the F.A.S.T.-key is not detected to be in the
vehicle. Refer to “Oper-
ating range for star
ting the engine and
changing the operation mode” on page 5-11.
ACC power auto-cutout function

NOTE
 It is possible to modify the functions as fol- lows: • The time until the power cuts out can be changed to approximately 60 minutes. • The ACC power auto
-cutout function can
be deactivated. For details, we recommend you to consult an authorized Mitsubishi Motors dealer.
Warning activation

BK0249600US.book 14 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)

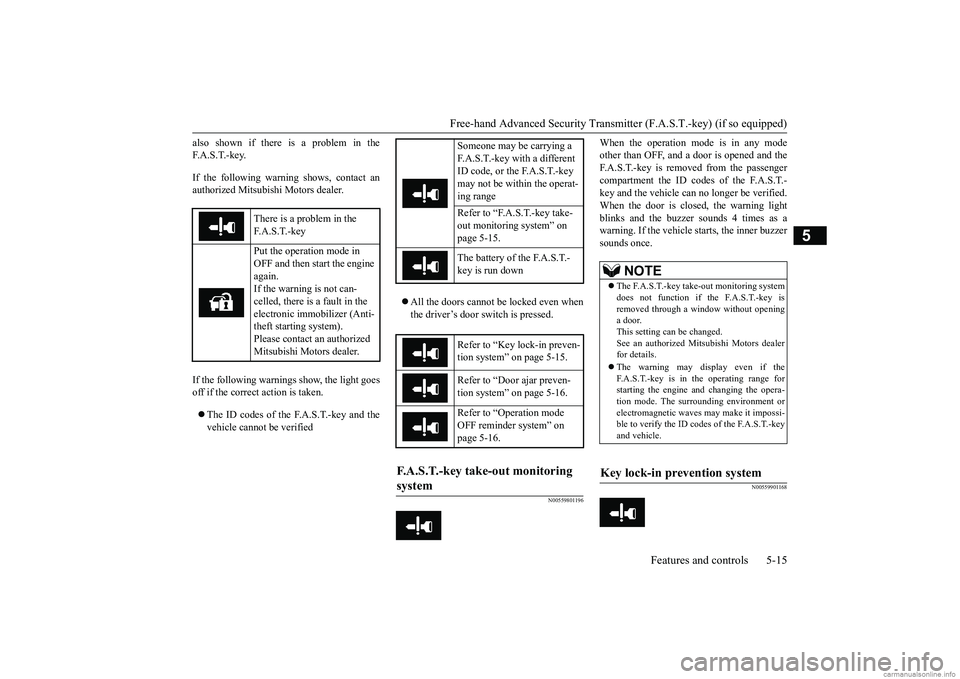

Features and controls 5-15
5
also shown if there is a problem in the F. A . S . T. - k e y. If the following warning shows, contact an authorized Mitsubishi Motors dealer. If the following warnings show, the light goes off if the correct action is taken.  The ID codes of the F.A.S.T.-key and the vehicle cannot
be verified
 All the doors cannot be locked even when the driver’s door switch is pressed.
N00559801196
When the operation mode is in any mode other than OFF, and a door is opened and theF.A.S.T.-key is removed from the passenger compartment the ID codes of the F.A.S.T.- key and the vehicle can
no longer be verified.
When the door is closed, the warning light blinks and the buzzer
sounds 4 times as a
warning. If the vehicle
starts, the inner buzzer
sounds once.
N00559901168
There is a problem in the F. A . S . T. - k e y Put the operation mode in OFF and then start the engine again.If the warning is not can- celled, there is a fault in the electronic immobilizer (Anti-theft starting system). Please contact an authorized Mitsubishi Motors dealer.
Someone may be carrying a F.A.S.T.-key with a different ID code, or the F.A.S.T.-key may not be within the operat-ing range Refer to “F.A.S.T.-key take- out monitoring system” on page 5-15. The battery of the F.A.S.T.- key is run down Refer to “Key lock-in preven- tion system” on page 5-15. Refer to “Door ajar preven- tion system” on page 5-16. Refer to “Operation mode OFF reminder system” on page 5-16.
F.A.S.T.-key take-out monitoring system

NOTE
 The F.A.S.T.-key take-out monitoring system does not function if the F.A.S.T.-key isremoved through a window without opening a door. This setting can be changed.See an authorized Mitsubishi Motors dealer for details.  The warning may display even if the F.A.S.T.-key is in the operating range for starting the engine a
nd changing the opera-
tion mode. The surrounding environment or electromagnetic waves ma
y make it impossi-
ble to verify the ID codes of the F.A.S.T.-keyand vehicle.
Key lock-in prevention system

BK0249600US.book 15 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)

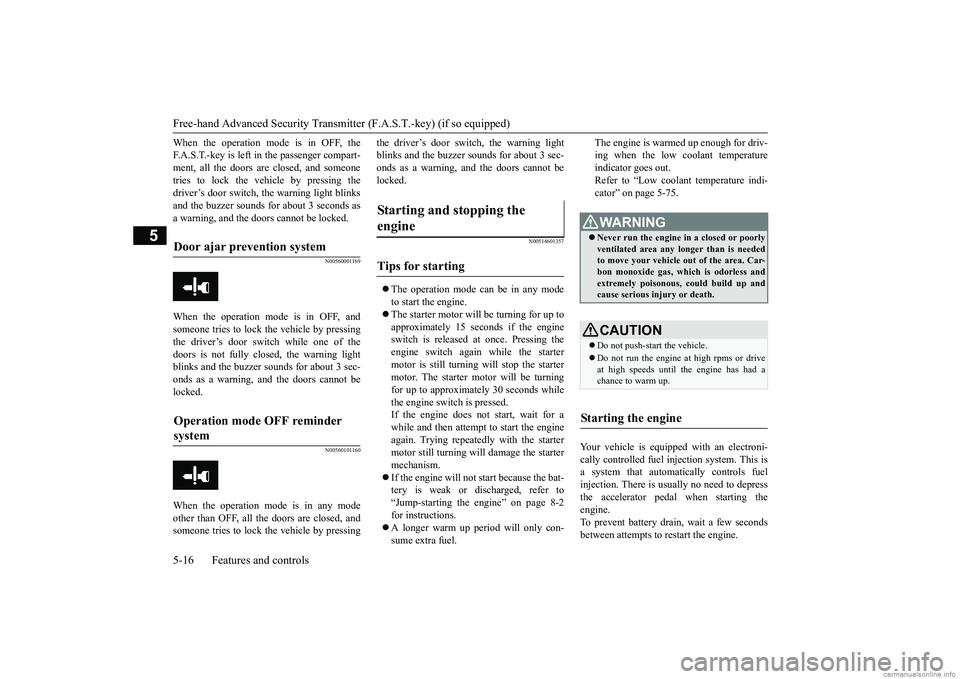

5-16 Features and controls
5
When the operation mode is in OFF, the F.A.S.T.-key is left in the passenger compart-ment, all the doors are closed, and someone tries to lock the vehicle by pressing the driver’s door switch, the warning light blinksand the buzzer sounds
for about 3 seconds as
a warning, and the doors cannot be locked.
N00560001169
When the operation mode is in OFF, and someone tries to lock the vehicle by pressingthe driver’s door switch while one of the doors is not fully closed, the warning light blinks and the buzzer
sounds for about 3 sec-
onds as a warning, and the doors cannot be locked.
N00560101160
When the operation mode is in any modeother than OFF, all the doors are closed, and someone tries to lock the vehicle by pressing
the driver’s door switch, the warning light blinks and the buzzer sounds for about 3 sec-onds as a warning, and the doors cannot be locked.
N00514601357
 The operation mode can be in any mode to start the engine. The starter motor will be turning for up to approximately 15 seconds if the engine switch is released at once. Pressing theengine switch again while the starter motor is still turning will stop the starter motor. The starter motor will be turningfor up to approximate
ly 30 seconds while
the engine switch is pressed. If the engine does not start, wait for awhile and then attempt to start the engine again. Trying repeatedly with the starter motor still turning will damage the startermechanism.  If the engine will not
start because the bat-
tery is weak or discharged, refer to“Jump-starting the engine” on page 8-2 for instructions.  A longer warm up period will only con- sume extra fuel.
The engine is warmed up enough for driv- ing when the low coolant temperatureindicator goes out. Refer to “Low coolant temperature indi- cator” on page 5-75.
Your vehicle is equipped with an electroni- cally controlled fuel injection system. This isa system that automatically controls fuel injection. There is usually no need to depress the accelerator pedal when starting theengine. To prevent battery drain, wait a few seconds between attempts to restart the engine.
Door ajar prevention system

Operation mode OFF reminder system

Starting and stopping the engine

Tips for starting

WA R N I N G Never run the engine in
a closed or poorly
ventilated area any longer than is needed to move your vehicle
out of the area. Car-
bon monoxide gas, wh
ich is odorless and
extremely poisonous, could build up and cause serious injury or death.CAUTION Do not push-start the vehicle.Do not run the engine at high rpms or drive at high speeds until
the engine has had a
chance to warm up.
Starting the engine

BK0249600US.book 16 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)

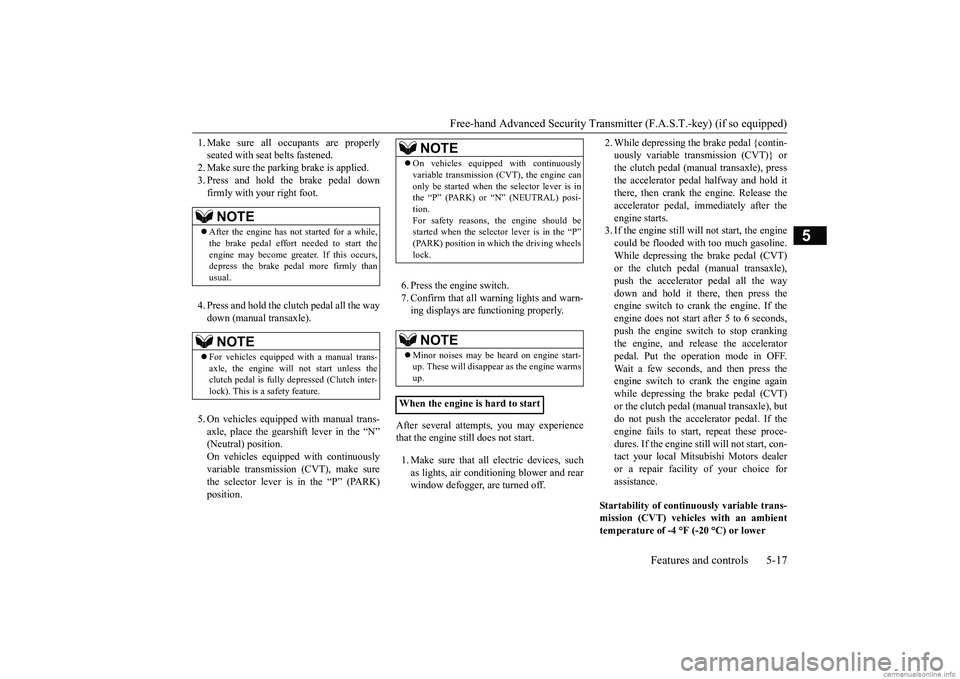

Features and controls 5-17
5
1. Make sure all occupants are properly seated with seat belts fastened.2. Make sure the parking brake is applied. 3. Press and hold the brake pedal down firmly with your right foot. 4. Press and hold the clut
ch pedal all the way
down (manual transaxle). 5. On vehicles equipped with manual trans- axle, place the gearshift lever in the “N” (Neutral) position.On vehicles equippe
d with continuously
variable transmission (CVT), make sure the selector lever is in the “P” (PARK)position.
6. Press the engine switch. 7. Confirm that all warning lights and warn-ing displays are functioning properly.
After several attempts
, you may experience
that the engine still does not start. 1. Make sure that all electric devices, such as lights, air conditi
oning blower and rear
window defogger, are turned off.
2. While depressing the brake pedal {contin- uously variable transmission (CVT)} orthe clutch pedal (manual transaxle), press the accelerator peda
l halfway and hold it
there, then crank the engine. Release theaccelerator pedal, immediately after the engine starts. 3. If the engine still wi
ll not start, the engine
could be flooded with too much gasoline. While depressing the brake pedal (CVT) or the clutch pedal (manual transaxle), push the accelerator pedal all the way down and hold it there, then press theengine switch to crank the engine. If the engine does not start after 5 to 6 seconds, push the engine switch to stop crankingthe engine, and release the accelerator pedal. Put the operation mode in OFF. Wait a few seconds, and then press theengine switch to cr
ank the engine again
while depressing the brake pedal (CVT) or the clutch pedal (manual transaxle), butdo not push the accelerator pedal. If the engine fails to start, repeat these proce- dures. If the engine sti
ll will not start, con-
tact your local Mitsubishi Motors dealer or a repair facility of your choice for assistance.
Startability of conti
nuously variable trans-
mission (CVT) vehicles with an ambient temperature of -4 °F (-20 °C) or lower
NOTE
 After the engine has not started for a while, the brake pedal effort needed to start the engine may become grea
ter. If this occurs,
depress the brake pedal more firmly than usual.NOTE
 For vehicles equipped with a manual trans- axle, the engine will not start unless the clutch pedal is fully depressed (Clutch inter- lock). This is a safety feature.
NOTE
 On vehicles equippe
d with continuously
variable transmission (C
VT), the engine can
only be started when th
e selector lever is in
the “P” (PARK) or “N” (NEUTRAL) posi- tion. For safety reasons, the engine should bestarted when the selector lever is in the “P” (PARK) position in which the driving wheels lock.NOTE
 Minor noises may be he
ard on engine start-
up. These will disappear
as the engine warms
up.
When the engine is hard to start
BK0249600US.book 17 ページ ２０１７年４月２０日　木曜日　午後１時３６分
