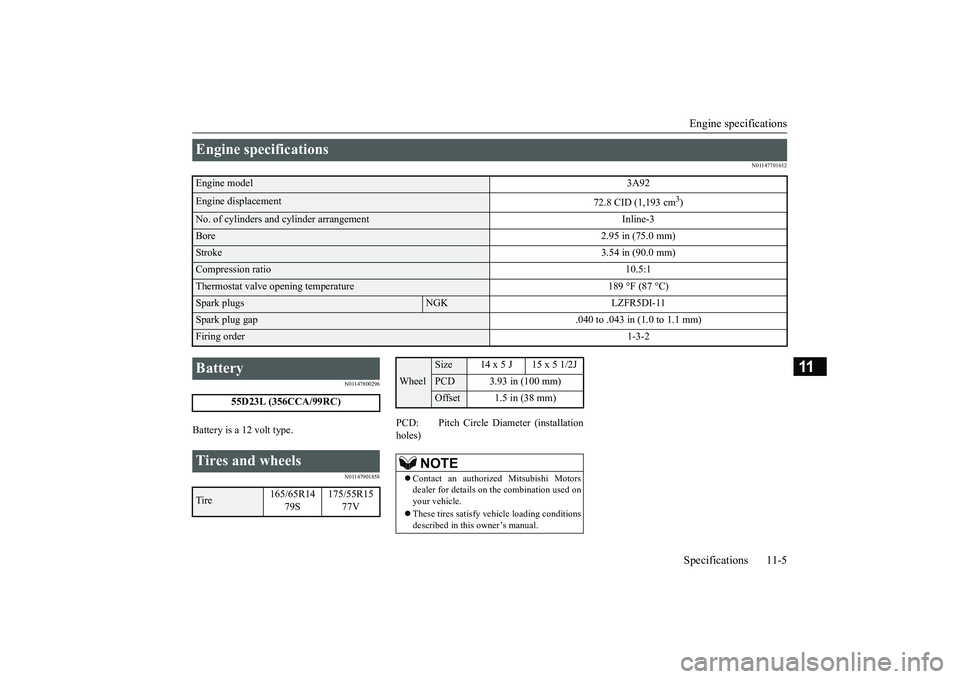

Engine specifications Specifications 11-5
11
N01147701612
N01147800296
Battery is a 12 volt type.
N01147901858
PCD: Pitch Circle Diameter (installation holes)
Engine specifications Engine model
3A92
Engine displacement
72.8 CID (1,193 cm
3)
No. of cylinders and cyli
nder arrangement Inline-3
Bore
2.95 in (75.0 mm)
Stroke
3.54 in (90.0 mm)
Compression ratio
10.5:1
Thermostat valve opening temperature 189 °F (87 °C)Spark plugs
NGK LZFR5DI-11
Spark plug gap .040 to .043 in (1.0 to 1.1 mm)Firing order
1-3-2
Battery
55D23L (356CCA/99RC)
Tires and wheels Tire
165/65R14
79S
175/55R15
77V
Wheel
Size 14 x 5 J 15 x 5 1/2JPCD 3.93 in (100 mm)Offset 1.5 in (38 mm)
NOTE
 Contact an authorized Mitsubishi Motors dealer for details on the combination used onyour vehicle.  These tires satisfy ve
hicle loading conditions
described in this owner’s manual.
