Instruments and controls 1-1
1
Overview
N00100202775
Instruments and controls
Instrument cluster P.5-63
Hazard warning flasher switch P.5-81
Combination headlights and dimmer switch P.5-78 Turn-signal lever P.5-80 Front fog light switch (if so equipped) P.5-81
Wiper and washer switch P.5-81
Cruise control switches (if so equipped) P.5-54
Engine switch (if so equipped) P.5-13
Ignition switch (if so equipped) P.5-36
Active stability control (ASC) OFF switch P.5-52 Electric remote-controlled outside rearview mirror switch P.5-35
Supplemental restraint system (SRS)-air- bag (for driver) P.4-22, 4-28 Horn switch P.5-84
Steering wheel height adjustment lever P.5-33
Steering wheel remote control switches [Refer to the separate owner’s manual.]
Supplemental restraint system (SRS)-driver’s knee airbag P.4-22, 4-29
Fuse box P.9-22
BK0249600US.book 1 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Interior 1-3 Overview
1
N00100302460
Interior
Bottle holders P.5-94
Power window lock switch P.5-29
Sun visors P.5-85 Vanity mirror P.5-85 Card holder P.5-85
Power door lock switch (if so equipped) P.5-25
Dome light P.5-92, 9-28
Inside rearview mirror P.5-33
Head restraints P.4-5
Power window switch P.5-29
Seat belts P.4-7
Supplemental restraint system (SRS)- curtain airbags P.4-22, 4-33 Manual window control (if so equipped) P.5-29
Tether anchorages for child restraint system P.4-17
Front seats P.4-2
Supplemental restraint system (SRS)-side airbags (for front seat) P.4-22, 4-33
Arm rest P.4-5
Jack P.8-5
Rear seat P.4-5
Cup holder (for the rear seat) P.5-93
Assist grips P.5-95
Arm rest (Driver’s seat only, if so equipped) P. 4-4
Microphone [Refer to the separate owner’s manual.]
Trunk-through lid P.4-5
BK0249600US.book 3 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Outside 1-5 Overview
1
N00100602724
Outside
Power window P.5-29
Windshield wipers P.5-81
Outside rearview mirrors P.5-35
Fuel tank filler P.3-3
Engine hood P.9-4
F.A.S.T.-key (Free-hand Advanced Security Transmitter) (if so equipped) P. 5 - 9 Keyless entry system (if so equipped) P. 5 - 6 Locking and unlocking P.5-24
Side turn signal lights (if so equipped)P.5-80, 9-27
Front side- marker lights P.5-78, 9-27, 9-29
Front fog lights (if so equipped) P.5-81, 9-27, 9-30
Front turn signal lights/Parking lights P.5-80, 9-27, 9-29 Headlights/Daytime running lights (if so equipped) P.5-78, 9-27, 9-29
BK0249600US.book 5 ページ ２０１７年４月２０日　木曜日　午後１時３６分

5
Features and controlsBreak-in recommendations ..............................................................5-2 Keys .................................................................................................5-2 Electronic immobilizer (Anti-theft starting system) ........................5-3Keyless entry system (if so equipped) ..............................................5-6 Free-hand Advanced Security
Transmitter (F.A.S.T.-key)
(if so equipped) ............................................................................5-9Door locks ......................................................................................5-24 Power door locks ......
...........
...........
...........
...........
...........
.........
.....5-25
Child safety locks for rear door ..........
...........
.........
.........
.........
.....5-26
Trunk lid ................
............
...........
...........
...........
...........
...........
.....5-27
Inside emergency trunk lid release ................................................5-28 Manual window control (if so equipped)........................................5-29Power window control ...................................................................5-29 Parking brake .................................................................................5-32 Steering wheel height adjustment ..................................................5-33Inside rearview mirror ...................................................................5-33 Outside rearview mirrors ...............................................................5-35 Ignition switch ...............................................................................5-36Starting the engine .........................................................................5-37 Manual transaxle (if so equipped) ..................................................5-39 Continuously variable transmission
(CVT) (if so equipped)..........5-41
Service brake .................................................................................5-46 Hill start assist ................................................................................5-47 Brake assist system ........................................................................5-48Anti-lock braking system ...............................................................5-49 Electric power steering system (EPS) ............................................5-50 Active stability control (ASC) .......................................................5-51Cruise control (if so equipped) .......................................................5-54
Tire pressure monitoring system (if so equipped) .......................... 5-58 Rear-view camera (if so equipped)................................................. 5-61 Instrument cluster .......................................................................... 5-63Multi-information display ............................................................. 5-64 Indicator and warning light package ............................................. 5-74 Indicators ....................................................................................... 5-75Warning lights ................................................................................ 5-75 Combination headlights and dimmer switch ................................. 5-78 Turn signal lever ............................................................................ 5-80Hazard warning flasher switch ...................................................... 5-81 Front fog light switch (if so equipped) .......................................... 5-81 Wiper and washer switch ............................................................... 5-81Electric rear window defogger switch ....
...........
...........
...........
...... 5-83
Horn switch ................................................................................... 5-84 Link System (if so equipped) ......................................................... 5-84USB input terminal ....
...........
...........
...........
...........
...........
............. 5-84
Sun visors ...................................................................................... 5-85 12 V power outlets ......................................................................... 5-86 HomeLink
® Wireless Control System (if so equipped) ................. 5-86
Interior lights ................................................................................. 5-91 Storage spaces ................................................................................ 5-92Cup holders .................................................................................... 5-93 Bottle holders ................................................................................. 5-94 Convenience hook ............
...........
...........
...........
...........
...........
...... 5-94
Assist grips .................................................................................... 5-95
BK0249600US.book 1 ページ ２０１７年４月２０日　木曜日　午後１時３６分

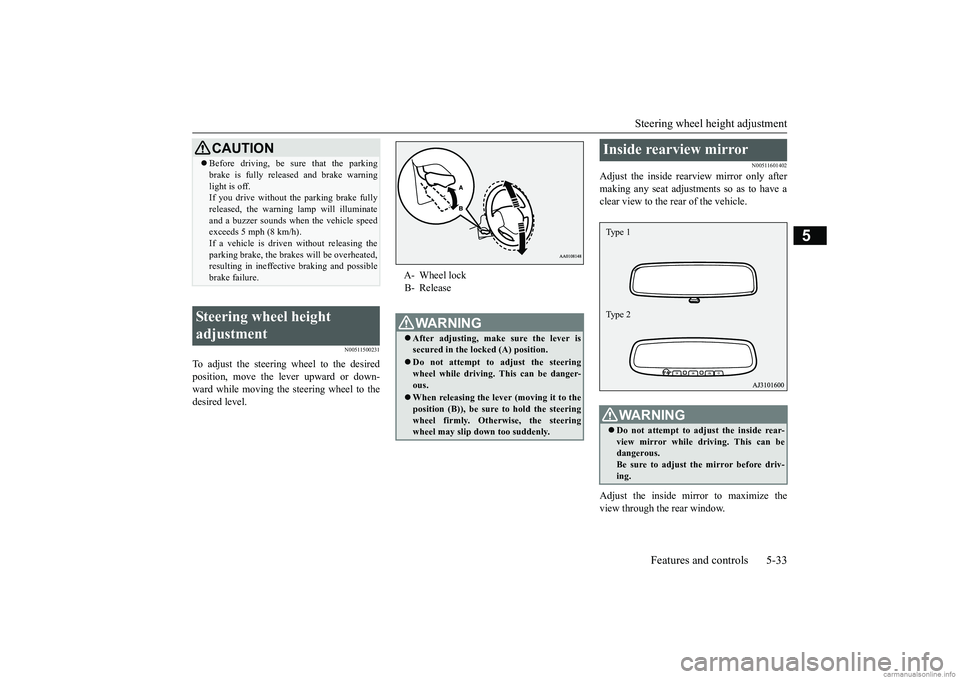

Steering wheel height adjustment
Features and controls 5-33
5
N00511500231
To adjust the steering wheel to the desired position, move the lever upward or down-ward while moving the steering wheel to the desired level.
N00511601402
Adjust the inside rearview mirror only aftermaking any seat adjustme
nts so as to have a
clear view to the rear of the vehicle. Adjust the inside mirror to maximize the view through the rear window.
CAUTION Before driving, be sure that the parking brake is fully released and brake warninglight is off.If you drive without the parking brake fully released, the warning lamp will illuminate and a buzzer sounds when the vehicle speedexceeds 5 mph (8 km/h). If a vehicle is driven without releasing the parking brake, the brakes will be overheated,resulting in ineffectiv
e braking and possible
brake failure.
Steering wheel height adjustment
A- Wheel lock B- ReleaseWA R N I N G After adjusting, make sure the lever is secured in the locked (A) position. Do not attempt to adjust the steering wheel while driving. This can be danger-ous. When releasing the leve
r (moving it to the
position (B)), be sure to hold the steering wheel firmly. Otherwise, the steering wheel may slip down too suddenly.
Inside rearview mirror
WA R N I N G Do not attempt to adjust the inside rear- view mirror while driving. This can bedangerous. Be sure to adjust the mirror before driv- ing.Type 1 Type 2
BK0249600US.book 33 ページ ２０１７年４月２０日　木曜日　午後１時３６分

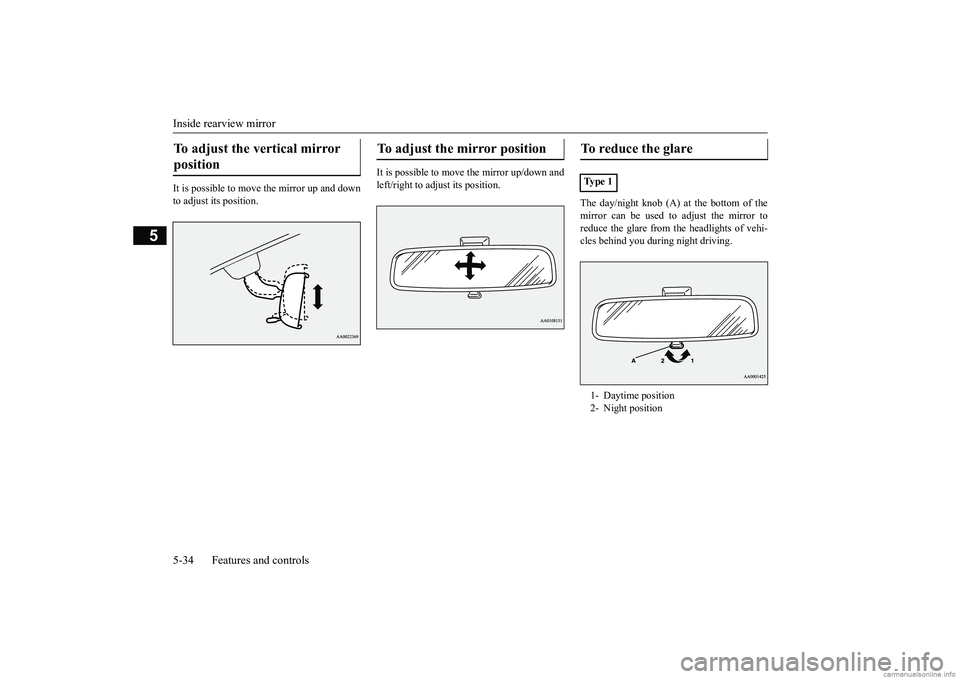

Inside rearview mirror 5-34 Features and controls
5
It is possible to move the mirror up and down to adjust its position.
It is possible to move the mirror up/down and left/right to adjust its position.
The day/night knob (A) at the bottom of the mirror can be used to adjust the mirror to reduce the glare from the headlights of vehi- cles behind you during night driving.
To adjust the vertical mirror position
To adjust the mirror position
To reduce the glare Ty p e 1 1- Daytime position 2- Night position
BK0249600US.book 34 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Outside rearview mirrors
Features and controls 5-35
5
When the headlights of the vehicles behind you are very bright, the reflection factor ofthe rearview mirror is automatically changed to reduce the glare. Normally, use the automatic mode. When the ignition switch is turn
ed to the “ON” position
or the operation mode is put in ON, the greenindicator (1) illuminat
es and the reflection
factor of the mirror is
automatically changed.
N00512200206
Adjust the outside rearview mirrors only after making any seat adjustme
nts so as to have a
clear view to the rear of the vehicle.
N00549100144
The outside rearview mi
rrors can be adjusted
when the ignition switch or the operation mode is in ON or ACC.Move the lever (A) to the same side as the mirror you wish to adjust. Press the switch (B) to adjust the mirror posi- tion.
Ty p e 2
NOTE
 Do not hang items on,
or spray glass cleaner
on the sensors (2), as
reduced sensitivity
could result.
 If you want to stop automatic mode, press the switch (3) and the indicator (1) will gooff.To return to automatic mode, press the switch again. Or turn the ignition switch to the “ON” position or put the operation modein ON, after turning the ignition switch to the “LOCK” position or
putting the operation
mode in OFF.
Outside rearview mirrors
WA R N I N G Do not attempt to adjust the outside rear- view mirrors while driving. This can bedangerous. Be sure to adjust the mirrors before driv- ing. Your passenger’s side mirror is convex. The objects you see in
the mirror will look
smaller and farthe
r away than they
appear in a regular flat mirror. Do not use this mirror to estimate the dis- tance of vehicles
following you when
changing lanes.NOTE
To adjust the mirror position L- Left outside mirror adjustment R- Right outside mirror adjustment 1- Up 2- Down 3- Right 4- Left
BK0249600US.book 35 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Ignition switch 5-36 Features and controls
5
N00549200099
The outside mirror can
be manually folded in
towards the side window to prevent damagewhen parking in tight locations.
N00549301286
When the rear window defogger switch ispressed with the engine running, the outside rearview mirrors are defogged or defrosted. Current will flow throug
h the heater element
inside the mirrors, thus clearing away frost or condensation.The indicator light (A) will illuminate while the defogger is on. The heater will be turned off automatically inabout 20 minutes.
N00512401739
[For vehicles equipped with the Free-handAdvanced Security Tr
ansmitter (F.A.S.T.-
key)] For information on ope
rations for vehicles
equipped with the Free-hand Advanced Secu-rity Transmitter (F.A
.S.T.-key), refer to
“Free-hand Advanced
Security Transmitter
(F.A.S.T.-key):Engine switch” on page 5-13.
[Except for vehicles equipped with the Free-hand Advanced Security Transmit-ter (F.A.S.T.-key)] The engine is off. The
key can be inserted and
removed only when the sw
itch is in this posi-
tion. Allows operation of some electrical accesso- ries with the engine off.
NOTE
 After adjusting, return the lever to the “•” (OFF) position (C).
To fold the mirror Door mirror heater
(if so equipped)
Ignition switch
OFF ACC
BK0249600US.book 36 ページ ２０１７年４月２０日　木曜日　午後１時３６分

Horn switch 5-84 Features and controls
5
N00523800185
To honk the horn, press around the “ ” mark on the steering wheel.
N00563701196
The Link System takes control of the devicesconnected via the USB i
nput terminal or the
Bluetooth
®; the system allows the connected
devices to be operated by using the switches in the vehicle or voice commands (if so equipped).For details on how to operate, refer to “USB input terminal” on page
5-84 and the separate
owner’s manual. Bluetooth
® is a registered trademark of
BLUETOOTH SIG, INC.
N00566701171
You can connect your USB memory device or iPod
* to play music files stored in the USB
memory device or iPod.This section explains how to connect and remove a USB memory device or iPod. Refer to the separate owner’s manual fordetails on the types of
connectable devices
and supported files, and how to play music files. * : “iPod” is a register
ed trademark of Apple
Inc. in the United Stat
es and other countries.
CAUTIONThe rear window defogge
r is not designed to
melt snow. Remove any snow manuallybefore using the rear window defogger. Use the rear window defogger only after the engine has started and
is running. Be sure to
turn the defogger switch off immediately after the window is clea
r to save on battery
power. Do not place stickers
, tape, or other items
that are attached with adhesive over the gridwires on the rear window. When cleaning the insi
de rear window, use a
soft cloth and wipe
lightly over the grid
wires.NOTE
 If your vehicle is equi
pped with heated mir-
rors, mist can also be removed from the out-side rearview mirrors
when the rear window
defogger switch is pre
ssed. (Refer to “Door
mirror heater” on page 5-36.)
Horn switch
Link System
(if so equipped)
USB input terminal
WA R N I N G Do not perform to connect/disconnect the USB memory device or
iPod while driving.
This can be dangerous. Be sure to perform before driving.
BK0249600US.book 84 ページ ２０１７年４月２０日　木曜日　午後１時３６分

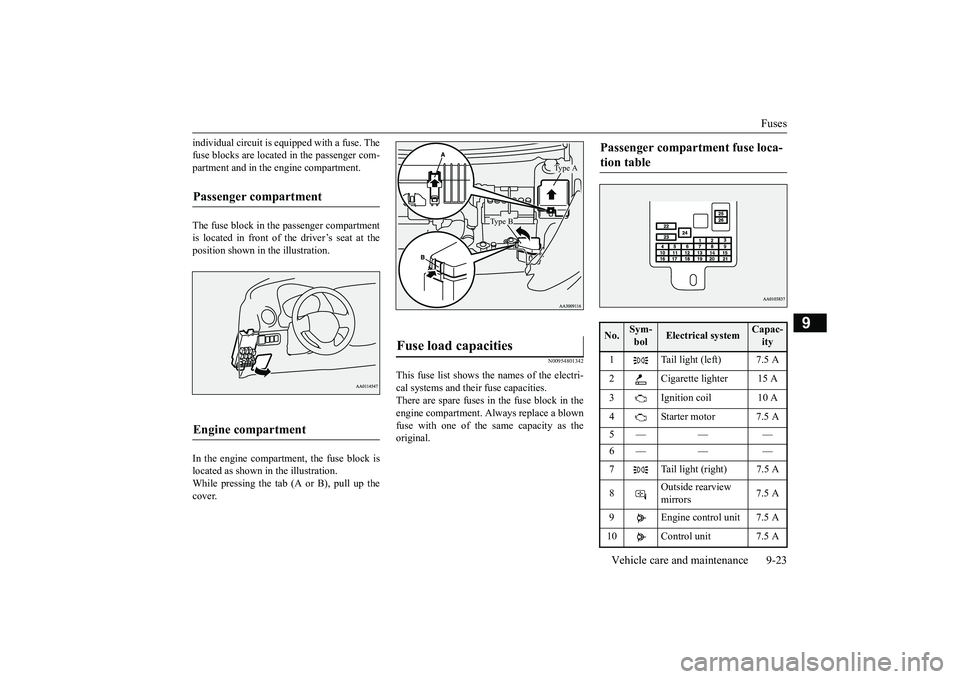

Fuses
Vehicle care and maintenance 9-23
9
individual circuit is e
quipped with a fuse. The
fuse blocks are locate
d in the passenger com-
partment and in the engine compartment. The fuse block in the passenger compartment is located in front of the driver’s seat at the position shown in the illustration. In the engine compartment, the fuse block is located as shown in
the illustration.
While pressing the tab (A or B), pull up the cover.
N00954801342
This fuse list shows the names of the electri- cal systems and their fuse capacities. There are spare fuses in the fuse block in theengine compartment. Al
ways replace a blown
fuse with one of the same capacity as the original.
Passenger compartment Engine compartment
Fuse load capacities
Type A
Type B
Passenger compartment fuse loca- tion table No.
Sym- bol
Electrical system
Capac-ity
1 Tail light (left) 7.5 A 2 Cigarette lighter 15 A3 Ignition coil 10 A 4 Starter motor 7.5 A 5— — — 6— — — 7 Tail light (right) 7.5 A 8
Outside rearview mirrors
7.5 A
9 Engine control unit 7.5 A 10 Control unit 7.5 A
