METERS AND GAUGES - s-meter Unit 8-139
Center shaft of
pitching damper plate
Pointer
16W 600
Spherical dial
Spherical
horizontal
16W966
Spherical dial Dial support plate
/ Oil case
Gxizontal centerlinewtationaryframe
Blind plate
16W627
;ide to side inclination Forward or backwarc
Hokizontal line Horizbntal line
INCLINOMETER
OUTLINE
The inclinometer is an instrument which indicates the forward
or backward inclination (pitching) or side to side inclination
(ding) of vehicle.
Motion of a pendulum in the system is displayed on the
system. The pitching and rolling pointer is supported by a
double support mechanism in which the rolling fulcrum is
supported in such a way as to be rotative around the case and
the pitching fulcrum supported on the rolling system
CONSTRUCTION
The inclinometer consists of an outer case which inclines with
the vehicle, a pointer which is provided in an oil case and
always maintains a level position, and a spherical dial. The
spherical dial is coupled through the dial support plate to the
rolling damper plate. The rolling damper plate is swivel bearing
coupled to a stationary frame by the center axis, so it can
incline side-to-side, but is always held in a level position by a
pendulum. The pointer is coupled with the pitching damper
plate.
Since the pitching damper plate is swivel bearing coupled to
the rolling damper plate by the center axis, it can incline
forward and backward, but is always maintained in a level
position by the pendulum.
OPERATION
The side-to-side inclination angle should be read on a scale of
the front panel as indicated by the horizontal centerline of the
spherical dial, whereas the forward or backward inclination
angle should be read on a scale of the spherical dial as
indicated by the pointer.
[ STB Revision

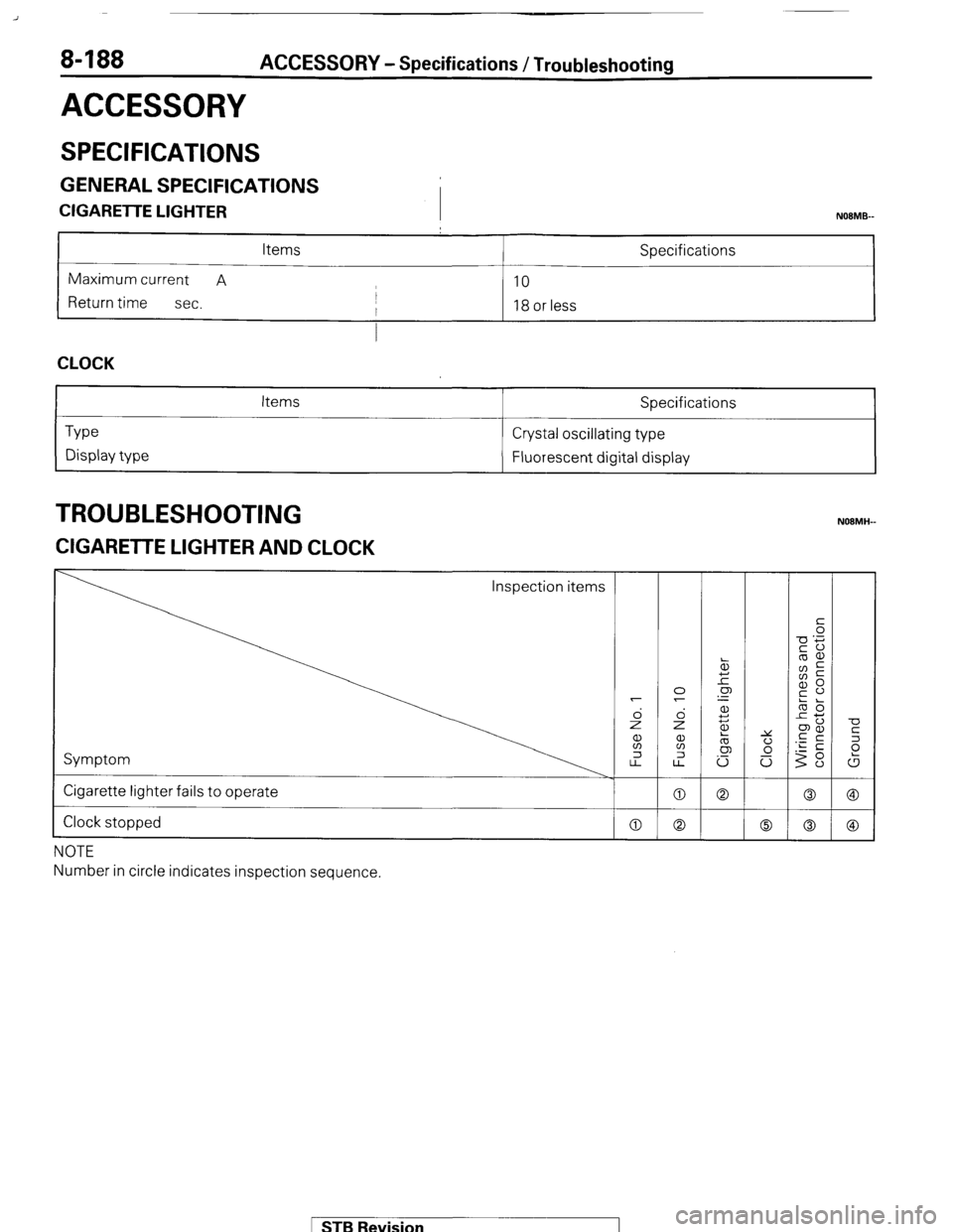

8-188 ACCESSORY - Specifications / Troubleshooting
ACCESSORY
SPECIFICATIONS
GENERAL SPECIFICATIONS
CIGARETTE LIGHTER
I NOBMB-
Items Specifications
Maximum current A
10
Return time
sec. I
I 18 or less
I
CLOCK
Type
Display type Items Specifications
Crystal oscillating type
Fluorescent digital display
TROUBLESHOOTING
ZIGARETTE LIGHTER AND CLOCK
Inspection items
Symptom
Cigarette lighter fails to operate
Clock stopped
NOTE
Number in circle indicates inspection sequence.
MB Revision
