Fig. 138: Flow Chart DR-13 (1.6L) (2 of 2)
DR-14: CODE 43 EGR TEMPERATURE SENSOR CIRCUIT - 1.6L
Fig. 139: Circuit Diagram DR-14 (1.6L)

Fig. 151: Flow Chart DR-16 (1.6L) (3 of 3)

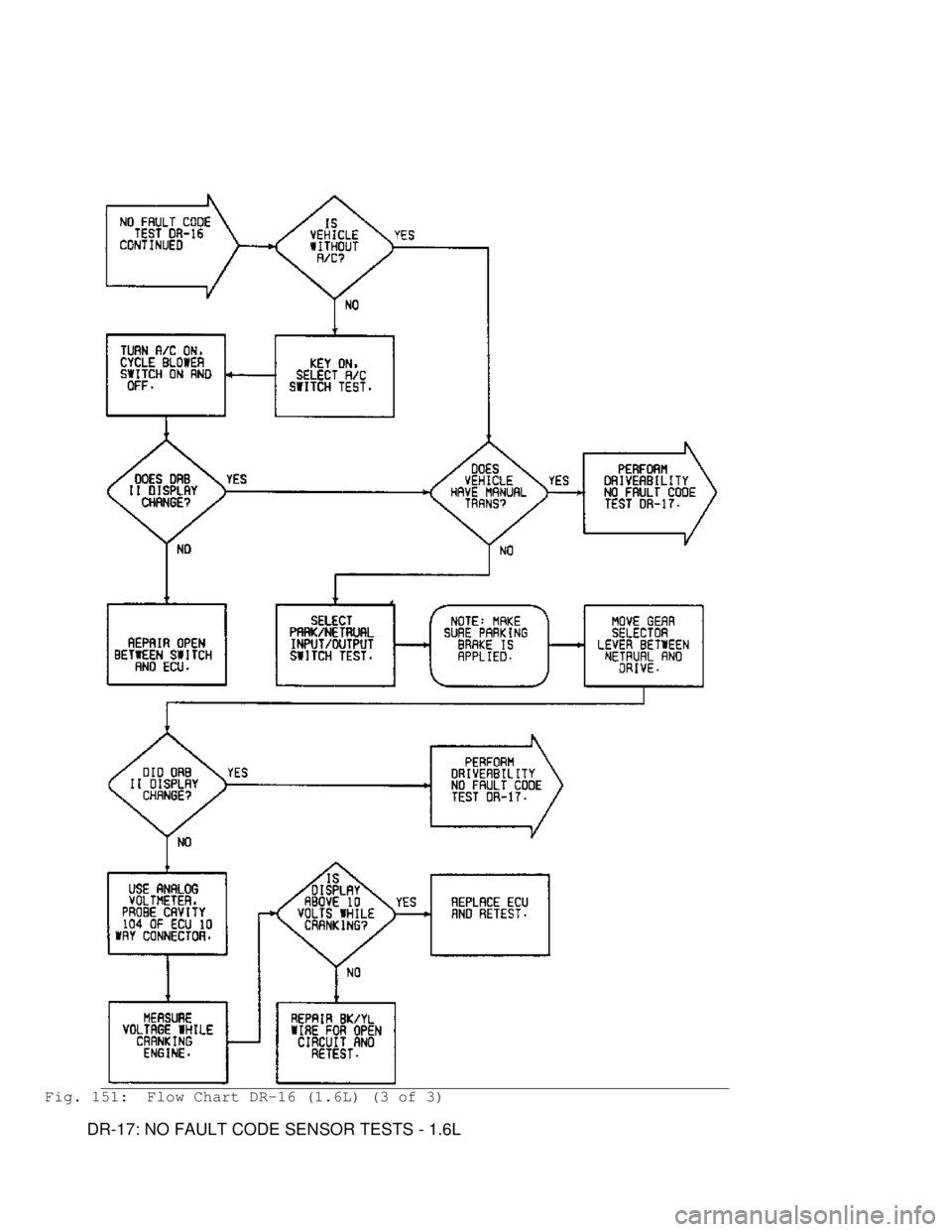

DR-17: NO FAULT CODE SENSOR TESTS - 1.6L

Fig. 178: Circuit Diagram NS-4 (1.8L)

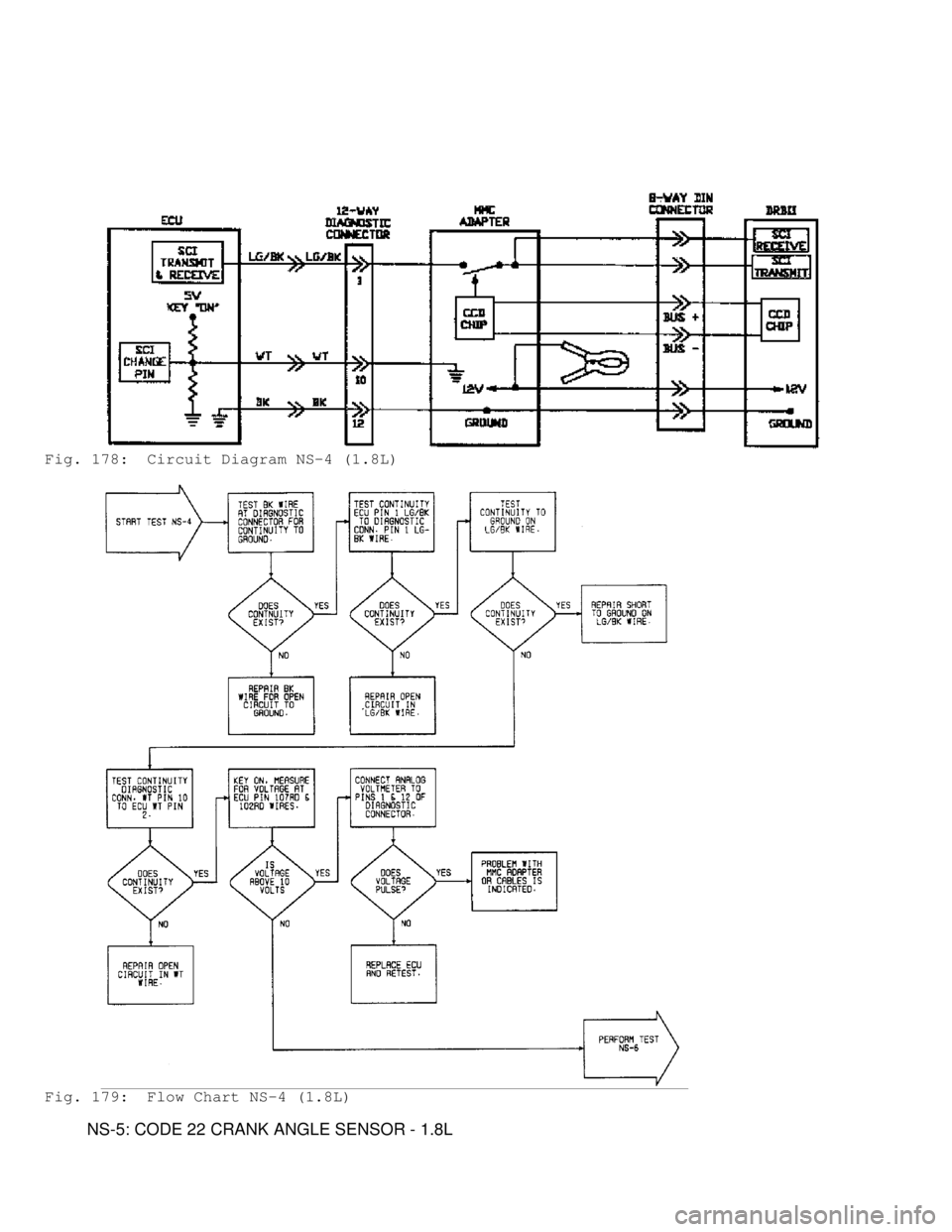

Fig. 179: Flow Chart NS-4 (1.8L)
NS-5: CODE 22 CRANK ANGLE SENSOR - 1.8L

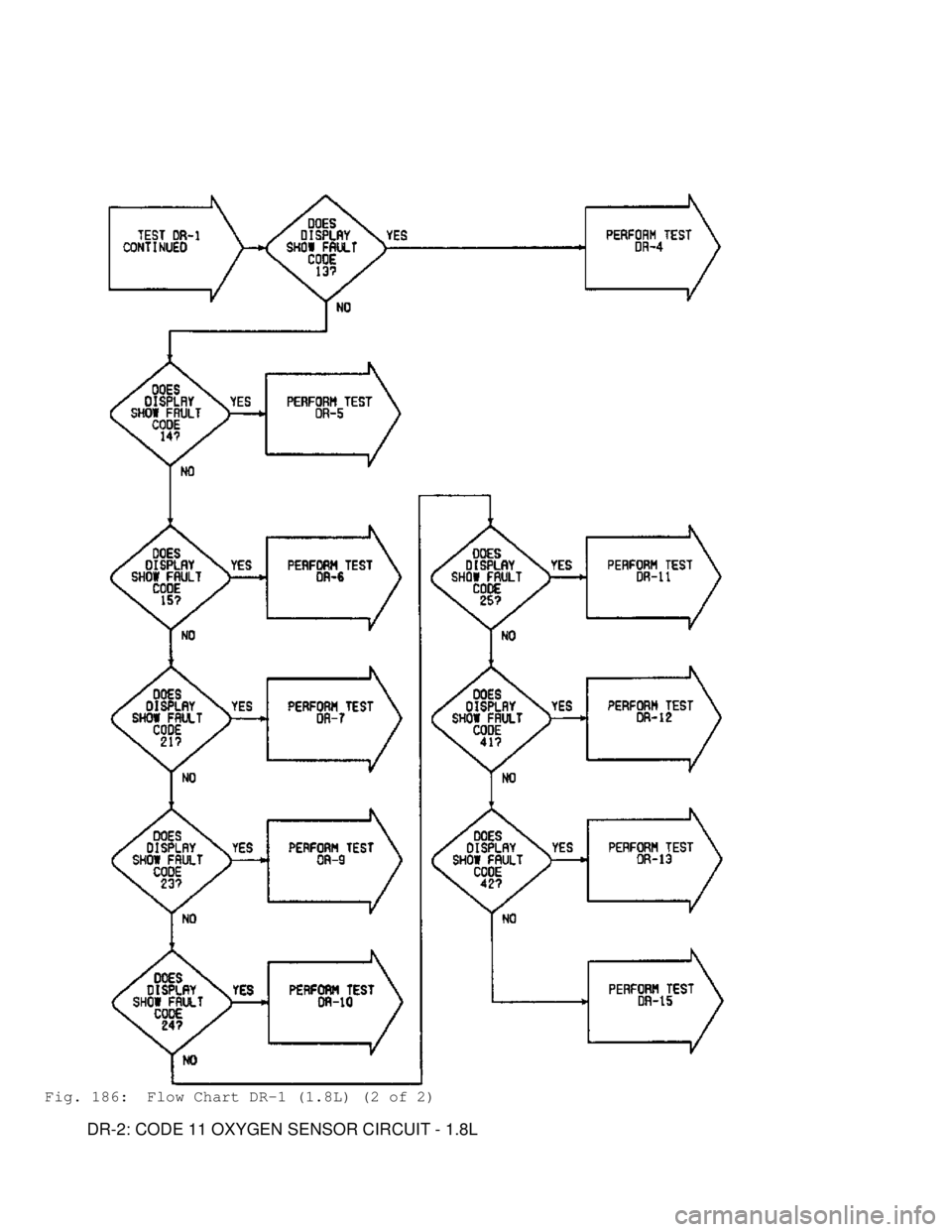

Fig. 186: Flow Chart DR-1 (1.8L) (2 of 2)
DR-2: CODE 11 OXYGEN SENSOR CIRCUIT - 1.8L

Fig. 187: Circuit Diagram DR-2 (1.8L)

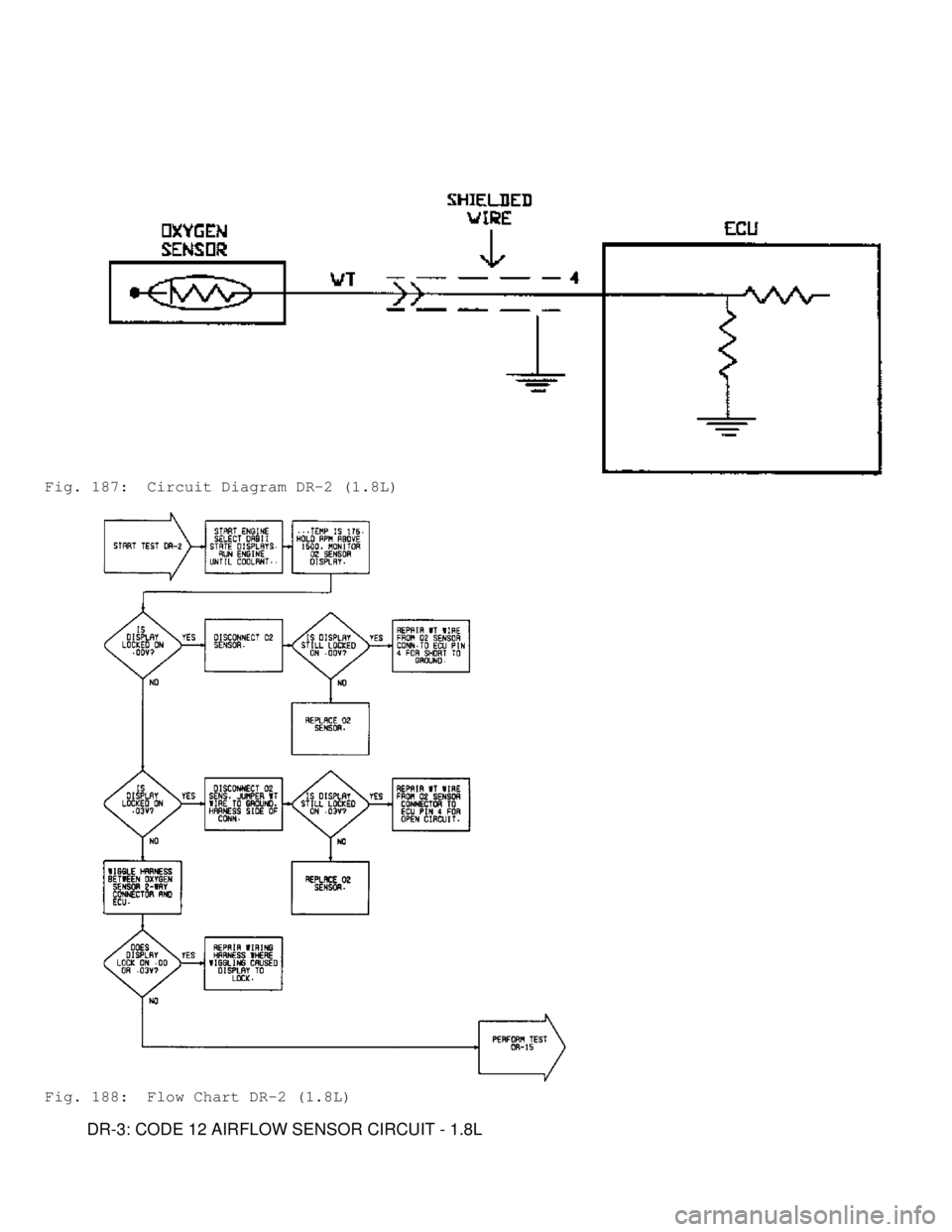

Fig. 188: Flow Chart DR-2 (1.8L)
DR-3: CODE 12 AIRFLOW SENSOR CIRCUIT - 1.8L

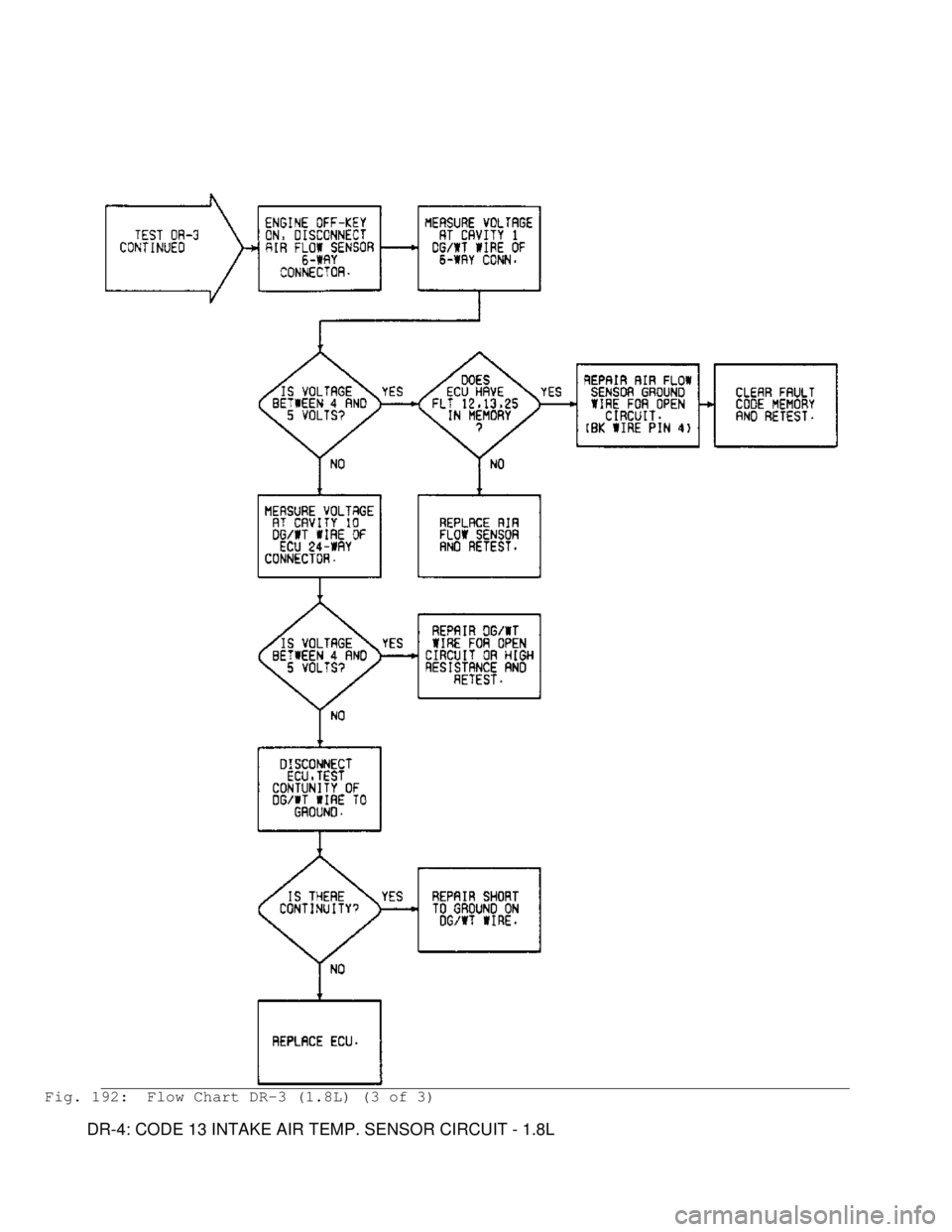

Fig. 192: Flow Chart DR-3 (1.8L) (3 of 3)
DR-4: CODE 13 INTAKE AIR TEMP. SENSOR CIRCUIT - 1.8L

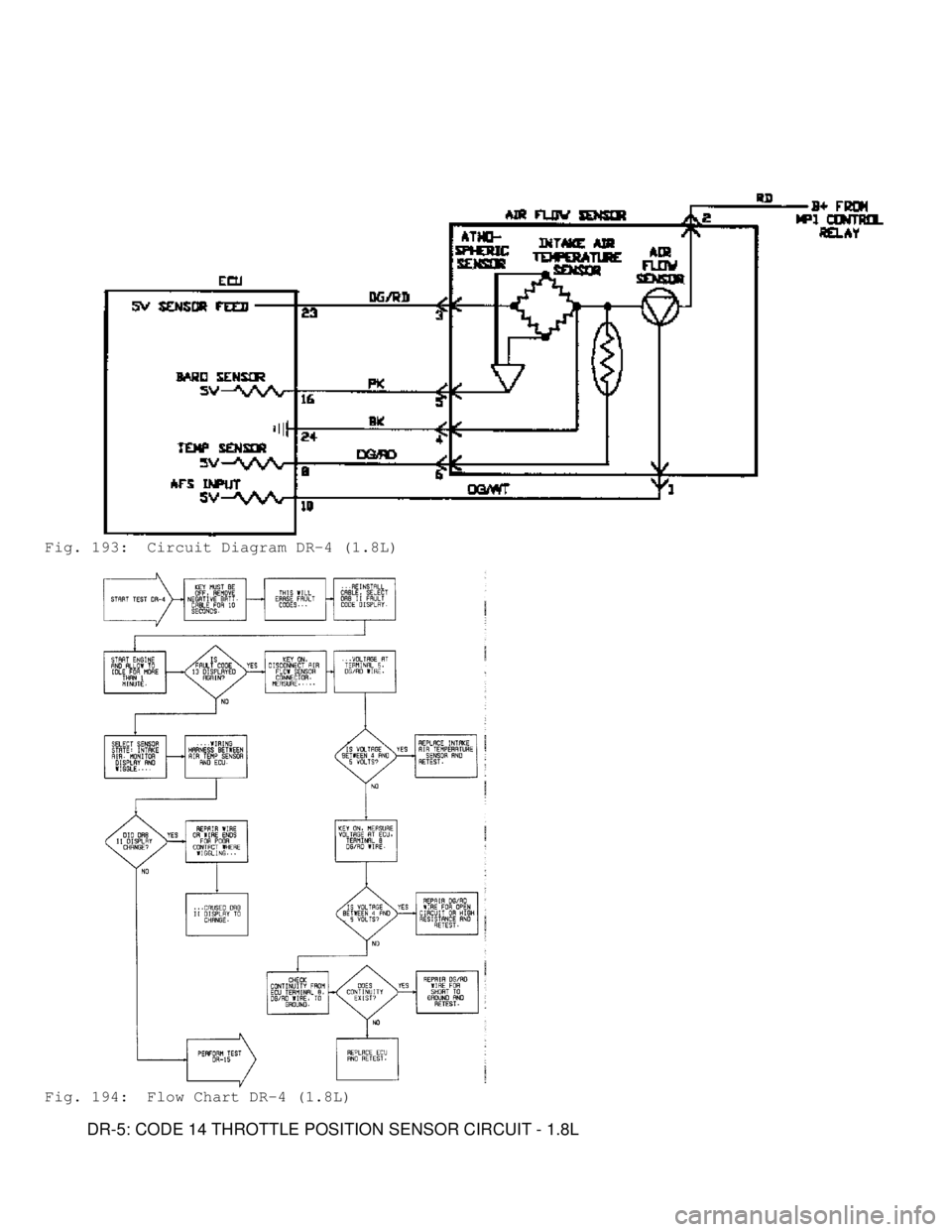

Fig. 193: Circuit Diagram DR-4 (1.8L)

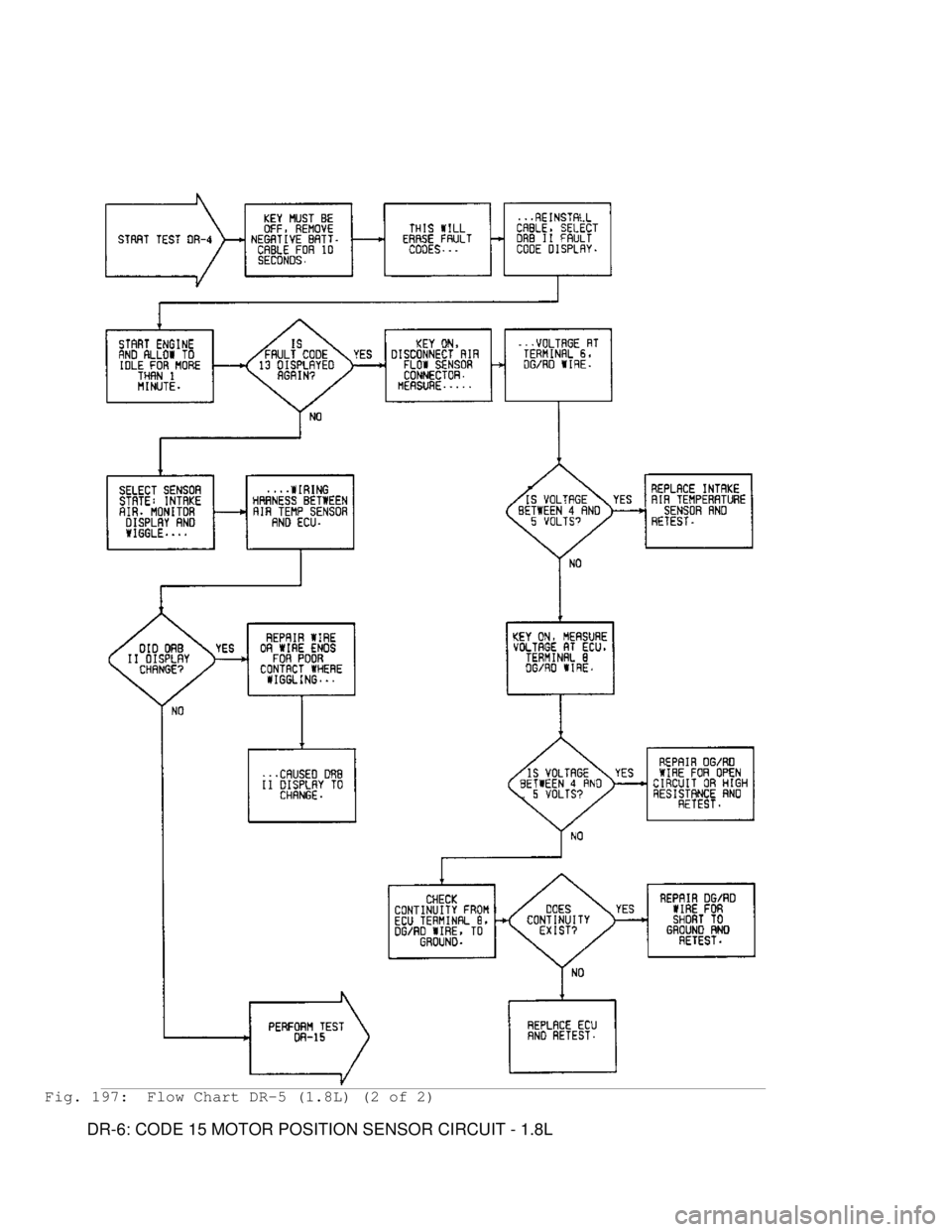

Fig. 194: Flow Chart DR-4 (1.8L)
DR-5: CODE 14 THROTTLE POSITION SENSOR CIRCUIT - 1.8L

Fig. 197: Flow Chart DR-5 (1.8L) (2 of 2)
DR-6: CODE 15 MOTOR POSITION SENSOR CIRCUIT - 1.8L

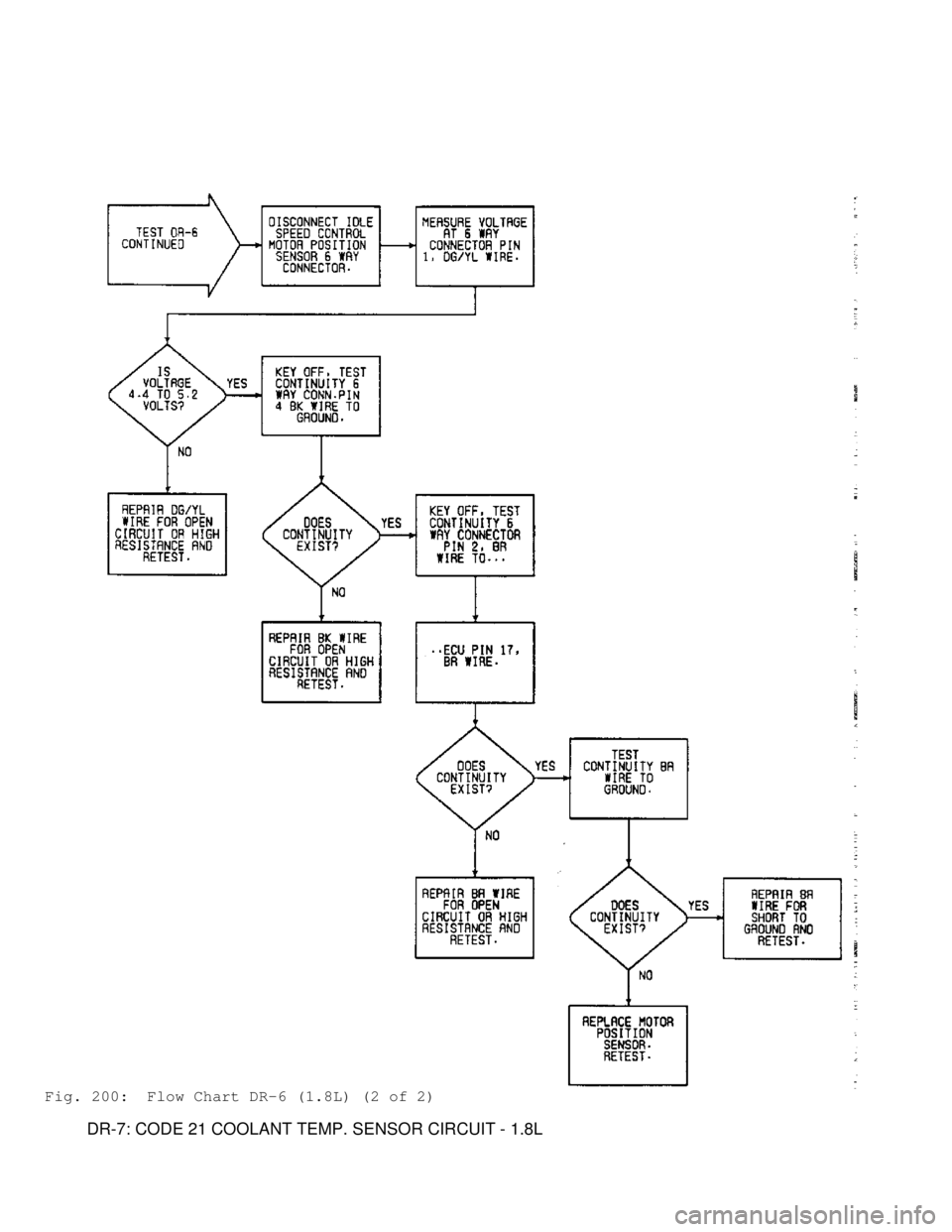

Fig. 200: Flow Chart DR-6 (1.8L) (2 of 2)
DR-7: CODE 21 COOLANT TEMP. SENSOR CIRCUIT - 1.8L

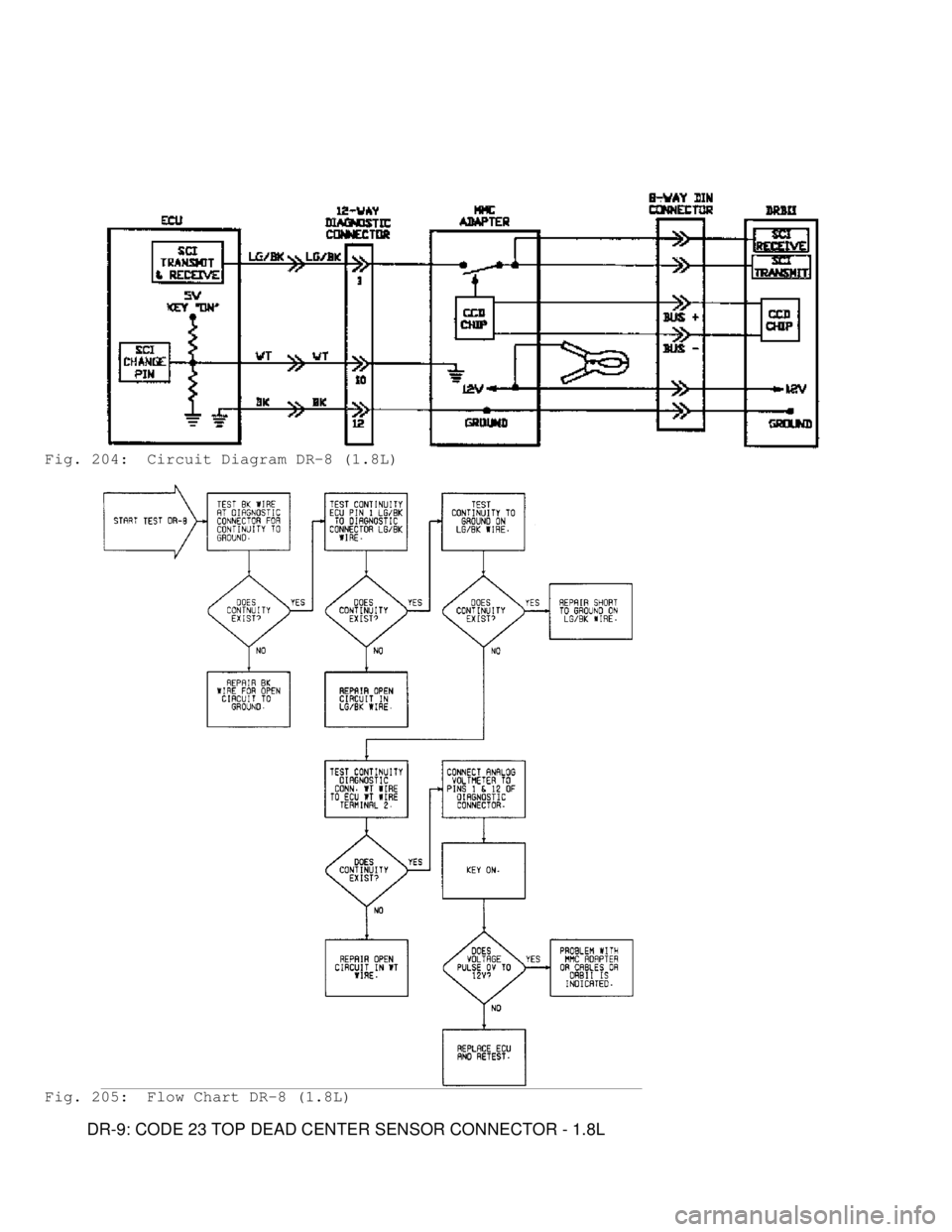

Fig. 204: Circuit Diagram DR-8 (1.8L)
Fig. 205: Flow Chart DR-8 (1.8L)
DR-9: CODE 23 TOP DEAD CENTER SENSOR CONNECTOR - 1.8L
