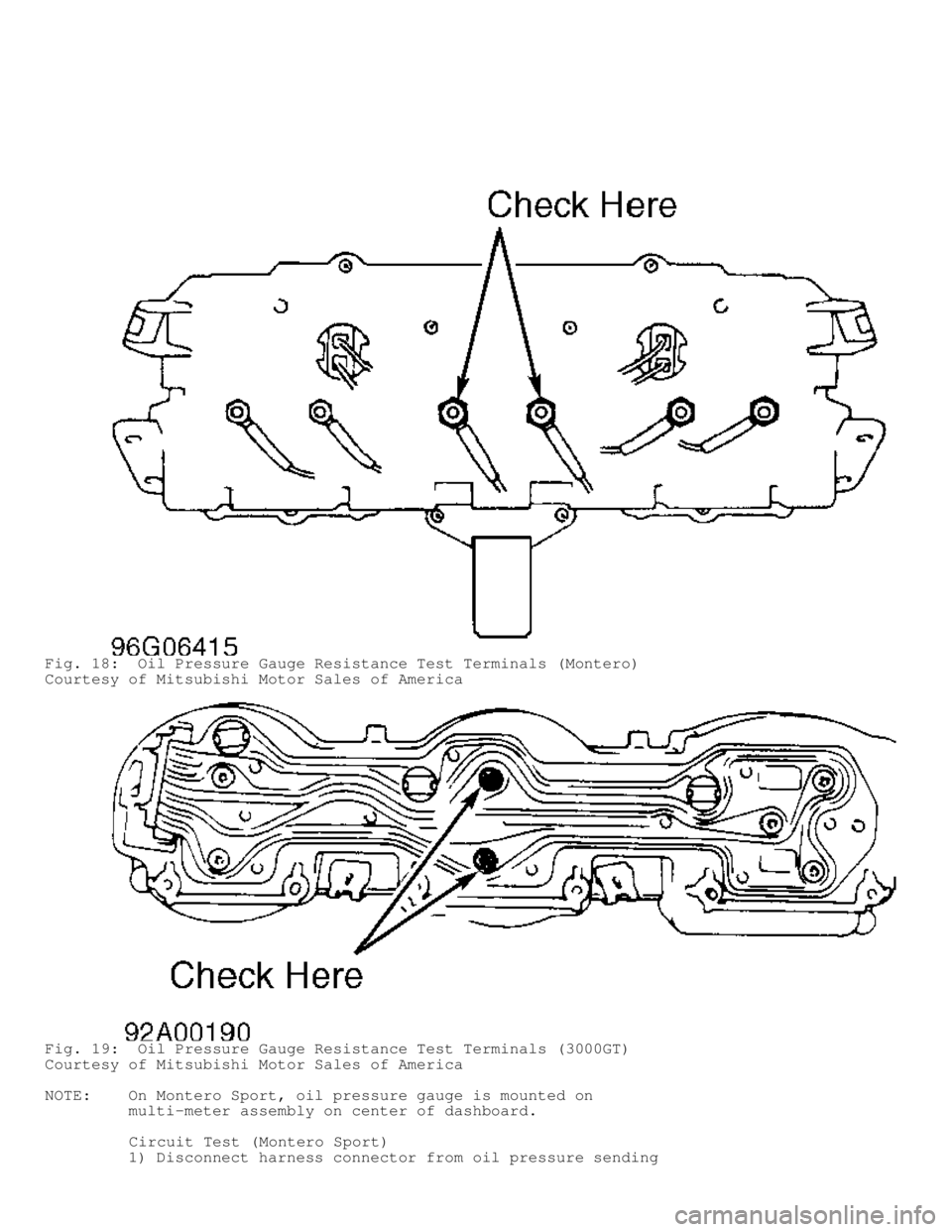

Fig. 18: Oil Pressure Gauge Resistance Test Terminals (Montero)
Courtesy of Mitsubishi Motor Sales of America
Fig. 19: Oil Pressure Gauge Resistance Test Terminals (3000GT)
Courtesy of Mitsubishi Motor Sales of America
NOTE: On Montero Sport, oil pressure gauge is mounted on
multi-meter assembly on center of dashboard.
Circuit Test (Montero Sport)
1) Disconnect harness connector from oil pressure sending

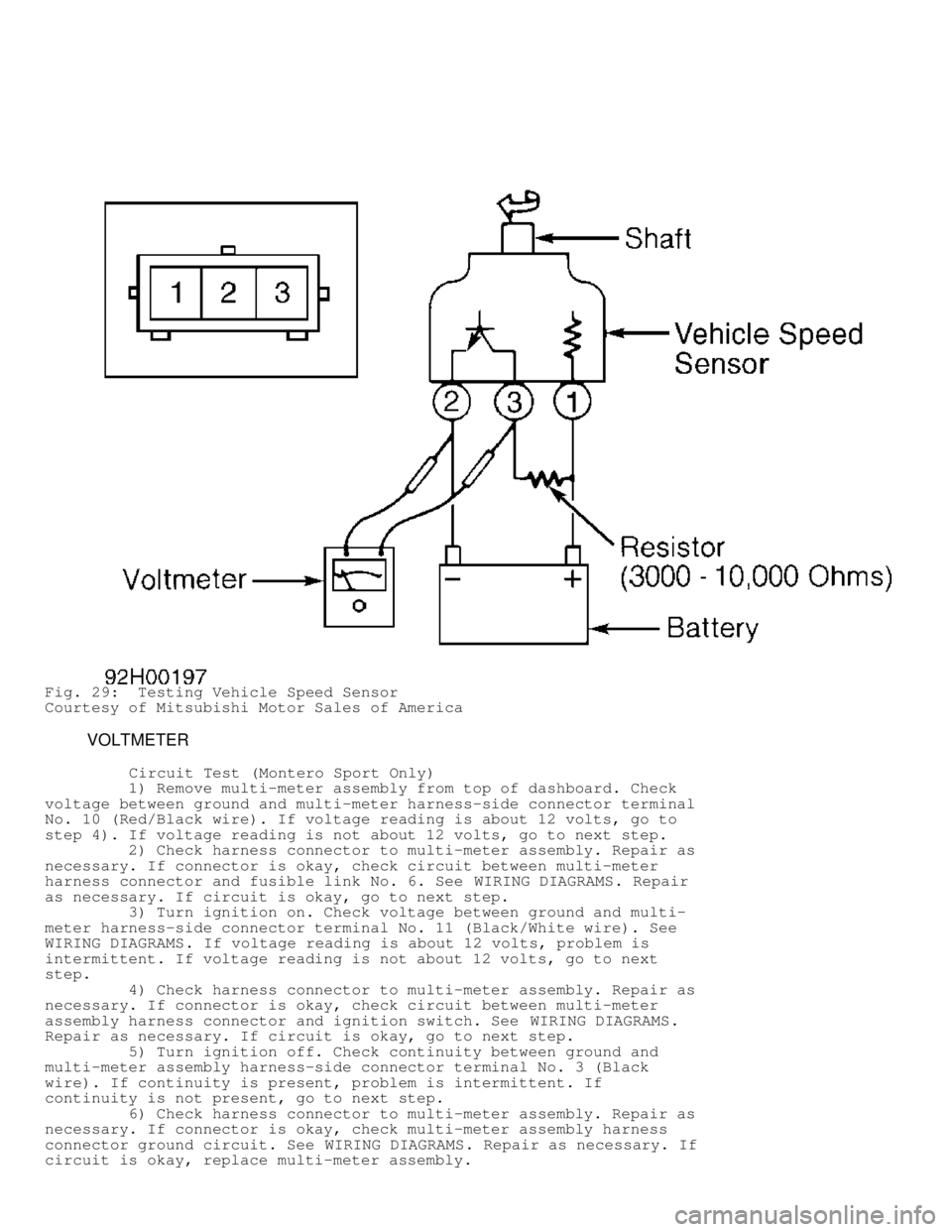

Fig. 29: Testing Vehicle Speed Sensor
Courtesy of Mitsubishi Motor Sales of America
VOLTMETER
Circuit Test (Montero Sport Only)
1) Remove multi-meter assembly from top of dashboard. Check
voltage between ground and multi-meter harness-side connector terminal
No. 10 (Red/Black wire). If voltage reading is about 12 volts, go to
step 4). If voltage reading is not about 12 volts, go to next step.
2) Check harness connector to multi-meter assembly. Repair as
necessary. If connector is okay, check circuit between multi-meter
harness connector and fusible link No. 6. See WIRING DIAGRAMS. Repair
as necessary. If circuit is okay, go to next step.
3) Turn ignition on. Check voltage between ground and multi-
meter harness-side connector terminal No. 11 (Black/White wire). See
WIRING DIAGRAMS . If voltage reading is about 12 volts, problem is
intermittent. If voltage reading is not about 12 volts, go to next
step.
4) Check harness connector to multi-meter assembly. Repair as
necessary. If connector is okay, check circuit between multi-meter
assembly harness connector and ignition switch. See WIRING DIAGRAMS.
Repair as necessary. If circuit is okay, go to next step.
5) Turn ignition off. Check continuity between ground and
multi-meter assembly harness-side connector terminal No. 3 (Black
wire). If continuity is present, problem is intermittent. If
continuity is not present, go to next step.
6) Check harness connector to multi-meter assembly. Repair as
necessary. If connector is okay, check multi-meter assembly harness
connector ground circuit. See WIRING DIAGRAMS. Repair as necessary. If
circuit is okay, replace multi-meter assembly.
