Repair or replace components as necessary. If no problems exist, go to
next step.
2) Ground fan motor 3-pin connector terminal No. 3 (Black
wire). Using a fused jumper wire, connect battery voltage to 3-pin
connector terminal No. 2 (Blue wire). See WIRING DIAGRAMS. Fan motor
should operate with no abnormal noises or interferences. Repair or
replace components as necessary.
Engine Coolant Temperature (ECT) Sensor
Remove ECT sensor from vehicle. Suspend sensor in water so
that sensor does not touch container. Slowly heat water. Using an
ohmmeter, check sensor continuity as temperature increases. Replace
ECT sensor if resistance is not as specified. See
ENGINE COOLANT TEMPERATURE SENSOR RESISTANCE table.
ENGINE COOLANT TEMPERATURE SENSOR RESISTANCE
\
\
\
\
\
\
\
Temperature F (C) Ohms
Diamante, Eclipse 2.0L Turbo & 2.4L
32 (0) ................................................. 5100-6500\
68 (20) ................................................ 2100-2700\
104 (40) ................................................ 900-1300\
176 (80) ................................................. 260-360\
Eclipse Non-Turbo
77 (25) ................................................. 900-1100\
212 (100) ................................................ 600-800\
Galant & Mirage
68 (20) ................................................ 2100-2700\
176 (80) ................................................. 260-360\
Montero
68 (20) ................................................ 2130-2610\
176 (80) ................................................. 258-322\
Montero Sport
68 (20) ................................................ 2100-2700\
176 (80) ................................................. 260-360\
3000GT
32 (0) ...................................................... 5800\
68 (20) ..................................................... 2400\
104 (40) .................................................... 1100\
176 (80) ..................................................... 300\
\
\
\
\
\
\
\
Electric Cooling Fan Relay (Diamante, Eclipse, Galant &
Mirage)
1) Remove radiator fan motor relay from relay box located at
right side of engine compartment. Check for continuity between relay
terminals No. 1 and 3. If continuity exists, go to next step. If
continuity does not exist, replace cooling fan relay. See Fig. 8.
2) Using a fused jumper wire, connect battery voltage to
cooling fan relay terminal No. 1. Using another jumper wire, connect
cooling fan relay terminal No. 3 to battery ground. With cooling fan
relay energized, there should be continuity between cooling fan relay
terminals No. 4 and 5. With cooling fan relay not energized, there
should be no continuity between terminals No. 4 and 5. If continuity
does not exist as specified, replace cooling fan relay. See Fig. 8.
Electric Cooling Fan Relay (Montero, Montero Sport & 3000GT)
1)Remove relay from relay box in engine compartment relay
box. Check for continuity between relay terminals No. 2 and 4. If
continuity exists, go to next step. If continuity does not exist,
replace cooling fan relay. See Fig. 9.
2) Using a fused jumper wire, connect battery voltage to
Page 282 of 1501
speed, coolant temperature and A/C operation request, PCM
will command low, medium or high speed fan operation.
Diamante
1) If only the radiator fan does not operate, check fusible
link No. 6 located in engine compartment relay box. If only the
condenser fan does not operate, check dedicated fuse No. 16 (20-amp)
located in engine compartment relay box. See WIRING DIAGRAMS. Repair
as necessary.
2) If radiator fan and condenser fan operate in all speeds
except low, check appropriate low speed relay. See COMPONENT TESTS.
See WIRING DIAGRAMS . If low speed relay is okay, check PCM. See
appropriate G - TESTS W/CODES article in ENGINE PERFORMANCE.
* G - TESTS W/CODES - 1997
* G - TESTS W/CODES - 1998
3) If radiator fan and condenser fan operate in all speeds
except high, check appropriate high speed relay. See COMPONENT TESTS.
See WIRING DIAGRAMS . If high speed relay is okay, check PCM. See
appropriate G - TESTS W/CODES article in ENGINE PERFORMANCE.
* G - TESTS W/CODES - 1997
* G - TESTS W/CODES - 1998
4) To confirm radiator fan or condenser fan operation, see
FAN OPERATING MODE (DIAMANTE) table. If fan operation is not as
specified, check wiring harness for opens or shorts. Repair as
necessary.
FAN OPERATING MODE (DIAMANTE) ( 1)
\
\
\
\
\
\
\
Power Circuit
Coolant Operating Radiator Condenser
Temp.
F (C) Low/High Fan Speed Fan Speed
13 MPH ( 2)
221 (105) ( 2) ........ On/Off ....... Low ................ Low
221 (105) ( 3) ........ Off/On ....... Mid ................ Mid
239 (115) ( 3) ........ On/On ........ High .............. High
13 MPH ( 3)
221 (105) ( 2) ........ On/Off ....... Low ................ Low
221 (105) ( 2) ........ On/On ........ High .............. High
30 MPH ( 2)
203 (95) ( 2) ........ Off/Off ....... Off ................ Off
203 (95) ( 3) ......... On/Off ....... Low ................ Off
221 (105) ( 3) ........ Off/On ....... Mid ................ Mid
30 MPH ( 3)
194 (90) ( 2) ........ Off/Off ....... Off ................ Off
194 (90) ( 3) ......... On/Off ....... Low ................ Off
221 (105) ( 3) ........ On/On ........ High ............... Mid
50 MPH ( 3)
221 (105) ( 2) ....... Off/Off ....... Off ................ Off
221 (105) ( 3) ........ On/On ........ High ............... Mid
( 1) - A/C request switch is turned off.
( 2) - Approximate vehicle speed/coolant temperature or less.
( 3) - Approximate vehicle speed/coolant temperature or more.
\
\
\
\
\
\
\
NOTE: Operation of radiator and condenser fans is controlled by
vehicle Powertrain Control Module (PCM). Based on vehicle
speed, coolant temperature and A/C operation request, PCM
Page 283 of 1501
will command low, medium or high speed fan operation.
Eclipse
1) If only the radiator fan does not operate, check fusible
link No. 7 (20-amp) located in engine compartment relay box. If only
the condenser fan does not operate, check dedicated fuse No. 9 (20-
amp) located in engine compartment relay box. See WIRING DIAGRAMS.
Repair as necessary.
2) If radiator fan and condenser fan operate in all speeds
except low, check appropriate low speed relay. See COMPONENT TESTS.
See WIRING DIAGRAMS . If low speed relay is okay, check PCM. See
appropriate G - TESTS W/CODES article in ENGINE PERFORMANCE.
* G - TESTS W/CODES - 2.0L NON-TURBO - 1997
* G - TESTS W/CODES - 2.0L TURBO - 1997
* G - TESTS W/CODES - 2.4L - 1997
* G - TESTS W/CODES - 2.0L NON-TURBO - 1998
* G - TESTS W/CODES - 2.0L TURBO & 2.4L - 1998
3) If radiator fan and condenser fan operate in all speeds
except high, check appropriate high speed relay. See COMPONENT TESTS.
See WIRING DIAGRAMS . If high speed relay is okay, check PCM. See
appropriate G - TESTS W/CODES article in ENGINE PERFORMANCE.
* G - TESTS W/CODES - 2.0L NON-TURBO - 1997
* G - TESTS W/CODES - 2.0L TURBO - 1997
* G - TESTS W/CODES - 2.4L - 1997
* G - TESTS W/CODES - 2.0L NON-TURBO - 1998
* G - TESTS W/CODES - 2.0L TURBO & 2.4L - 1998
4) To confirm radiator fan or condenser fan operation, see
FAN OPERATING MODE (ECLIPSE NON-TURBO) or FAN OPERATING MODE (ECLIPSE\
2.0L TURBO & 2.4L) table. If fan operation is not as specified, check
wiring harness for opens or shorts. Repair as necessary.
FAN OPERATING MODE (ECLIPSE NON-TURBO)
\
\
\
\
\
\
\
With A/T With M/T
Coolant Radiator Radiator Condenser
Temp.
F (C) Fan Speed Fan Speed Fan Speed
28 MPH ( 1) ( 2)
203 (95) ( 2) .......... Off ......... Off ................ Off
203-210 (95-99) ....... Mid ......... High ............... Off\
210 (99) ( 3) .......... High ........ High ............... Mid
28-50 MPH ( 1)
194 (90) ( 2) .......... Off ......... Off ................ Off
194-210 (90-99) ....... Mid ......... High ............... Off\
210 (99) ( 3) .......... High ........ High ............... Mid
50 MPH ( 1) ( 3)
210 (99) ( 2) .......... Off ......... Off ................ Mid
210 (99) ( 3) .......... High ........ High ............... Off
12 MPH ( 2) ( 4)
210 (99) ( 2) .......... Mid ......... High ............... Mid
210-242 (99-117) ...... High ........ High .............. High\
242 (117) ( 3) ......... High ........ High .............. High
12-50 MPH ( 4)
210 (99) ( 2) .......... Mid ......... High ............... Mid
210-242 (99-117) ...... High ........ High .............. High\
242 (117) ( 3) ......... High ........ High .............. High
50 MPH ( 3) ( 4)
210 (99) ( 2) .......... Mid ......... High ............... Mid
210-242 (99-117) ( 3) .. High ........ High .............. High
Page 284 of 1501
242 (117) (3) ......... High ........ High .............. High
( 1) - A/C request switch is turned off.
( 2) - Approximate vehicle speed/coolant temperature or less.
( 3) - Approximate vehicle speed/coolant temperature or more.
( 4) - A/C request switch is turned on.
\
\
\
\
\
\
\
FAN OPERATING MODE (ECLIPSE 2.0L TURBO & 2.4L) \
\
\
\
\
\
\
With A/T With M/T
Coolant Radiator Radiator Condenser
Temp.
F (C) Fan Speed Fan Speed Fan Speed
28 MPH ( 1) ( 2)
203 (95) ( 2) .......... Off ......... Off ................ Off
203-210 (95-99) ....... Low ......... Mid ................ Off\
210 (99) ( 3) .......... High ........ High ............... Mid
28-50 MPH ( 1)
194 (90) ( 2) .......... Off ......... Off ................ Off
194-210 (90-99) ....... Low ......... Mid ................ Off\
210 (99) ( 3) .......... High ........ High ............... Mid
50 MPH ( 1) ( 3)
210 (99) ( 2) .......... Off ......... Off ................ Off
210 (99) ( 3) .......... High ........ High ............... Mid
12 MPH ( 2) ( 4)
210 (99) ( 2) .......... Low ......... Mid ................ Mid
210-242 (99-117) ...... High ........ High .............. High\
242 (117) ( 3) ......... High ........ High .............. High
12-50 MPH ( 4)
210 (99) ( 2) .......... Low ......... Mid ................ Mid
210-242 (99-117) ...... High ........ High .............. High\
242 (117) ( 3) ......... High ........ High .............. High
50 MPH ( 3) ( 4)
210 (99) ( 2) .......... Low ......... Mid ................ Mid
210-242 (99-117) ( 3) .. High ........ High .............. High
242 (117) ( 3) ......... High ........ High .............. High
( 1) - A/C request switch is turned off.
( 2) - Approximate vehicle speed/coolant temperature or less.
( 3) - Approximate vehicle speed/coolant temperature or more.
( 4) - A/C request switch is turned on.
\
\
\
\
\
\
\
NOTE: Operation of radiator and condenser fans is controlled by
vehicle Powertrain Control Module (PCM). Based on vehicle
speed, coolant temperature and A/C operation request, PCM
will command low, medium or high speed fan operation.
Galant
1) If only the radiator fan does not operate, check fusible
link No. 5 (30-amp) located in engine compartment relay box. If only
the condenser fan does not operate, check dedicated fuse No. 3 (30-
amp) located in engine compartment relay box. See WIRING DIAGRAMS.
Repair as necessary.
2) If radiator fan and condenser fan operate in all speeds
except low, check appropriate low speed relay. See COMPONENT TESTS.
See WIRING DIAGRAMS . If low speed relay is okay, check PCM. See
appropriate G - TESTS W/CODES article in ENGINE PERFORMANCE.
* G - TESTS W/CODES - 1997
* G - TESTS W/CODES - 1998
Page 285 of 1501
3) If radiator fan and condenser fan operate in all speeds
except high, check appropriate high speed relay. See COMPONENT TESTS.
See WIRING DIAGRAMS . If high speed relay is okay, check PCM. See
appropriate G - TESTS W/CODES article in ENGINE PERFORMANCE.
* G - TESTS W/CODES - 1997
* G - TESTS W/CODES - 1998
4) To confirm radiator fan or condenser fan operation, see
appropriate FAN OPERATING MODE (GALANT) table. If fan operation is not\
as specified, check wiring harness for opens or shorts. Repair as
necessary.
FAN OPERATING MODE (GALANT) ( 1)
\
\
\
\
\
\
\
Coolant Radiator Condenser
Temp. F (C) Fan Speed Fan Speed
28 MPH ( 2)
203 (95) ( 2) ................ Off .......................... Off
203-221 (95-105) ............ Low .......................... Low\
221 (105) ( 3) .............. High ......................... High
28-50 MPH
194 (90) ( 2) ................ Off .......................... Off
194-221 (90-105) ............ Low .......................... Low\
221 (105) ( 3) .............. High ......................... High
50 MPH ( 3)
221 (105) ( 2) ............... Off .......................... Off
221 (105) ( 3) .............. High ......................... High
Any Speed ( 4)
221 (105) ( 2) ............... Low .......................... Low
221 (105) ( 3) .............. High ......................... High
( 1) - A/C request switch is turned off.
( 2) - Approximate vehicle speed/coolant temperature or less.
( 3) - Approximate vehicle speed/coolant temperature or more.
( 4) - A/C request switch is turned on.
\
\
\
\
\
\
\
NOTE: Operation of radiator and condenser fans is controlled by
vehicle Powertrain Control Module (PCM). Based on vehicle
speed, coolant temperature and A/C operation request, PCM
will command low, medium or high speed fan operation.
Mirage
1) If only the radiator fan does not operate, check fusible
link No. 5 (30-amp) located in engine compartment relay box. If only
the condenser fan does not operate, check fusible link No. 2 (100-amp)\
and dedicated fuse No. 1 (25-amp) located in engine compartment relay
box. See WIRING DIAGRAMS . Repair as necessary.
2) If fusible links and dedicated fuse are okay, check
appropriate fan relay and/or fan motor for proper operation. See
COMPONENT TESTS. See WIRING DIAGRAMS. If fan relay and motor are okay,
check PCM. See appropriate G - TESTS W/CODES article in ENGINE
PERFORMANCE.
* G - TESTS W/CODES - 1.5L - 1997
* G - TESTS W/CODES - 1.8L - 1997
* G - TESTS W/CODES - 1998
3) To confirm radiator fan or condenser fan operation, see
appropriate FAN OPERATING MODE (MIRAGE) table. If fan operation is not\
as specified, check wiring harness for opens or shorts. Repair as
Page 479 of 1501
* ELECTRICAL SYSTEM UNIFORM INSPECTION GUIDELINES *
1998 Mitsubishi Montero
GENERAL INFORMATION
Electrical System Motorist Assurance Program
Standards For Automotive Repair
All Makes and Models
INTRODUCTION TO MOTORIST ASSURANCE PROGRAM (MAP)
CONTENTS
OVERVIEW OF MOTORIST ASSURANCE PROGRAM
OVERVIEW OF SERVICE REQUIREMENTS & SUGGESTIONS
ACTUATOR MOTORS (SOLENOIDS) (ELECTRIC)
ACTUATOR MOTORS (VACUUM)
AIR BAGS
ALTERNATORS AND GENERATORS
AMPLIFIERS
ANTENNAS
BATTERIES
BATTERY CABLES
BATTERY CABLES
BATTERY HOLD DOWN HARDWARE
BATTERY TRAYS AND HOLD DOWN HARDWARE
BATTERY WIRES
BELTS
BULB SOCKETS
BULBS, SEALED BEAMS AND LEDS
CD PLAYERS
CIGARETTE LIGHTER ASSEMBLIES
CIRCUIT BREAKERS
CLUTCH SWITCHES
CONNECTORS
CONTROL MODULES
CRUISE CONTROL BRAKE SWITCHES
CRUISE CONTROL CABLES
CRUISE CONTROL CLUTCH SWITCHES
CRUISE CONTROL LINKAGES AND CABLES
CRUISE CONTROL RESERVOIRS
CRUISE CONTROL TUBES
CRUISE CONTROL VACUUM DUMP RELEASE VALVES
CRUISE CONTROL VACUUM HOSES, TUBES AND RESERVOIRS
CRUISE CONTROL VEHICLE SPEED SENSORS
DEFOGGERS
DEFROSTERS
DELAYS
DIMMERS
ELECTRIC HEATERS
EQUALIZERS
FUSE BLOCKS
FUSE BOXES AND BLOCKS
FUSES, FUSIBLE LINKS AND CIRCUIT BREAKERS
FUSIBLE LINKS
GAUGES
GENERATORS
GROUND CABLES AND STRAPS
GROUND STRAPS
HEADLIGHT ADJUSTERS
HEATING ELEMENTS (DEFROSTERS, DEFOGGERS, ELECTRIC HEATERS AND SEATS)
HORNS AND SIRENS
Page 501 of 1501
Terminal loose, not
affecting performance .. 1 .. Suggest repair or replacement.
(1) - Determine cause and correct prior to repair or
replacement of part.
( 2) - Inoperative includes intermittent operation or out of OEM
specification.
\
\
\
\
\
\
\
ELECTRIC HEATERS
See
HEATING ELEMENTS (DEFROSTERS, DEFOGGERS, ELECTRIC HEATERS AND SEATS) .
EQUALIZERS
See
RECEIVERS, AMPLIFIERS, EQUALIZERS AND SUB-WOOFER VOLUME CONTROLS .
FUSE BLOCKS
See FUSE BOXES AND BLOCKS .
FUSE BOXES AND BLOCKS
FUSE BOX AND BLOCK INSPECTION \
\
\
\
\
\
\
Condition Code Procedure
Attaching hardware
broken ................. A ... Require repair or replacement
of hardware.
Attaching hardware
missing ................ C .......... Require replacement of
hardware.
Attaching hardware not
functioning ............ A ... Require repair or replacement
of hardware.
Broken, affecting
performance ............ A ............ Require replacement.
Broken, not affecting
performance ............ .. ........ No service suggested or
required.
Burned, affecting
performance ............ A ........... ( 1) Require repair or
replacement.
Burned, not affecting
performance ............ 2 ........... ( 1) Suggest repair or
replacement.
Connector broken ........ A .. Require repair or replacement.
Connector (Weatherpack
type) leaking .......... A .. Require repair or replacement.
Connector melted ........ A ........... ( 1) Require repair or
replacement.
Connector missing ....... C ............ Require replacement.
Cover missing ........... C ... Require replacement of cover.
Cracked, affecting
performance ............ A .. Require repair or replacement.
Cracked, not affecting
performance ............ 1 .. Suggest repair or replacement.
Melted, affecting
performance ............ A ........ ( 1) Require replacement.
Page 850 of 1501
Remove relay from engine compartment fuse/relay box. Using an
ohmmeter, check relay continuity. With battery voltage not supplied to
relay, continuity should exist between terminals No. 1 and 3. With
positive battery terminal connected to relay terminal No. 1 and
negative battery terminal connected to relay terminal No. 3,
continuity should exist between terminals No. 4 and 5. See Fig. 33. If
continuity is not as specified, replace relay.
Fig. 33: Identifying Foglight Relay Connector Terminals
Courtesy of Mitsubishi Motor Sales of America
HAZARD LIGHT SWITCH TEST
Eclipse, Mirage & Montero Sport
Remove hazard light switch from instrument panel. Disconnect
switch connector. Using an ohmmeter, check switch continuity. With
switch in OFF position, continuity should exist between terminals No.
5 and 7, and between terminals No. 9 and 10. With switch in ON
position, continuity should exist between terminals No. 1, 2 and 4,
between terminals No. 5 and 6, and between terminals No. 9 and 10. See
Fig. 34 . If continuity is not as specified, replace switch.
Galant
Page 970 of 1501

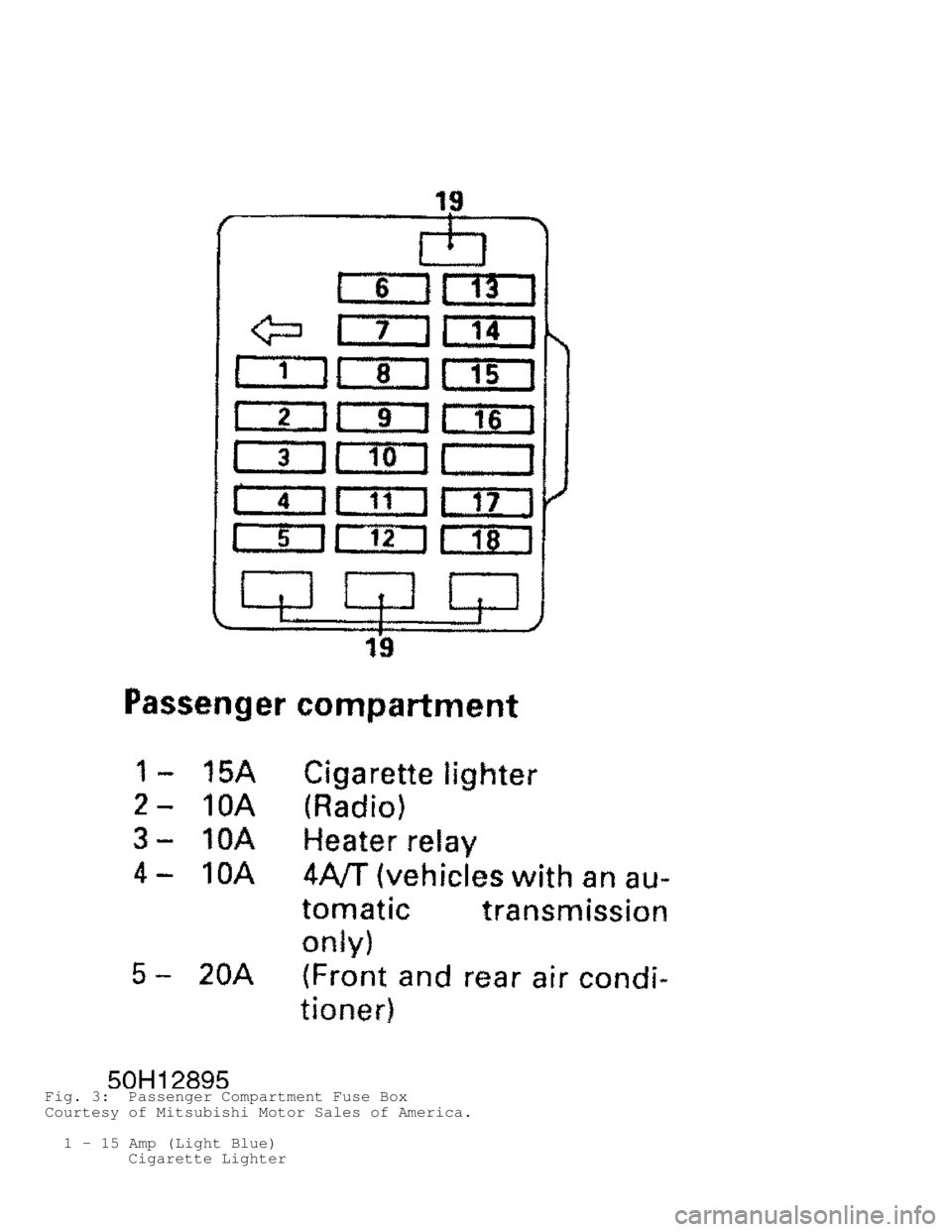

Fig. 3: Passenger Compartment Fuse Box
Courtesy of Mitsubishi Motor Sales of America.
1 - 15 Amp (Light Blue)
Cigarette Lighter
Page 1083 of 1501
Eclipse
Without Theft Alarm ........................ Behind Center Of Dash
With Theft Alarm .... Under Left Of Instrument Panel, On Relay Box
Galant ................................... Inside Right Front Fender
Mirage .......................... In Left Underhood Fuse/Relay Block
Montero ...................................... Behind Center Of Dash
Montero Sport ................... In Left Underhood Fuse/Relay Block
3000GT ......................... In Right Underhood Fuse/Relay Block
\
\
\
\
\
\
\
Fig. 1: Identifying Starter Relay Connector Terminals (3000GT)
Courtesy of Chrysler Corp.
BENCH TESTING
* PLEASE READ THIS FIRST *
CAUTION: Perform tests in less than 10 seconds to prevent damage to
coil.
NO-LOAD TEST
1) Install starter in soft-jawed vise. Connect starter in
series with a fully-charged 12-volt battery. Connect a 100-amp ammeter
and carbon pile rheostat in series with positive battery post and
starter motor terminal. See Fig. 2.
2) Install voltmeter across starter motor. Adjust carbon pile
rheostat to full resistance. Connect cable from starter motor body to
negative battery terminal. Adjust carbon pile rheostat to proper test
voltage. Ensure maximum amperage is as specified and starter rotates
