Outside Air Temperature Sensor Below left headlamp.
Park/Neutral Position Sensor On left side of transmission.
Throttle Position Sensor On throttle body.
Vehicle Speed Sensor (VSS) On transmission tailshaft.
Volume Airflow Sensor In air cleaner duct (includes
intake air temperature sensor
& barometric pressure sensor).









\









\









\









\









\









\









\







SOLENOIDS & SOLENOID VALVES









\









\









\









\









\









\









\







Component Component Location








\









\









\









\









\









\









\







ABS Hydraulic Unit (w/Built-In
Solenoid Valve) In right rear corner of engine
compartment.
Cruise Control Actuator (w/Built-In
Control Valve & Release Valve)
(Calif.) In right rear of engine
compartment.
Cruise Control Actuator (w/Built-In
Control Valve & Release Valve)
(Federal) In left rear of engine
compartment.
EGR Solenoid In right rear of engine
compartment.
ELC 4-Speed Automatic Transmission
Control Solenoid Inside transmission.
Evaporative Emission Purge Solenoid On front of engine.
Evaporative Emission Ventilation
Solenoid In left rear of engine
compartment.
Solenoid Valves "A" & "B" In right side of engine
compartment.









\









\









\









\









\









\









\







SWITCHES









\









\









\









\









\









\









\







Component Component Location








\









\









\









\









\









\









\







A/T Fluid Temperature Switch On left side of transmission.
Brake Fluid Level Switch In brake master cylinder
reservoir.
Center Differential Lock Detection
Switch On transfer case.

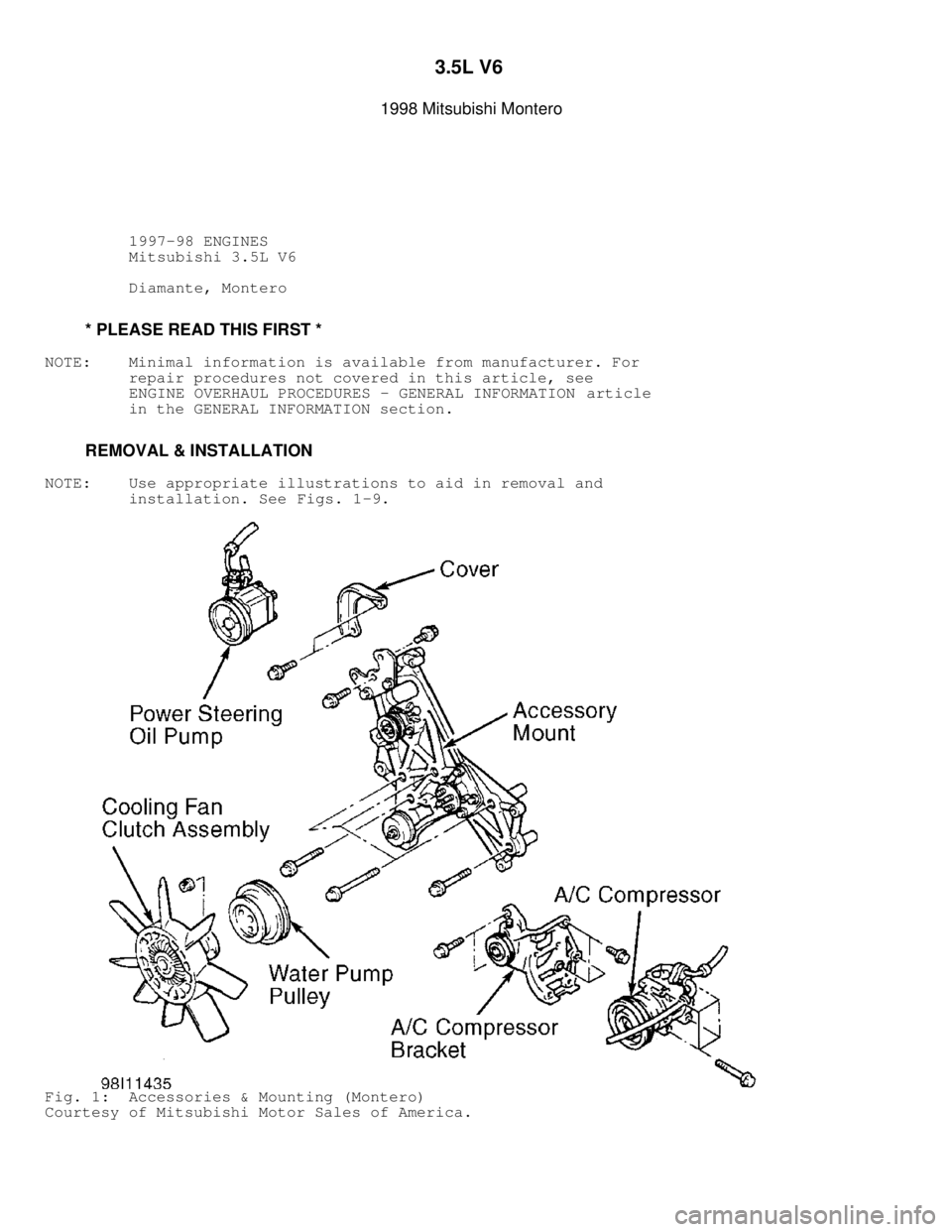

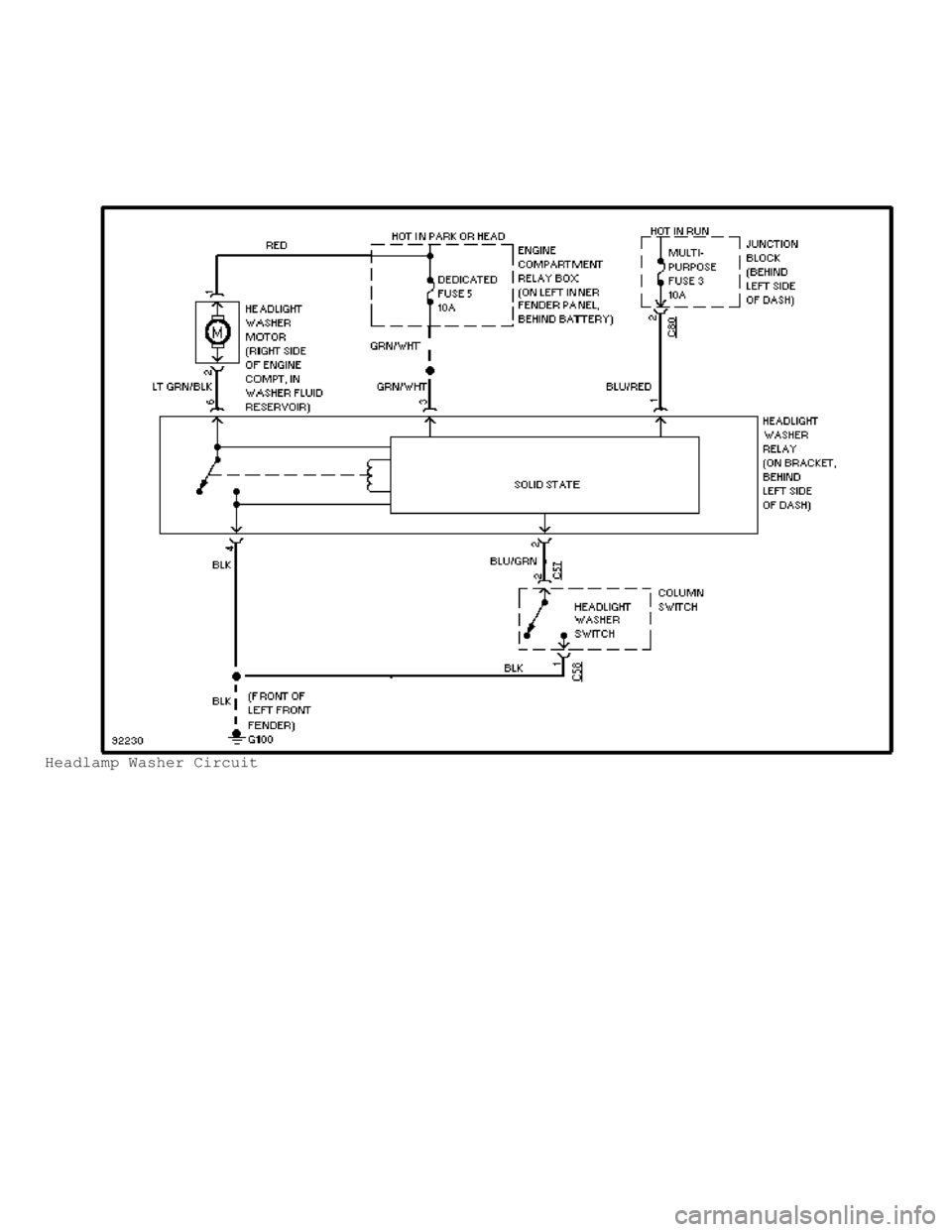

Headlamp Washer Circuit
