sat nav MITSUBISHI OUTLANDER 2010 2.G MMCS Manual

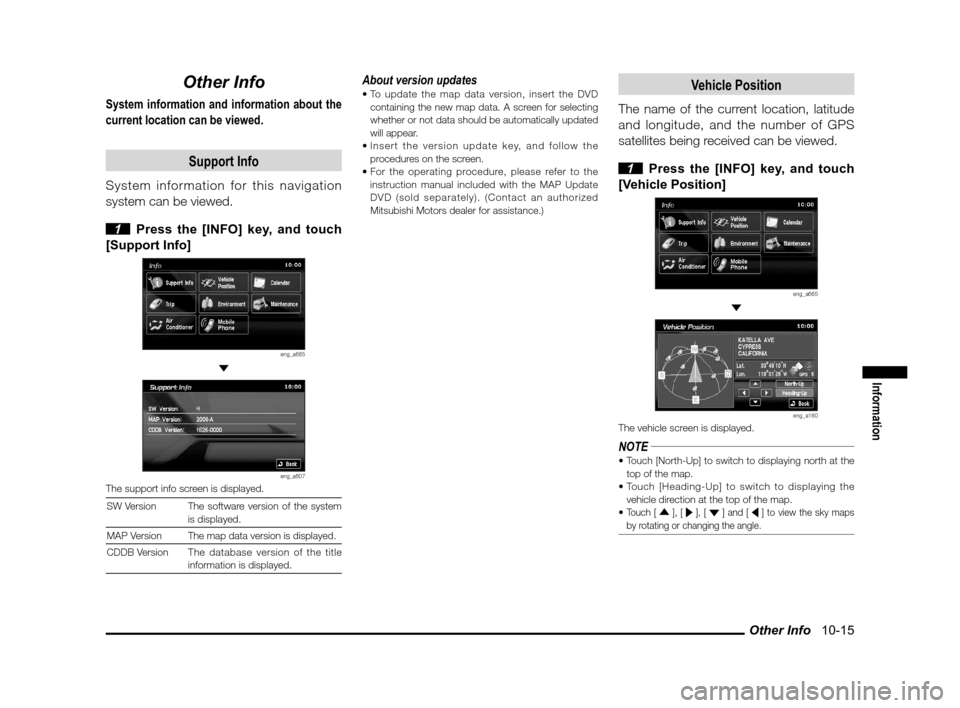

Other Info 10-15
Information
Other Info
System information and information about the
current location can be viewed.
Support Info
System information for this navigation
system can be viewed.

1 Press the [INFO] key, and touch
[Support Info]
eng_a665
eng_a607The support info screen is displayed.
SW Version The software version of the system is displayed.
MAP Version
The map data version is displayed.
CDDB Version The database version of the title
information is displayed.
About version updates
containing the new map data. A screen for selecting
whether or not data should be automatically updated
will appear.
procedures on the screen.
instruction manual included with the MAP Update
DVD (sold separately). (Contact an authorized
Mitsubishi Motors dealer for assistance.)Vehicle Position
The name of the current location, latitude
and longitude, and the number of GPS
satellites being received can be viewed.

1 Press the [INFO] key, and touch
[Vehicle Position]
eng_a665
eng_a160The vehicle screen is displayed.
NOTE
top of the map.
vehicle direction at the top of the map.

Touch [ ], [ ], [ ] and [ ] to view the sky maps
by rotating or changing the angle.
\b \b
\f \



 \b \b

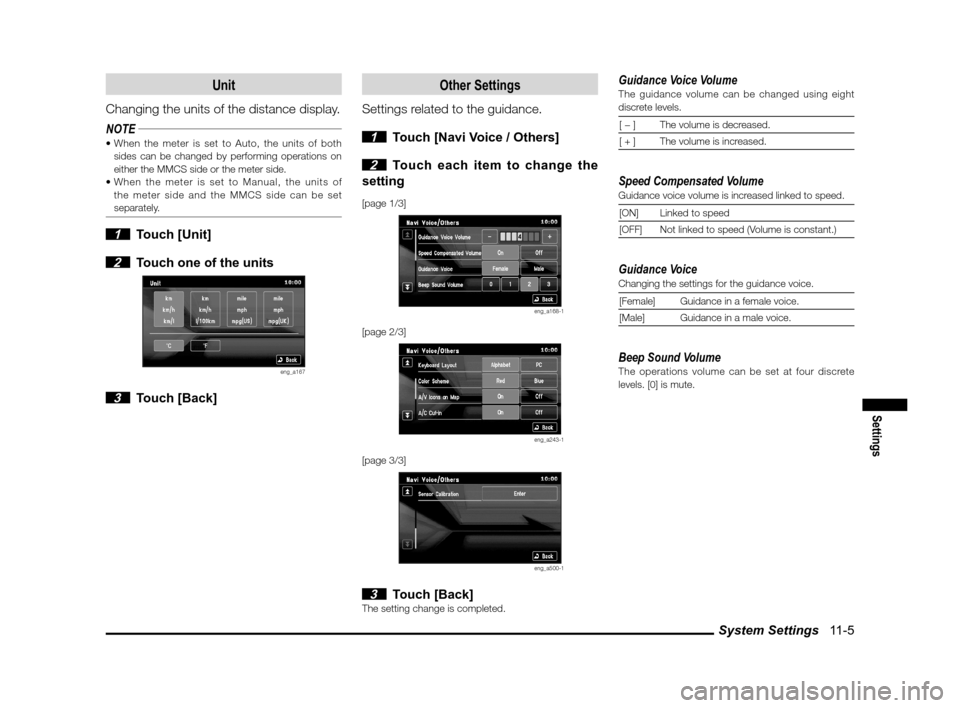

System Settings 11-5
Settings
Unit
Changing the units of the distance display.
NOTE
sides can be changed by performing operations on
either the MMCS side or the meter side.
the meter side and the MMCS side can be set
separately.
1 Touch [Unit]

2 Touch one of the units
eng_a167
3 Touch [Back]
Other Settings
Settings related to the guidance.

1 Touch [Navi Voice / Others]

2 Touch each item to change the
setting
[page 1/3]
eng_a168-1
[page 2/3]
eng_a243-1
[page 3/3]
eng_a500-1
3 Touch [Back]The setting change is completed.
Guidance Voice VolumeThe guidance volume can be changed using eight
discrete levels.
[ ] The volume is decreased.
[ + ] The volume is increased.
Speed Compensated VolumeGuidance voice volume is increased linked to speed.
[ON] Linked to speed
[OFF] Not linked to speed (Volume is constant.)
Guidance VoiceChanging the settings for the guidance voice.[Female] Guidance in a female voice.
[Male] Guidance in a male voice.
Beep Sound VolumeThe operations volume can be set at four discrete
levels. [0] is mute.
\b \b
\f \



  \b \b
\f
