Overview
Supplemental restraint system (SRS) - air
bag (for front passenger’s seat)
P.2-60, 2-70 Center vents P.5-2
Upper glove compartment
P.3-281
Selector lever P.3-94, 3-10312V power outlet P.3-274Lower glove compartment
P. 3 - 2 8 1
Fuel tank filler door release lever
P. 1 - 4Rear window defogger switch P.3-234Side vents P.5-2
Drive mode-selector (if so equipped)
P. 3 - 1 1 2 Personal compartment
P.3-283
Fuses P.7-42
Engine hood release lever
P. 7 - 4Hazard warning flasher switch
P.3-223
Built-in cup holder P.3-287
Parking brake lever P.7-33 Mitsubishi Multi-Communication System (if so equipped)
Audio P.5-46, 5-66
Clock (if so equipped) P.5-136
Air conditioning P.5-16, 5-6, 5-25, 5-35
BK0115300US.book 2 ページ 2009年7月16日 木曜日 午前9時13分
Page 10 of 714
Quick index
1
If this warning light comes on or flashes while you’re driving...
N00200700982
NOTE
For information regarding warning displays in the multi-information display, refer to “Multi-information display indicators”
on page 3-160.
These warning lights will come on for a few seconds for a bulb check when the ignition switch is first turned to “ON”.
Warning lights
Do this
Ref. Page
Charging system warning lightPark your vehicle in a safe place and stop the engine.
Contact your Mitsubishi Motors dealer or a repair facility of your choice for
assistance.P. 3-210
or
Brake warning lightIf this light comes on while driving, check to see that the parking brake is
fully released.
If this light stays on after releasing the parking brake, immediately stop and
check the brake fluid level.
If the brake fluid level is correct, there may be a system malfunction. Avoid
hard braking and high speed, and contact an authorized Mitsubishi Motors
dealer or a repair facility of your choice for assistance.P. 3-208
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or
“Check engine light”)Although your vehicle will usually be drivable and not need towing, have the
engine system checked at an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible. If the vehicle is not drivable, con-
tact emergency roadside assistance at 1-888-648-7820 (for vehicles sold in
U.S.A.) or 1-888-576-4878 (for vehicles sold in Canada), an authorized Mit-
subishi Motors dealer, or local towing company for assistance.P. 3-209
BK0115300US.book 1 ページ 2009年7月16日 木曜日 午前9時13分
Page 12 of 714
Quick index
3
If this problem occurs...
N00200900753
Problem
Do this
Ref. Page
Cannot turn the key.
(When using a key to start the
engine)When using a key to start the engine
Will not turn from “LOCK” to “ACC”.
Turn the key while turning the steering wheel in either direction.P. 3-87
Will not turn from “ACC” to “LOCK”.
Check the position of the selector lever.
The key cannot be removed unless the selector lever is set to the “P” (PARK) position.P. 3-88
(When using the F.A.S.T.-key
to start the engine)
When using the F.A.S.T-key to start the engine
Will not turn from “LOCK (PUSH OFF)” to “ACC”.
Push the ignition switch again, turn the steering wheel in both directions and then turn the
ignition switch.
Will not turn from “ACC” to “LOCK”.
Check whether the selector lever is set to the “P” (PARK) position.P. 3-26
P. 3-27
The F.A.S.T.-key does not
operate.
(for vehicles equipped with the
F. A . S . T. - k e y )Use the emergency key to lock and unlock the doors and the tailgate, and start the engine. P.3-35
Cannot shift the selector lever
from the “P” (PARK) position.Shift the selector lever while pressing the brake pedal.
Check that the ignition switch is in the “ON” position.P. 3-94
BK0115300US.book 3 ページ 2009年7月16日 木曜日 午前9時13分
Page 16 of 714
Quick index
7
Problem
Do this
Ref. Page
The brakes are not functioning
properly after crossing a pud-
dle or stream.Dry out the brakes by driving slowly while lightly pressing the brake pedal.P. 3-124
P. 4 - 6
The automatic transaxle makes
no gear change when acceler-
ating. The initial movement of
the vehicle is slow when the
vehicle starts moving.
(for vehicles with Automatic
transaxle)There may be a problem in the automatic transaxle.
Have the system inspected by your authorized Mitsubishi Motors dealer or a repair facil-
ity of your choice.P. 3-101
The CVT makes no shift
change when accelerating. The
initial movement of the vehicle
is slow when the vehicle starts
moving.
(for vehicles with CVT)There may be a problem in the CVT.
If the or warning lights on the multi-information display will not turn off, or if they
come on frequently, please have the vehicle checked at your nearest Mitsubishi Motors
dealer.P. 3-97
A tire is punctured.
1. Park the vehicle in a safe place where the surface is flat and level.
2. Replace the flat tire with the spare tire.P. 6-10
BK0115300US.book 7 ページ 2009年7月16日 木曜日 午前9時13分
Page 86 of 714
Seat and restraint systems
2-61
2

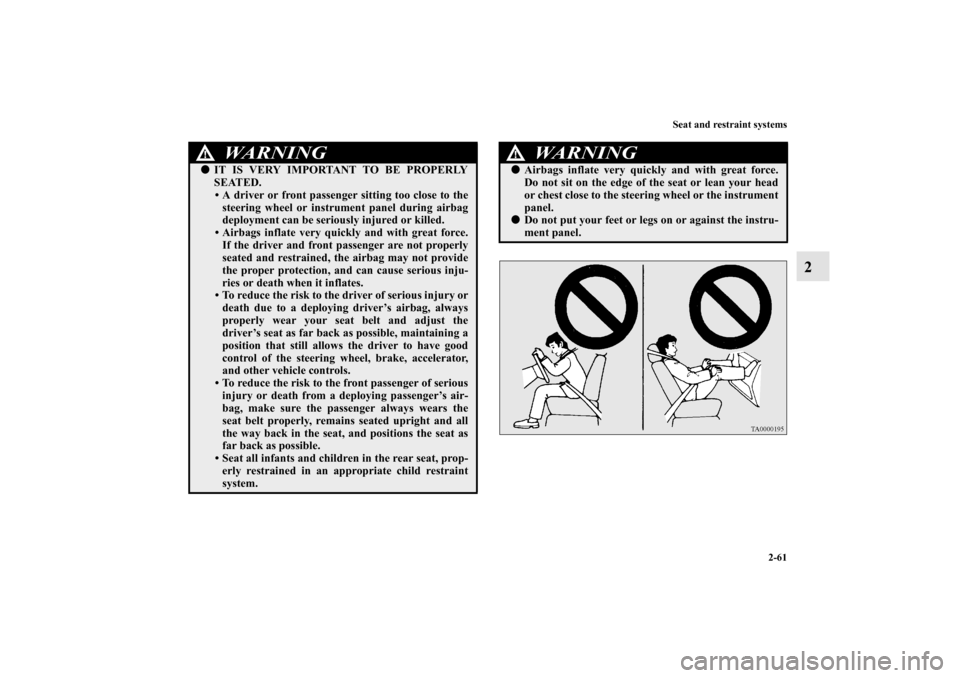

WA R N I N G
!
IT IS VERY IMPORTANT TO BE PROPERLY
SEATED. A driver or front passenger sitting too close to the
steering wheel or instrument panel during airbag
deployment can be seriously injured or killed.
Airbags inflate very quickly and with great force.
If the driver and front passenger are not properly
seated and restrained, the airbag may not provide
the proper protection, and can cause serious inju-
ries or death when it inflates.
To reduce the risk to the driver of serious injury or
death due to a deploying driver’s airbag, always
properly wear your seat belt and adjust the
driver’s seat as far back as possible, maintaining a
position that still allows the driver to have good
control of the steering wheel, brake, accelerator,
and other vehicle controls.
To reduce the risk to the front passenger of serious
injury or death from a deploying passenger’s air-
bag, make sure the passenger always wears the
seat belt properly, remains seated upright and all
the way back in the seat, and positions the seat as
far back as possible.
Seat all infants and children in the rear seat, prop-
erly restrained in an appropriate child restraint
system.
WA R N I N G
!
Airbags inflate very quickly and with great force.
Do not sit on the edge of the seat or lean your head
or chest close to the steering wheel or the instrument
panel.
Do not put your feet or legs on or against the instru-
ment panel.
BK0115300US.book 61 ページ 2009年7月16日 木曜日 午前9時13分
Page 112 of 714
3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . . . . .3- 5
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . .3- 9
Free-hand Advanced Security Transmitter (F.A.S.T.-key)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 54
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 57
Child safety locks for rear door . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 59
Flap-fold tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 60
Inside tailgate release. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 64
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 66
Power window control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 71
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 76
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 80
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 82
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 83
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 85
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 87
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 89
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 90
Automatic transaxle (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . .3- 93
Continuously variable transmission (CVT) (if so equipped). . . . . . . 3- 103
Electronically controlled 4WD system (if so equipped) . . . . . . . . . . 3- 112
S-AWC (Super-All Wheel Control) (if so equipped) . . . . . . . . . . . . 3- 116
4-wheel drive operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 121
Inspection and maintenance following rough road operation . . . . . . 3- 124
Cautions on the handling of 4-wheel drive vehicles . . . . . . . . . . . . . 3- 125
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 127
Hill start assist (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 128
Anti-lock braking system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 131
Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 135
Active stability control (ASC) (if so equipped). . . . . . . . . . . . . . . . .3- 135Cruise control (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 140
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 149
Rear-view camera (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 155
Instrument cluster. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 157
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 160
Indicator light, warning light, and information
screen display list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 195
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 208
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 208
Information screen display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211
Combination headlights and dimmer switch . . . . . . . . . . . . . . . . . . 3- 214
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . . . . 3- 221
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 222
Hazard warning flasher switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 223
Front fog light switch (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 3- 224
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 225
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . . . . 3- 234
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 235
Link System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 235
Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 236
USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . 3- 267
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 273
12 V power outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 274
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 276
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 280
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 287
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 289
Cargo area cover (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 291
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 293
Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 294
Luggage hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 294
BK0115300US.book 1 ページ 2009年11月27日 金曜日 午後1時52分
Page 138 of 714
Features and controls
3-27
3

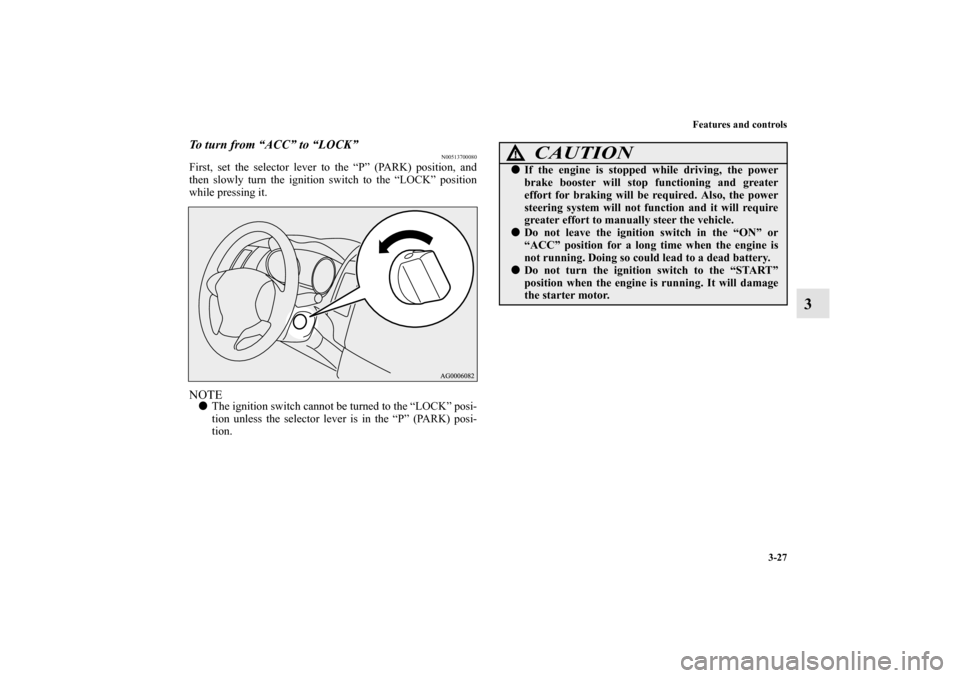

To turn from “ACC” to “LOCK”
N00513700080
First, set the selector lever to the “P” (PARK) position, and
then slowly turn the ignition switch to the “LOCK” position
while pressing it.NOTE
The ignition switch cannot be turned to the “LOCK” posi-
tion unless the selector lever is in the “P” (PARK) posi-
tion.
CAUTION
!
If the engine is stopped while driving, the power
brake booster will stop functioning and greater
effort for braking will be required. Also, the power
steering system will not function and it will require
greater effort to manually steer the vehicle.
Do not leave the ignition switch in the “ON” or
“ACC” position for a long time when the engine is
not running. Doing so could lead to a dead battery.
Do not turn the ignition switch to the “START”
position when the engine is running. It will damage
the starter motor.
BK0115300US.book 27 ページ 2009年7月16日 木曜日 午前9時13分
Page 144 of 714
Features and controls
3-33
3

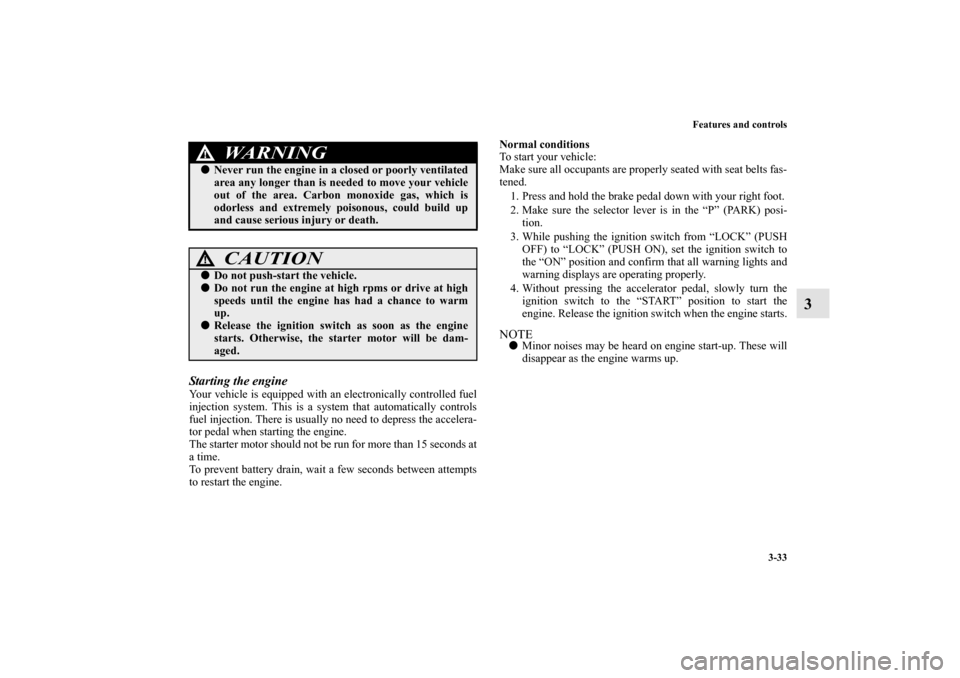

Starting the engineYour vehicle is equipped with an electronically controlled fuel
injection system. This is a system that automatically controls
fuel injection. There is usually no need to depress the accelera-
tor pedal when starting the engine.
The starter motor should not be run for more than 15 seconds at
a time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.Normal conditions
To start your vehicle:
Make sure all occupants are properly seated with seat belts fas-
tened.
1. Press and hold the brake pedal down with your right foot.
2. Make sure the selector lever is in the “P” (PARK) posi-
tion.
3. While pushing the ignition switch from “LOCK” (PUSH
OFF) to “LOCK” (PUSH ON), set the ignition switch to
the “ON” position and confirm that all warning lights and
warning displays are operating properly.
4. Without pressing the accelerator pedal, slowly turn the
ignition switch to the “START” position to start the
engine. Release the ignition switch when the engine starts.
NOTE
Minor noises may be heard on engine start-up. These will
disappear as the engine warms up.
WA R N I N G
!
Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.CAUTION
!
Do not push-start the vehicle.
Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.
Release the ignition switch as soon as the engine
starts. Otherwise, the starter motor will be dam-
aged.
BK0115300US.book 33 ページ 2009年7月16日 木曜日 午前9時13分
Page 145 of 714
3-34 Features and controls
3

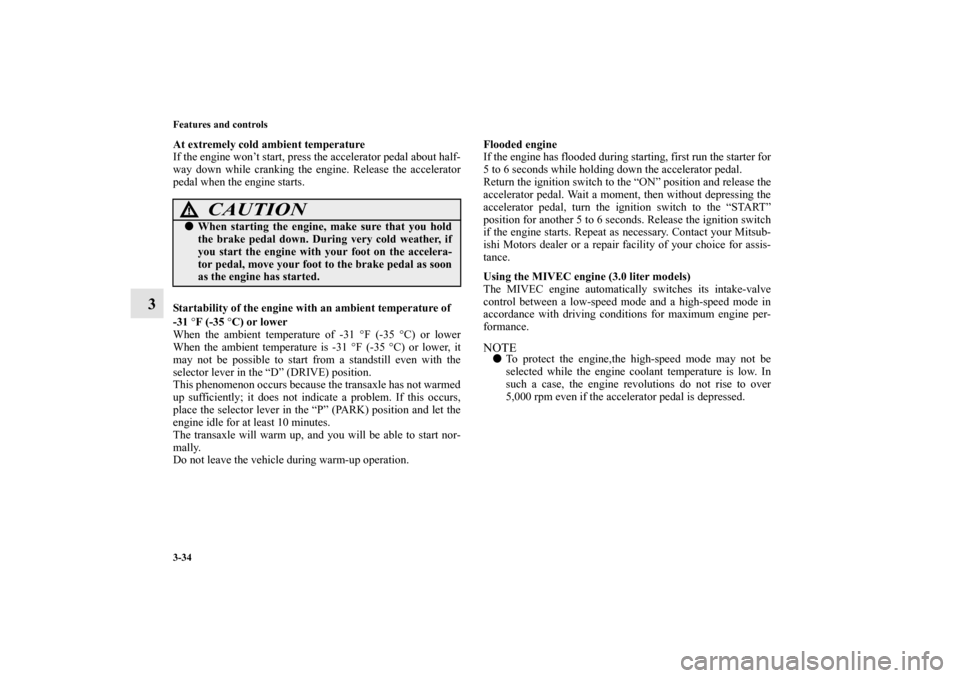

At extremely cold ambient temperature
If the engine won’t start, press the accelerator pedal about half-
way down while cranking the engine. Release the accelerator
pedal when the engine starts.
Startability of the engine with an ambient temperature of
-31 °F (-35 °C) or lower
When the ambient temperature of -31 °F (-35 °C) or lower
When the ambient temperature is -31 °F (-35 °C) or lower, it
may not be possible to start from a standstill even with the
selector lever in the “D” (DRIVE) position.
This phenomenon occurs because the transaxle has not warmed
up sufficiently; it does not indicate a problem. If this occurs,
place the selector lever in the “P” (PARK) position and let the
engine idle for at least 10 minutes.
The transaxle will warm up, and you will be able to start nor-
mally.
Do not leave the vehicle during warm-up operation.Flooded engine
If the engine has flooded during starting, first run the starter for
5 to 6 seconds while holding down the accelerator pedal.
Return the ignition switch to the “ON” position and release the
accelerator pedal. Wait a moment, then without depressing the
accelerator pedal, turn the ignition switch to the “START”
position for another 5 to 6 seconds. Release the ignition switch
if the engine starts. Repeat as necessary. Contact your Mitsub-
ishi Motors dealer or a repair facility of your choice for assis-
tance.
Using the MIVEC engine (3.0 liter models)
The MIVEC engine automatically switches its intake-valve
control between a low-speed mode and a high-speed mode in
accordance with driving conditions for maximum engine per-
formance.
NOTE
To protect the engine,the high-speed mode may not be
selected while the engine coolant temperature is low. In
such a case, the engine revolutions do not rise to over
5,000 rpm even if the accelerator pedal is depressed.
CAUTION
!
When starting the engine, make sure that you hold
the brake pedal down. During very cold weather, if
you start the engine with your foot on the accelera-
tor pedal, move your foot to the brake pedal as soon
as the engine has started.
BK0115300US.book 34 ページ 2009年7月16日 木曜日 午前9時13分
Page 149 of 714
3-38 Features and controls
3

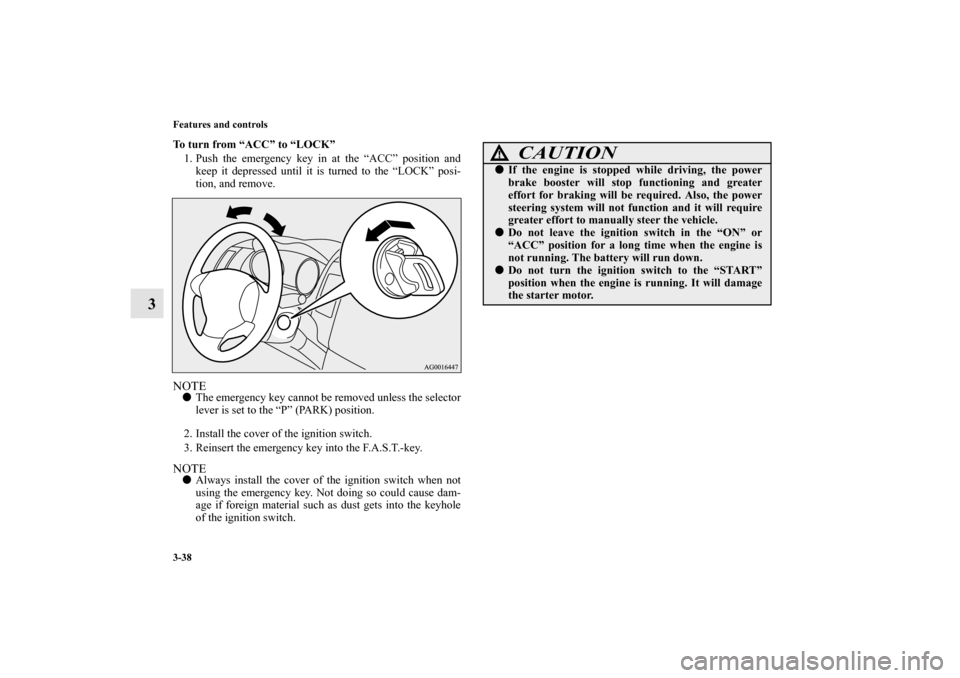

To turn from “ACC” to “LOCK”
1. Push the emergency key in at the “ACC” position and
keep it depressed until it is turned to the “LOCK” posi-
tion, and remove.NOTE
The emergency key cannot be removed unless the selector
lever is set to the “P” (PARK) position.
2. Install the cover of the ignition switch.
3. Reinsert the emergency key into the F.A.S.T.-key.
NOTE
Always install the cover of the ignition switch when not
using the emergency key. Not doing so could cause dam-
age if foreign material such as dust gets into the keyhole
of the ignition switch.
CAUTION
!
If the engine is stopped while driving, the power
brake booster will stop functioning and greater
effort for braking will be required. Also, the power
steering system will not function and it will require
greater effort to manually steer the vehicle.
Do not leave the ignition switch in the “ON” or
“ACC” position for a long time when the engine is
not running. The battery will run down.
Do not turn the ignition switch to the “START”
position when the engine is running. It will damage
the starter motor.
BK0115300US.book 38 ページ 2009年7月16日 木曜日 午前9時13分
