Page 98 of 714
Seat and restraint systems
2-71
2

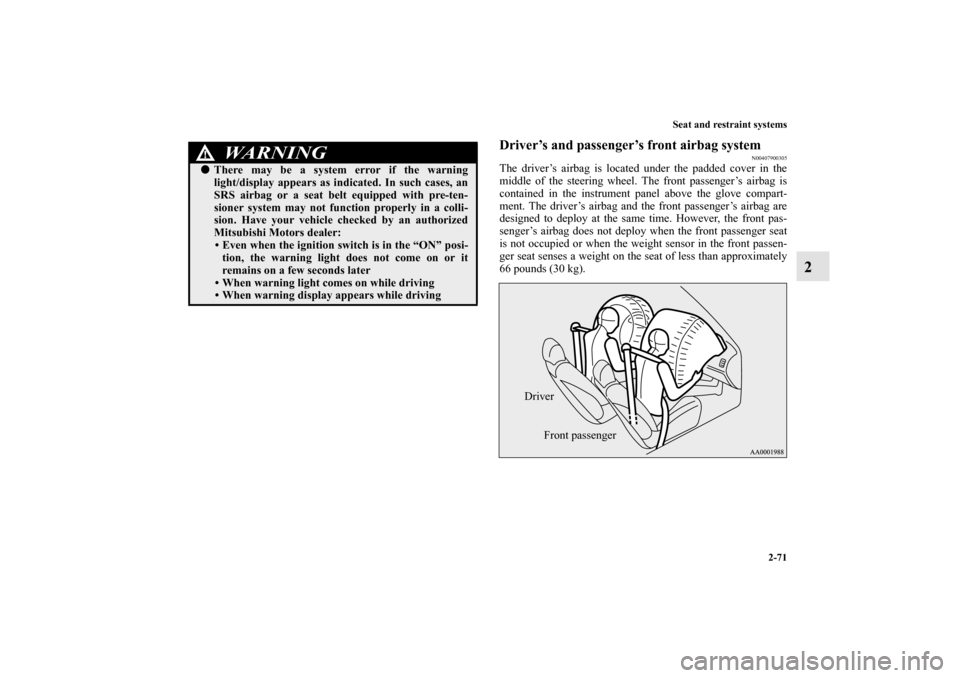

Driver’s and passenger’s front airbag system
N00407900305
The driver’s airbag is located under the padded cover in the
middle of the steering wheel. The front passenger’s airbag is
contained in the instrument panel above the glove compart-
ment. The driver’s airbag and the front passenger’s airbag are
designed to deploy at the same time. However, the front pas-
senger’s airbag does not deploy when the front passenger seat
is not occupied or when the weight sensor in the front passen-
ger seat senses a weight on the seat of less than approximately
66 pounds (30 kg).
WA R N I N G
!There may be a system error if the warning
light/display appears as indicated. In such cases, an
SRS airbag or a seat belt equipped with pre-ten-
sioner system may not function properly in a colli-
sion. Have your vehicle checked by an authorized
Mitsubishi Motors dealer:
• Even when the ignition switch is in the “ON” posi-
tion, the warning light does not come on or it
remains on a few seconds later
• When warning light comes on while driving
• When warning display appears while driving
Driver
Front passenger
BK0122500US.book 71 ページ ２０１０年５月１２日 水曜日 午前１１時１１分
Page 182 of 714
Features and controls
3-67
3

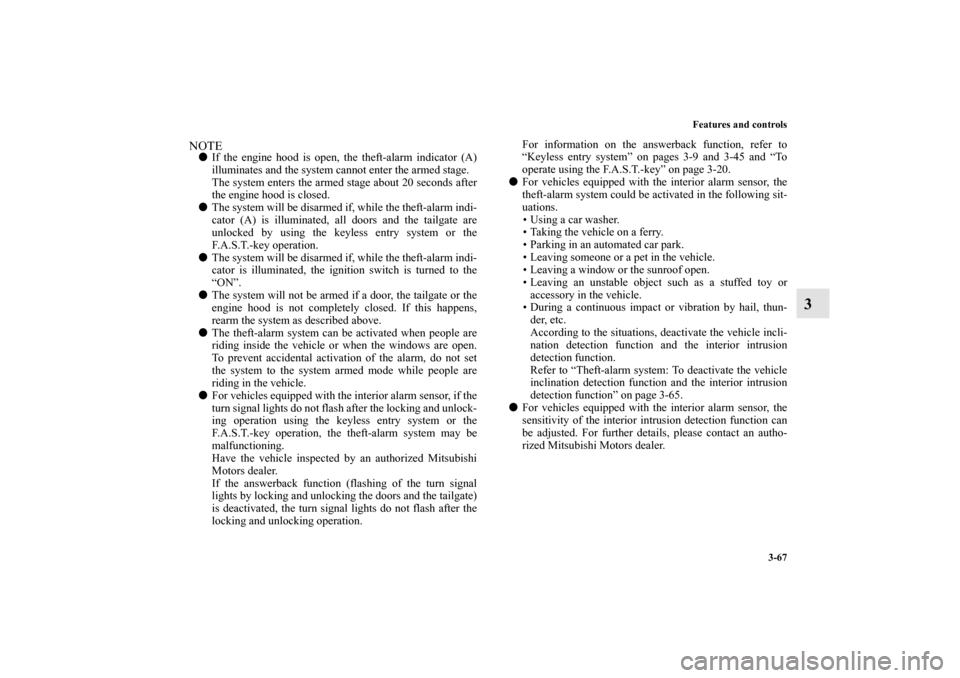

NOTEIf the engine hood is open, the theft-alarm indicator (A)
illuminates and the system cannot enter the armed stage.
The system enters the armed stage about 20 seconds after
the engine hood is closed.
The system will be disarmed if, while the theft-alarm indi-
cator (A) is illuminated, all doors and the tailgate are
unlocked by using the keyless entry system or the
F.A.S.T.-key operation.
The system will be disarmed if, while the theft-alarm indi-
cator is illuminated, the ignition switch is turned to the
“ON”.
The system will not be armed if a door, the tailgate or the
engine hood is not completely closed. If this happens,
rearm the system as described above.
The theft-alarm system can be activated when people are
riding inside the vehicle or when the windows are open.
To prevent accidental activation of the alarm, do not set
the system to the system armed mode while people are
riding in the vehicle.
For vehicles equipped with the interior alarm sensor, if the
turn signal lights do not flash after the locking and unlock-
ing operation using the keyless entry system or the
F.A.S.T.-key operation, the theft-alarm system may be
malfunctioning.
Have the vehicle inspected by an authorized Mitsubishi
Motors dealer.
If the answerback function (flashing of the turn signal
lights by locking and unlocking the doors and the tailgate)
is deactivated, the turn signal lights do not flash after the
locking and unlocking operation.For information on the answerback function, refer to
“Keyless entry system” on pages 3-9 and 3-45 and “To
operate using the F.A.S.T.-key” on page 3-20.
For vehicles equipped with the interior alarm sensor, the
theft-alarm system could be activated in the following sit-
uations.
• Using a car washer.
• Taking the vehicle on a ferry.
• Parking in an automated car park.
• Leaving someone or a pet in the vehicle.
• Leaving a window or the sunroof open.
• Leaving an unstable object such as a stuffed toy or
accessory in the vehicle.
• During a continuous impact or vibration by hail, thun-
der, etc.
According to the situations, deactivate the vehicle incli-
nation detection function and the interior intrusion
detection function.
Refer to “Theft-alarm system: To deactivate the vehicle
inclination detection function and the interior intrusion
detection function” on page 3-65.
For vehicles equipped with the interior alarm sensor, the
sensitivity of the interior intrusion detection function can
be adjusted. For further details, please contact an autho-
rized Mitsubishi Motors dealer.
BK0122500US.book 67 ページ ２０１０年５月１２日 水曜日 午前１１時１１分
Page 183 of 714
3-68 Features and controls
3

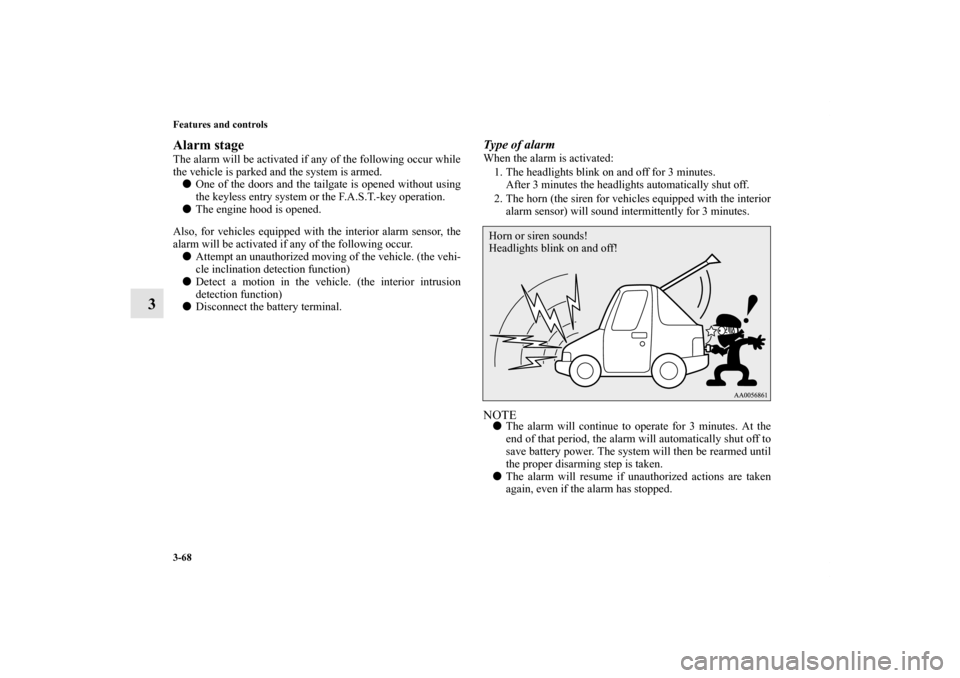

Alarm stageThe alarm will be activated if any of the following occur while
the vehicle is parked and the system is armed.
One of the doors and the tailgate is opened without using
the keyless entry system or the F.A.S.T.-key operation.
The engine hood is opened.
Also, for vehicles equipped with the interior alarm sensor, the
alarm will be activated if any of the following occur.
Attempt an unauthorized moving of the vehicle. (the vehi-
cle inclination detection function)
Detect a motion in the vehicle. (the interior intrusion
detection function)
Disconnect the battery terminal.
Type of alarmWhen the alarm is activated:
1. The headlights blink on and off for 3 minutes.
After 3 minutes the headlights automatically shut off.
2. The horn (the siren for vehicles equipped with the interior
alarm sensor) will sound intermittently for 3 minutes.NOTEThe alarm will continue to operate for 3 minutes. At the
end of that period, the alarm will automatically shut off to
save battery power. The system will then be rearmed until
the proper disarming step is taken.
The alarm will resume if unauthorized actions are taken
again, even if the alarm has stopped.Horn or siren sounds!
Headlights blink on and off!
BK0122500US.book 68 ページ ２０１０年５月１２日 水曜日 午前１１時１１分
Page 184 of 714
Features and controls
3-69
3

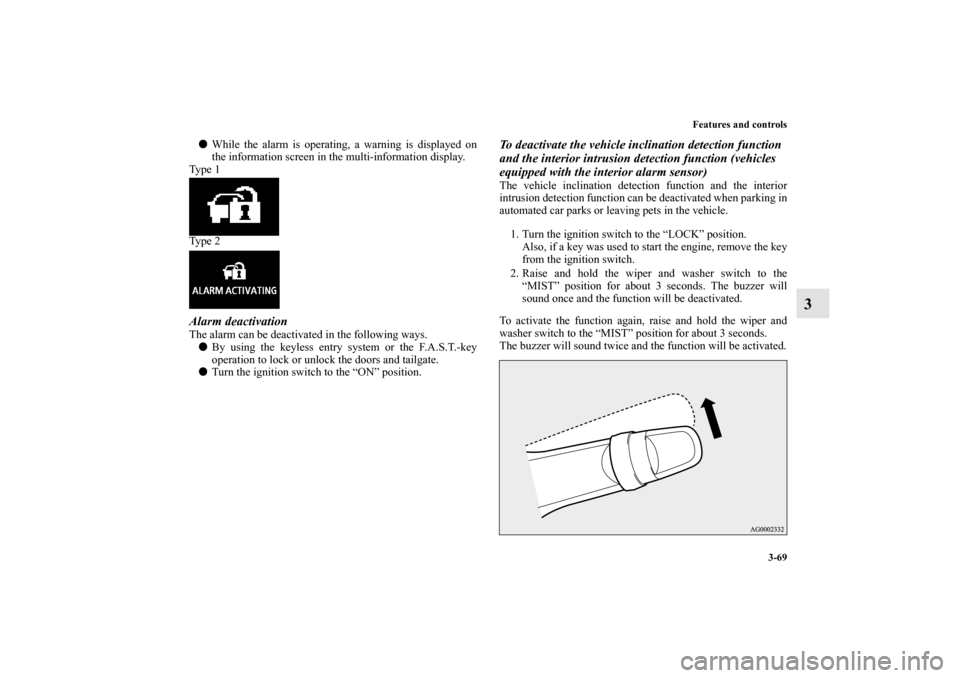

While the alarm is operating, a warning is displayed on
the information screen in the multi-information display.
Ty p e 1
Ty p e 2Alarm deactivationThe alarm can be deactivated in the following ways.
By using the keyless entry system or the F.A.S.T.-key
operation to lock or unlock the doors and tailgate.
Turn the ignition switch to the “ON” position.
To deactivate the vehicle inclination detection function
and the interior intrusion detection function (vehicles
equipped with the interior alarm sensor)The vehicle inclination detection function and the interior
intrusion detection function can be deactivated when parking in
automated car parks or leaving pets in the vehicle.
1. Turn the ignition switch to the “LOCK” position.
Also, if a key was used to start the engine, remove the key
from the ignition switch.
2. Raise and hold the wiper and washer switch to the
“MIST” position for about 3 seconds. The buzzer will
sound once and the function will be deactivated.
To activate the function again, raise and hold the wiper and
washer switch to the “MIST” position for about 3 seconds.
The buzzer will sound twice and the function will be activated.
BK0122500US.book 69 ページ ２０１０年５月１２日 水曜日 午前１１時１１分
Page 185 of 714
3-70 Features and controls
3
NOTEThe function will be activated again if the following oper-
ation is performed.
• If the doors and the tailgate are unlocked using the key-
less entry system or the F.A.S.T.-key operation.
• If the ignition switch is turned to the “ON” or “ACC”

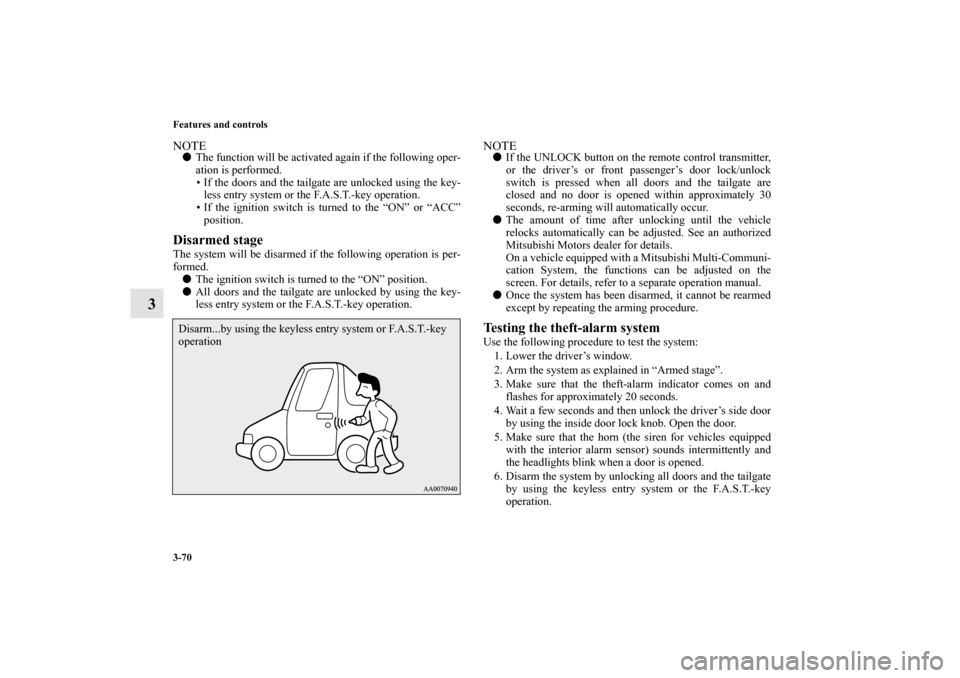

position.Disarmed stageThe system will be disarmed if the following operation is per-
formed.
The ignition switch is turned to the “ON” position.
All doors and the tailgate are unlocked by using the key-
less entry system or the F.A.S.T.-key operation.
NOTEIf the UNLOCK button on the remote control transmitter,
or the driver’s or front passenger’s door lock/unlock
switch is pressed when all doors and the tailgate are
closed and no door is opened within approximately 30
seconds, re-arming will automatically occur.
The amount of time after unlocking until the vehicle
relocks automatically can be adjusted. See an authorized
Mitsubishi Motors dealer for details.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Once the system has been disarmed, it cannot be rearmed
except by repeating the arming procedure.Testing the theft-alarm systemUse the following procedure to test the system:
1. Lower the driver’s window.
2. Arm the system as explained in “Armed stage”.
3. Make sure that the theft-alarm indicator comes on and
flashes for approximately 20 seconds.
4. Wait a few seconds and then unlock the driver’s side door
by using the inside door lock knob. Open the door.
5. Make sure that the horn (the siren for vehicles equipped
with the interior alarm sensor) sounds intermittently and
the headlights blink when a door is opened.
6. Disarm the system by unlocking all doors and the tailgate
by using the keyless entry system or the F.A.S.T.-key
operation.
Disarm...by using the keyless entry system or F.A.S.T.-key
operationBK0122500US.book 70 ページ ２０１０年５月１２日 水曜日 午前１１時１１分
Page 249 of 714
3-134 Features and controls
3

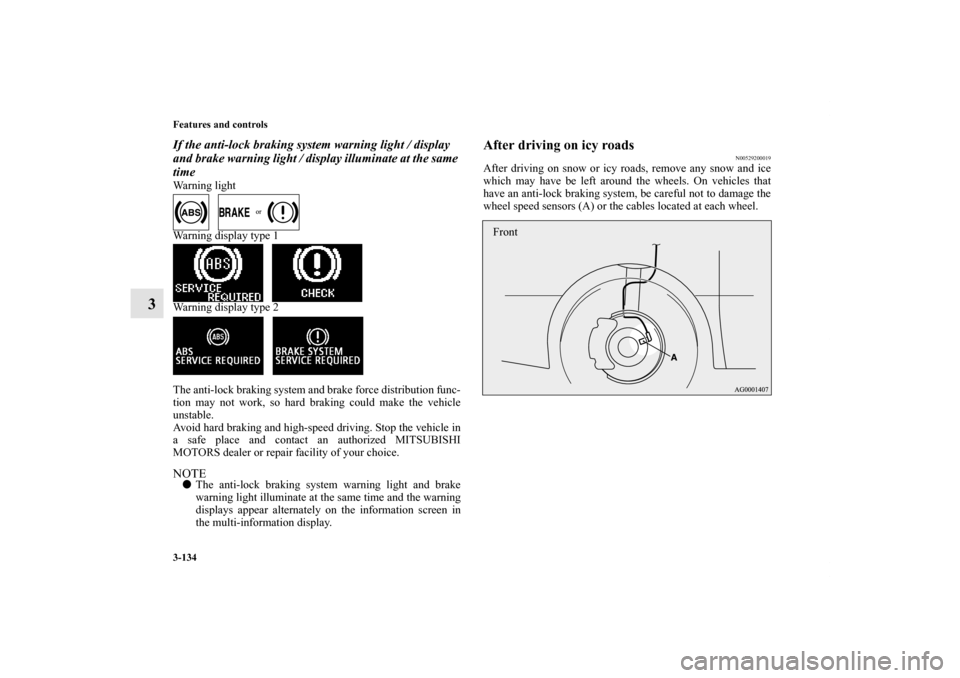

If the anti-lock braking system warning light / display
and brake warning light / display illuminate at the same
timeWarning light
Warning display type 1
Warning display type 2
The anti-lock braking system and brake force distribution func-
tion may not work, so hard braking could make the vehicle
unstable.
Avoid hard braking and high-speed driving. Stop the vehicle in
a safe place and contact an authorized MITSUBISHI
MOTORS dealer or repair facility of your choice.NOTEThe anti-lock braking system warning light and brake
warning light illuminate at the same time and the warning
displays appear alternately on the information screen in
the multi-information display.
After driving on icy roads
N00529200019
After driving on snow or icy roads, remove any snow and ice
which may have be left around the wheels. On vehicles that
have an anti-lock braking system, be careful not to damage the
wheel speed sensors (A) or the cables located at each wheel.Front
BK0122500US.book 134 ページ ２０１０年５月１２日 水曜日 午前１１時１１分
Page 264 of 714
Features and controls
3-149
3 Tire pressure monitoring system
N00530200312

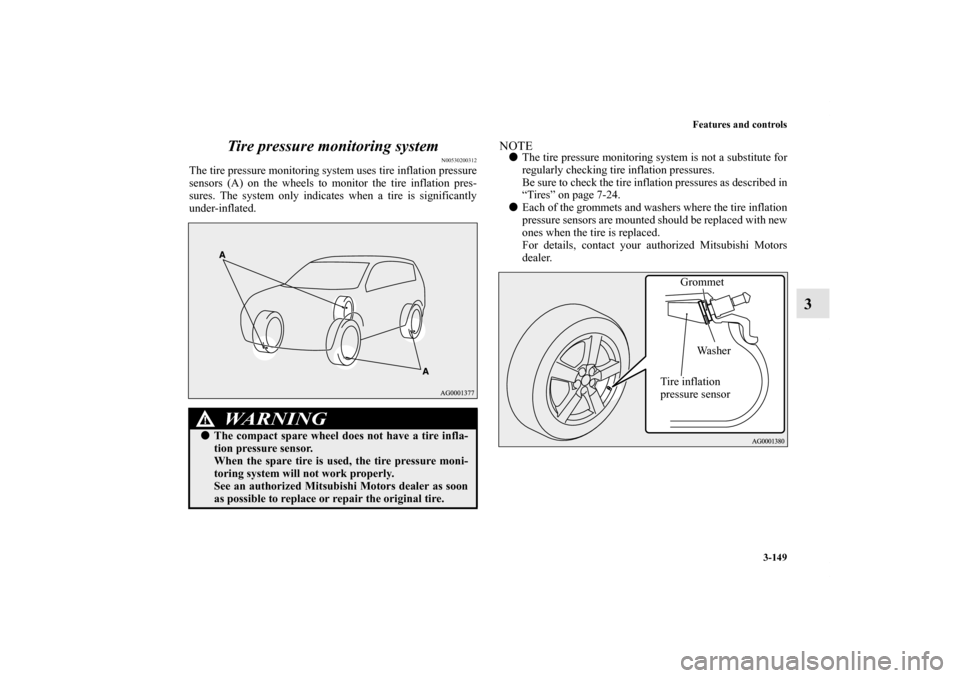

The tire pressure monitoring system uses tire inflation pressure
sensors (A) on the wheels to monitor the tire inflation pres-
sures. The system only indicates when a tire is significantly
under-inflated.
NOTEThe tire pressure monitoring system is not a substitute for
regularly checking tire inflation pressures.
Be sure to check the tire inflation pressures as described in
“Tires” on page 7-24.
Each of the grommets and washers where the tire inflation
pressure sensors are mounted should be replaced with new
ones when the tire is replaced.
For details, contact your authorized Mitsubishi Motors
dealer.
WA R N I N G
!The compact spare wheel does not have a tire infla-
tion pressure sensor.
When the spare tire is used, the tire pressure moni-
toring system will not work properly.
See an authorized Mitsubishi Motors dealer as soon
as possible to replace or repair the original tire.
Grommet
Tire inflation
pressure sensorWa s h e r
BK0122500US.book 149 ページ ２０１０年５月１２日 水曜日 午前１１時１１分
Page 267 of 714
3-152 Features and controls
3

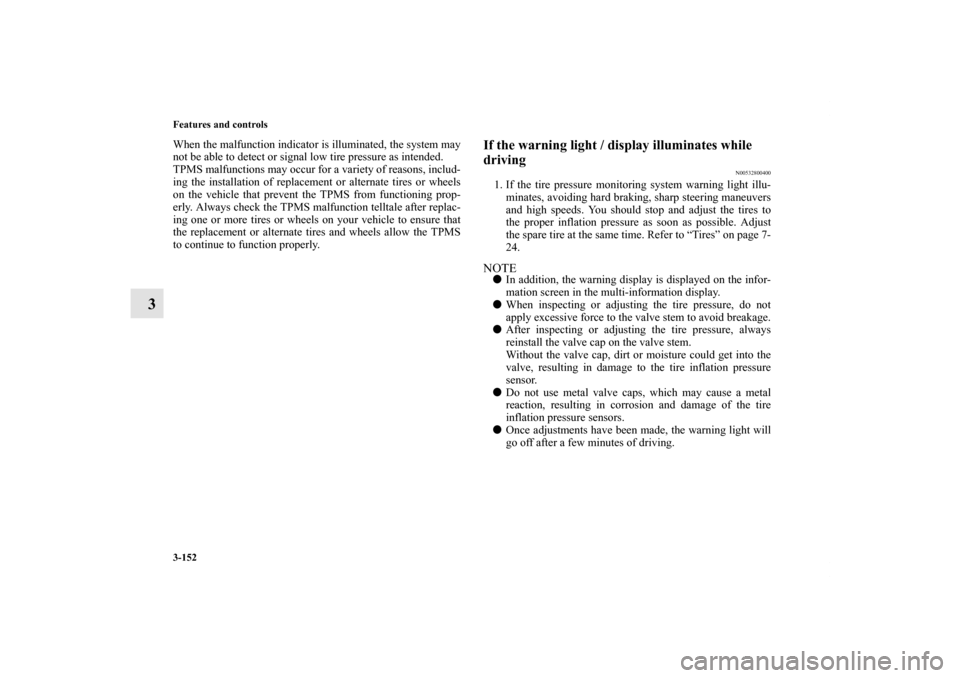

When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, includ-
ing the installation of replacement or alternate tires or wheels
on the vehicle that prevent the TPMS from functioning prop-
erly. Always check the TPMS malfunction telltale after replac-
ing one or more tires or wheels on your vehicle to ensure that
the replacement or alternate tires and wheels allow the TPMS
to continue to function properly.
If the warning light / display illuminates while
driving
N00532800400
1. If the tire pressure monitoring system warning light illu-
minates, avoiding hard braking, sharp steering maneuvers
and high speeds. You should stop and adjust the tires to
the proper inflation pressure as soon as possible. Adjust
the spare tire at the same time. Refer to “Tires” on page 7-
24.NOTEIn addition, the warning display is displayed on the infor-
mation screen in the multi-information display.
When inspecting or adjusting the tire pressure, do not
apply excessive force to the valve stem to avoid breakage.
After inspecting or adjusting the tire pressure, always
reinstall the valve cap on the valve stem.
Without the valve cap, dirt or moisture could get into the
valve, resulting in damage to the tire inflation pressure
sensor.
Do not use metal valve caps, which may cause a metal
reaction, resulting in corrosion and damage of the tire
inflation pressure sensors.
Once adjustments have been made, the warning light will
go off after a few minutes of driving.
BK0122500US.book 152 ページ ２０１０年５月１２日 水曜日 午前１１時１１分
Page 268 of 714
Features and controls
3-153
3
2. If the tire pressure monitoring system warning light
remains illuminated after you have been driving for about
20 minutes after you adjust the tire inflation pressure, one
or more of the tires may have a puncture. Inspect the tire
and if it has a puncture, have it repaired by an authorized
Mitsubishi Motors dealer as soon as possible.
NOTETo avoid the risk of damage to the tire inflation pressure
sensors, have any punctured tire repaired by an authorized
Mitsubishi Motors dealer. If the tire repair is not done by
an authorized Mitsubishi Motors dealer, it is not covered
by your warranty.
Do not use an aerosol puncture-repair spray on any tire.
Such a spray could damage the tire inflation pressure sen-
sors.
Have any puncture repaired by an authorized Mitsubishi
Motors dealer.
The tire pressure monitoring system may not work normally in
the following circumstances:
A wireless facility or device using the same frequency is
near the vehicle.
Snow or ice is stuck inside the fenders and/or on the
wheels.
The tire inflation pressure sensor’s battery is dead.
Wheels other than Mitsubishi genuine wheels are being
used.
Wheels that are not fitted with tire inflation pressure sen-
sors are being used.
Wheels whose ID codes are not memorized by the vehicle
are used.
Compact spare tire is fitted on a road wheel.
A window tint that affects the radio wave signals is
installed.
WA R N I N G
!If the warning light / display illuminates while you
are driving, avoid hard braking, sharp steering
maneuvers and high speeds.
Driving with an under-inflated tire adversely affects
vehicle performance and can result in an accident.
CAUTION
!If a tire has a puncture, replace that tire with the
spare tire. Driving on a punctured tire could lead to
an accident.The warning light / display may not illuminate
immediately in the event of a tire blowout or rapid
leak.
BK0122500US.book 153 ページ ２０１０年５月１２日 水曜日 午前１１時１１分
Page 269 of 714
3-154 Features and controls
3
NOTETire inflation pressures vary with the ambient tempera-
ture. If the vehicle is subjected to large variations in ambi-
ent temperature, the tire inflation pressures may be under-
inflated (causing the warning light / display come on)
when the ambient temperature is relatively low. If the
warning light / display comes on, adjust the tire inflation
pressure.Whenever the tires and wheels are replaced with
new ones
N00532900081
If new wheels with new tire inflation pressure sensors are
installed, their ID codes must be programmed into the tire pres-
sure monitoring system. Have tire and wheel replacement per-
formed by an authorized Mitsubishi Motors dealer to avoid the
risk of damaging the tire inflation pressure sensors. If the
wheel replacement is not done by an authorized Mitsubishi
Motors dealer, it is not covered by your warranty.
General information
N00533000180
Your tire pressure monitoring system operates on a radio fre-
quency subject to Federal Communications Commission
(FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada
Rules (For vehicles sold in Canada). This device complies with
Part 15 of the FCC Rules and RSS-Gen of the Industry Canada
Rules.
Operation is subject to the following two conditions.
This device may not cause harmful interference.
This device must accept any interference received, includ-
ing interference that may cause undesired operation.
CAUTION
!The use of non-genuine wheels will prevent the
proper fit of the tire inflation pressure sensors,
resulting air leakage or damage of the sensors.
CAUTION
!Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0122500US.book 154 ページ ２０１０年５月１２日 水曜日 午前１１時１１分
