MITSUBISHI OUTLANDER 2011 2.G Owners Manual

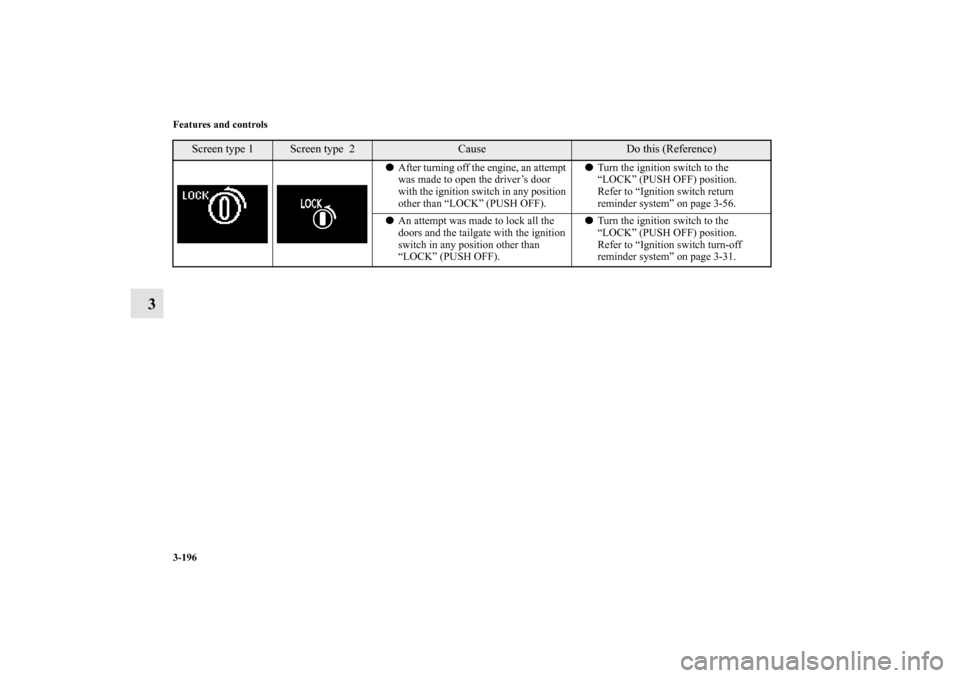

3-196 Features and controls
3

After turning off the engine, an attempt
was made to open the driver’s door
with the ignition switch in any position
other than “LOCK” (PUSH OFF).
Turn the ignition switch to the
“LOCK” (PUSH OFF) position.
Refer to “Ignition switch return
reminder system” on page 3-56.

An attempt was made to lock all the
doors and the tailgate with the ignition
switch in any position other than
“LOCK” (PUSH OFF).
Turn the ignition switch to the
“LOCK” (PUSH OFF) position.
Refer to “Ignition switch turn-off
reminder system” on page 3-31.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0122500US.book 196 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

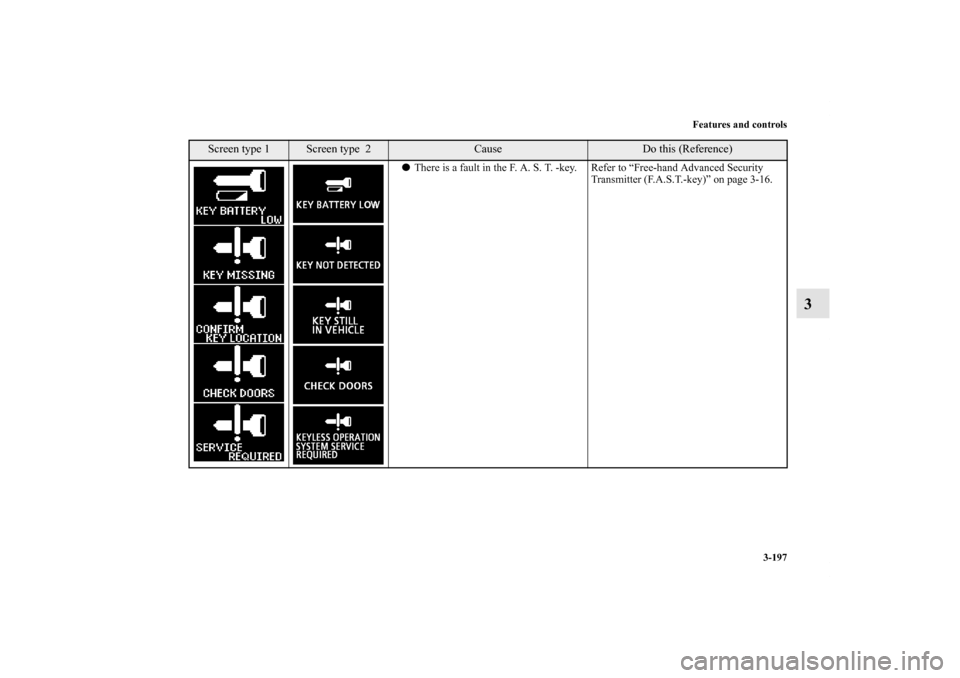

Features and controls
3-197
3

There is a fault in the F. A. S. T. -key. Refer to “Free-hand Advanced Security
Transmitter (F.A.S.T.-key)” on page 3-16.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0122500US.book 197 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

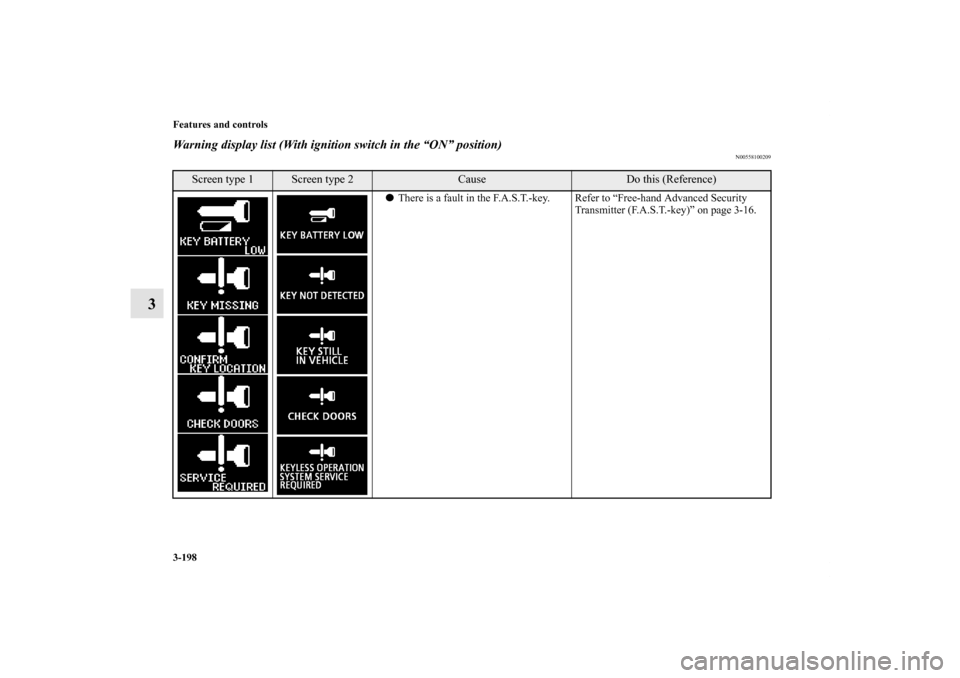

3-198 Features and controls
3
Warning display list (With ignition switch in the “ON” position)
N00558100209
Screen type 1
Screen type 2
Cause
Do this (Reference)

There is a fault in the F.A.S.T.-key. Refer to “Free-hand Advanced Security
Transmitter (F.A.S.T.-key)” on page 3-16.
BK0122500US.book 198 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

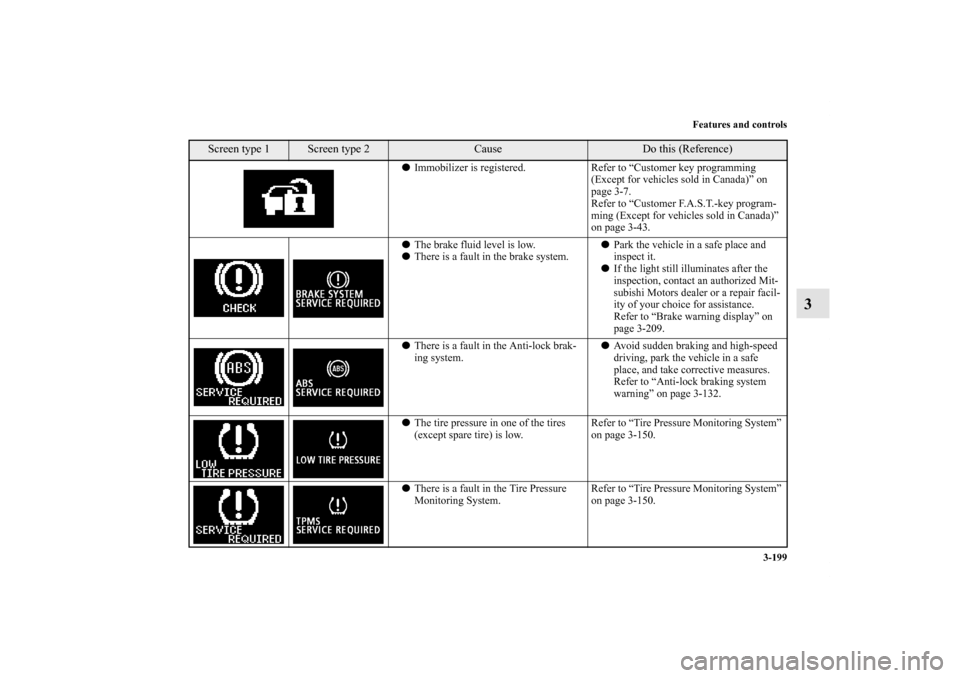

Features and controls
3-199
3

Immobilizer is registered. Refer to “Customer key programming
(Except for vehicles sold in Canada)” on
page 3-7.
Refer to “Customer F.A.S.T.-key program-
ming (Except for vehicles sold in Canada)”
on page 3-43.

The brake fluid level is low.

There is a fault in the brake system.
Park the vehicle in a safe place and
inspect it.

If the light still illuminates after the
inspection, contact an authorized Mit-
subishi Motors dealer or a repair facil-
ity of your choice for assistance.
Refer to “Brake warning display” on
page 3-209.

There is a fault in the Anti-lock brak-
ing system.
Avoid sudden braking and high-speed
driving, park the vehicle in a safe
place, and take corrective measures.
Refer to “Anti-lock braking system
warning” on page 3-132.

The tire pressure in one of the tires
(except spare tire) is low.Refer to “Tire Pressure Monitoring System”
on page 3-150.

There is a fault in the Tire Pressure
Monitoring System.Refer to “Tire Pressure Monitoring System”
on page 3-150.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0122500US.book 199 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

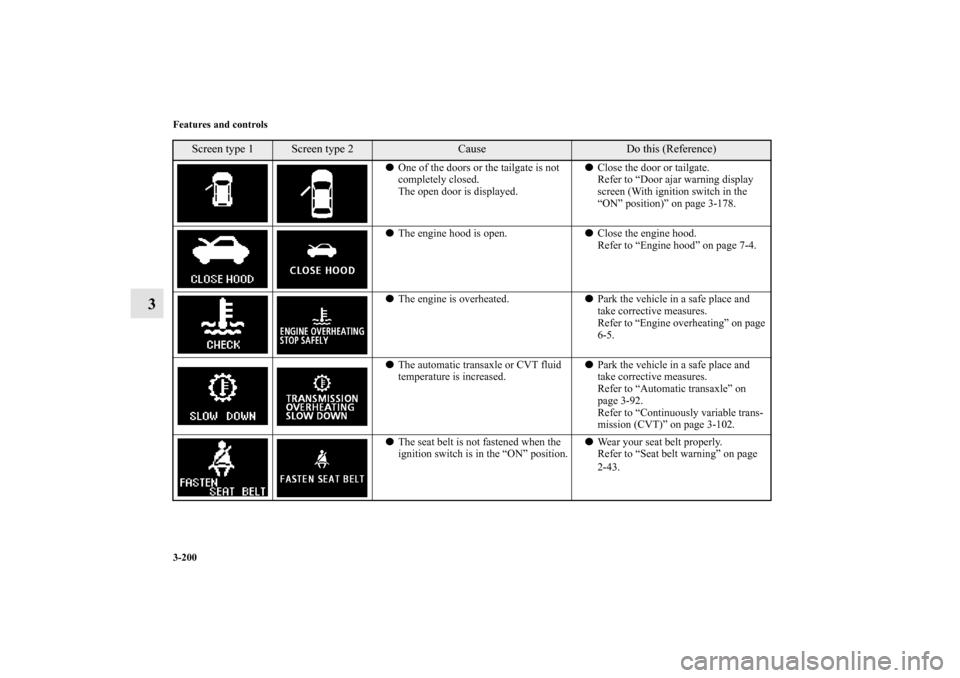

3-200 Features and controls
3

One of the doors or the tailgate is not
completely closed.
The open door is displayed.
Close the door or tailgate.
Refer to “Door ajar warning display
screen (With ignition switch in the
“ON” position)” on page 3-178.

The engine hood is open.
Close the engine hood.
Refer to “Engine hood” on page 7-4.

The engine is overheated.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Engine overheating” on page
6-5.

The automatic transaxle or CVT fluid
temperature is increased.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Automatic transaxle” on
page 3-92.
Refer to “Continuously variable trans-
mission (CVT)” on page 3-102.

The seat belt is not fastened when the
ignition switch is in the “ON” position.
Wear your seat belt properly.
Refer to “Seat belt warning” on page
2-43.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0122500US.book 200 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

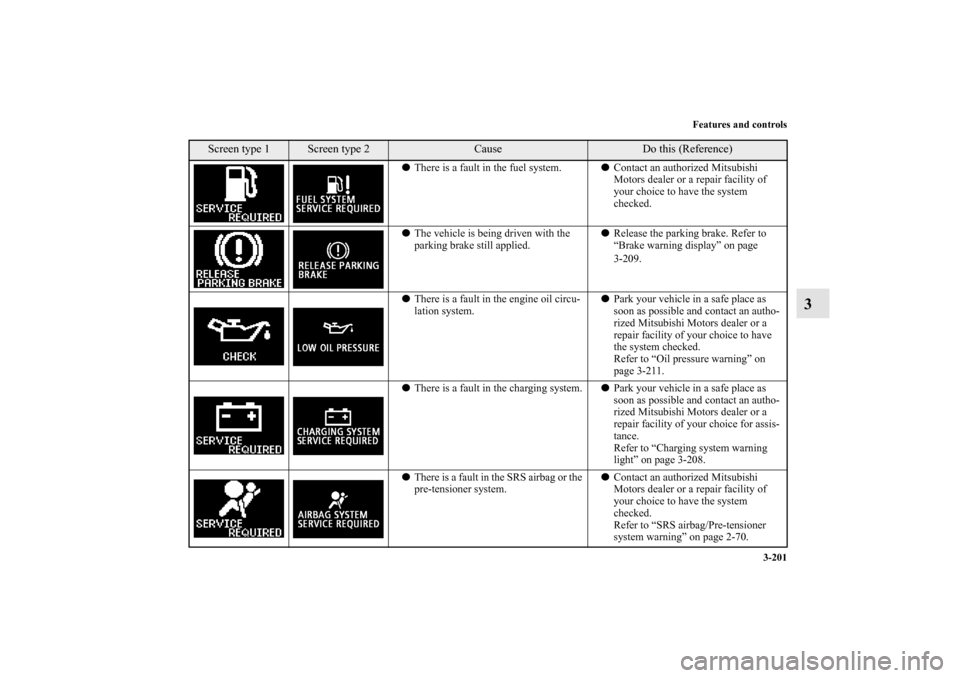

Features and controls
3-201
3

There is a fault in the fuel system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.

The vehicle is being driven with the
parking brake still applied.
Release the parking brake. Refer to
“Brake warning display” on page
3-209.

There is a fault in the engine oil circu-
lation system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
Refer to “Oil pressure warning” on
page 3-211.

There is a fault in the charging system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice for assis-
tance.
Refer to “Charging system warning
light” on page 3-208.

There is a fault in the SRS airbag or the
pre-tensioner system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “SRS airbag/Pre-tensioner
system warning” on page 2-70.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0122500US.book 201 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

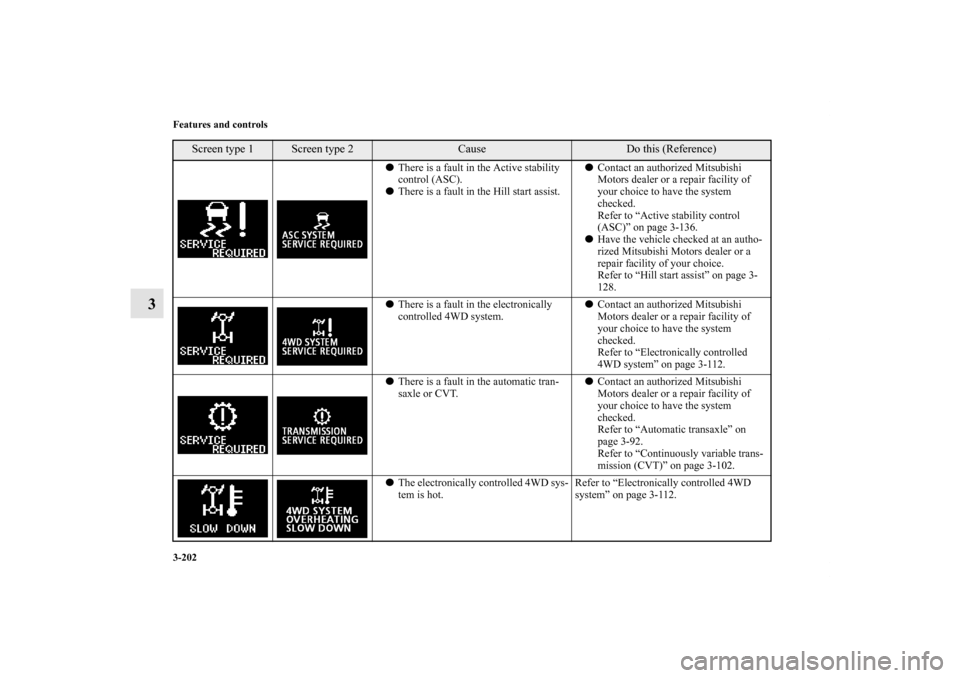

3-202 Features and controls
3

There is a fault in the Active stability
control (ASC).

There is a fault in the Hill start assist.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Active stability control
(ASC)” on page 3-136.

Have the vehicle checked at an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice.
Refer to “Hill start assist” on page 3-
128.

There is a fault in the electronically
controlled 4WD system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Electronically controlled
4WD system” on page 3-112.

There is a fault in the automatic tran-
saxle or CVT.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Automatic transaxle” on
page 3-92.
Refer to “Continuously variable trans-
mission (CVT)” on page 3-102.

The electronically controlled 4WD sys-
tem is hot.Refer to “Electronically controlled 4WD
system” on page 3-112.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0122500US.book 202 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

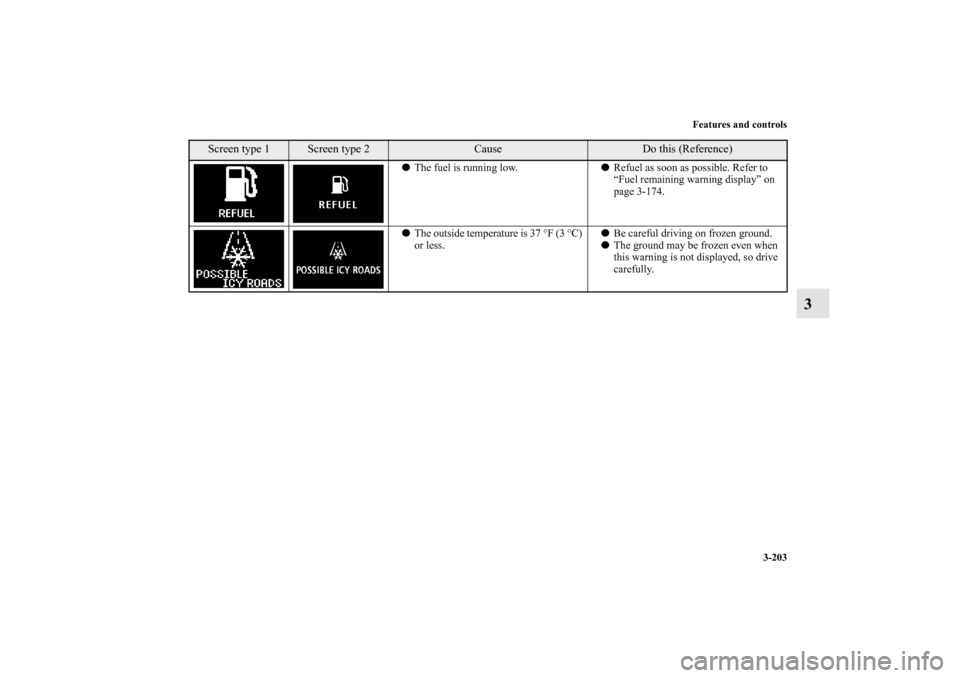

Features and controls
3-203
3

The fuel is running low.
Refuel as soon as possible. Refer to
“Fuel remaining warning display” on
page 3-174.

The outside temperature is 37 °F (3 °C)
or less.
Be careful driving on frozen ground.

The ground may be frozen even when
this warning is not displayed, so drive
carefully.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0122500US.book 203 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

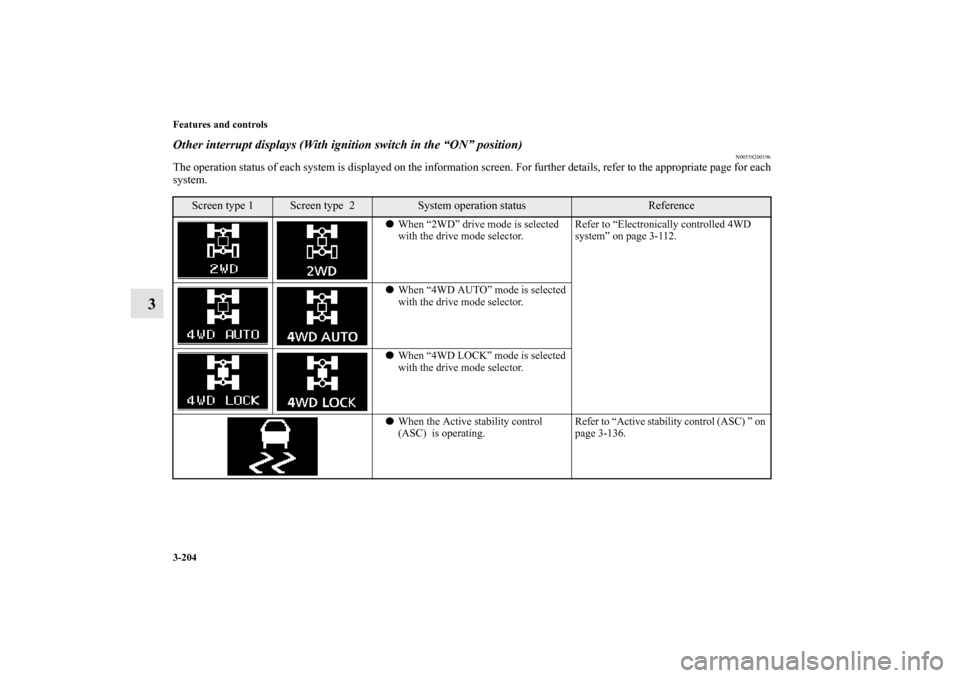

3-204 Features and controls
3
Other interrupt displays (With ignition switch in the “ON” position)
N00558200196
The operation status of each system is displayed on the information screen. For further details, refer to the appropriate page for each
system.
Screen type 1
Screen type 2
System operation status
Reference

When “2WD” drive mode is selected
with the drive mode selector.Refer to “Electronically controlled 4WD
system” on page 3-112.

When “4WD AUTO” mode is selected
with the drive mode selector.

When “4WD LOCK” mode is selected
with the drive mode selector.

When the Active stability control
(ASC) is operating.Refer to “Active stability control (ASC) ” on
page 3-136.
BK0122500US.book 204 ページ ２０１０年５月１２日　水曜日　午前１１時１１分

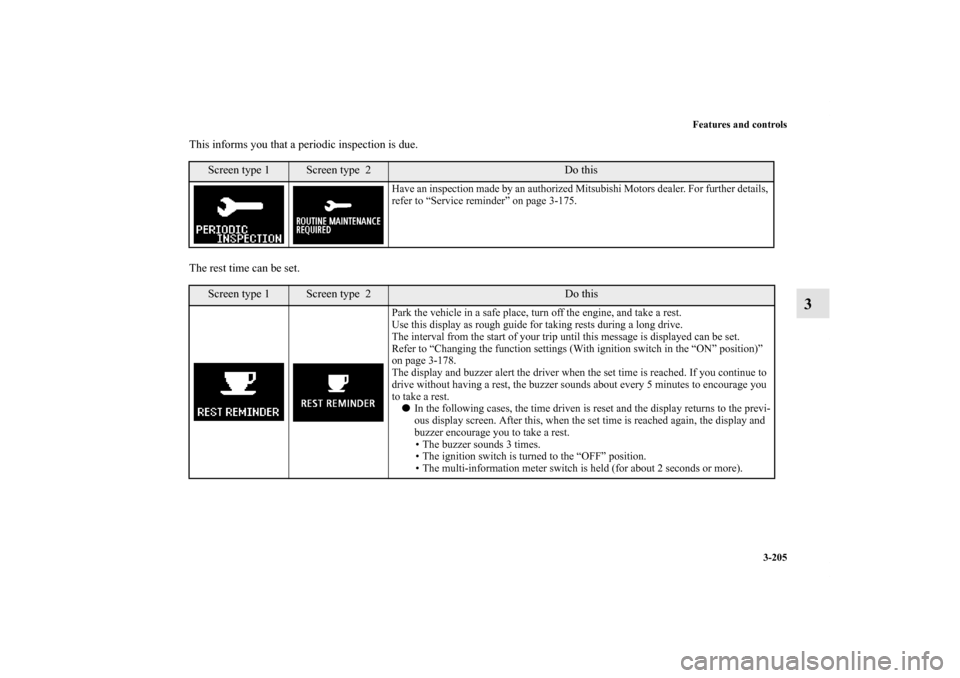

Features and controls
3-205
3
This informs you that a periodic inspection is due.
The rest time can be set.
Screen type 1
Screen type 2
Do this
Have an inspection made by an authorized Mitsubishi Motors dealer. For further details,
refer to “Service reminder” on page 3-175.
Screen type 1
Screen type 2
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest.
Use this display as rough guide for taking rests during a long drive.
The interval from the start of your trip until this message is displayed can be set.
Refer to “Changing the function settings (With ignition switch in the “ON” position)”
on page 3-178.
The display and buzzer alert the driver when the set time is reached. If you continue to
drive without having a rest, the buzzer sounds about every 5 minutes to encourage you
to take a rest.

In the following cases, the time driven is reset and the display returns to the previ-
ous display screen. After this, when the set time is reached again, the display and
buzzer encourage you to take a rest.
• The buzzer sounds 3 times.
• The ignition switch is turned to the “OFF” position.
• The multi-information meter switch is held (for about 2 seconds or more).
